CPU Socket Dimension Information (standard LGA 115X):
From the outer edge of mounting screw diagonally to the outer edge of mounting screw - 113mm

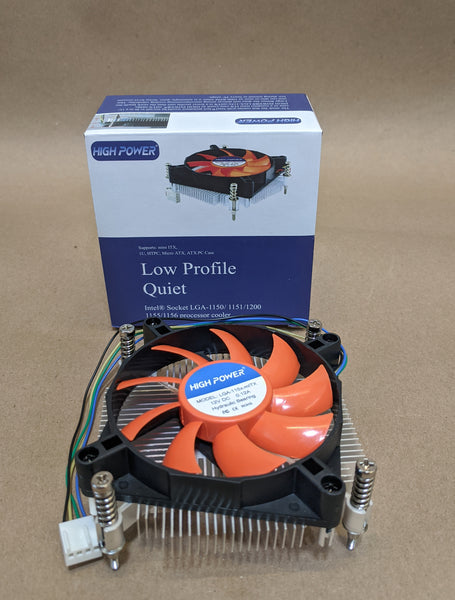

HIGH POWER® LGA-115x-mITX has a height clearance of only 26.95mm to fit in mini ITX & 1U cases. Although it is lower profile than the stock Intel fan, its large 80mm fan delivers cooling capability that is not compromised. Set your BIOS to silent mode will enable the fan to start spinning at around 1100 RPM when it would be amazingly quiet. Noise level remains to be acceptably low during normal system operation.
LGA 1156/1155/1150/1151
- Supports: Intel® Socket : LGA 1156/1155/1150/1120, Intel® Core™ i3, i5, i7, i9
- 4pin PWM Power Connector
- 12V DC @ 0.12A
- TDP: 85W
- Quiet Hydraulic Bearing Fan
- FCC & CE Compliance

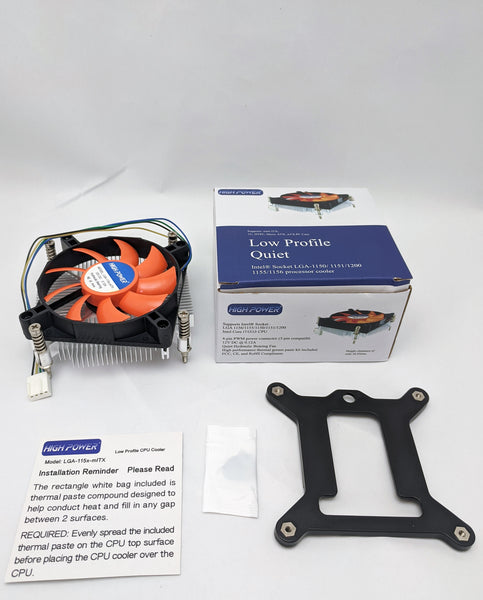

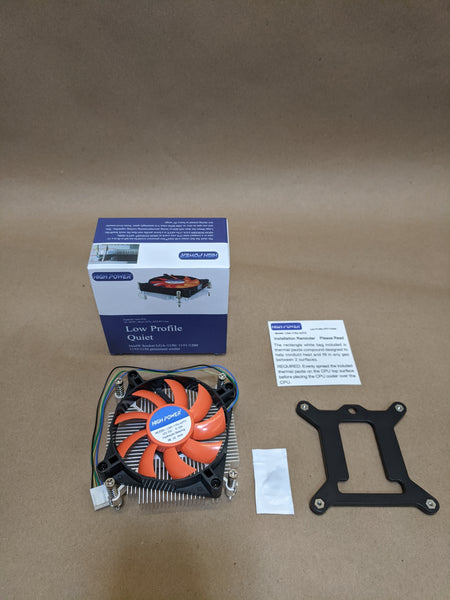

Kit Content:
- Quiet 80mm cooling fan and aluminum heat-sink assembly
- Motherboard back plate
- Thermal paste
Specifications:
|
Dimension
|
Length and Width: 91.99 x 91.99 mm
Height: 26.95 mm Unmounted fan kit height including the screw length: 37mm |
|
Heat Sink Material
|
Aluminum
|
|
Heat Sink Weight
|
105g
|
|
Fan Dimension
|
80×80×15 mm
|
|
Fan Speed
|
1000-3000 RPM ± 10%
|
|
Fan Airflow
|
10.23-28.19 CFM ± 10%
|
|
Fan Air Pressure
|
0.79 - 4.42 mm H2O ± 10%
|
|
Bearing Type
|
Hydraulic
|
|
Fan Life Expectancy
|
40,000 hours
|
|
Fan Noise Level
|
13.9-28.1 dBA
|
|
Connector
|
4-pin PWM
|
|
Weight
|
149g |
