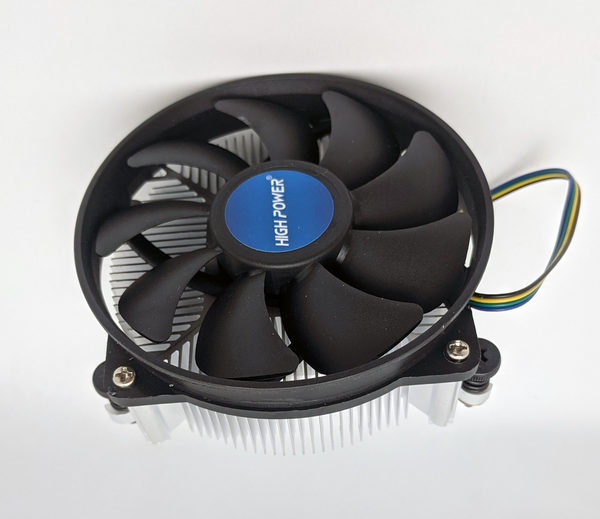

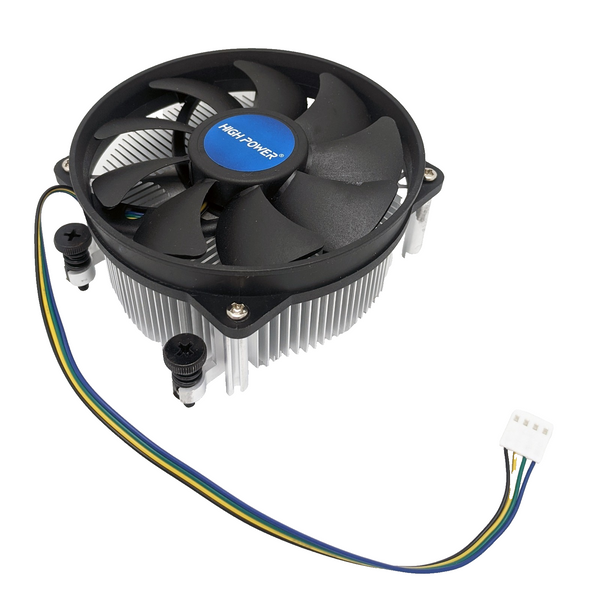

HIGH POWER® BlackAM5 AMD CPU cooler
has a height clearance of only 43mm to fit in mini ITX, HTPC, and 2U cases. Although it is lower profile than the stock AMD fan, its large 95mm fan delivers cooling capability that is not compromised. Set your BIOS to silent mode will enable the fan to start spinning at around 1000 RPM when it would be amazingly quiet. Noise level remains to be acceptably low during normal system operation.

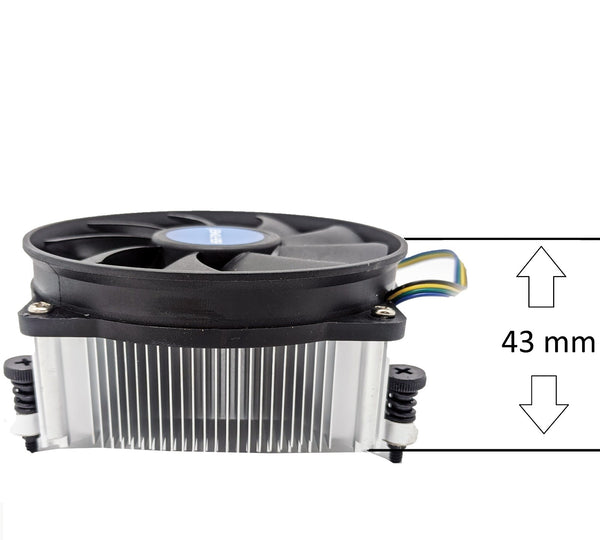

Height from the processor contact point to the top of the fan is only 43mm (about 10mm shorter than stock AMD Wraith Stealth fan)
It is designed to support a wide range of low profile SFF, HTPC, 2U, 4U, Mini ITX as well as standard mATX or ATX AMD AM4/AM5 PC systems.
High performance thermal grease bag is included to allow liberal application on top of the CPU
Advantage over stock AMD fan:
1. Fit in lower profile cases
2. Secure 4-screw mount vs less reliable clip-on mount
3. Larger 95mm cooling fan
Features:
Low Noise Air-Cool with 4-pin PWM Power Connector, 1000-3100 RPM Variable-Speed Motherboard (BIOS) Software Controlled
Secure Screw-Mount Direct to Gaming PC Motherboard's Back-plate, Replacing the Stock Plastic Clip-on Retention Brackets
TDP: 75W.
Compatible with AMD Ryzen 5 / 7 / 9 CPU, Socket AM4/AM5 processors.
High Performance Thermal Grease Bag Included to Allow Liberal Application on Top of the CPU
Backward Compatible with 3-pin Fan Header Desktop Computer Mainboard.
Height from Processor Contact to Top of the Fan: 43mm
FCC, CE, and RoHS Compliance
Technical Details:
Fan Size: 95x95x15mm
Connector: 2510 4pin
Rated Voltage: 12 VDC
Rated Current: 0.15A
Rated Power Consumption: 1.8W
Fan Speed: 1000-3100 R.P.M.±10%
Air Flow: 14.1 - 42.5 CFM ±10%
Noise Level: 18 - 28.44dB (A) ±10%
