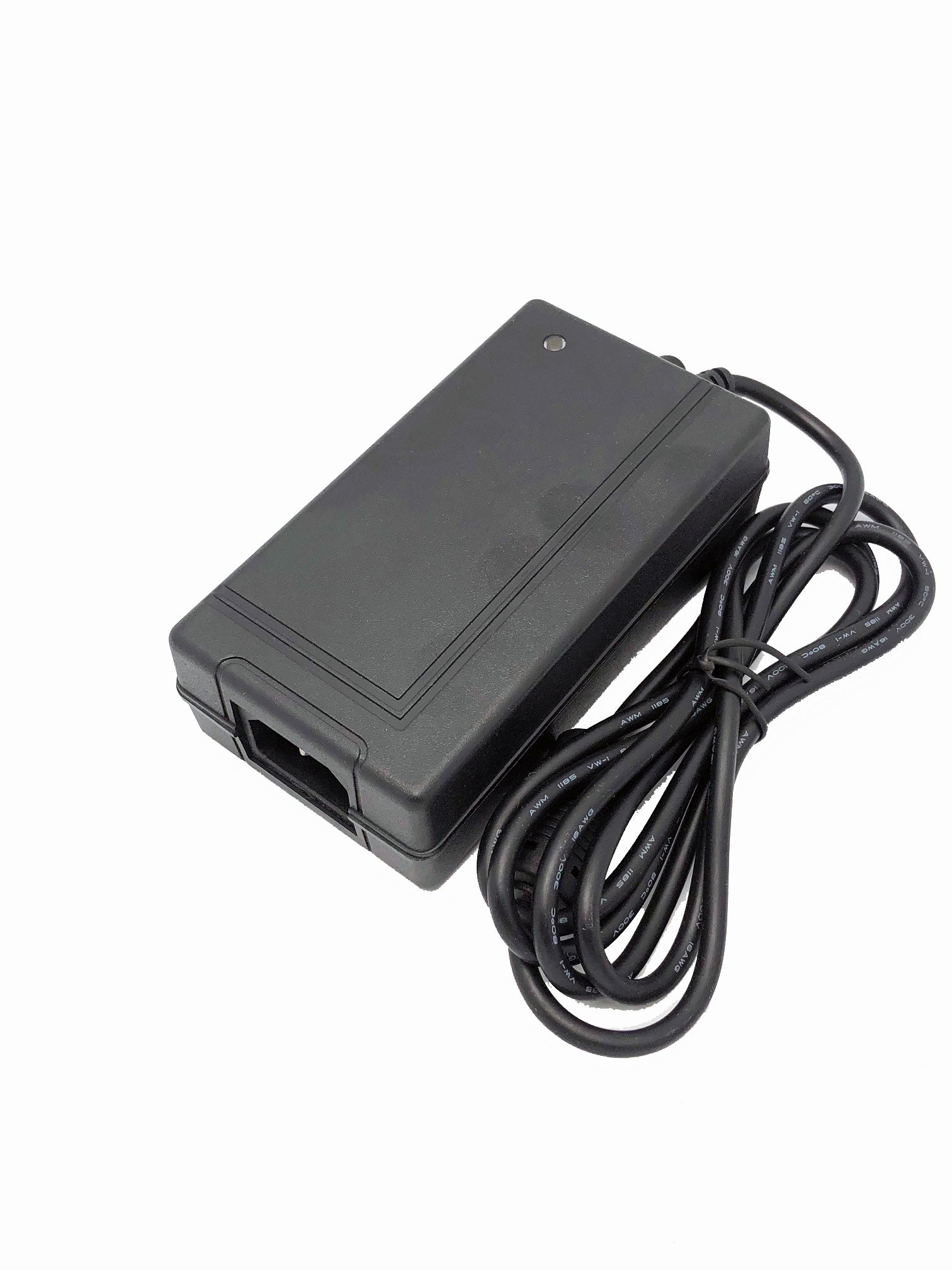

HIGH POWER® HPA-601250U3 REV:C0-A1 60W Energy-efficient Fanless LCD Monitor AC to 12V DC Adapter

Regular price $44.00

Replaced these outgoing
HIGH POWER^®models :

HPA-401234U3 C0-A1
HPA-401234U3 C0-A2
HPA-401234U3 C0-A8
HPA-401234U3 A12
HPA-501242U3 C0-A1
HPA-501242U3 C0-A2
HPA-501242U3 C0-A3
HPA-501242U3 C0-A8
Input: 90~264V AC
Input AC Inlet: IEC 320 3pin (Type C14) compatible with standard 3-prong computer power cord.
Output Voltage: 12V DC
Ratings: 5A (60W)
DC Cable length - 58.5" (148.5cm)
High efficiency switching technology with 85% typical efficiency
Idle no load power consumption is less than 0.5 Watt
CEC Efficiency Level: IV
Fanless AC adapter operates in total silence.

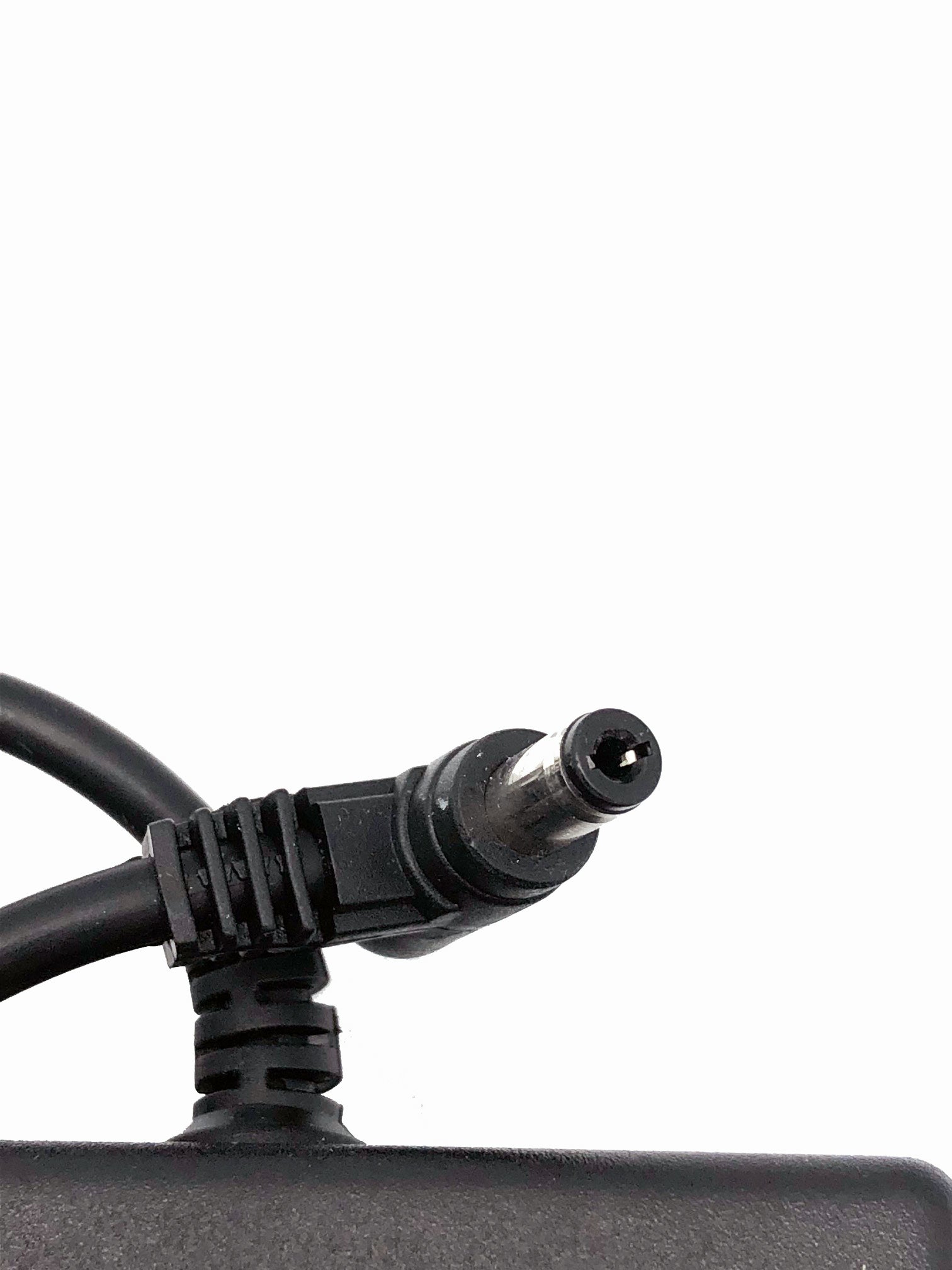

DC Jack Dimensions:

Inner diameter - 2.1mm
        Outer diameter - 5.5mm
        Plug length - 10.5mm.
        Plug type - 90-degree

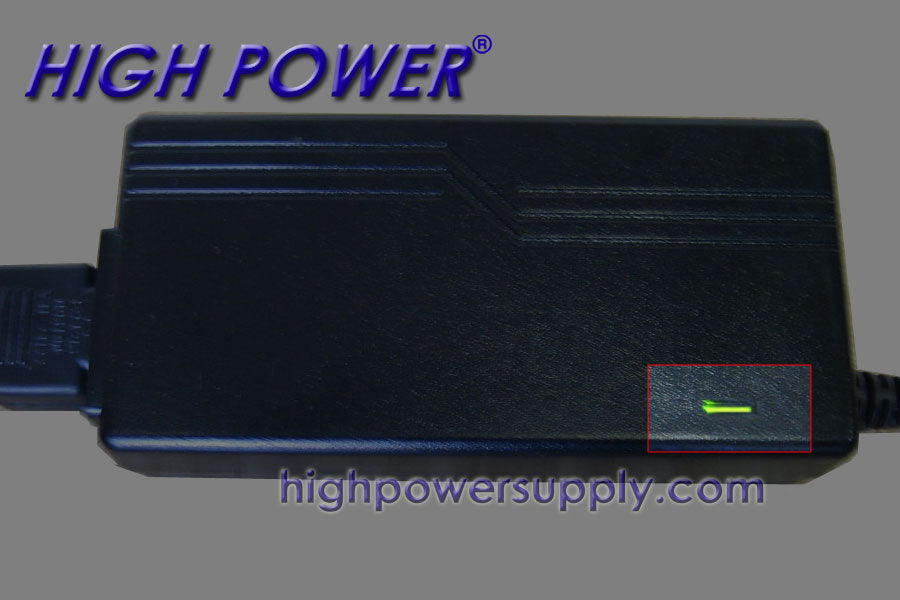

Built-in power status indicator

Green LED turns steady on when there is a reliable 12V DC output.

LED flashes when there is a problem found by the internal detection circuitry.

LED turns off when there is no power output or no power input

Specifications:
* Universal input 90VAC to 264Vac
* Single 12V output @ 5A
* High efficiency switching technology -- 85% typical
* Idle no load power consumption is less than 0.5 Watt
* Overload protection
* Short circuit protection
* Over temperature protection
* Power-saving
* 100% HI-POT tested
* 100% cycling BURN-IN
* 122(W)*30.5(H)*60(D)mm
* +- 5% Output Standard Deviation

Worldwide EMI & SAFETY APPROVAL:
Certified EMI standard: FCC Part 15 Class B / CISPR 22 Class B / VCCI Class B
UL 1950 3rd
CUL C22.2 NO.950-95
TUV-GS EN60950:1992+A1+A2+A3+A4+A11
CB IEC60950:1991+A1+A2+A3+A4
CE EN55022 EN61000 EN55024
NEMKO P02101284
JET
CCC
CNS D33081

HIGH POWER® HPA-601250U3 REV:C0-A1 60W Energy-efficient Fanless LCD Monitor AC to 12V DC Adapter
