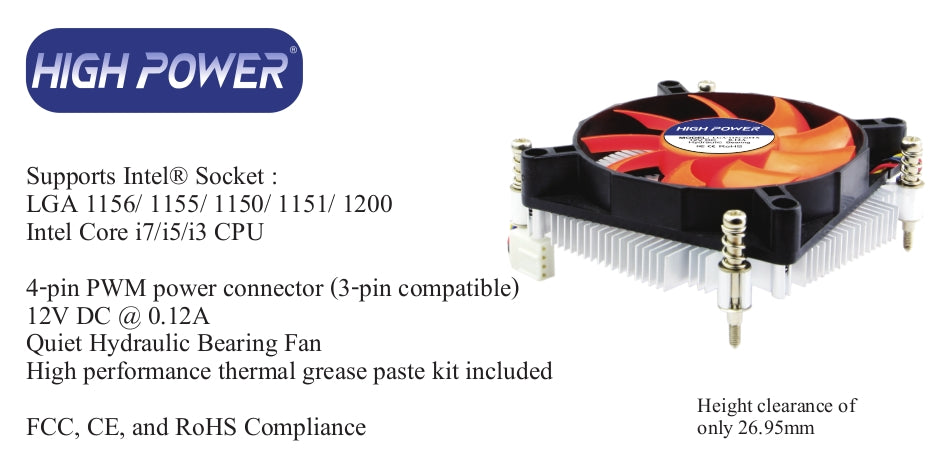

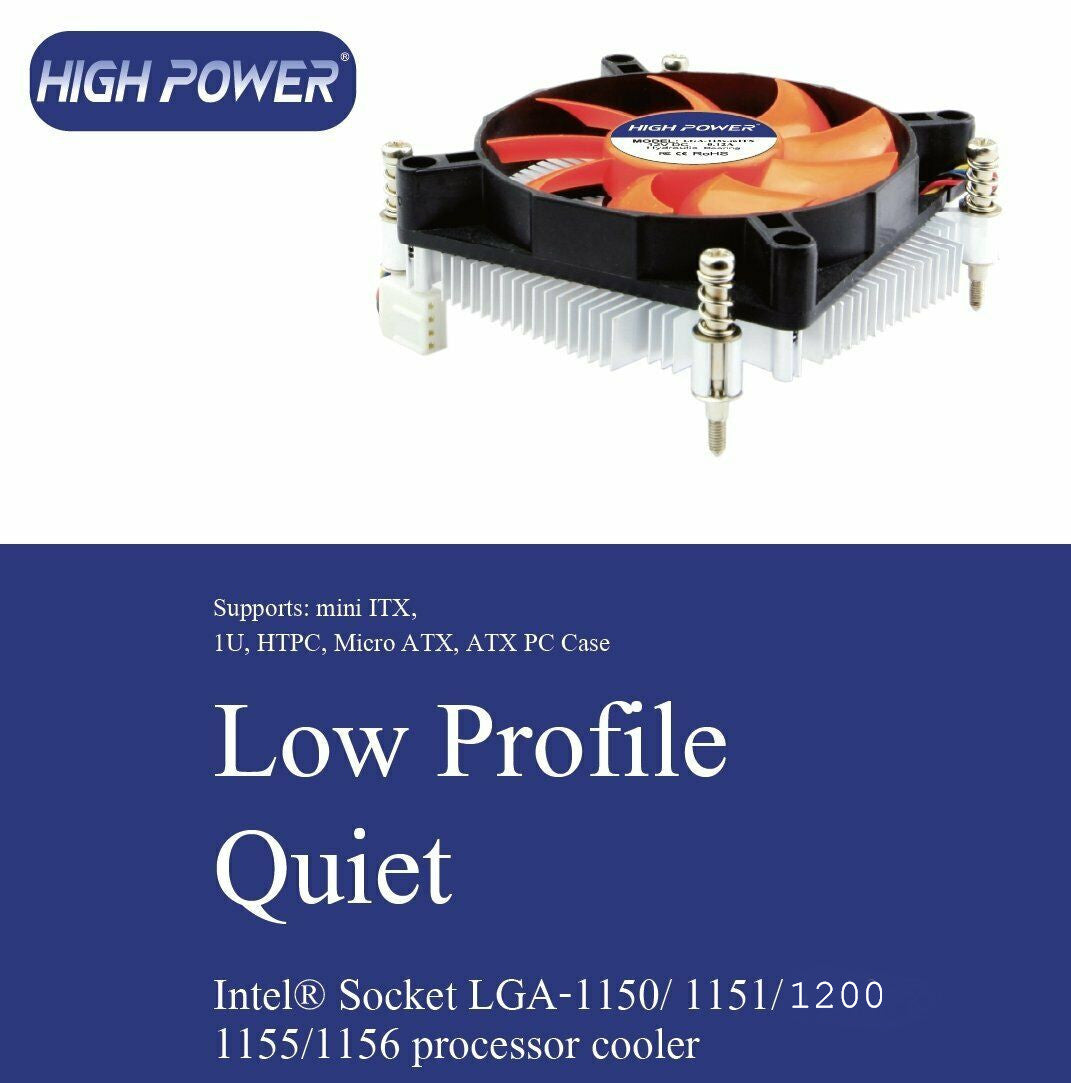

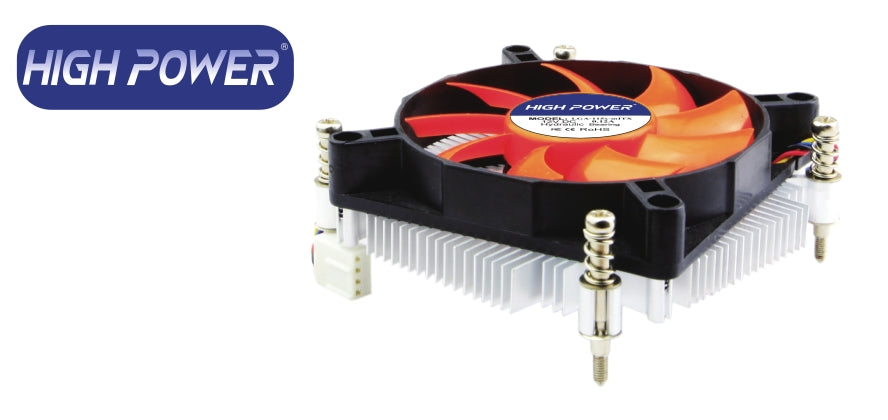

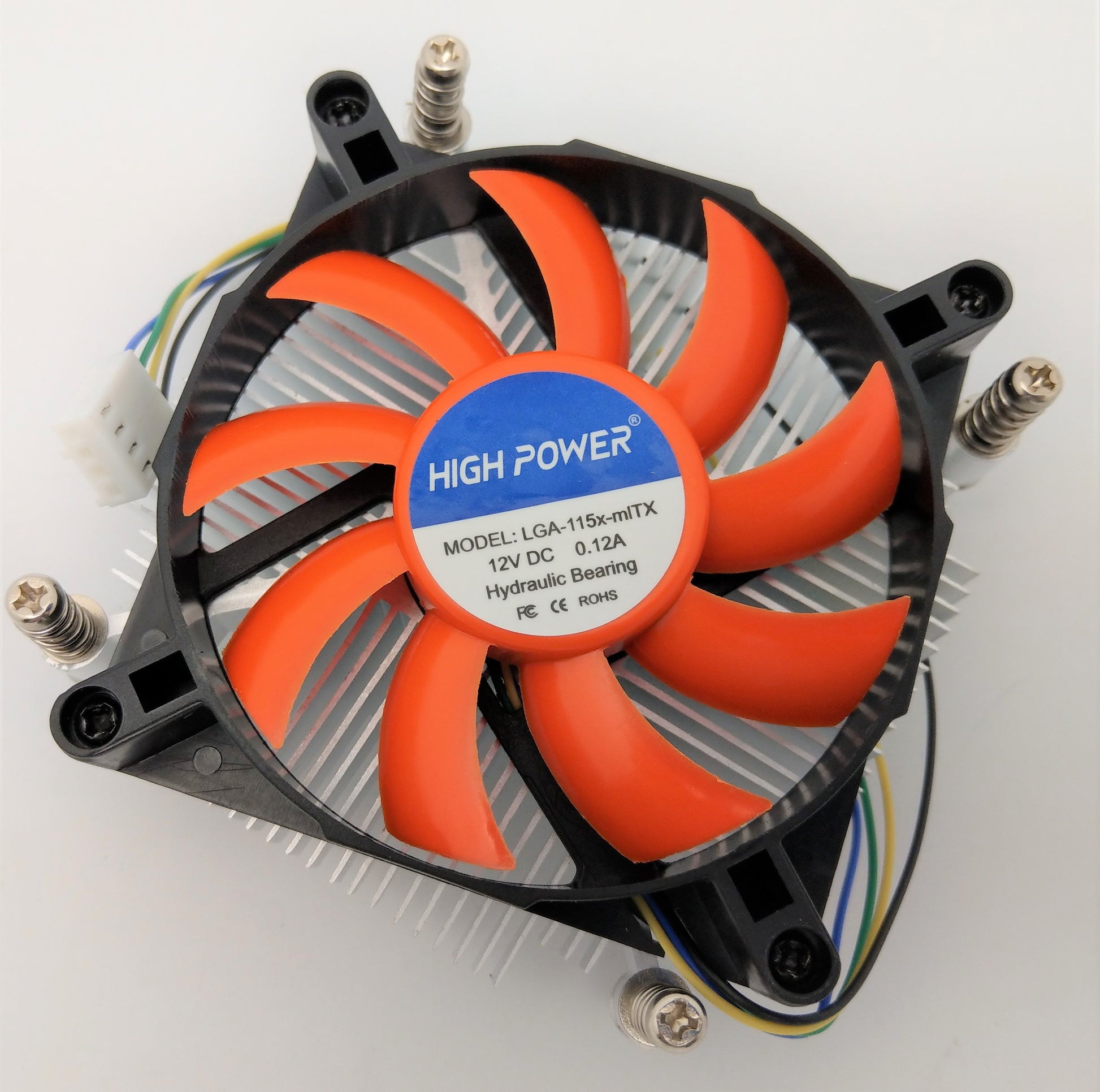

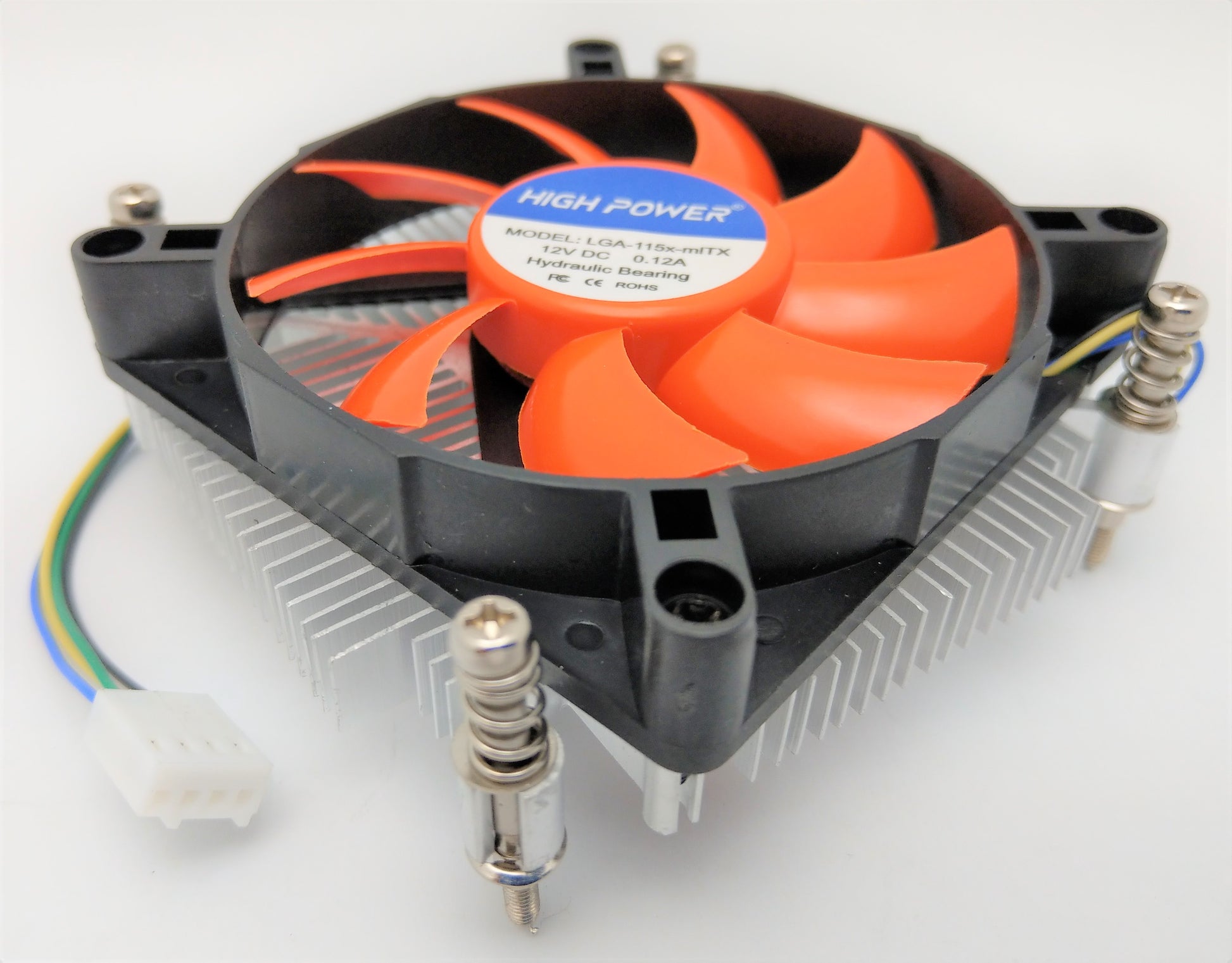

HIGH POWER® LGA-115x-mITX Low Profile Intel Processor Cooling Fan & Heat-sink LGA 1156/1155/1150/1151/1120

Regular price $25.00

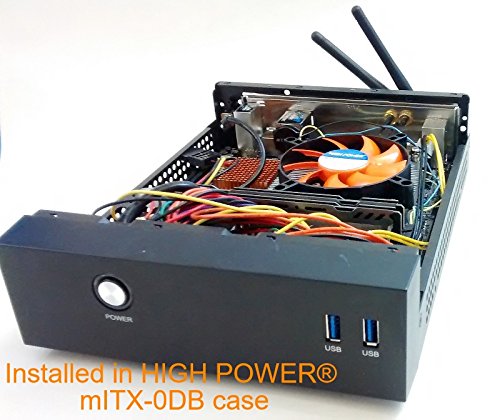

Designed to support HIGH POWER® Model: mITX-0DB silent mini ITX case, other compact mini ITX / micro ATX chassis, and 1U server cases.

The stock fan that comes with Intel box processor would be too tall to fit in a 1U case or a compact mini ITX case (such as HIGH POWER® mITX-0DB).

HIGH POWER® LGA-115x-mITX has a height clearance of only 26.95mm to fit in mini ITX & 1U cases.  Although it is lower profile than the stock Intel fan, its large 80mm fan delivers cooling capability that is not compromised.   Set your BIOS to silent mode will enable the fan to start spinning at around 1100 RPM when it would be amazingly quiet.   Noise level remains to be acceptably low during normal system operation.

Supports: Intel® Socket : LGA 1156/1155/1150/1151/1120,   Intel® Core™ i3, i5, i7, i9Supports: Intel® Socket : LGA 1156/1155/1150/1151/1120,   Intel® Core™ i3, i5, i7, i9
4pin PWM Power Connector

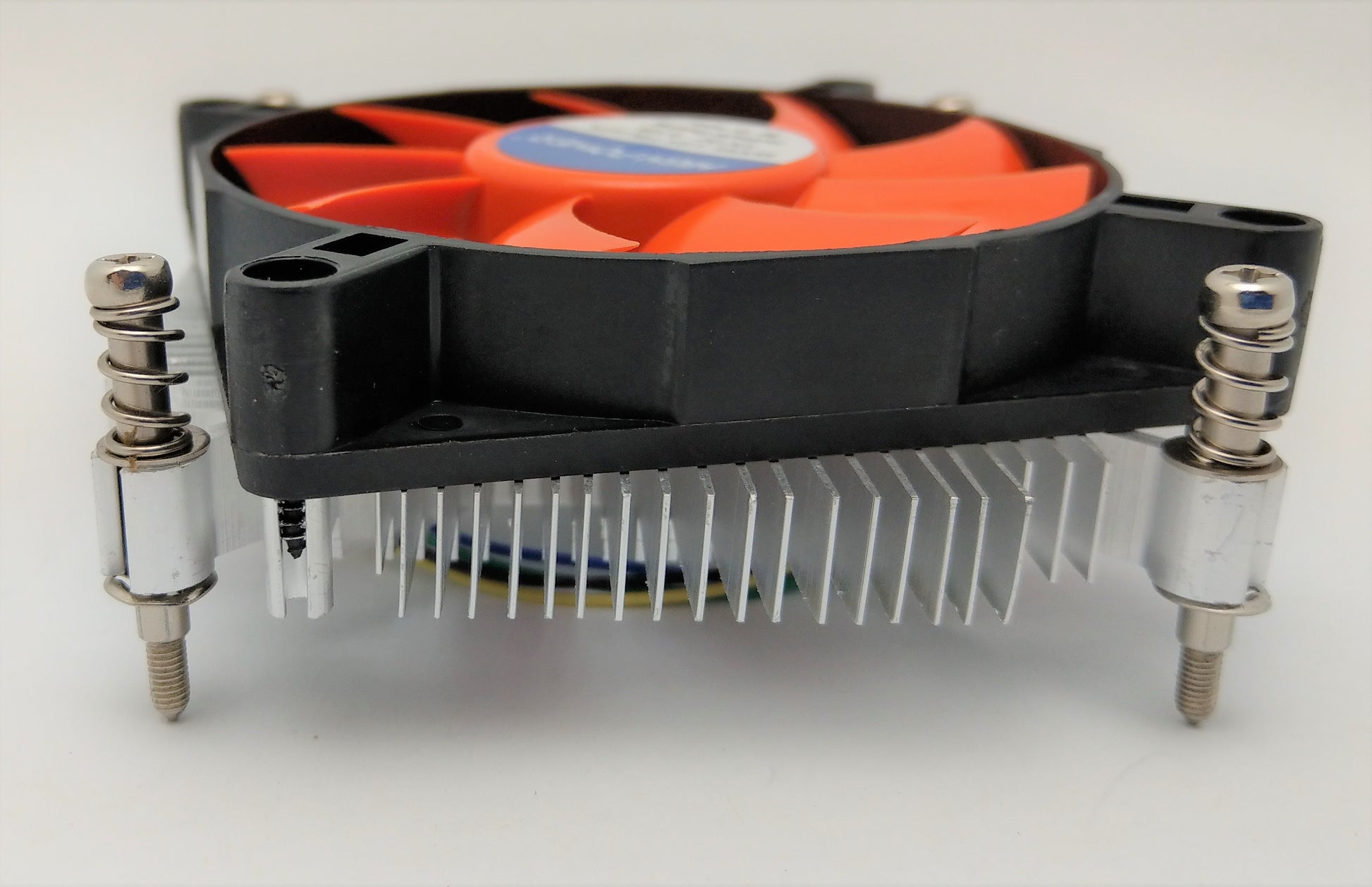

Low profile:  only 26.95mm from processor contact point to the top of the fan
12V DC @ 0.12A
TDP: 85W
Quiet Hydraulic Bearing Fan
FCC & CE and ROHS Compliance

CPU Socket Dimension Information (standard LGA 115x):

From the outer edge of mounting screw diagonally to the outer edge of mounting screw - 113mm

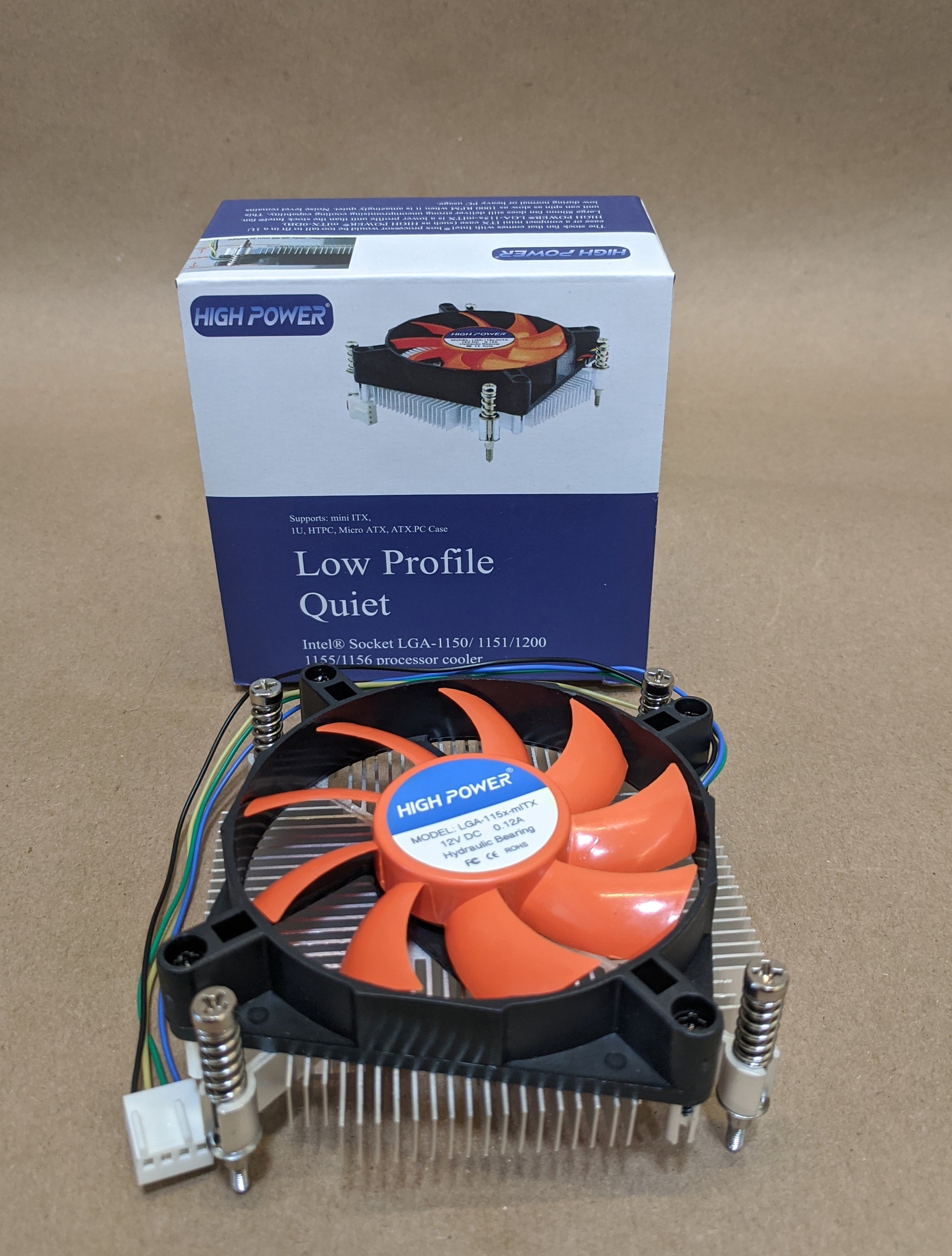

Content:

  • Quiet 80mm cooling fan on heatsink
  • Motherboard back plate
  • Thermal paste

Specifications:

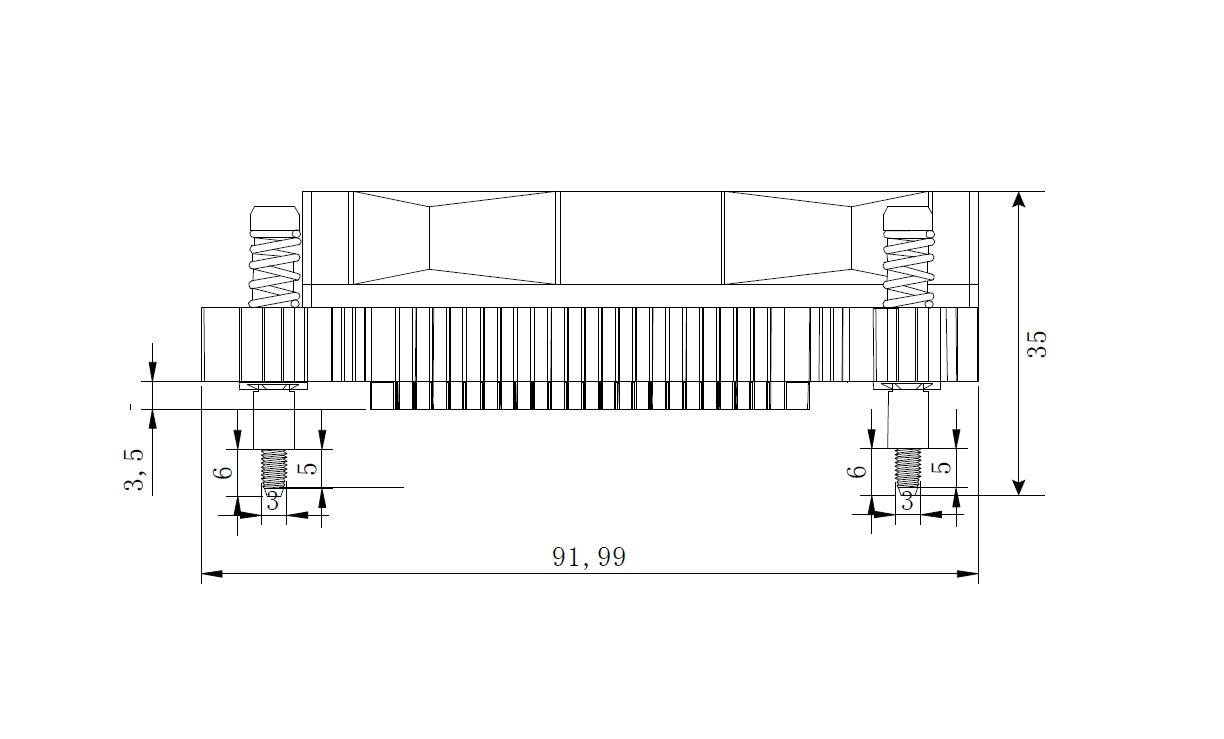

Dimensions
Length and Width: 91.99 x 91.99 mm
Height: 26.95 mm
Unmounted fan kit height including the screw length: 35mm

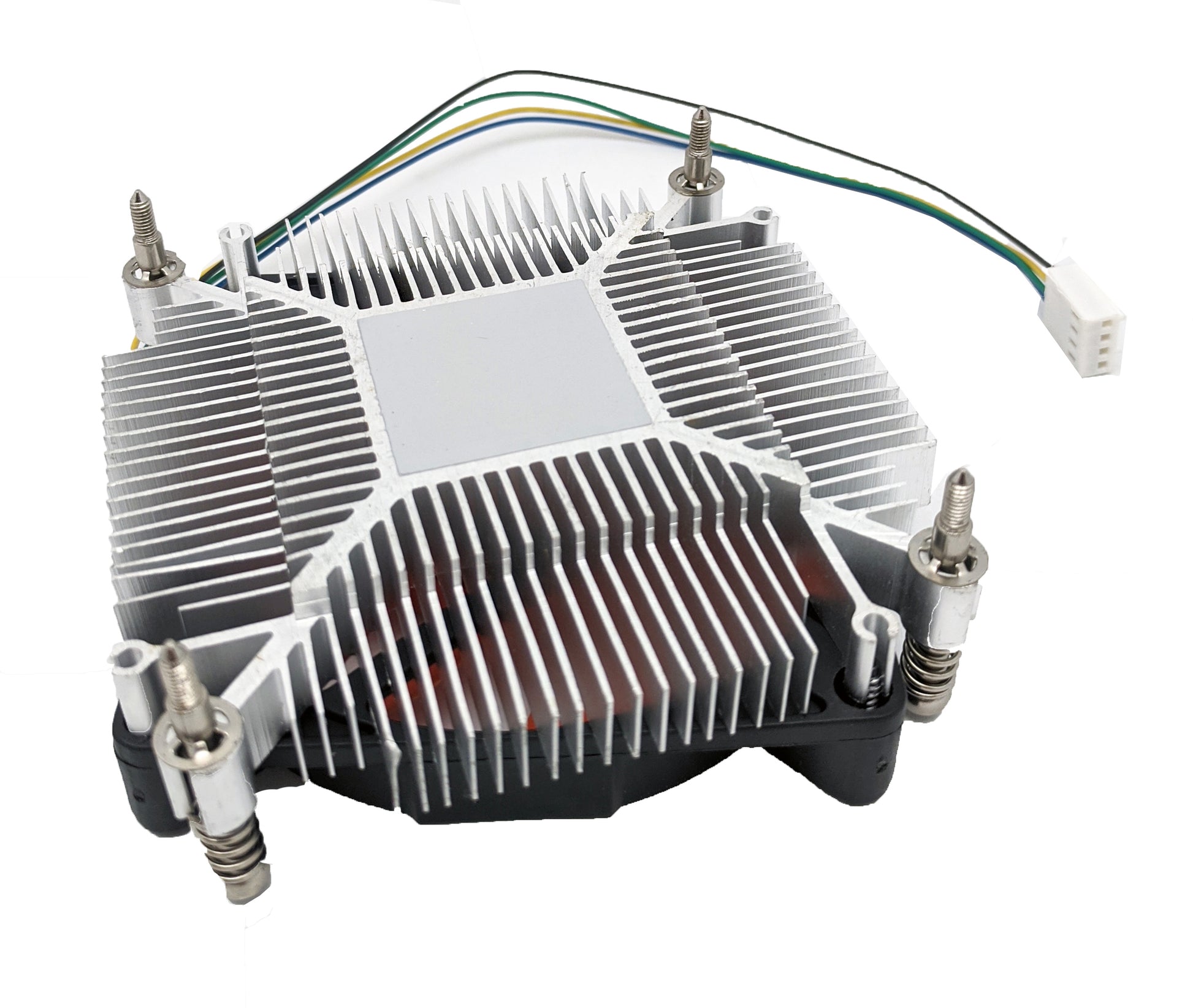

Heat Sink Material
Aluminum
Heat Sink Weight
105g
Fan Dimension
80×80×15 mm
Fan Speed
1000-3000 RPM ± 10%
Fan Airflow
10.23-28.19 CFM ± 10%
Fan Air Pressure
0.79 - 4.42 mm H2O ± 10%
Bearing Type
Hydraulic
Fan Life Expectancy
40,000 hours
Fan Noise Level
13.9-28.1 dBA
Connector
4-pin PWM
Net Weight

             149g
