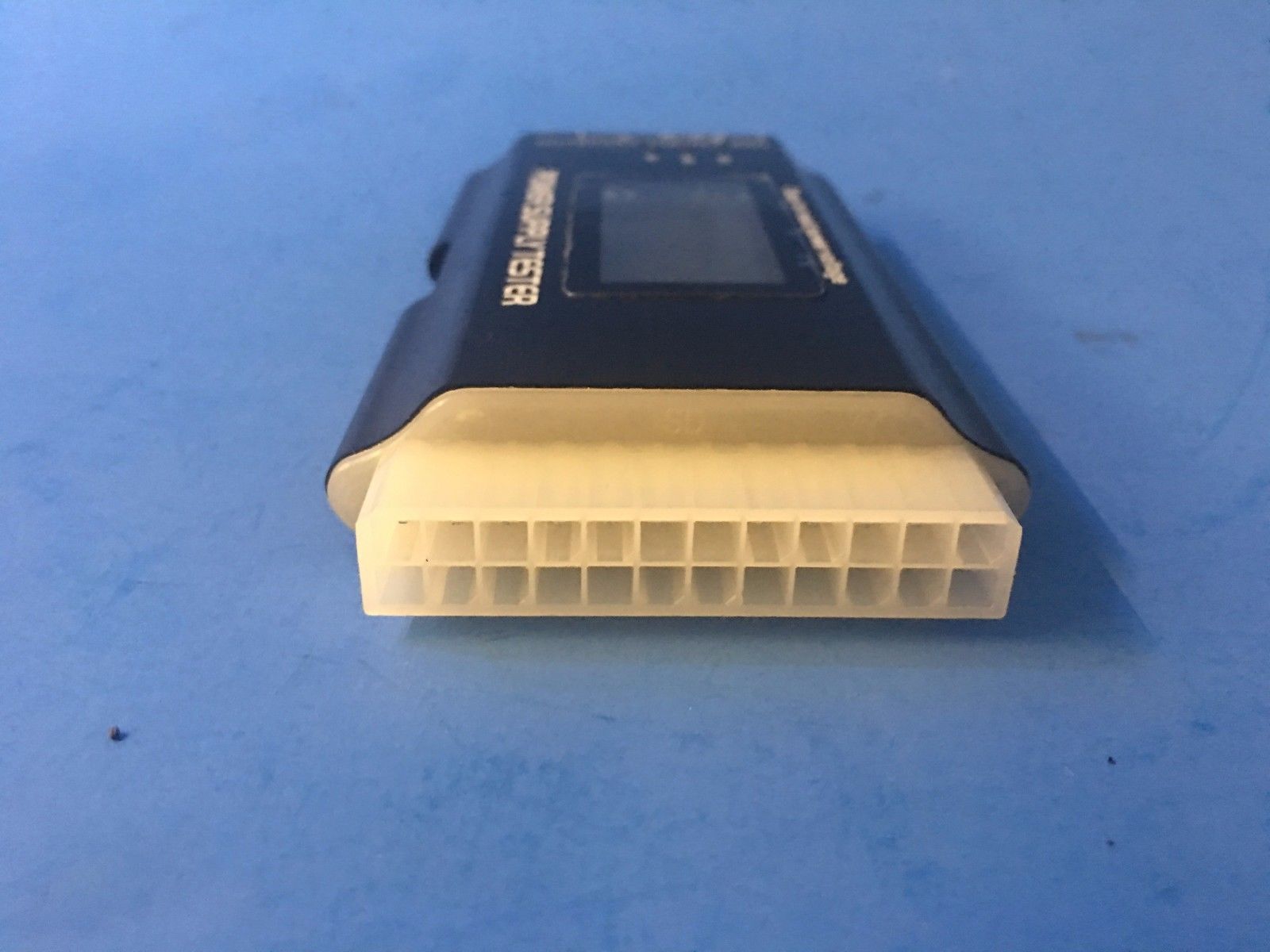

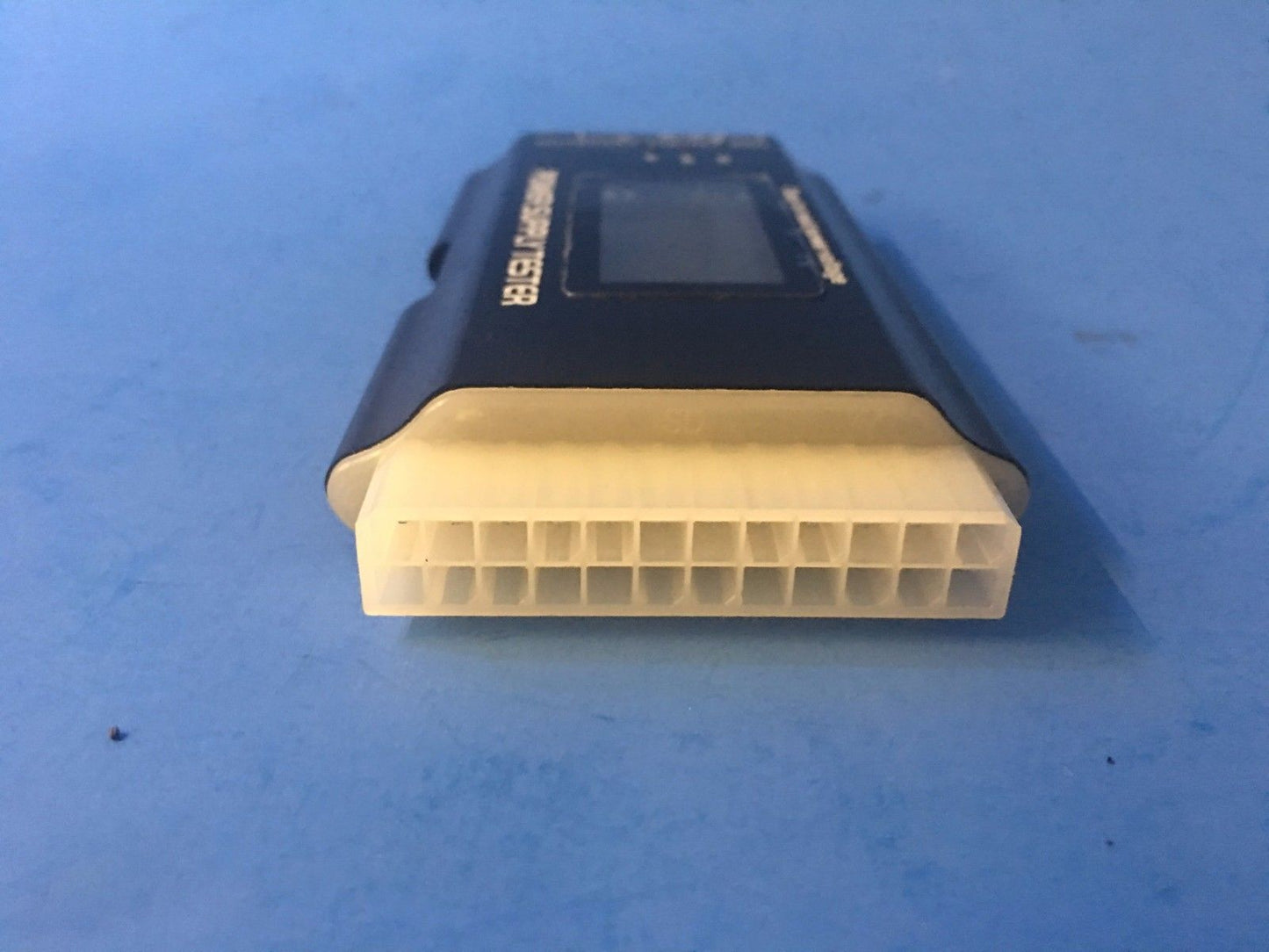

Product Introduction:

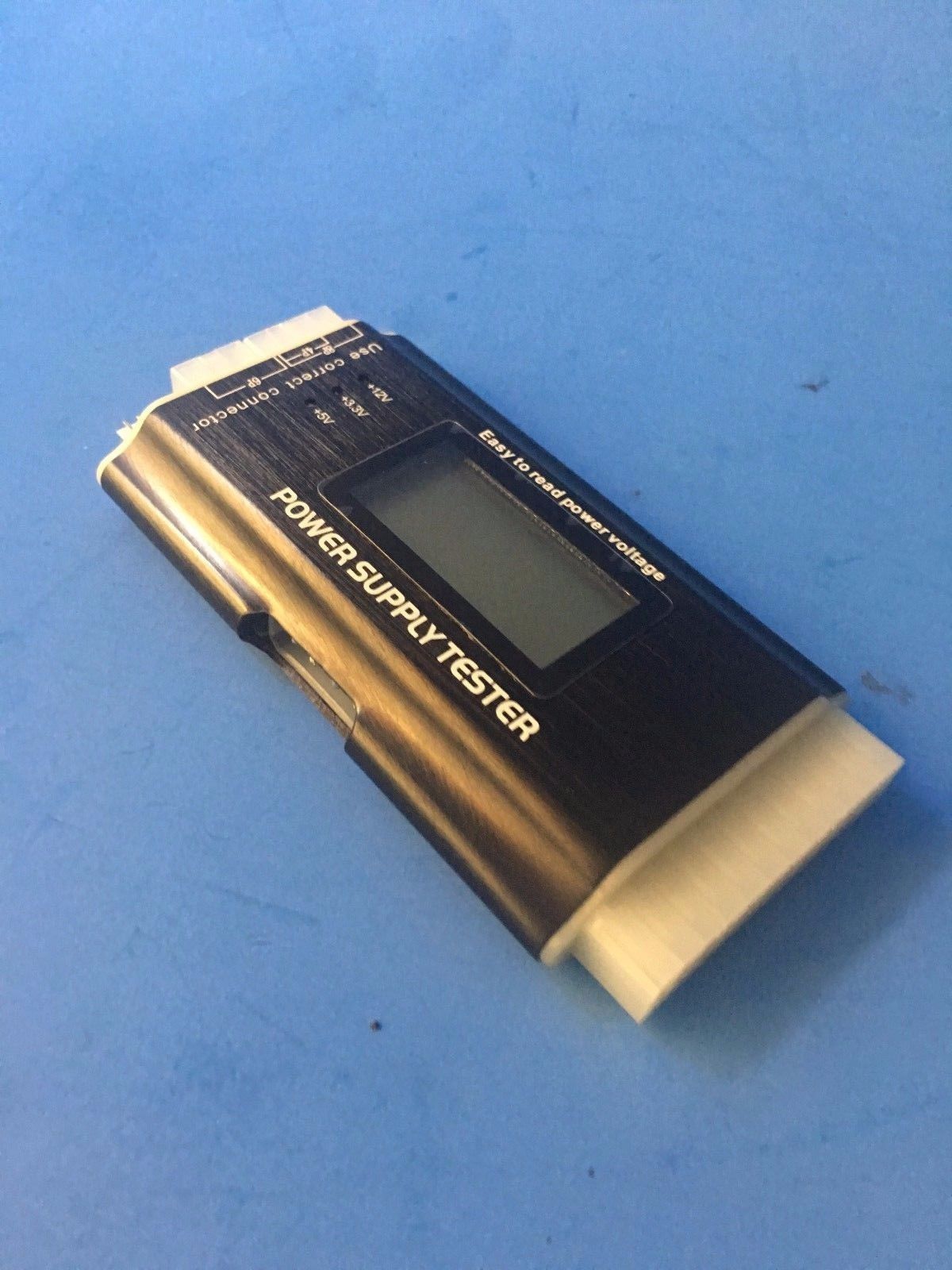

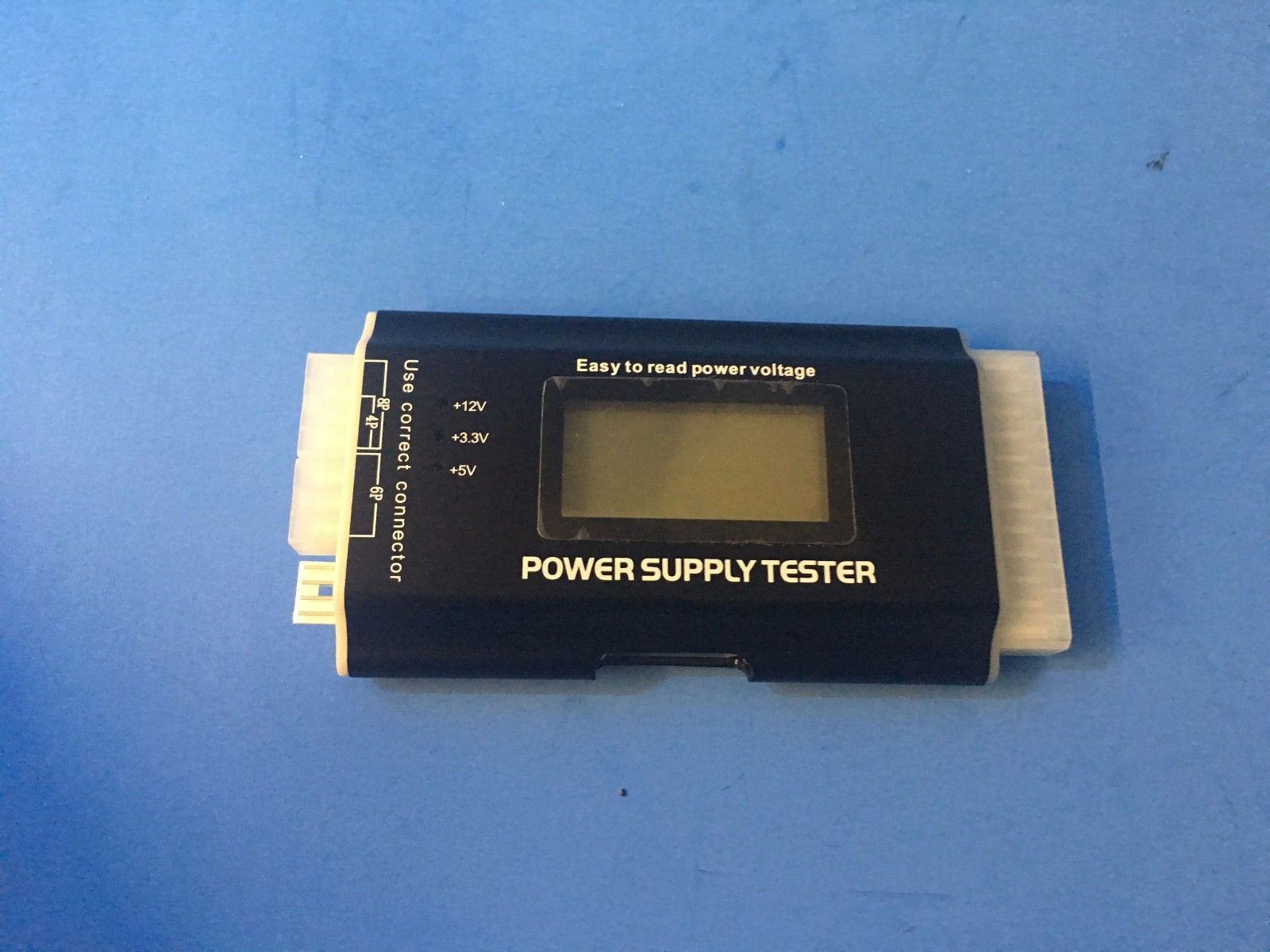

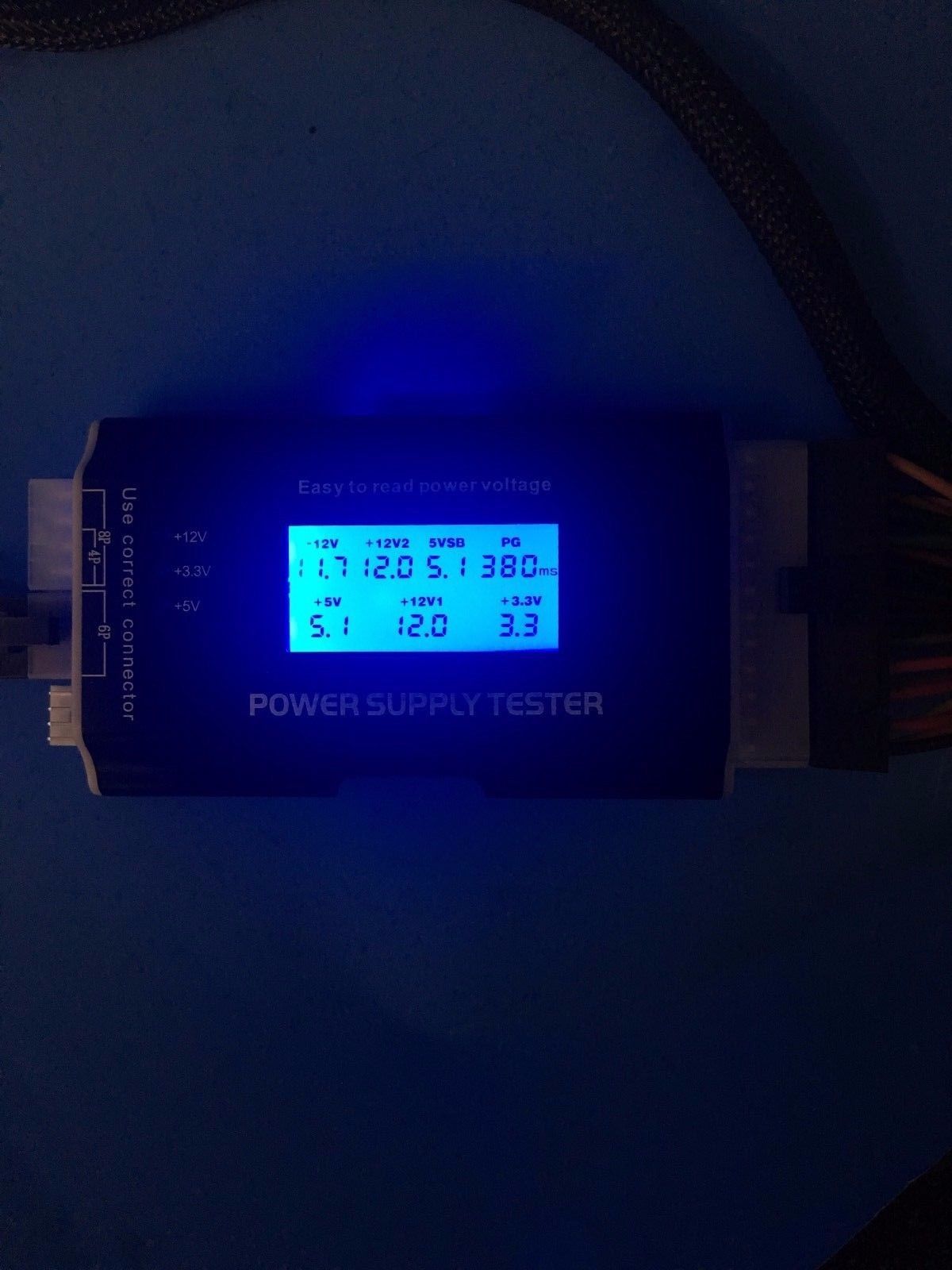

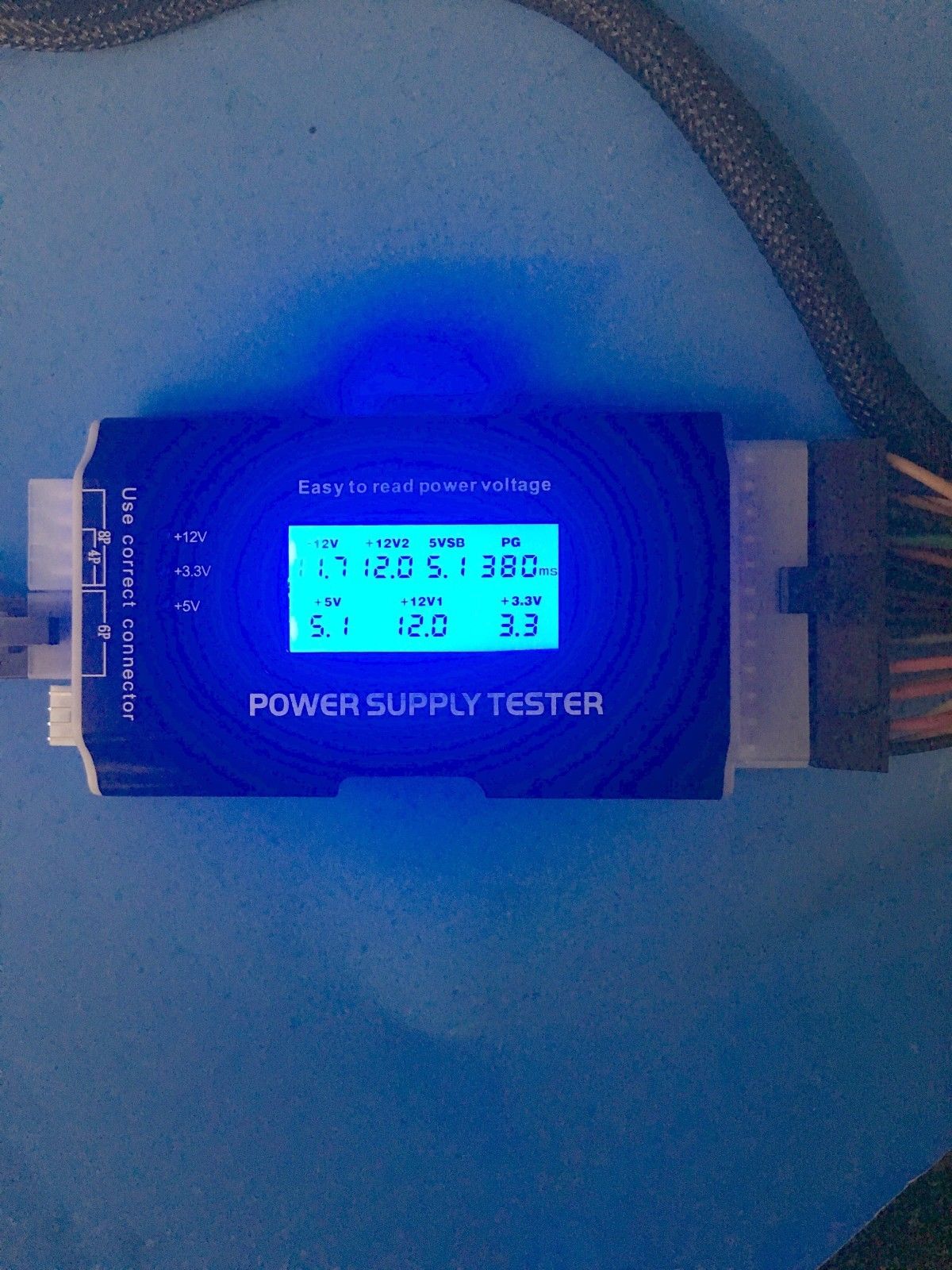

The power supply tester is a robust voltage, tester for PC-Power supply, ATX, BTX, and ITX compliant, power supplies can be tested. LCD indicates the status of voltage. The tester is suitable for the ambitious hobby user, as well as for a quick functional check in specialized trade.
The methods of operation:
- Plug power supply 24PIN and P4, P6 or P8 into the corresponding jack of the power test suite.
- Power on the supply of power, will hear "DuDu" ring, if no flicker then the power supply output voltage is normal.
- If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer, if the corresponding voltage value or PG flicker too, then there is power failure.
Specification:

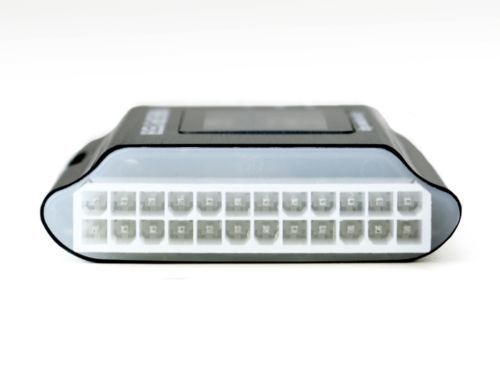

Voltage Source: 20/24pim (ATX-connector)
Voltage Test: +12v, -12v, +5v, -5v, +3.3V, 5V stand by (SB) 12V power Good (PG)

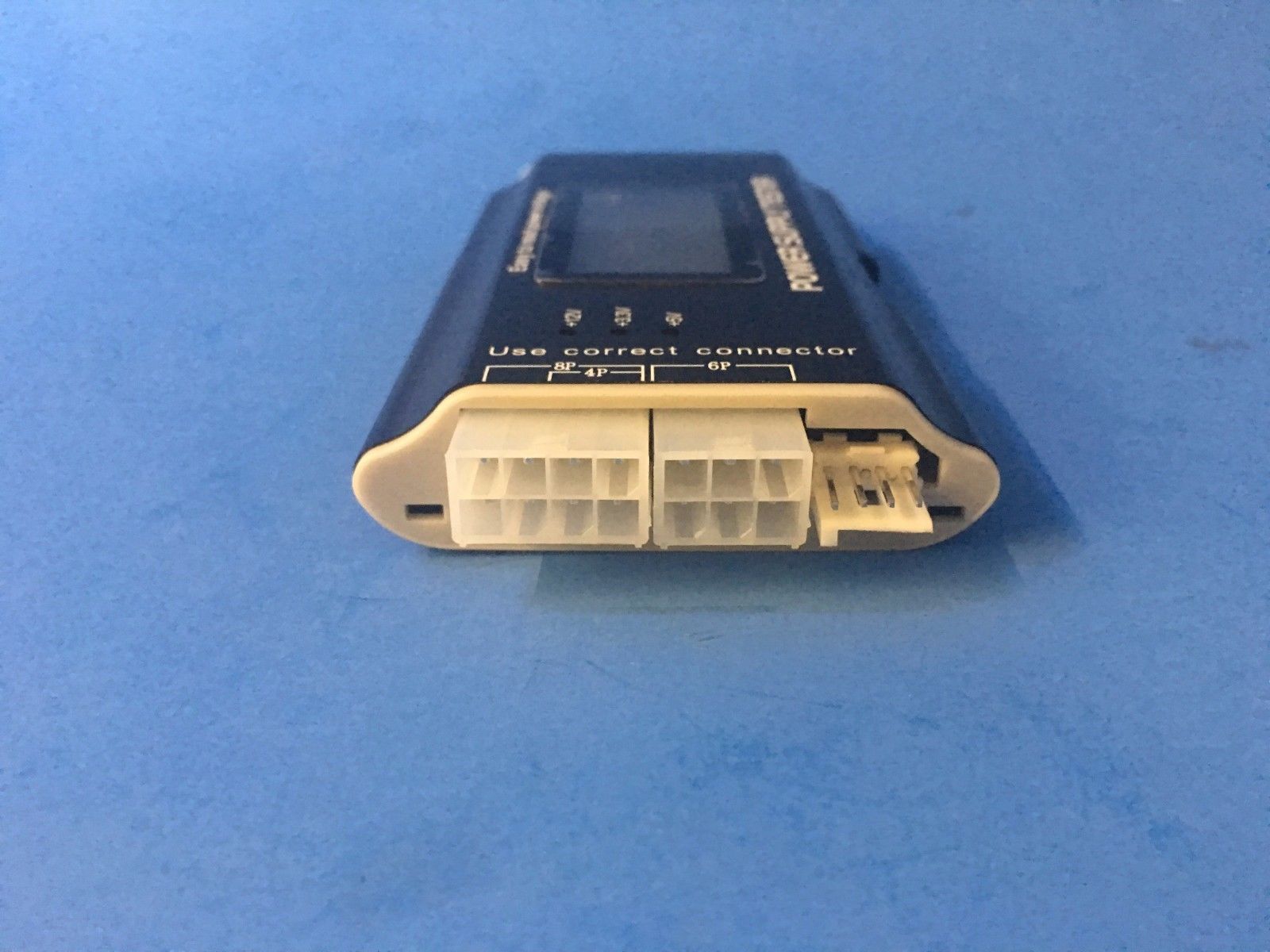

Connectors: Floppy, HDD, CDROM, SATA, 4pin (P4), 8-pin (Dual-CPU), 6pin (PCI-Express)
Package Content:
Power Supply Tester
