NEW HIGH POWER® Low Noise 120mm Fan 430W 6pin PCIe Computer PC Power Supply

Regular price $49.00

Available upgrade model in stock

  • Meets Intel ATX12V 2.2  specification.
  • Intel listed as recommended power supply.
  • True-Wattage Rated 430 watts with dual +12v rails
  • Dual SATA Support.
  • Flexible connector design supporting both ATX and BTX systems.  110V & 220V AC input switchable.
  • Supports the latest Multi-Core and 64-bit Intel or AMD PC
  • Supports PCI-Express video card that demands strong 12V power output
  • Ultra low noise performance without the high cost of fanless model.

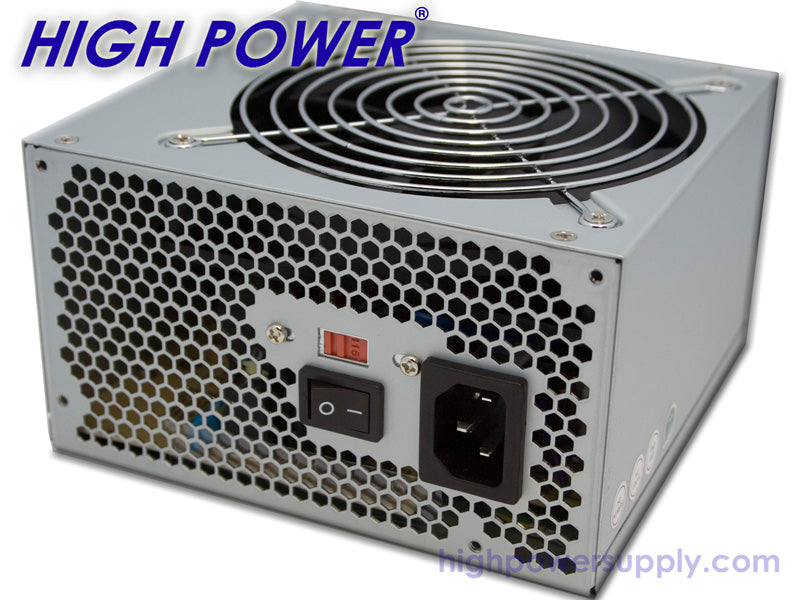

  • Honey-comb rear vent structure for improved ventilation.
  • All new complete 6*Startm system protection with built-in:


  • Over Voltage Protection
  • Under Voltage Protection
  • Over Current Protection
  • Over Temperature Protection
  • Short Circuit Protection
  • Over Power Protection

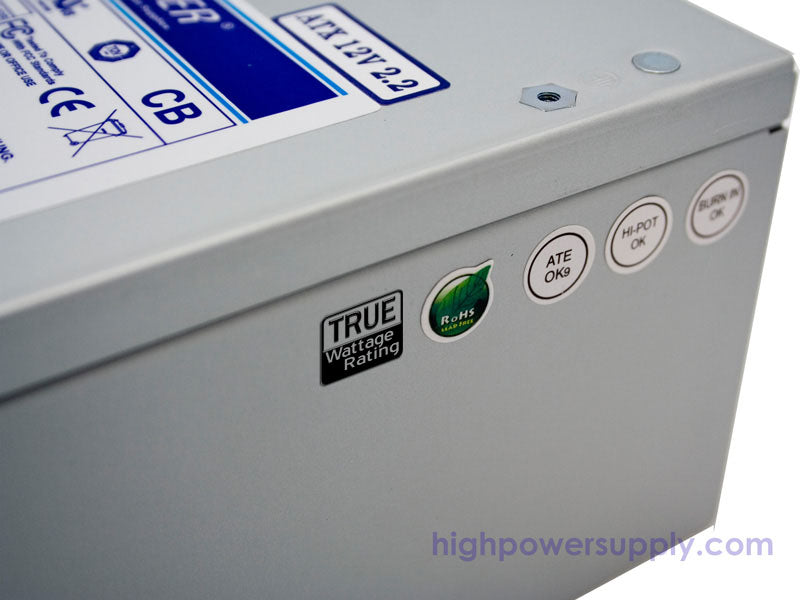

RoHS Compliant - made with lead-free and hazardous-free components
High standard of quality with FCC, UL, cUL, CE, TUV, and CB certification.
Rocker switch for manual shut-down

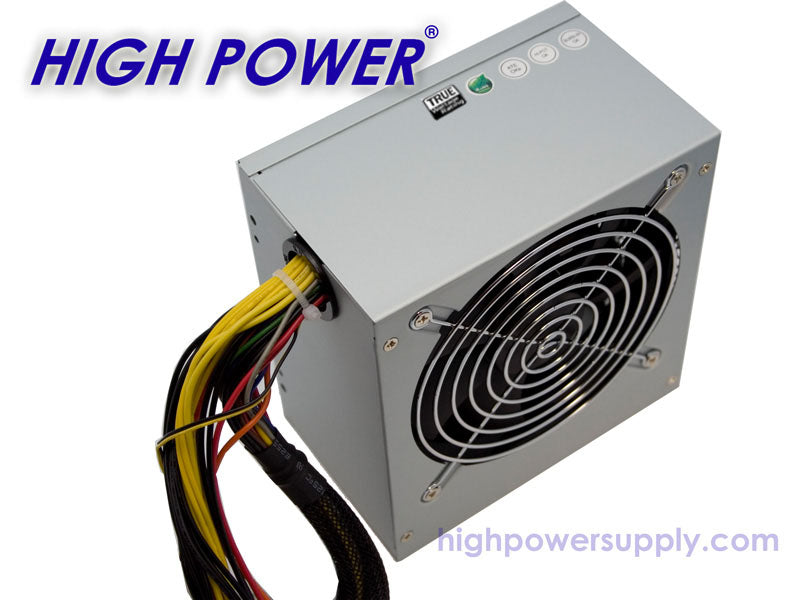

Large 120mm fan draws massive amount of hot air in from the CPU into the power supply and exit out to the back  of the PC system.


Intel tested and determined that this power supply meets MINIMUM electrical, mechanical fit and functional compatibility with Intel® boxed desktop boards and Intel® boxed Pentium® D or Pentium® 4 processors or Intel® Core 2 Duo Processor.



TECHNICAL SPECIFICATIONS:


Output Power Distribution Table
AC INPUT
115V/230V - 60/50Hz
DC OUTPUT
+3.3V
+5V
+12V1
+12V2
-12V
+5VSB
430W
Max
Combined
Watts
28A
28A
14A
16A
0.3A
2.5A
430W
+5V & 3.3V combined output maximum is 150W
+12V1 & +12V2 combined output maximum is 300W





Connector Summary:
1x 20+4pin Dual-Use Main Connector
1x P4 ATX12V Connector
2x SATA Right Angle Power Connector
4x Molex Peripheral Power Connector
1x 6pin PCIE Power Connector
1x 3pin Fan Speed Monitor Connector
1x Floppy Drive



About this New Mechanical Design:

Dimensions: 150(W) x 86(H) x 140(D) mm

Large 120mm fan draws massive amount of hot air in from the CPU into the power supply and exit out to the back of the PC system. The fan is located deeper inside the system instead of at the rear of the case.  This design makes the already low noise fan barely audiable to the user.

This unit is compatible with Dell's BTX mechancial design: all 4 screws will align with Dell's case, cable length, fan placement, and air flow direction are all compatible.  However, the size of this unit is a little shorter than certain original Dell PC power supply such that there may be a small gap allowing user to be able to see a little bit inside of your Dell PC through this gap when this power supply is installed in these certain Dell systems.



Performance and Low Noise Upgrade for:
Dell Dimension 3100, E310, 5100, E510, 5150, E520, E521, 9150, 9200
Dell Optiplex 745 760 780 960 MT standard mini-tower
Dell Precision T3400 380 390 Workstation
Dell XPS Studio 400 410 420 430 435 MT 435T 8000 8100 9000 standard mini-tower computer
Dell power supply models: F217J, H305N-00 , PH333, W8185, L305N-00 PS-6311-2D2, MC633, PC357, N8372, NC905, C5201
HP Media Center m7170n, m7183c, m7260n, m7277c, m7287c, m7288hk, M9177C-B, M8307C-B
HP p/n: 5188-2533 5188-0127
Gateway part number: 102015, 102544 , 6500936, 6500914, 102839
Bestec ATX-250-12Z, ATX-250-12E, ATX-250-12ZD, ATX-300-12E  ATX-300-12EB3
Chieftec HPC-360-102DF, HPC-420-102DF
FSP FSP300-60GI, FSP235-60GI
HIPRO HP-235ATXA6 HP-D2537F3R
