NEW Low-Profile Intel Socket LGA 1150 1151 1155 1200 CPU Blue LED 95mm Cooling Fan

NEW

HIGH POWER®  BlueAM4 REV: I

Supports Intel Socket LGA 1150 1151 1155 1156 1200

Low-Profile CPU Cooler with 95mm Blue LED PWM 4-pin Cooling Fan
and Efficient Aluminum Heat-sink Design

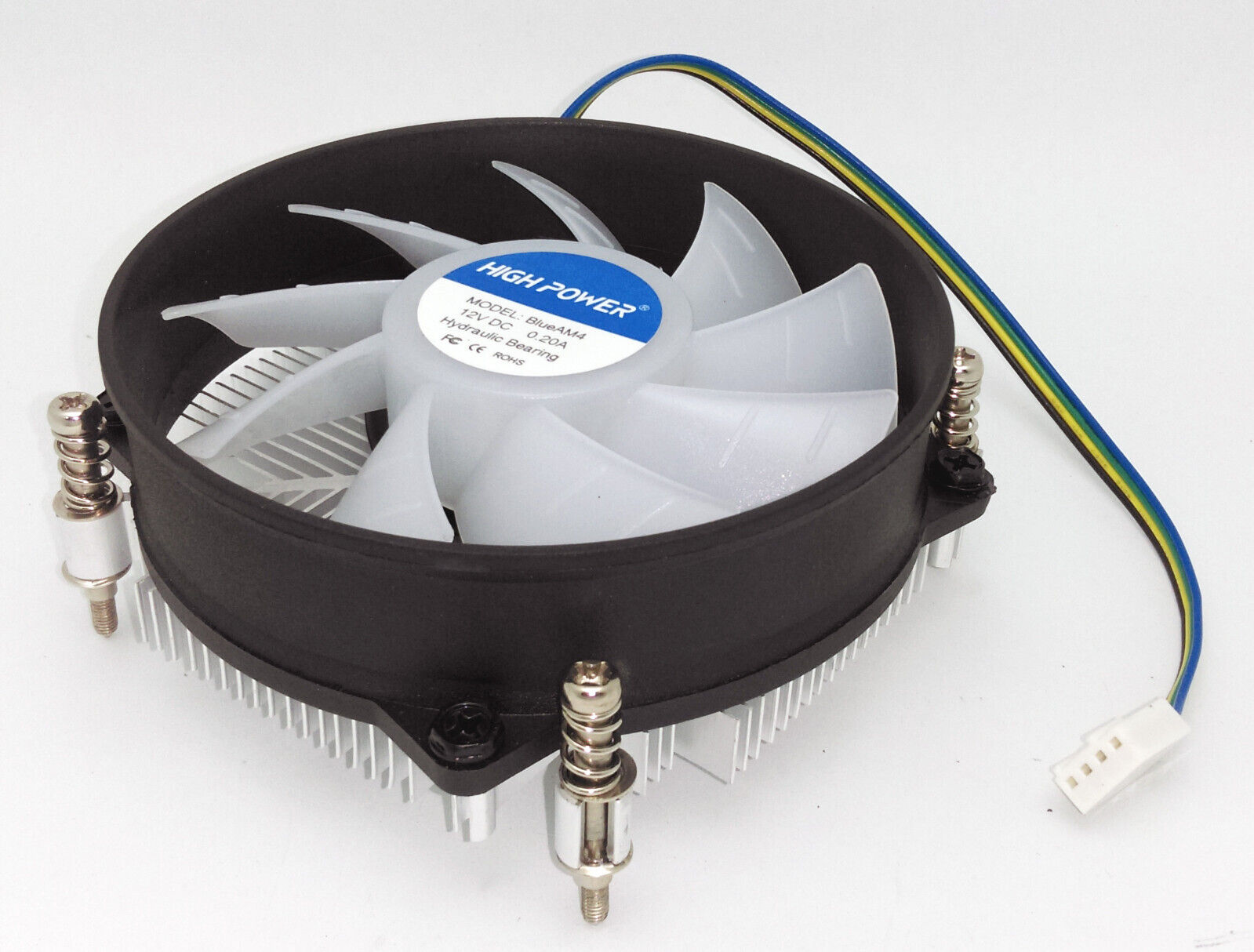

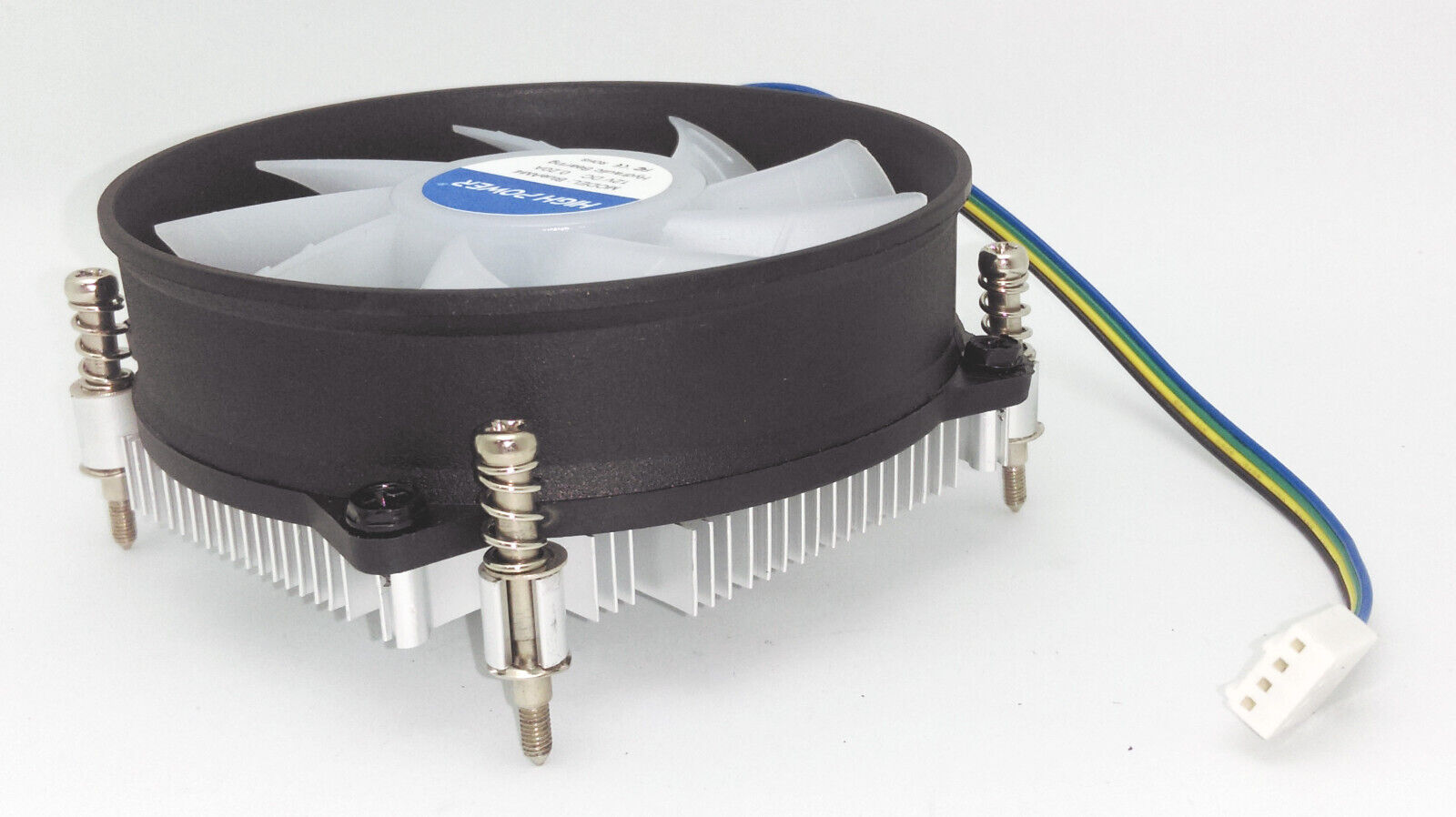

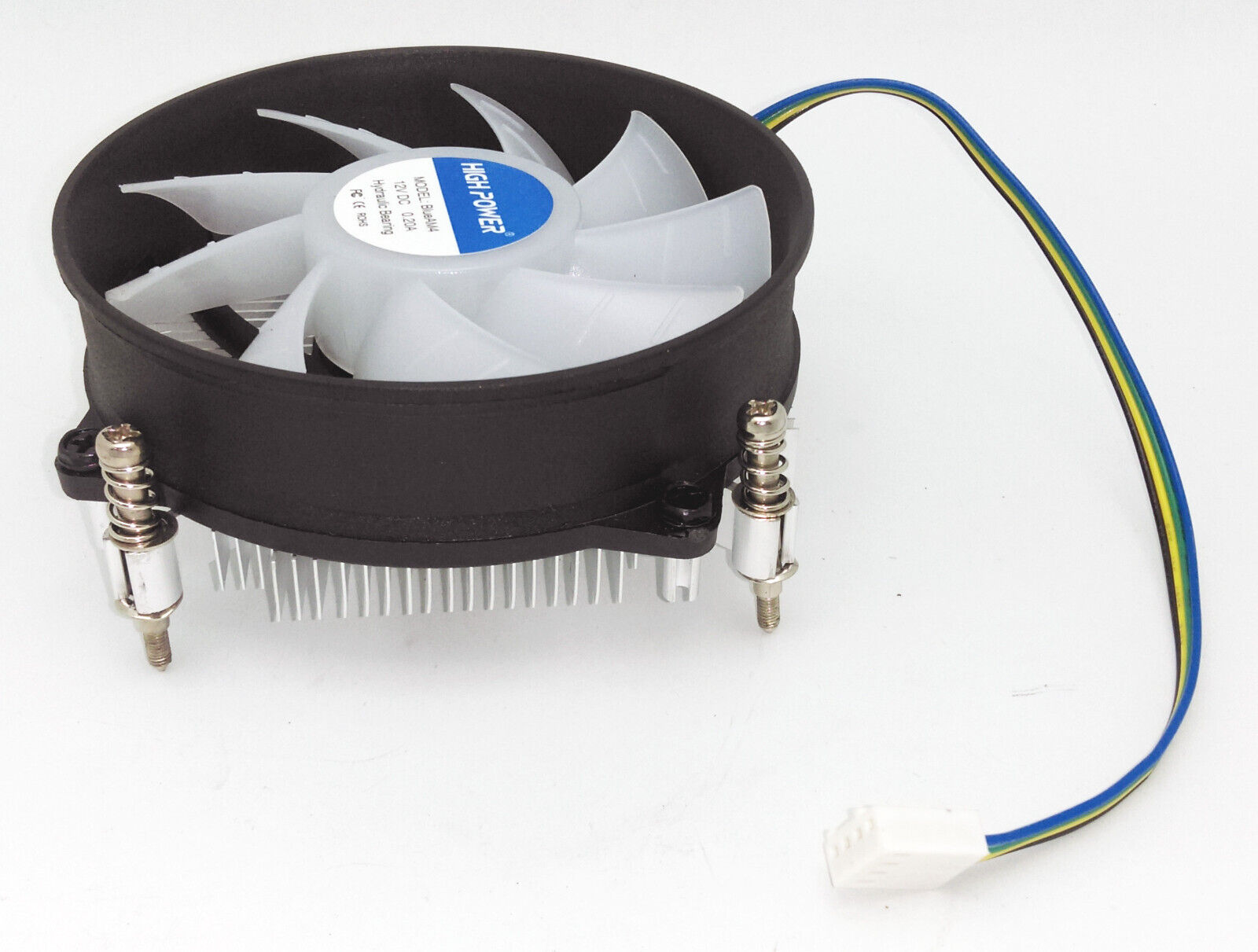

Low profile Intel processor cooling fan & heat-sink kit

Supports Intel® Socket : FCLGA1150, FCLGA1151, FCLGA1155, FCLGA1156, FCLGA1200
The stock fan that comes with Intel box processor would be too tall to fit in a compact mini ITX case (such as HIGH POWER® mITX-0DB).

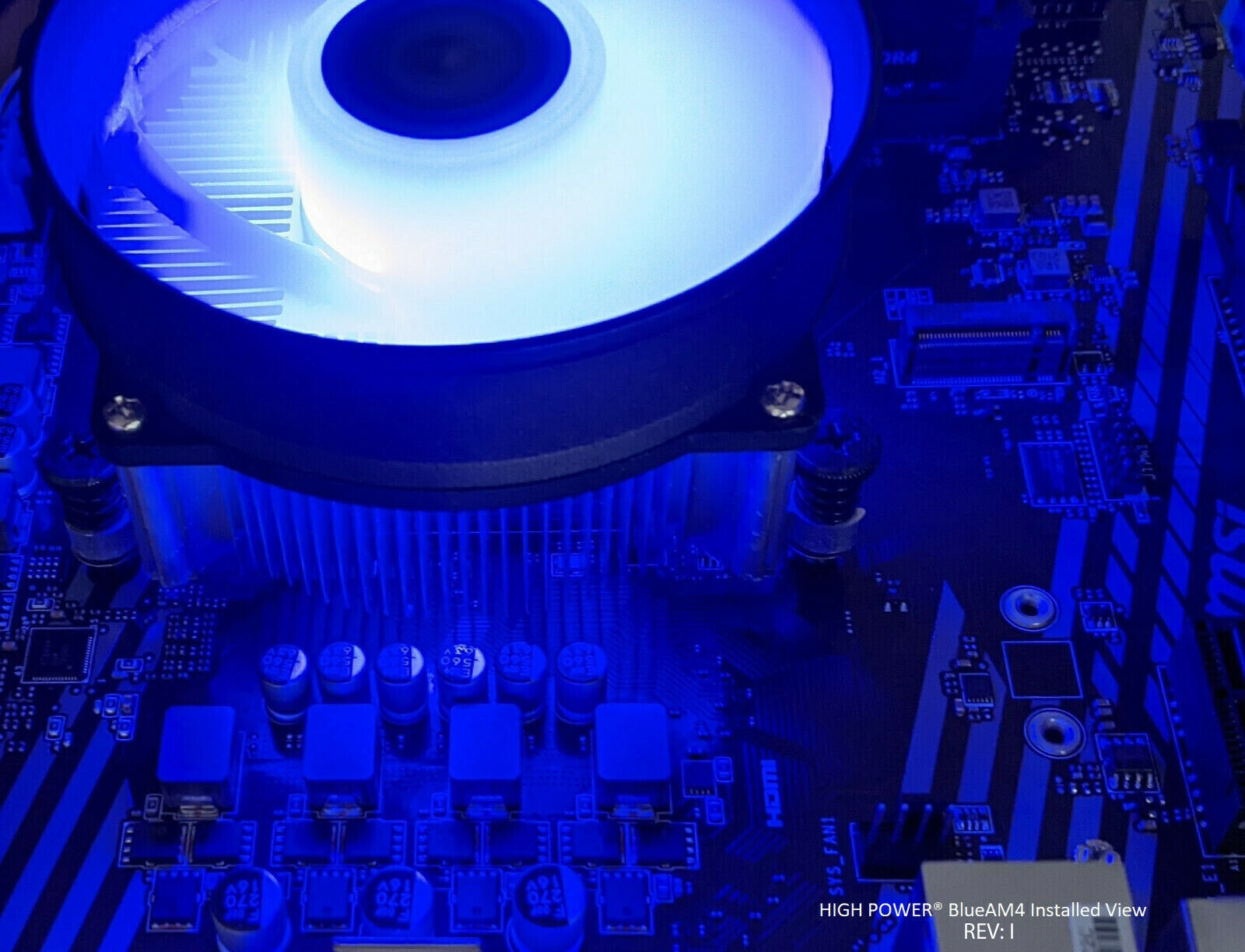

HIGH POWER® BlueAM4 Rev: I, has a height clearance of only 37mm to fit in mini ITX & small form factor cases.  Although it is lower profile than the stock Intel fan, its large 95mm fan delivers cooling capability that is not compromised.   Set your BIOS to silent mode will enable the fan to start spinning at around 1000 RPM when it would be amazingly quiet.   Noise level remains to be acceptably low during normal system operation.


Features:

• Supports: Intel® Socket :  FCLGA/ LGA 1156/1155/1150/1151/1200,   Intel® Core™ i3, i5, i7, i9
• 4pin PWM Power Connector

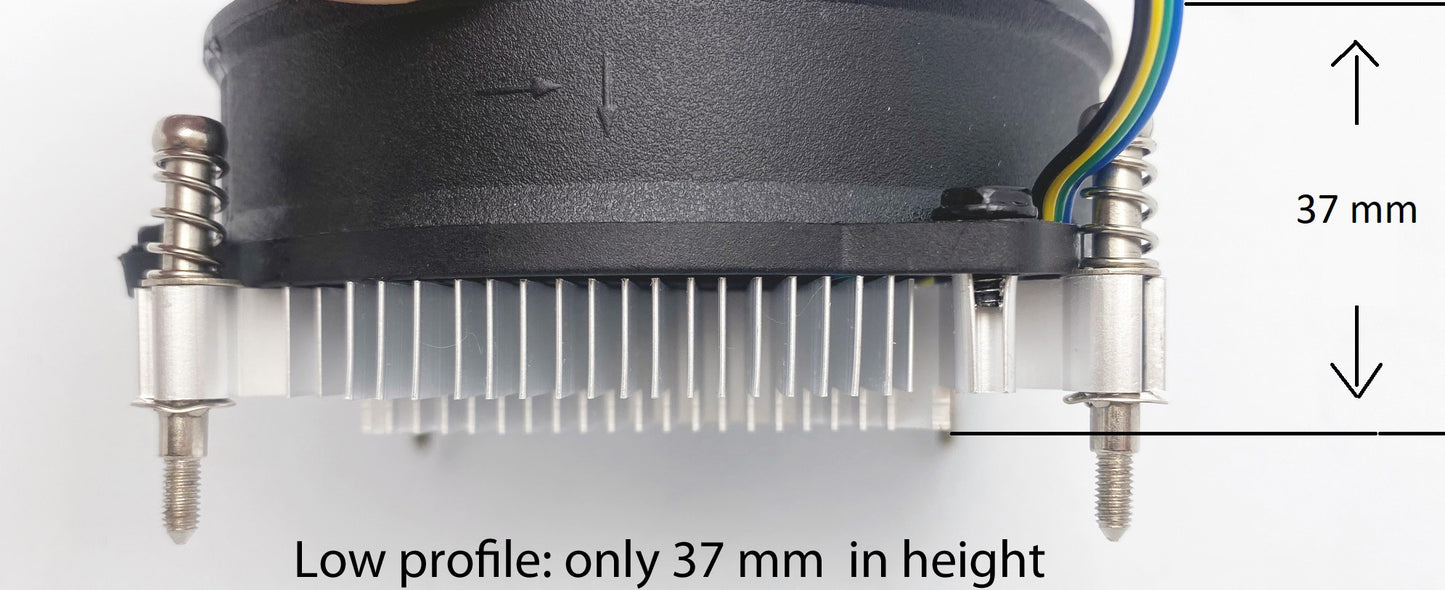

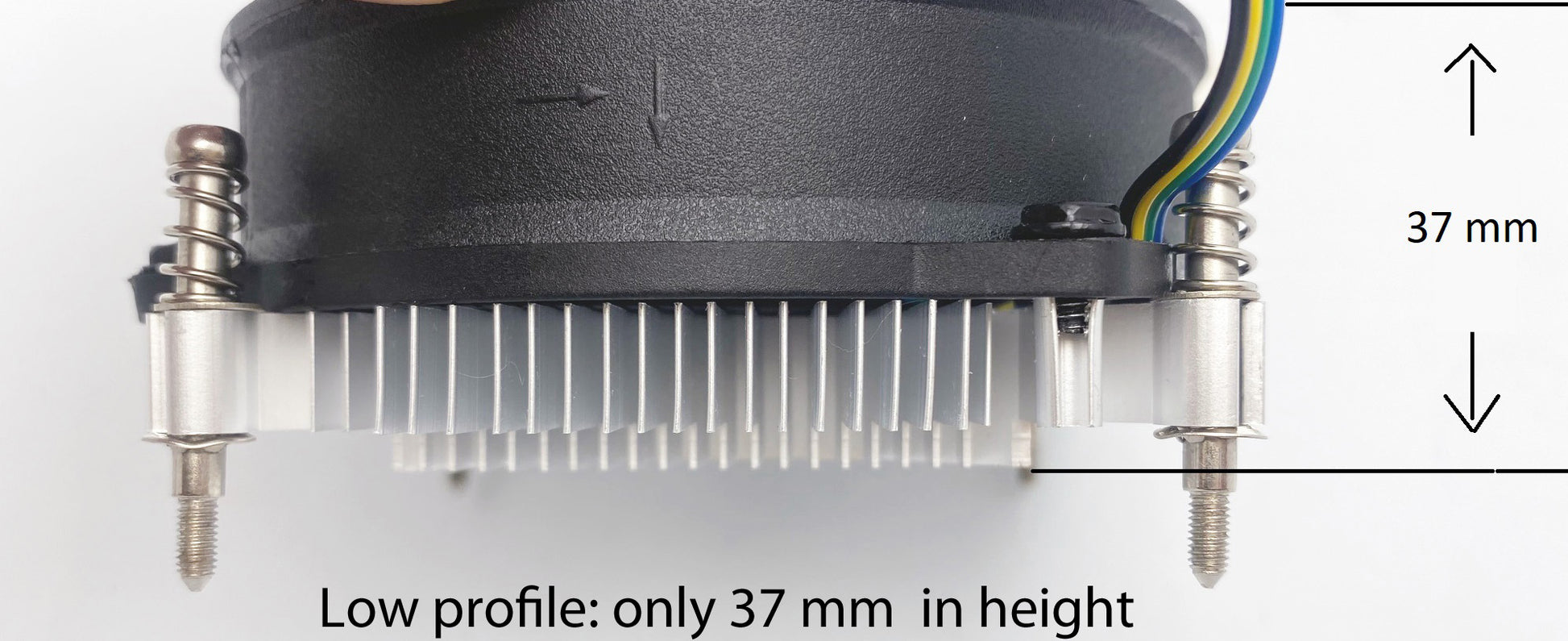

• Low profile:  only 37mm from processor contact point to the top of the fan

• 12V DC @ 0.20A
• TDP: 75W
• Quiet Hydraulic Bearing Fan
• FCC, CE, and RoHS Compliance

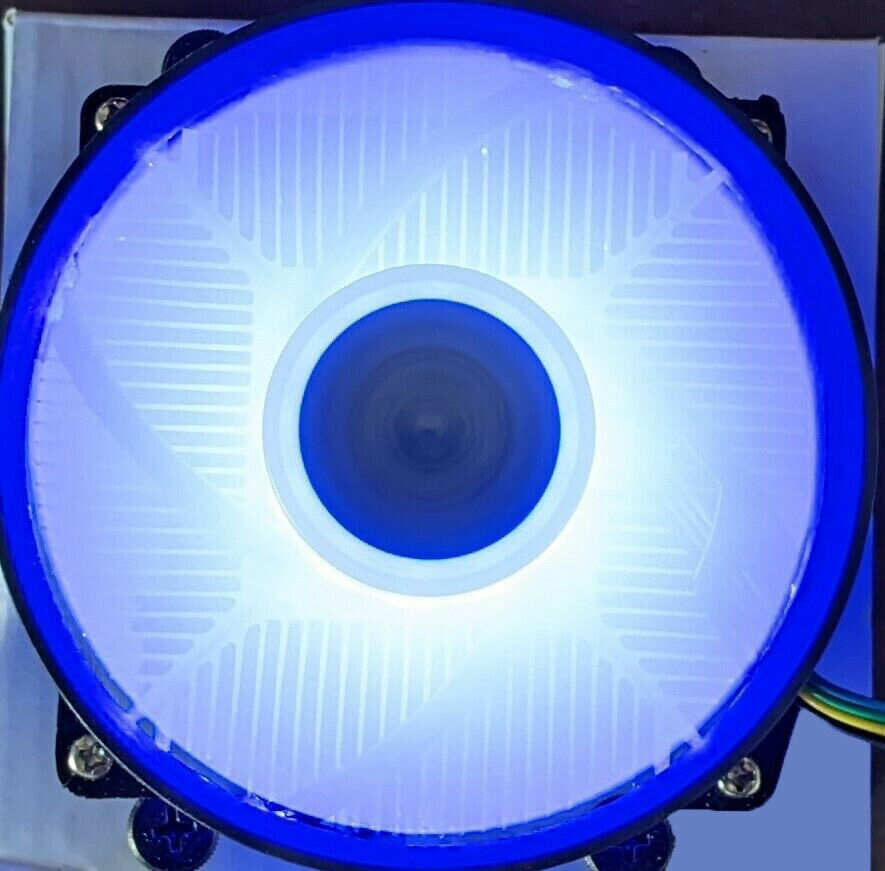

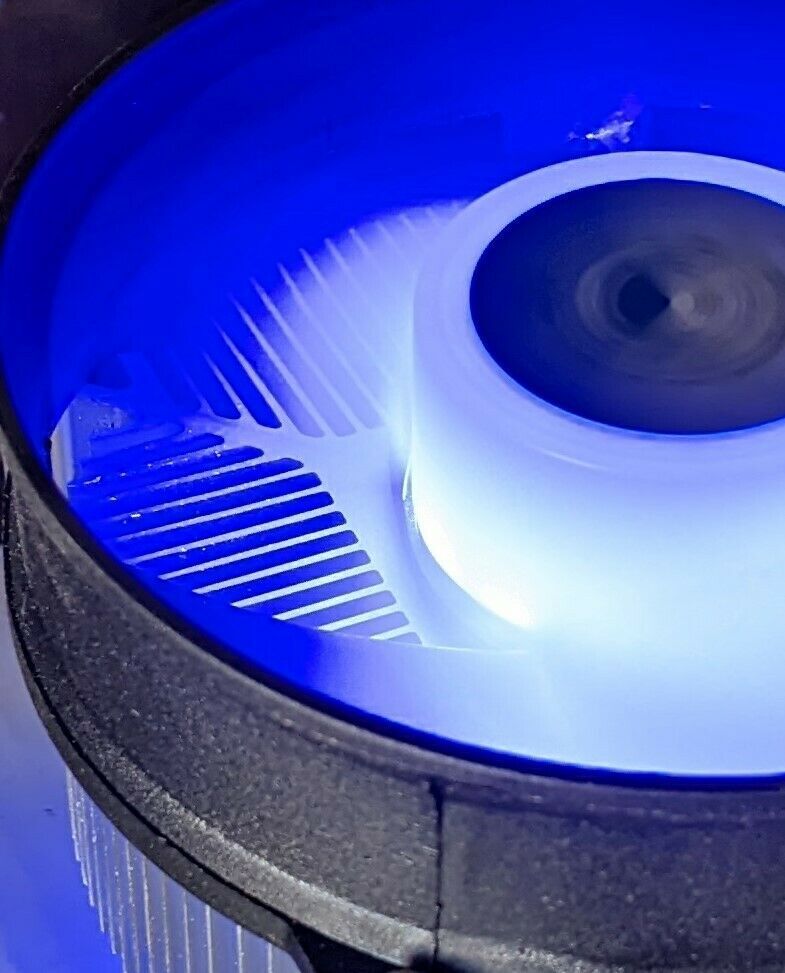

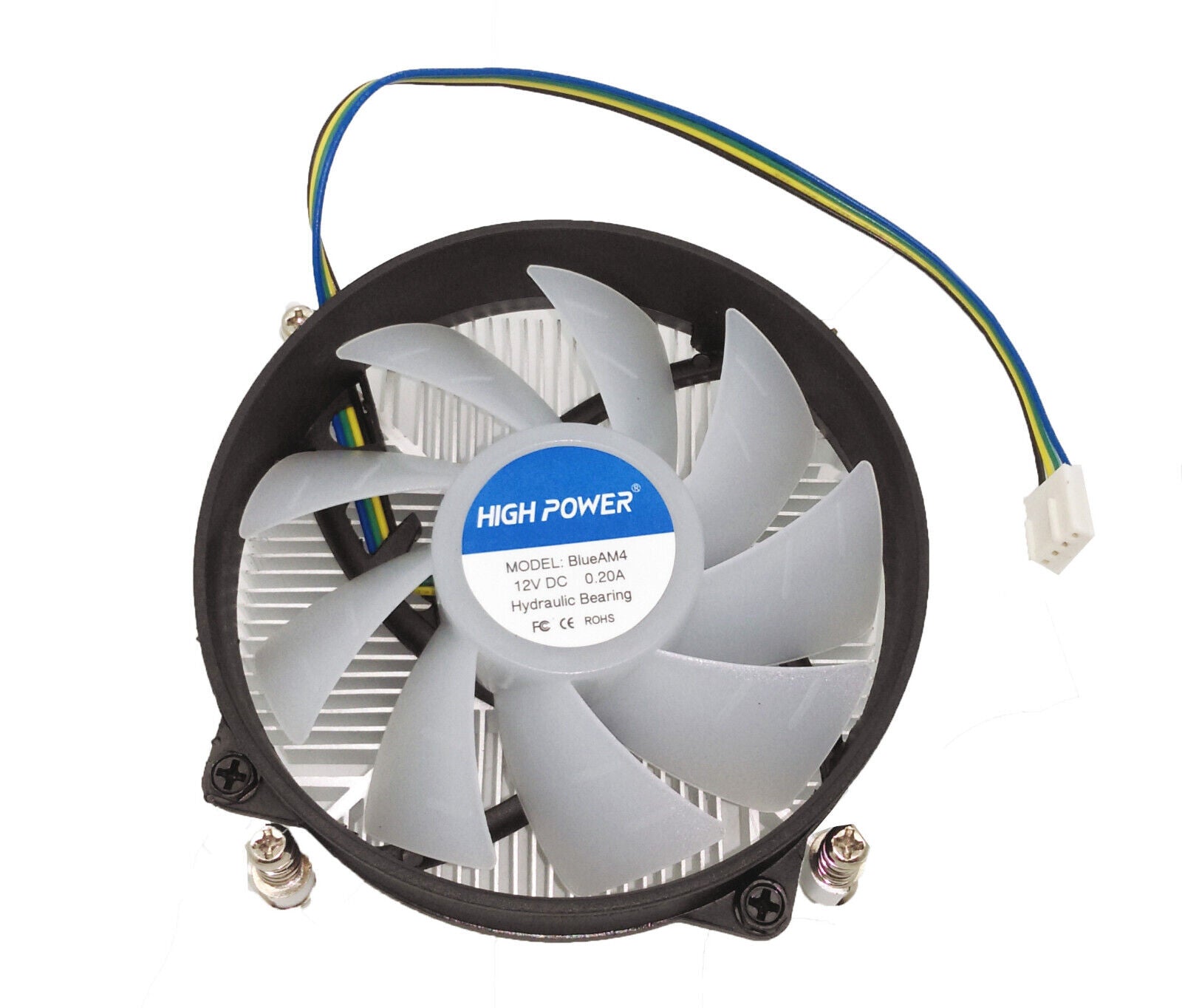

• 95mm fan with twelve (12) Blue LEDs built-in to the center axle to illuminate toward fan blades
• Low Noise (16-28dB) Air-Cool with 4-pin PWM Power Connector, 500-2000 RPM Variable-Speed Motherboard (BIOS) Software Controlled

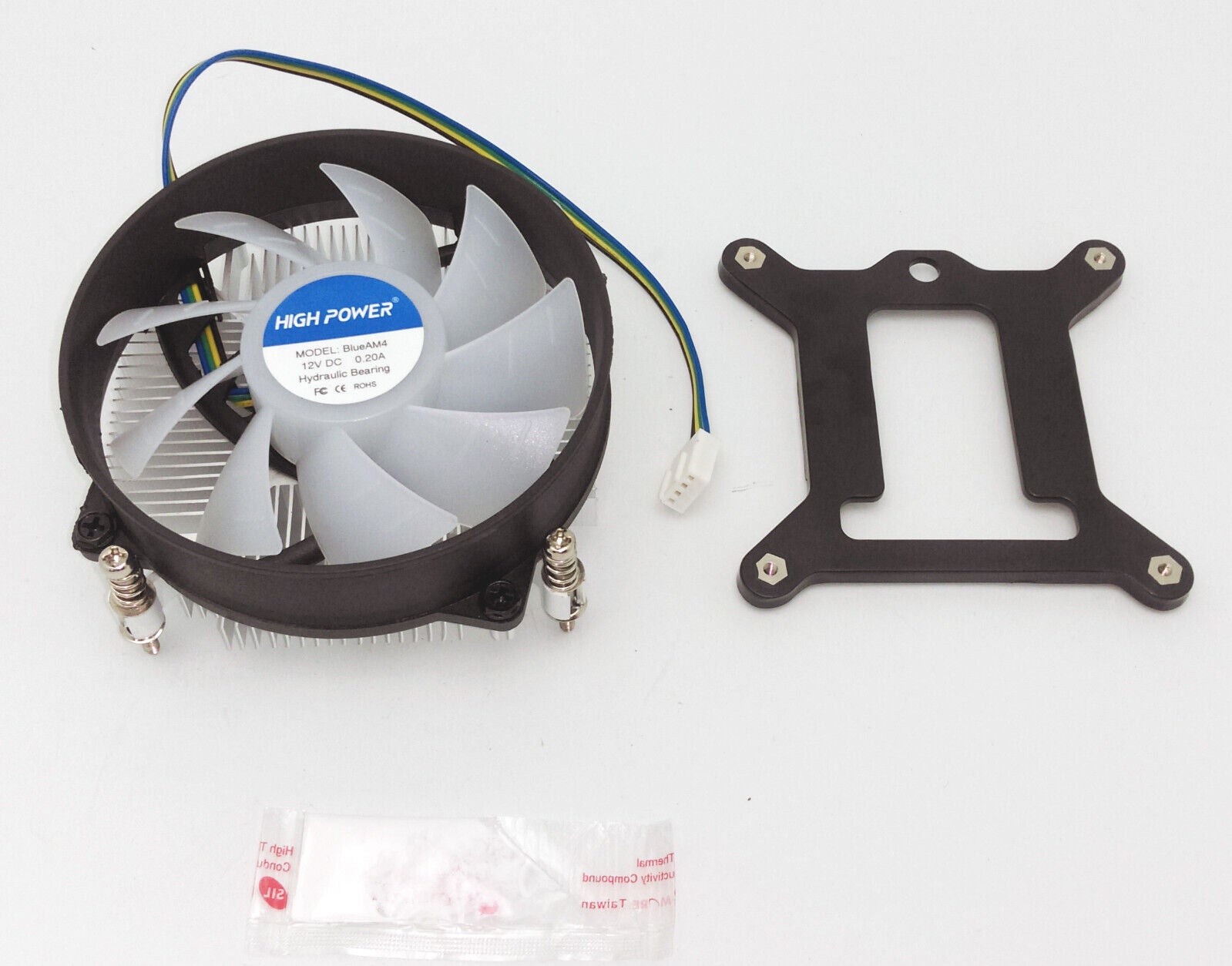

• Secure Screw-Mount Direct to Gaming PC Motherboard's Back-plate, Replacing the Less reliable Stock Plastic Push-Pin Mechanism Cooler
• High Performance Thermal Grease Bag Included to Allow Liberal Application on Top of the CPU
• Backward Compatible with 3-pin Fan Header Desktop Computer Mainboard. Height from Processor Contact to Top of the Fan: 37mm

Technical Specifications:

• Fan Dimensions: 95*95*25mm
• Fan Rated Voltage: DC 12V
• Fan Rated Current: 0.20A
• Fan Speed: 500-2000 R.P.M.±10%  (Duty cycle 20%: 500 RPM; 100% 2000 RPM)
• Bearing Type: Hydraulic
• Air Flow: 9.0 - 44 CFM ±10%
• Noise Level: 16 - 28dB (A) ±10%
• Connector : 2510-4PIN PWM

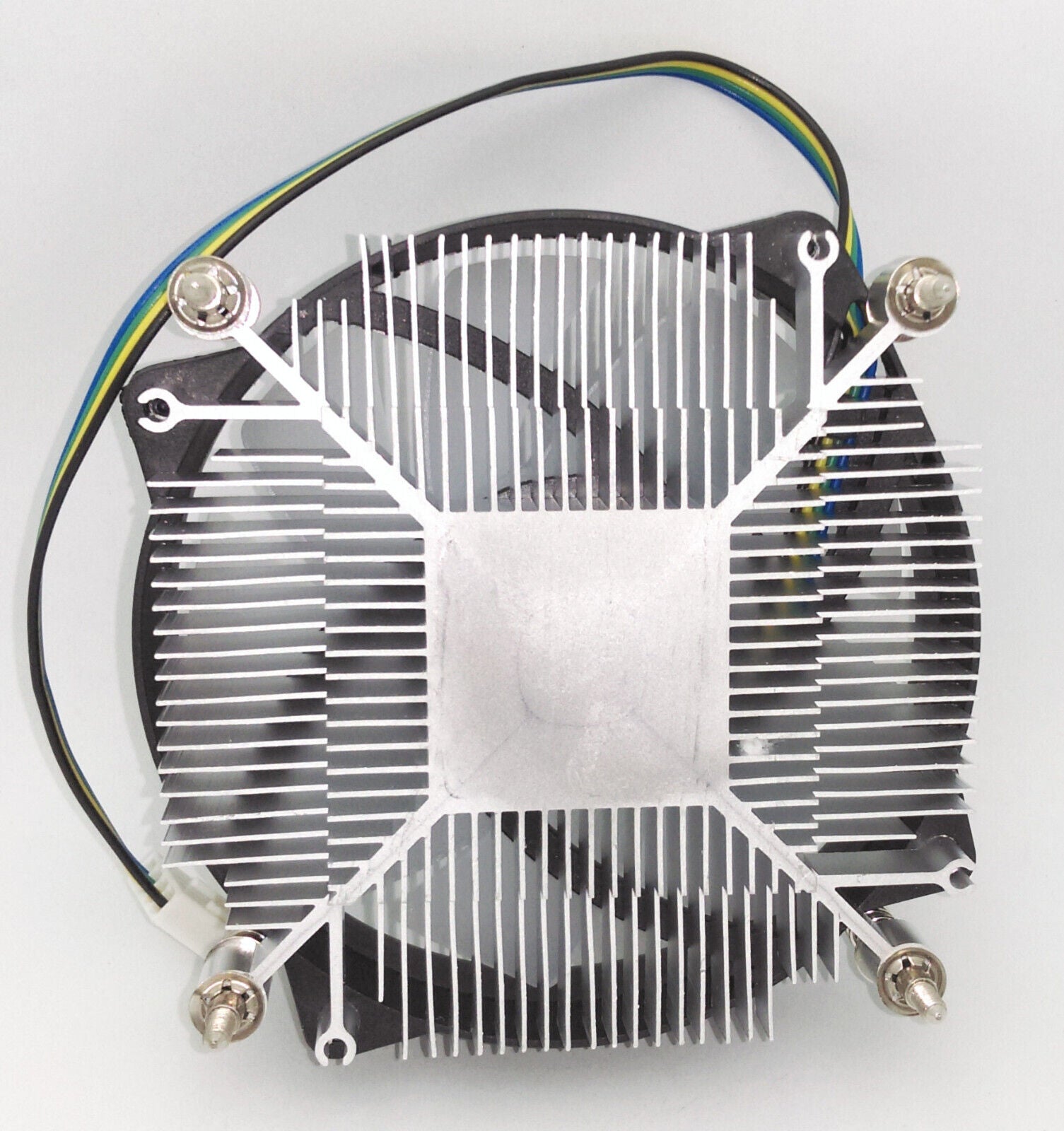

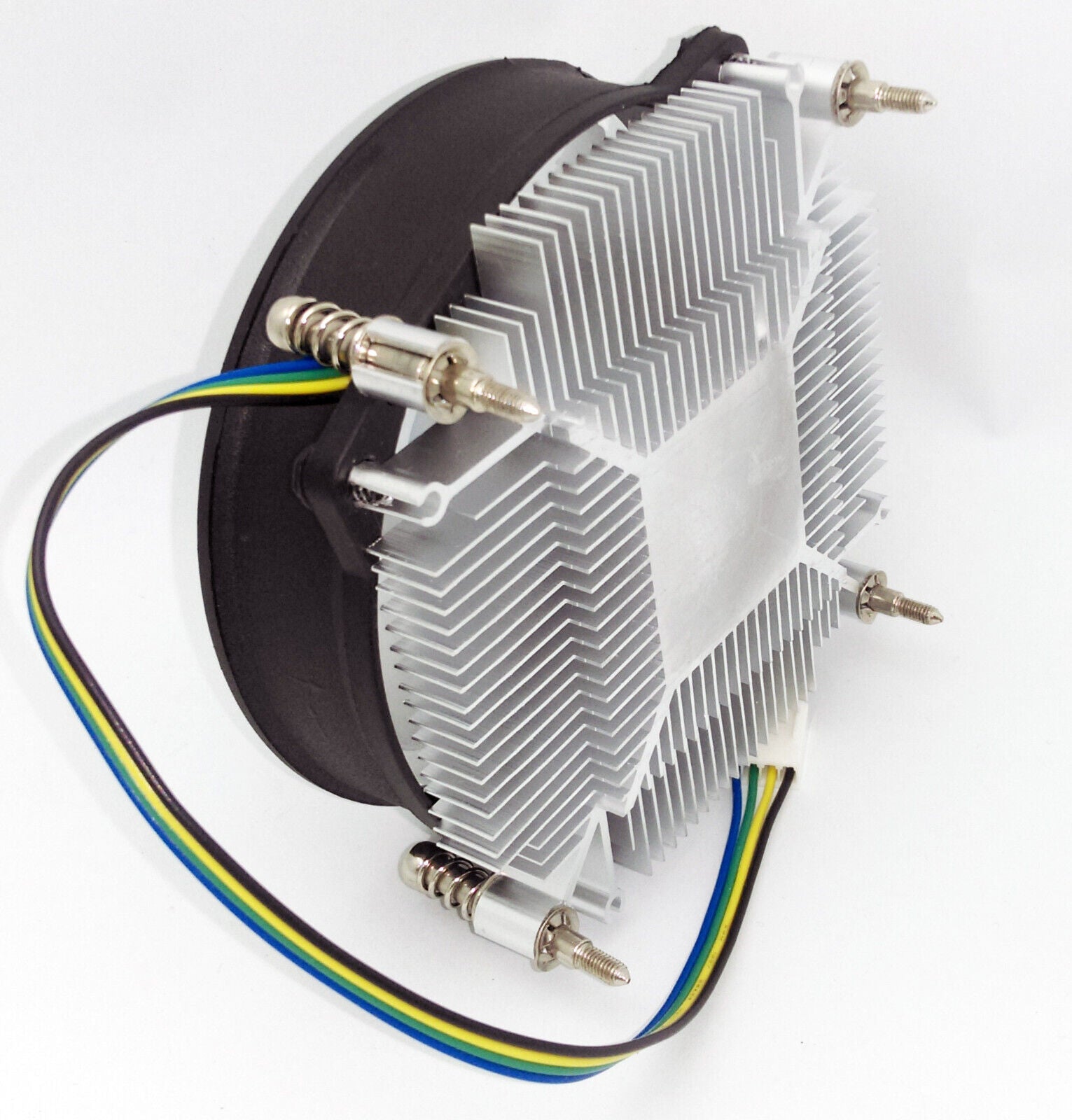

• Heat-sink Material: Aluminum
• Height from processor contact to top of the fan:  37mm

CPU Socket Dimension Information (standard LGA 115X):
From the outer edge of mounting screw diagonally to the outer edge of mounting screw -
