Silent PSU to power your Ryzen 5 or 7 gaming computer with high end graphic card such as nVidia GeForce GTX video card. Comes complete with UL safety certified AC power cord, quick manual, installation screws, and cable management tie-wraps.
This unit can operate anywhere in the world automatically with any AC input voltage from 100V to 240V. The sophisticated high efficiency design allows the unit to operate with less heat and lower cooling fan noise than most PC power supply models in the market.
- 1000-Watts Output Power
- Low heat & Low noise operation
- Silent low-RPM 120mm cooling fan
- Active PFC for reduced harmonic distortion
- Full range AC input with automatic AC input voltage selection - 100- 240V AC
- Typical 84%, average 82% efficiency
- High efficiency power conversion allowing lower electrical bill
- Dual +12V Output Rails
- Smart fan controller with on-board thermostat dynamically control fan speed to ensure ultra quiet operation - virtually fanless quiet
- Slightly deeper case size (11mm deeper than standard ATX) provides better cooling by allowing more air flow to cool down internal components
- Fits standard ATX mid tower as well as gaming tower case where PSU is bottom-mounted
- ATI Radeon® CrossfireTM, CrossFireXTM,FireProTM Ready nVidia®SLITM Ready
- Support Intel Xeon, Pentium D, Core2 Duo, Quad Core, Haswell, Core i7, Core i5, Core i3, Intel X, Extreme Edition, and AMD 64, Athlon, Ryzen 3/5/7/9, Vega Multi-Core based systems
- Safe to Operate Designed and tested to meet major international safety agency standards
- RoHS Compliant - made with hazardous-free components
- Complete 4*StarTM electrical protection features built-in
- Each unit is verified for safety by going through a thorough HI-POT test. Additionally, a 1,500 Volt AC spike is introduced for up to 60 seconds under 10mA. Only units that can pass these tests get to be shipped out.

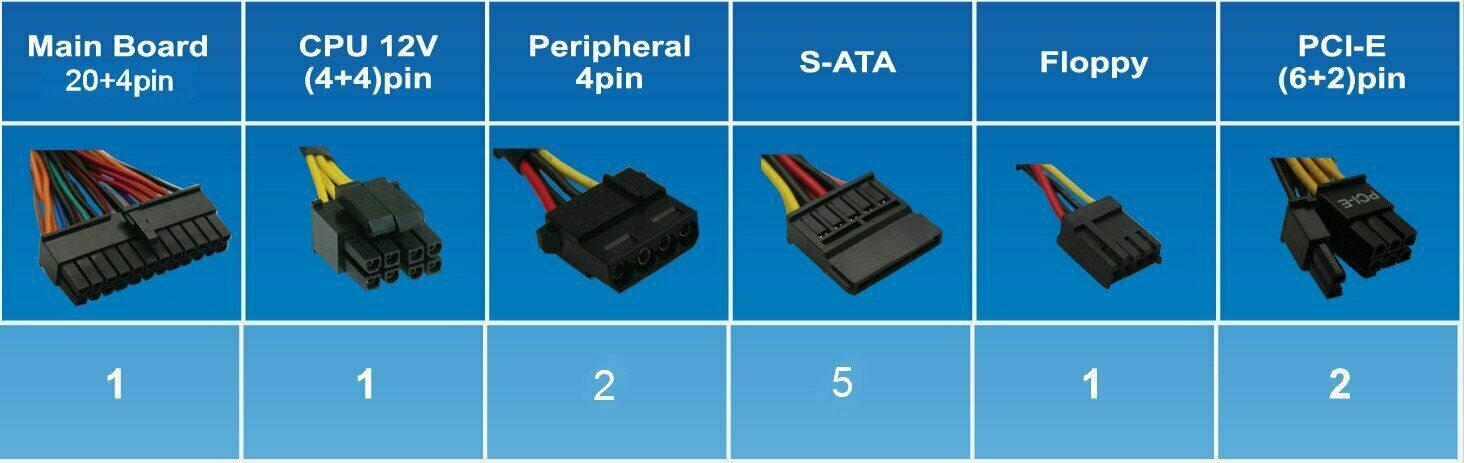

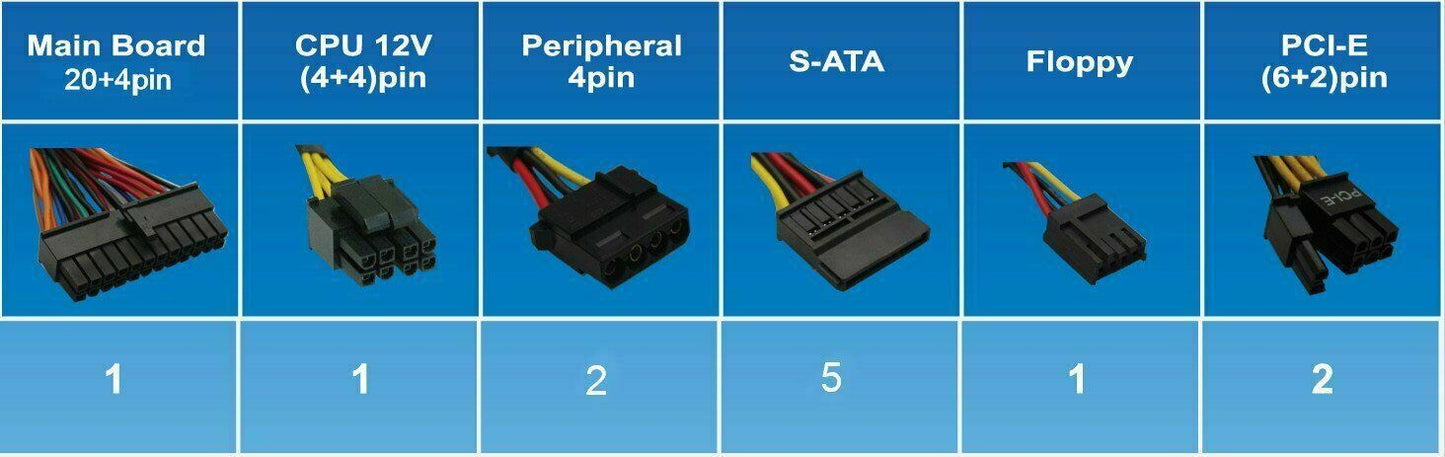

Connector Details:
Mechanical Design

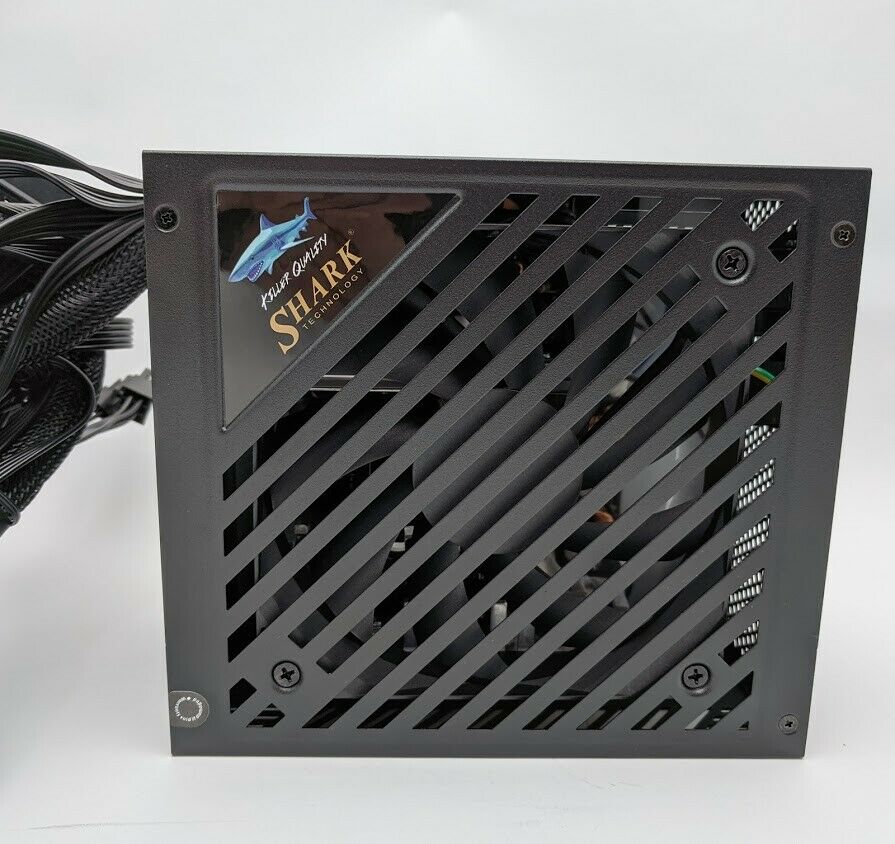

Massive 120mm fan draws heat from CPU area and cools the power supply at the same time. New industrial design with larger footprint to allow more air to flow in and out of the PSU to provide even better cooling than before.
This SHARK TECHNOLOGY® unit comes with cables that are long enough to fit perfectly in gaming cases where PSU are bottom mounted as well.
Want a better power supply that can provide stable power to your PC system without frequent reset, self shut-down, hang-up, or sensitivity to AC input voltage fluctuation? Look no further
Application:
- Gaming PC
- 24/7 Server or PC Workstation
- DVR System
Technical Specifications
AC INPUT : 100-240V Full Range with Automatic AC input Switching. AC Voltage Selection Switch for 115 or 230v is no longer needed as this unit supports all AC input voltage automatically. Input Frequency Range: 50-60Hz. Maximum Input Current: 10A
Maximum Power Output: 1000W
- Manual power shut-down rocker switch
- Dimension: 150mm x 86mm x 156mm (the 156mm length is the side that extends inside the case when installed)
Complete Built-in Electrical Protection System:
Over Voltage Protection
Over Current Protection
Short Circuit Protection
Over Power Protection
Safe to Operate. Safe to the Environment.
Lead-FREE
Cadium-FREE
Mercury-FREE
Hexavalent chromium-FREE
PBB-FREE
PBDE flame retardants-FREE
RoHS Compliant - made with hazardous-free components
Operating temperature range: 0 - 40 degree C (32 - 104 degree F)
Storage temperature range: -20 - 85 degree C (-4 - 185 degree F)
Operating relative humidity range: 5 to 90% RH
Energy-efficient: typical 85.77%, average 84.16% efficiency
MTBF Life Expectancy of this model: 100,000 hours* (11 years & 2 months)
* Excludes the life of the fan which may vary depending on operating environment
Power Good Signal 100~500ms
Hold Up Time >16 ms
Efficiency 82% Plus
Dimensions: 150x160x86mm
