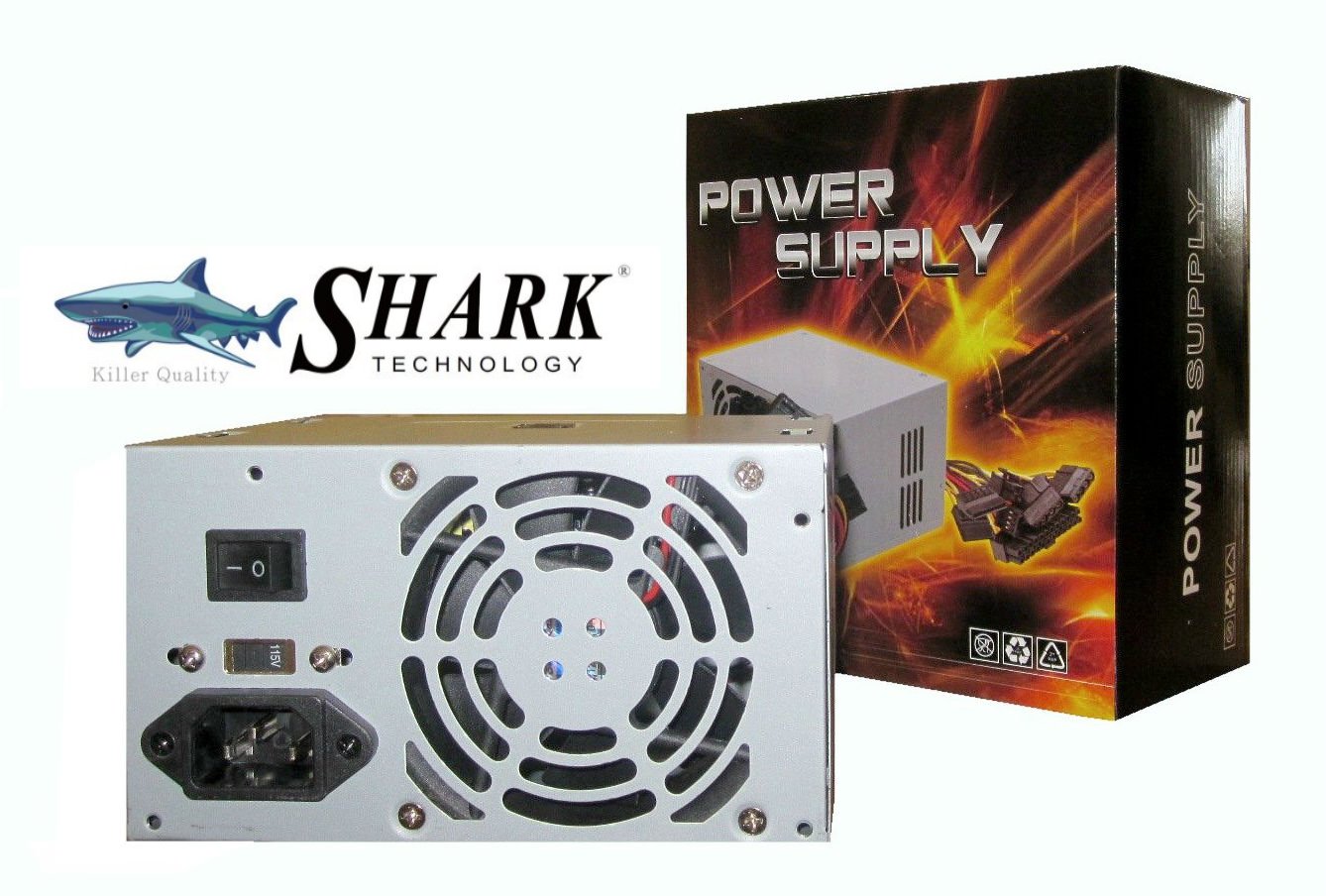

SHARK TECHNOLOGY® Model: ATX-500 500W PS3/ATX 12V Intel P3/P4 PC Power Supply

Regular price $40.00

Designed to be an ideal easy-to-install replacement power supply choice for most name brand desktop PC/
mini Computer/ Desktop ATX/ PS3
Tower PC

SHARK TECHNOLOGY® ATX-500 is a compact 500-Watt power supply combines an efficient layout with proven switching design to provide the most reliable and cool running power source for your valuable hardware.

Both SATA and Molex 4-pin peripheral power connectors are each laid out on two separate cable lines so drives positioned not adjacent to each other can still be reached.

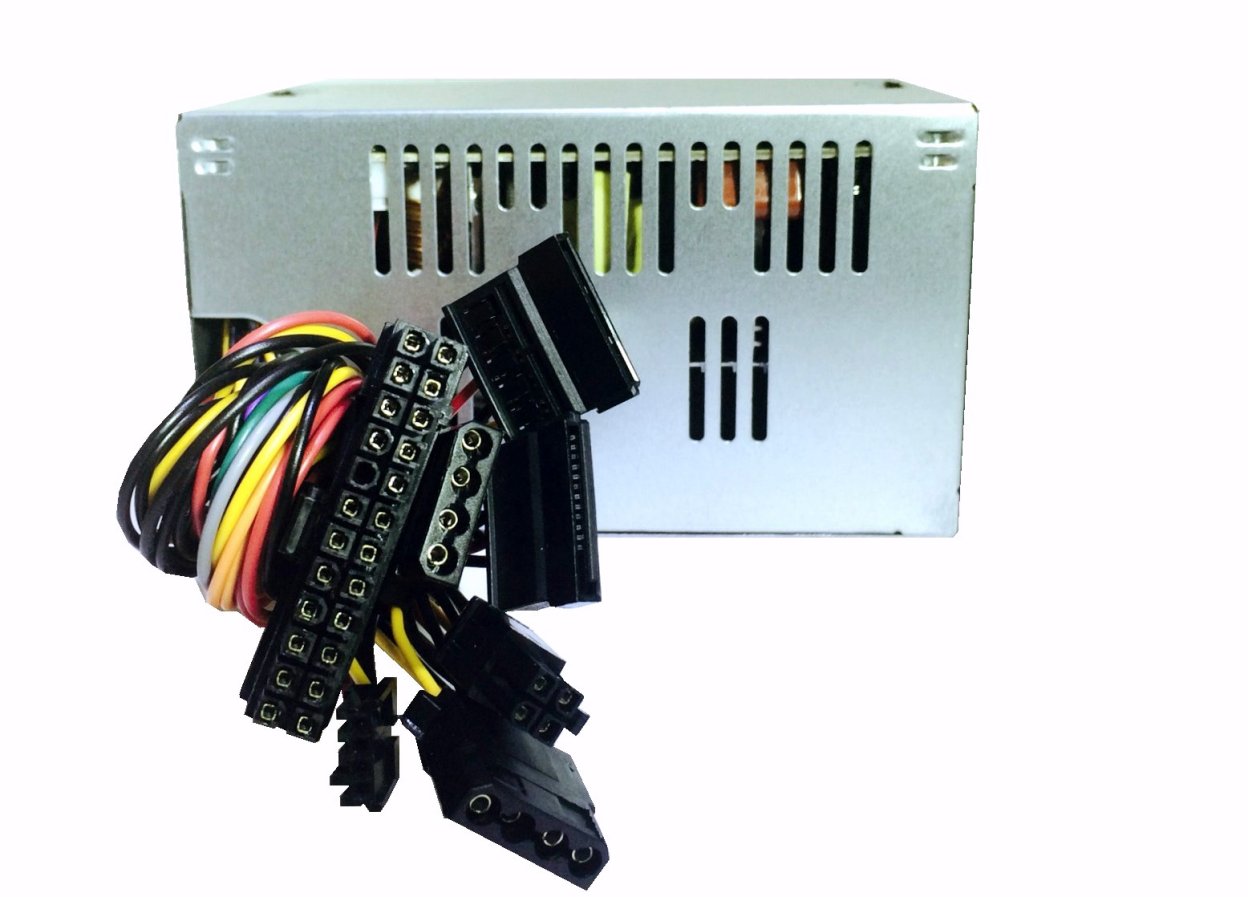

   Connectors

  1x 24-pin (20+4pin) Main Connector (detachable sub-module to become 20pin)
  1x 12V (P4) Power Connector
  2x Molex 4-pin Peripheral Power Connector  (on 2 separate cable lines.)
  1x Floppy Drive Power Connector
  2x SATA Power Connector  (on 2 separate cable lines)

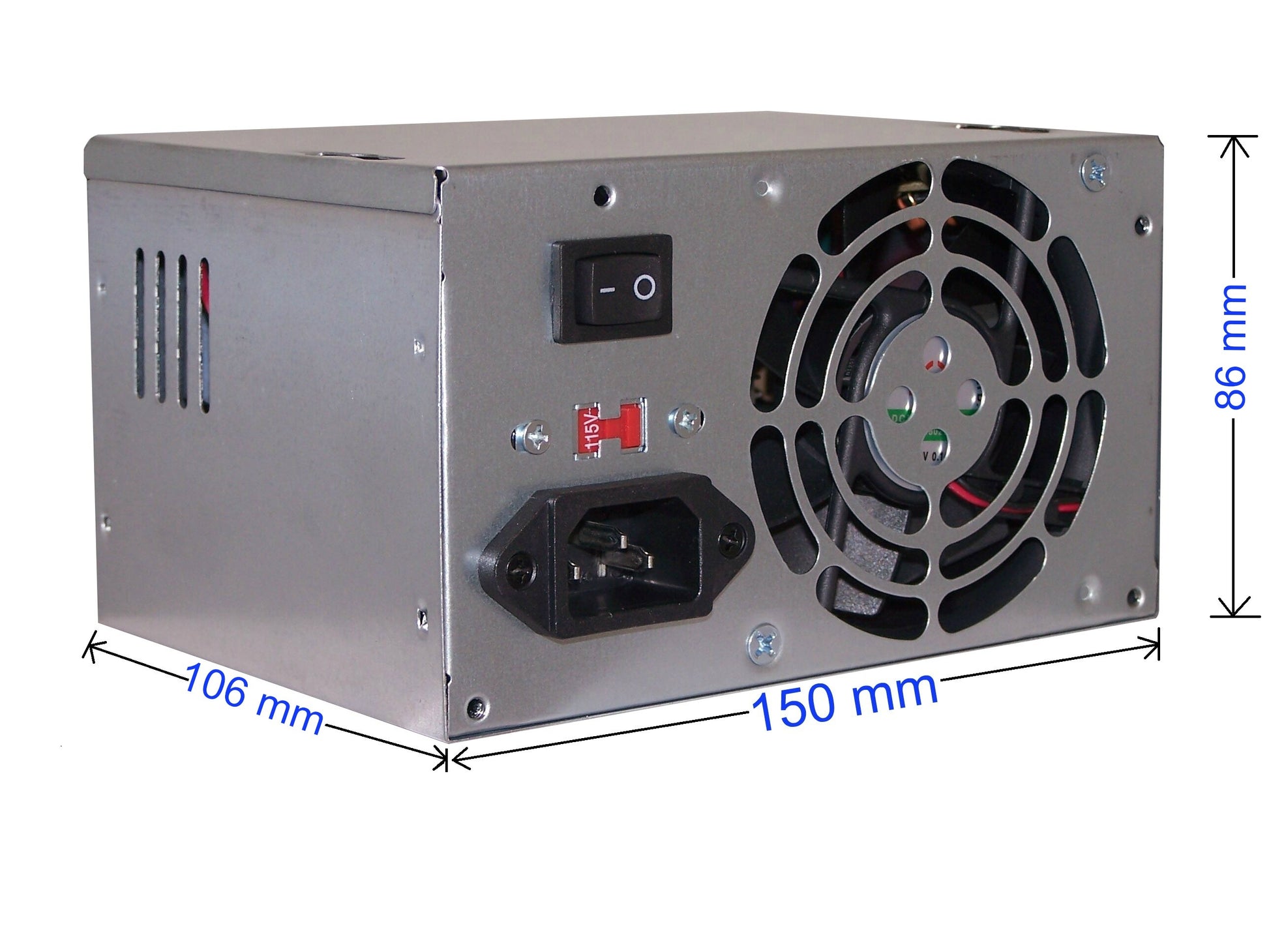

Dimensions:

mechanical drawing

3 3/8" (height) x 5 7/8" (width) x  4 3/16 (depth)"

86(H) x 150(W) x 106 (D) mm



    Technical Specifications


AC INPUT
115V/230V - 60/50Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5VSB
500W
Peak
Combined
Watts
30A
40A
22A
0.8A
2A
500W
    • Maximum Power Output: 500W
    • Efficiency: Typical 65% @ full load
    • Manual shut-down rocker switch
    • Mesh fan-guard for child safety protection
    • Input: 100-127V AC or 200-240V AC - select-able by switch
    • Low Noise Operating Fan -- 36dB (Max) under ambient noise of 32db and test distance of 1 meter.

 Complete 5*Startm system protection:
  • Over Voltage Protection
  • Under Voltage Protection
  • Over Current Protection
  • Short Circuit Protection
  • Over Power Protection


    Applications

  Replacement power supply for HP P/N: 5188-2625, Delta DPS-300AB, and Hipro HP-D2537F3R, HP-D3057F3R.
  Aftermarket replacement power supply for: HP Pavilion a6000 a6000la a6000n a6000y a6005y a6010e a6013w ....
