Active PFC
Energy Efficient (Over 82%)
Full AC Range

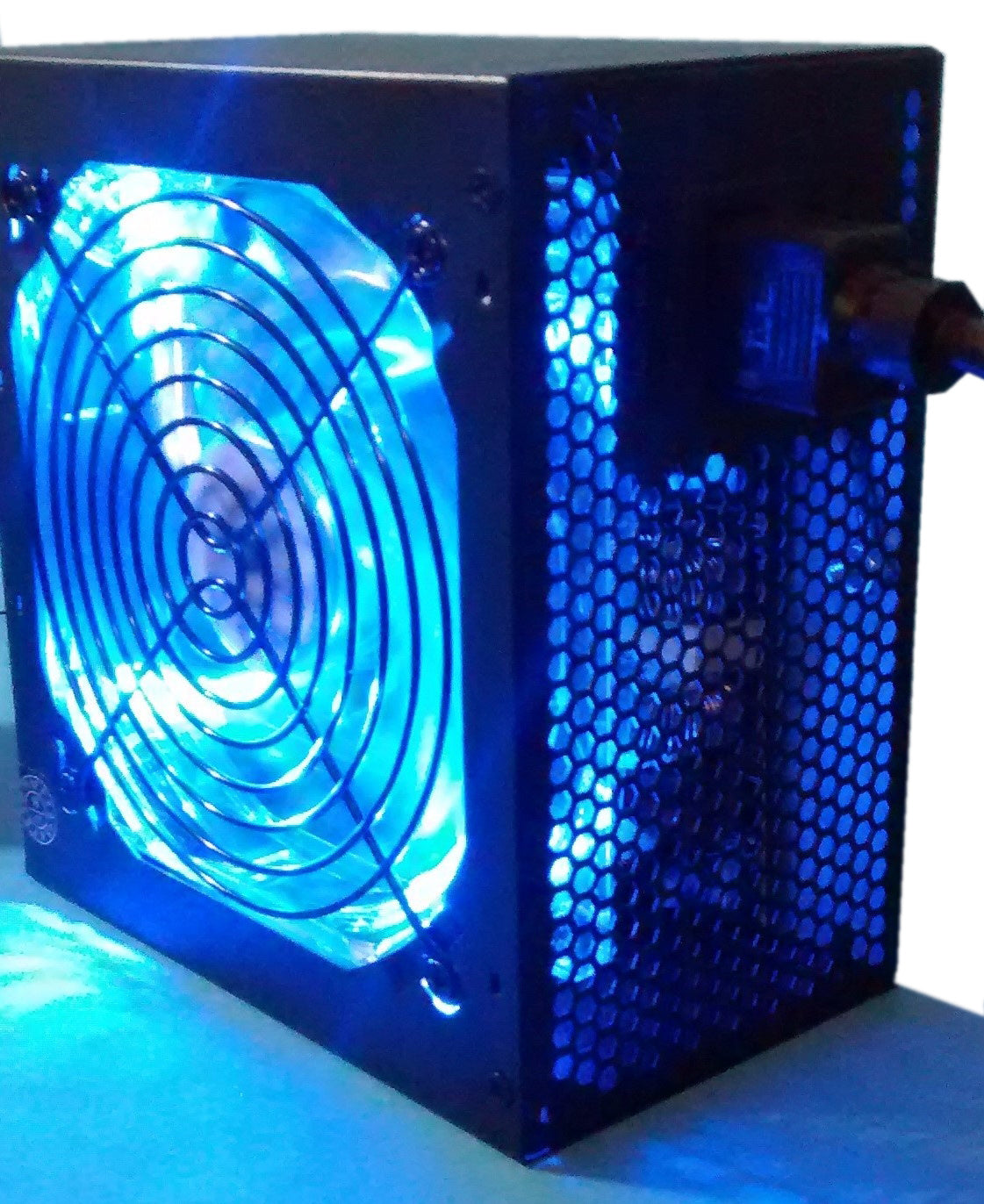

Quiet 120mm Blue LED Fan
H i g h E f f i c i e n c y
- 1000-watts Output Power
- Low heat & noise operation
- Silent low RPM 120mm cooling fan
- Active PFC for reduced harmonic distortion
- Full range AC input with automatic AC input volatge selection - 100-240V AC
- Typical 85.77%, average 84.16% efficienccy
- High Efficiency power conversion allowing lower electrical bill
- Dual +12V output rails
- Smart fan controller with on-board thermostat dynamically controls fan speed to ensure ultra quiet operation-virtually fanless quiet
- Quad blue colo LEDS turn on when the psu is on
- ATI Radeon® crossfire, CrossfiresXTM, FireProTM Ready
- nVidia®SLITM Ready
- Supports Intel Xeon, Pentium D, Core2 Duo, Quad Core, Haswell, Core i7, Core i5, Core i3, Intel X, Extreme Edition, and AMD 64 x2, Quad core, Six & Eight Core based systems
- Safe to operate- Designed and tested to meet major international safety agency standards

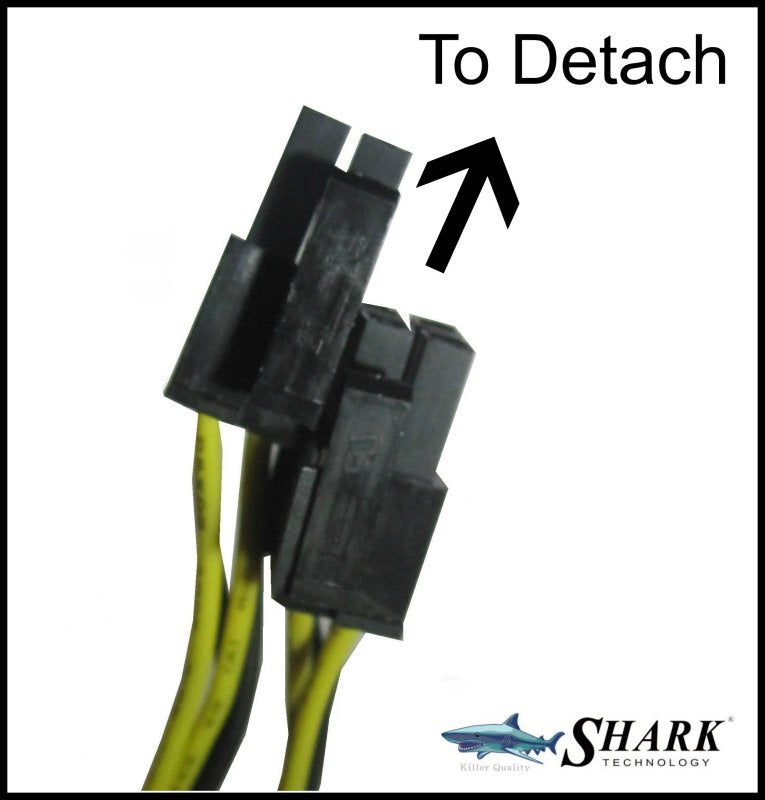

- 5x SATA Power Connectors and 2x PCI-Express (6+2pin) Power Connectors
- RoHS Compliant- made with hazardous-free components
- Complete 4*StarTM electrical protection features built-in

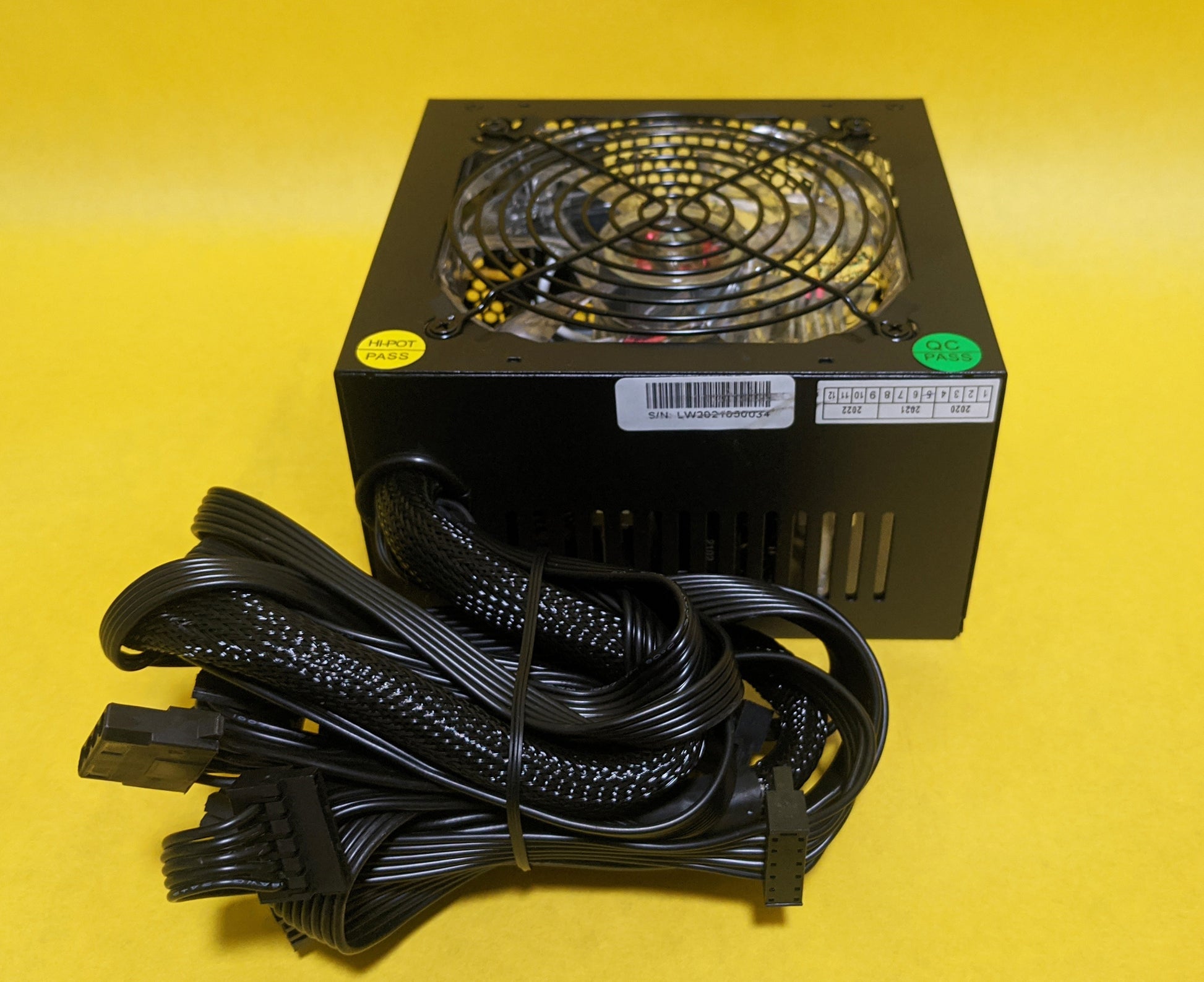

- Each unit is verified for safety by going through a thorough HI-POT test. Additionally, a 1,500 Volt AC Spike is introduced at each ATX-1000N unit for up to 60 seconds under 10mA. Only units that can pass these tests get to be shipped out.

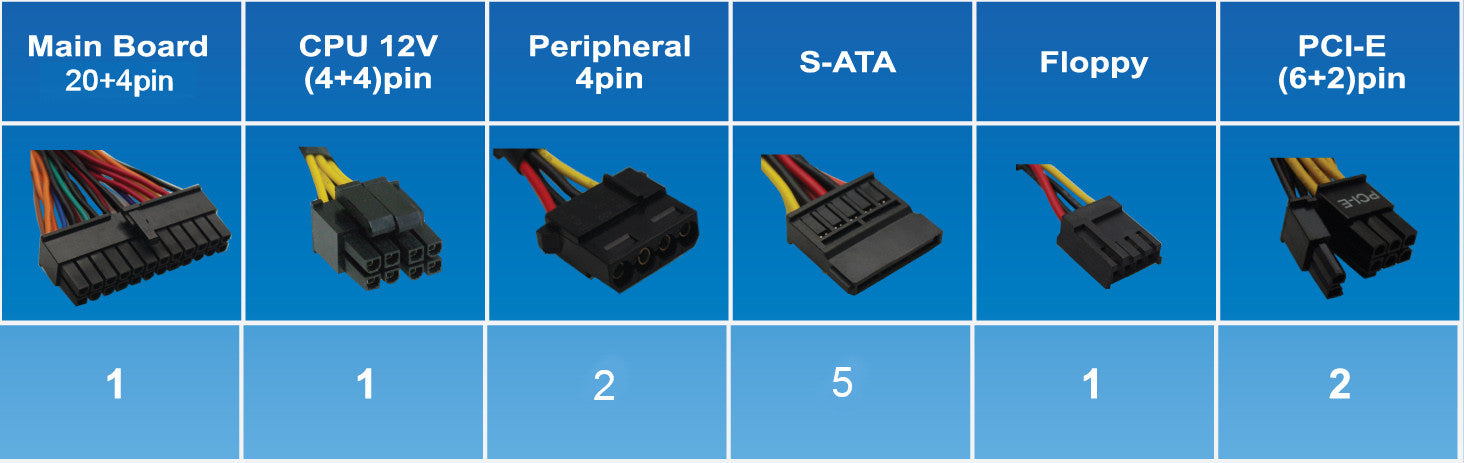

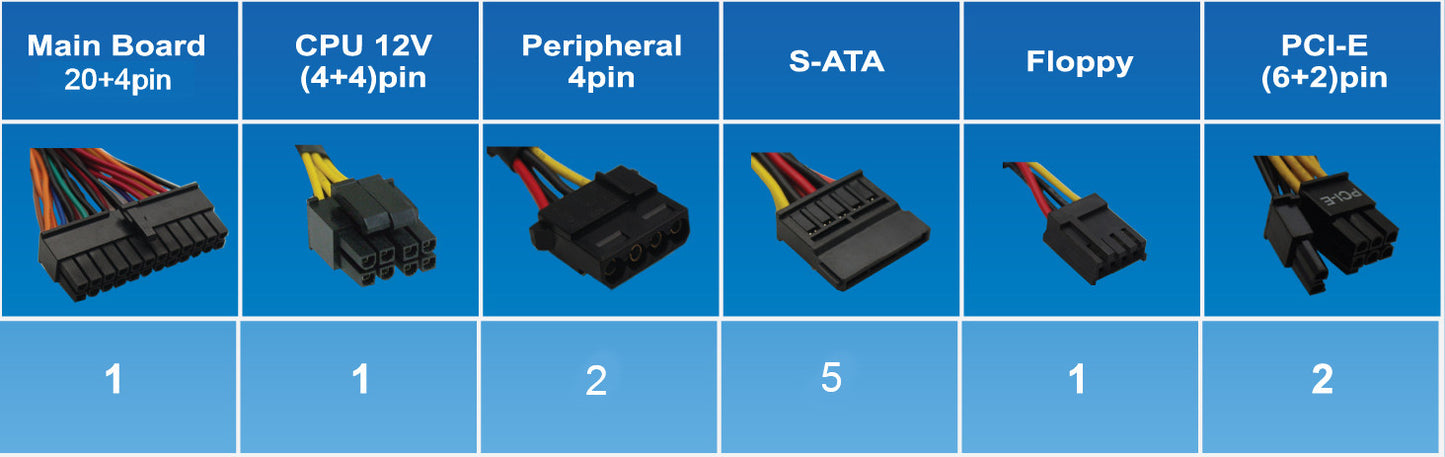

Connectors Details

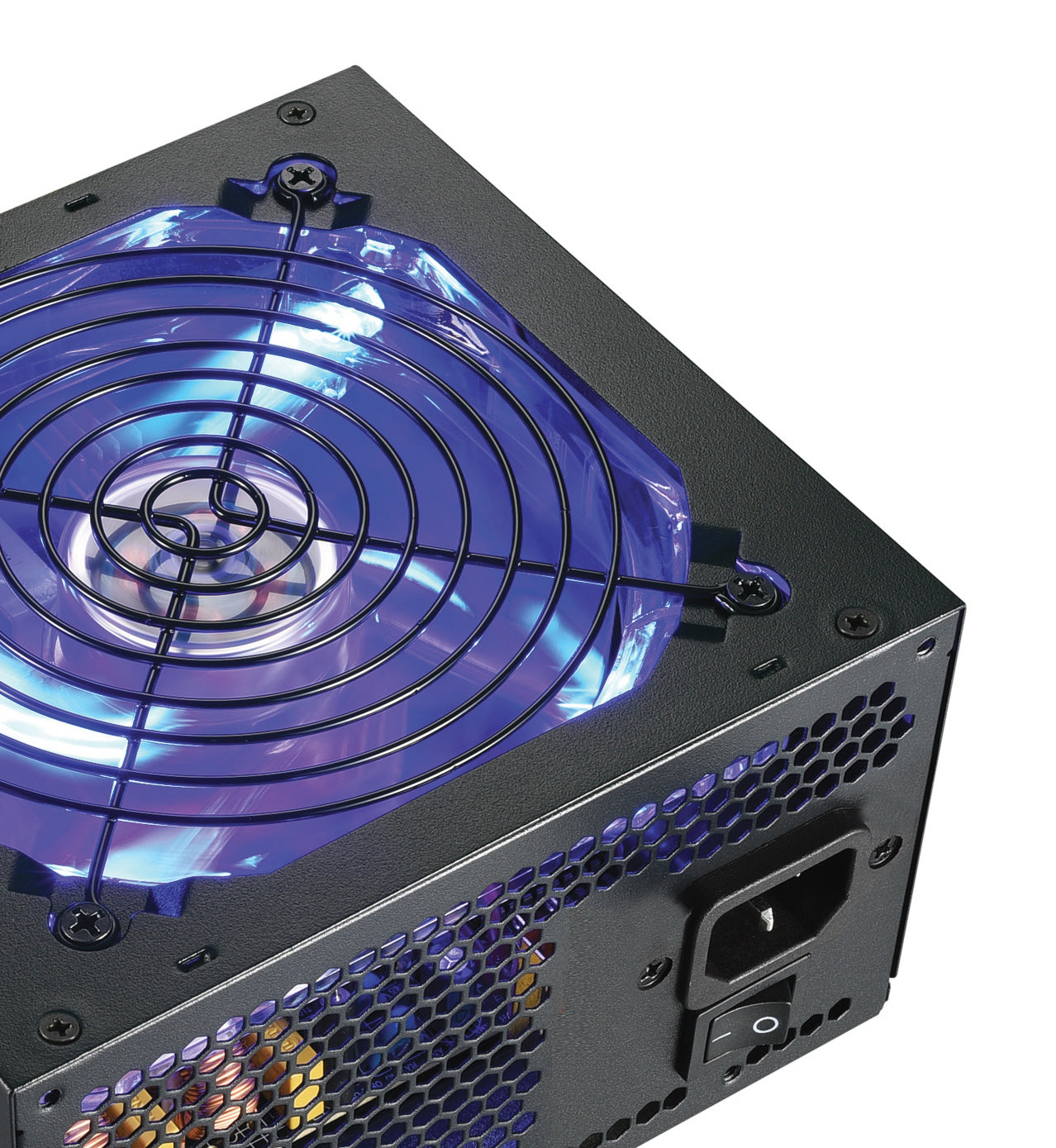

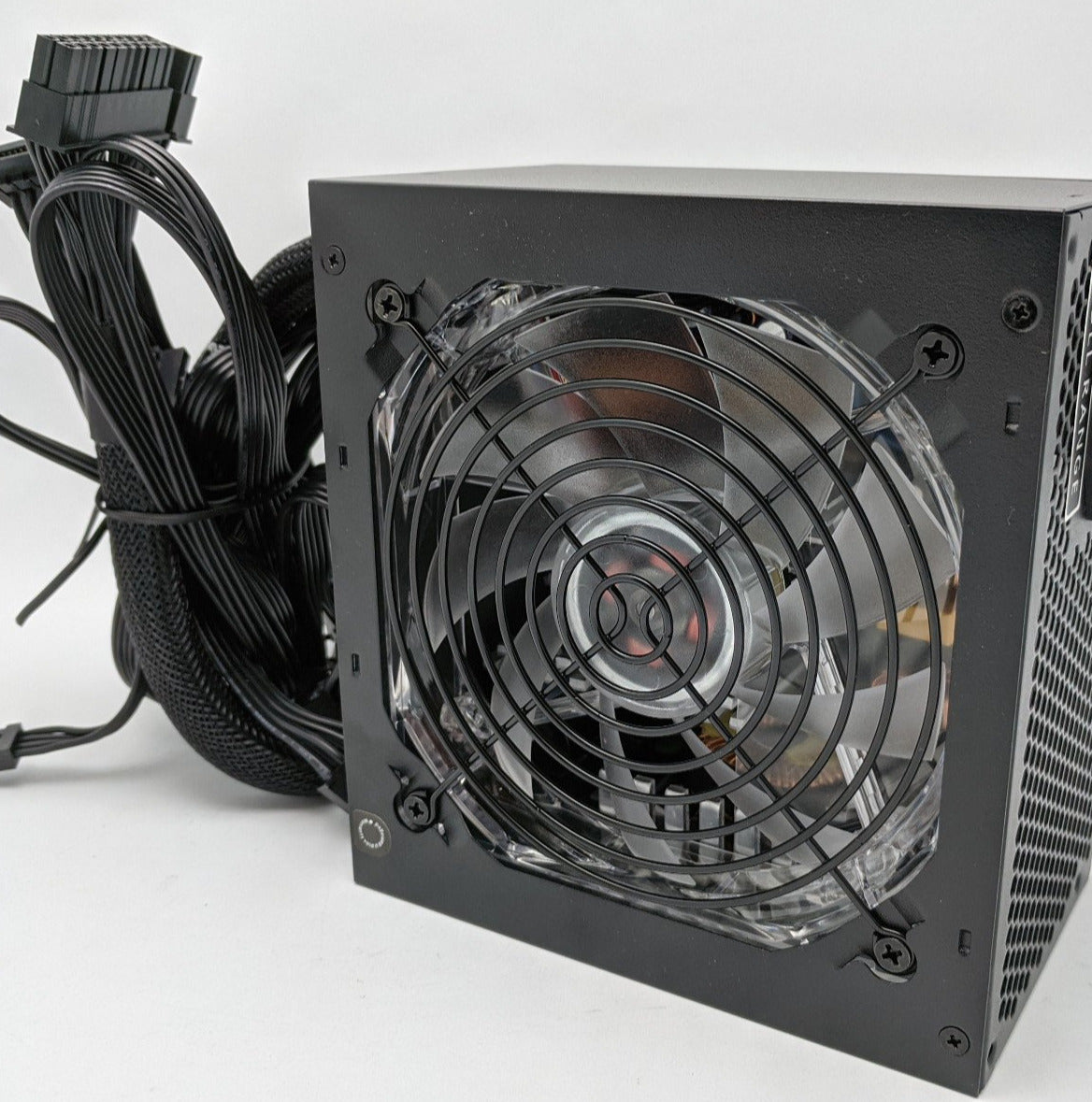

Better Mechanical Design Massive 120mm fan draws heat from CPU area and cools the power supply at the same time. Special slippery circular tube design black anodized fan-guard allows air to flow in smoothly and quietly while providing protection against unintended installation injury This Shark Technoogy® unit comes with cables that are long enough to fit perfectly in gaming cases where PSU are bottom mounted as well. Want a better power supply that can provide stable power to your PC system without frequent reset, self shut-down, hang-up,or sensitivity to AC input voltage fluctuation? Look no further.
Dimensions: 150 x 160 x 86 mm (standard ATX size, and not oversized monster that won't fit in standard PC case)

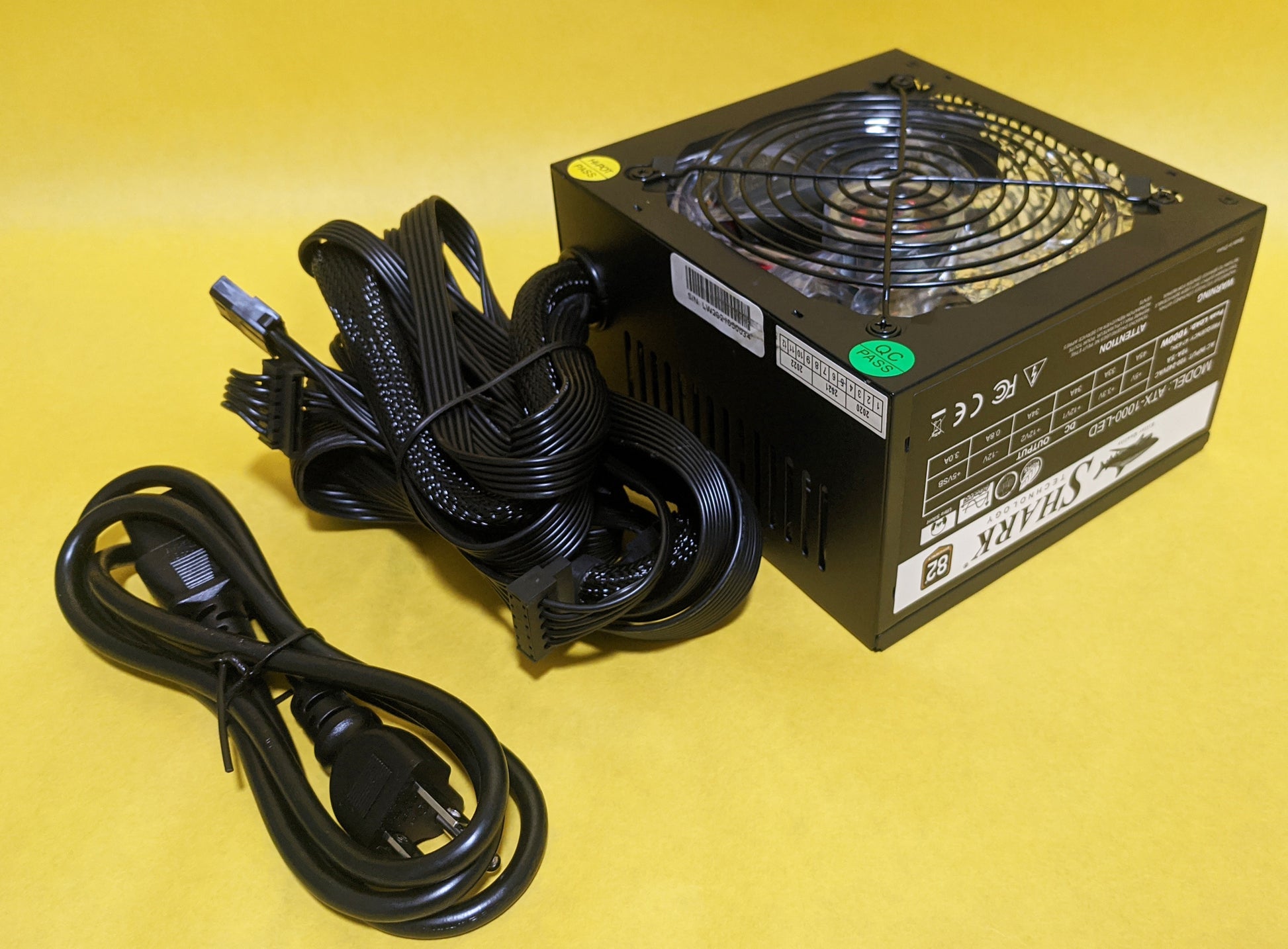

Smart Cable Design: Cables are long with power connectors strategically spaced out on several cable lines to support various system configurations in standard as well as larger tower cases
Application
- Gaming Tower PC
- 24/7 Server or PC Workstation
- Dell Precision T3400 400SC 390 380
- Dell Studio XPS 435MT
- Replacement for Dell J102N J036N YN637
Technical Specifications:
AC Input: 100-240V Full Range with Automatic AC Input Switching. AC Voltage Selection Switch for 115V or 230V is no longer needed as this unit supports all AC Input voltage automatically. Input frequency Range 50-60Hz. Maximum input current: 10A.
- Safe to operate. Safe to the environment
- Lead-Free
- Cadium-Free
- Mercury-Free
- Hexavalent chromium-Free
- PBB-Free
- PBDE flame retardants-Free
- RoHS Compliant - made with hazardous-free components
- Maximum Power Output: 1000W

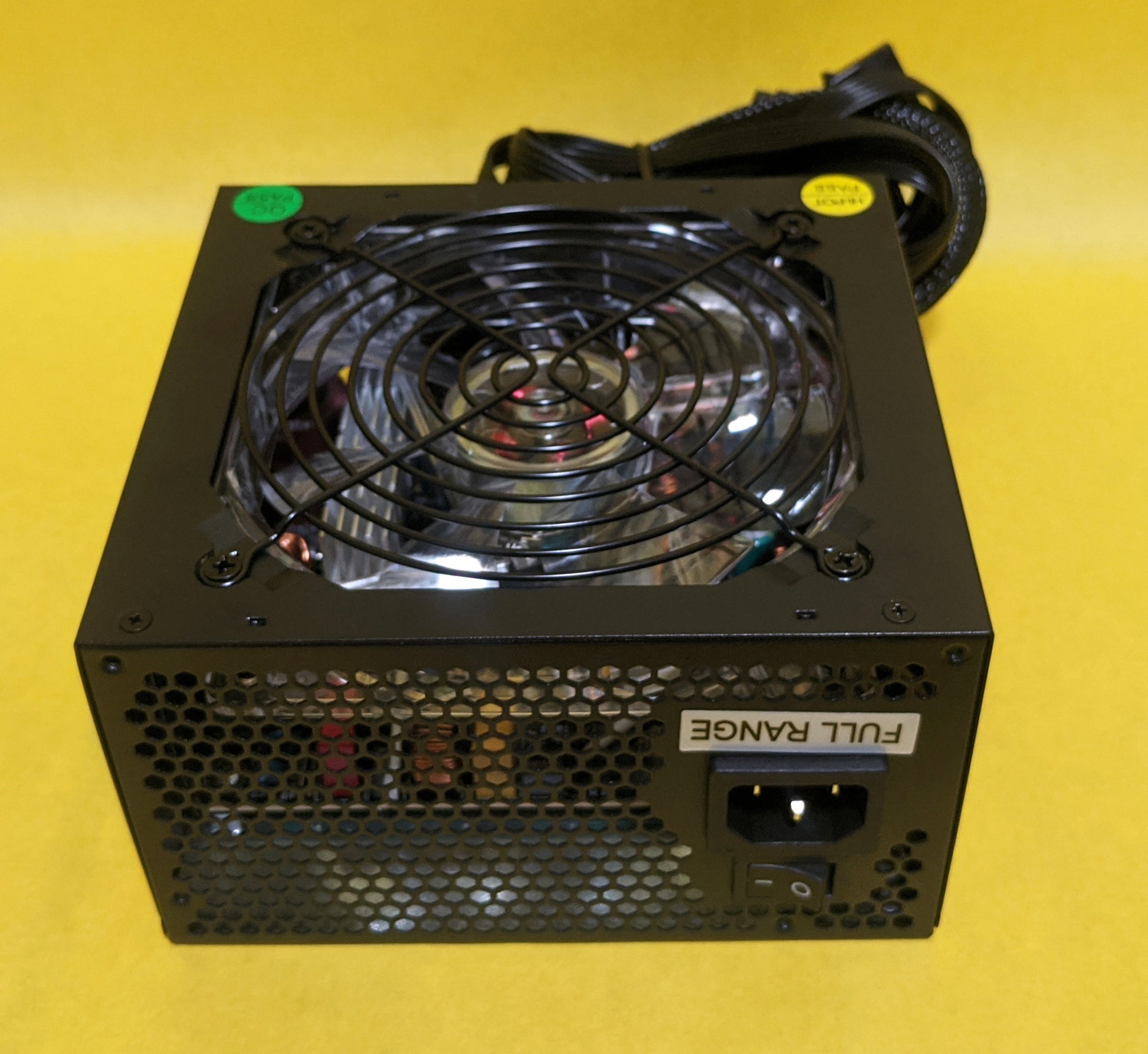

- Manual Power shut-down rocker switch
- Dimensions: 150mm x 86mm x 145mm (the 145mm length is the side that extends the case when installed)
- Complete Built in Electrical Protection System:
Over Voltage Protection
Over Current Protection
Short Circuit Protection
Over Power Protection
Operating Temperature range: 0-40 degree C (32-104 degree F)
Storage Temperature range: -20 - 85 degree C (-4 - 185 degree F)
Operating Relative Humidity range: 5 to 90% RH
Energy-Efficient: typical 85.77%, average 84.16% efficiency
