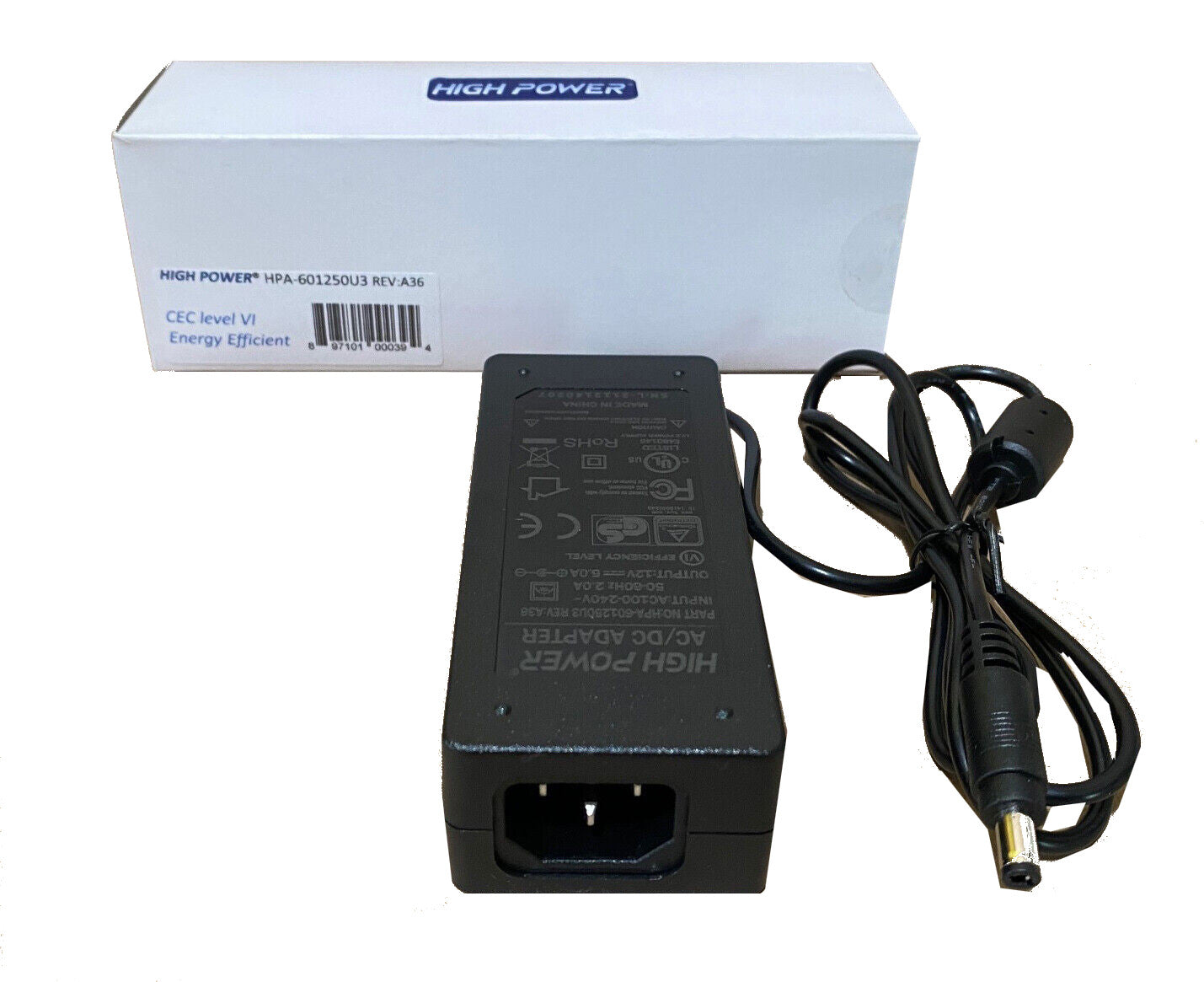

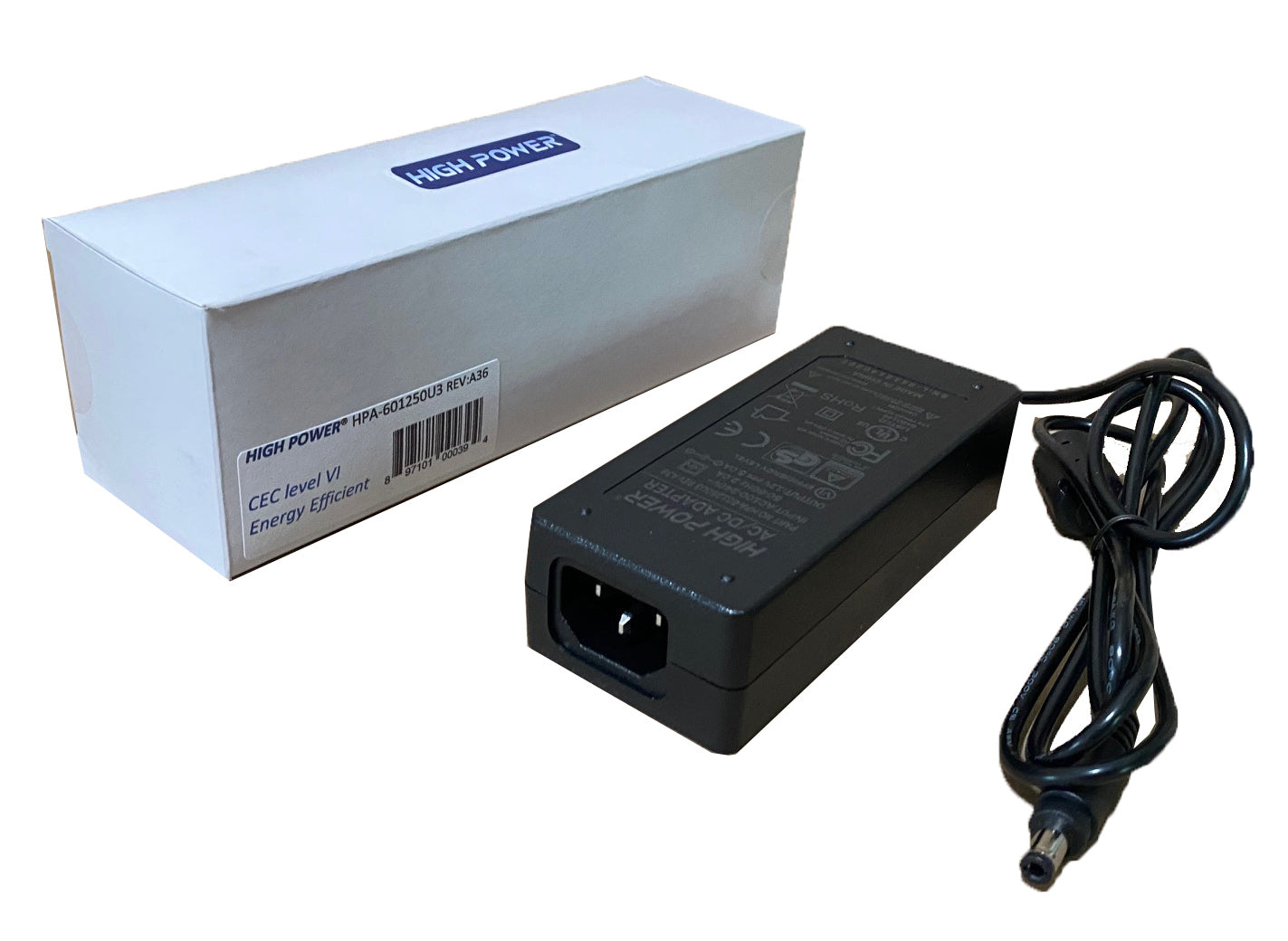

HIGH POWER® HPA-601250U3 REV: A36 60W Energy-Efficient Fanless Level VI LCD Monitor / TV AC Adapter / Mini ITX 12V PC Power Supply

MORE COMING SOON--in production 10/23/26

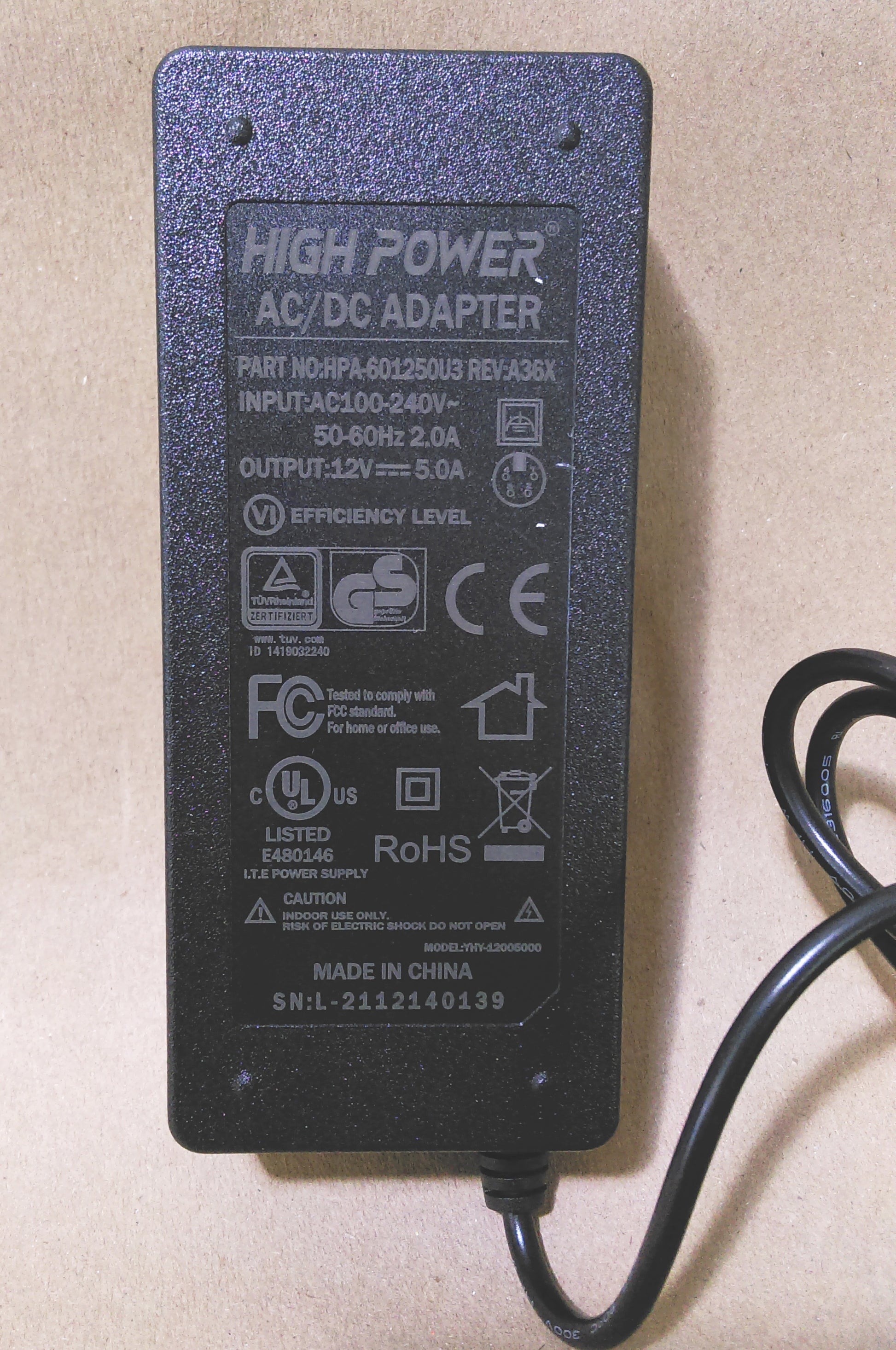

HIGH POWER® HPA-601250U3  REV: A36


60W Energy-efficient Fanless LCD Monitor / TV AC Adapter /
Mini ITX 12V PC Power Supply

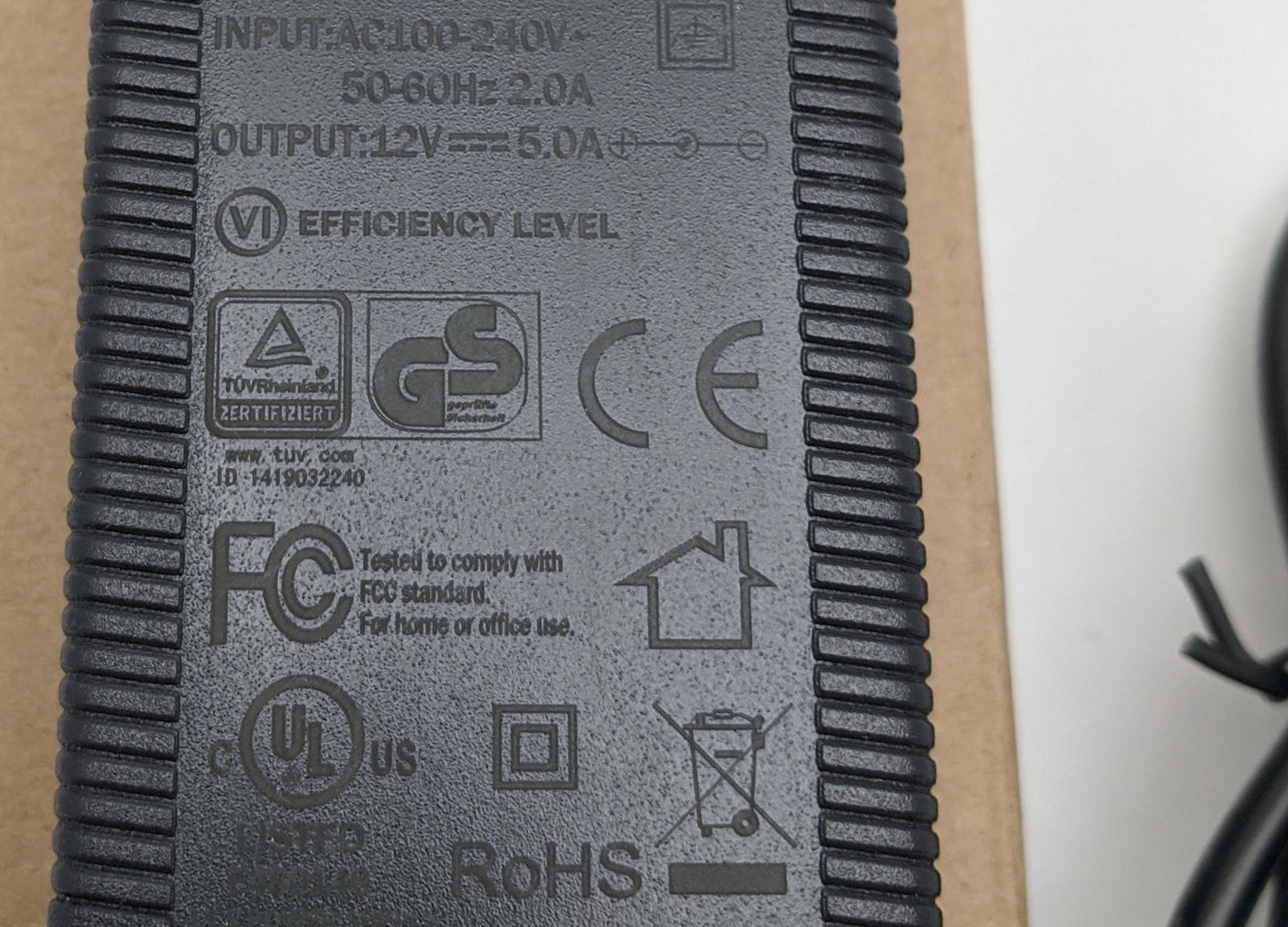

• Input: 100-240V AC

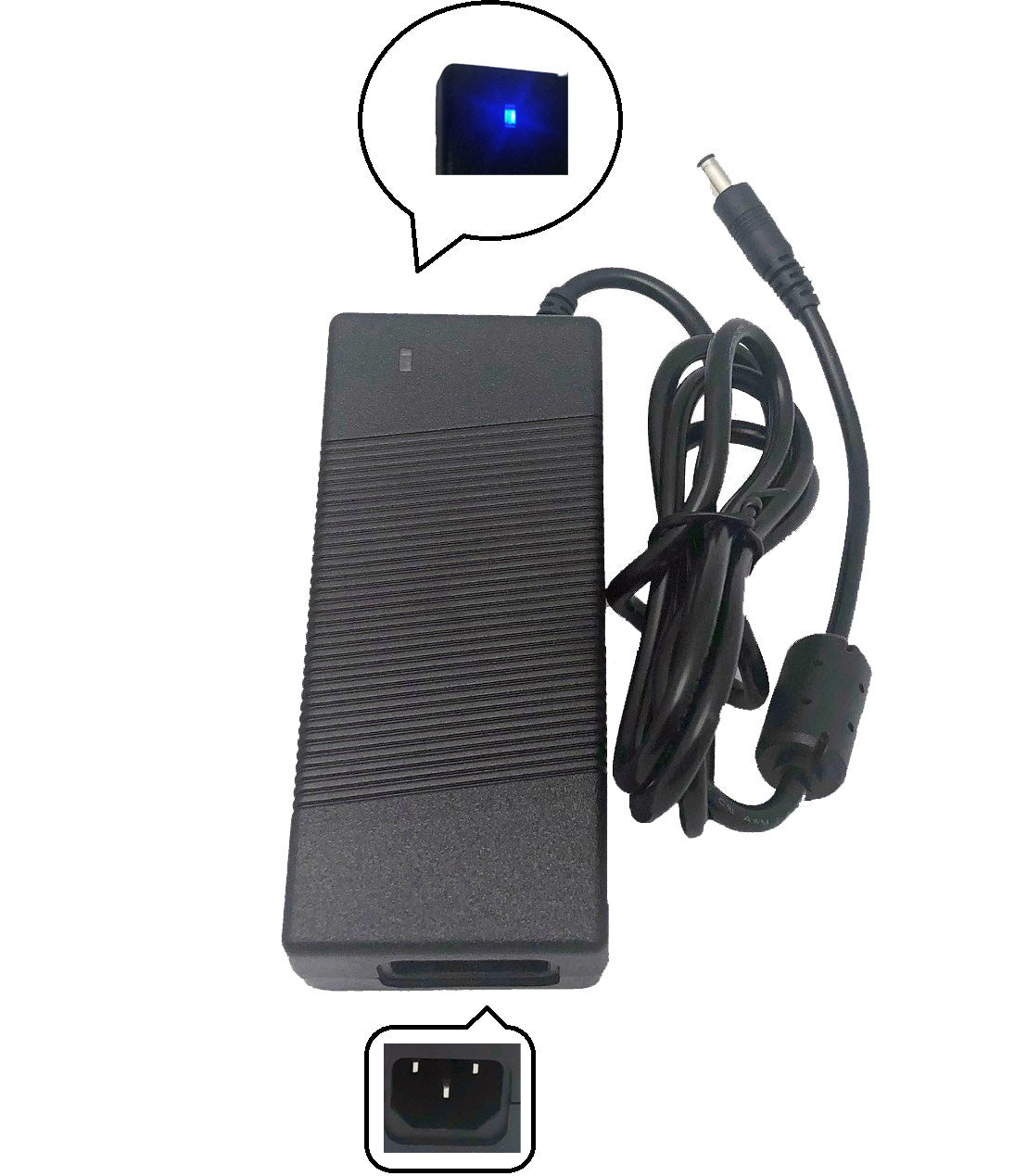

• Input AC Inlet: IEC 320 3pin (Type C14) compatible


• Output Voltage: 12V DC

• Ratings: 5A (60W) Continuous

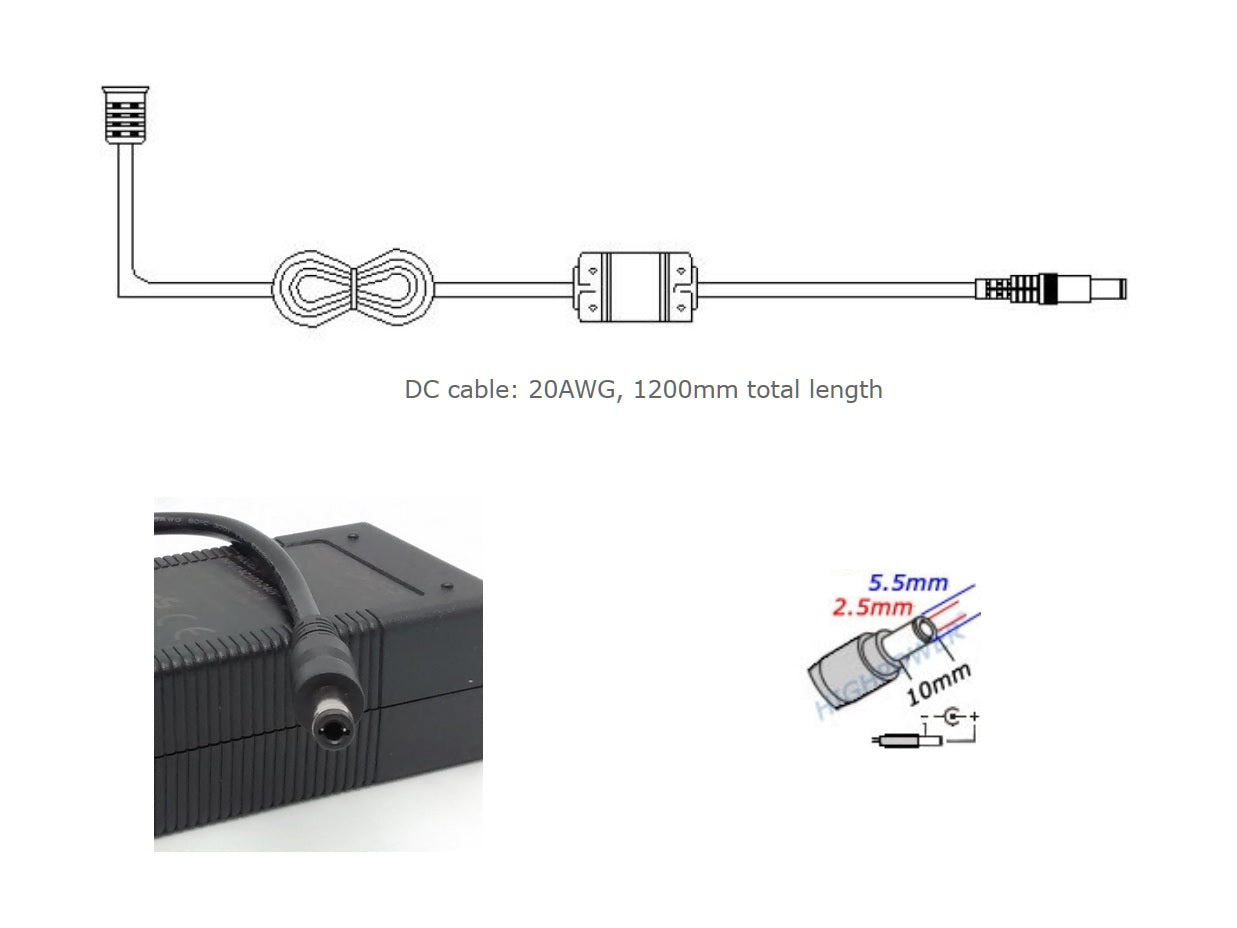

• DC Cable length - 120cm

• DC Jack Dimensions: 5.5mm (outer) / 2.5mm (inner) / 10mm (length)

• High efficiency design with 88% minimum at normal line input and average of 25%, 50%, 75%, 100% of max load.

• Meet DOE CEC level VI

• No load Power Consumption :  Less then 0.21W


• Fanless AC adapter operates in total silence.

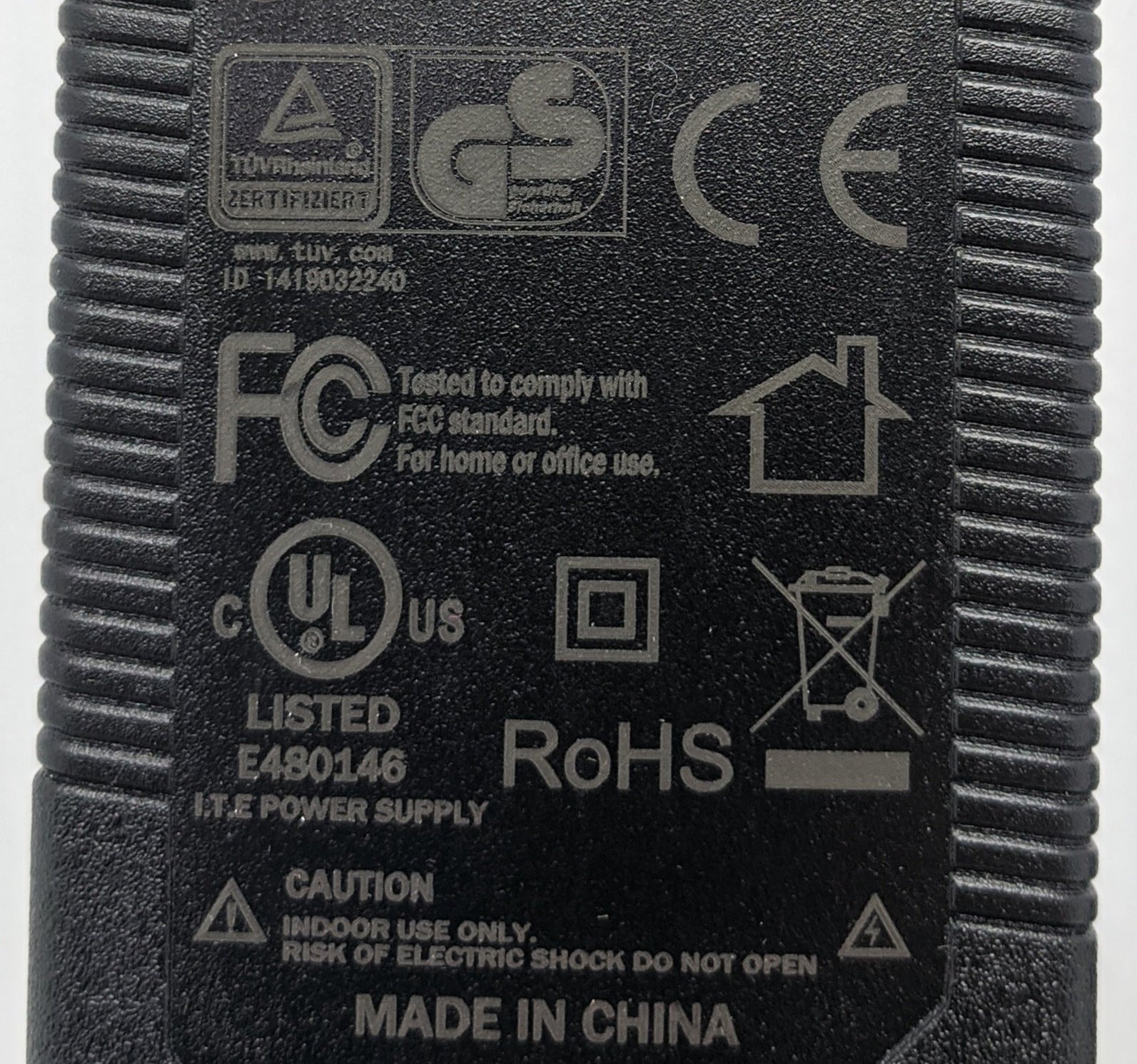

• UL, cUL, TUV, CE, FCC, CCC, KC, GS, CB, DOE VI, cTick, SAA Certified

• RoHS Compliant

Technical Specifications



•     High efficiency design with 88% minimum at normal line input and average of 25%, 50%, 75%, 100% of max load.  Meet CEC level VI



•     No load Power Consumption :  Less then 0.21W



•     Inrush Current (cold start) : 30A Max. @110Vac/60Hz;   60A Max. @230Vac/50Hz



•     AC Leakage Current: 0.25mA Max. @240VAC input.



•     Line Regulation: This line regulation is less than ± 5%, of rated output voltage@ full load



•     Minimum Load: 0.0A



•     Hold Up Time: ≧ 5mSec., @ 115V AC input line, with full load.



•     Rise Time: ≦40 milli-second @ 115V AC input with full load - from 10% to 90% of output voltage.



•     Turn-ON Time: The output voltage should rise to 90% of rated output voltage in less than 3 second from 115V AC applied to start up.



•     Over voltage protection



•     Short circuit protection



•     Over Voltage Protection



•     100% HI-POT tested: IEC 320 3pin primary to secondary 1800Vac 5mA 1min



•     100% cycling BURN-IN under 80% load for 2 hours



•     12V DC output @  +- 5% Standard Deviation



•     120mV Maximum Ripple Voltage



•     Operating temperature:  0 - 50 degree C



•     Storage temperature: -20 - 80 degree C



•     Humidity : Operating -  10 to 90 %;  Storage - 5 to 90 %



•     Altitude :  Operating - From sea level to 2,000-Meter ; Storage - 5,000-Meter



•     MTBF : > 50,000 hours at full load under 25 degree C ambient condition



•     Safety compliance: UL, cUL, TUV, CE, FCC, CCC, KC, GS, CB, DOE VI, cTick, SAA

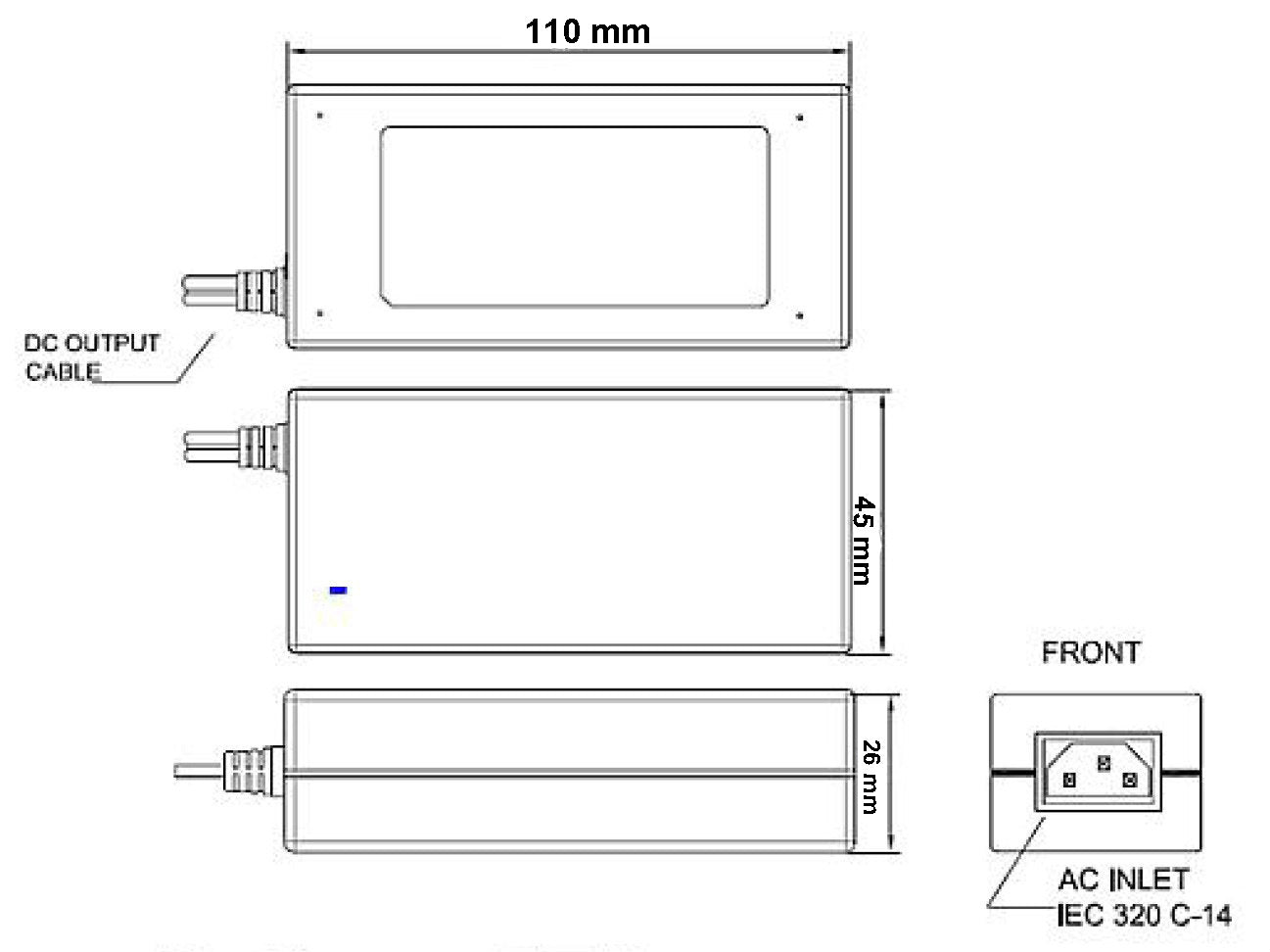

•     Dimensions: 114 (L) * 50 (W) * 30.5 (H)  mm
•  AC Input Voltage:  Maximum Voltage: 264Vac, Normal Voltage : 100~240Vac, Minimum Voltage: 90Vac
• AC Input Frequency: Maximum Frequency: 63Hz, Normal Frequency: 50~60Hz, Minimum Frequency: 47Hz

• Input Current:
   1.2A (Max.) @ 115Vac input will full load
   0.6A (Max.) @ 230Vac input will full load



RoHS Compliant - made with hazardous-free components

RoHS is the Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment. This has been a standard in Europe and is now becoming a standard in the world. Not only lead, but cadium, mercury, hexavalent chromium, polybrominated biphenyl (PBB), and polybrominated diphenyl ether (PBDE) flame retardants are limited as well.
