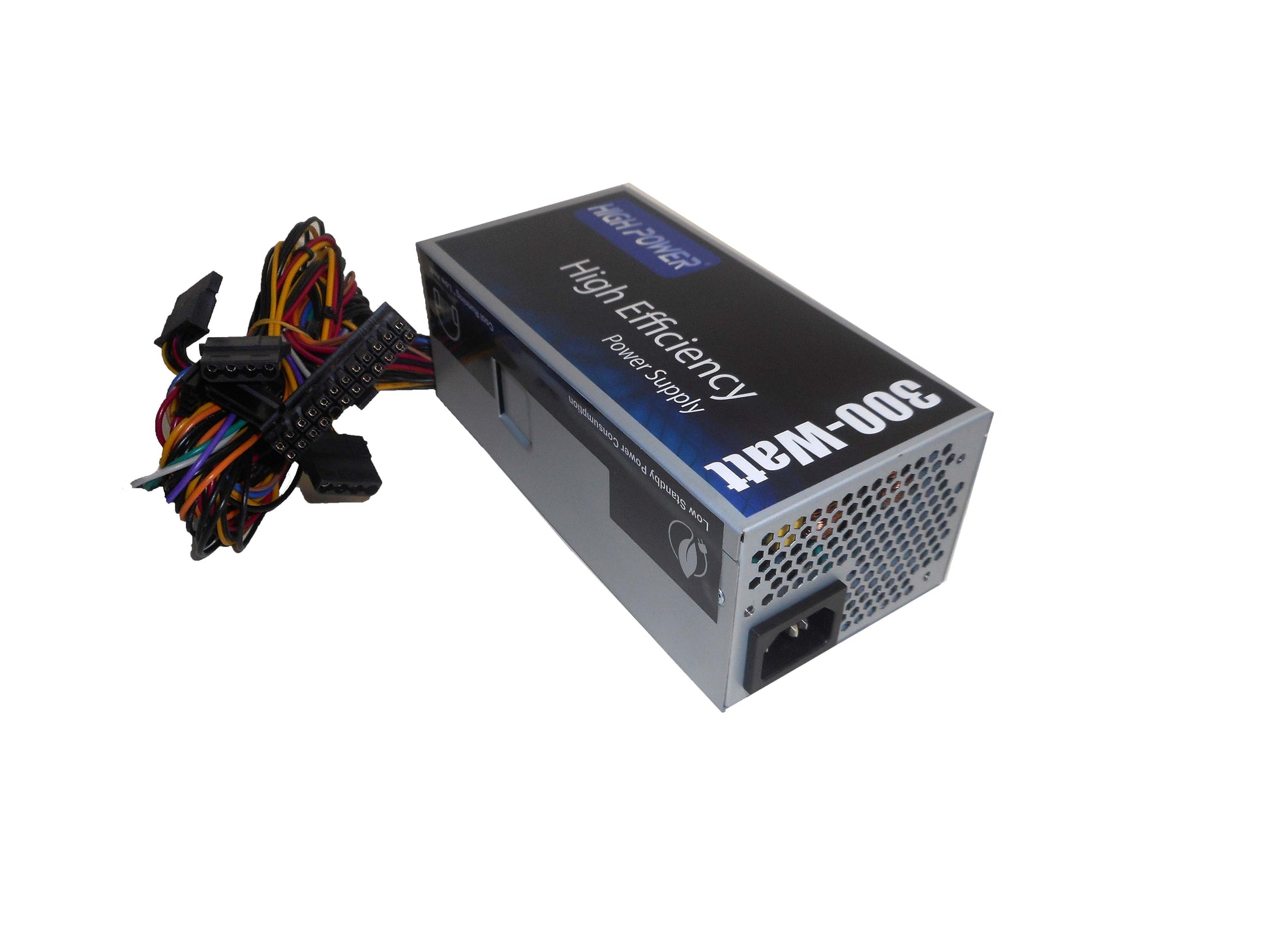

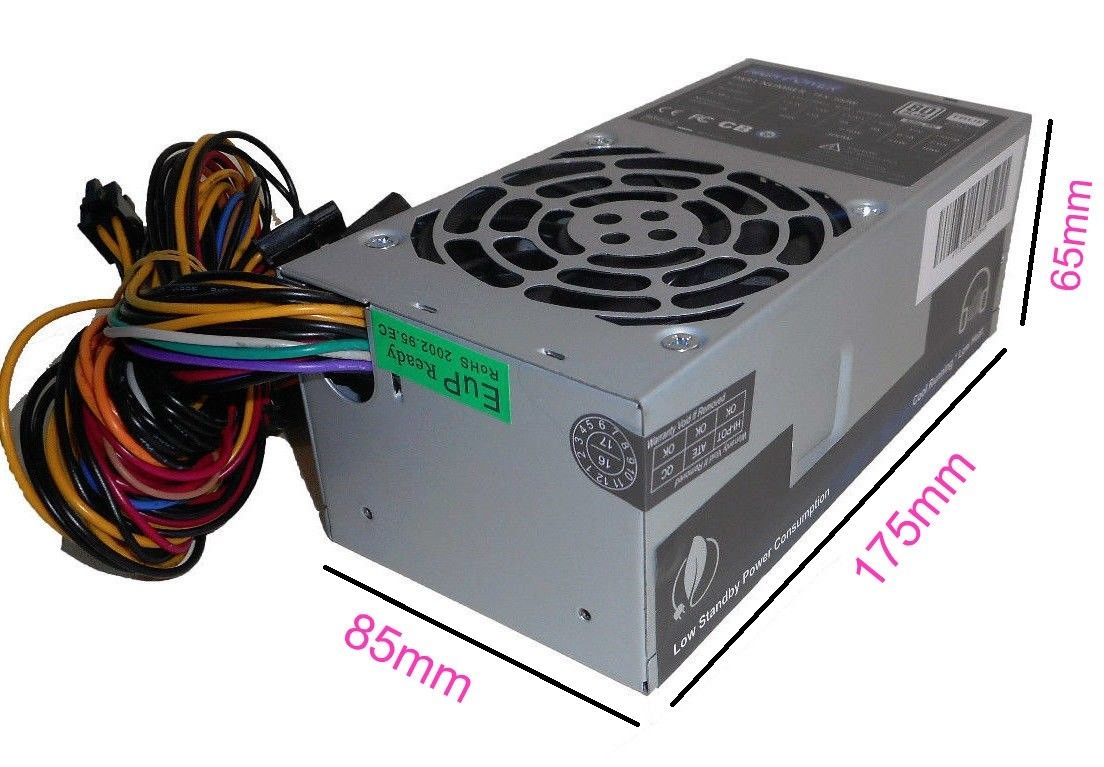

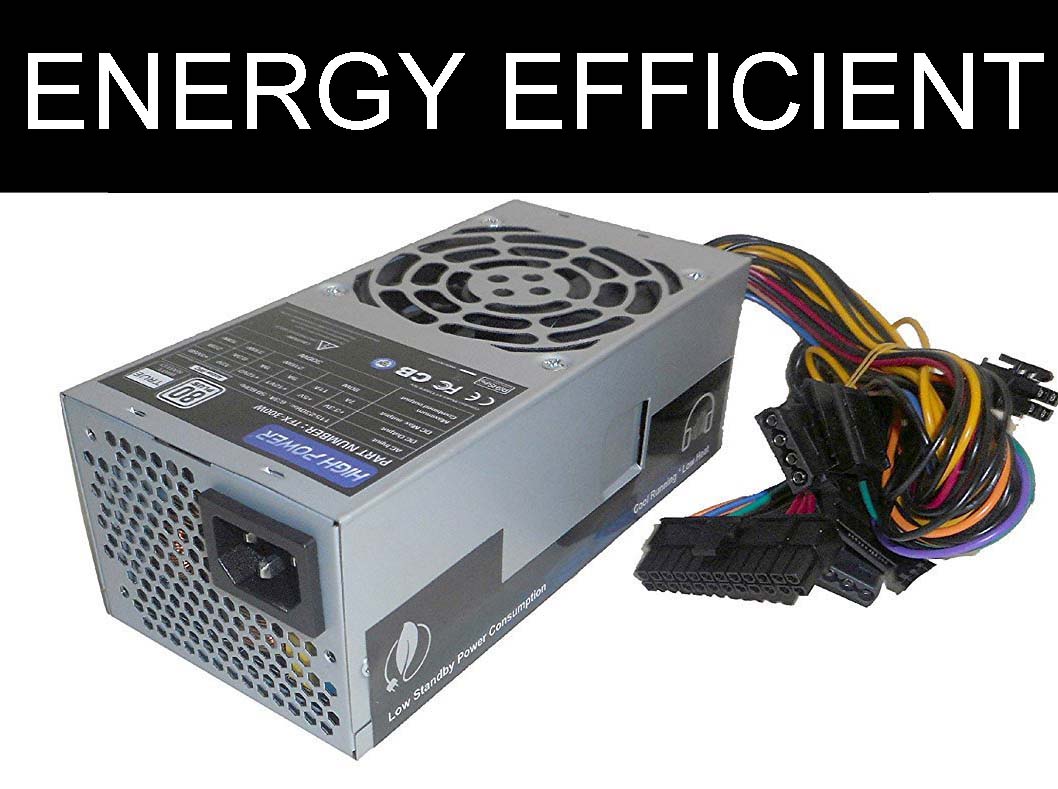

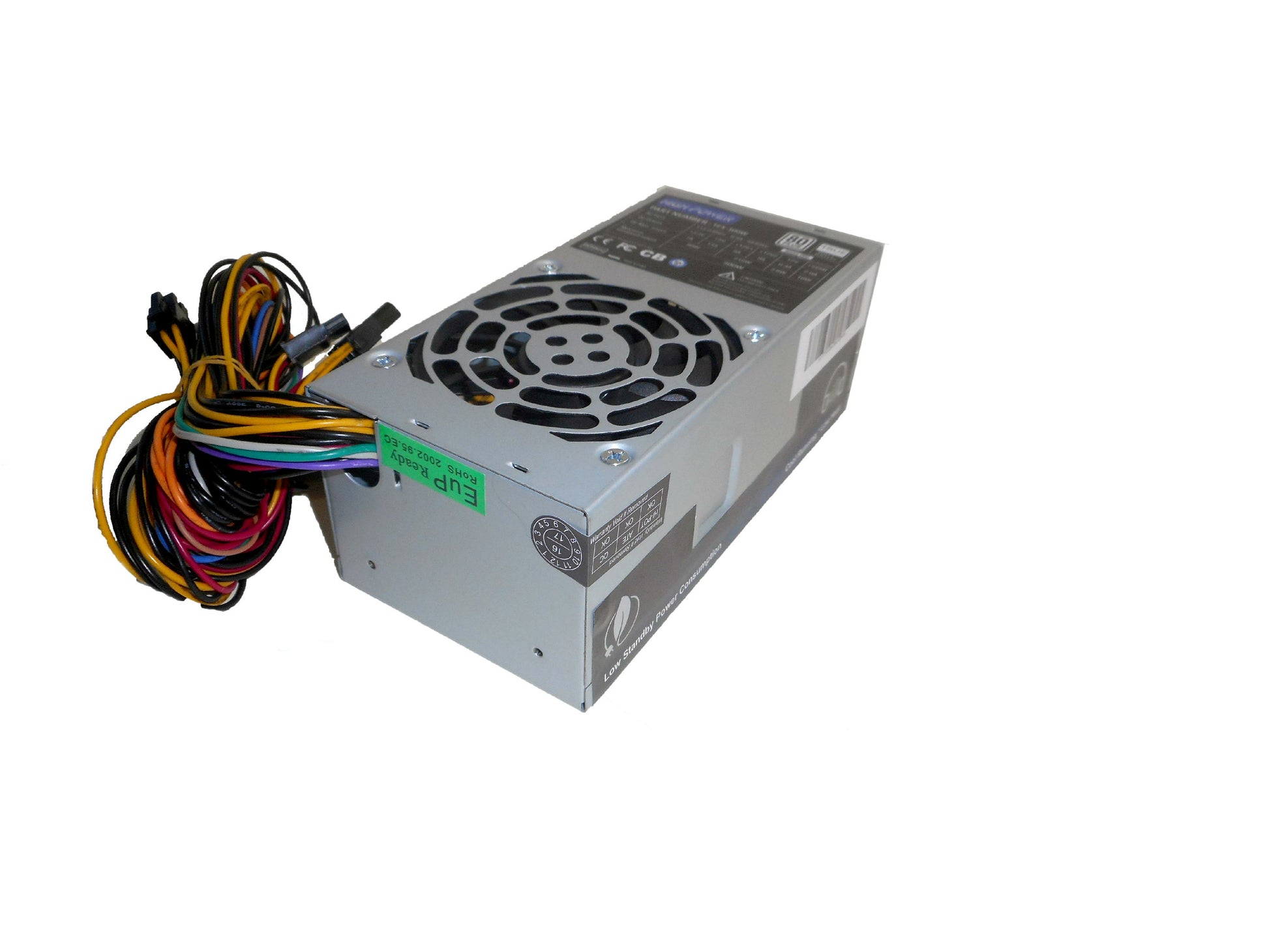

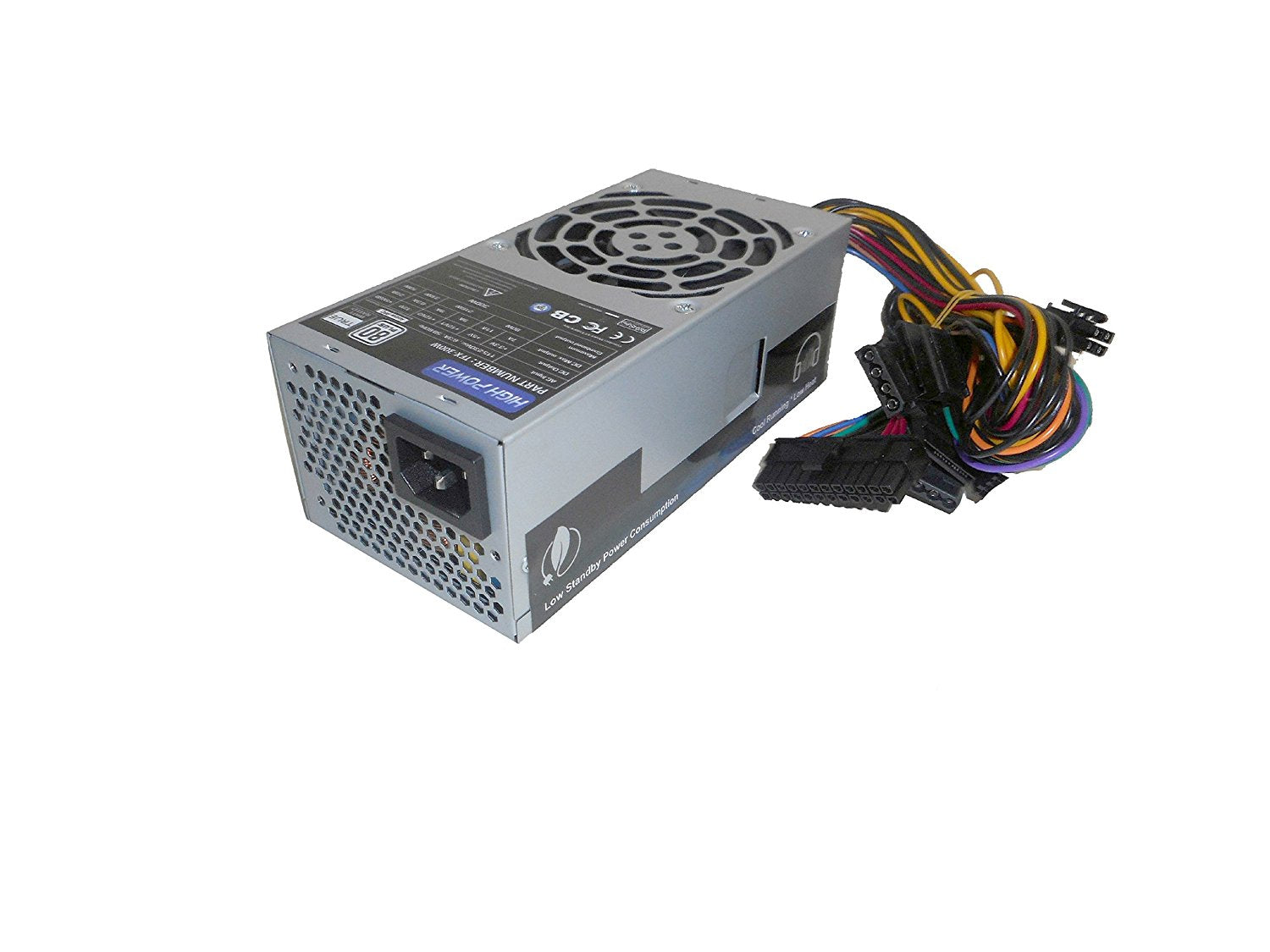

HIGH POWER® TFX-300W is a reliable safety certified TFX form factor power supply. High efficiency design ensures lower heat and lower noise operation. More importantly, you will have a lower electric bill running your system with this high quality PSU over a standard OEM unit.
High efficiency (guaranteed to be at least 80% efficient) & cool running
Works anywhere in the world -- Automatic AC input selection
EuP Lot 6 2013 compliant
Consumes less than 0.5W in standby no load state
Noise Killer (Thermal fan speed control function)
Active PFC (Power Factor Correction) : 99% typical
CB, TUV, FCC, CE, and RoHS compliant.
Output capacity is conservatively rated at 300W continuous (Over 330Watt peak output) -- It has been tested to reliably power your HP Pavilion slimline desktop PC systems listed above.
Dual 12V output rails
Automatic fan speed control (AFC)
Built-in Triple Protection: Over-Voltage Protection, Over-Power Protection, and Short-Circuit Protection
Power Connectors:
(1) 24pin (20+4) main motherboard connector
(3) SATA connector
(1) 4pin P4 12V motherboard connector
(2) Molex IDE peripheral connector
(1) Floppy connector
Lead-FREE
Cadium-FREE
Mercury-FREE
Hexavalent chromium-FREE
PBB-FREE
PBDE flame retardants-FREE
RoHS Compliant - made with hazardous-free components
Technical Specification
Active PFC (99% typical)
Full Range Automatic AC input selection - no need to select 110v AC or 220v AC
AC input from 100V to 240V
DC Outputs: 3.3V @ 7A, +5V @ 11A, +12V1 @9A, +12V2 @9A, -12V @0.3A, +5VSB @ 2A
Typical Efficiency: 83.59%
Average Efficiency: 81.69%
Built-in Protection: UVP/OVP/OPP/SCP
Full safety compliance with FCC, CE, TUV, and CB.
Regulatory model number: KT-T300FX-AYY
80plus certified independent lab test report on efficiency
