SHARK TECHNOLOGY® ATX-750N ATX/EPS 12V 750W PCI-e Silent 120mm Fan 3pin RPM Power Supply

Regular price $85.00

Premium 750W Ultra Quiet
ATX 12V Power Supply

Supports PCI-Express video card.
Supports Intel Dual/Quad-Core/i5/i7 as well as AMD x32/x64 systems.

Meets Intel ATX12V 2.0 and 2.2 specification.

Active PFC Energy-Efficiency Technology with Automatic AC Input Selection

Advanced Fan Speed Monitor Connector provides real time fan speed to the system.

Less than 0.5W power consumption in standby mode.

Ultra Quiet, Reliable, and

Compatible with Premium PC Motherboards and the Latest Intel i7 / AMD CPUs

Question: What's Fan Speed Monitor?

Answer: The 3-pin Fan Speed Monitor connector looks like a standard 3pin case fan connector. When it is connected to an available fan port on the motherboard, provides real time rotational speed of the power supply fan to the system. This feature provides an added level of security alarm to the system. In the event that the power supply's fan failure, the system can now be programmed to shut down immediately or sound an alarm. Most motherboard has at least one extra 3-pin fan connector port in addition to the standard CPU fan connector. Fan Speed Monitor connector does not have to be connected to the motherboard in order for the power supply fan to work. This power supply has a smart fan speed controller with built-in temperature sensor.

Ultra low noise performance

Better Mechanical Design

Special ultra-quiet 120mm fan (built-in thermostat controlled) draws massive amounts of hot air in from the CPU into the power supply and exits out the back of the PC. Round circular tube fan guard generates less drag, noise, and provides more overall airflow.

Better Electrical Design

Most importantly, high efficiency circuitry dissipates little heat so the fan isn't required to spin fast to begin with.

Additional Mechanical Design Advancement:

Honey-comb rear vent structure for improved ventilation.

90-degree compact SATA power connectors to support drives in tight corner.

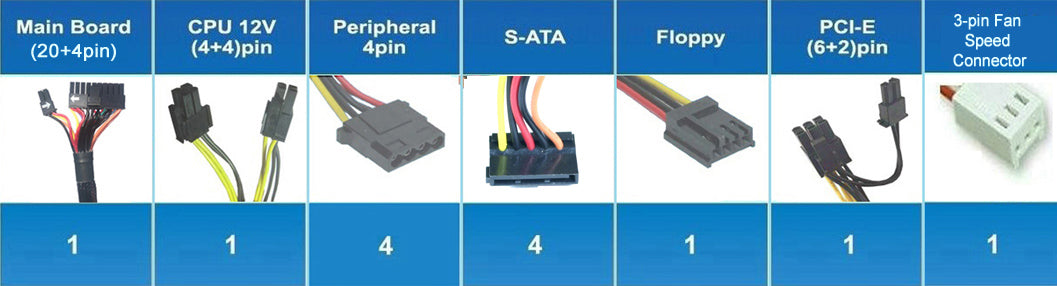

Connectors Details

   (1) 20+4pin Main Power Connector (supports 20 or 24pin motherboard)
   (1) 4+4 12V Motherboard Power Connector (supports 2x2 or 2x4 motherboard)
   (1) Extra Long 6+2pin PCI-Express Power Connector Cable, (500 mm)
   (1) Floppy Drive Power Connector
   (4) 4-pin Molex Peripheral Power Connector

(4) Right-angle SATA Power Connectors Reach any drive even in tight spot
(1) 3-pin Fan Speed Monitor Connector When connected to a fan connector on the motherboard, reports power supply's fan speed RPM in real-time to the system

Product Specifications

High voltage spike testing on every unit:

Each unit is verfied for safety by going through a thorough HI-POT test. For example, 1,500 Volt AC spike is introduced at each unit for up to 60 seconds under 10mA. Each unit is then serialized for product quality tracking.

Wide AC Range Line Regulation

Stable DC output voltage on all rails is consistently maintained even when AC voltage level is reduced during the hottest days and nights. Do you know that many utility companies often have to reduce AC voltage to compensate for high electrical demand ? AC input line is automatically selected - The 115/220v manual AC switch is thus eliminated.

Safe to Operate. Safe to the Environment.

Lead-FREE
Cadium-FREE
Mercury-FREE
Hexavalent chromium-FREE
PBB-FREE
PBDE flame retardants-FREE
RoHS Compliant - made with hazardous-free components

Complete 5*Star^TM system protection

Over Voltage Protection
Under Voltage Protection
Over Current Protection

Short Circuit Protection
Over Power Protection

SHARK TECHNOLOGY® ATX-750N ATX/EPS 12V 750W PCI-e Silent 120mm Fan 3pin RPM Power Supply
