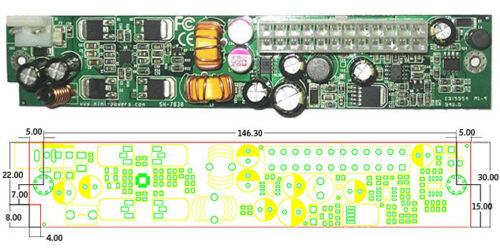

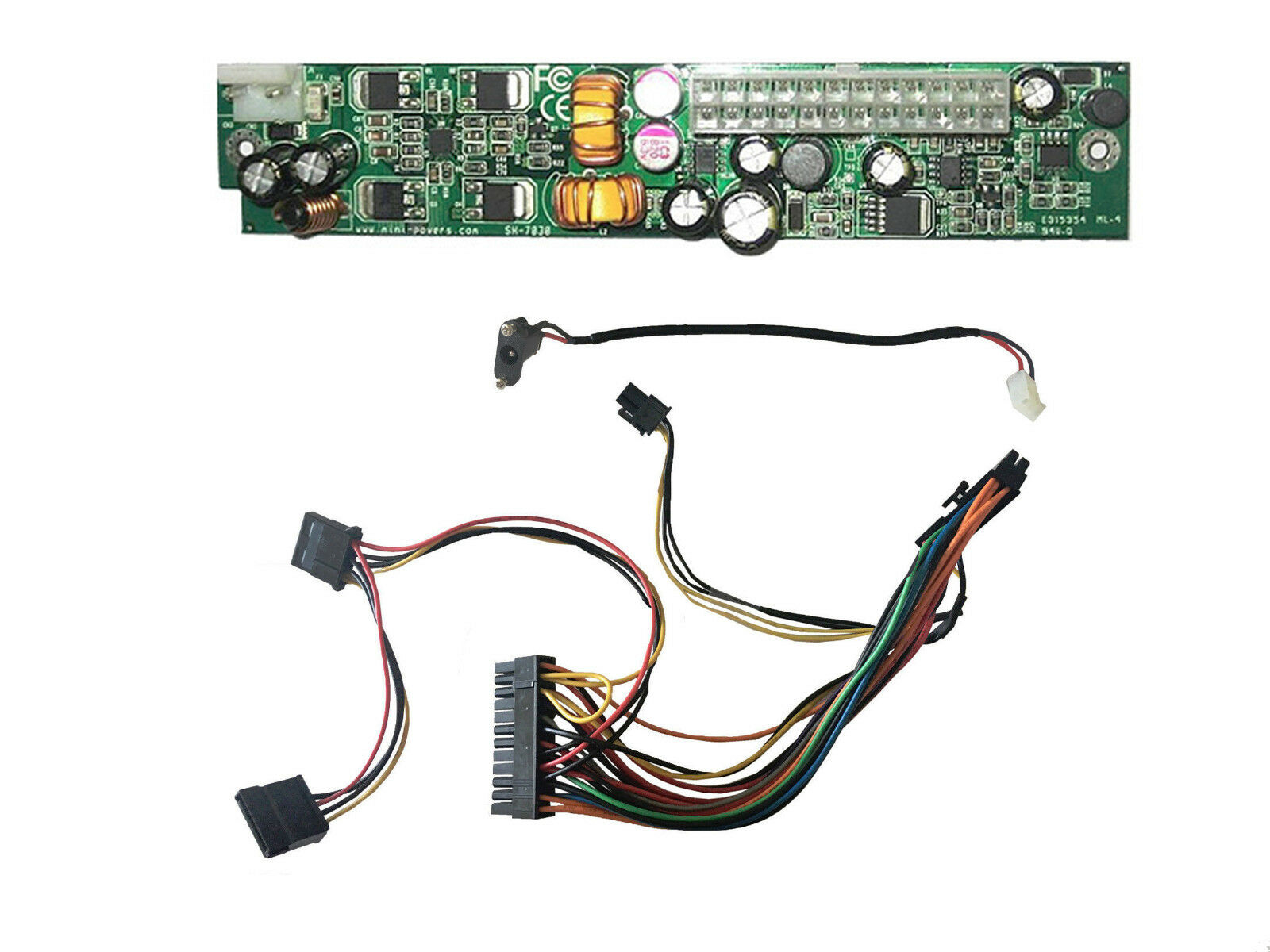

DC-DC ATX converter was designed from ground up to fit small form factor ATX boards, allowing enclosure designers to save space while not compromising power requirements..
Total Watts: 108W (Tested to work with Intel Intel Celeron J1900 Quad-Core, as well as other mini ITX CPU/motherboard combo)
Total Watts: 108W (Tested to work with Intel Intel Celeron J1900 Quad-Core, as well as other mini ITX CPU/motherboard combo)
Specifications | Features |
• DC Input: 11.4~13.0V, Max 10A/12V • Maximal Inrush current: 45A @12V at 25℃ ambient cold start • Output up to 108W • Ripple and Noise: <120 mV • Load Regulation: +/- 5% • Efficiency: 80% minimum at full load • Multi protection: OLP, OCP & SCP • Net weight: 51.0 g • Dimensions: 156.3 mm x 30 x 20 mm • Operation Temperature: -10 to 50℃ |

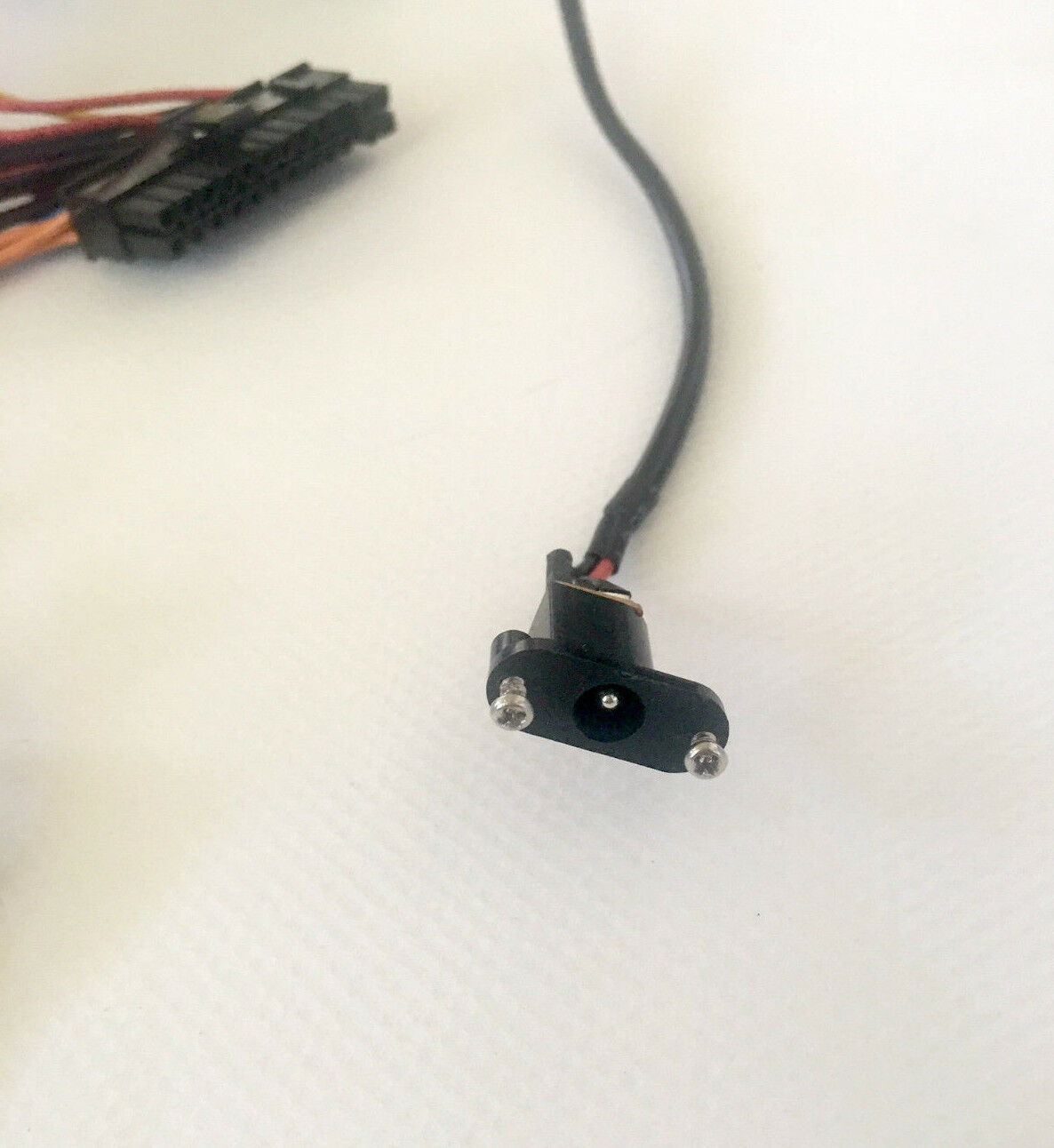

• 12V input, ATX output • Input connector: 2P connector or DC jack • 24P output connector • Excellent electromagnetic suppression • 108W total power output • Excellent electromagnetic suppression • Up to 80% efficiency at full load • Well heat radiating • Compact size • RoHS compliant |

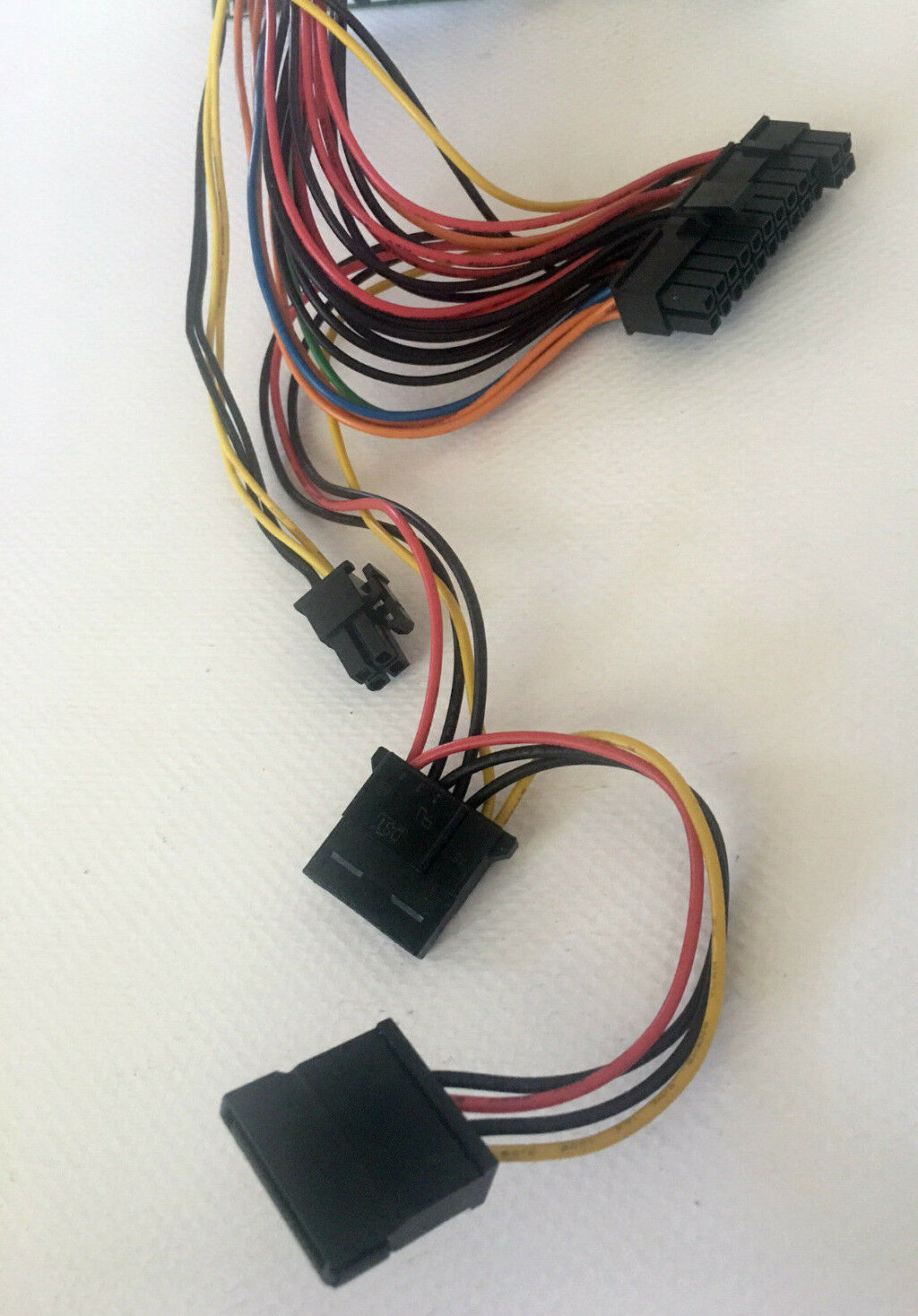

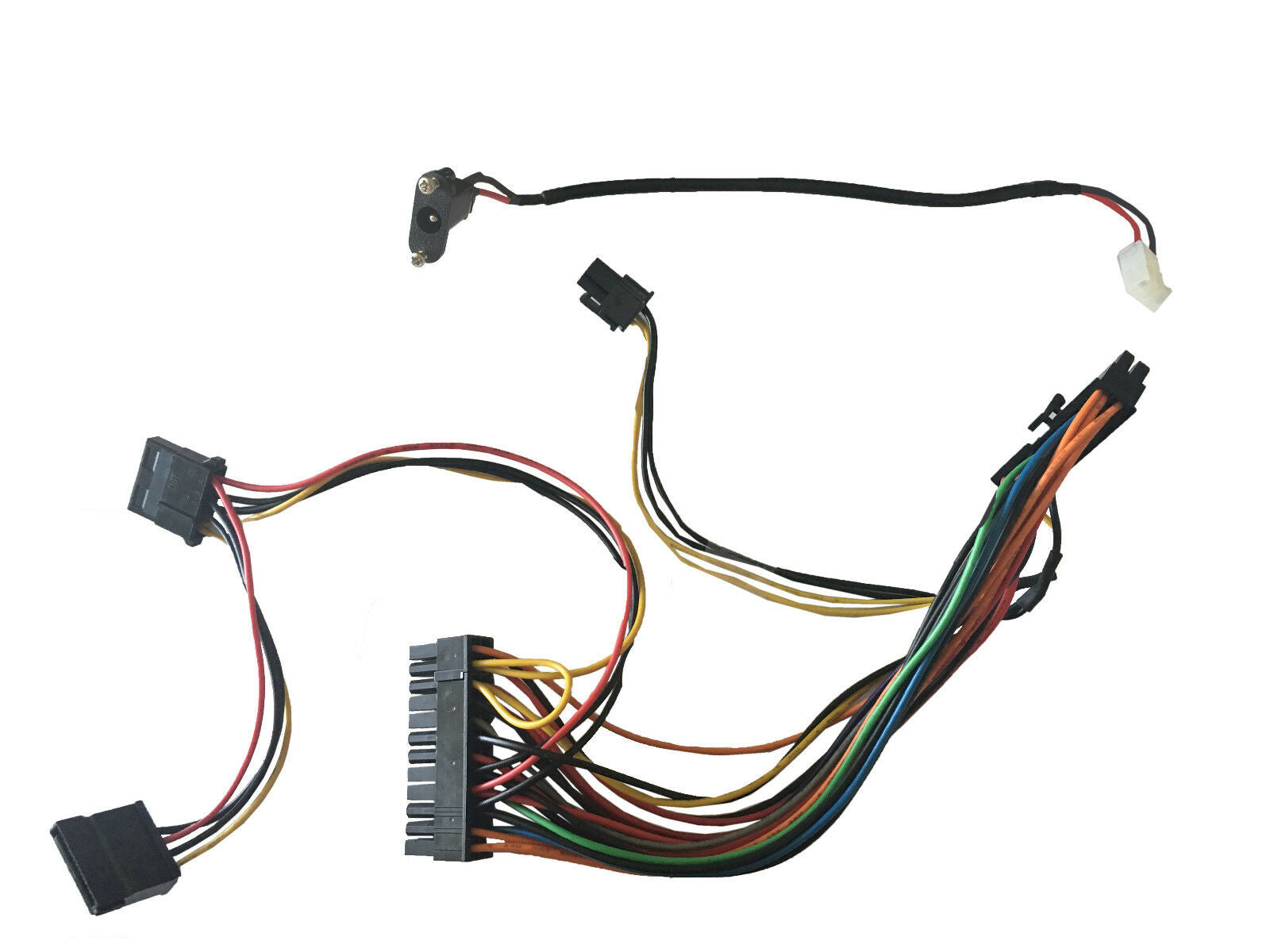

Power Connector Summary:
1 x 20/ 24 pin Dual-Use Main Power Connector
1 x P4 12V Power Connector
1 x Molex Peripheral Power Connector
1 x SATA Power Connector
