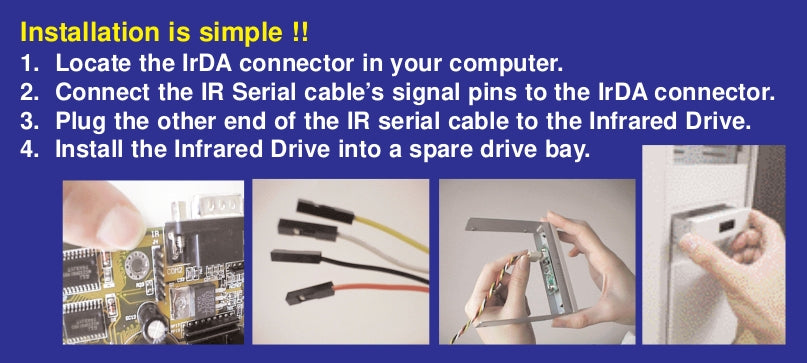

IR data cable, Individually-pinned, 43-inch long -- Connects from Infrared Drive's PCB to motherboard's IR port header

IR data cable, Individually-pinned, 43-inch long -- Connects from Infrared Drive's PCB to motherboard's IR port header

$4.00 USD
$4.00 USD
Sale Sold out
Shipping calculated at checkout.

Individually-pinned IR Cable

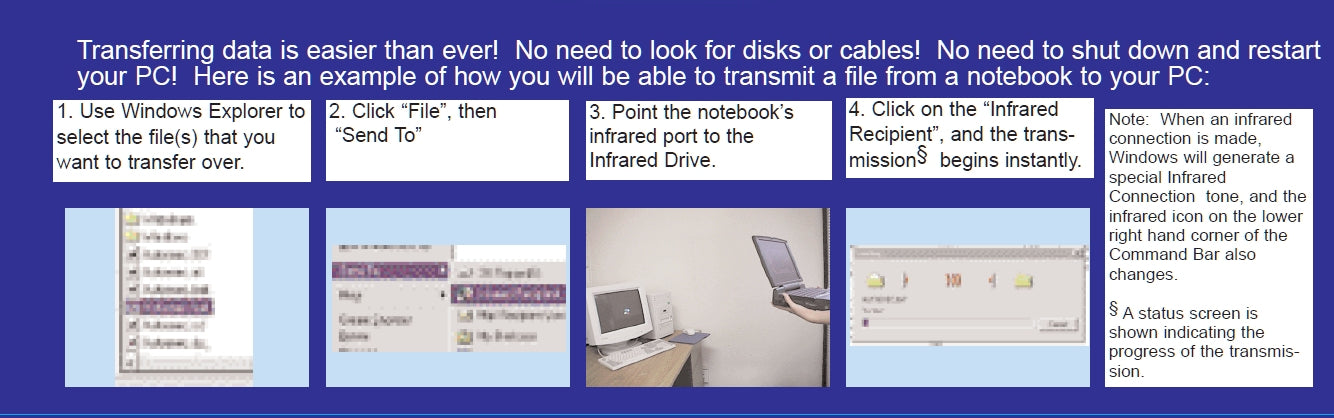

New Contact-less Secured Data Transfer
Point & Transfer Data Immediately
No pairing required


(Comes bundled with the Infrared Drive Retail Package)

Length tip-to-tip: 43 1/4 inch long.

PIN NAME WIRE COLOR DESCRIPTION
1 VCC Red +5v, power
2 KEY No connect
3 IRRX* Yellow IR data receive
4 GND Black System GND
5 IRTX White IR data transmit

*Some motherboard's IrDA connectors have 2 RX pins, RXL & RXH. If this is the case, connect to RXL.
