HIGH POWER® HPA-601250U3 REV: C0-A34 Energy-efficient 60W 12V RoHS Compliant Lead-Free Safe Fanless LCD Monitor / TV AC Adapter

Regular price $55.00

  • Input: 90~264V AC
  • Input AC Inlet: IEC 320 3pin (Type C14) compatible with standard 3-prong computer power cord.
  • Output Voltage: 12V DC
  • Ratings: 5A (60W)
  • DC Cable length - 58.5" (148.5cm)
  • DC Jack Dimensions: 5.5mm (outer) / 2.5mm (inner) / 10mm (length)
  • High efficiency switching technology with 85% typical efficency
  • Idle no load power consumption is less than 0.5 Watt
  • Fanless AC adapter operates in total silence.
  • RoHS Compliant Lead-free - made with hazardous-free components

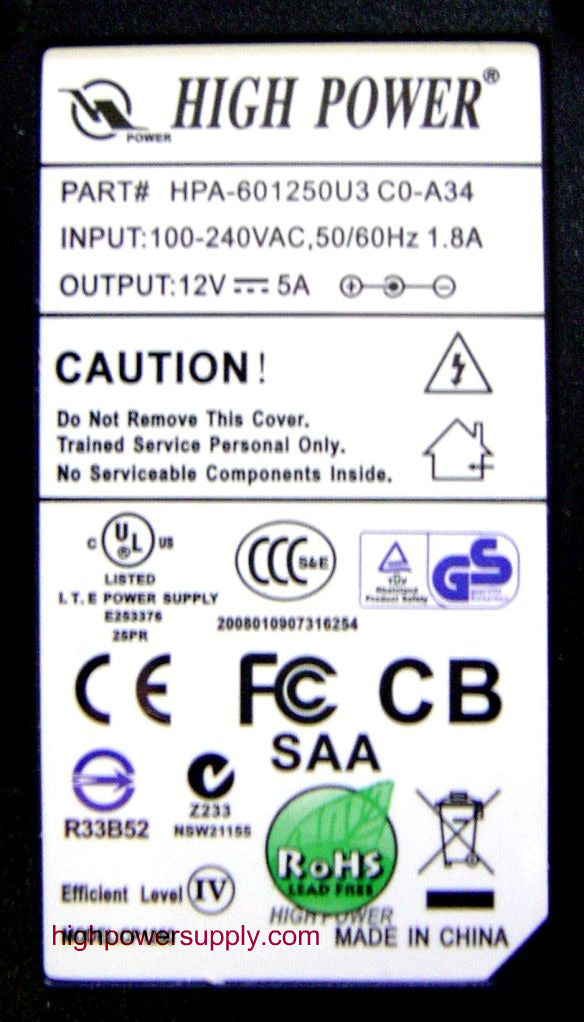

Worldwide EMI & SAFETY APPROVAL:

Certified EMI standard:  FCC Part 15 Class B
                                          CISPR 22 Class B
                                          VCCI Class B
UL 1950 3rd
CUL C22.2 NO.950-95
TUV-GS EN60950:1992+A1+A2+A3+A4+A11
CB IEC60950:1991+A1+A2+A3+A4
CE EN55022 EN61000 EN55024
NEMKO P02101284
JET    CCC     CNS D33081


DC Jack Dimensions:

        Inner diameter - 2.5mm
        Outer diameter - 5.5mm
        Plug length - 10.0mm.
        Plug type - 180-degree
        DC Cable length - 58.5" (148.5cm)

Applications:


LCD Monitor, CCD Camera, CB Radio, Testing ...


Specifications:

    Universal input 90VAC to 264Vac

    Single 12V output @ 5A

    High efficiency switching technology -- 85% typical
    Idle no load power consumption is less than 0.5 Watt

    Overload protection & current limiting

    Short circuit protection

    Over temperature protection

    100% HI-POT tested

    100% cycling BURN-IN

    Dimensions: 122(W)*30.5(H)*60(D)mm

    +- 5% Output Standard Deviation

    100mV Maximum Ripple Voltage

    Operating temperature:
     0 - 40 degree C

    Storage temperature:
    -20 - 80 degree C

    MTBF : > 60,000 hours at full load
    and 25 degree C ambient conditions

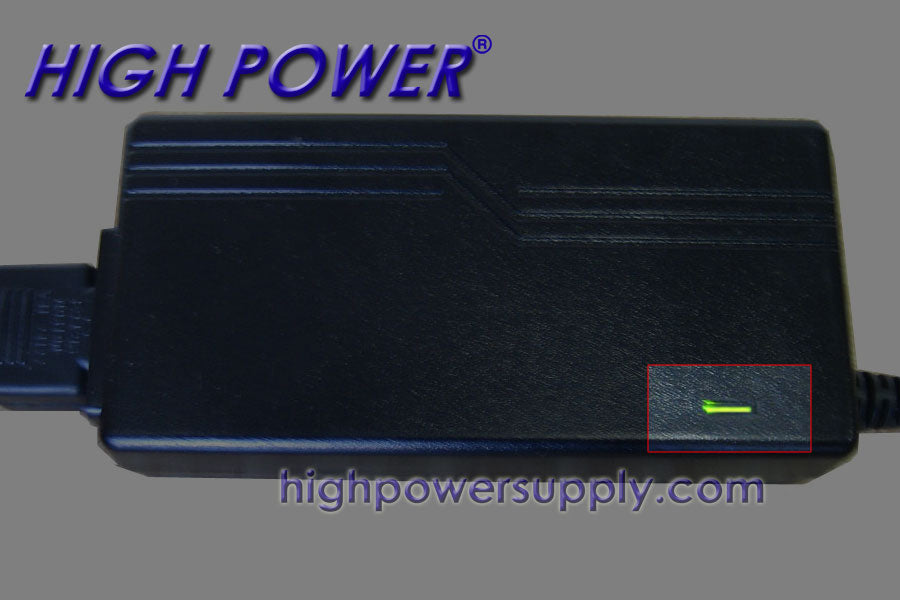

Built-in power status indicator
  • Green LED turns steady on when there is a reliable 12V DC output.
  • LED flashes when there is a problem found by the internal detection circuitry.
  • LED turns off when there is no power output or no power input.
