SHARK TECHNOLOGY® 750-Watt Upgrade Power Supply
Replacement for Dell L265EM-00 PS-6271-01DA
Upgrade Power Supply for Dell OptiPlex 790/990/7010 MT Mini Tower Desktop Computer

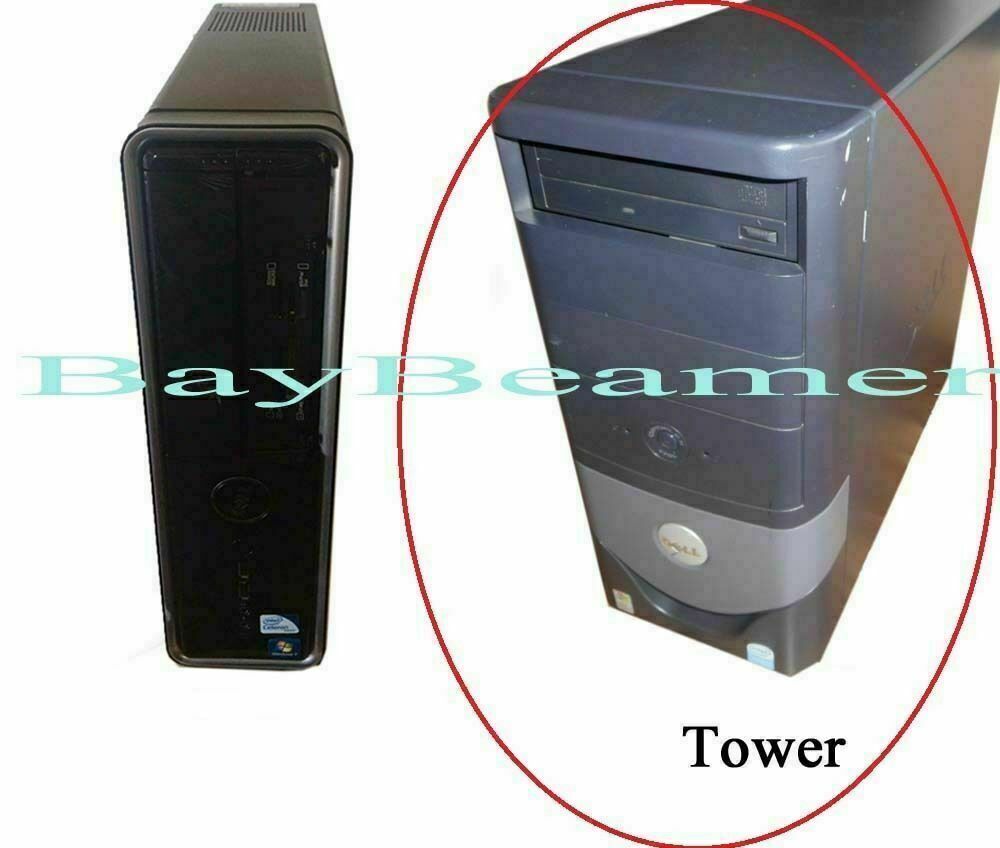

Attention: fits standard mini tower MT form factor, not the skinny slim tower SFF version (see last picture for size illustration)
Supply power on-demand up to 750-Watt for new system or name brand PC upgrade application

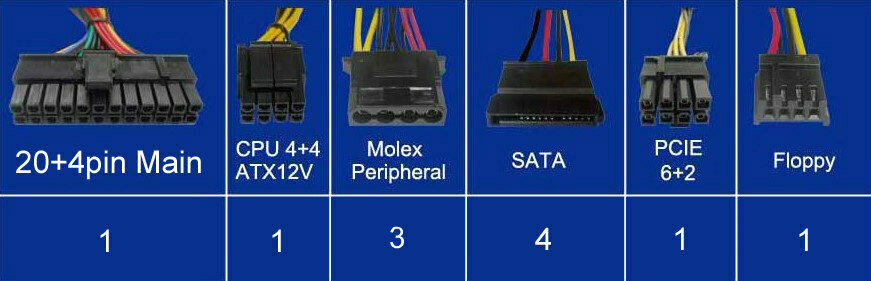

Supports 6pin or 8pin PCI-E graphic card

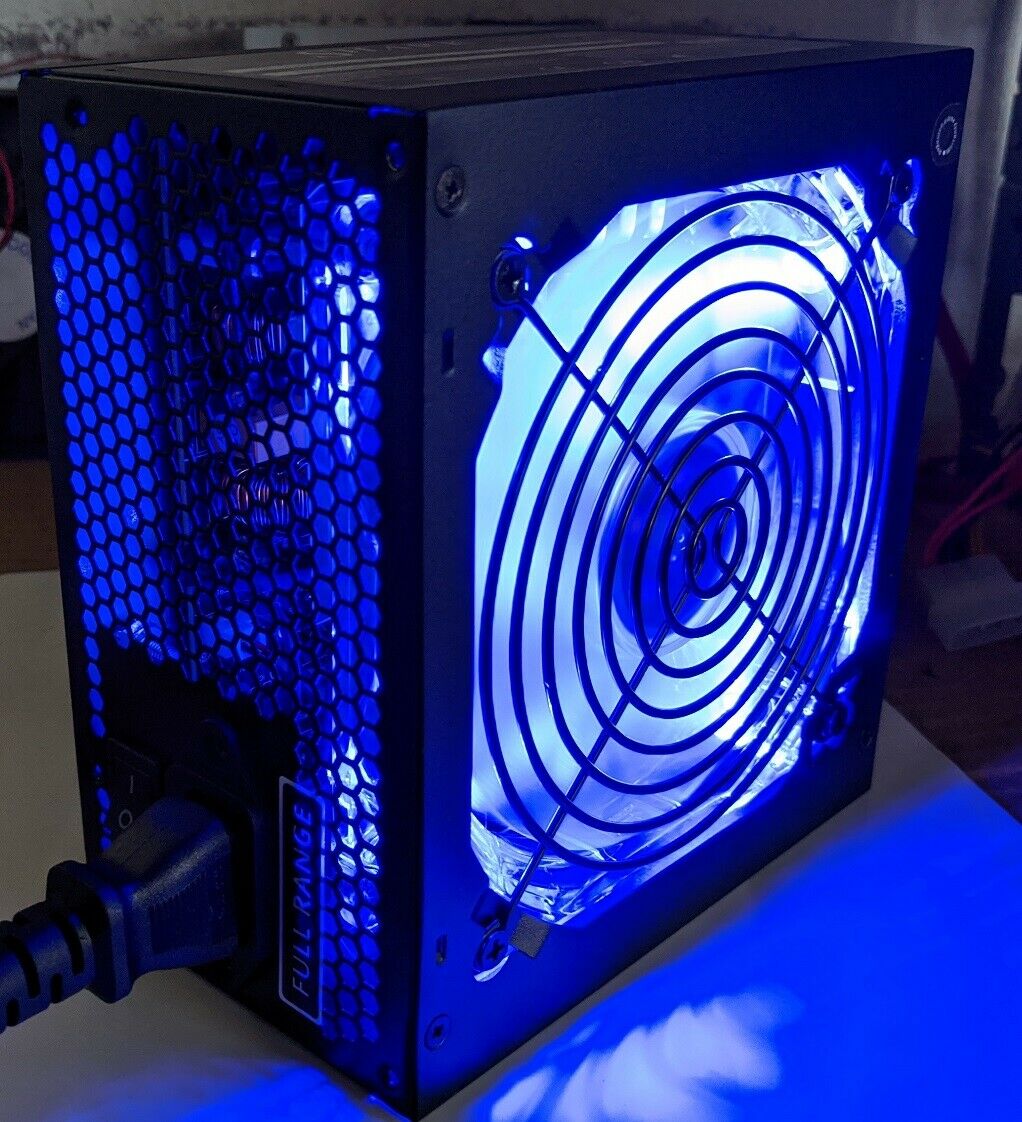

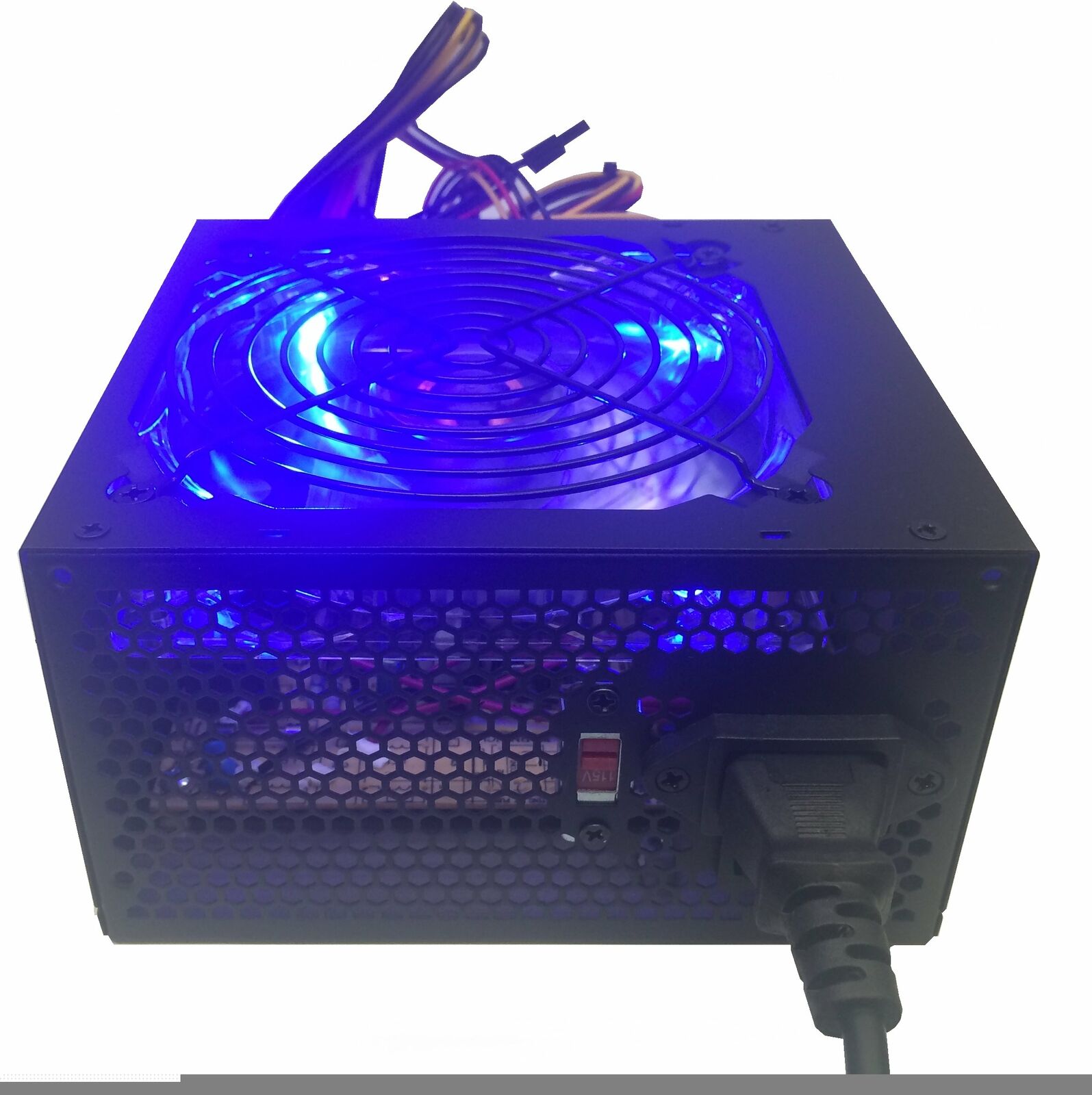

Quiet Operation with Quad Power Status LEDs
Status LEDs turn off when power is turned off
Optimized cooling design

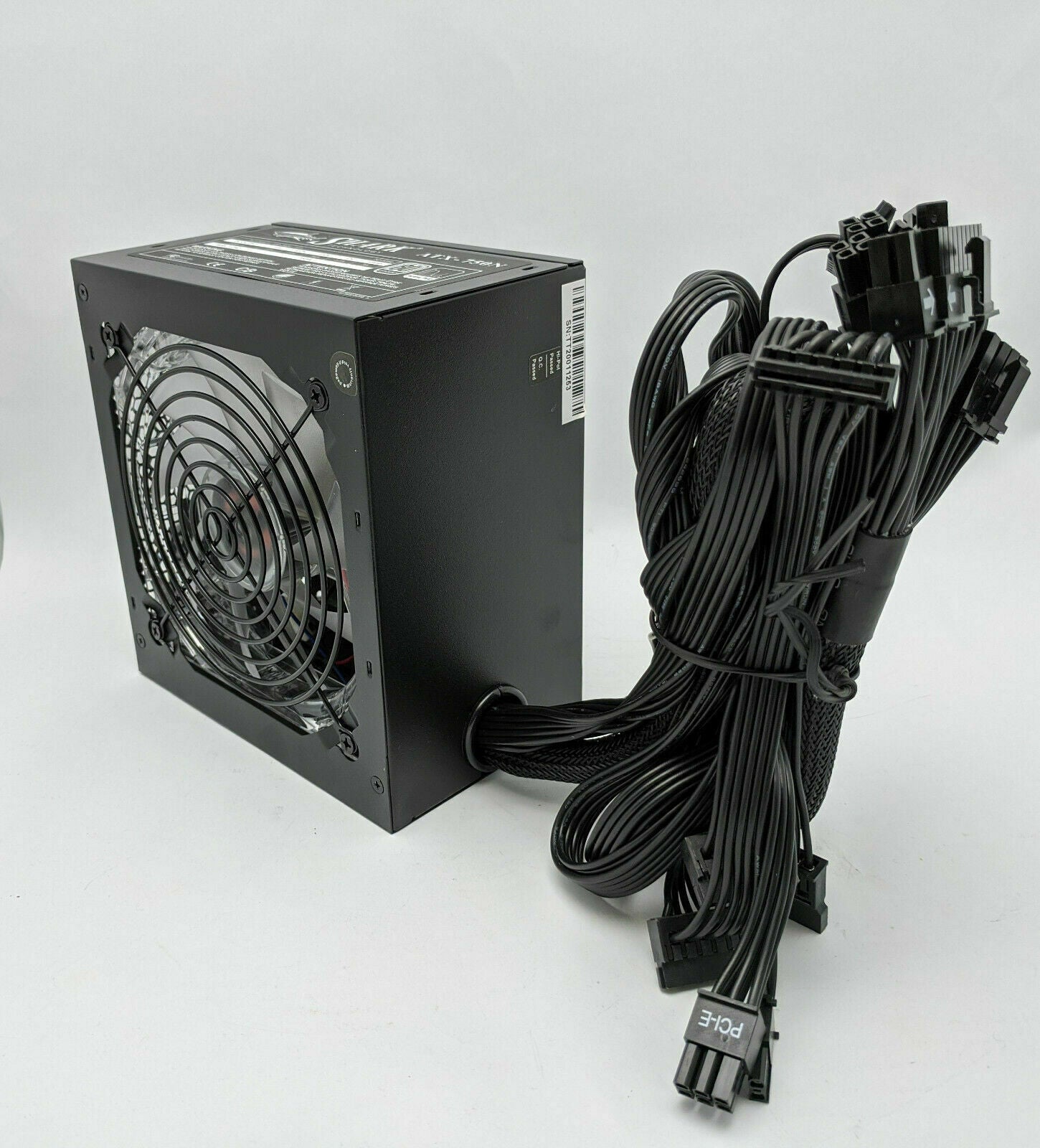

Long cables to allow for easy installation in Dell Optiplex

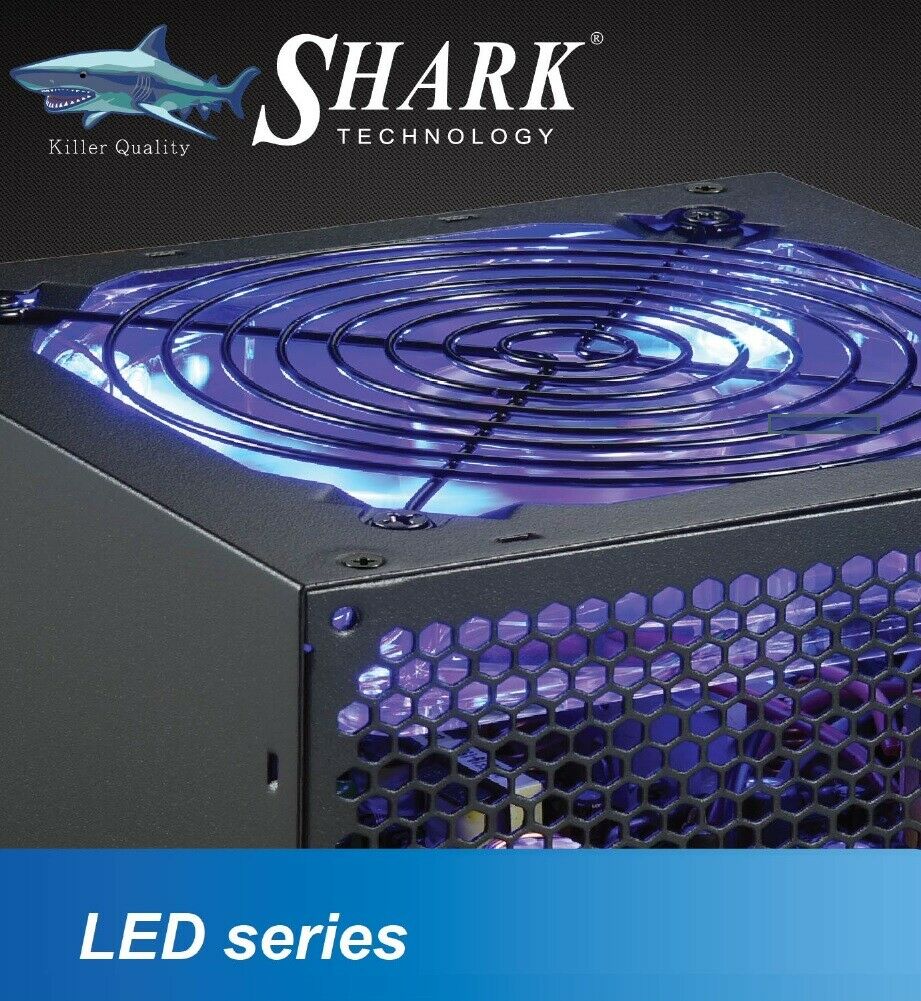

Black casing with black round circular fan guard to reduce air drag
Mechanical Design Improved Mechanical Design

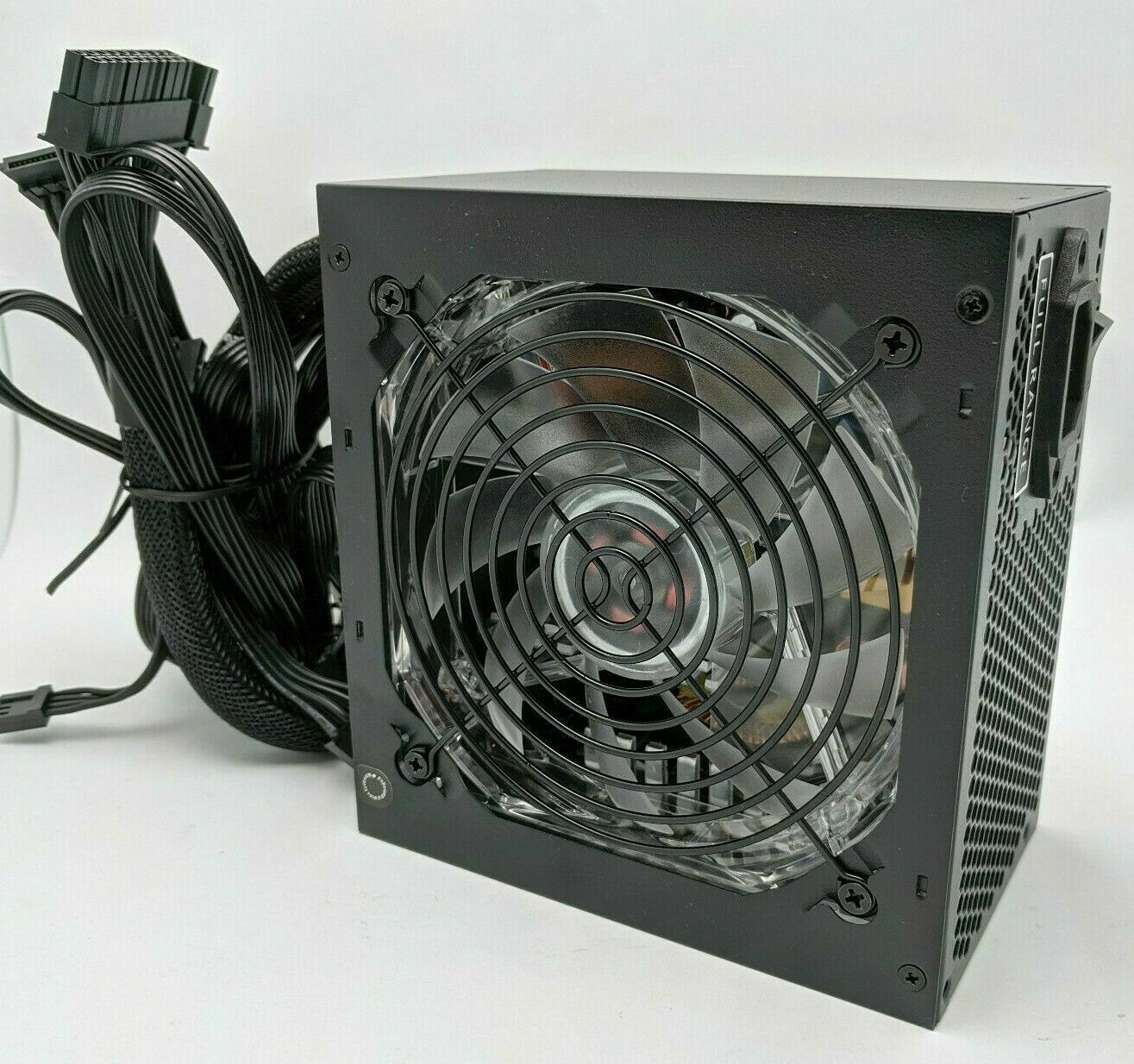

Massive 120mm fan draws heat from CPU area and cools the power supply at the same time. Special slippery circular tube design black anodized fan-guard allows air to flow in smoothly and quietly while providing protection against unintended installation injury.
This SHARK TECHNOLOGY® unit comes with cables that are long enough to fit perfectly in gaming cases where PSU are bottom mounted as well.
Want a better power supply that can provide stable power to your PC system without frequent reset, self shut-down, hang-up, or sensitivity to AC input voltage fluctuation? Look no further
Technical Specifications
AC INPUT
|
115V/230V - 60/50Hz
|
||||||
DC OUTPUT
|
+3.3V
|
+5V
|
+12V1
|
+12V2
|
-12V
|
+5VSB
|
|
750W
|
Peak
Combined Watts |
25A
|
25A
|
25A
|
25A
|
0.3A
|
2.5A
|
750W
|
+12V1 & +12V2 combined peak output is 552W
Maximum Power Output: 750W
Efficiency: Typical 70%
Manual shut-down rocker switch
Input: 100-127V AC or 200-240V AC - select-able by switch.
Dimension: 150mm x 86mm x 156mm (the 156mm length is the side that extends inside the case when installed)
