Installation Tip:

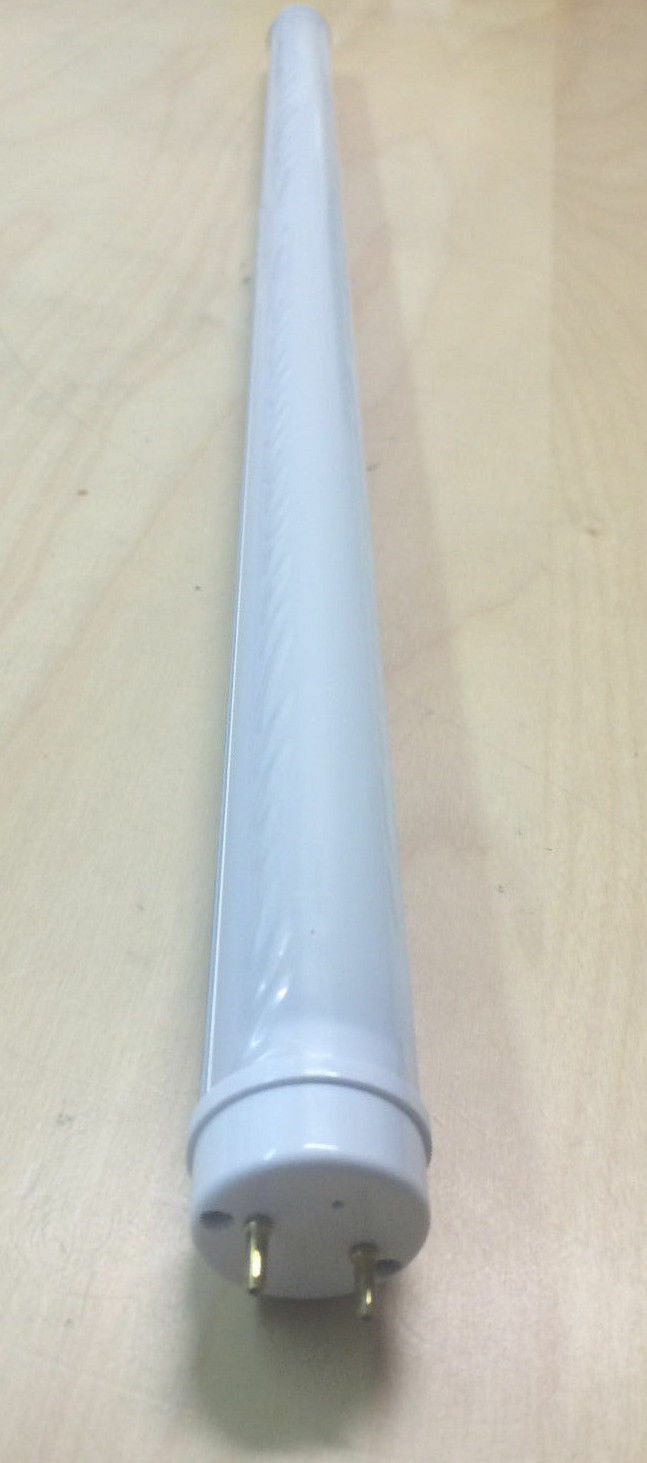

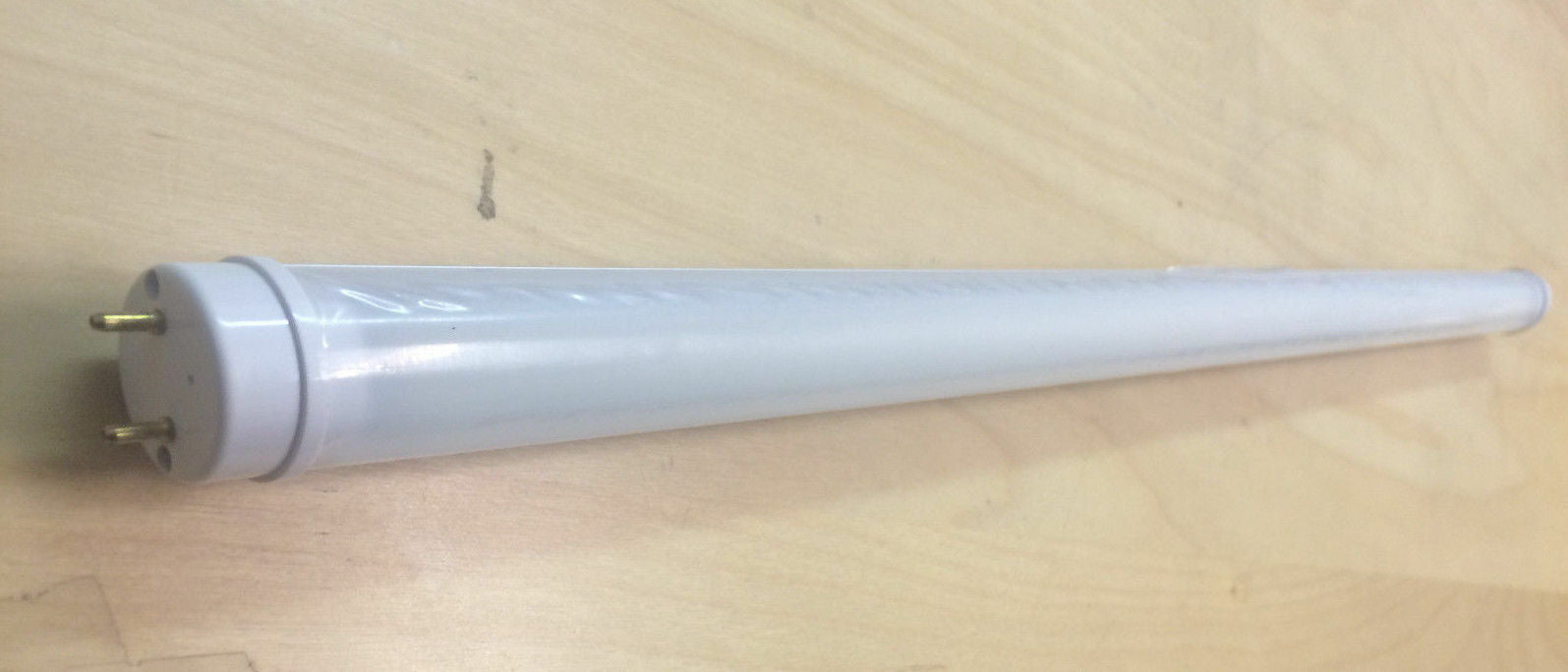

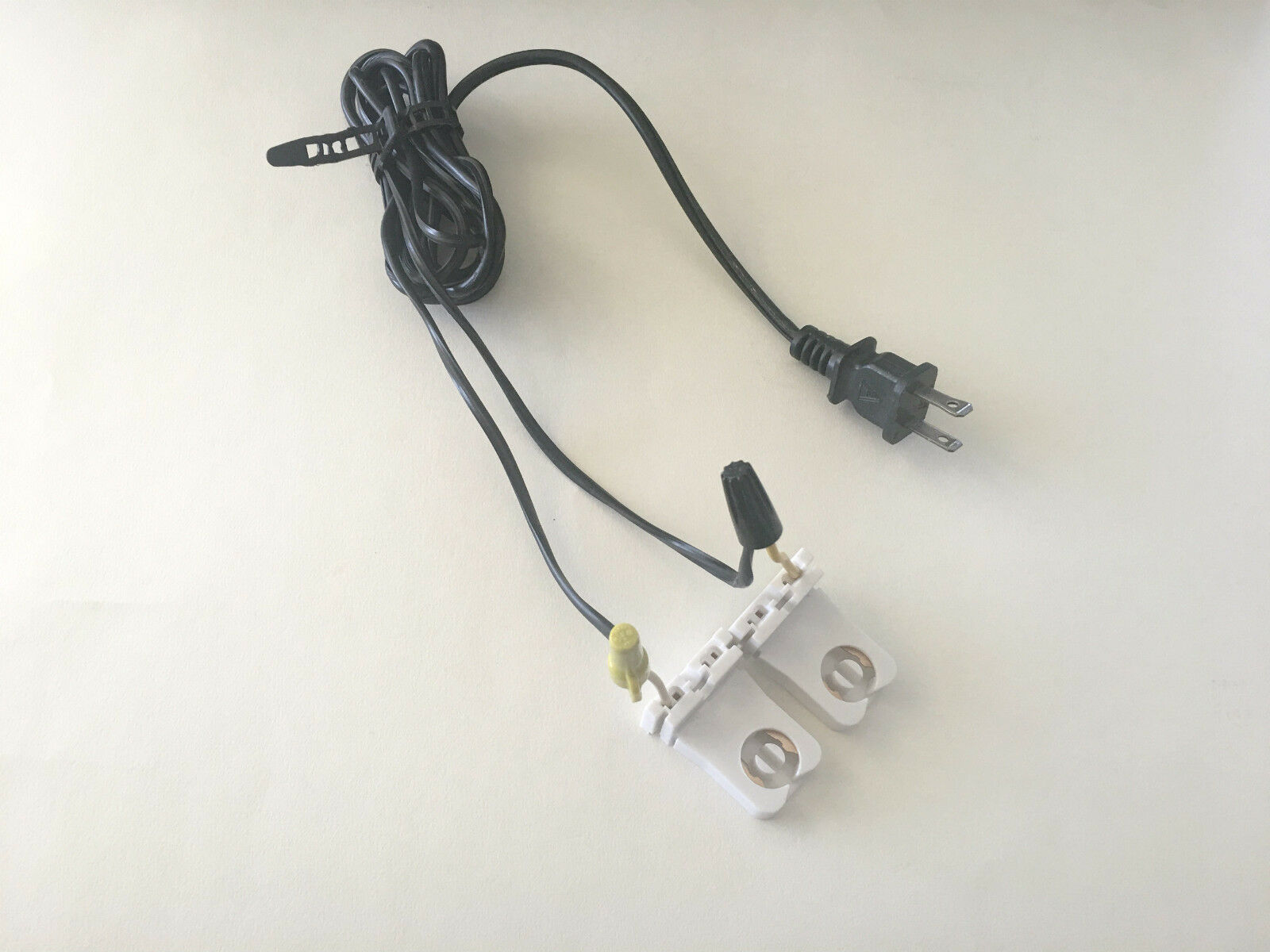

Installation is easy, there are only 2 wires coming from the AC wall. Connect 1 wire to each end of the tube then you are all set. There are 2 pins on each end of this LED tube, you can connect to any pin. See last picture for illustration (G13 sockets and power cord are not included. You are buying just the LED tube)

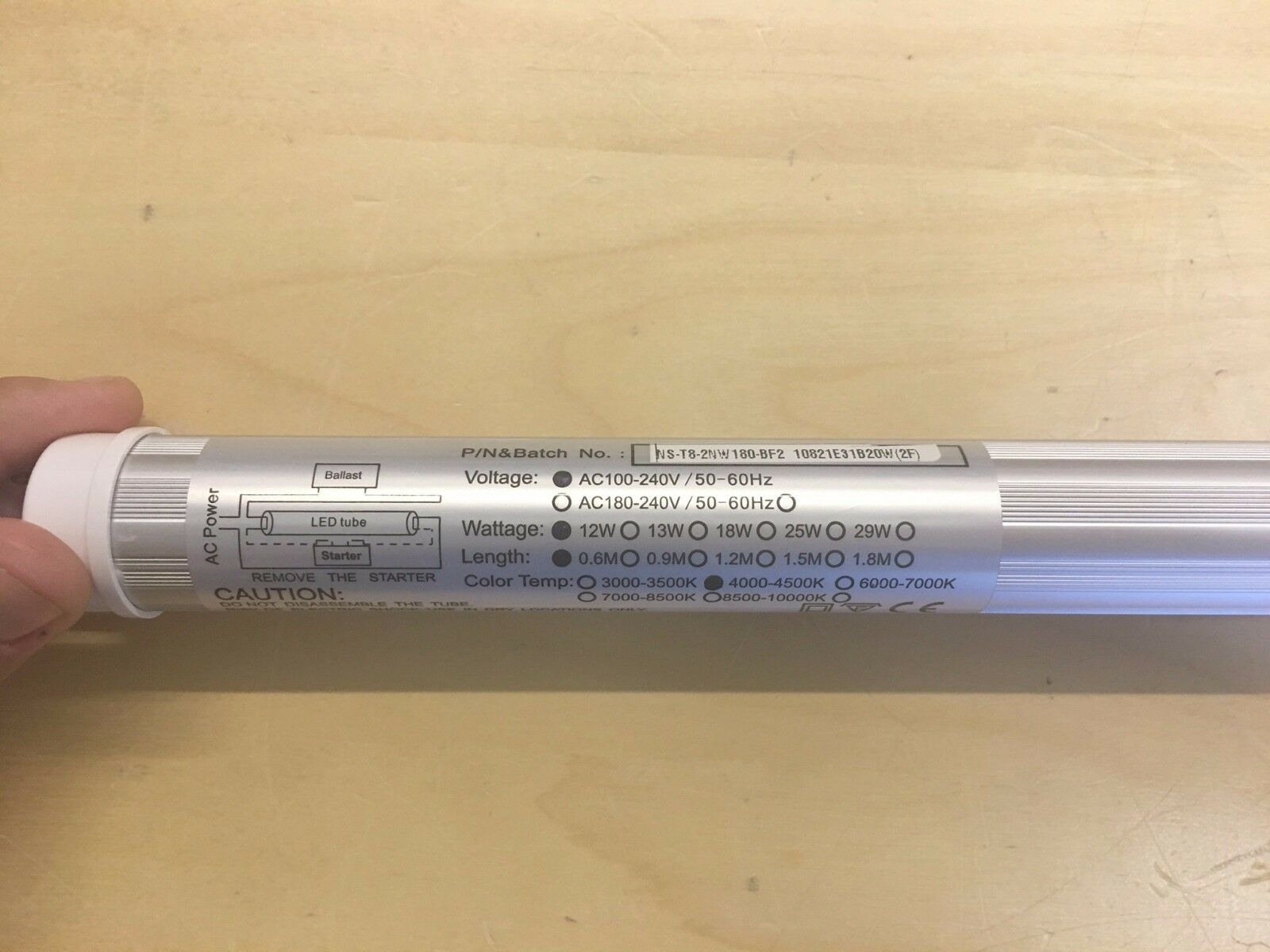

We thought the diagrams printed by the manufacturer on the LED tube and the installation drawing were a little confusing.

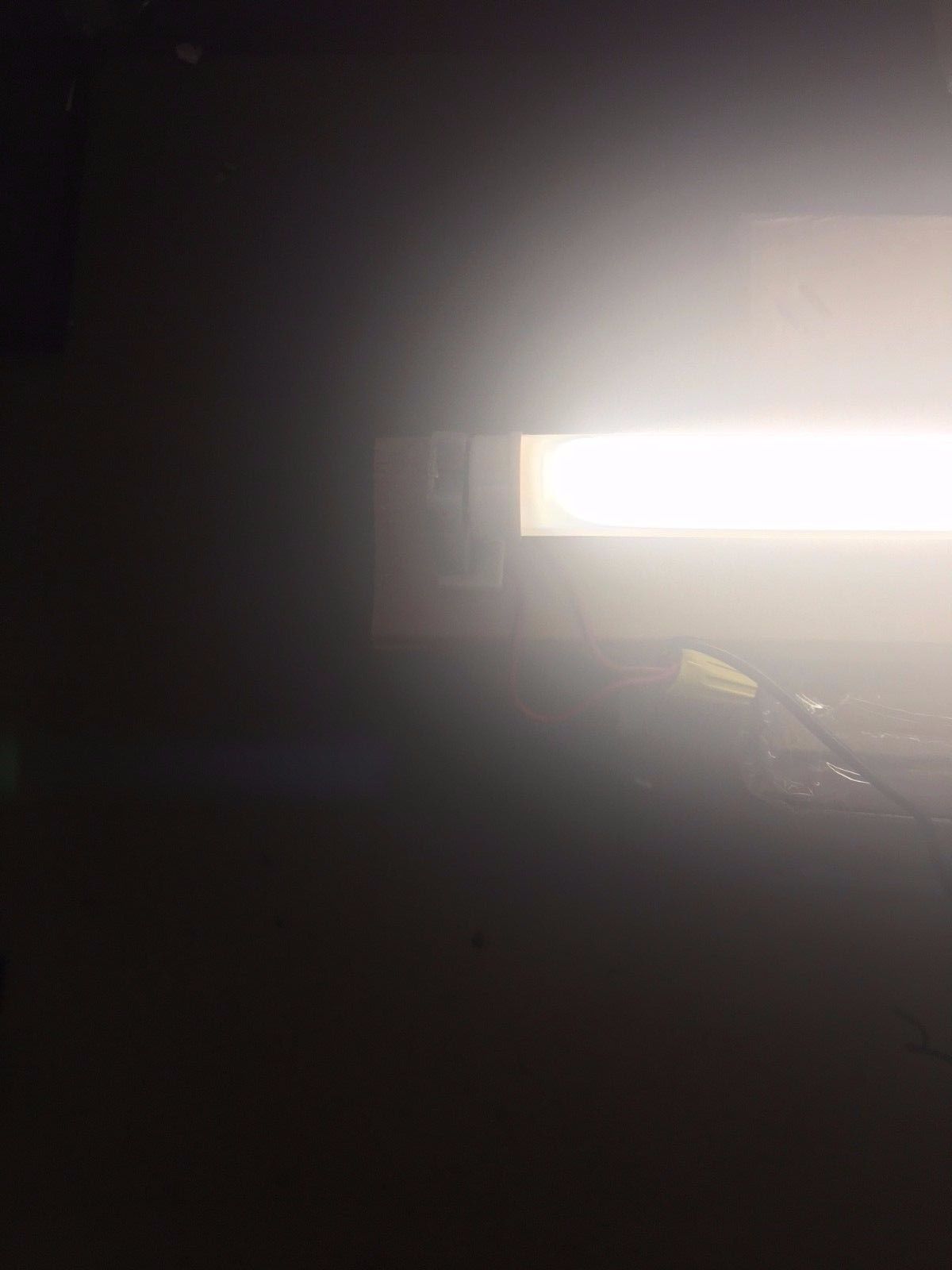

We were not sure if it was asking us to use a shunted or non-shunted socket. So we decided to test it to see for ourselves and actually it works with both.
We were not sure if it was asking us to use a shunted or non-shunted socket. So we decided to test it to see for ourselves and actually it works with both.
Product No: FT-80612U LED T8 Tube
* 12W
* 24" (2 foot) Neutral white
* AC100-240V,50/60Hz
* 180pcs 3528SMD LEDFeatures:
*Compatible with Standard Fixture (G13)
Features:
- T8 with Frosted cover (No ballast or external AC power adapter required):
- Special circuit design,Even though some LED broken, others can work as usual.
- Quick response , no stroboscopic.No UV,IR
- High efficiency power supply , low power consumption.
- Reliable constant current source Lifespan more than 30,000 hours.
- Input:100-240V/180-240V AC; No need ballast,transformer and starter.

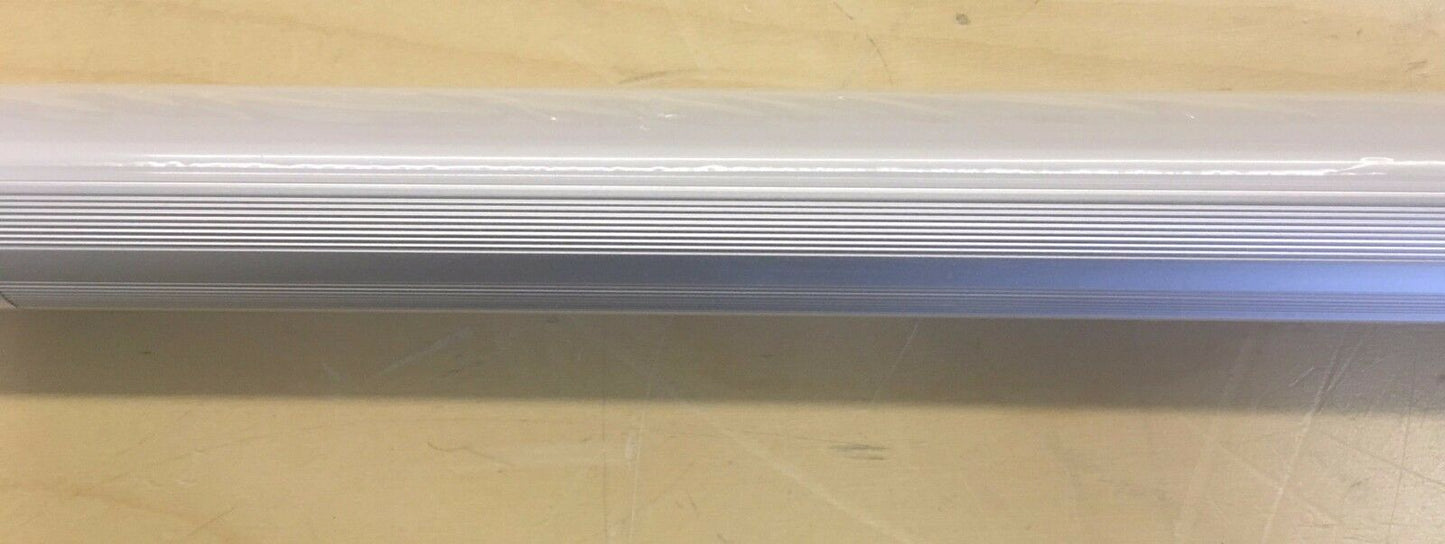

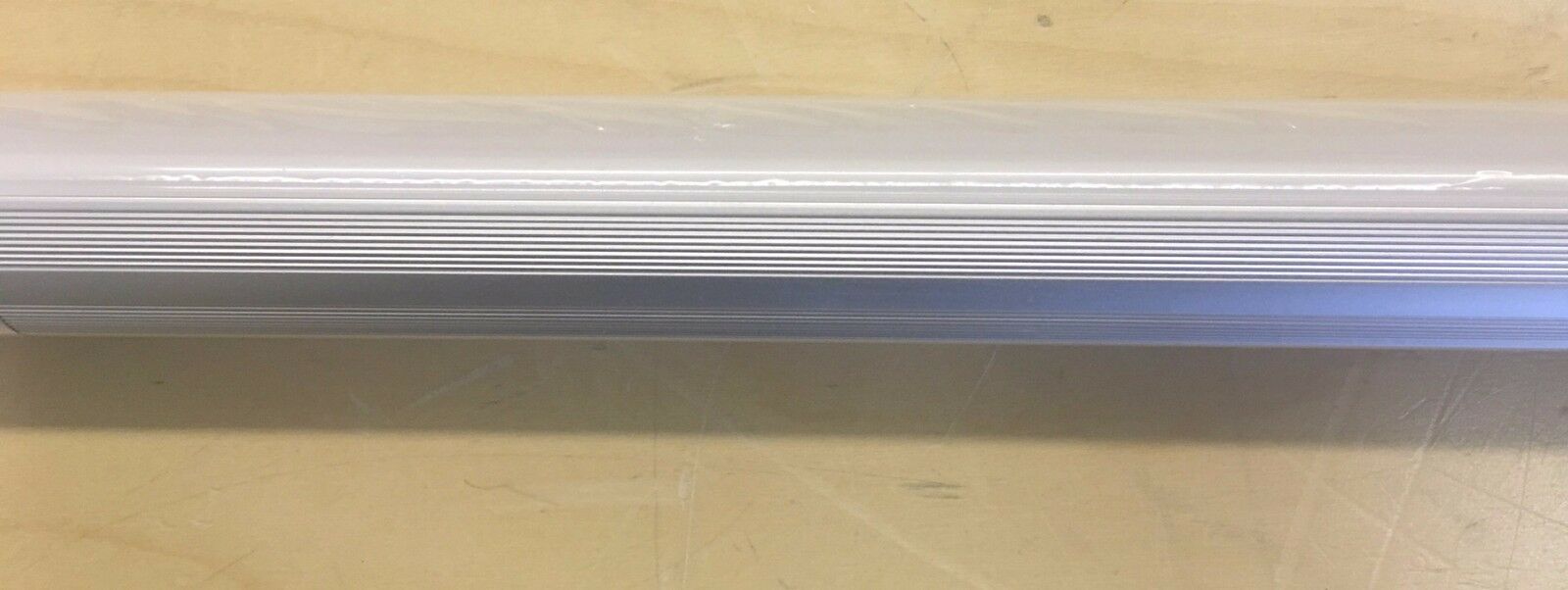

- With Aluminum cover,good design for heat sink. Low attenuation.
Length |
Material |
Light effect |
LED Qty |
Protection grade |
0.6m 2 FT |
Aluminum alloy+PC |
Frosted |
180PCS |
IP54
|
Voltage (Vac) |
Frequency (Hz) |
Rated Power (W) |
Dielectric Strength |
Efficiency |
||
Vac |
mA |
sec |
||||
100-240 |
50/60 |
12 |
1000 |
5 |
3 |
>88% |
NS-T8-2NW180-BF2 |
Natural white |
4000-5000 |
80 |
1130 |
288 |
72 |
31 |
160 |
