SHARK TECHNOLOGY®
750-Watt Gaming Computer ATX Power Supply
Support Intel Xeon, Haswell, Core i7, Core i5, Core i3, and AMD Ryzen 3/5/7/9, Vega Multi-Core based systems
H i g h E f f i c i e n c y
This unit can operate anywhere in the world automatically with any AC input voltage from 100V to 240V. The sophisticated high efficiency design allows the unit to operate with less heat and lower cooling fan noise than most PC power supply models in the market.
L o w H e a t L o w N o i s e
- 750-Watts Output Power
- Low heat & Low noise operation
- Silent low-RPM 120mm cooling fan
- Active PFC for reduced harmonic distortion
- Full range AC input with automatic AC input voltage selection - 100- 240V AC
- Typical 85.77%, average 84.16% efficiency
- High efficiency power conversion allowing lower electrical bill
- Dual +12V Output Rails
- Smart fan controller with on-board thermostat dynamically control fan speed to ensure ultra quiet operation - virtually fanless quiet

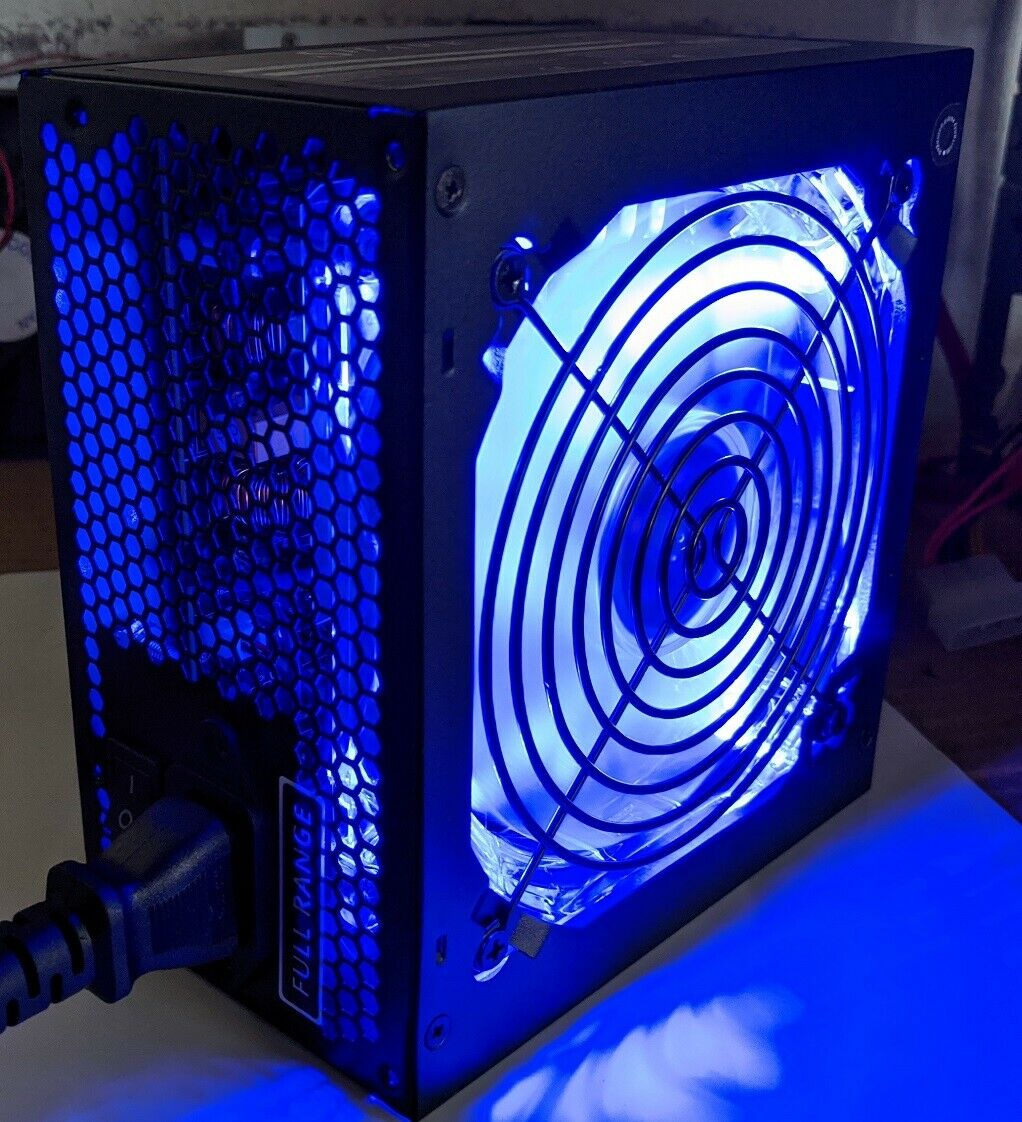

- Quad blue color LEDs turns on when the PSU is on
- ATI Radeon® CrossfireTM, CrossFireXTM,FireProTM Ready
- nVidia®SLITM Ready
- Support Intel Xeon, Pentium D, Core2 Duo, Quad Core, Haswell, Core i7, Core i5, Core i3, Intel X, Extreme Edition, and AMD 64, Athlon, Ryzen 3/5/7/9, Vega Multi-Core based systems
- Safe to Operate - Designed and tested to meet major international safety agency standards

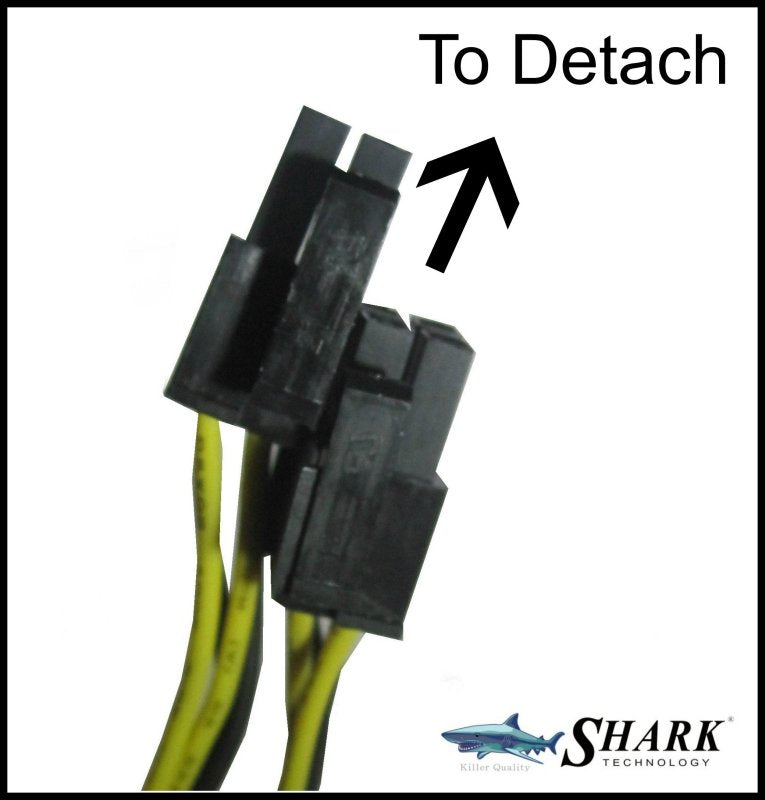

- 5x SATA Power Connectors and 2x PCI-Express (6+2pin) Power Connectors
- RoHS Compliant - made with hazardous-free components
- Complete 4*StarTM electrical protection features built-in
- Each unit is verified for safety by going through a thorough HI-POT test. Additionally, a 1,500 Volt AC spike is introduced for up to 60 seconds under 10mA. Only units that can pass these tests get to be shipped out.

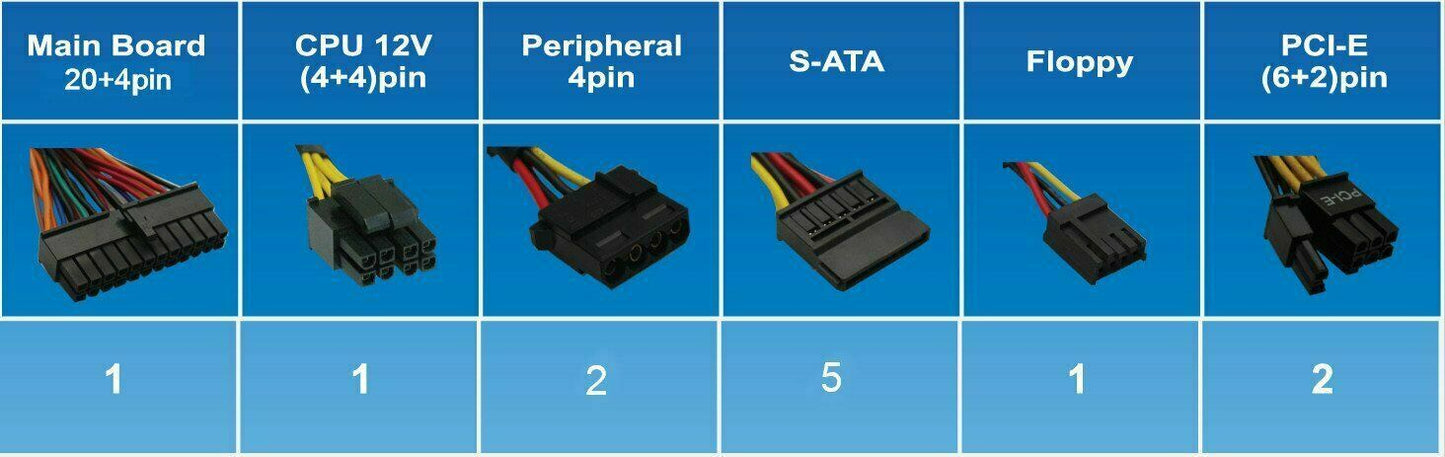

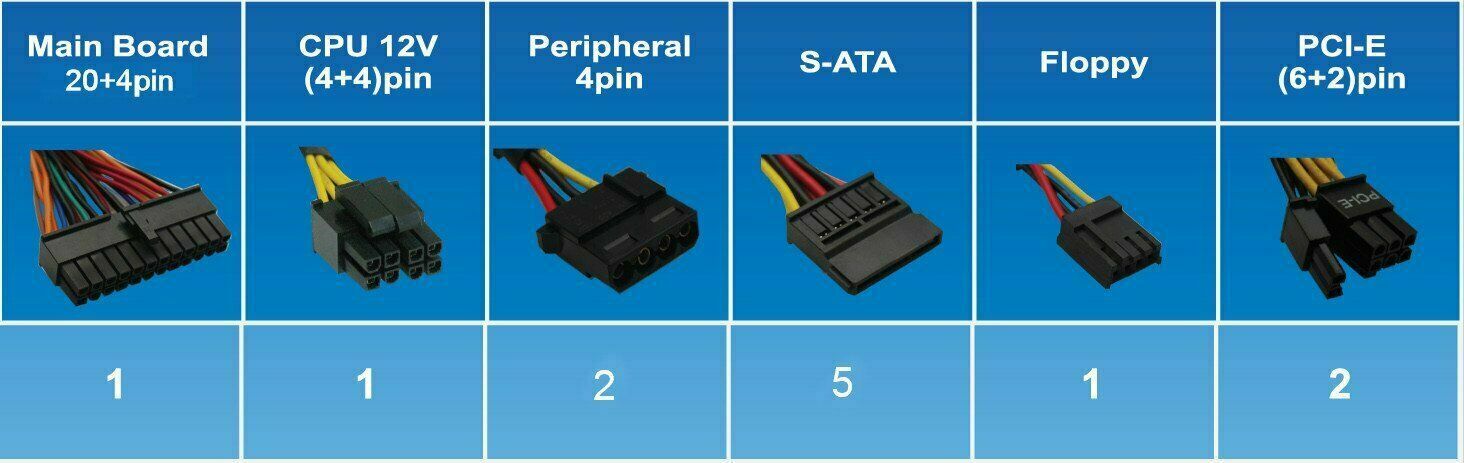

Connector Summary:
Mechanical Details:

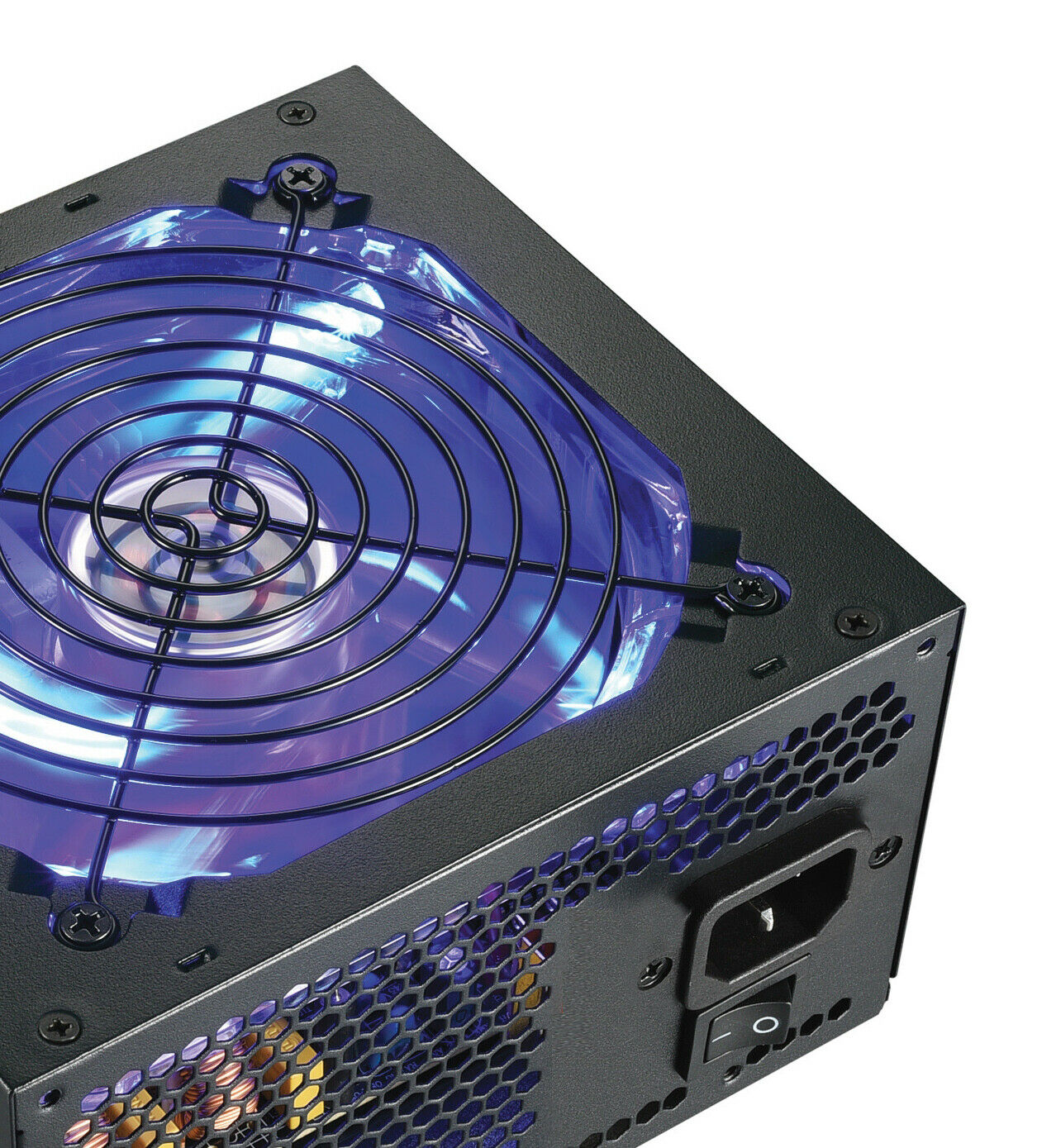

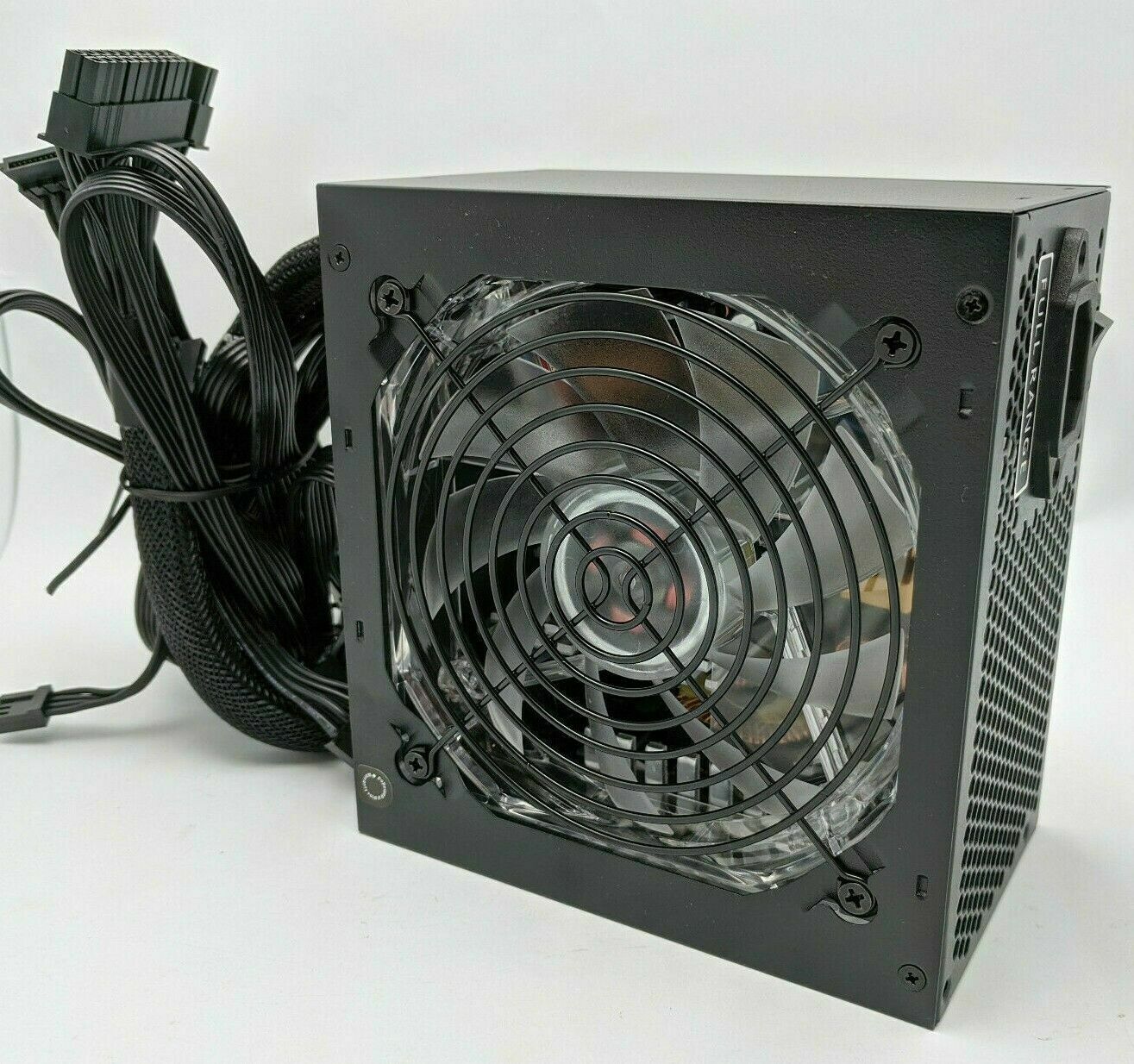

Massive 120mm fan draws heat from CPU area and cools the power supply at the same time. Special slippery circular tube design black anodized fan-guard allows air to flow in smoothly and quietly while providing protection against unintended installation injury.

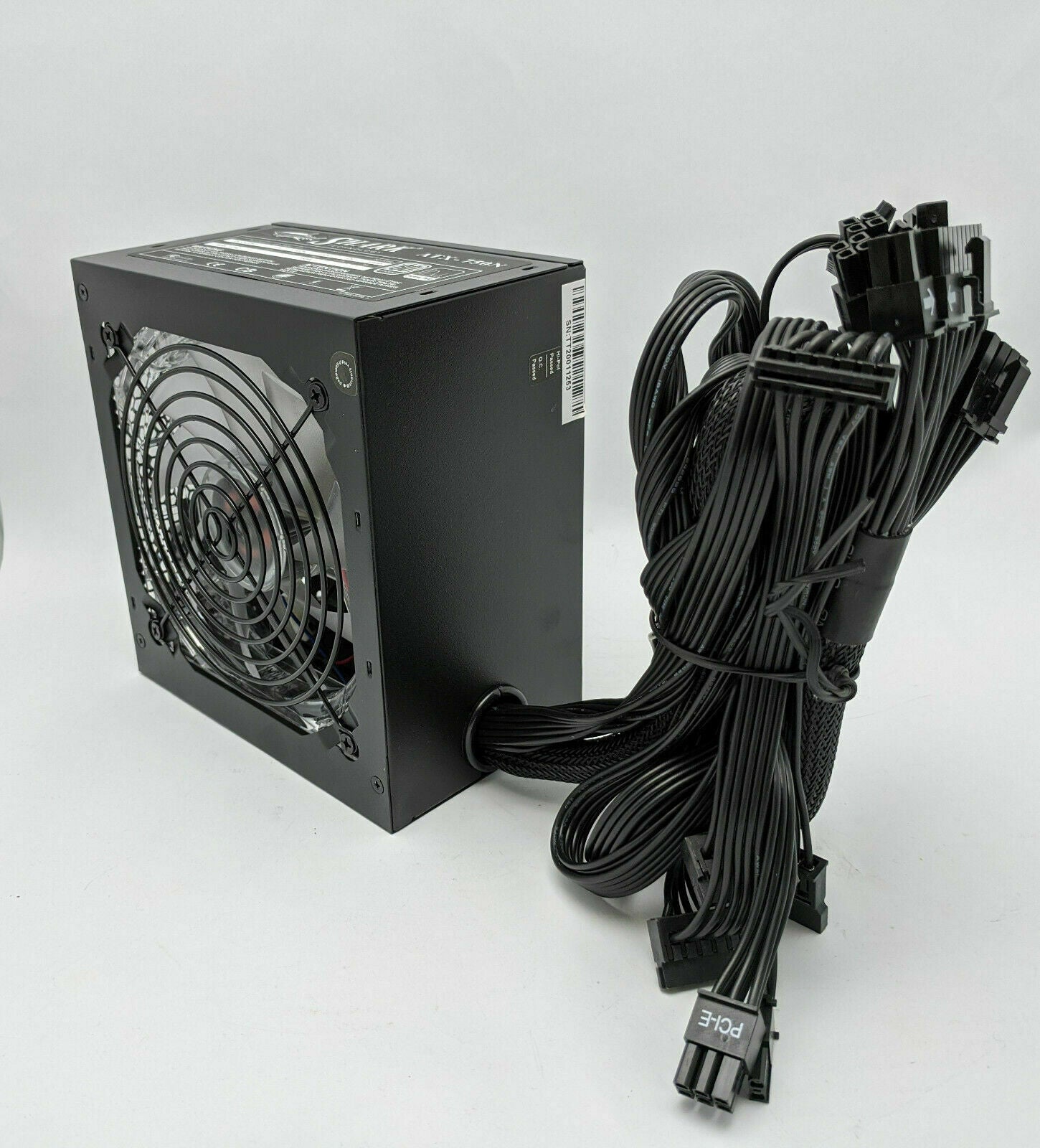

This SHARK TECHNOLOGY® unit comes with cables that are long enough to fit perfectly in gaming cases where PSU are bottom mounted as well.
Want a better power supply that can provide stable power to your PC system without frequent reset, self shut-down, hang-up, or sensitivity to AC input voltage fluctuation? Look no further
Application:
Gaming PC
24/7 Server or PC Workstation
DVR System
Technical Specifications:
AC INPUT : 100-240V Full Range with Automatic AC input Switching. AC Voltage Selection Switch for 115 or 230v is no longer needed as this unit supports all AC input voltage automatically. Input Frequency Range: 50-60Hz.
Maximum Input Current: 10A
|
AC INPUT
|
115V/230V - 60/50Hz
|
||||||
|
DC OUTPUT
|
+3.3V
|
+5V
|
+12V1
|
+12V2
|
-12V
|
+5VSB
|
|
|
750W
|
Peak
Combined Watts |
25A
|
25A
|
25A
|
25A
|
0.3A
|
2.5A
|
|
750W
|
|||||||
Maximum Power Output: 750W
Manual power shut-down rocker switch
Dimension: 150mm x 86mm x 145mm (the 145mm length is the side that extends inside the case when installed)
Complete Built-in Electrical Protection System:
Over Voltage Protection
Over Current Protection
Short Circuit Protection
Over Power Protection
Safe to Operate. Safe to the Environment.
Lead-FREE
Cadium-FREE
Mercury-FREE
Hexavalent chromium-FREE
PBB-FREE
PBDE flame retardants-FREE
RoHS Compliant - made with hazardous-free components
Operating temperature range: 0 - 40 degree C (32 - 104 degree F)
Storage temperature range: -20 - 85 degree C (-4 - 185 degree F)
Operating relative humidity range: 5 to 90% RH
Energy-efficient: typical 85.77%, average 84.16% efficiency
MTBF Life Expectancy of this model: 100,000 hours* (11 years & 2 months)
* Excludes the life of the fan which may vary depending on operating environment
Power Good Signal 100~500ms
Hold Up Time >16 ms
Efficiency 82% Plus
Dimensions: 150x160x86mm
