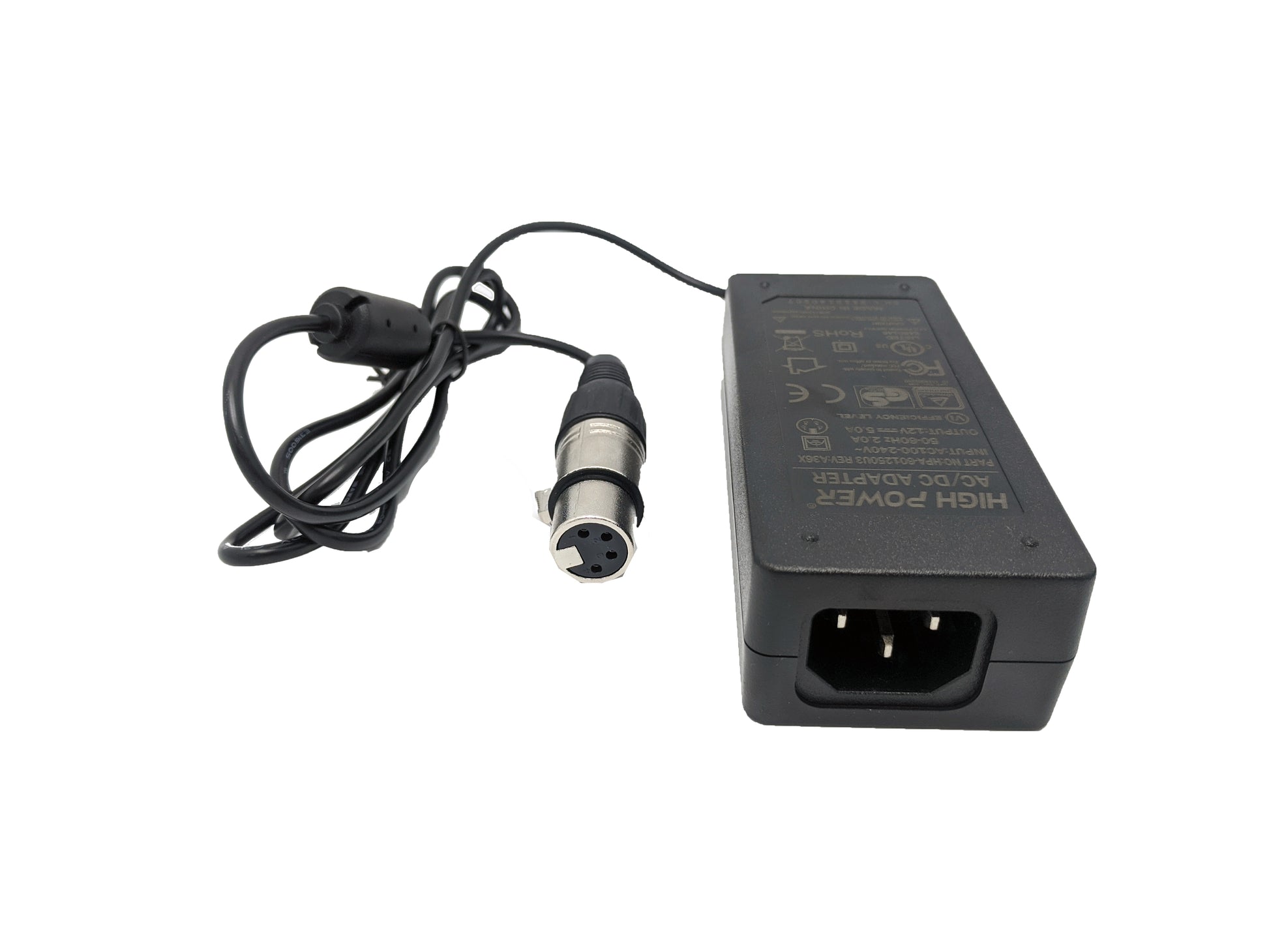

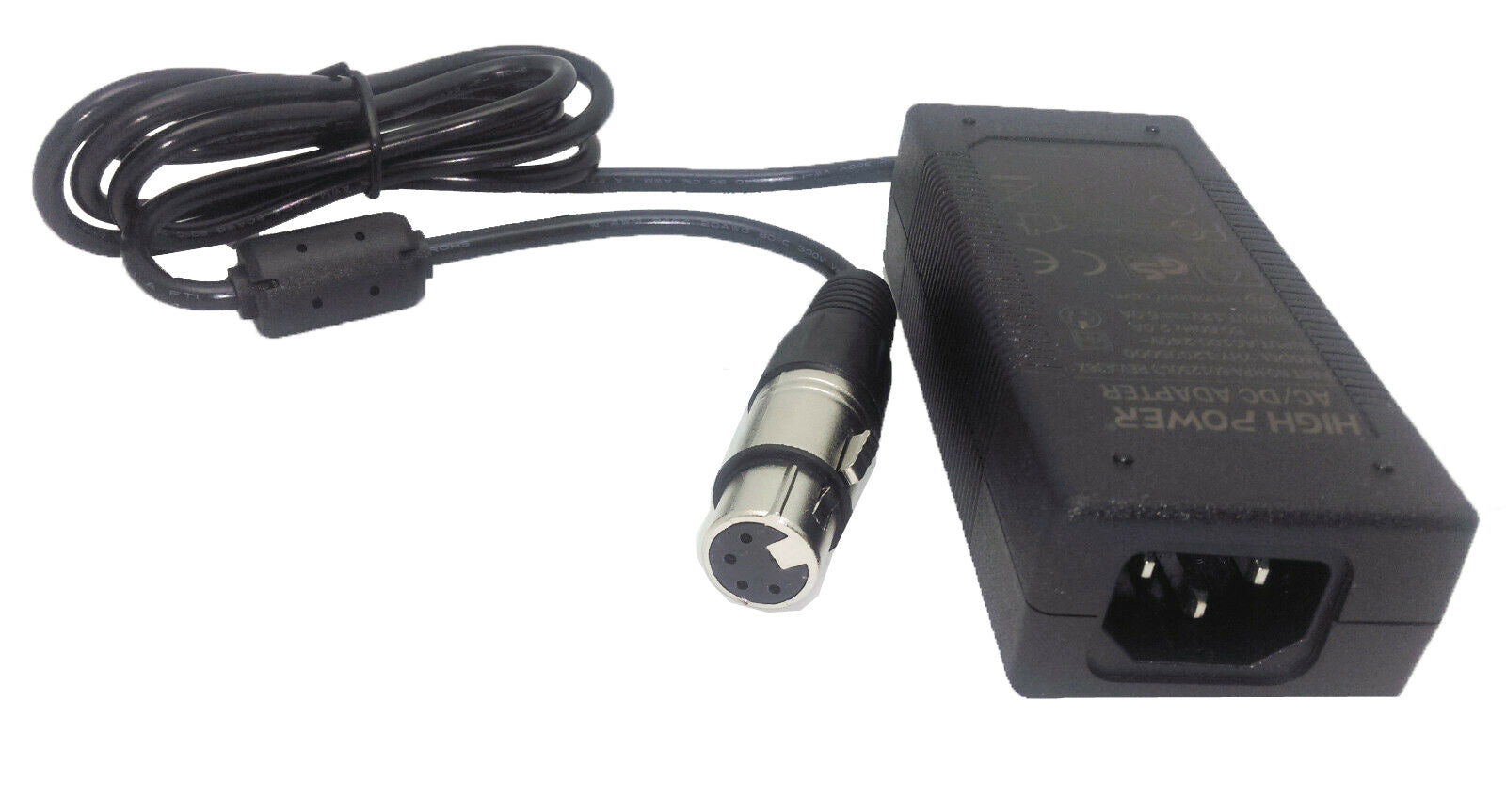

HIGH POWER® 60W Energy-Efficient Fanless 4pin XLR Power Supply for JVC/ SONY/ PANASONIC Pro Video/Audio

Regular price $57.00

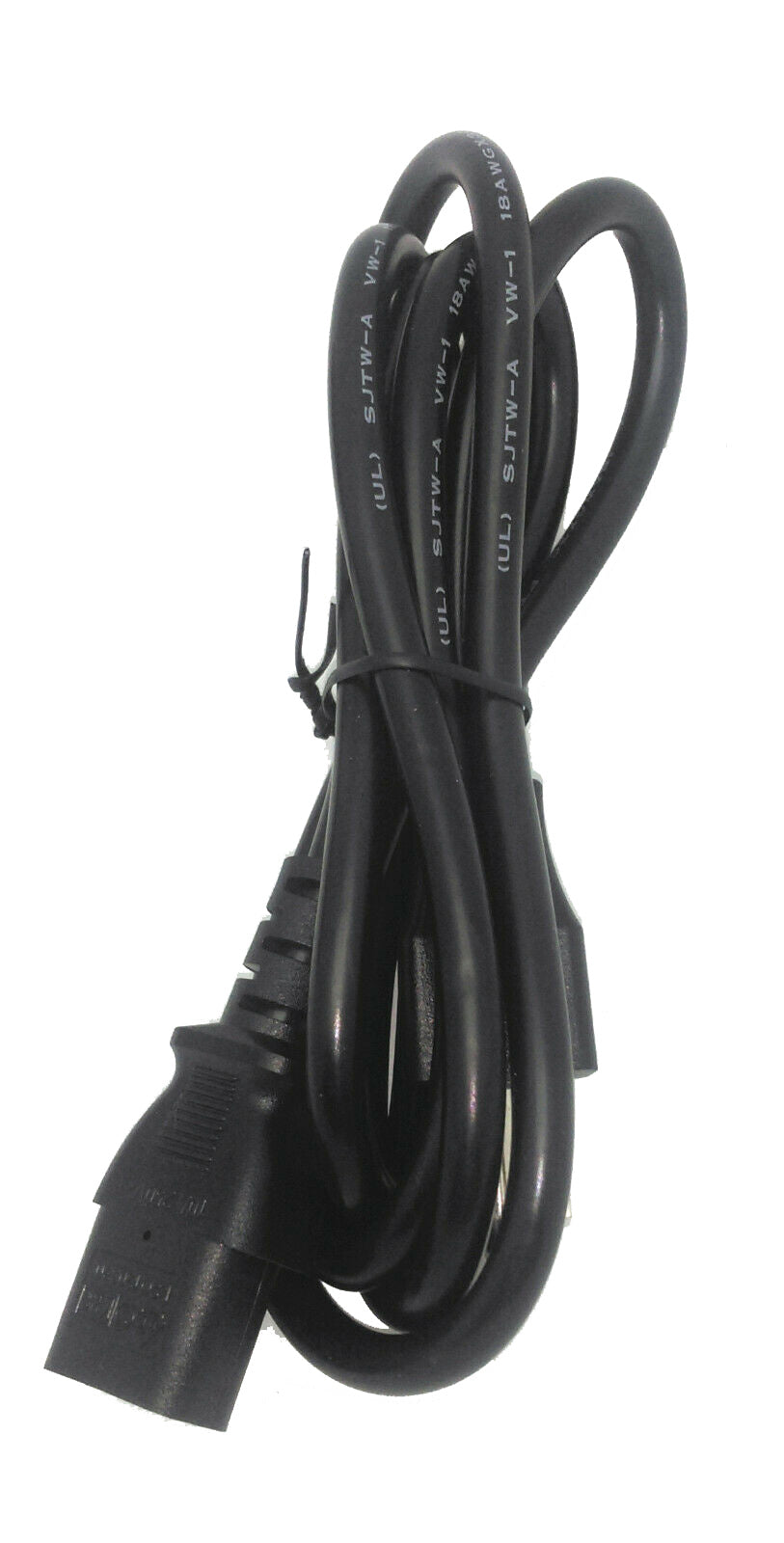

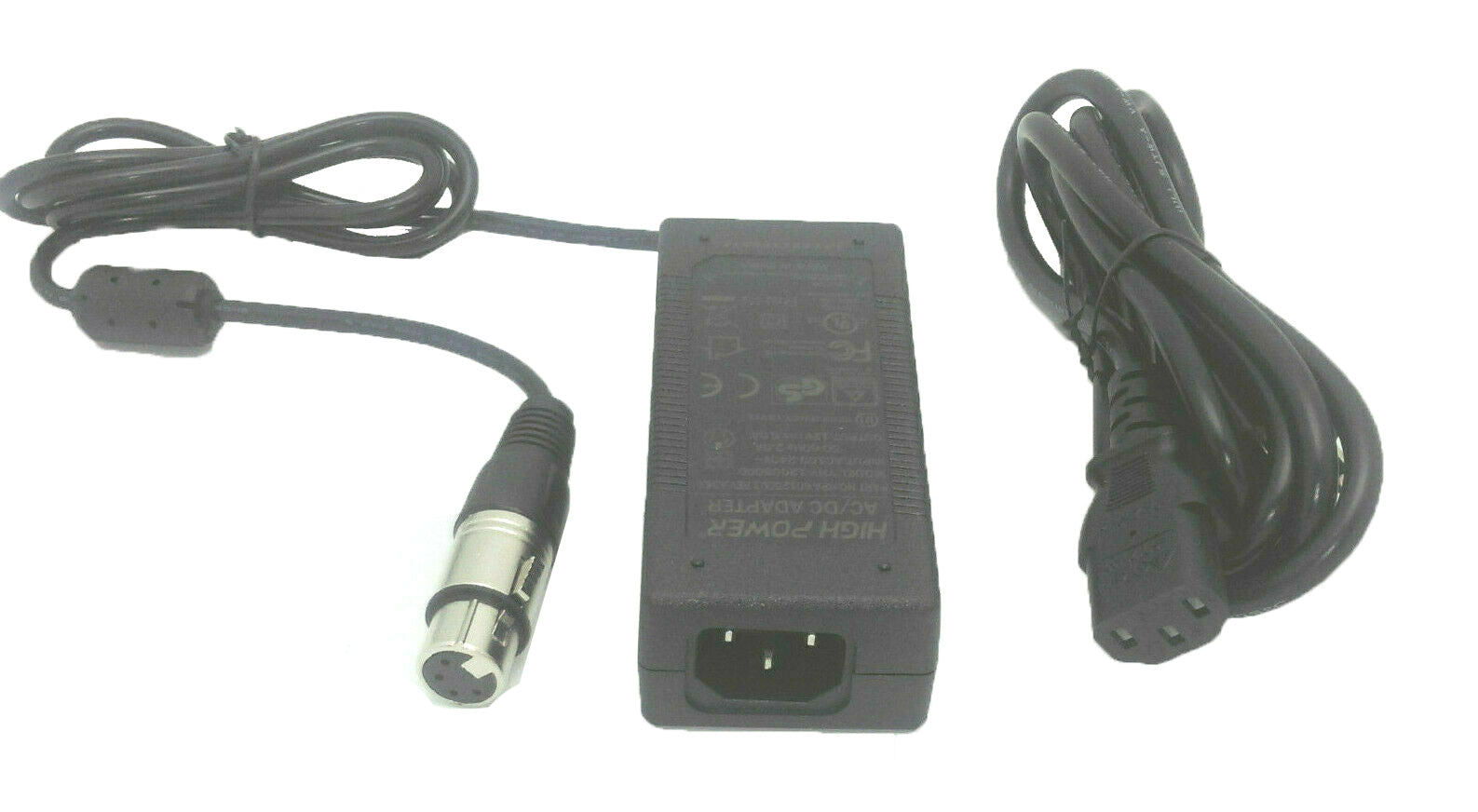

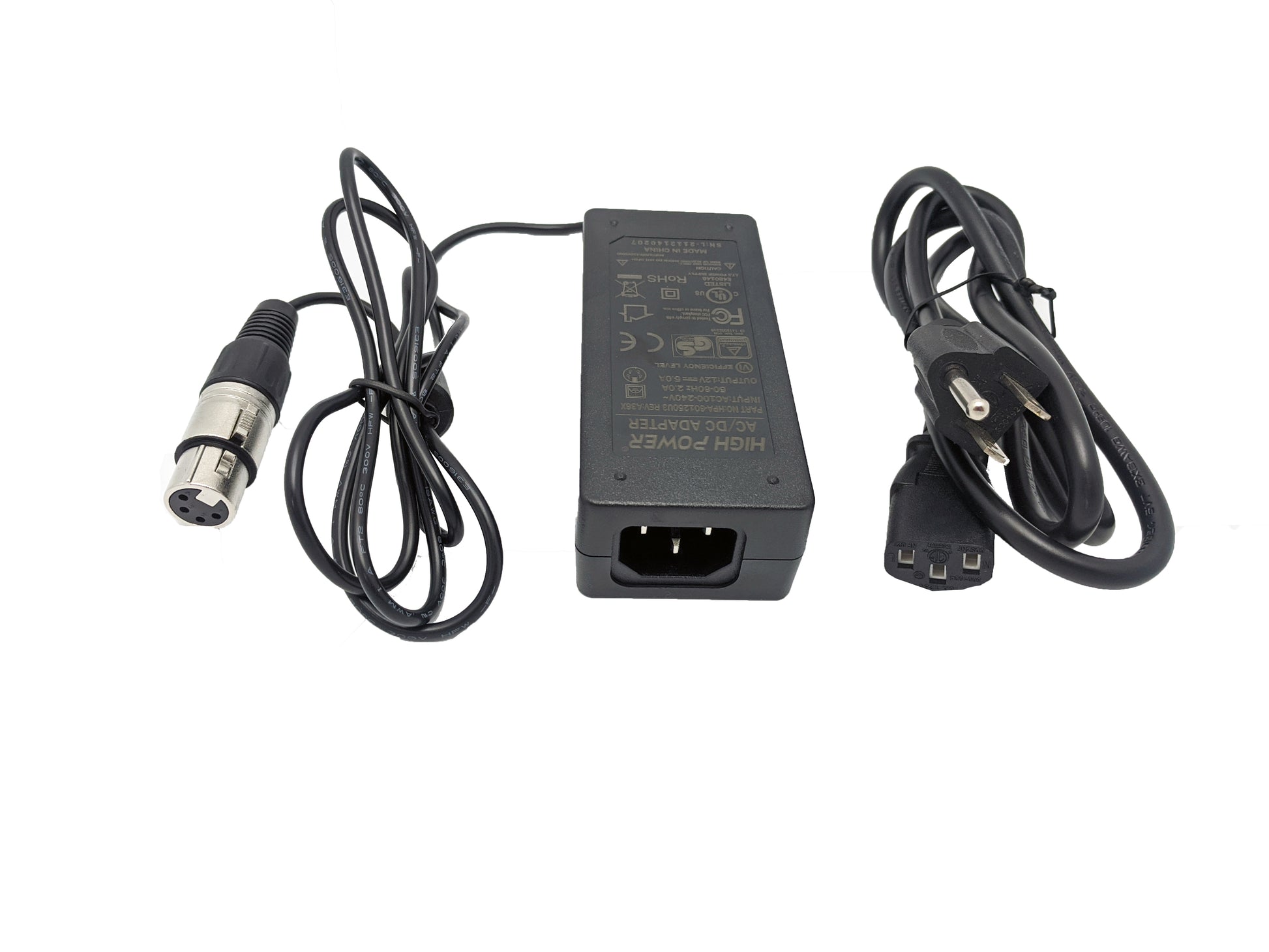

    Limited Time Offer Bonus: US 5-Foot AC Power Cord (UL Certified) Included.



      • Input: 100-240V AC
      • Input AC Inlet: IEC 320 3pin (Type C14) compatible
      • Output Voltage: 12V DC
      • Ratings: 5A (60W) Continuous, 70W Peak
      • DC Cable Length - 120cm
      • DC Jack Type: XLR 4-Pin
    (compatible with JVC / SONY / PANASONIC)
        • High efficiency design with 88% minimum at normal line input and average of 25%, 50%, 75%, 100% of max load.
        • Meet DOE CEC level VI
        • No load Power Consumption :  Less then 0.21W
        • Fanless AC adapter operates in total silence.
        • UL, cUL, TUV, CE, FCC, CCC, KC, GS, CB, DOE VI, cTick, SAA Certified
        • RoHS Compliant

      Technical Specifications:

        • AC Input Voltage
           Maximum Voltage: 264Vac
           Normal Voltage : 100~240Vac
           Minimum Voltage: 90Vac
      • AC Input Frequency
        Maximum Frequency: 63Hz
        Normal Frequency: 50~60Hz
        Minimum Frequency: 47Hz
      • Input Current:
         1.2A (Max.) @ 115Vac input will full load
         0.6A (Max.) @ 230Vac input will full load
      • DC Output Power: 5A (60W) Continuous, 70W Peak
        • High efficiency design with 88% minimum at normal line input and average of 25%, 50%, 75%, 100% of max load.  Meet CEC level VI
        • No load Power Consumption :  Less then 0.21W
        • Inrush Current (cold start) : 30A Max. @110Vac/60Hz;   60A Max. @230Vac/50Hz
        • AC Leakage Current: 0.25mA Max. @240VAC input.
        • Line Regulation: This line regulation is less than ± 5%, of rated output voltage@ full load
        • Minimum Load: 0.0A
        • Hold Up Time: ≧ 5mSec., @ 115V AC input line, with full load.
        • Rise Time: ≦40 milli-second @ 115V AC input with full load - from 10% to 90% of output voltage.
        • Turn on Delay Time: The output voltage should rise to 90% of rated output voltage in less than 3 second from 115V AC applied to start up.
        • Over voltage protection

        • Short circuit protection

        • Over Voltage Protection

        • 100% HI-POT tested: IEC 320 3pin primary to secondary 1800Vac 5mA 1min

        • 100% cycling BURN-IN under 80% load for 2 hours

        • 12V DC output @  +- 5% Standard Deviation

        • 120mV Maximum Ripple Voltage

        • Operating temperature:  0 - 50 degree C

        • Storage temperature: -20 - 80 degree C

        • Humidity : Operating -  10 to 90 %;  Storage - 5 to 90 %
        • Altitude :  Operating - From sea level to 2,000-Meter ; Storage - 5,000-Meter
        • MTBF : > 50,000 hours at full load under 25 degree C ambient condition



        Standard US 3-pong AC Inlet
        • IEC 320 3pin (Type C14) compatible
        • Standard US computer 3-prong AC power cord compatible
        • Ground pin included for extra safety over 2-prong design

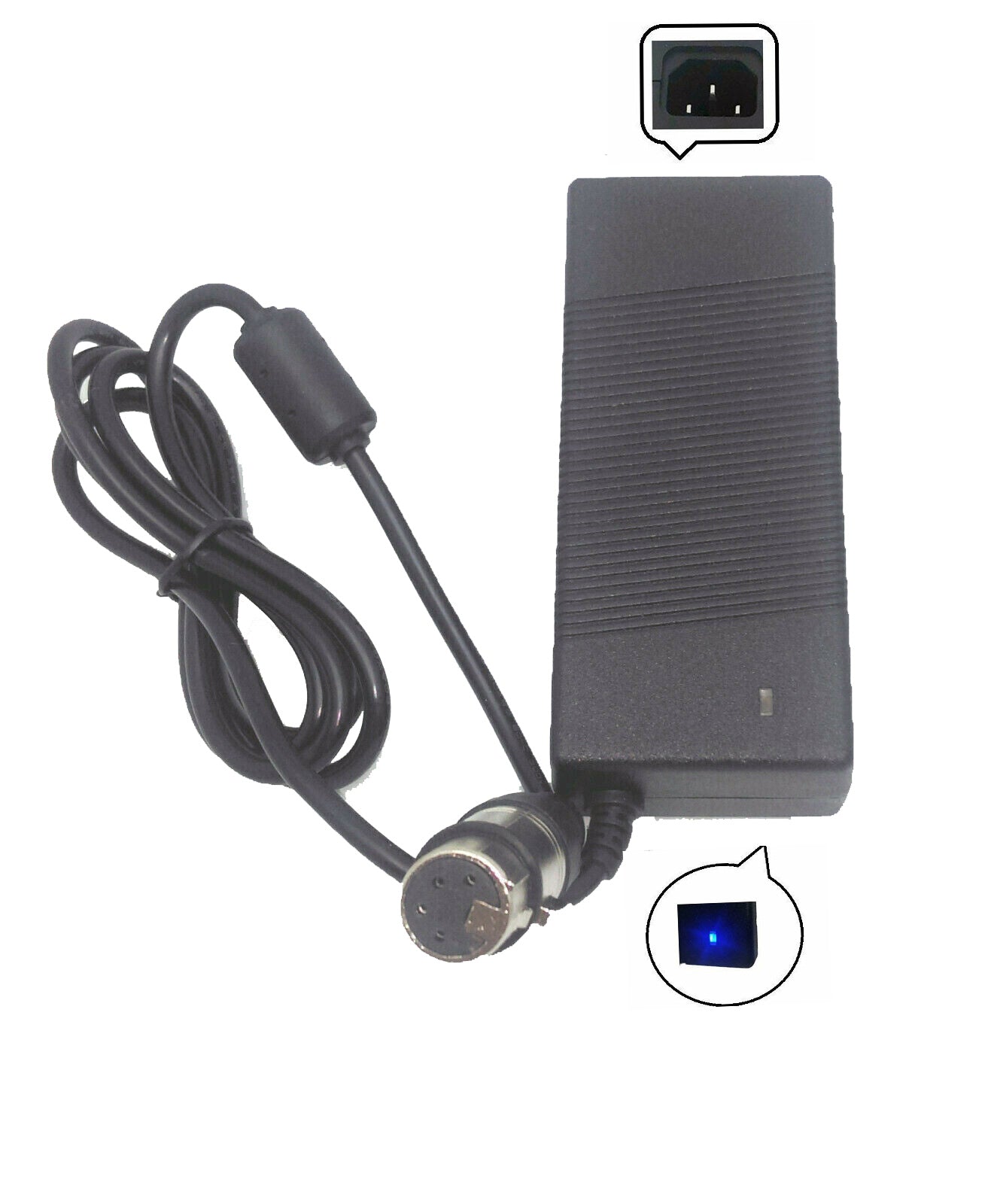

        Built-in power status indicator

          • Blue LED turns steady on when there is a reliable 12V DC output.
        • LED flashes when there is a problem found by the internal detection circuitry.
        • LED turns off when there is no power output or no power input.

        DC cable: 20AWG, 1200mm total length

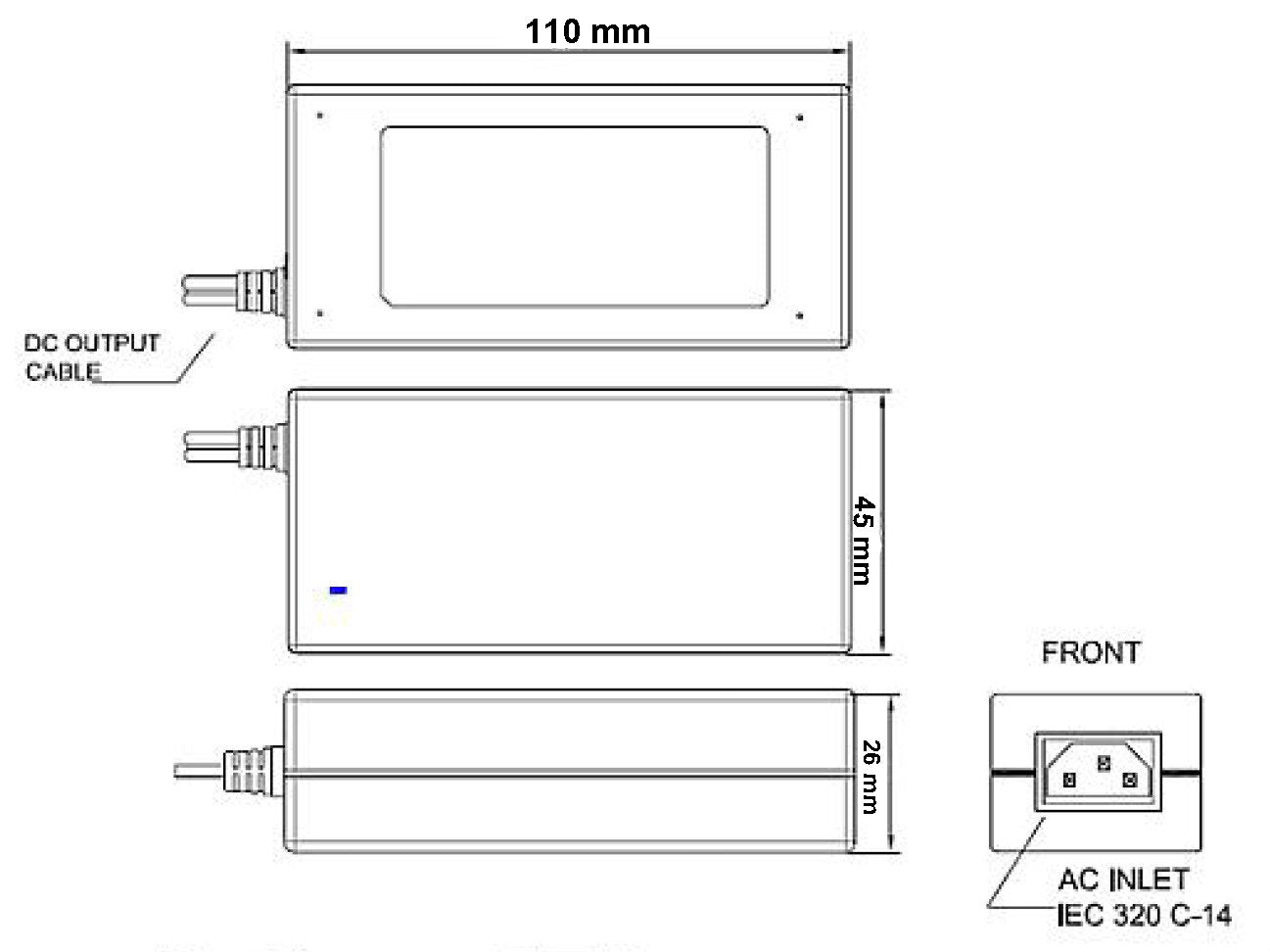

        Case dimensions: 114mm (Length)/ 50mm (Width)/ 30mm (Height)

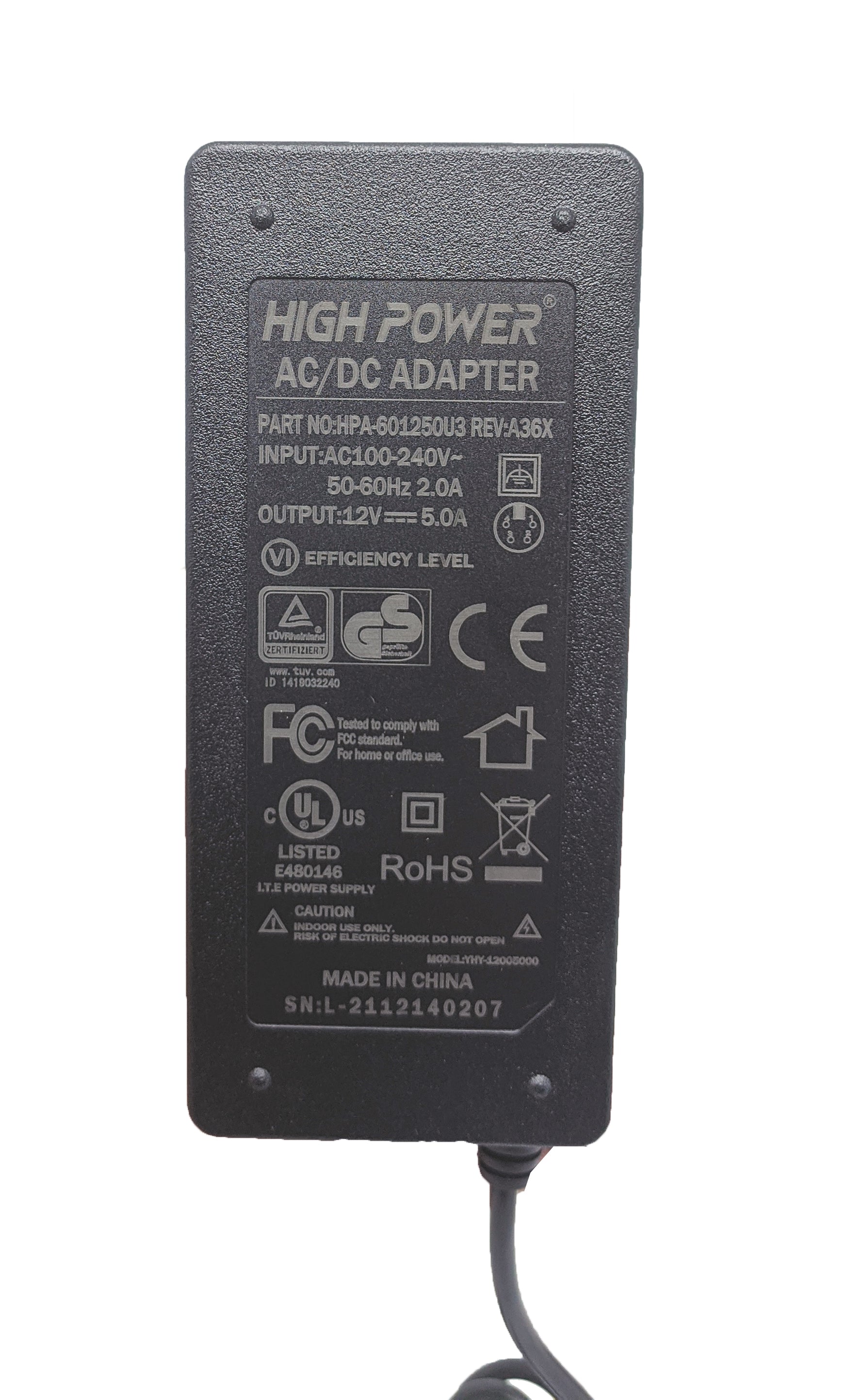

        • Safety compliance: UL, cUL, TUV, CE, FCC, CCC, KC, GS, CB, DOE VI, cTick, SAA
        • Dimensions: 114 (L) * 50 (W) * 30.5 (H)  mm

        RoHS Compliant - made with hazardous-free components

        RoHS is the Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment. This has been a standard in Europe and is now becoming a standard in the world. Not only lead, but cadium, mercury, hexavalent chromium, polybrominated biphenyl (PBB), and polybrominated diphenyl ether (PBDE) flame retardants are limited as well.



         Lead-FREE
         Cadium-
        FREE
         Mercury-FREE
         Hexavalent chromium-FREE
         PBB-FREE
         PBDE flame retardants-FREE
