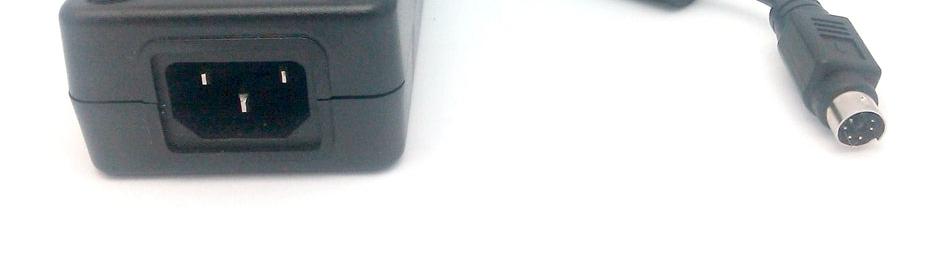

HIGH POWER® HPA-601250U3 REV: C0-A42 60W Energy-efficient Fanless AC to 12V Power Adapter

Regular price $30.00

  • Input: 100-240 VAC +/- 10% full range
  • Input AC Inlet: IEC 320 3pin (Type C14) compatible with standard 3-prong computer power cord.
  • Output Voltage: 12V DC
  • Ratings: 5A (60W)
  • Idle no load power consumption is less than 0.5 Watt
  • CEC Level IV
  • High efficiency switching technology with 83% efficency
  • DC Cable length - 47.5" (120cm)

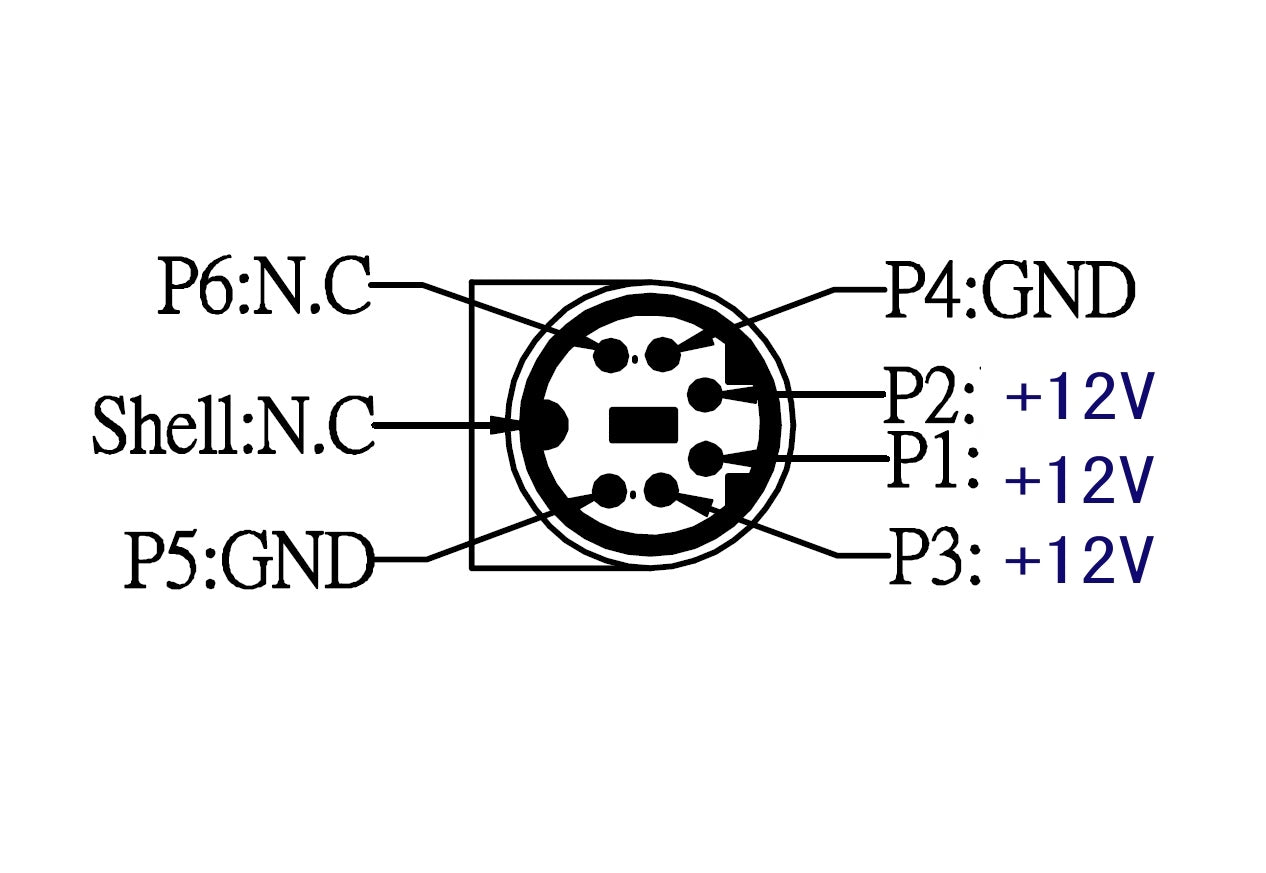

  • DC Jack Type: 6-pin
  • High efficiency switching technology with 83% efficency at full load
  • Fanless AC adapter operates in total silence.  Ideal power source for devices such as DVR, LCD monitor, etc.
  • Worldwide EMI & SAFETY APPROVAL: UL/cUL , TUV/GS, CE,  FCC, CCC, BSMI, DOIR +C-TICK, GOST-R, PSE, PSB, EK
Applications:
    • Security device such as LCD monitor, CCD camera, security system, and control.
Specifications:
  • Universal input 100-240 VAC
  • High efficiency switching technology -- 83% typical @ full load
  • Single 12V output @ 5A  +- 5%
  • Load Regulation: +- 5% (11.4V - 12.6V)

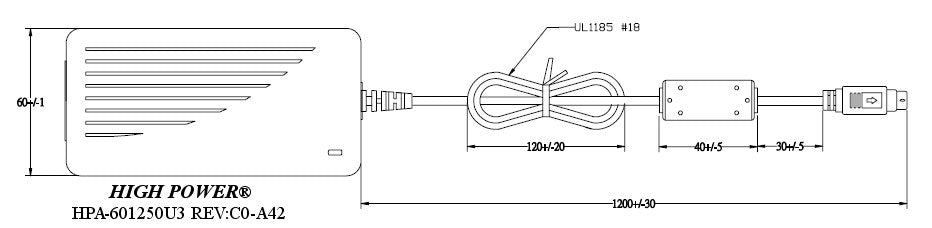

  • DC Cable length - 47.5" (120cm) with UL rated 1185 AWG#18 cable
  • Over Current protection
  • Over Voltage protection
  • Short circuit protection
  • Open-Circuit Protection
  • 100% HI-POT tested
  • 100% cycling BURN-IN

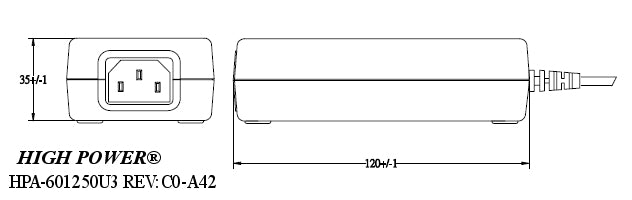

  • Dimensions: 120 mm (L) * 60 mm (W) * 35mm (H)
  • Storage Environment:
    Temperature:  -20 - 85 degree C
    Humidity: 5 - 90 %
    Altitude: From sea level to 40,000Ft
  • Operating Environment:
    Temperature:  0 - 40 degree C
    Humidity: 10 - 90 %
    Altitude: From sea level to 10,000Ft
  • MTBF : > 30,000 hours at 80% load and 40 degree C ambient conditions
  • Input Fuse Rating: T3.15A/250V
  • Inrush Current at cold start, maximum load:
      30A at 110 VAC
      60A at 220 VAC
  • Line Regulation: This line regulation is less than ± 1%, @ full load .
  • Turn-ON Time: The output voltage should rise to 90% of +12V in less than 3 seconds from AC apply to 110VAC
  • No load power consumption is less than 0.5 Watt @ 230VAC/ 50Hz
  • DC Output Ripple/Noise: 2% max
  • Hi-Pot Tested: 4242 VDC at 5mA for 3 second between primary and secondary circuit
  • Insulation Tested: 500VDC for 3 seconds between primary and secondary circuit
  • Worldwide EMI & SAFETY APPROVAL: UL/cUL , TUV/GS, CE,  FCC, CCC, BSMI, DOIR +C-TICK, GOST-R, PSE, PSB, EK

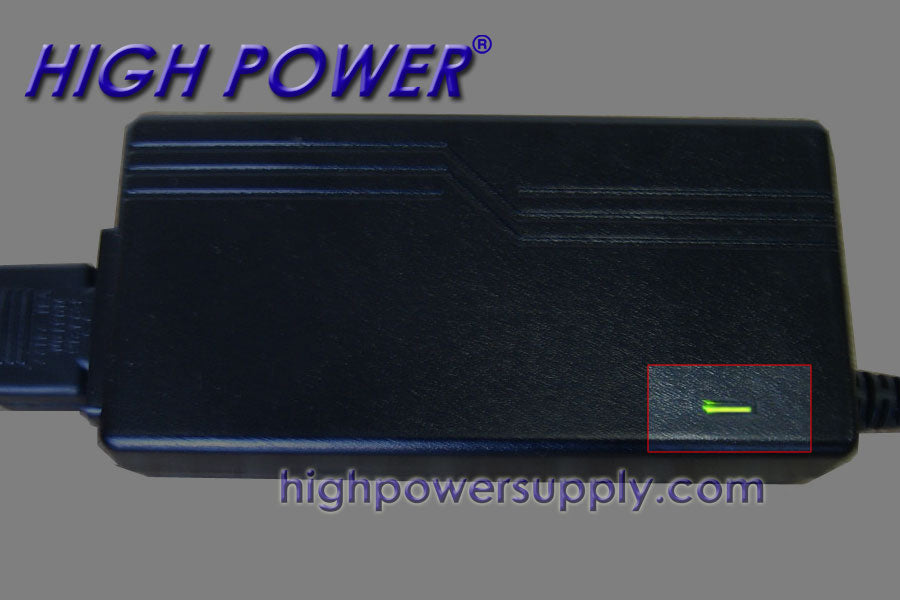

Built-in power status indicator
  • Green LED turns steady on when there is a reliable 12V DC output.
  • LED flashes when there is a problem found by the internal detection circuitry.
  • LED turns off when there is no power output or no power input.
