Input: 100-240 VAC full range
Output: 24.0V DC + - 5%
Output: 24.0V DC + - 5%
Ratings: 2.5A (60W) continuous
Peak Rating: 3.3A (79W)
Peak Rating: 3.3A (79W)
New 3-Prong Grounded Safety Upgrade Version
Power adapter for the following photo printer models:
Power adapter for the following photo printer models:

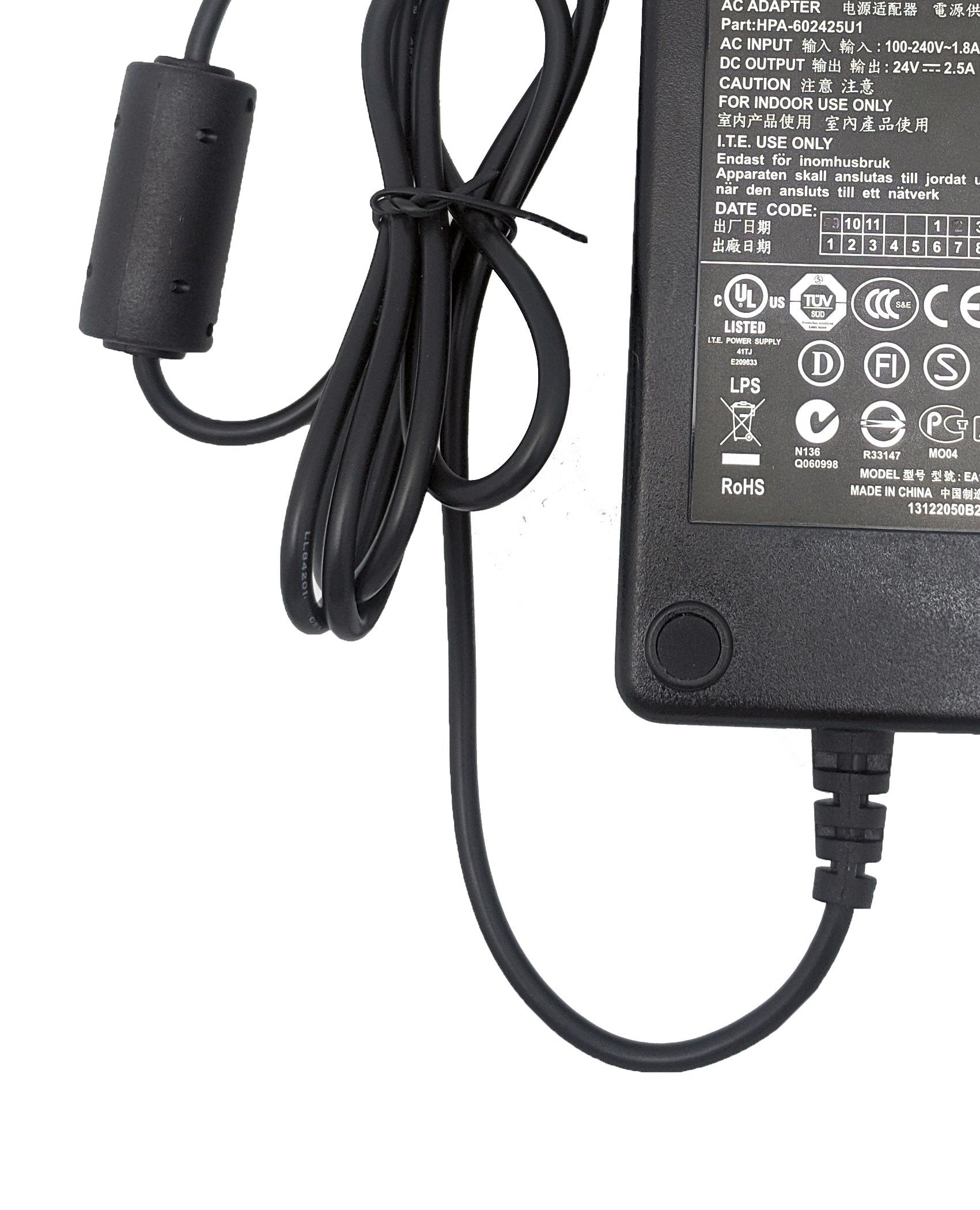

Kodak model# HPA-602425U1
Dell model# HPA-602425U1
Dell model# HPA-602425U1
RoHS Compliant - made with hazardous-free components
RoHS is the Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment. This has been a standard in Europe and is now becoming a standard in the world. Not only lead, but cadium, mercury, hexavalent chromium, polybrominated biphenyl (PBB), and polybrominated diphenyl ether (PBDE) flame retardants are limited as well.
Specifications:
* Input: 100-240 VAC +/- 10% full range

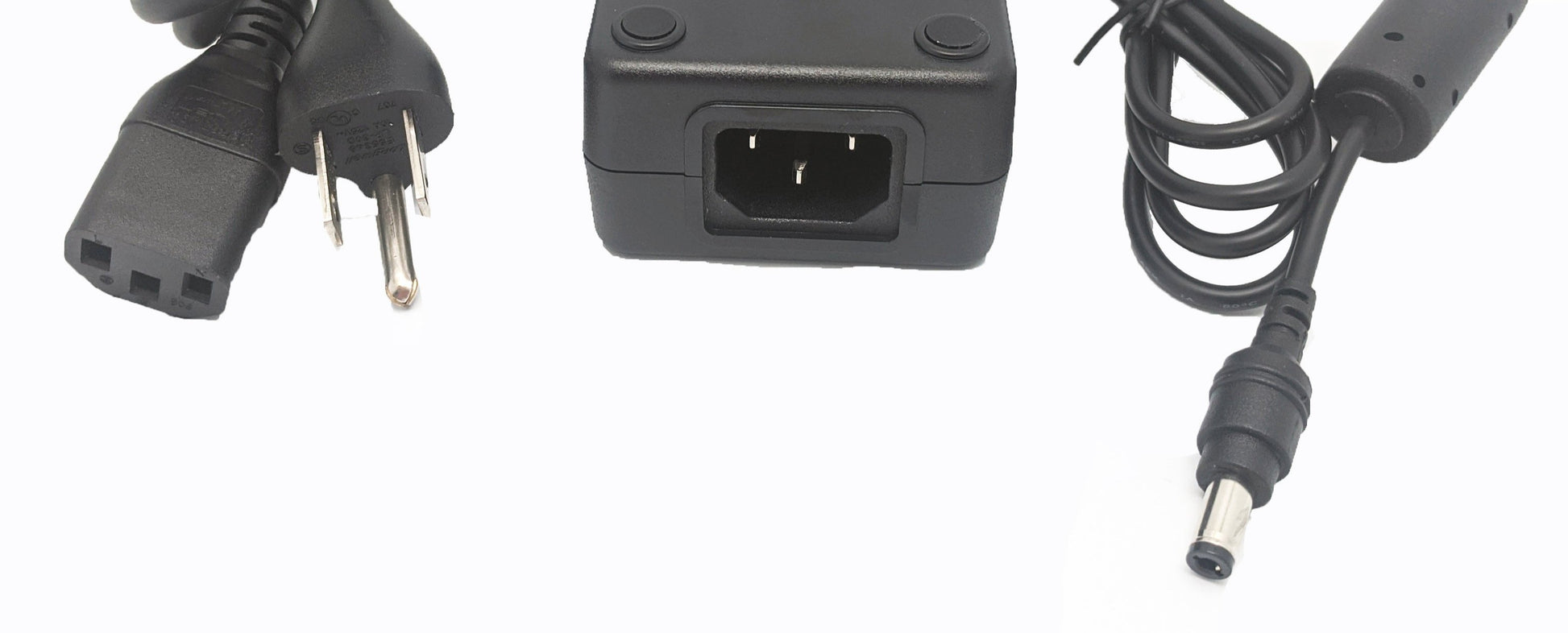

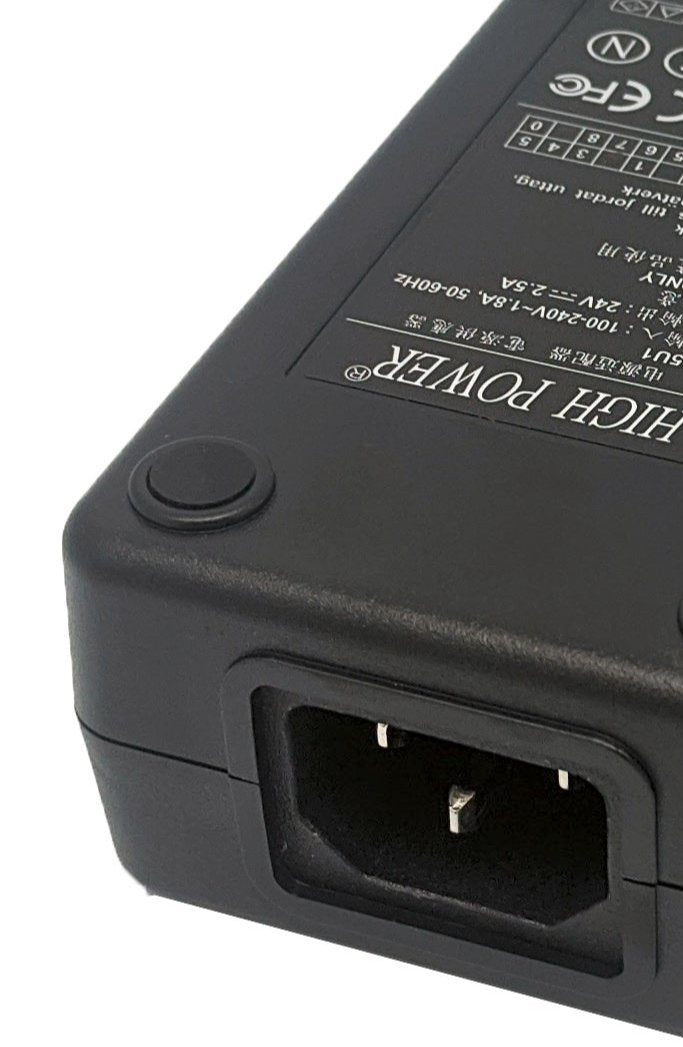

* Input Connection Type: IEC320 C14 (3-pin male)
* Output: 24.0V DC + - 5%
* Ratings: 2.5A (60W) continuous
Peak Rating: 3.3A (79W)

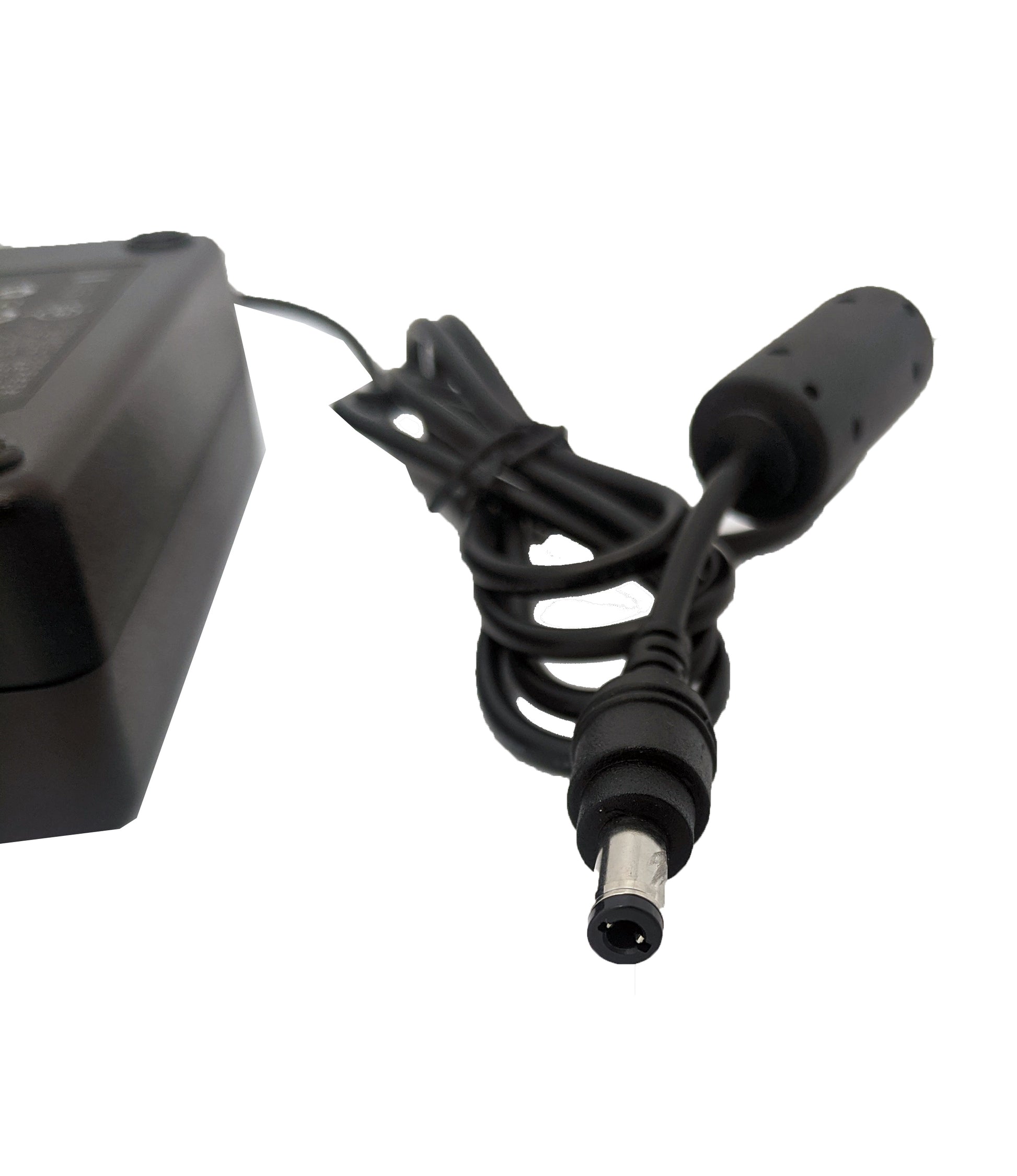

* DC Jack Dimensions: Inner diameter - 2.5mm
Outer diameter - 5.5mm
Plug length - 11.5mm
Plug type - 180-degree
* DC Cable length - 120cm (47.2")* Universal input 100VAC to 100-240Vac
* Single 24v output @ 2.5A continuous
* Efficiency: 82% typical
* Over current protection
* Short circuit protection
* Over Voltage protection
* Line Regulation: 1% Max.
* Load Regulation: +/- 5%
* Ripple & Noise: 1.2% Max.
* 100% HI-POT tested
* 100% cycling BURN-IN
* Operating temperature: 0 to 40 degree C
* Operating humidity: and 10-90% humidty.
* Physical Size: 121 mm (L) * 35 mm (H) * 60 mm (W)
Worldwide EMI & SAFETY APPROVAL:
UL/CUL , TUV, CE, CB, FCC, CCC, BSMI, NORDIC, PSE, DOIR / C-TICK, GOST-R
