HIGH POWER® OrangeAM5
High Performance Heat-sink with Low Profile Orange Color Cooling Fan for
Low Profile AMD Ryzen 5/ 7/ 9 Socket AM4/ AM5 Processor Based System

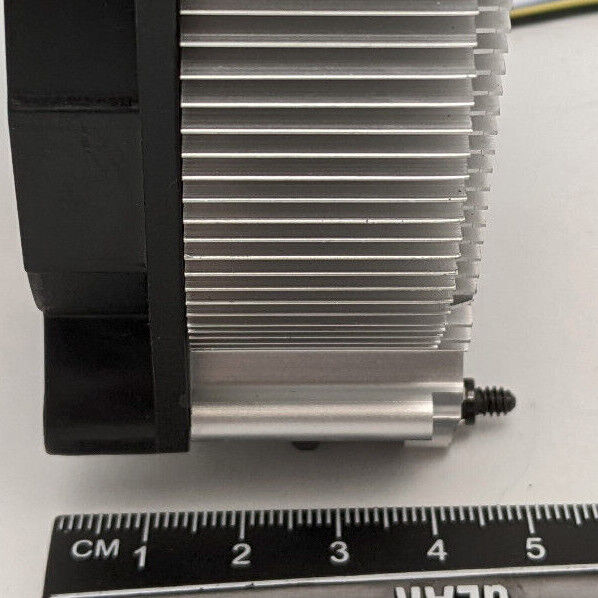

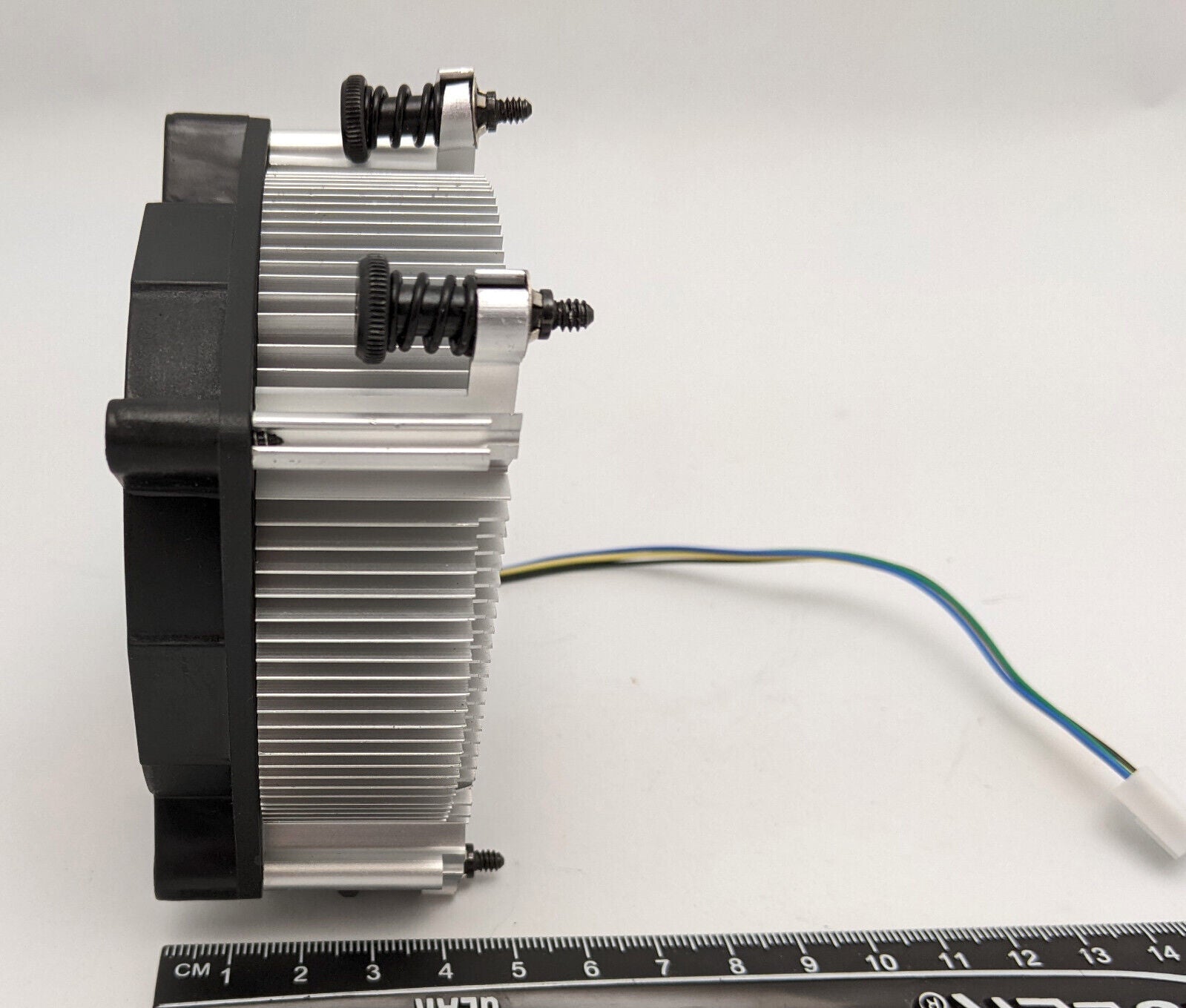

Height from Processor Contact to Top of the Fan is only 43mm (about 10mm shorter than stock AMD Wraith Stealth fan)
Designed to support Low Profile 2U/ 4U/ Mini ITX/ mATX/ ATX AMD AM4 PC System

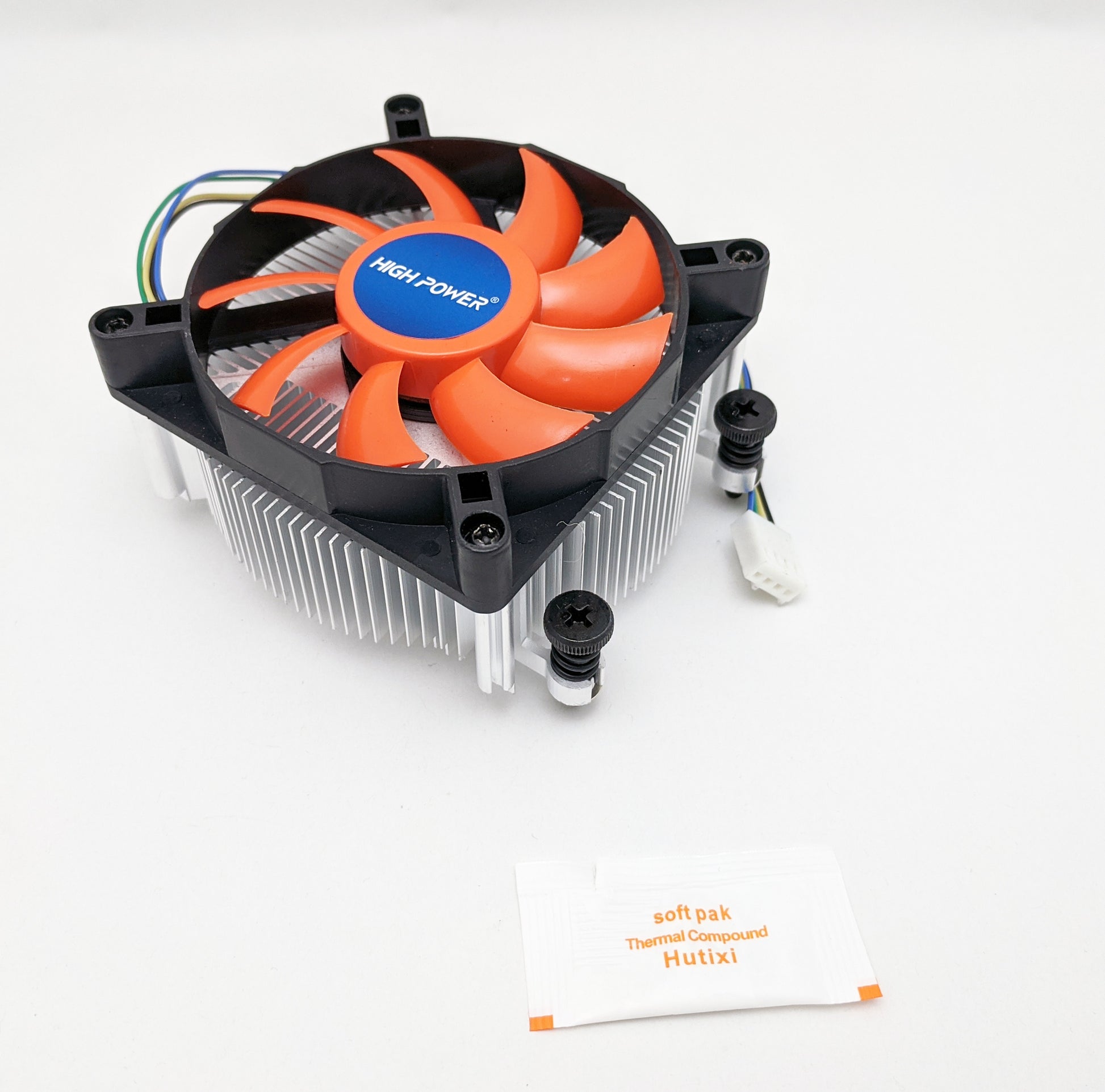

High Performance Thermal Grease Bag Included to Allow Liberal Application on Top of the CPU, or Quick Place-and-Attach using the Included Thermal Pad.

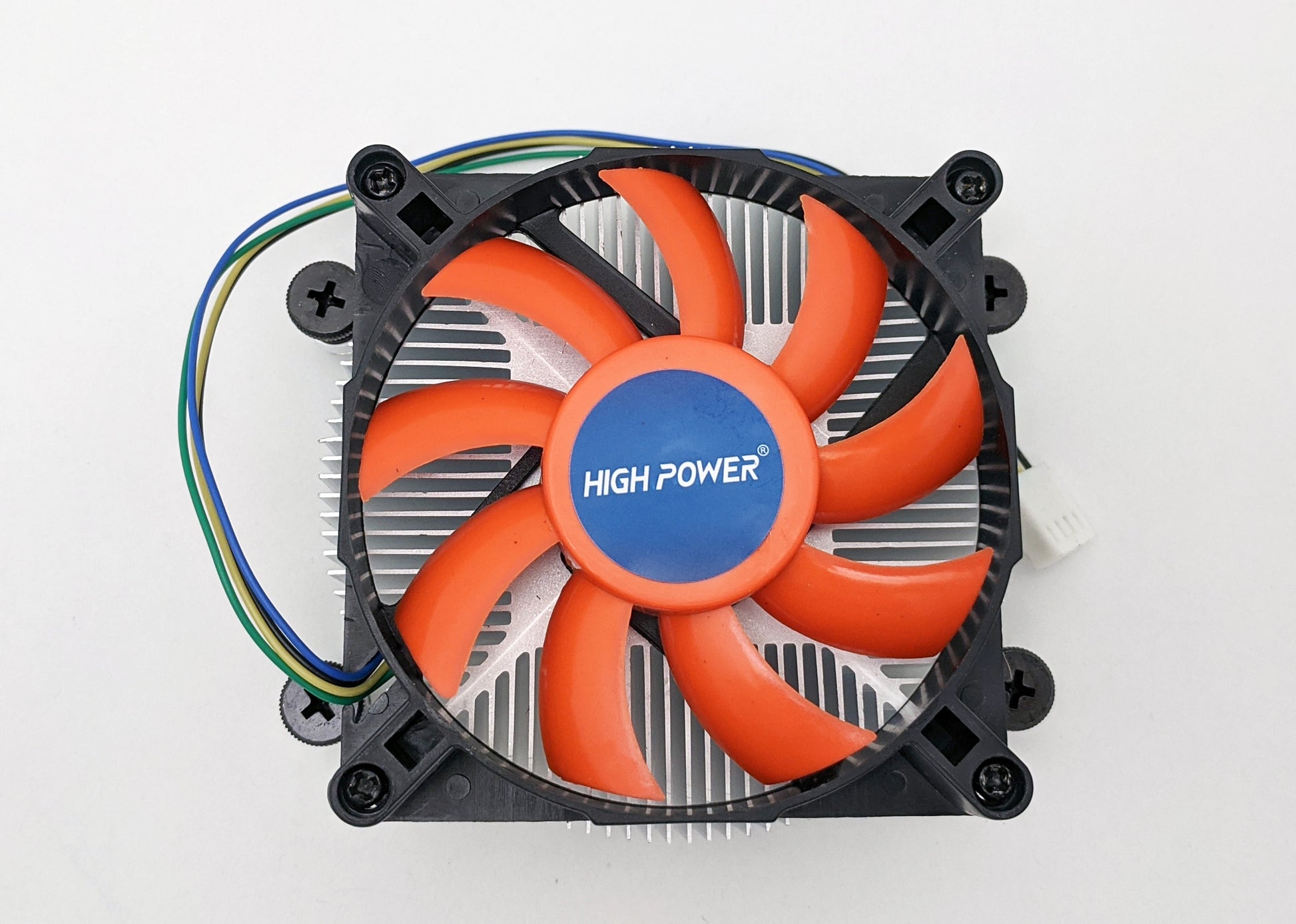

HIGH POWER® OrangeAM4 AMD CPU Cooler has a height clearance of only 43mm to fit in mini ITX & 1U cases. Although it is lower profile than the stock AMD fan, its large 80mm fan delivers cooling capability that is not compromised. Set your BIOS to silent mode will enable the fan to start spinning at around 1000 RPM when it would be amazingly quiet. Noise level remains to be acceptably low during normal system operation.
- Low Noise Air-Cool with 4-pin PWM Power Connector, 1000-3000 RPM Variable-Speed Motherboard (BIOS) Software Controlled

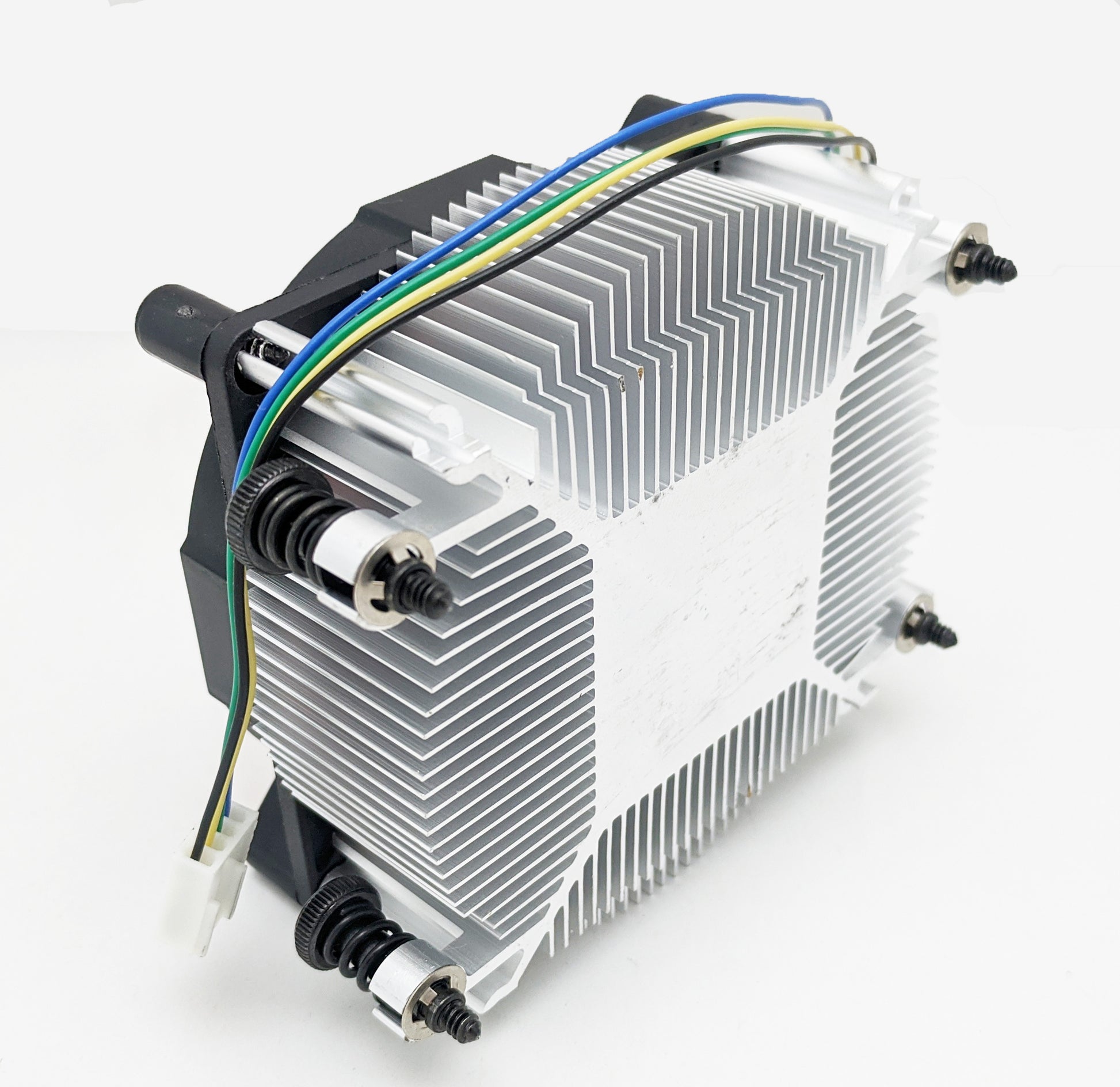

- Secure Screw-Mount Direct to Gaming PC Motherboard's Back-plate, Replacing the Stock Plastic Clip-on Retention Brackets
- TDP: 85W. Compatible with AMD Ryzen 5 / 7 / 9 CPU, Socket AM4 processors.
- High Performance Thermal Grease Bag Included to Allow Liberal Application on Top of the CPU, or Quick Place-and-Attach using the Included Thermal Pad.
- Backward Compatible with 3-pin Fan Header Desktop Computer Mainboard.

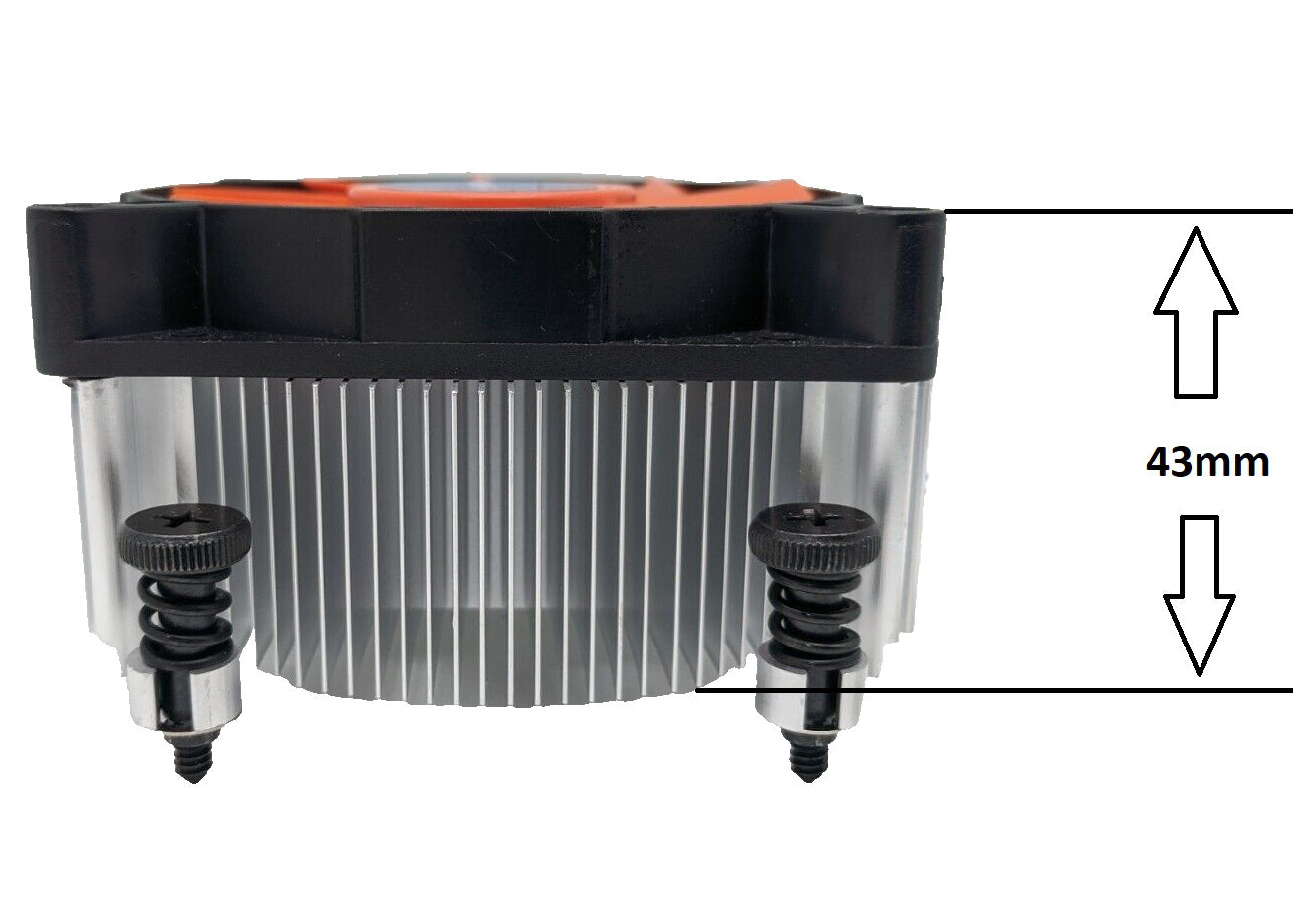

- Height from Processor Contact to Top of the Fan: 43mm
- FCC, CE, and RoHS Compliance

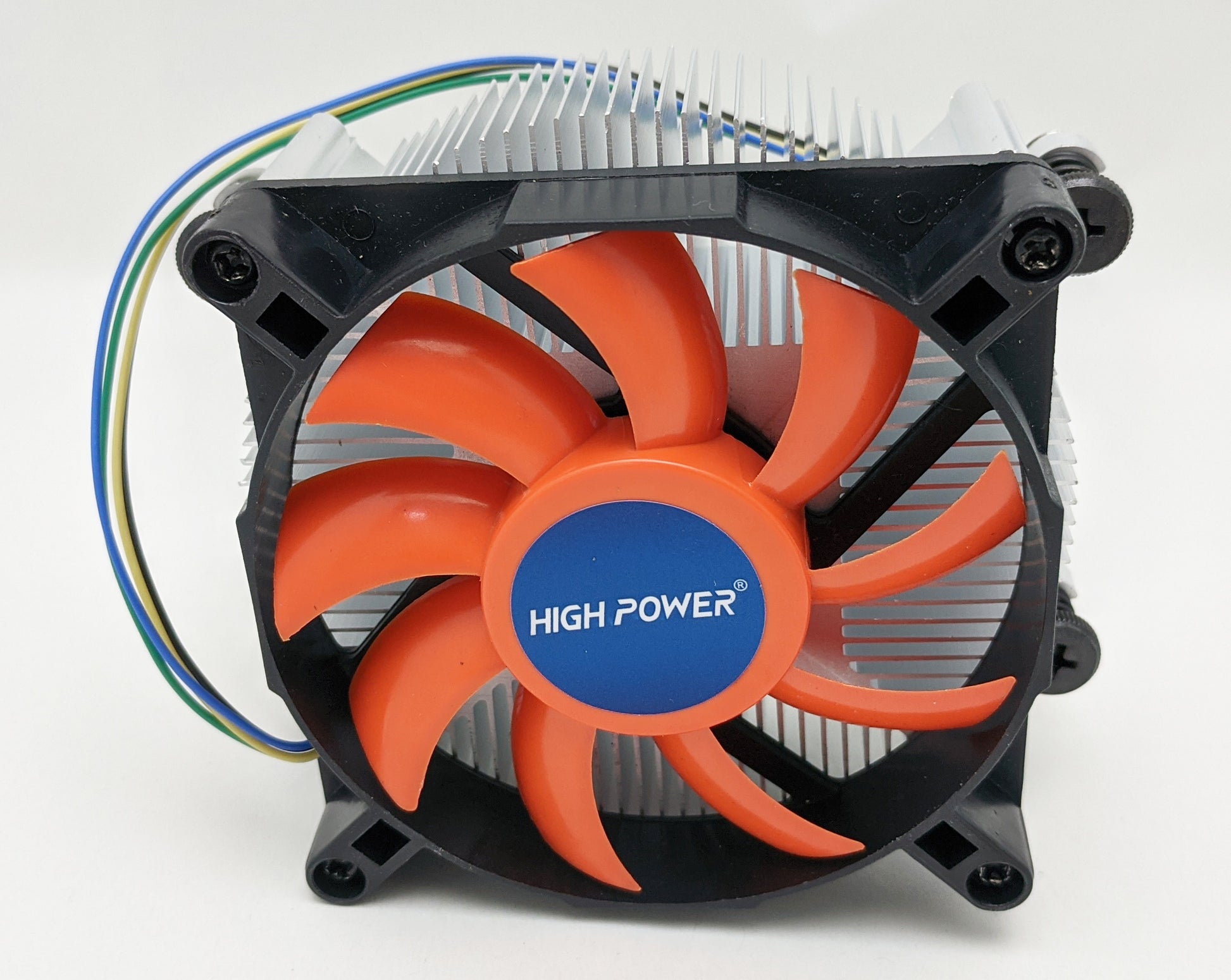

Fan Dimension 80×80×15 mm Fan Speed 1000-3000 RPM ± 10% Fan Airflow 10.23-28.19 CFM ± 10%

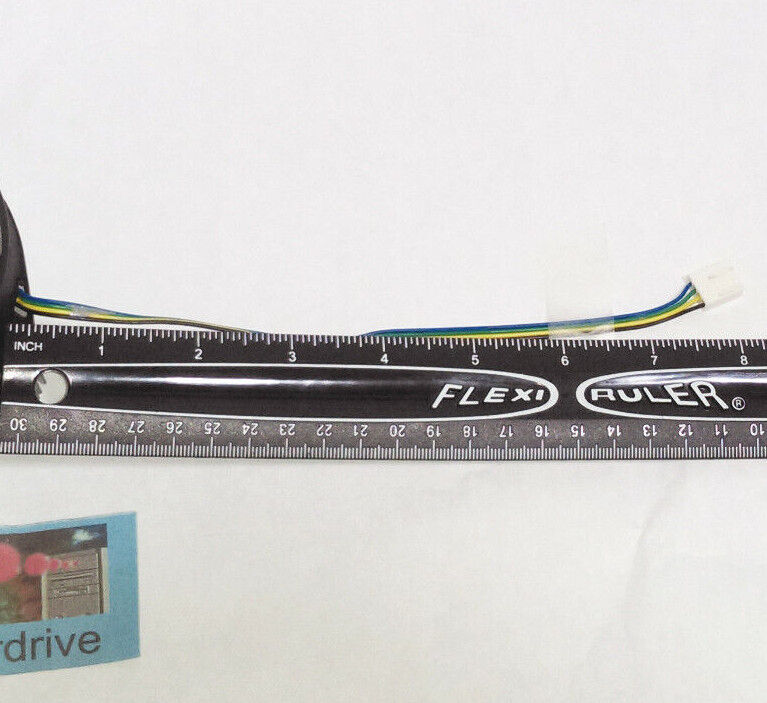

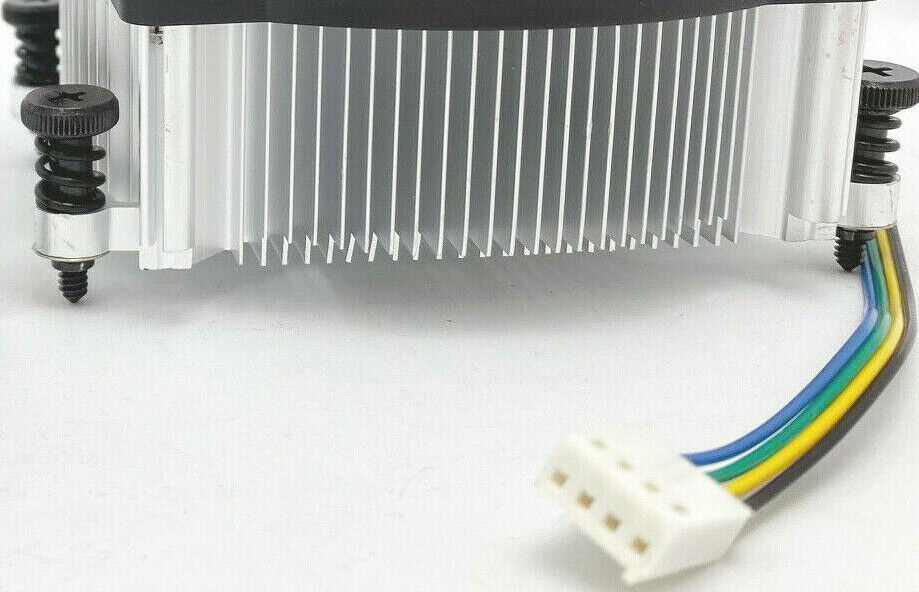

Connector : 2510-4PIN PWM

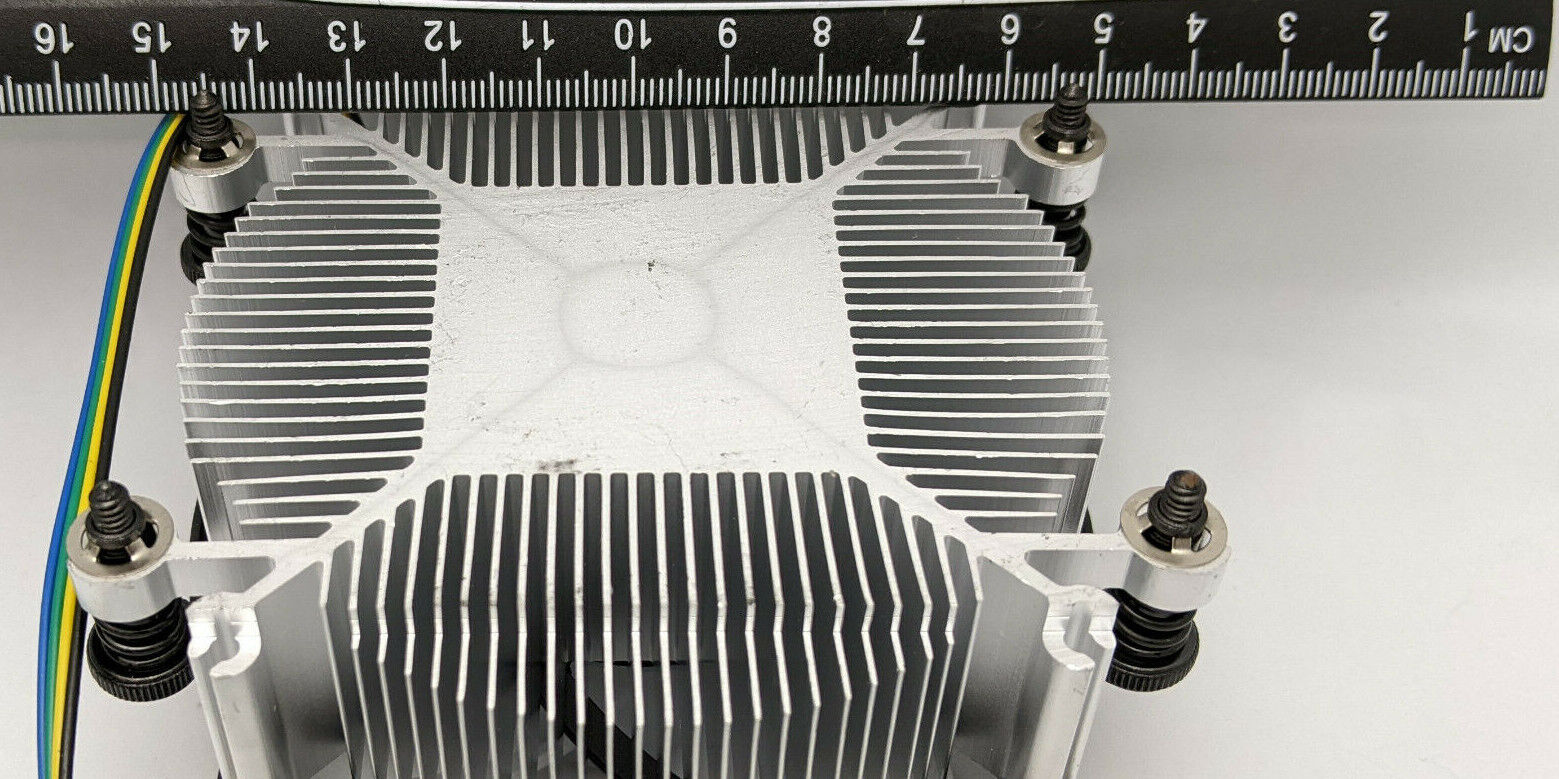

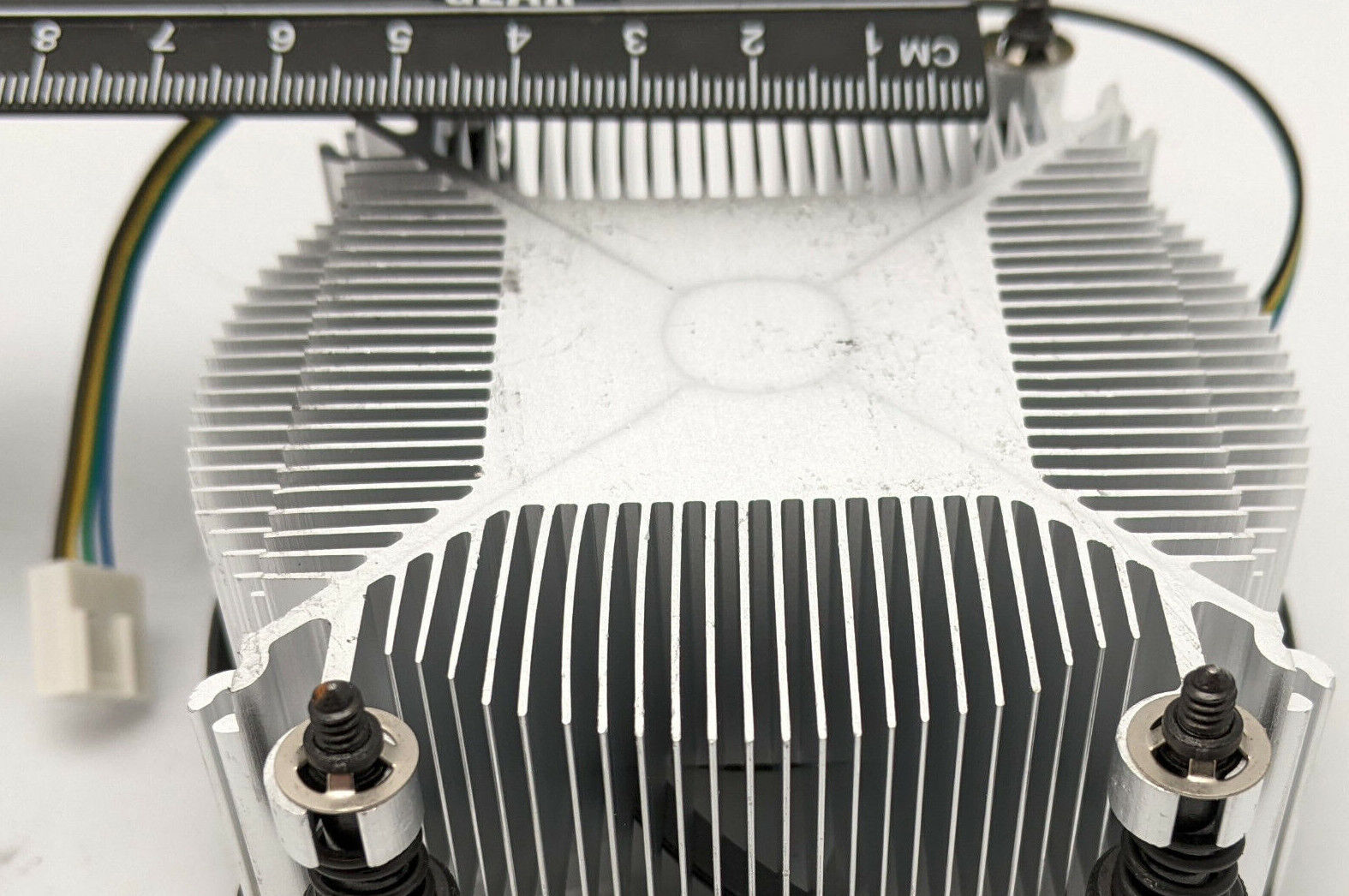

Heat-sink Material: Aluminum
Height from processor contact to top of the fan: 43mm
