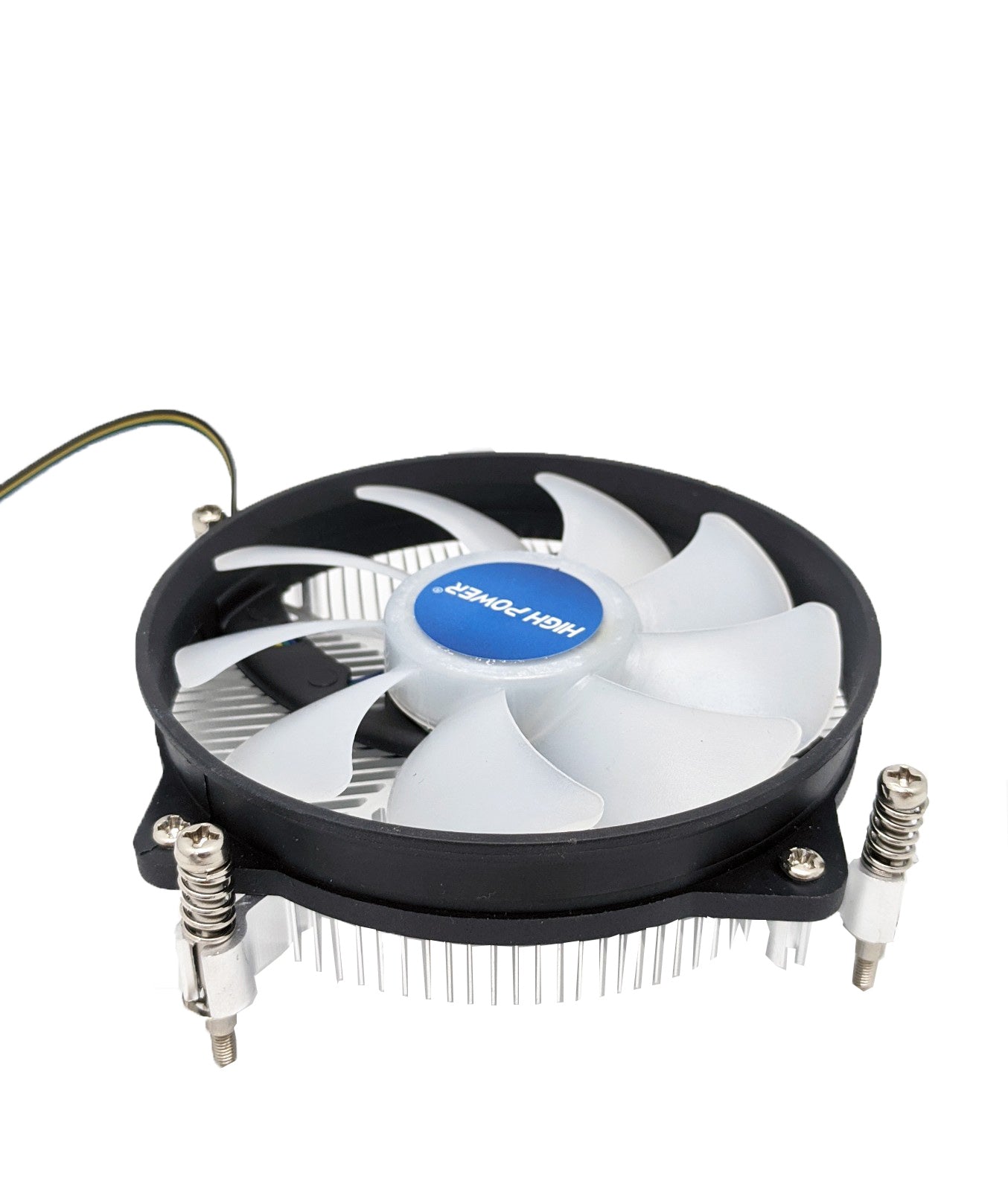

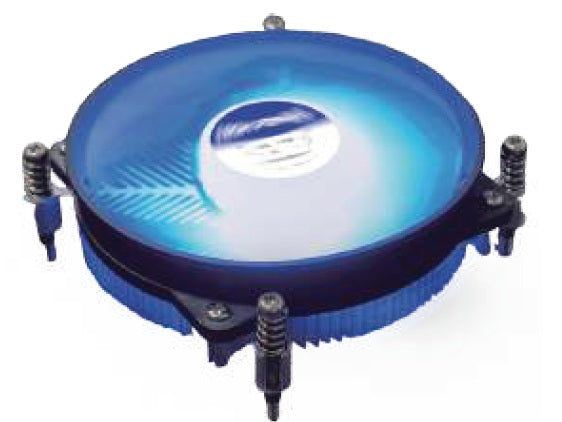

HIGH POWER® Low Profile Blue LED Intel Socket LGA1700 for i7/i5/i3/i9 Active CPU Cooler

NEW — HIGH POWER® LGA-1700-LED | Low-Profile 28mm Blue LED CPU Cooler
Model: LGA-1700-LED | Assembled in USA

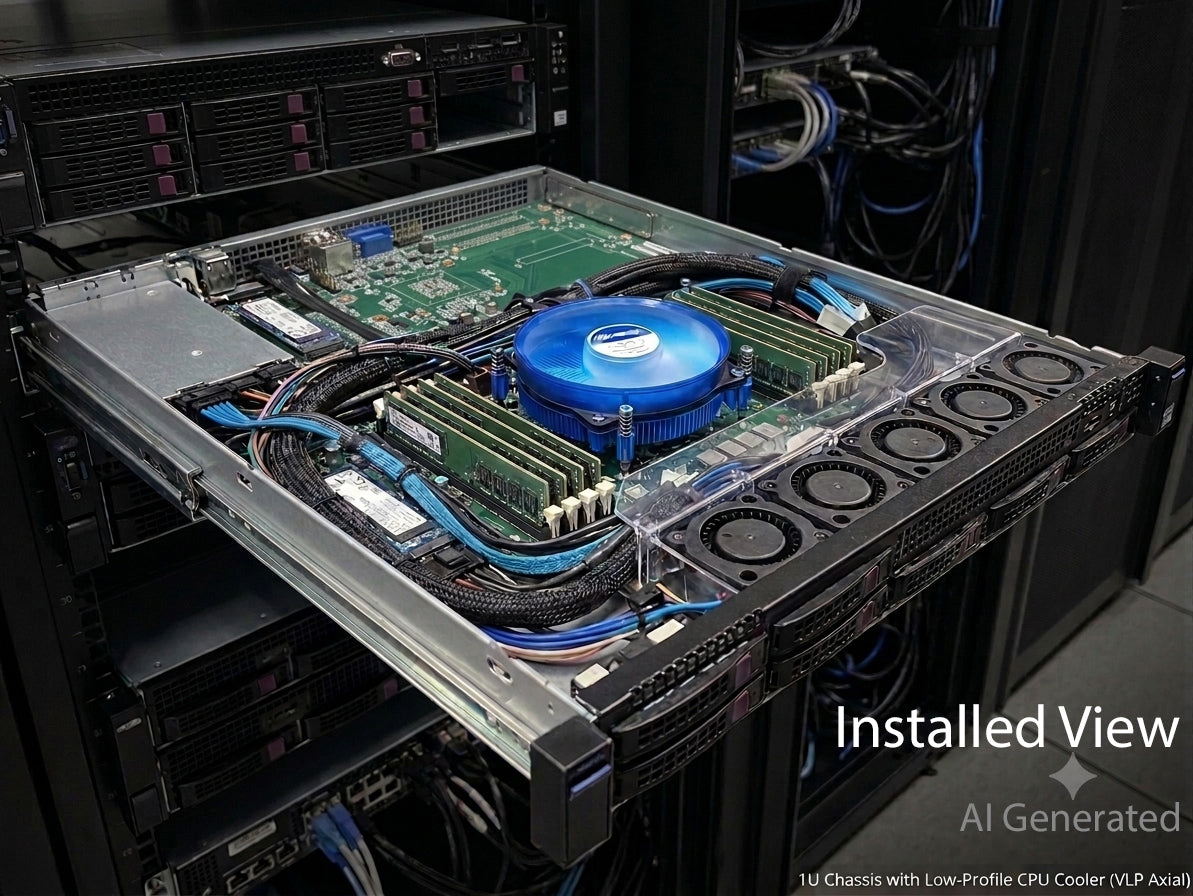

The HIGH POWER® LGA-1700-LED delivers ultra-low-profile Intel cooling with style. At just 28mm from processor contact to fan top, it fits in 1U rack-mount servers, Mini-ITX, mATX, and ATX cases where standard Intel coolers won't clear. The oversized 95mm fan with 12 blue LEDs illuminates your build while delivering uncompromised airflow. Set your BIOS to silent mode and it runs at ~1000 RPM, consuming less than 1W — whisper quiet.

Compatibility

• Intel Socket LGA-1700 / LGA-1851 / LGA-1954 / FCLGA1700
• Intel Core i3, i5, i7, i9 (12th, 13th, 14th Gen)
• Intel Core Ultra 3, 5, 7, 9 (Series 1 & 2)
• Intel Ultra 5 225, Ultra 7 265 (LGA-1851)
• Intel Xeon E-2400 Series

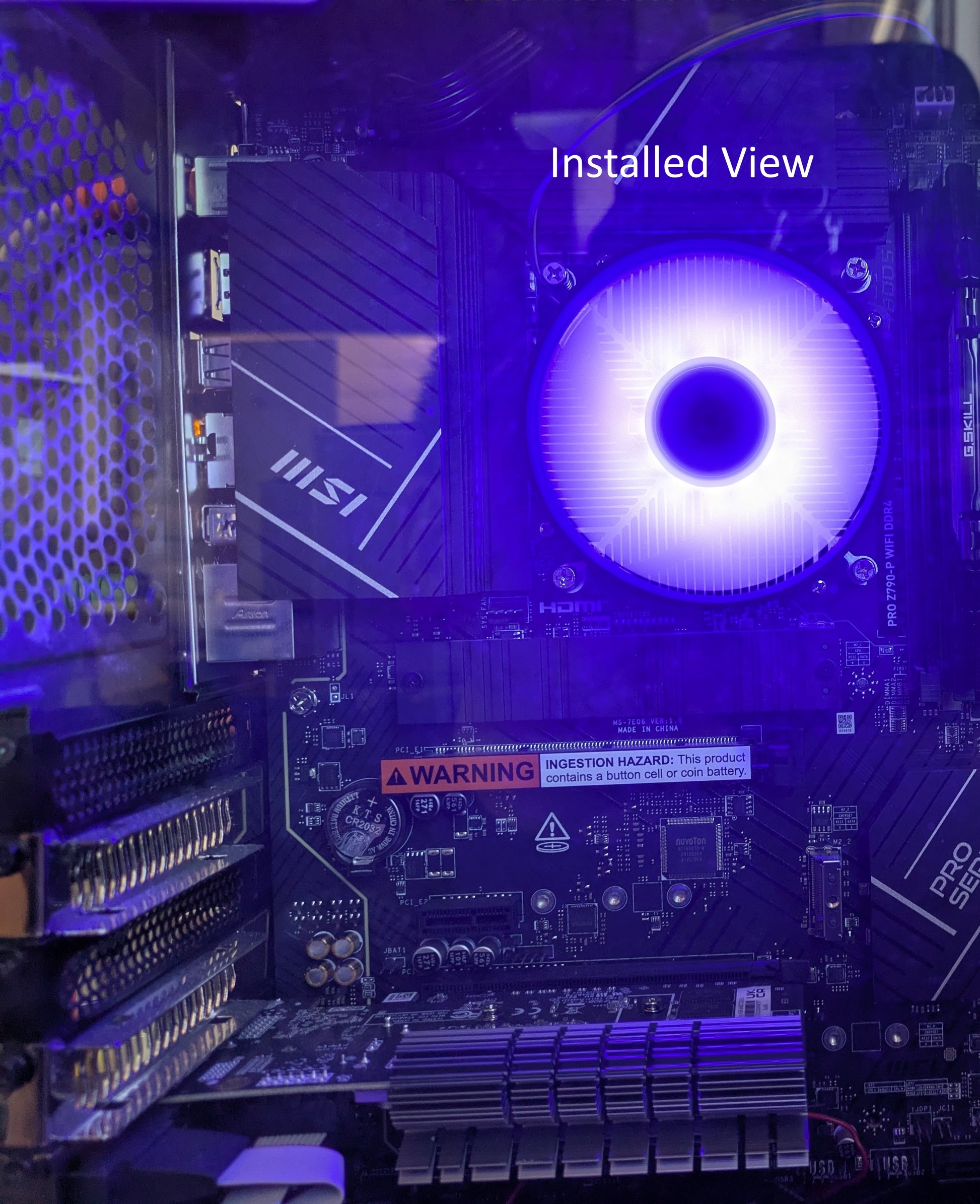

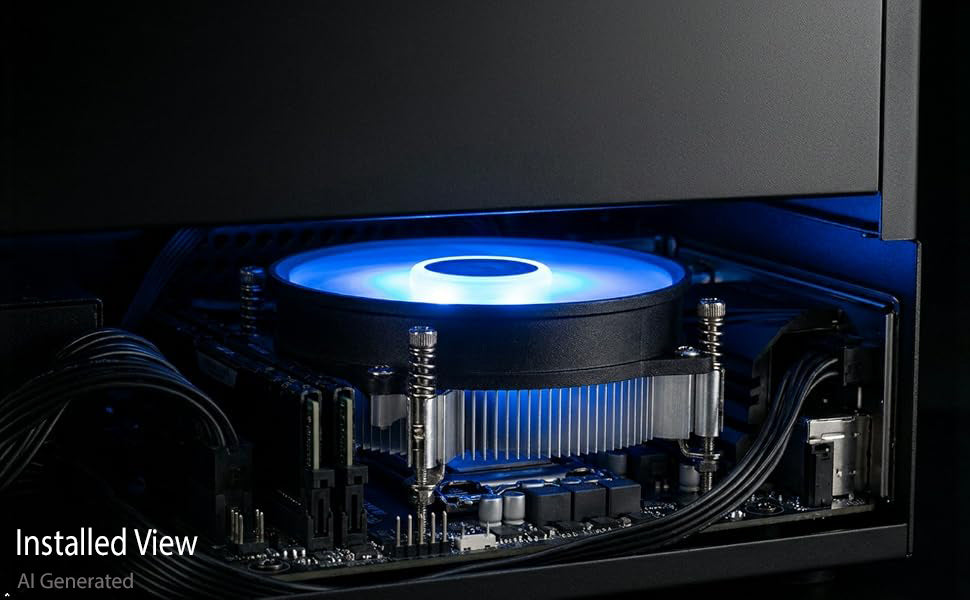

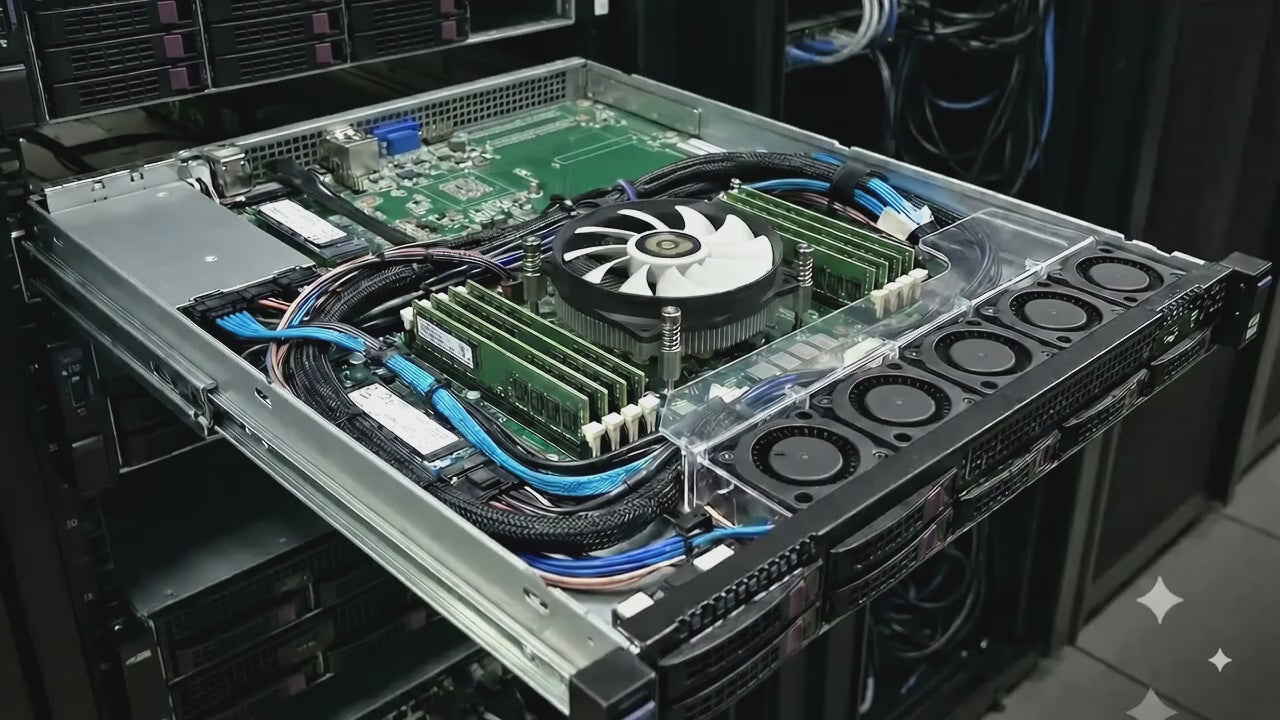

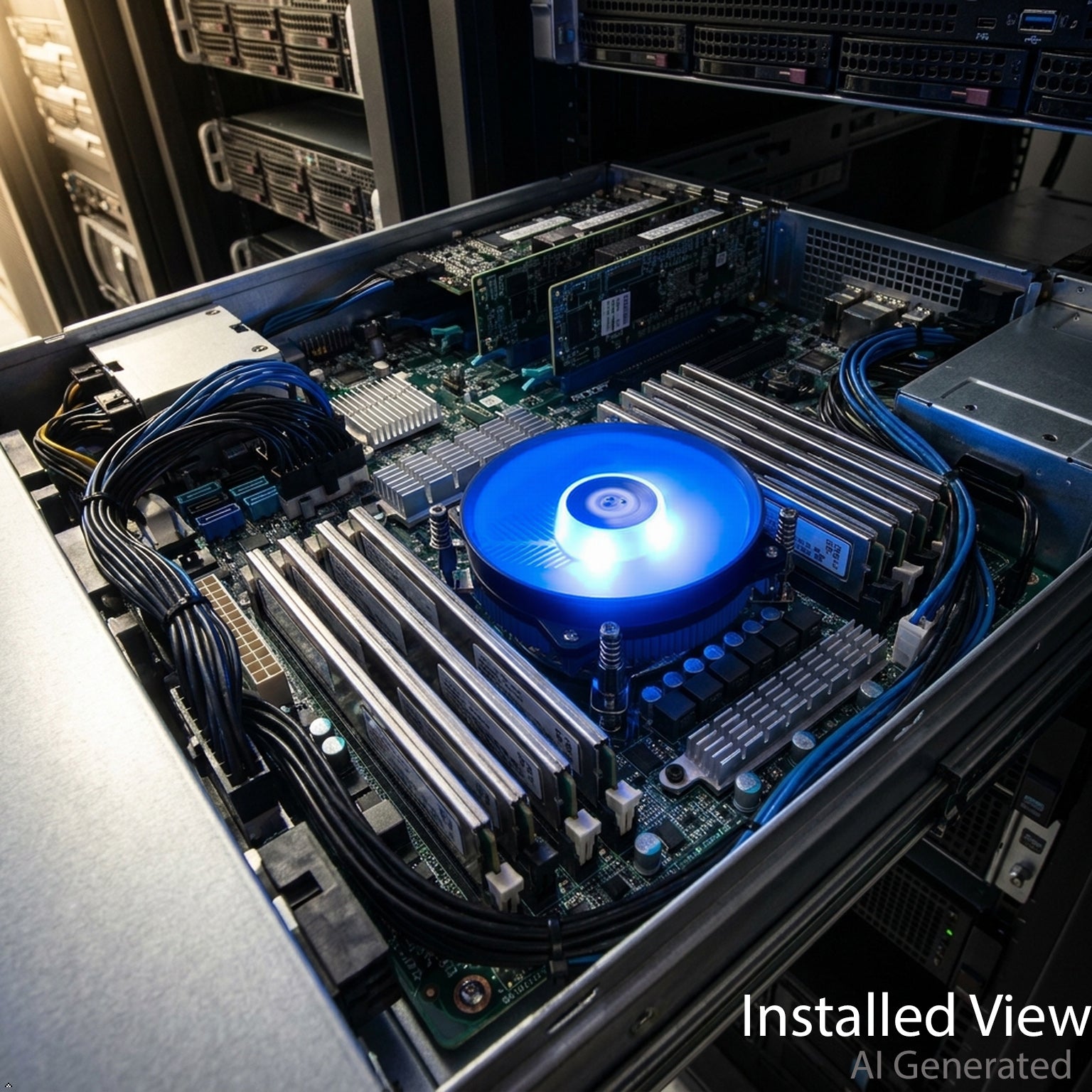

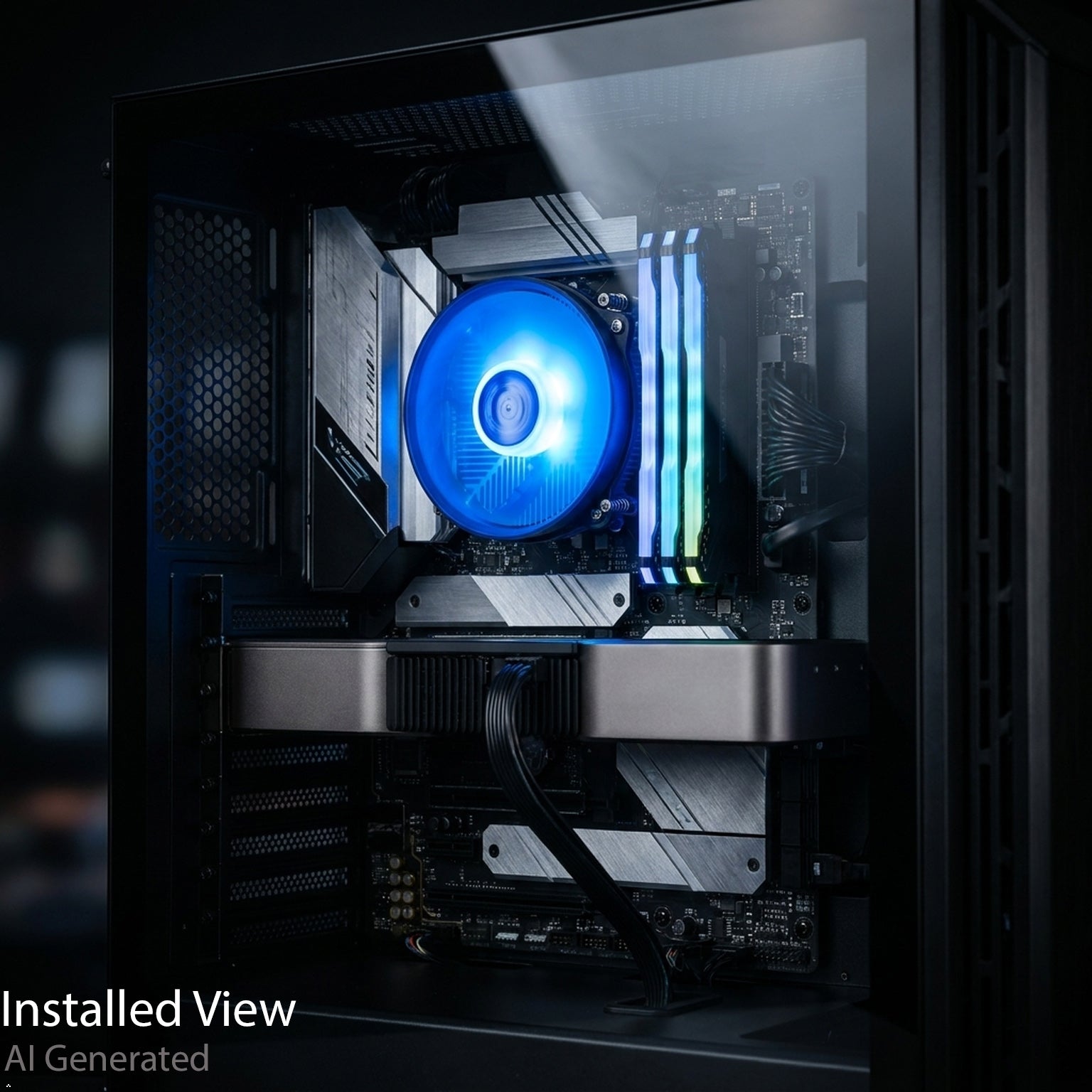

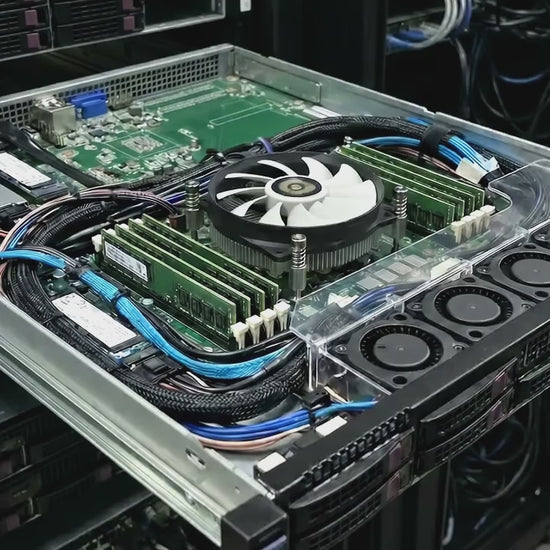

• Compatible with 1U / 2U / 4U rack-mount, ATX, mATX, Mini-ITX, and HTPC cases

Key Features

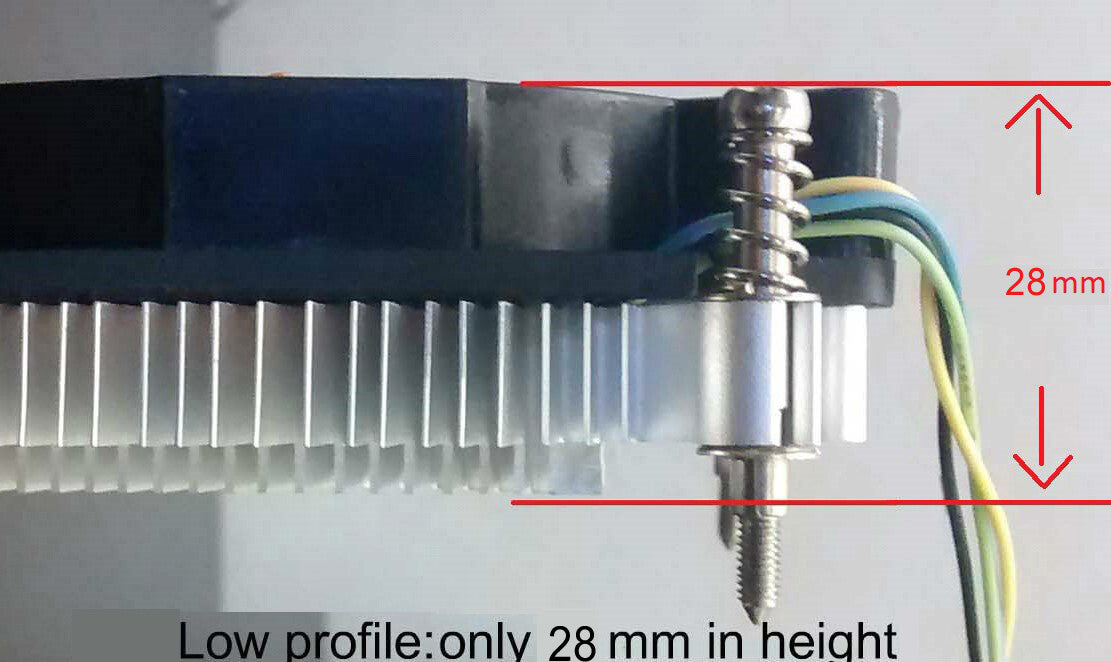

• 28mm total height — fits where stock Intel coolers cannot

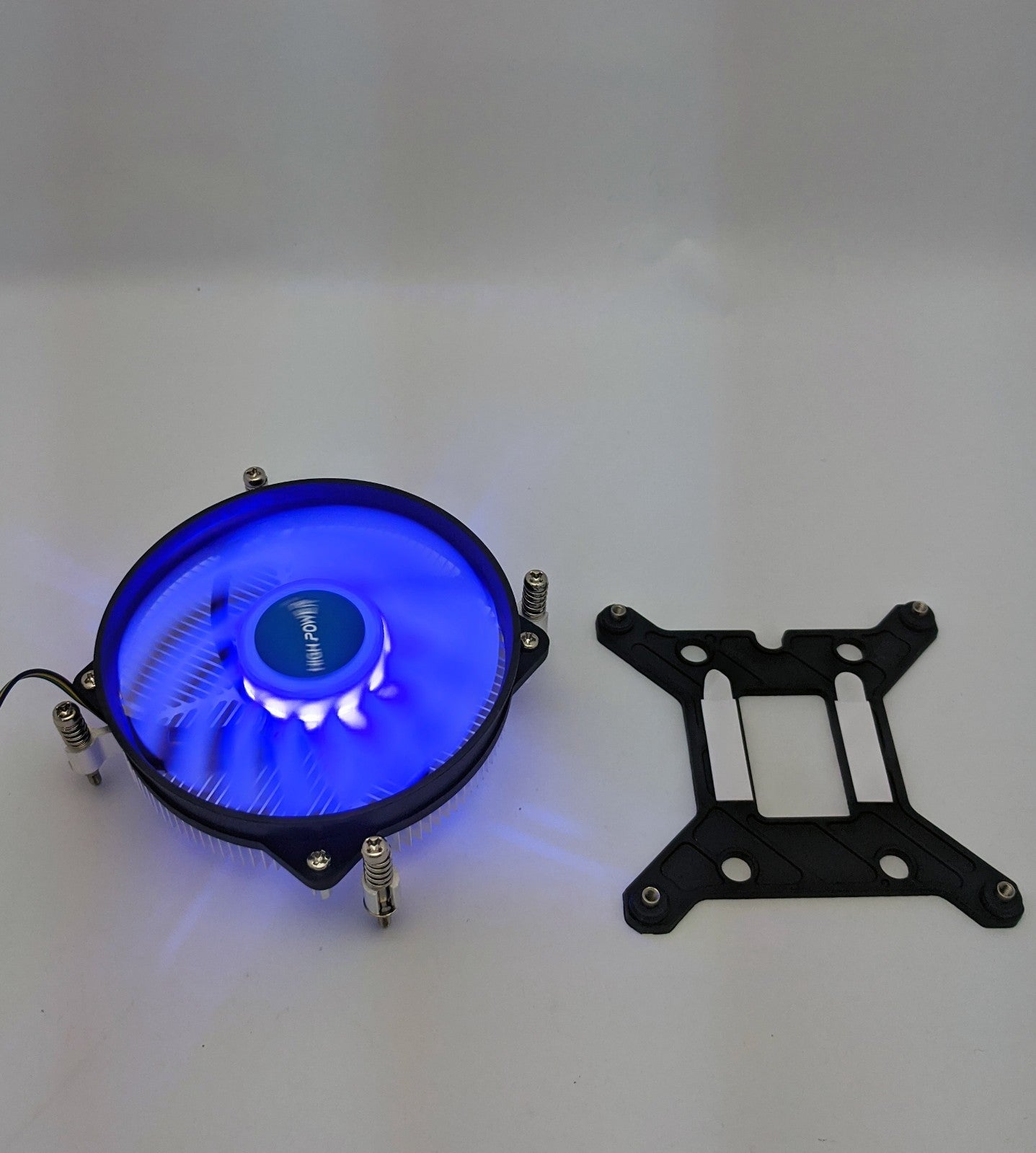

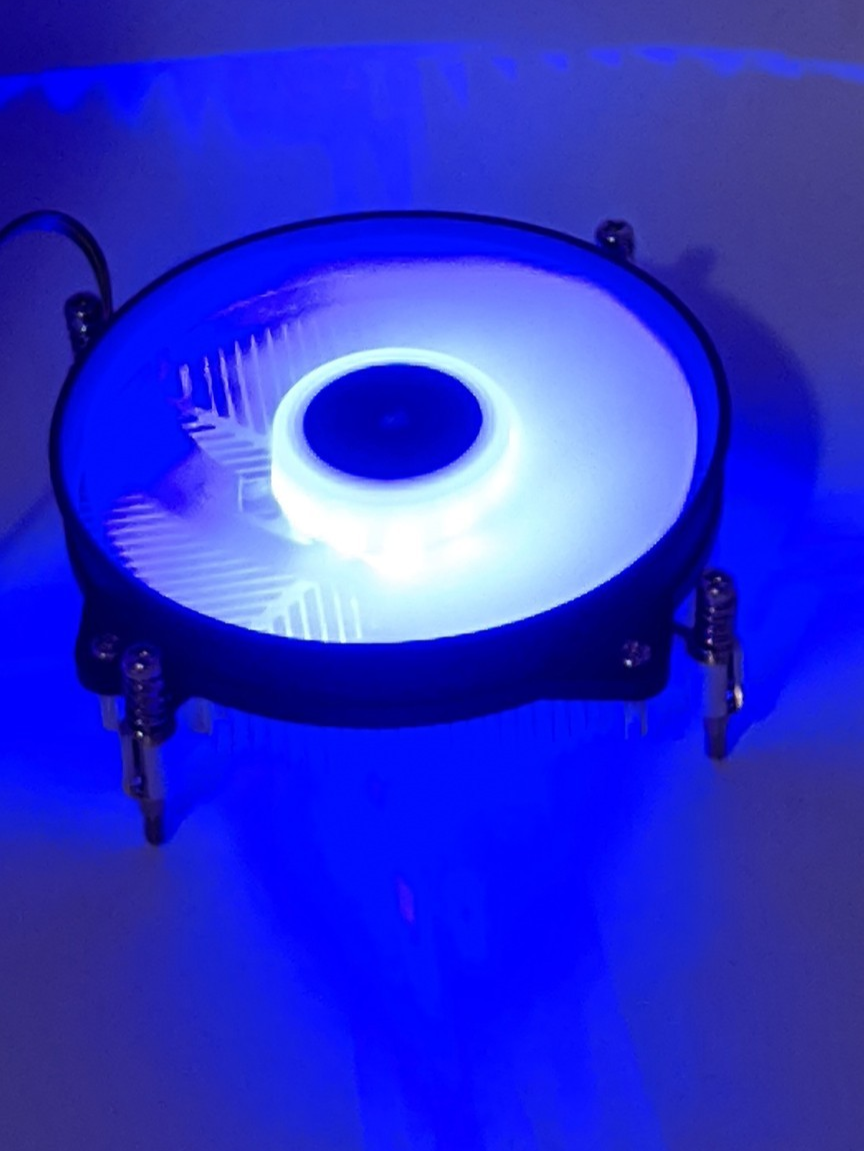

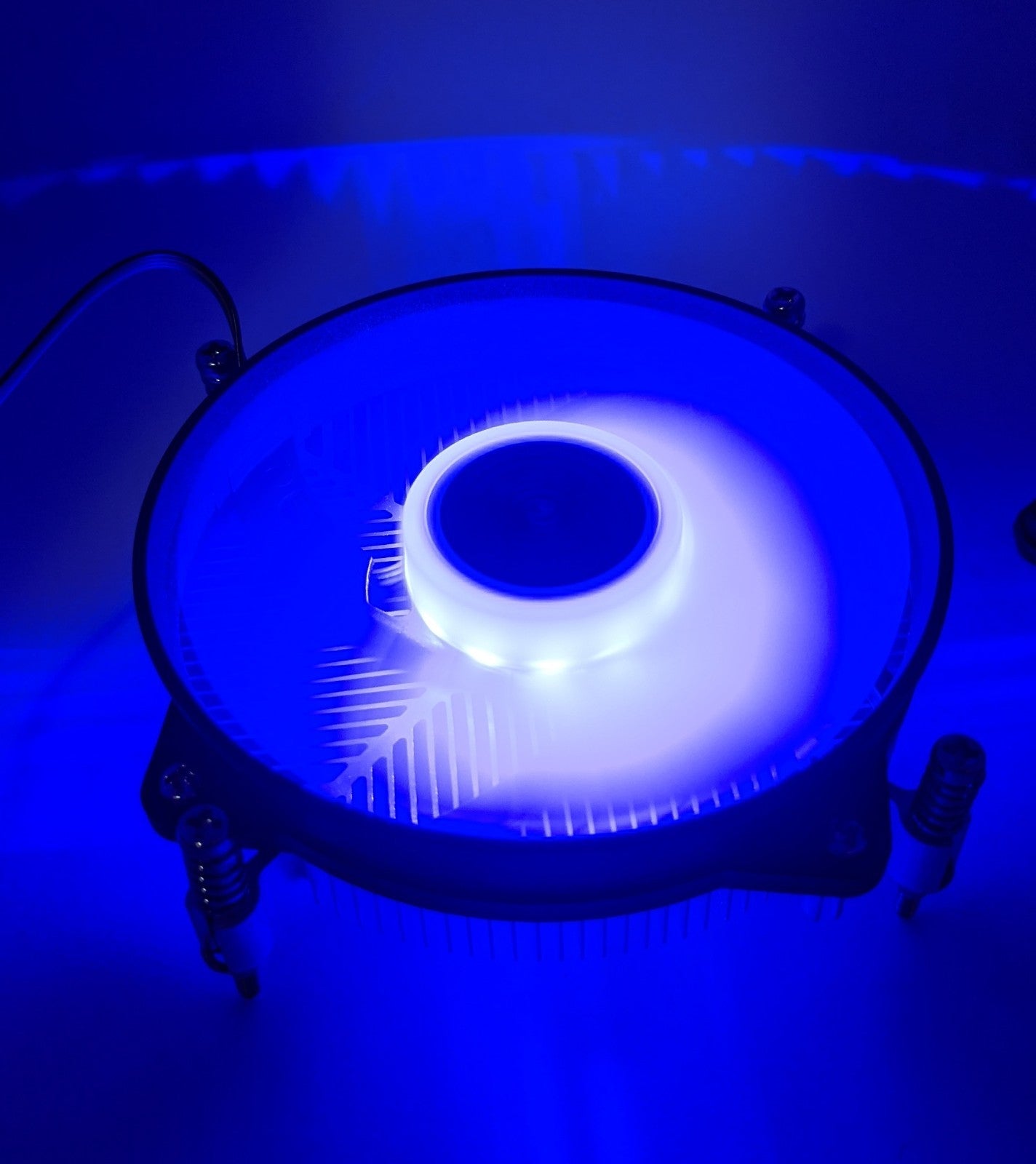

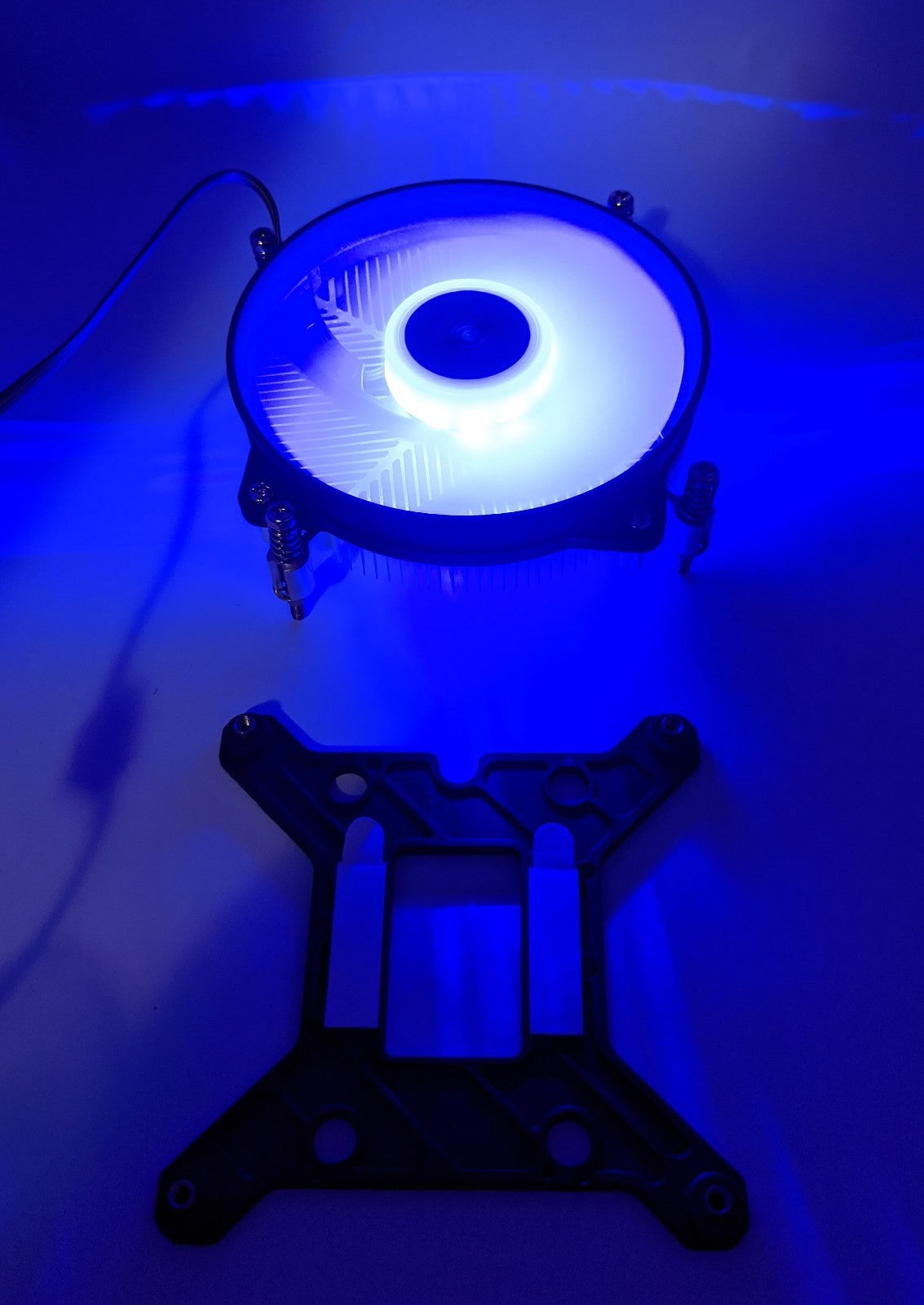

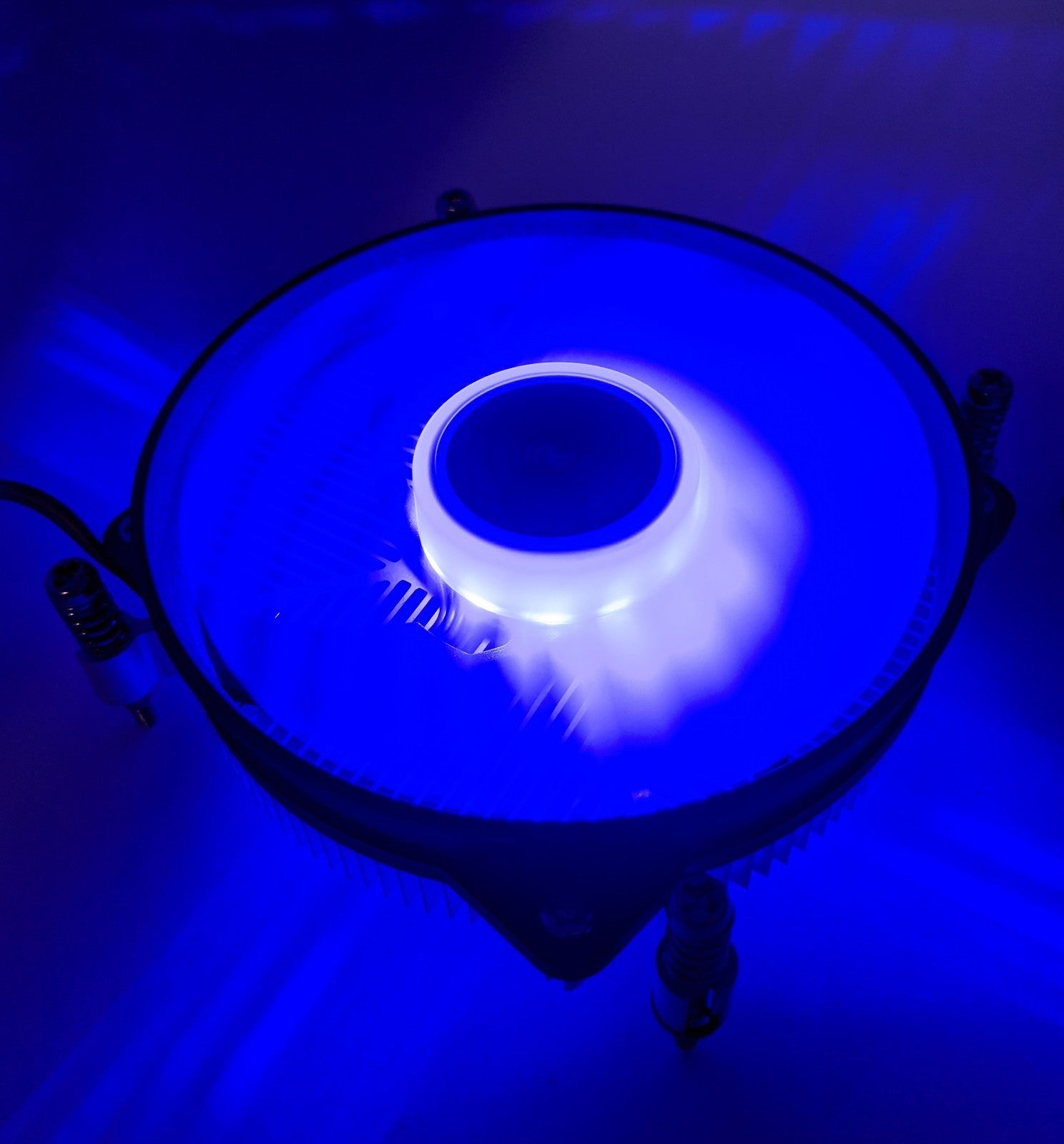

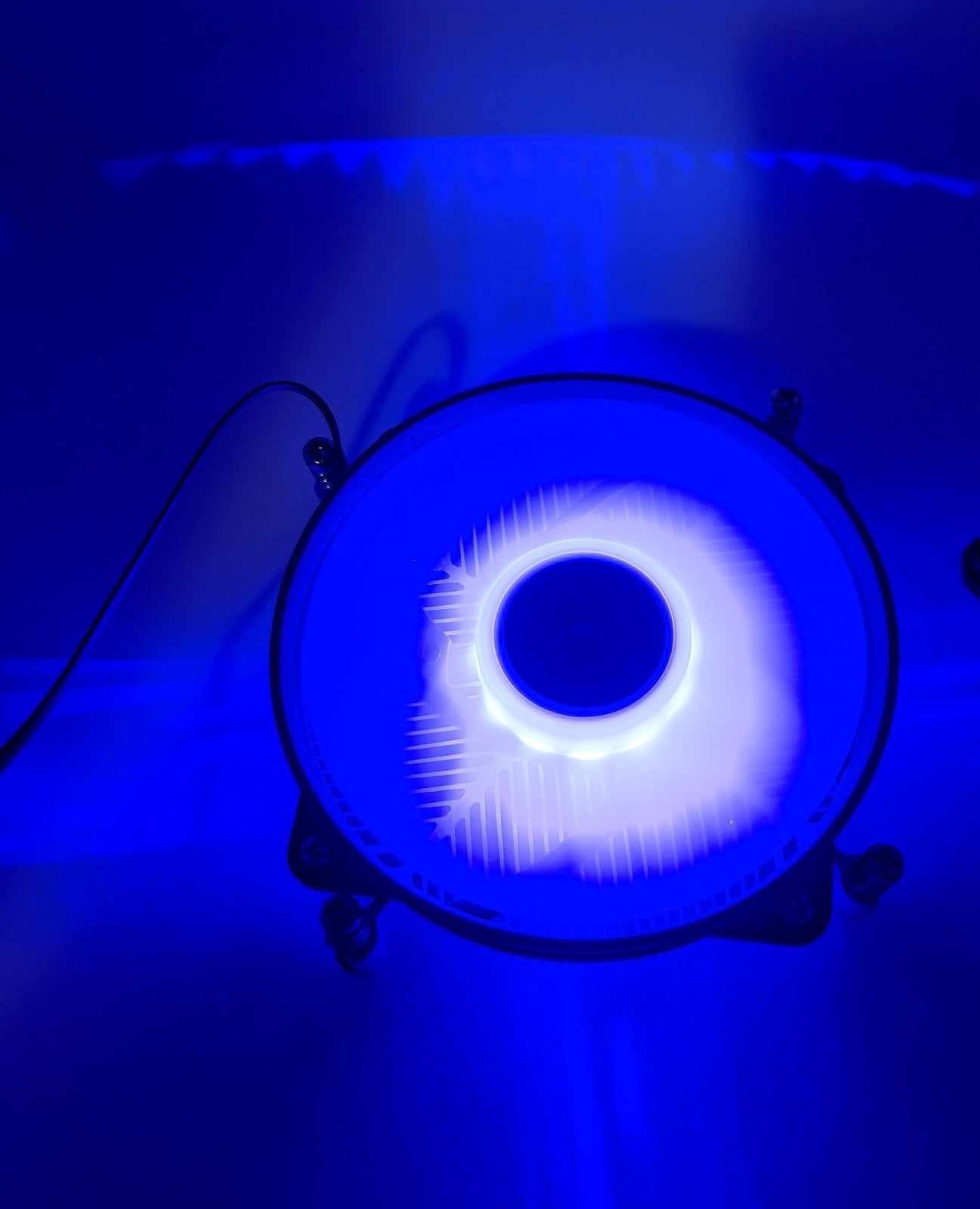

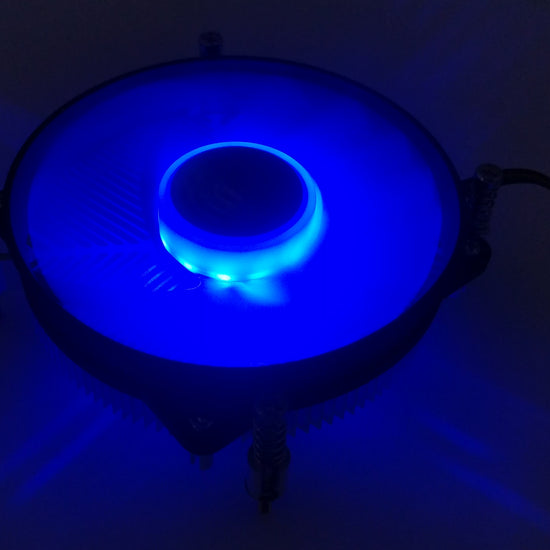

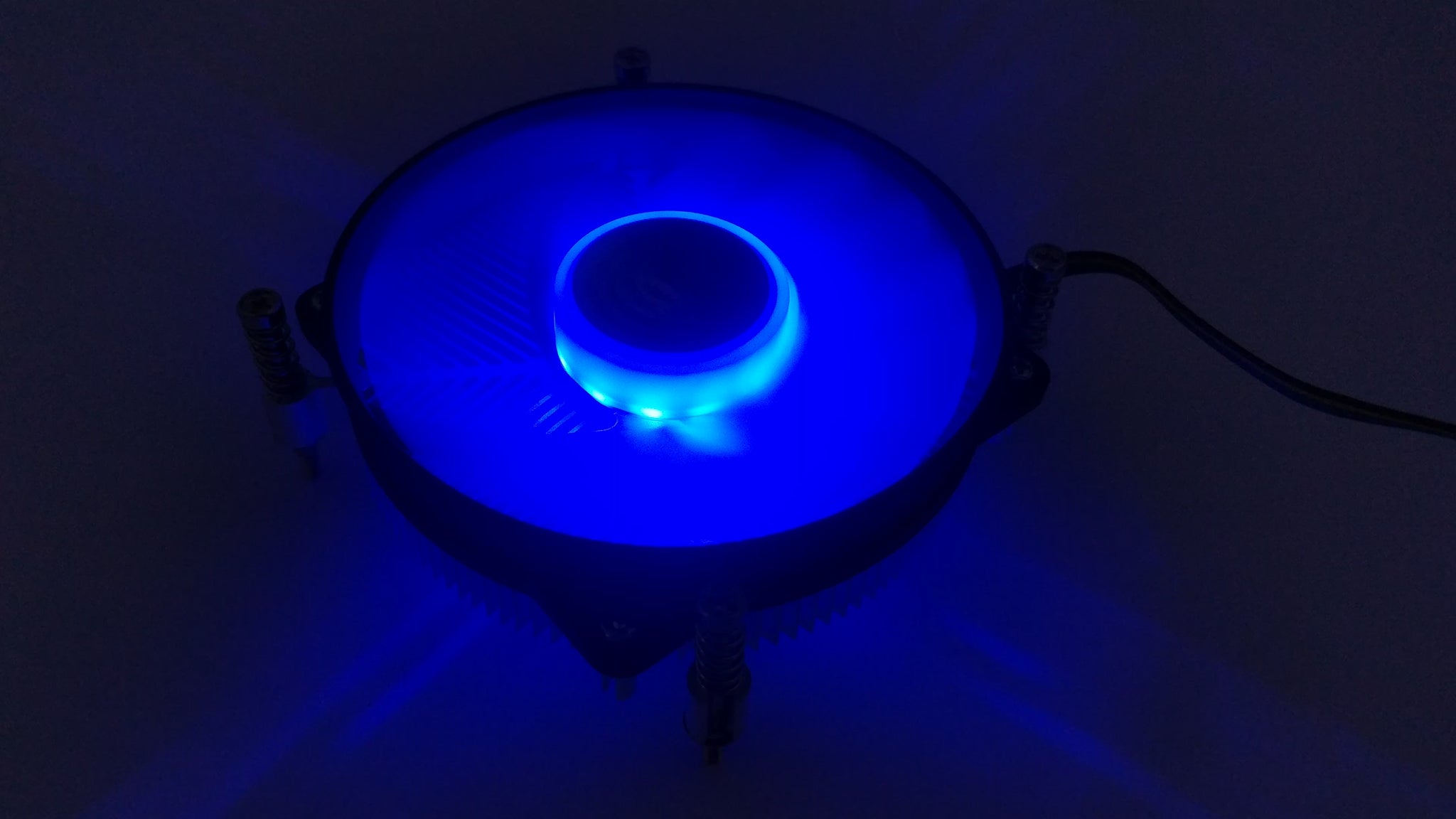

• 95mm fan with 12 blue LEDs — illuminates your entire system interior

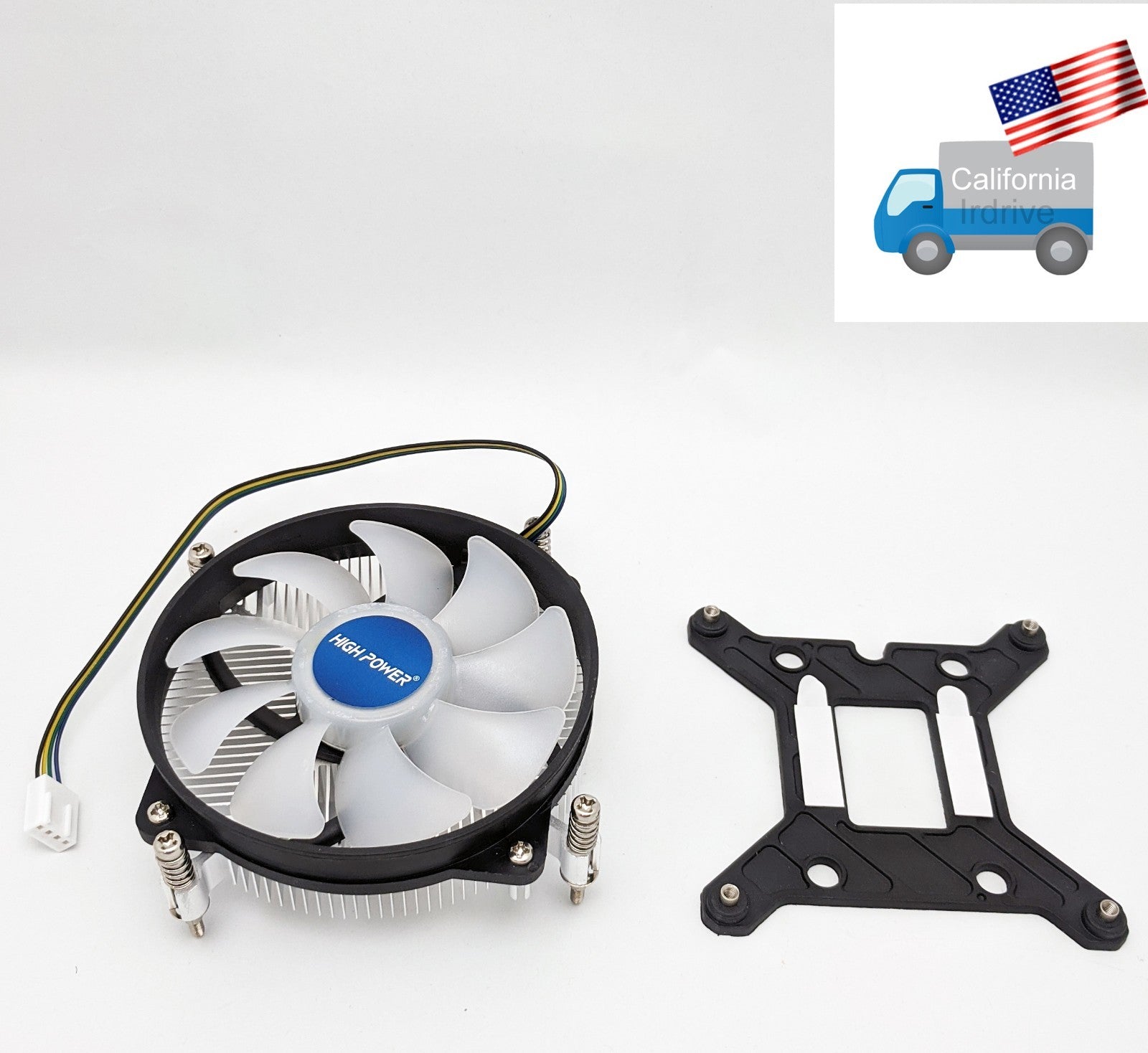

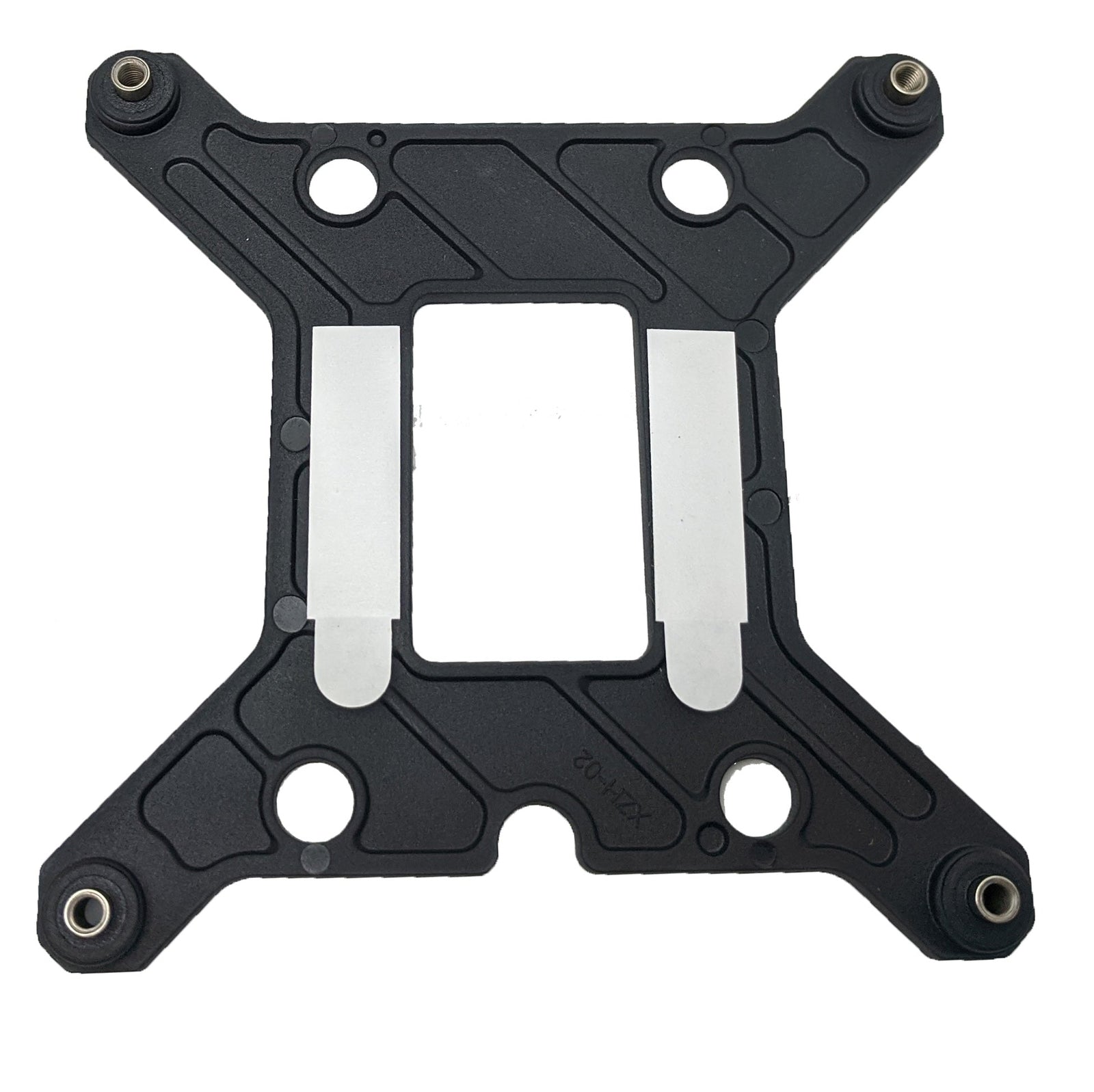

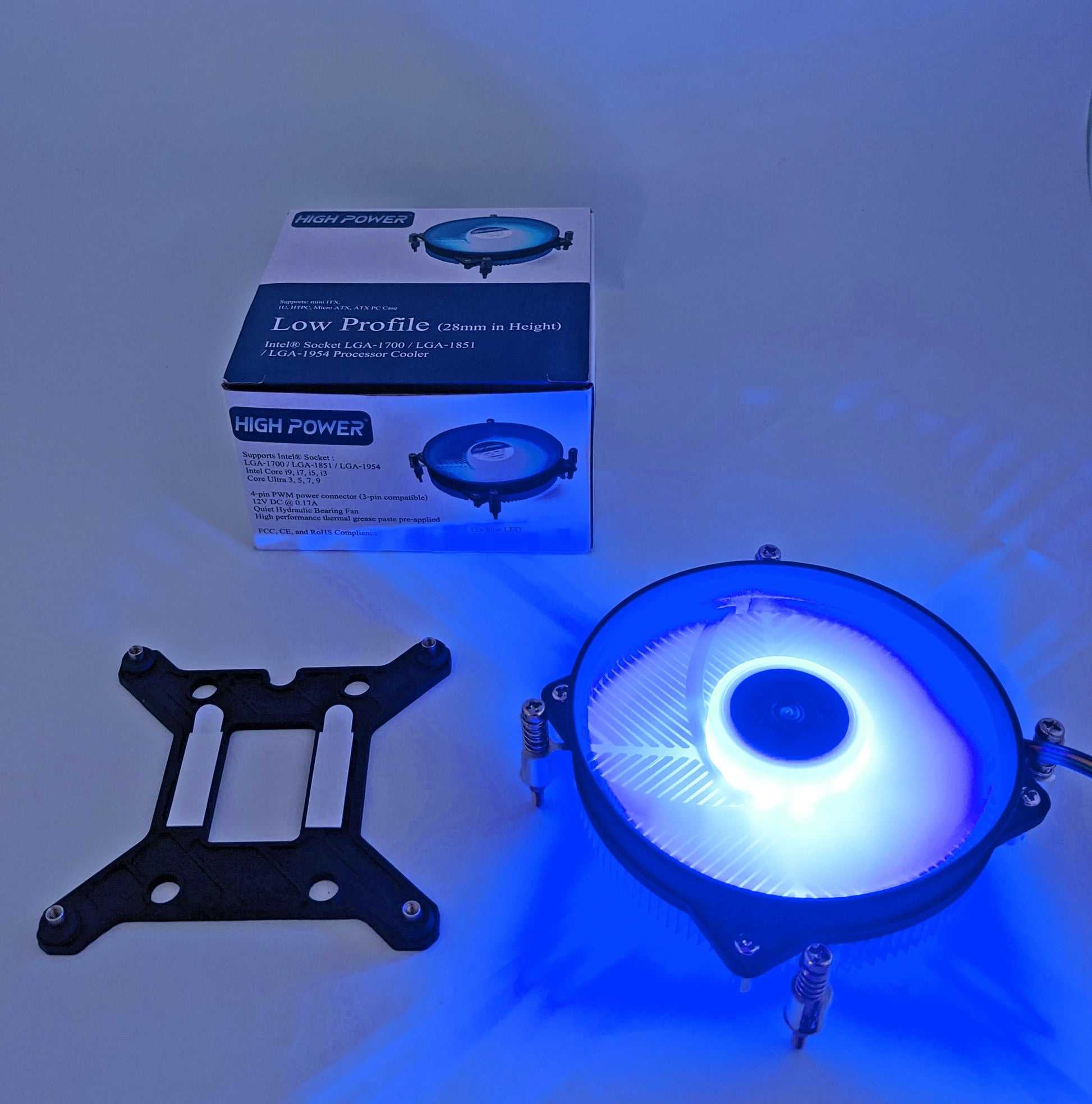

• Secure 4-screw mount for reliable installation vs. snap-on alternatives

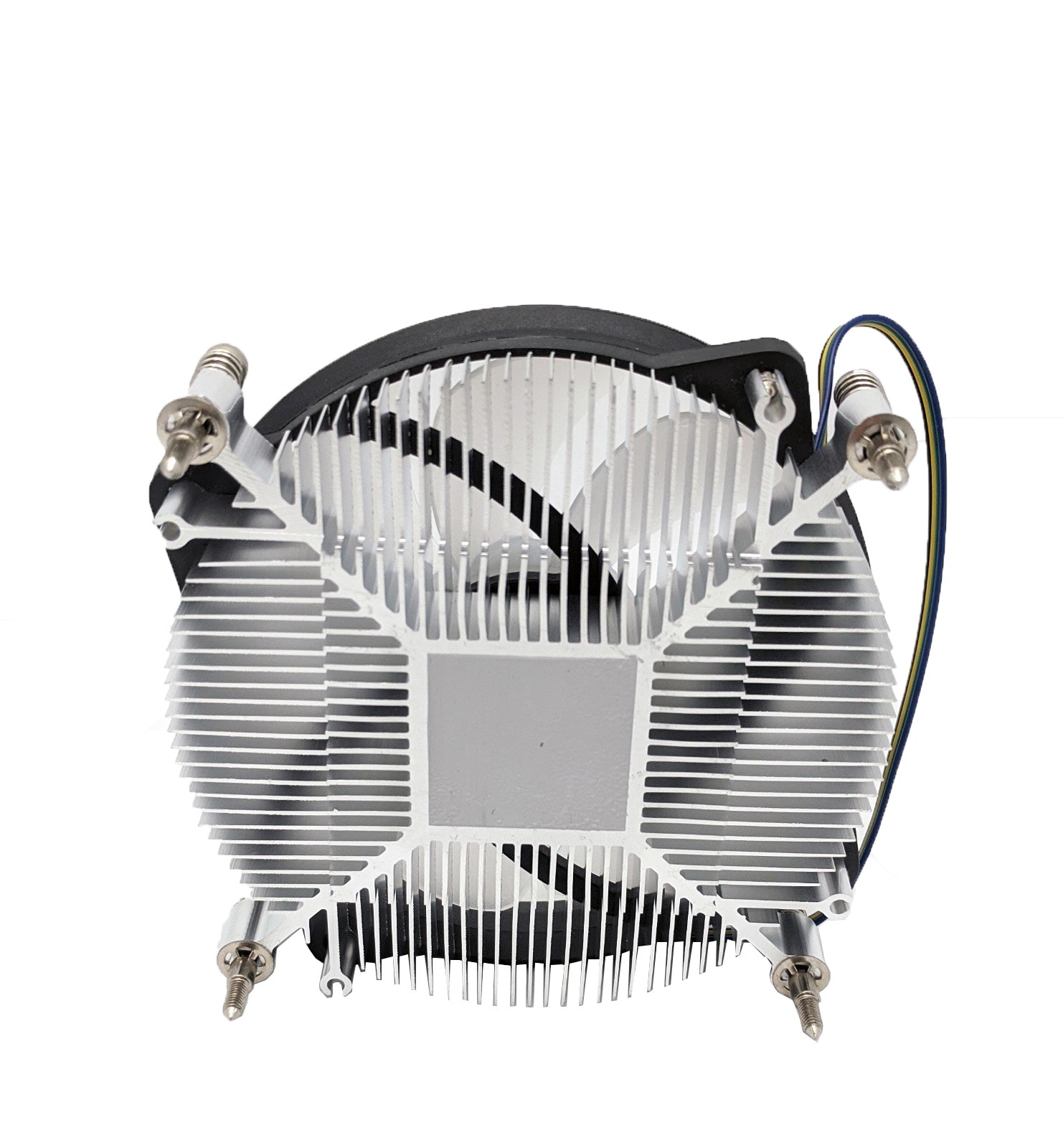

• Thermal paste pre-applied — ready to install out of the box
• 4-pin PWM connector (backward compatible with 3-pin)
• Low power: only 1.3W under normal load at 1,737 RPM
• TDP: 78W

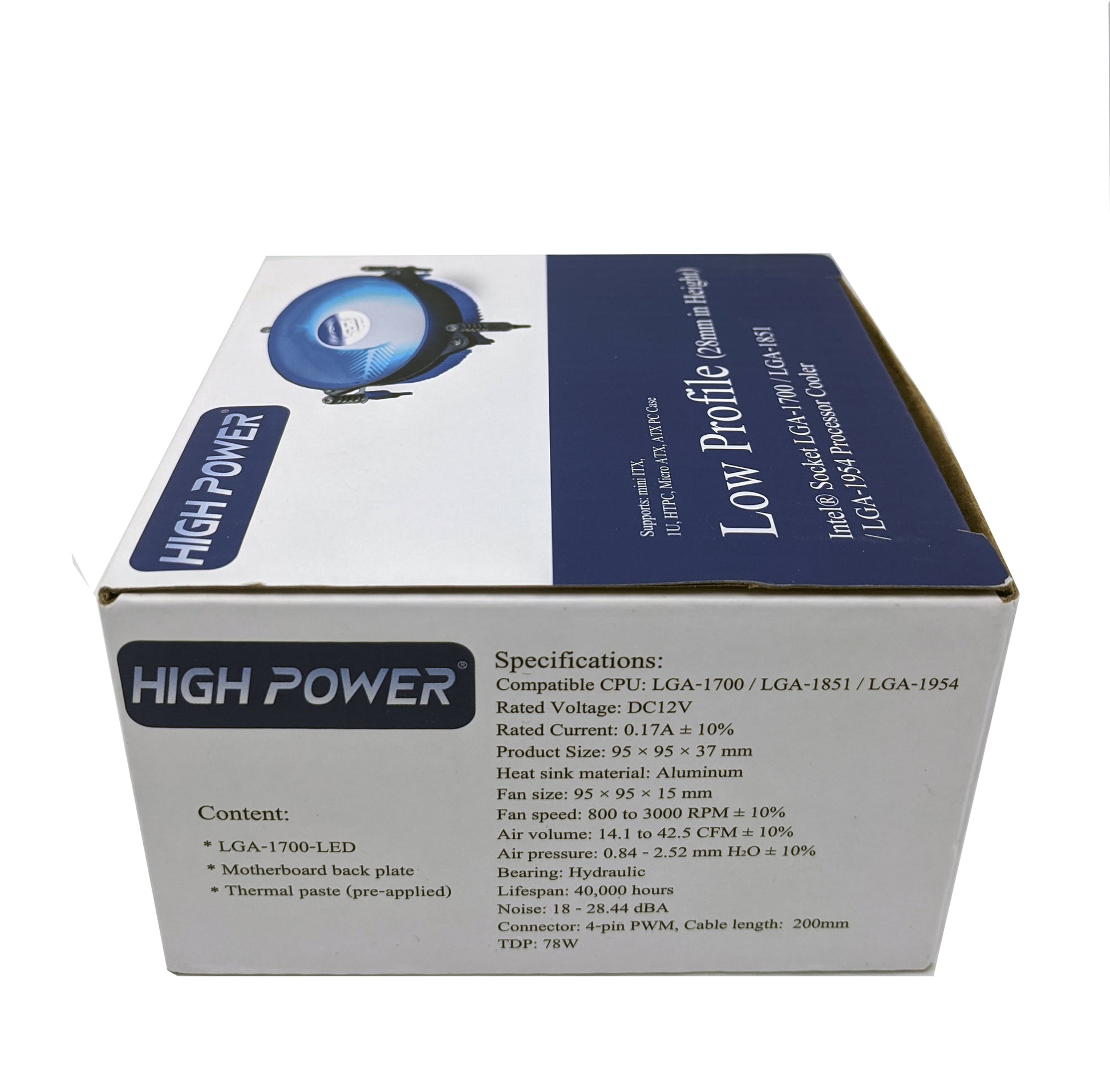

Technical Specifications

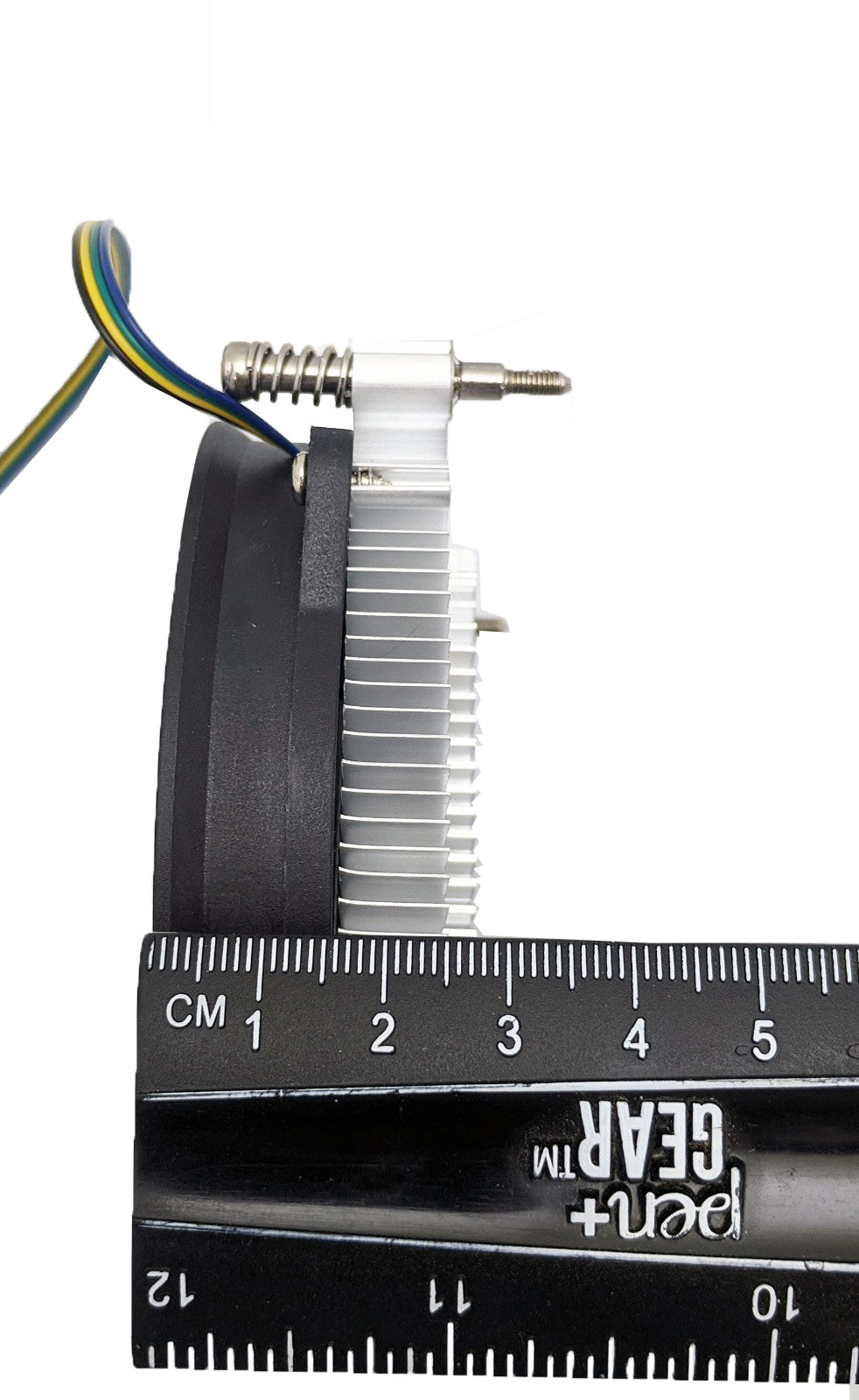

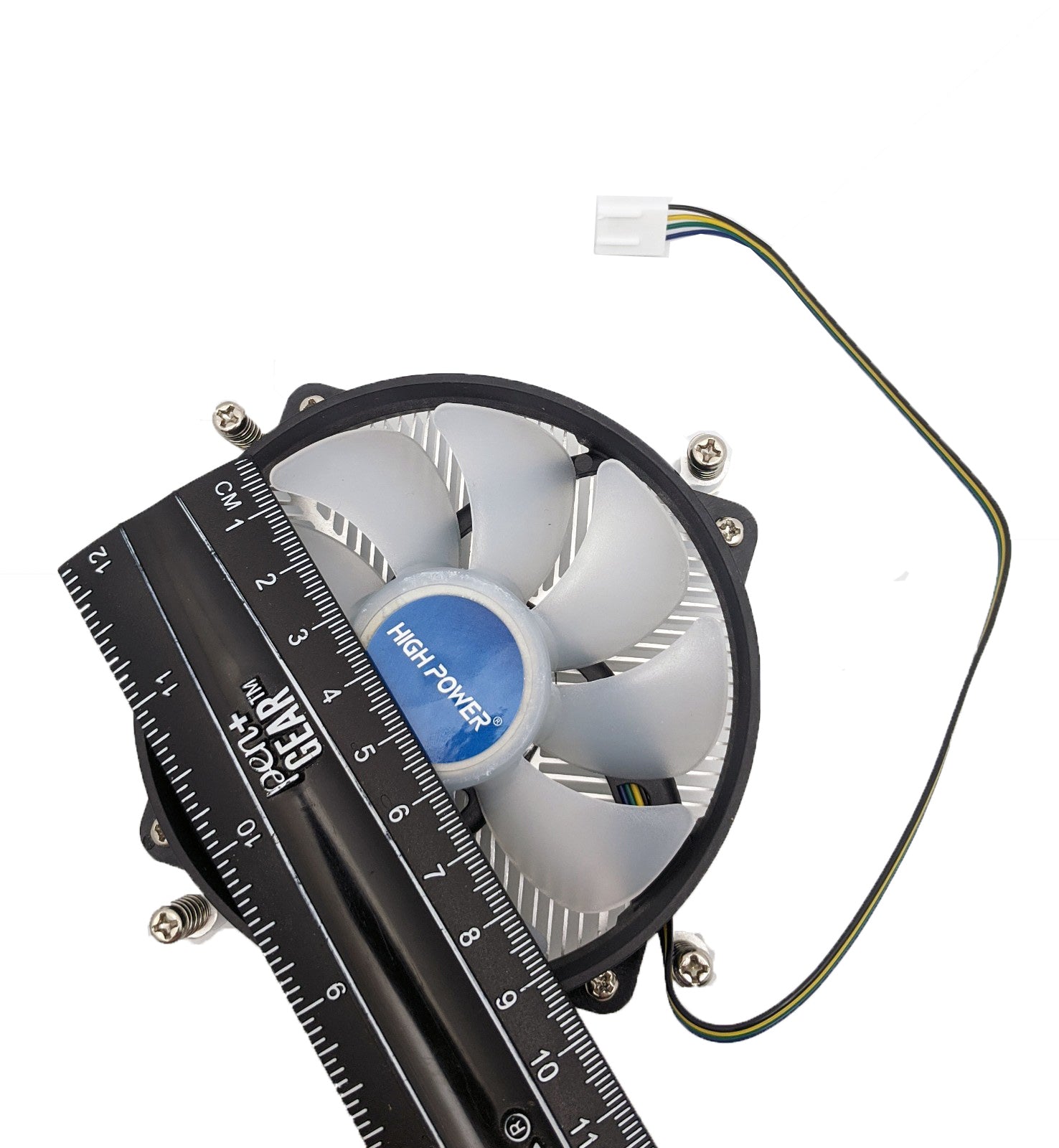

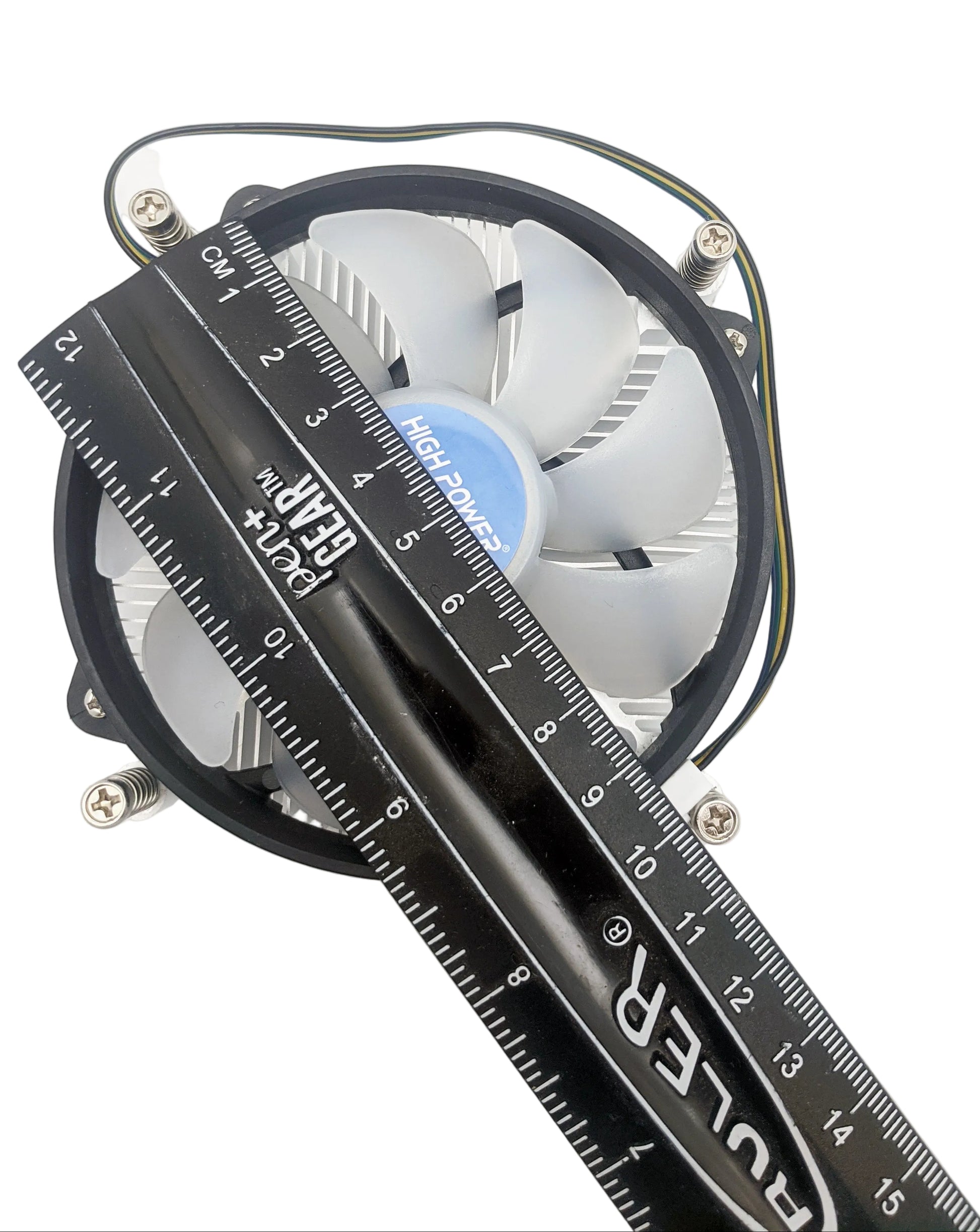

• Product Size: 95 x 95 x 37mm (28mm from CPU contact to fan top)

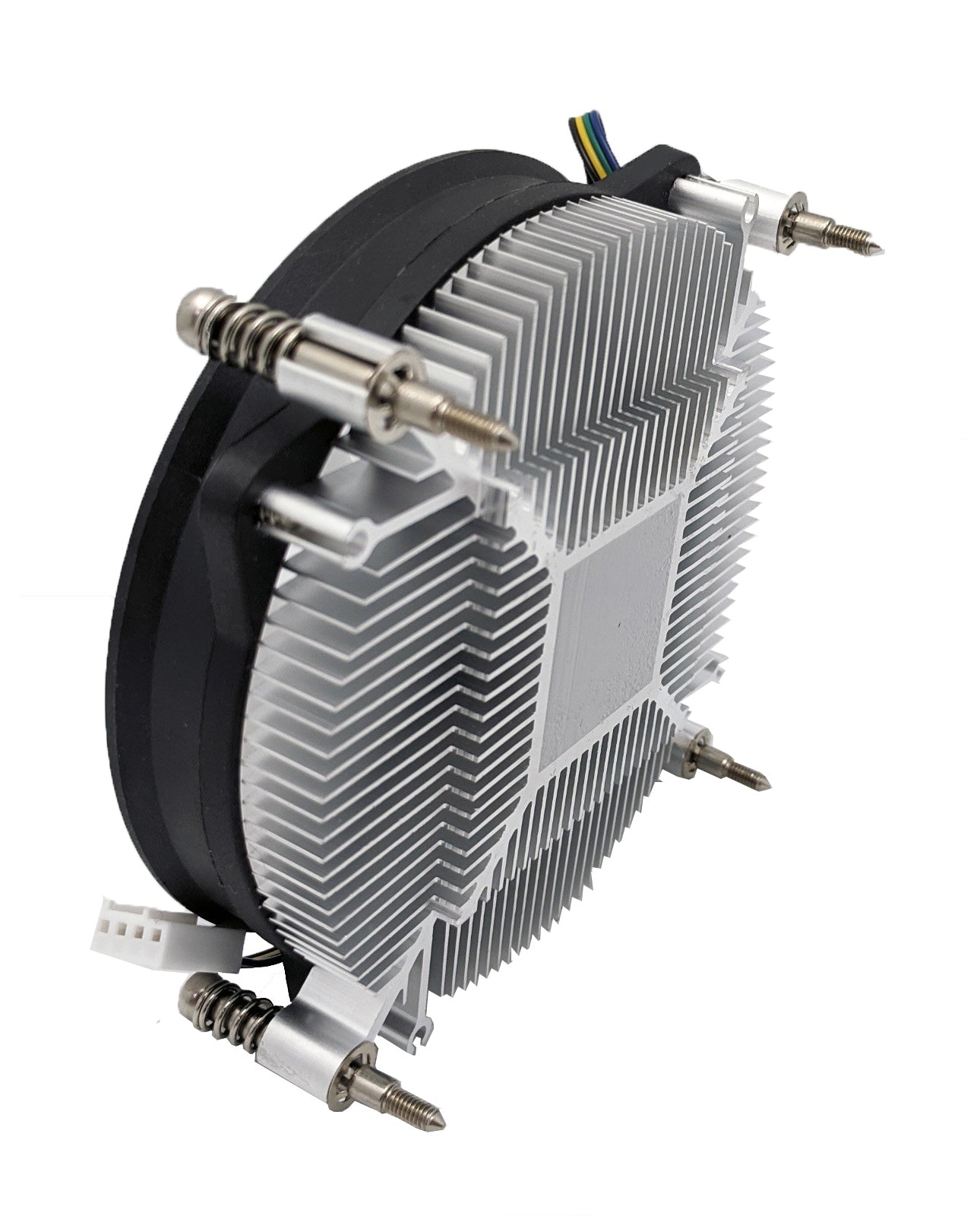

• Heatsink Material: Aluminum
• Fan Size: 95 x 95 x 15mm
• Fan Speed: 800 – 3,000 RPM ±10%
• Airflow: 14.1 – 42.5 CFM ±10%
• Air Pressure: 0.84 – 2.52 mm H₂O ±10%
• Noise Level: 18 – 28.44 dBA
• Bearing Type: Hydraulic
• LED: Blue, 12 pcs

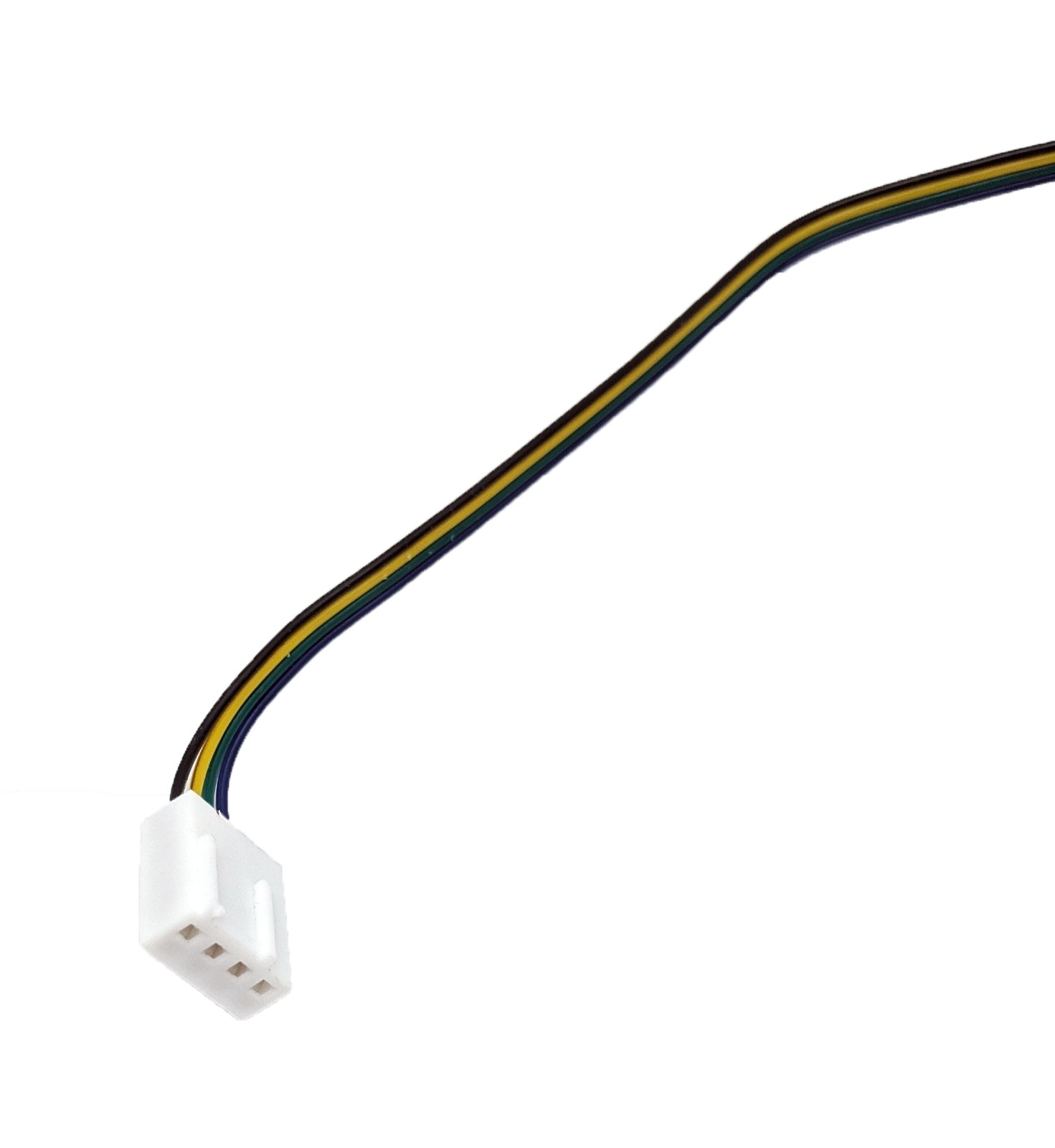

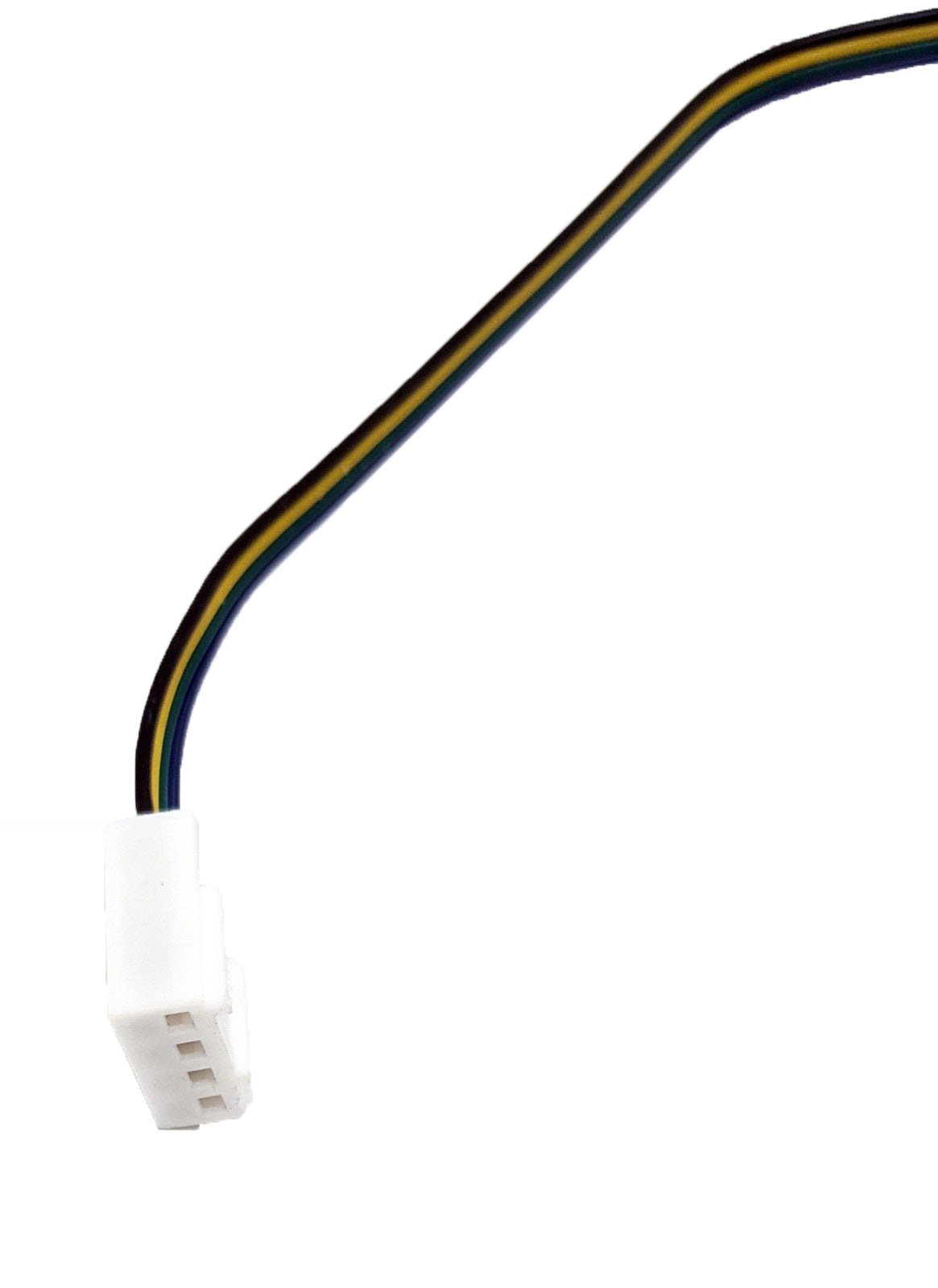

• Connector: 4-pin PWM (3-pin compatible) | Cable Length: 200mm
• Rated Voltage: 12V DC | Rated Current: 0.17A ±10%
• Operating Temp: -10°C to +70°C
• Net Weight: 170g
• Fan Life Expectancy: 40,000 hours

Warranty & Shipping

90-Day Express Replacement Advantage: All purchases through irdrive.com are covered. Defective items repaired or replaced within 3 business days — or your money back.

Shipping: Orders placed before 9AM PST ship same day. Orders after 12PM ship next business day.
