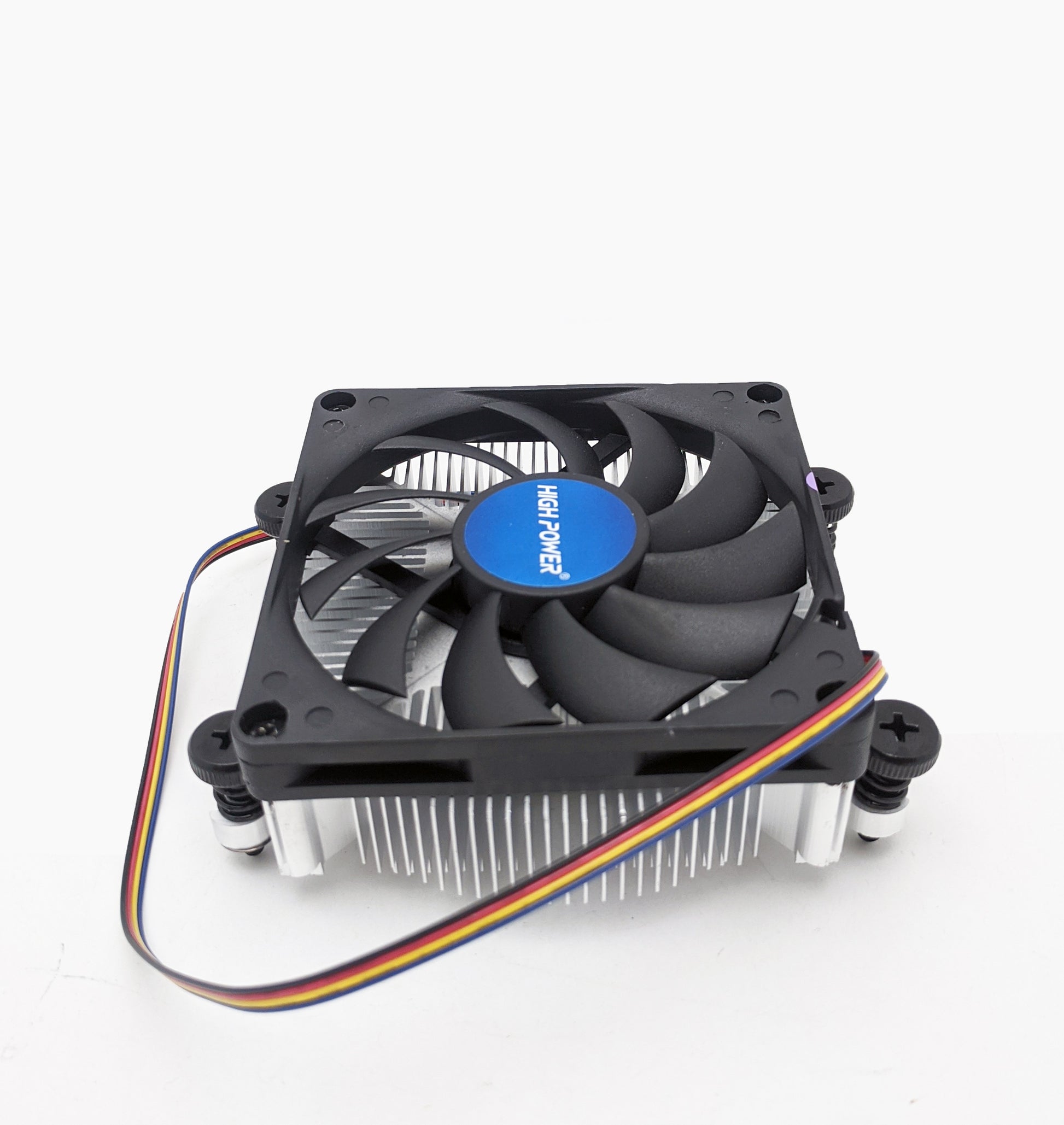

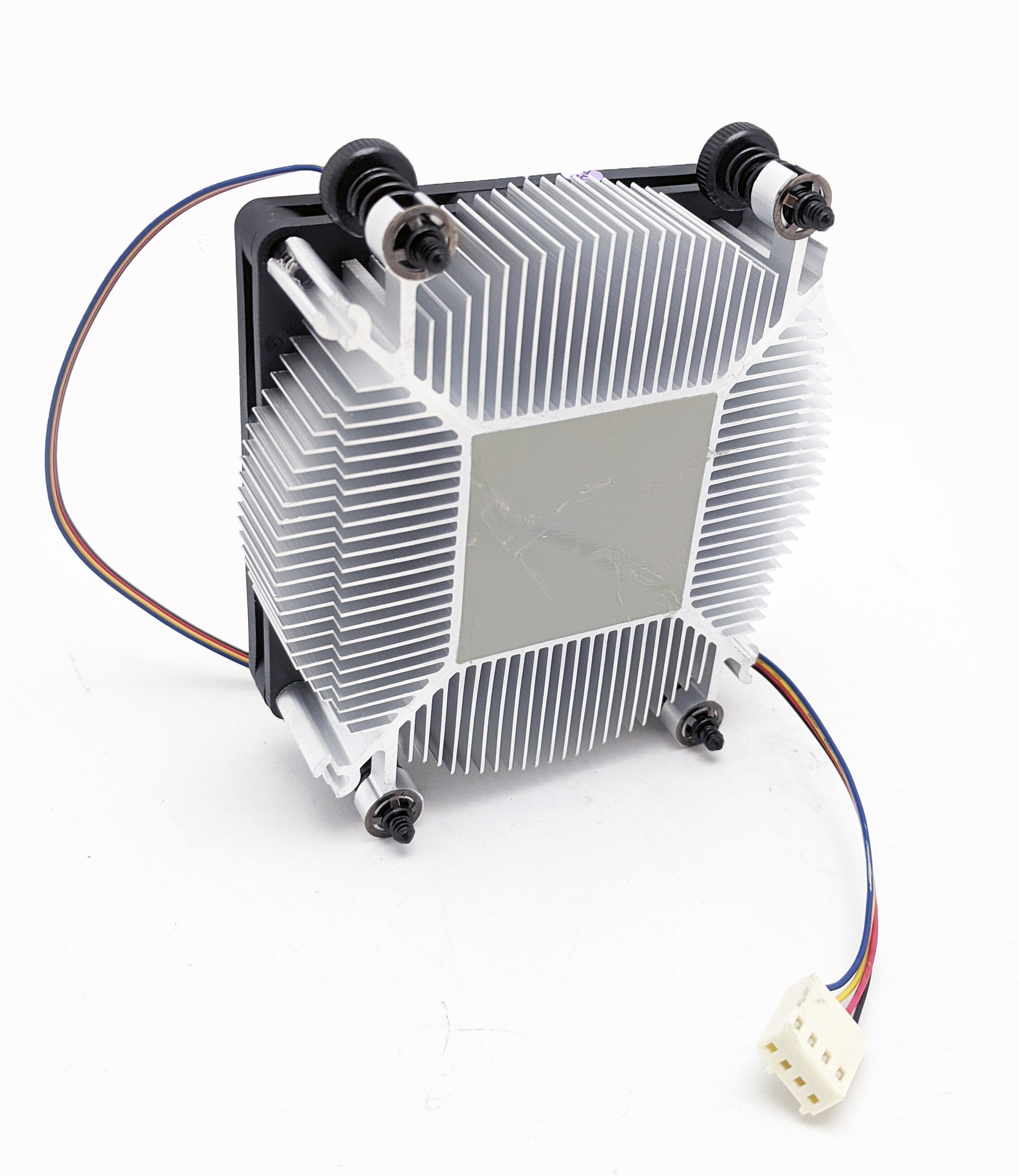

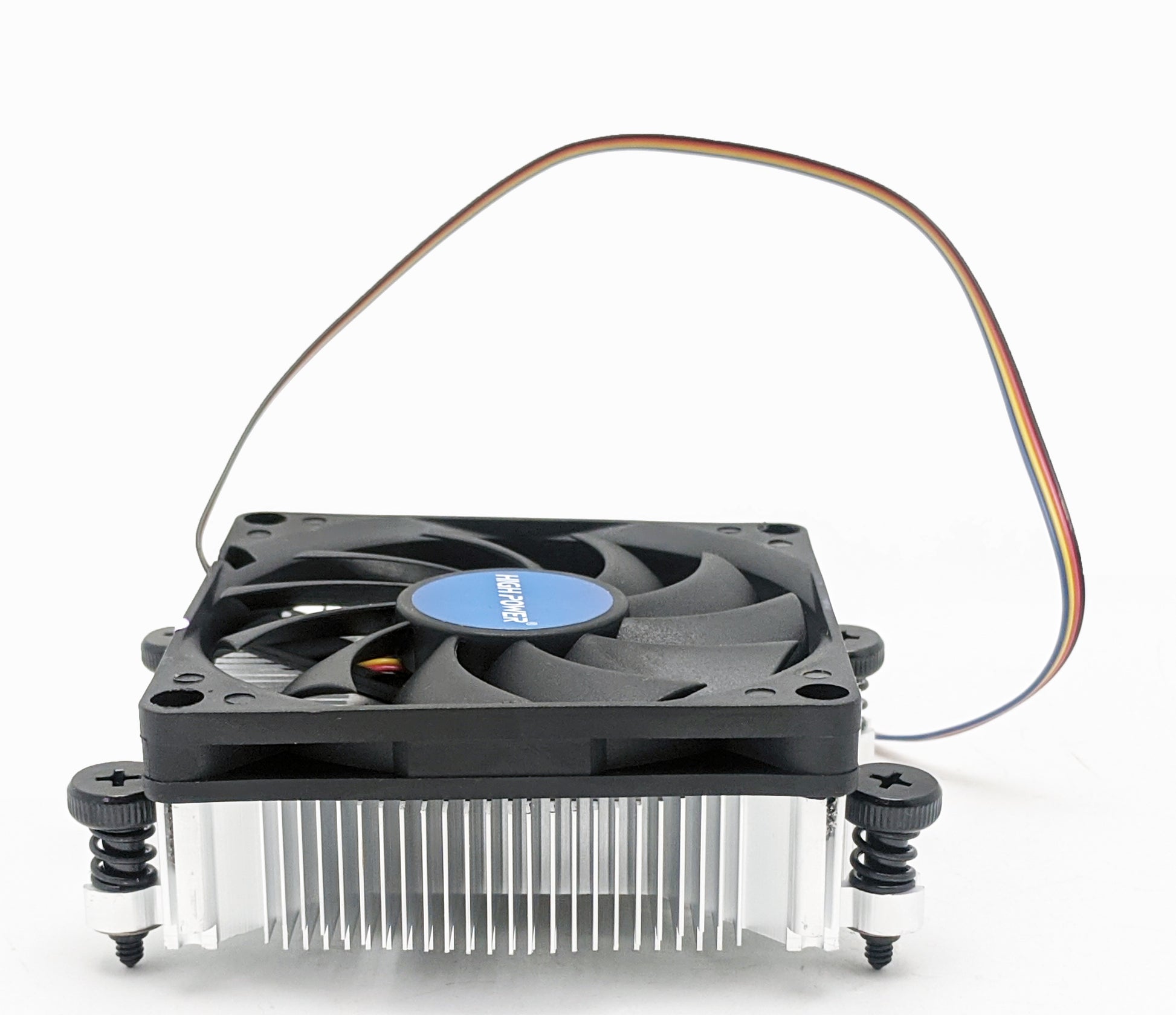

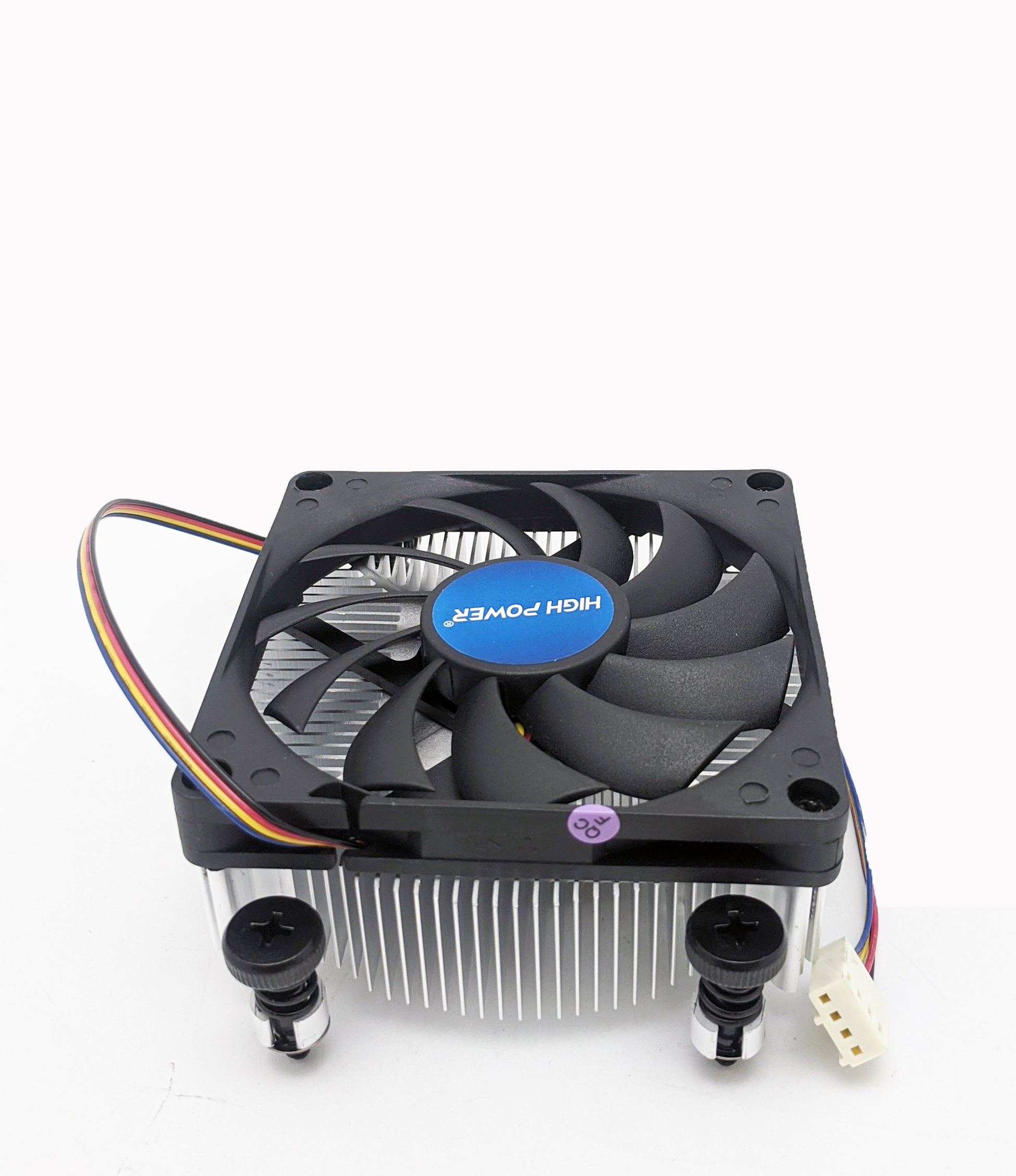

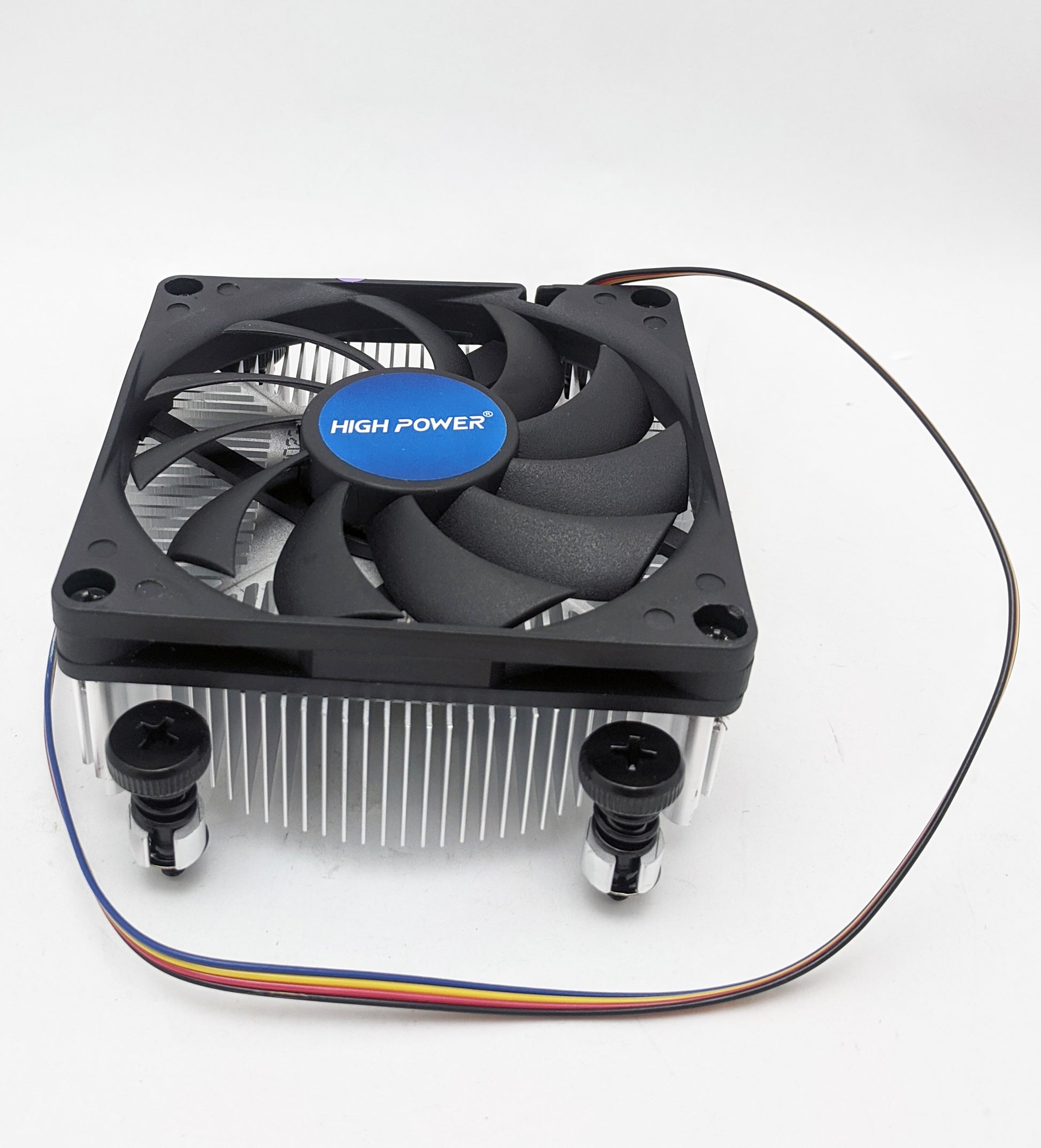

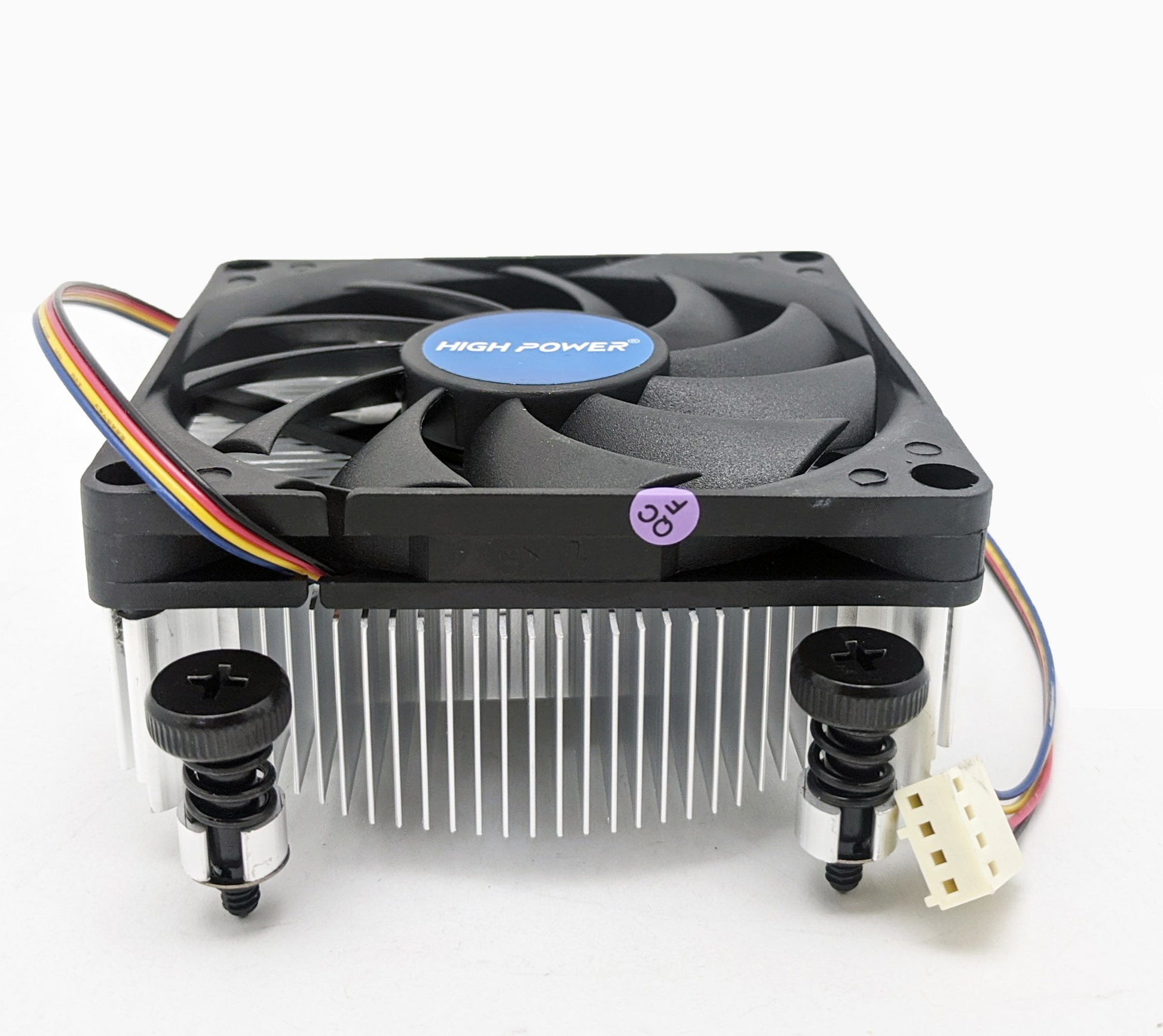

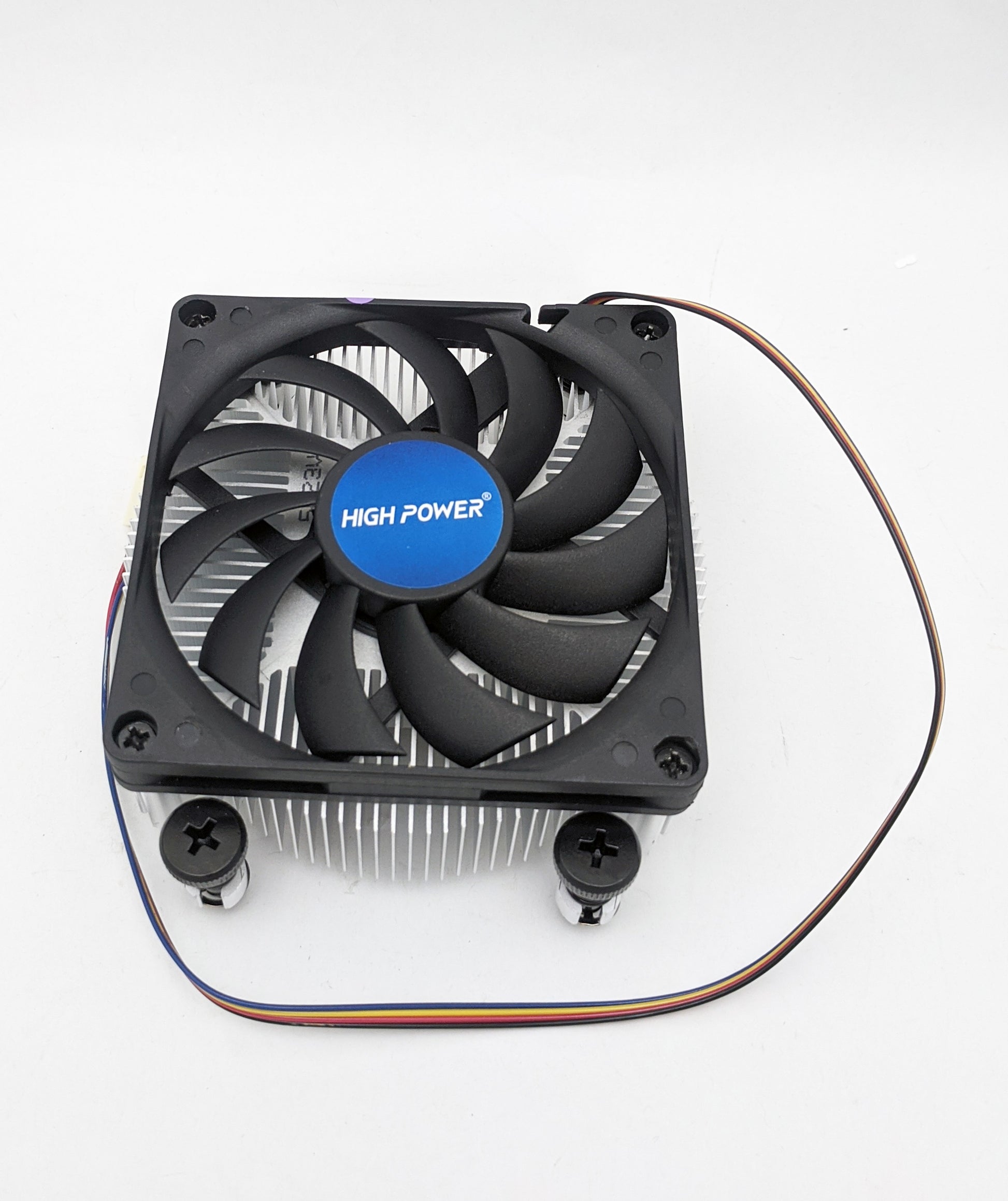

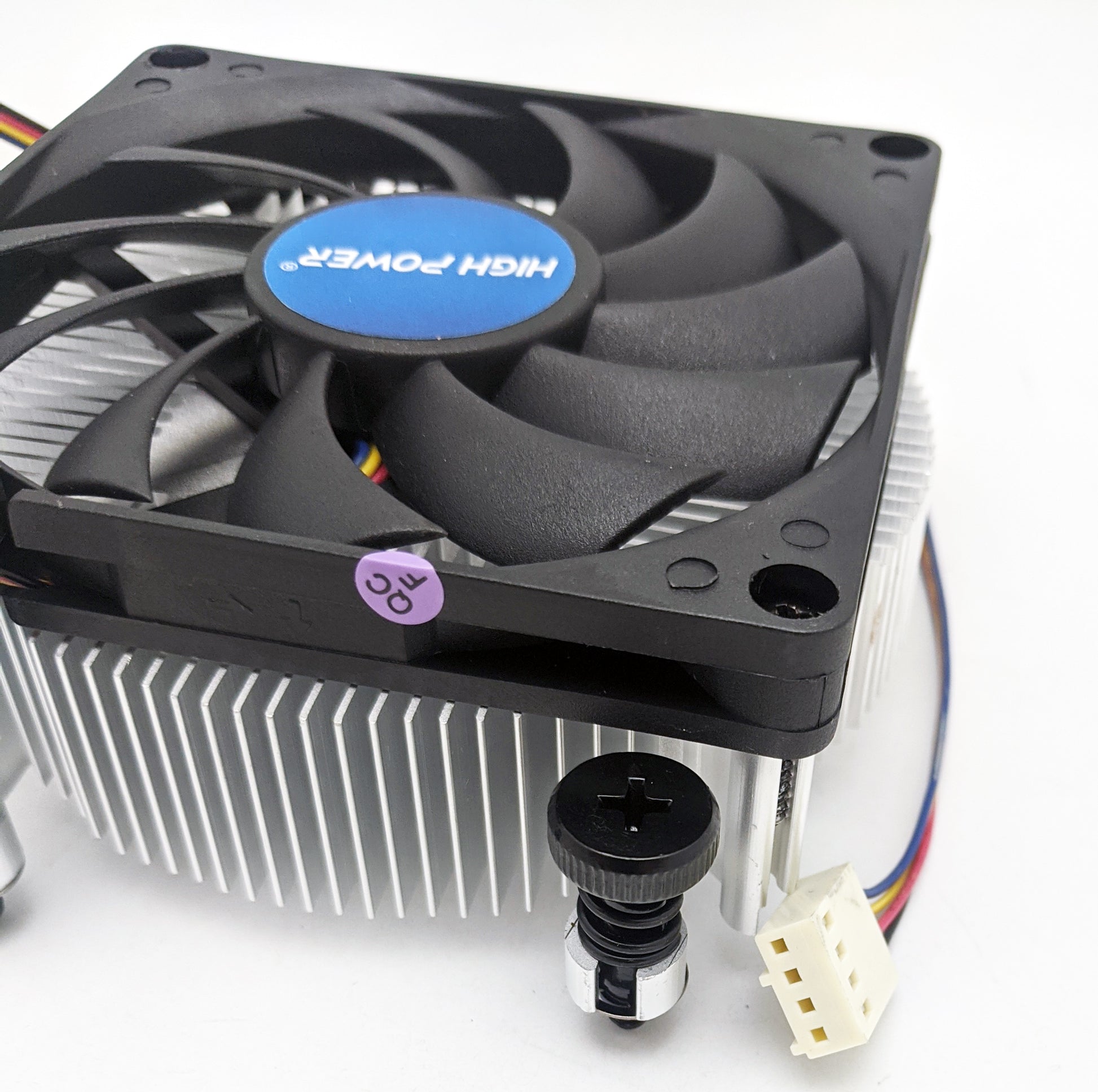

NEW — HIGH POWER® 1uAM4 | Ultra Low-Profile 32mm CPU Cooler for AMD Ryzen Socket AM4 / AM5
Assembled in USA
The HIGH POWER® 1uAM4 is engineered for builders who need maximum cooling performance in the tightest spaces. At just 32mm total height (processor contact to top of fan), it fits comfortably in 1U, 2U, Mini-ITX, mATX, and ATX cases where standard coolers simply won't clear — approximately 19mm shorter than the stock AMD Wraith Stealth fan.
Despite its ultra-compact profile, the efficient heatsink paired with a high-speed 4000 RPM dual ball bearing fan delivers cooling that doesn't compromise on performance.
Key Features
Compatible with AMD Ryzen 5 / 7 / 9 — Socket AM4 and AM5
Designed for 1U / 2U / 4U / Mini-ITX / mATX / ATX low-profile systems

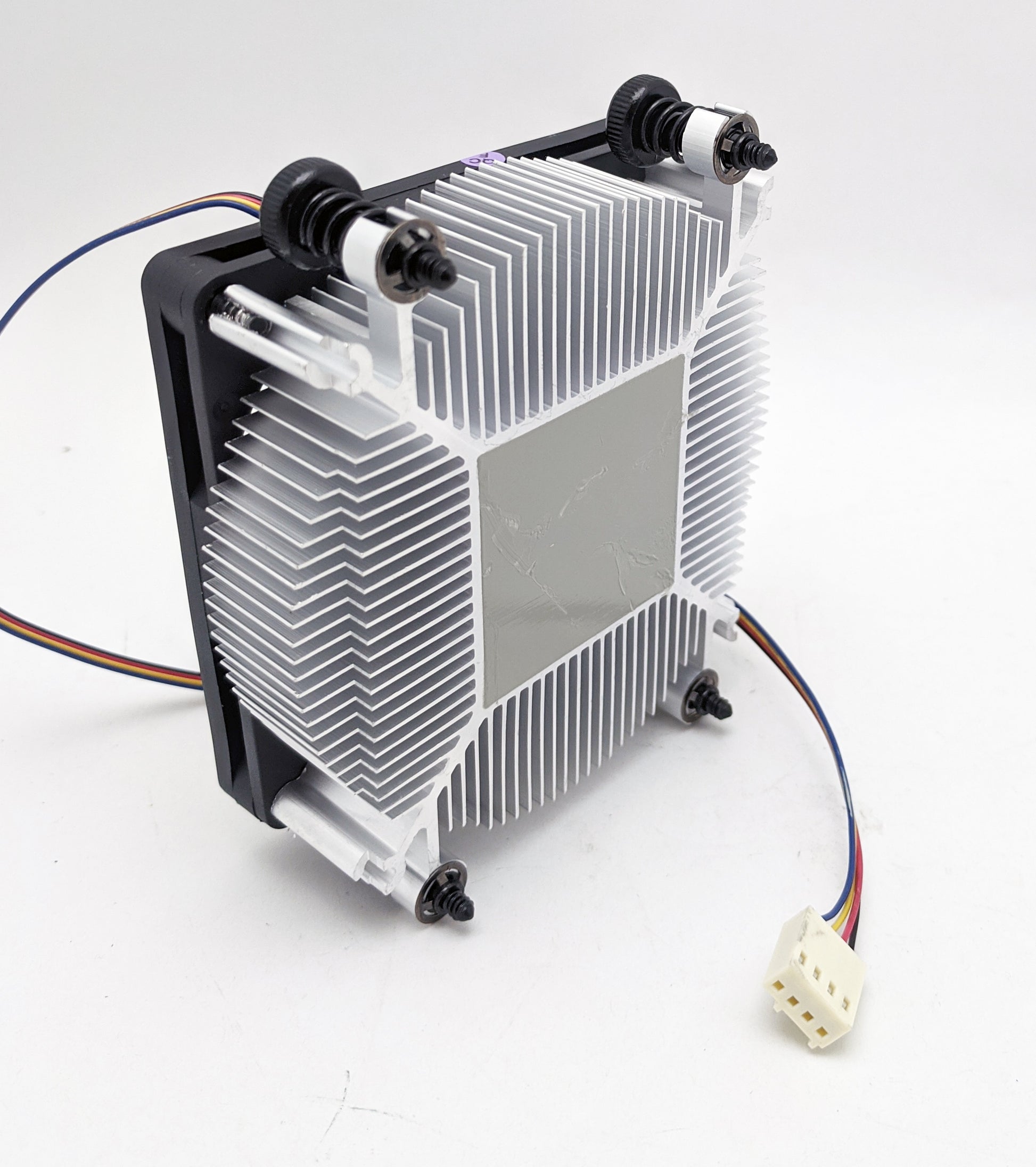

Thermal paste pre-applied — ready to install out of the box
4-pin PWM power connector for automatic speed control
FCC, CE, and RoHS compliant
Technical Specifications
Dimensions: 87 x 87 x 32mm

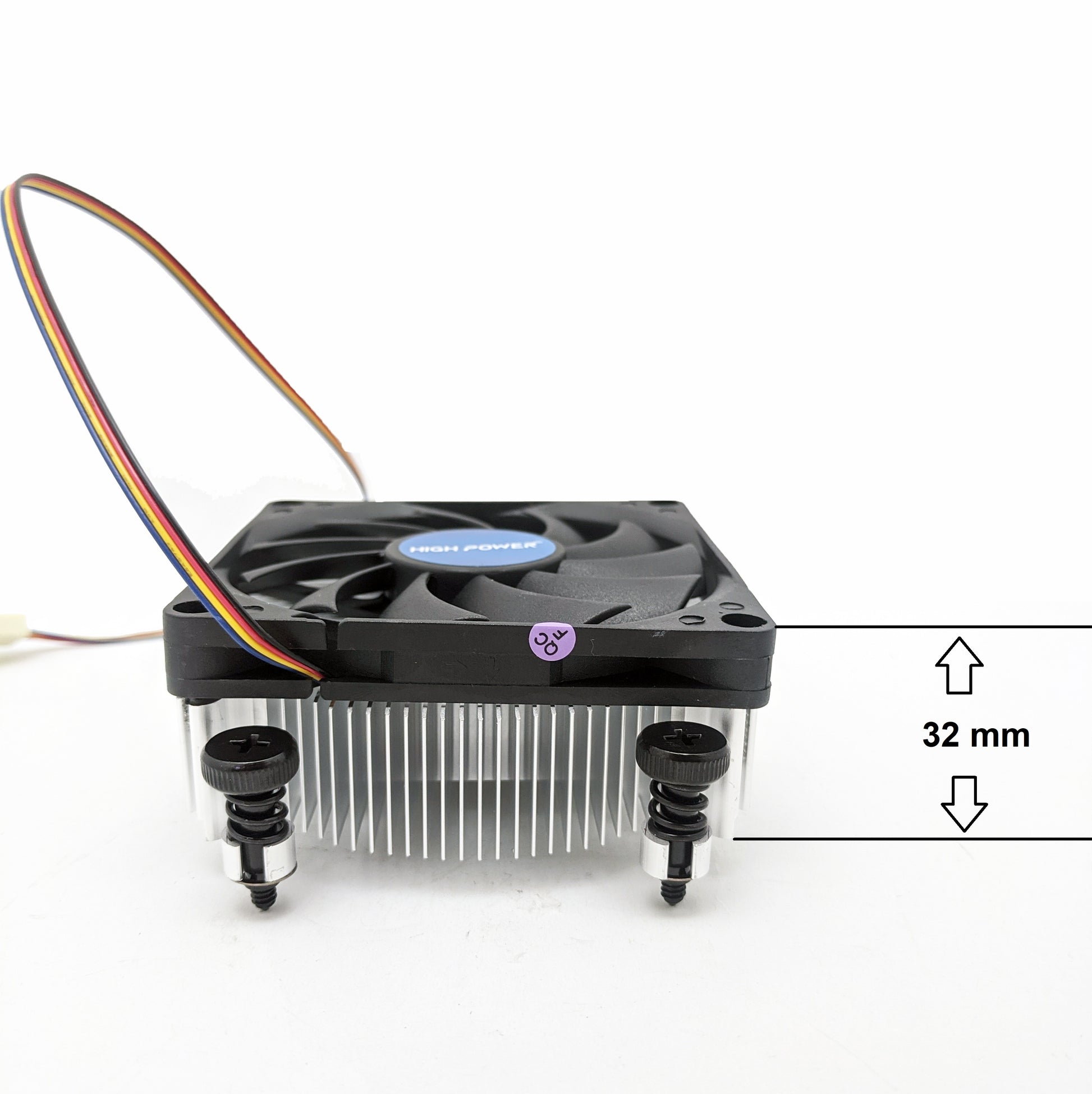

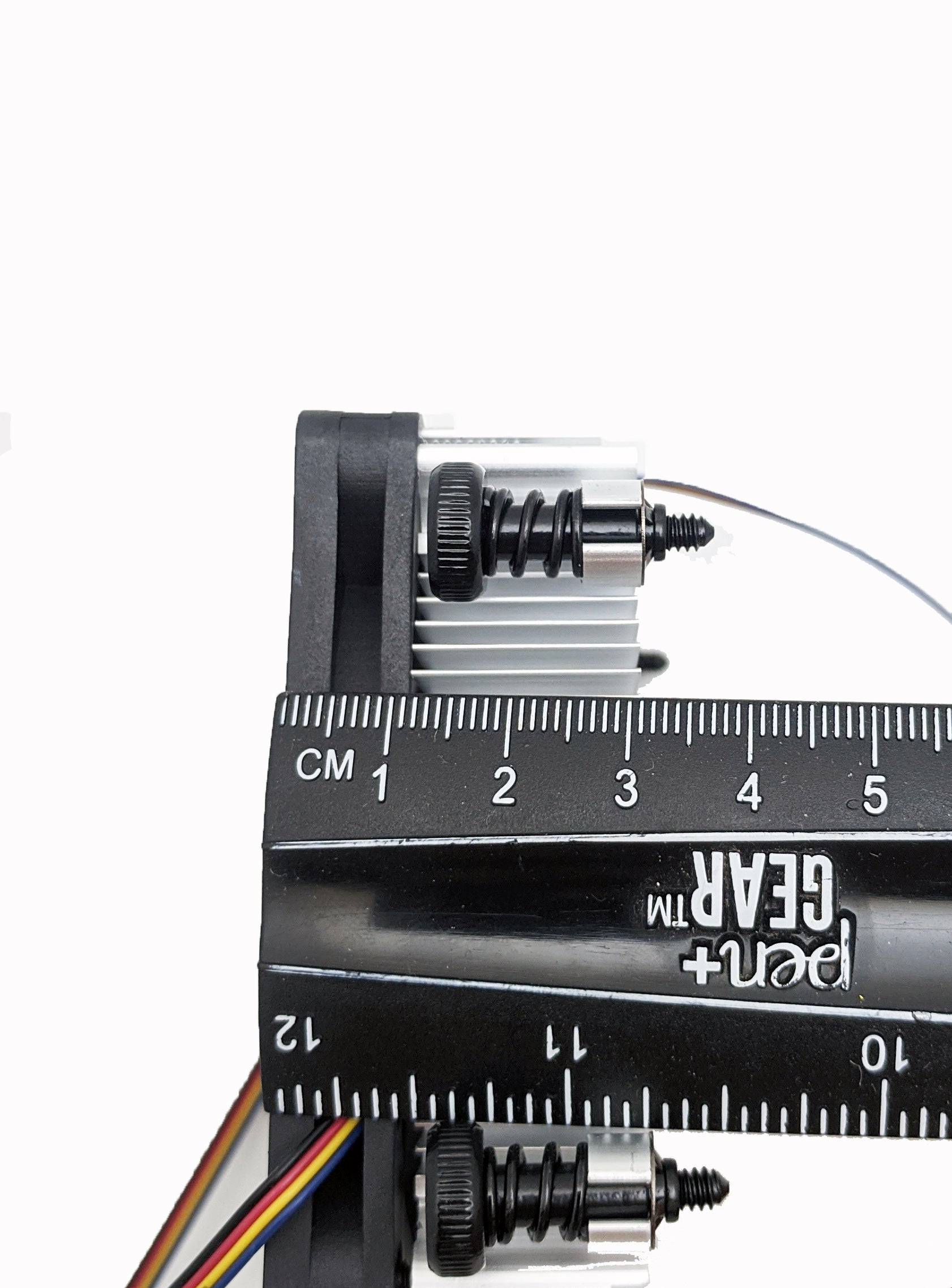

Height (processor to fan top): 32mm
TDP: 75W
Fan Size: 80 x 80 x 10mm
Bearing Type: Dual Ball Bearing
Connector: 2510 4-pin
Rated Voltage: 12V DC | Starting Voltage: 7V DC
Rated Current: 0.32A | Power: 3.84W
Fan Speed: 1,500 – 4,000 RPM
Airflow: 10.74 – 28.24 CFM
Noise Level: 15.8 – 33.5 dBA
Life Expectancy: 50,000 hrs at 25°C
