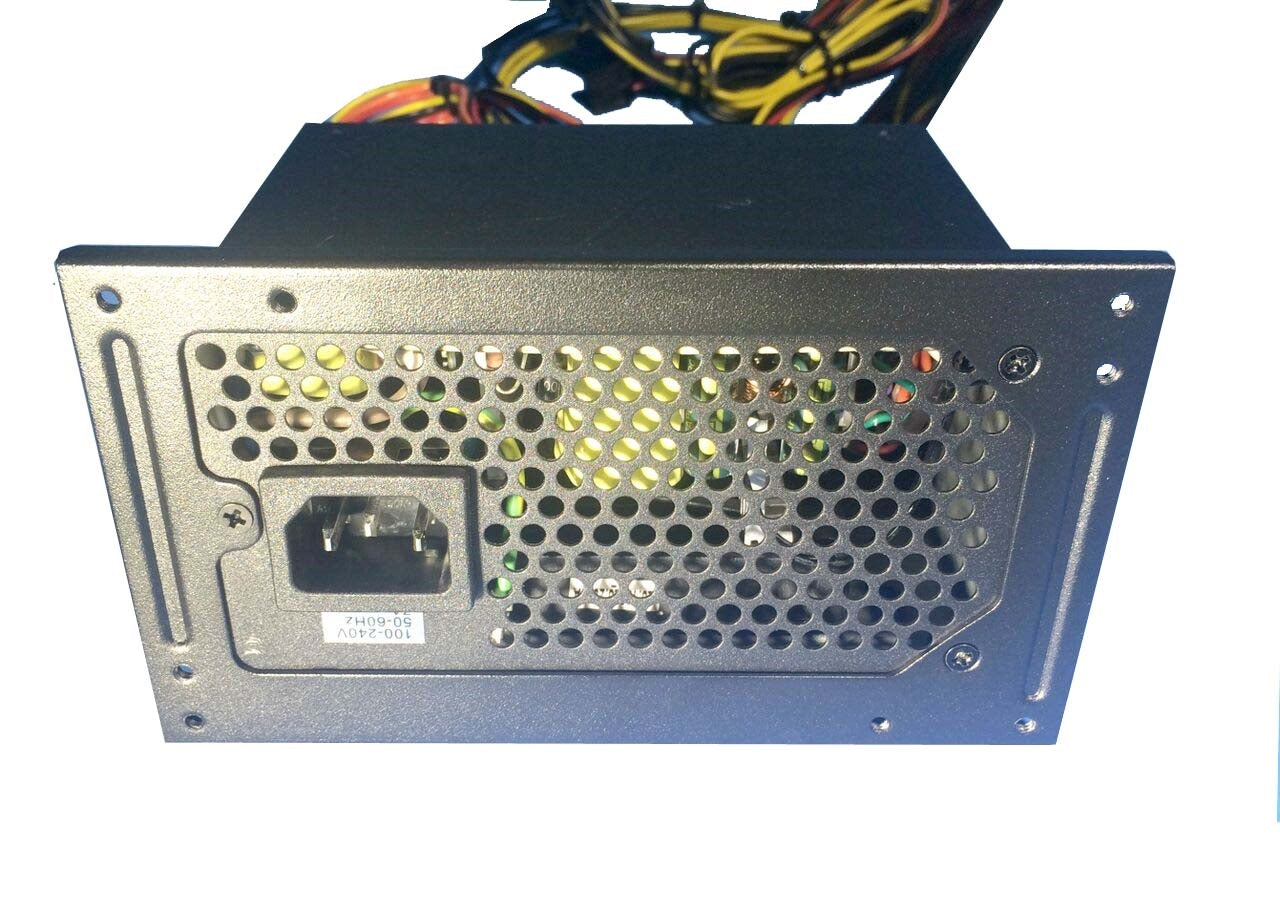

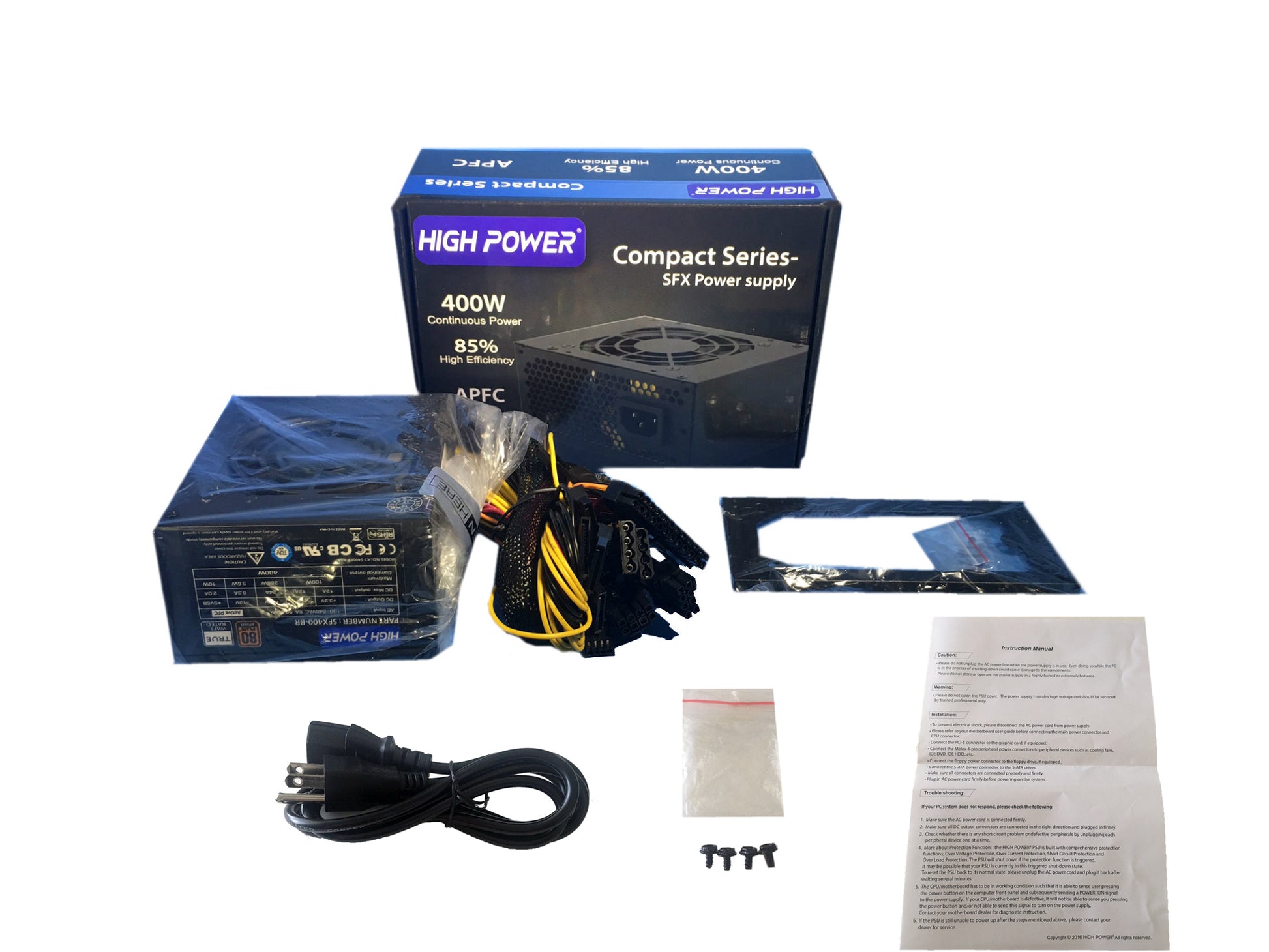

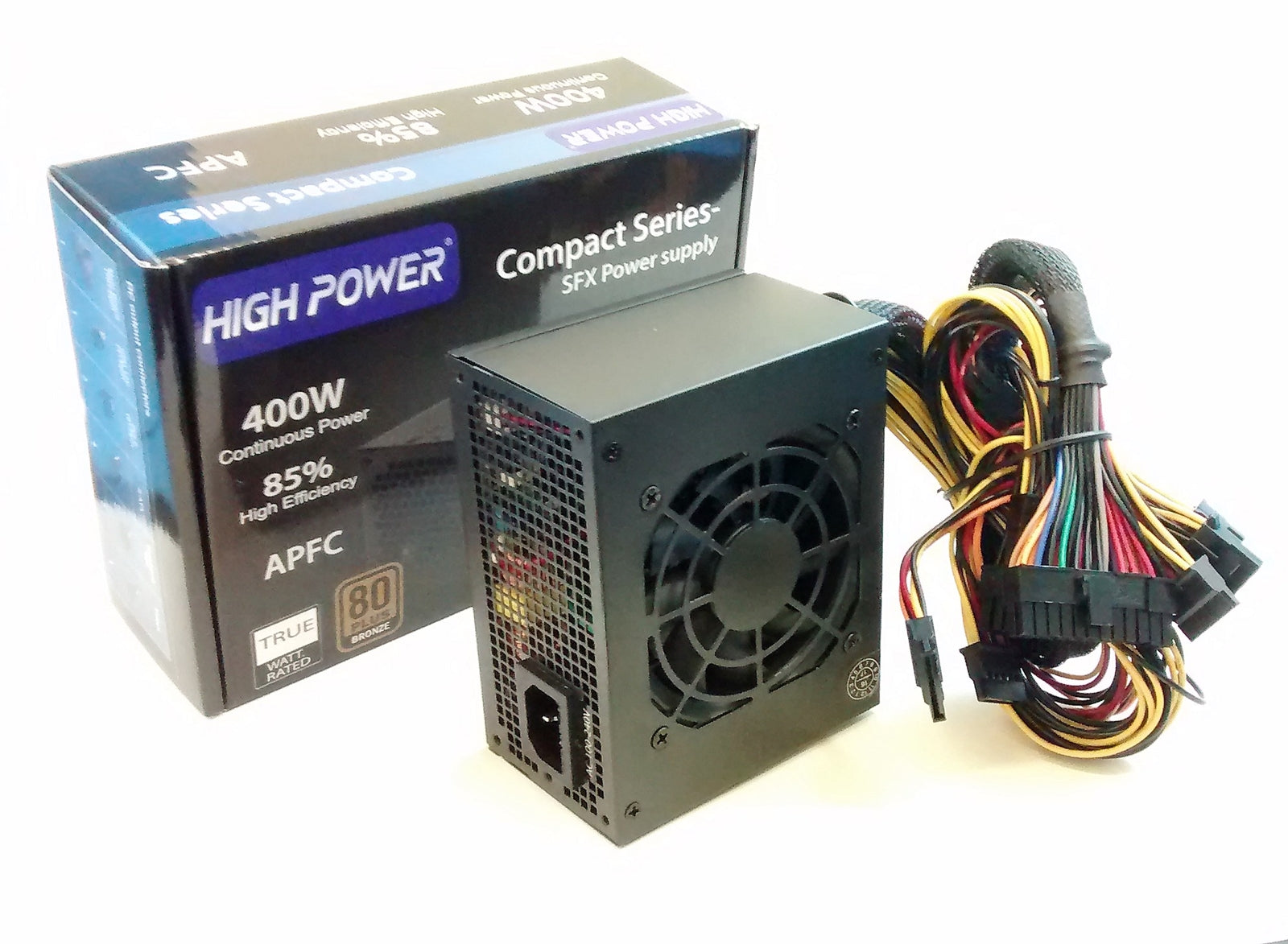

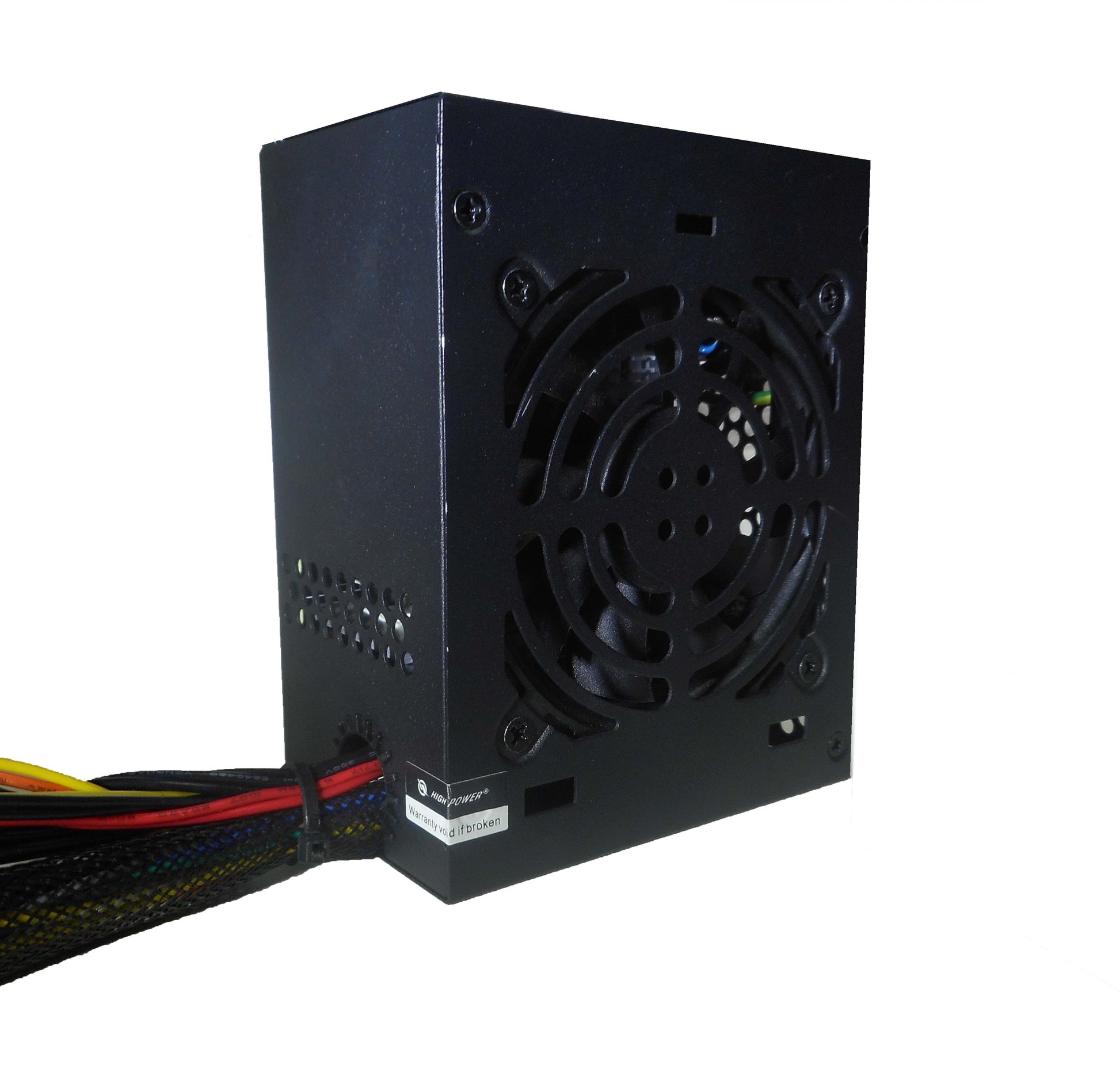

HIGH POWER® SFX400-BR 80plus Bronze Active PFC 400W Micro ATX SFX/PS3 12V PC Power Supply

Regular price $50.00

HIGH POWER® SFX400-BR is a high efficiency 80plus Bronze certified and reliable safety certified upgrade power supply that fits and works in a wide-range of small PC systems.  Supported form factors include SFX, PS3, micro ATX, and most mini ITX chassis that don't use an AC power adapter.
Proven to support high efficiency low heat systems as well as the latest gaming PC systems equipped with single or dual PCI-Express video cards.   Its compact size allows more air flow inside the case and makes installation very easy.   The sophisticated on-board fan speed controller ensures your power system is sufficiently cooled while keeping the fan noise down.

      • Solid 400 Watts Performance with heavy duty single 12V Output @ 24A (288W)
      • Standard SFX Dimensions: 125 (w) x 63 (H) X 100 (L) mm.  Install in ATX or PS3 micro tower case with included mounting bracket
      • TUV, UL, CB, CE, FCC Safety & EMI Approved
      • Ecova approved for minimum efficiency of 82%.  85% minimum efficiency at 50% load
      • EuP 2010 Lot 6 Compliant (System Idle power usage less than 1W)
      • Active PFC Full Range with Automatic AC input selection - no need to select 110v AC or 220v AC
      • Dual PCI-Express power connectors
      • Built-in Triple Protection: Over-Voltage Protection, Over-Power Protection, and Short-Circuit Protection
      • Galvanized steel casing for long rust-free protection with black color coating
      • RoHS Compliant - made with hazardous-free components
  Full safety approval from FCC, UL, cUL, CE, TUV, and CB.

Power Connectors Summary:

1x 24pin (20+4pin) Main Connector

1x 4+4pin ATX/EPS 12V Connector

4x SATA Connectors

2x 6+2pin PCI-Express Connector

2x 4pin Molex Peripheral Connectors

1x 4pin Floppy Connector



Technical Specification:

  • Active PFC Full Range with Automatic AC input selection - no need to select 110v AC or 220v AC
  • AC input from 100V to 240V
  • Outputs: +3.3V@12A, +5V@12A, +12V@24A, -12V@0.3A, +5VSB@2A;  +12V total output: 288W,  +5V/ +3.3V Combined output: 100W
  • Typical Efficiency: 87.55%
  • Average Efficiency: 86.47%
  • Built-in Protection: UVP/OVP/OPP/SCP
  • Model: KT-S400FX-ABR
  • Full safety approval from FCC, UL, cUL, CE, TUV, and CB.

RoHS Compliant - made with hazardous-free components:  RoHS is the Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment. This has been a standard in Europe and is now becoming a standard in the world. Not only lead, but cadium, mercury, hexavalent chromium, polybrominated biphenyl (PBB), and polybrominated diphenyl ether (PBDE) flame retardants are limited as well.
