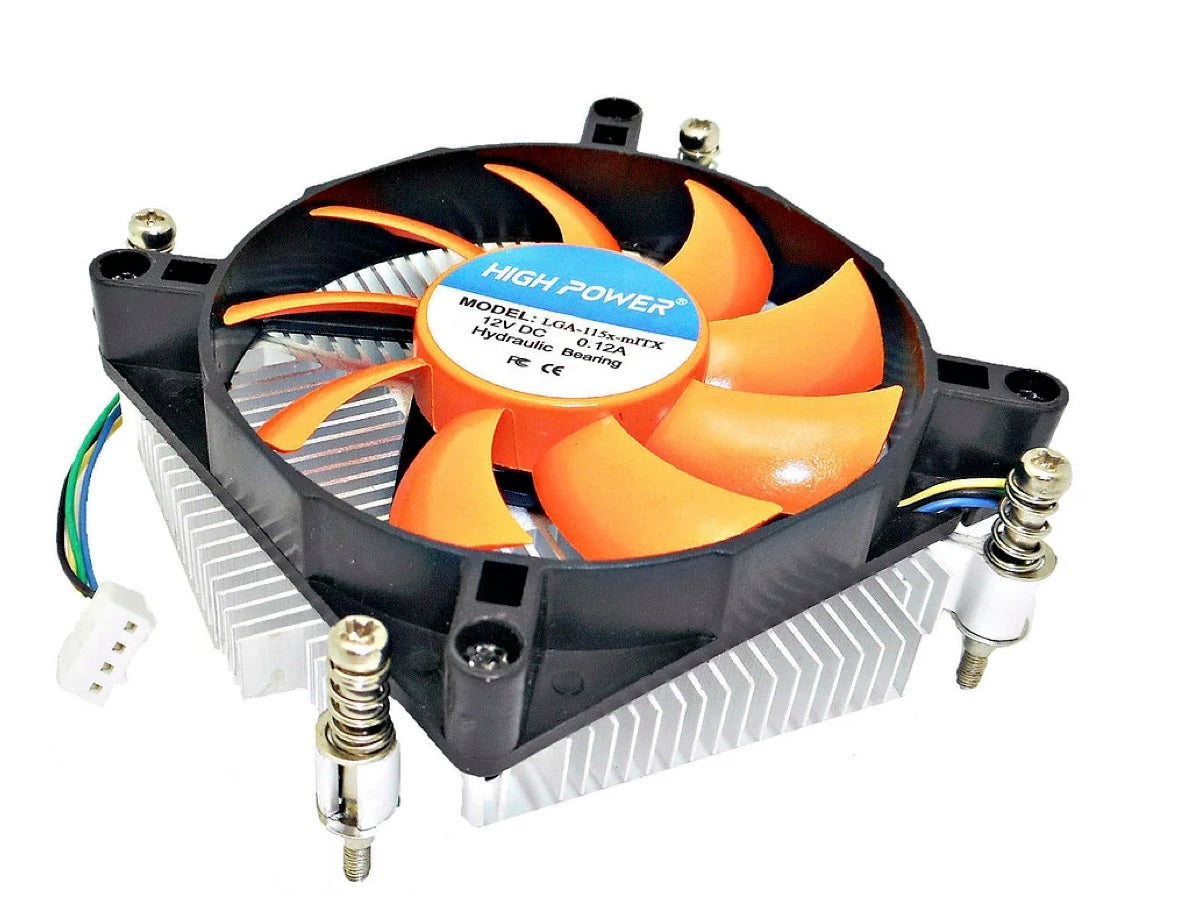

Lot 14: HIGH POWER LGA-115x-mITX 1U Low-Profile Quiet 80mm CPU Cooling Fan i5 i7

Regular price $159.99

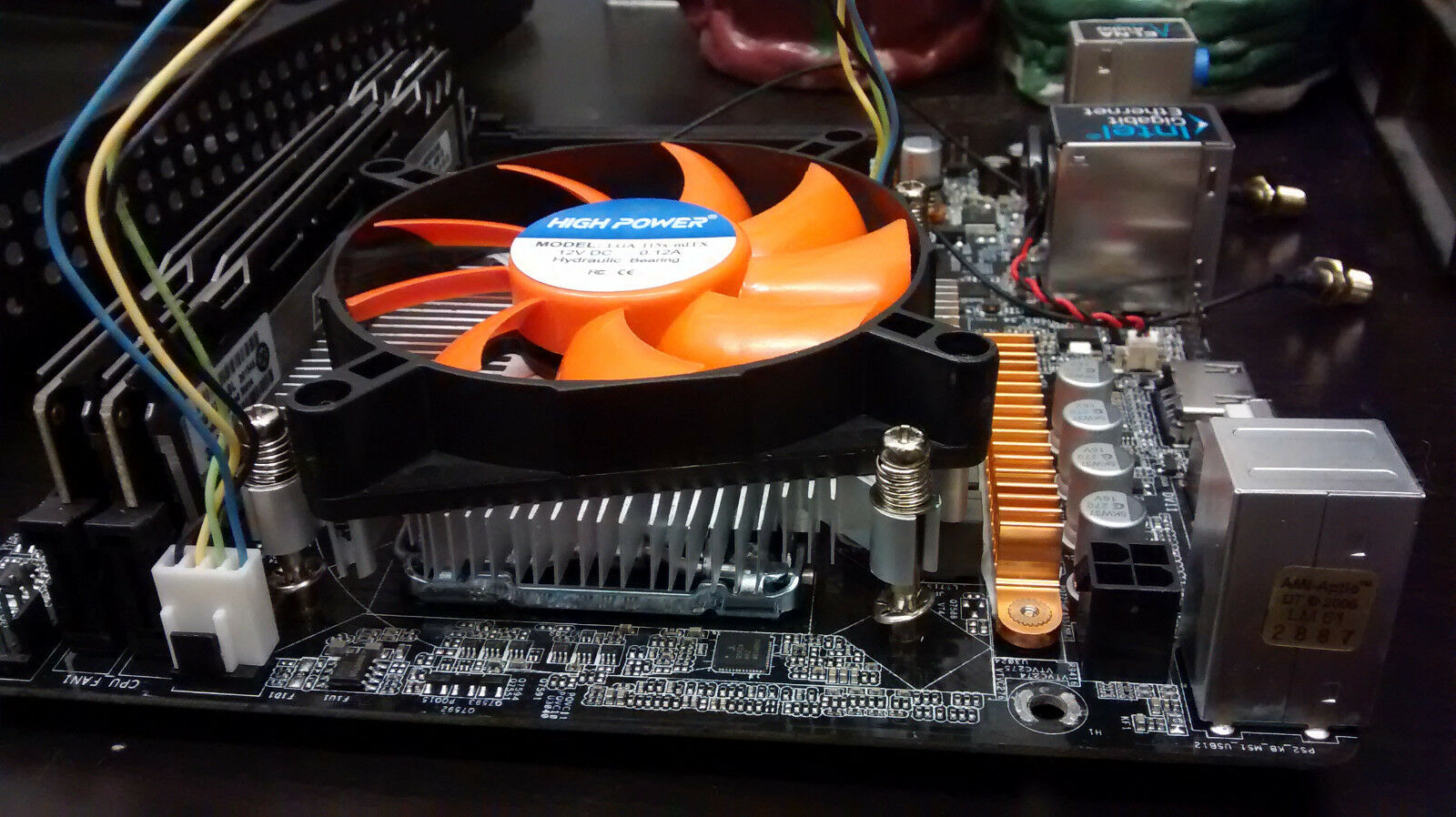

HIGH POWER® LGA-115x-mITX has a height clearance of only 26.95mm to fit in mini ITX & 1U cases. Although it is lower profile than the stock Intel fan, its large 80mm fan delivers cooling capability that is not compromised. Set your BIOS to silent mode will enable the fan to start spinning at around 1100 RPM when it would be amazingly quiet. Noise level remains to be acceptably low during normal system operation.
LGA 1156/1155/1150/1151

  • Supports: Intel® Socket :  LGA 1156/1155/1150/1120,   Intel® Core™ i3, i5, i7, i9
  • 4pin PWM Power Connector
  • 12V DC @ 0.12A
  • TDP: 85W
  • Quiet Hydraulic Bearing Fan
  • FCC & CE Compliance

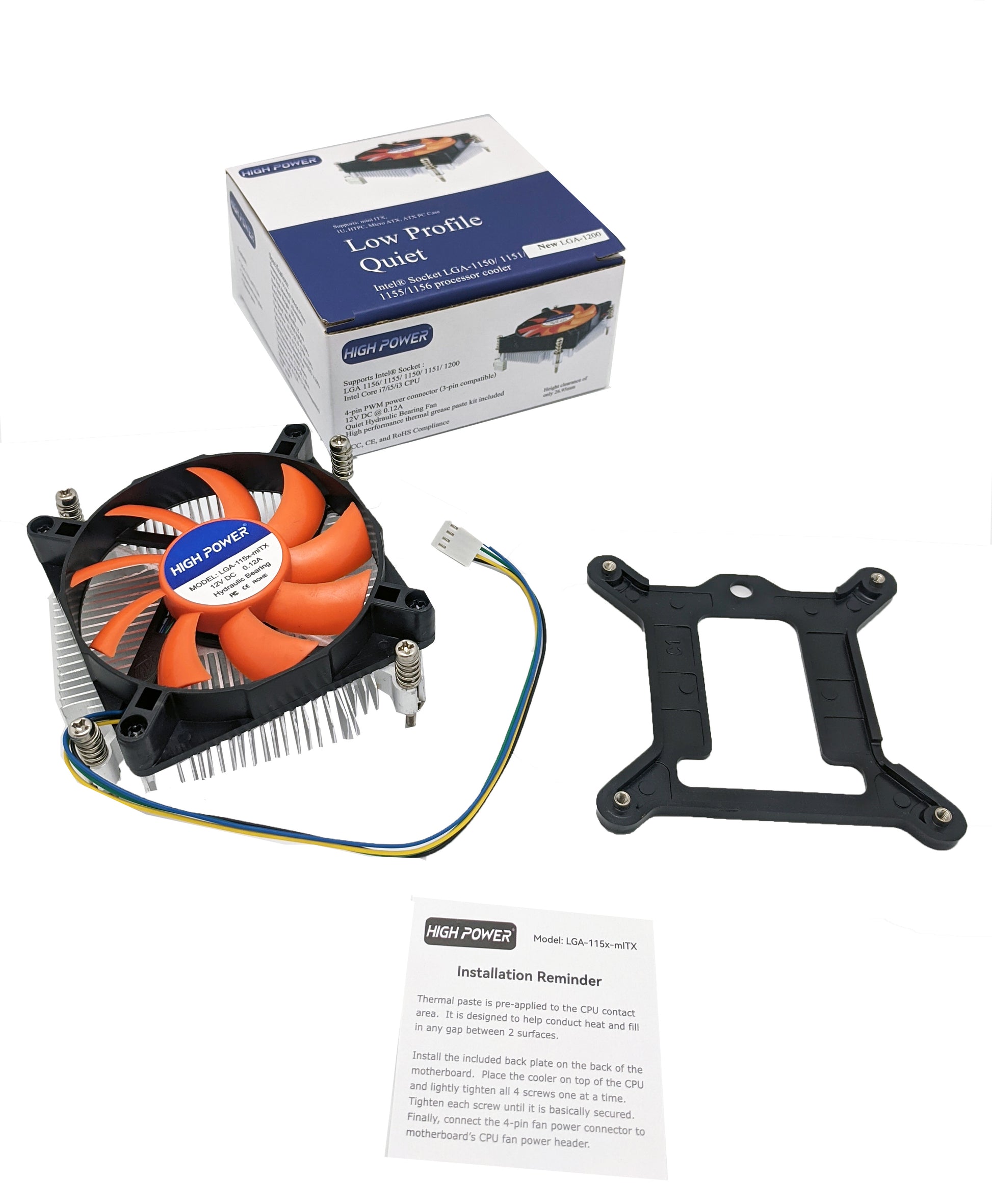

Kit Content:

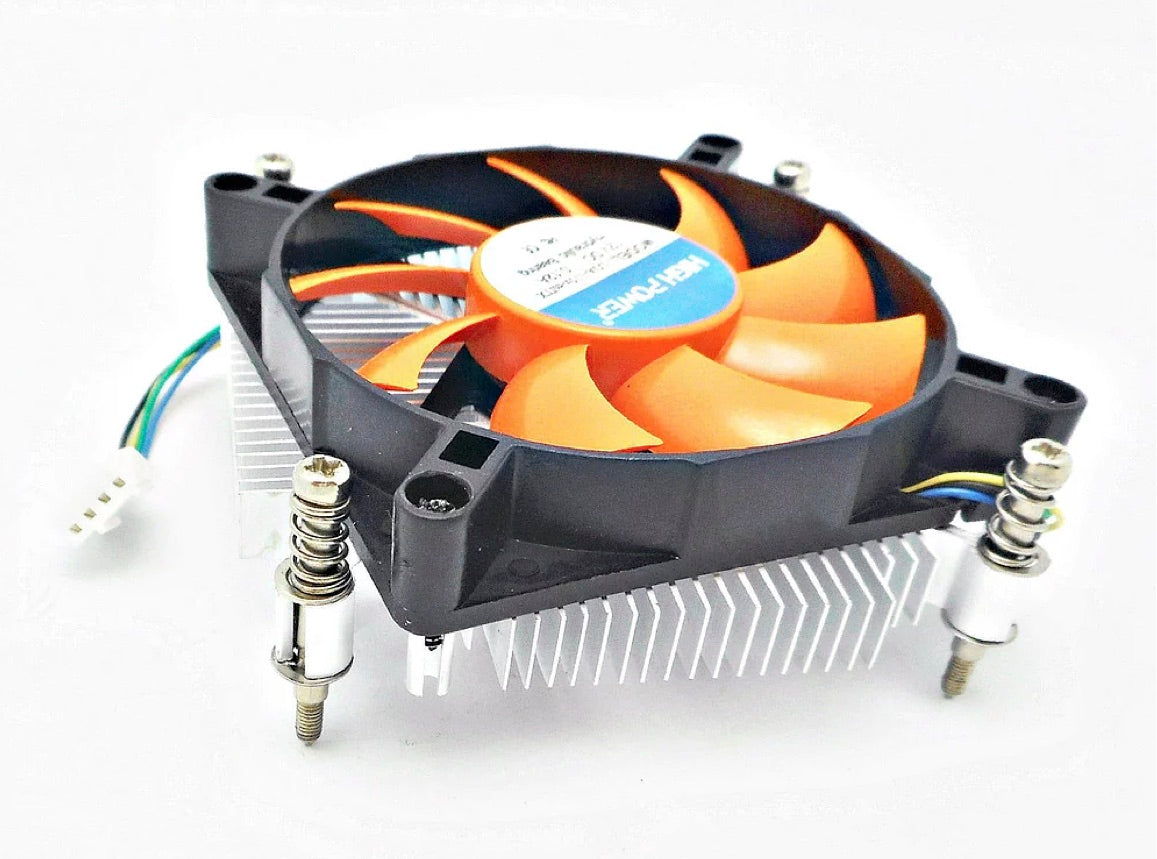

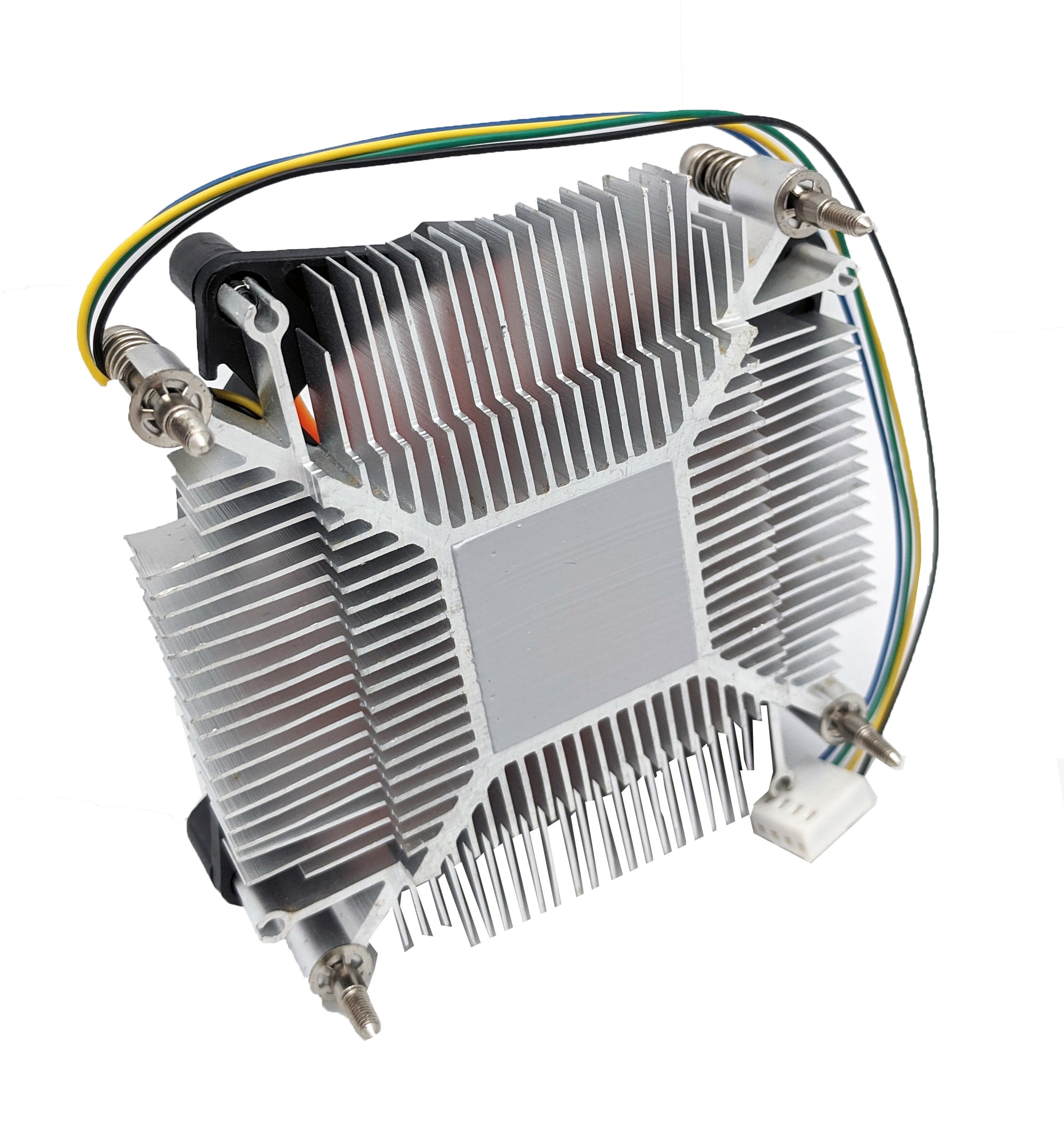

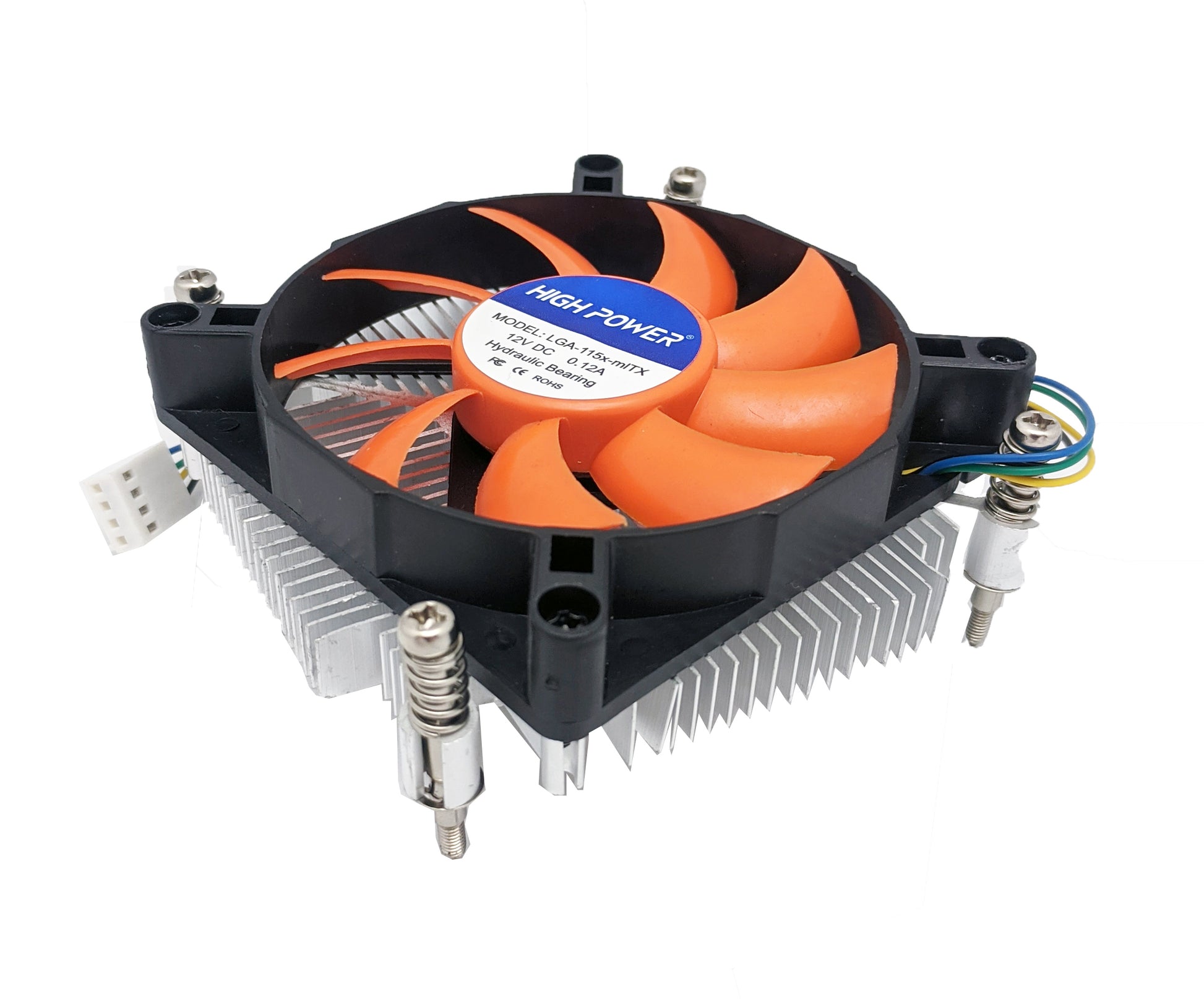

  • Quiet 80mm cooling fan and aluminum heat-sink assembly
  • Motherboard back plate
  • Thermal paste

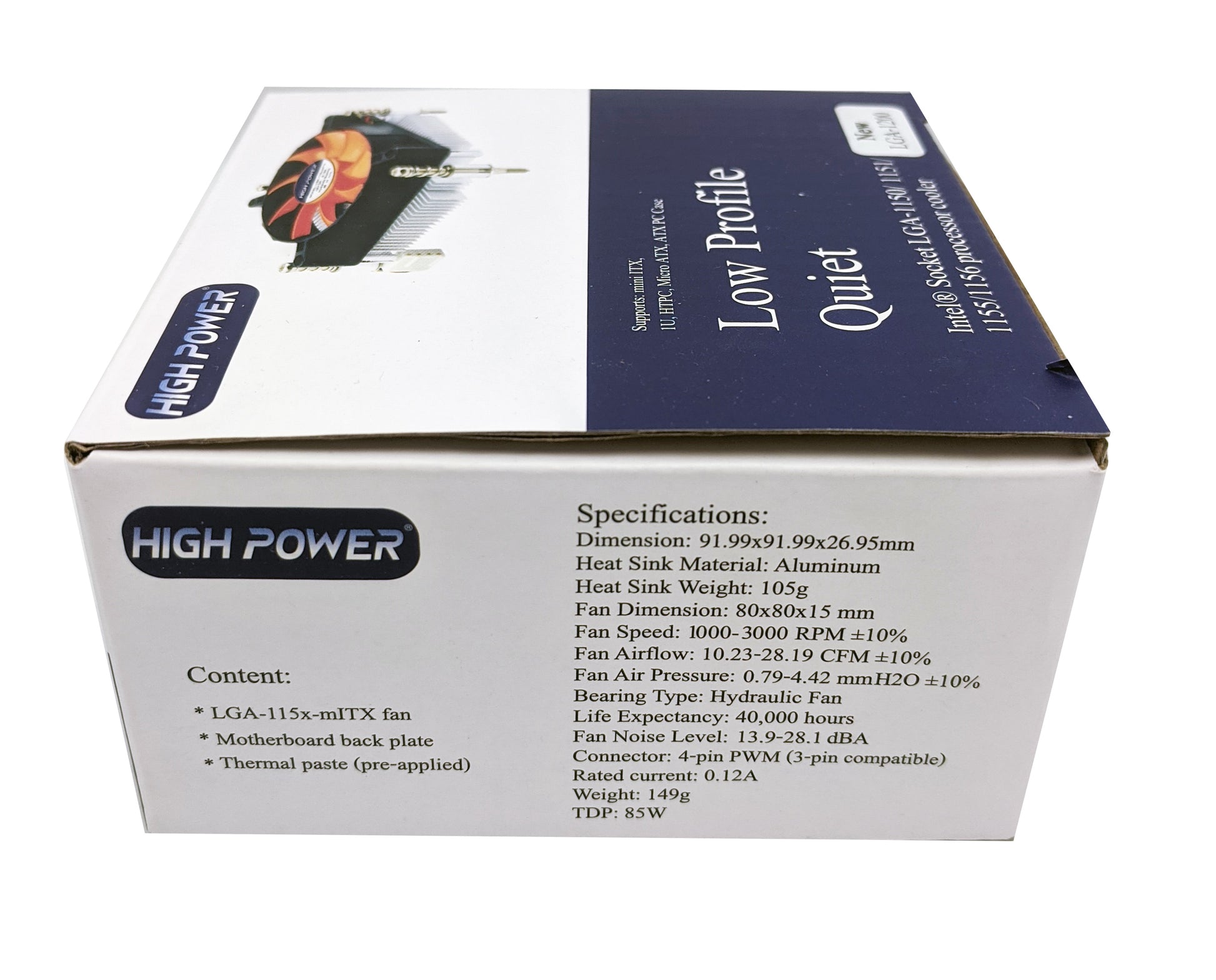

Length and Width: 91.99 x 91.99 mm

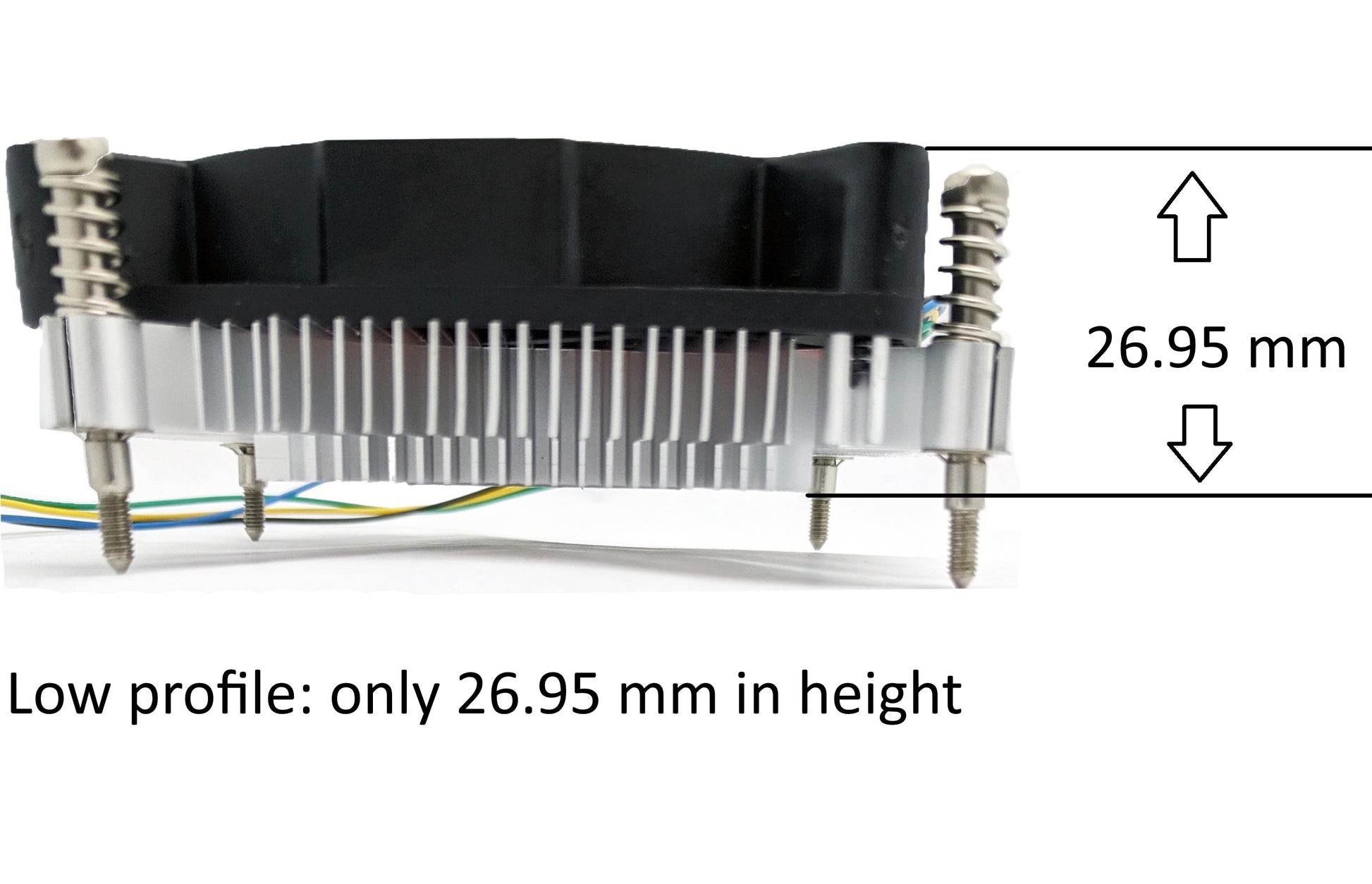

Height: 26.95 mm
Unmounted fan kit height including the screw length: 37mm

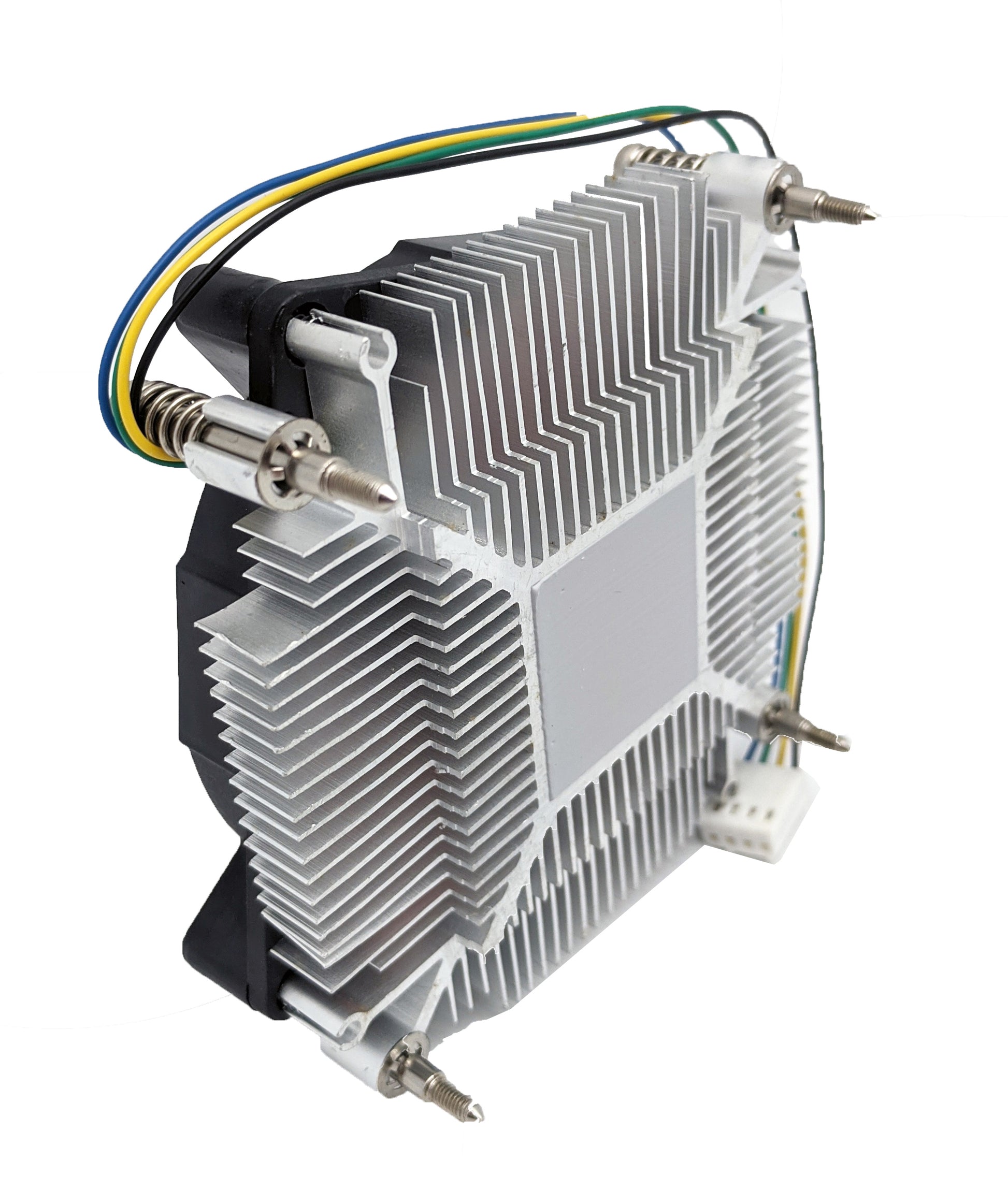

Heat Sink Material
Heat Sink Weight
Fan Dimension
80×80×15 mm
Fan Speed
1000-3000 RPM ± 10%
Fan Airflow
10.23-28.19 CFM ± 10%
Fan Air Pressure
0.79 - 4.42 mm H2O ± 10%
Bearing Type
Fan Life Expectancy
40,000 hours
Fan Noise Level
13.9-28.1 dBA
4-pin PWM

CPU Socket Dimension Information (standard LGA 115X):
  From the outer edge of mounting screw diagonally to the outer edge of mounting screw - 113mm
