Low Noise
NEW Better Mechanical Design:

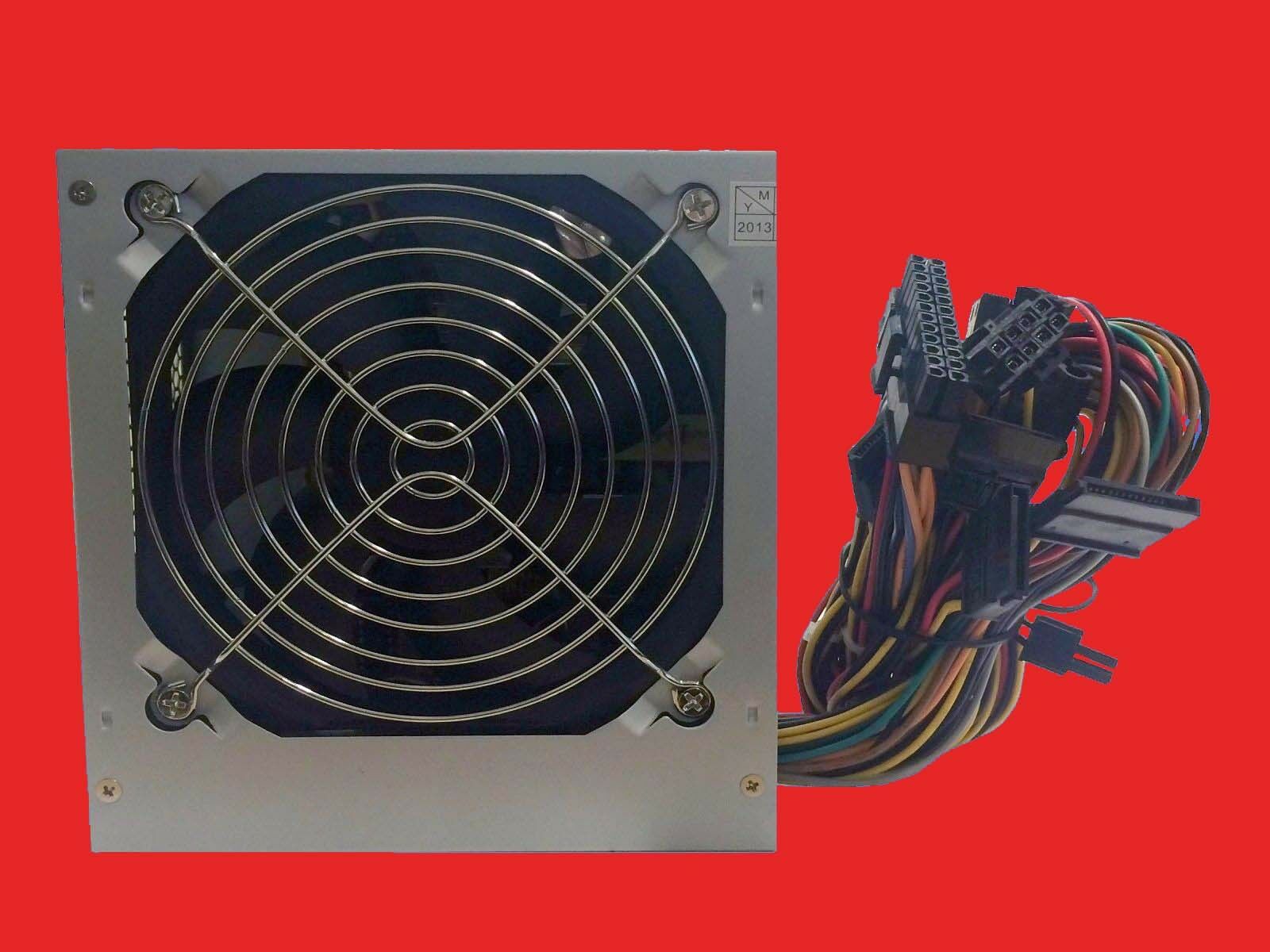

Large 120mm fan draws massive amounts of hot air in from the CPU into the power supply and exits out the back of the PC. Since the fan is situation inside the system and not at the back of the PC, audible fan noise is greatly reduced.
AC Power Cord is NOT included, however it is compatible with your original Sparkle AC power cord

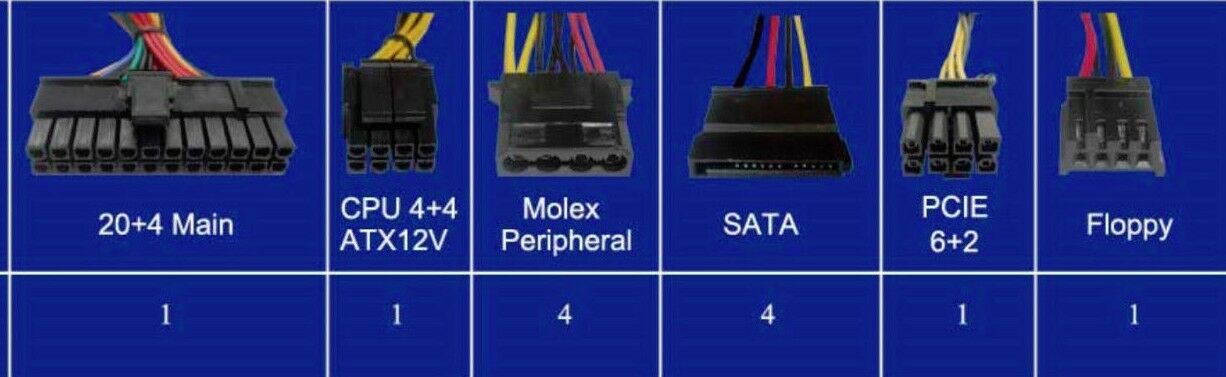

Connectors Details
(1) 24pin Main Power Connector (sub-module detachable to supports 20pin boards)
(1) 4+4 12V Power Connector (Supports 4pin 12V OR 8pin 12V)
(1) 6+2 PCI-E Power Connector, supports 6pin OR 8pin PCIe video cards
(4) SATA power connectors (on separate lines of cables for unrestricted reach)
(1) Floppy Drive Power Connector
(4) Molex Peripheral Power Connectors (on separate lines of cables for unrestricted reach)
Maximum Power Output: 650W
Efficiency: Typical 65% @ full load

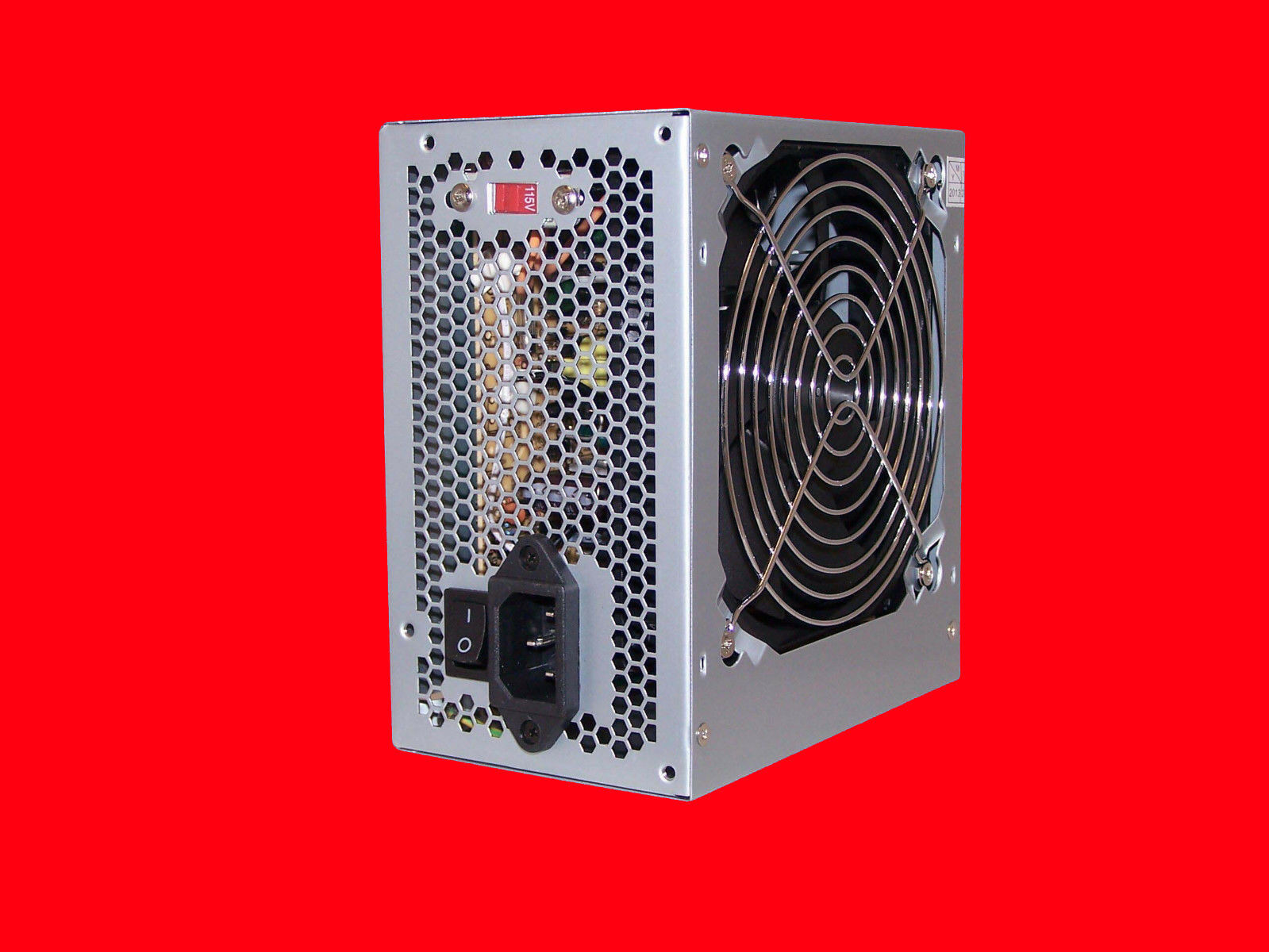

Manual shut-down rocker switch
Mesh fan-guard for improved child safety protection
Input: 100-127V AC or 200-240V AC - select-able by switch
Dimension: 5.9"(L) x 5.5"(W) x 3.4"(H)
Complete 5*Startm system protection
Over Voltage Protection
Under Voltage Protection
Over Current Protection
Short Circuit Protection
Over Power Protection
|
AC INPUT
|
115V/230V - 60/50Hz
|
|||||
|
DC OUTPUT
|
+3.3V
|
+5V
|
+12V
|
-12V
|
+5VSB
|
|
|
650W
|
Max
Combined Peak Watts |
33A
|
43A
|
26A
|
0.8A
|
2A
|
|
650W
|
||||||
