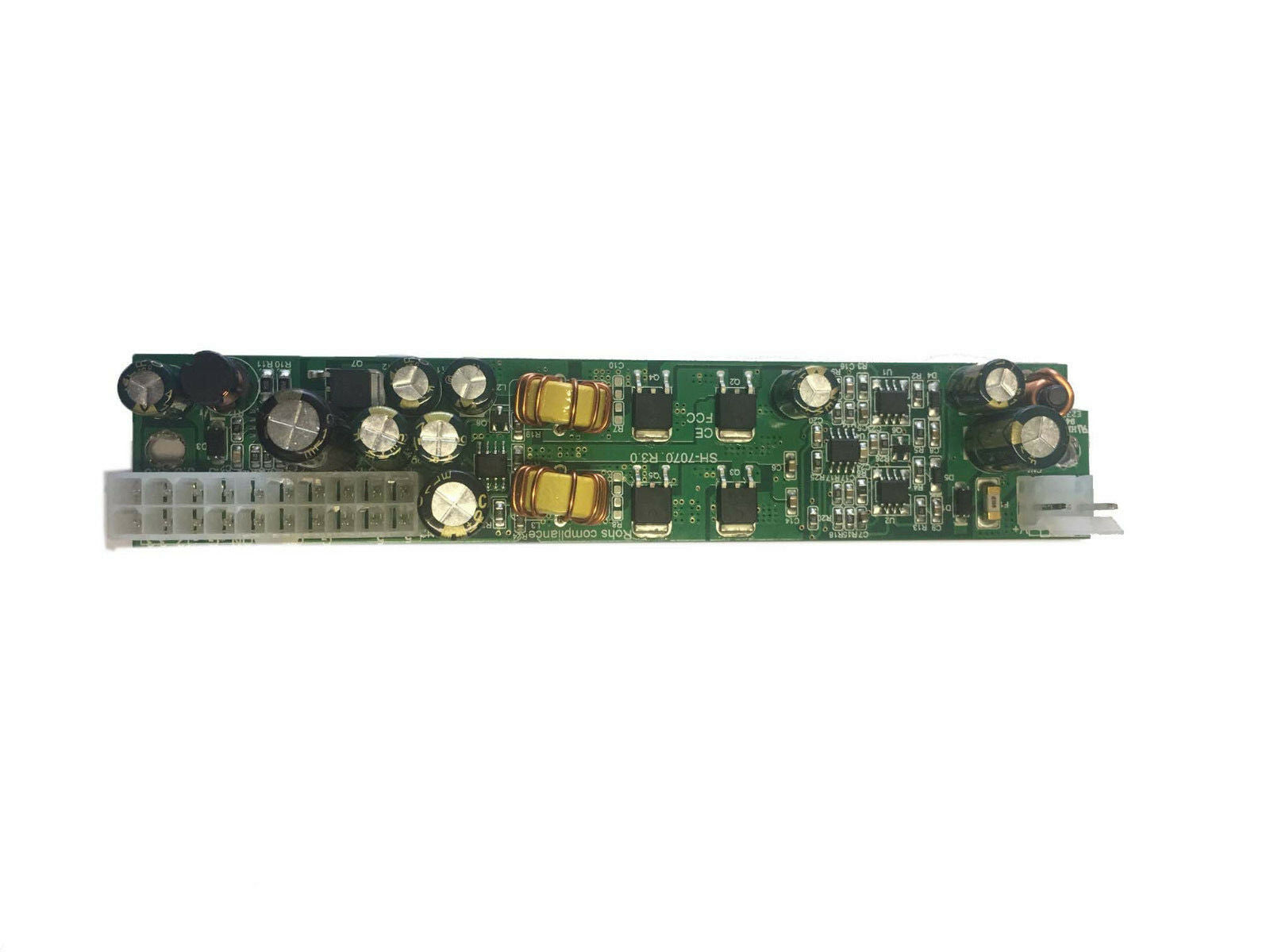

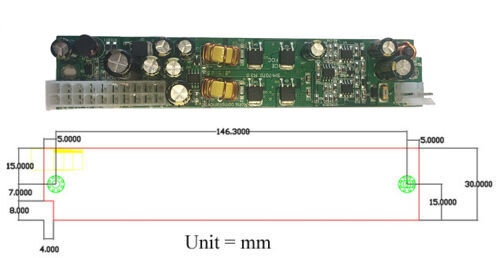

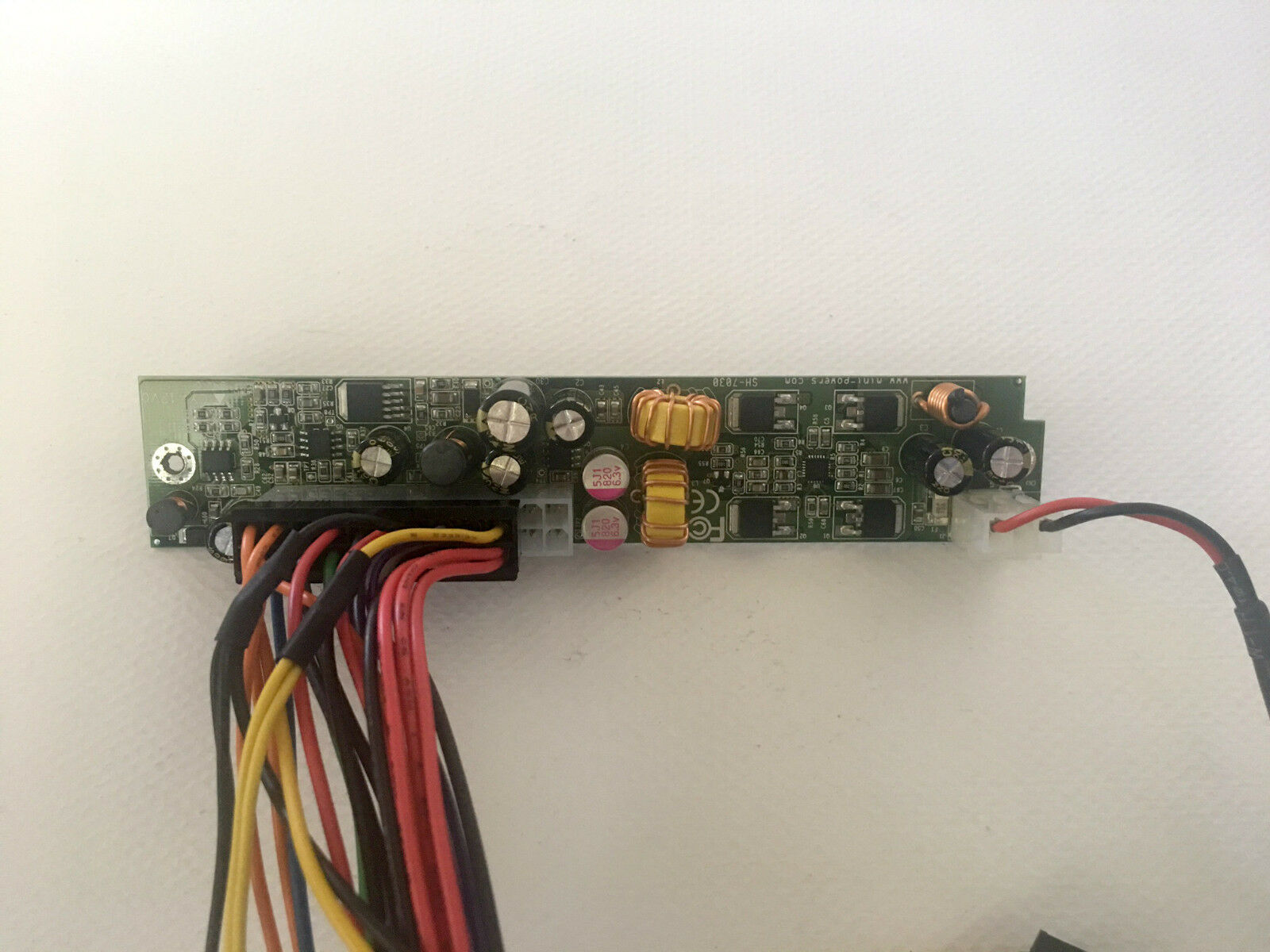

DC-DC ATX converter was designed from ground up to fit small form factor ATX boards, allowing enclosure designers to save space while not compromising power requirements..
Total Watts: 90W (Tested to work with Intel Intel Celeron J1900 Quad-Core, as well as other mini ITX CPU/motherboard combo). Peak: 120W
Internal DC-to-DC fanless ATX Power Supply Specifications

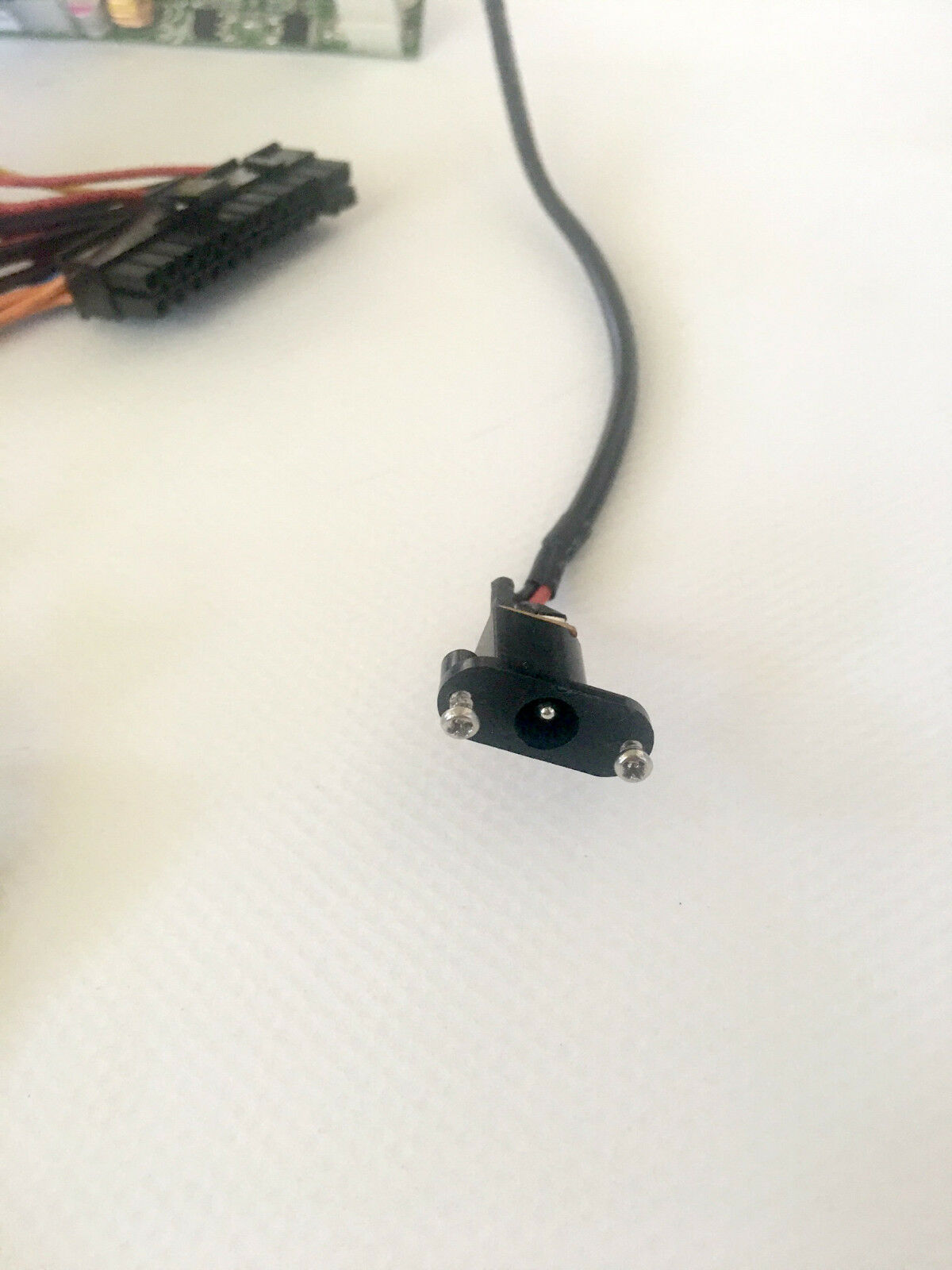

• DC Input: 11.4~13.0V, Max 10A/12V
• Maximal Inrush current: 45A @12V at 25℃ cold start

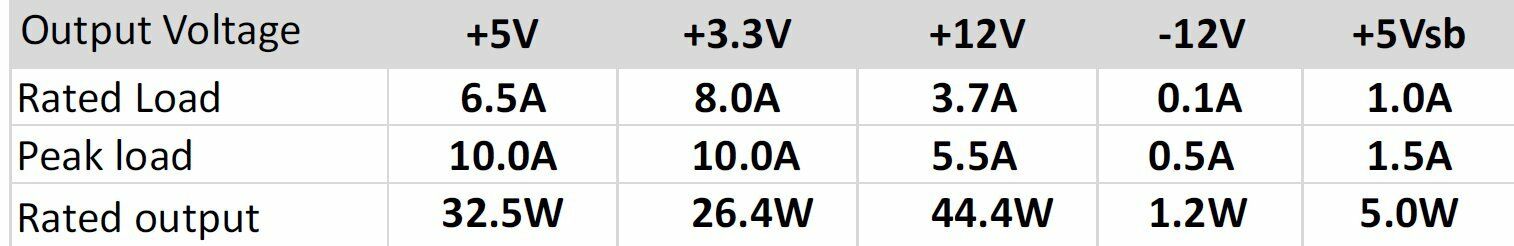

• Output up to 90W (Peak: 120W)
• Ripple and Noise: <120 mV
• Load Regulation: +/- 5%
• Efficiency: 80% minimum at full load
• Multi protection: OLP, OCP & SCP
• Operation Temperature: -10 to 50℃
RoHS / FCC / CE Compliant

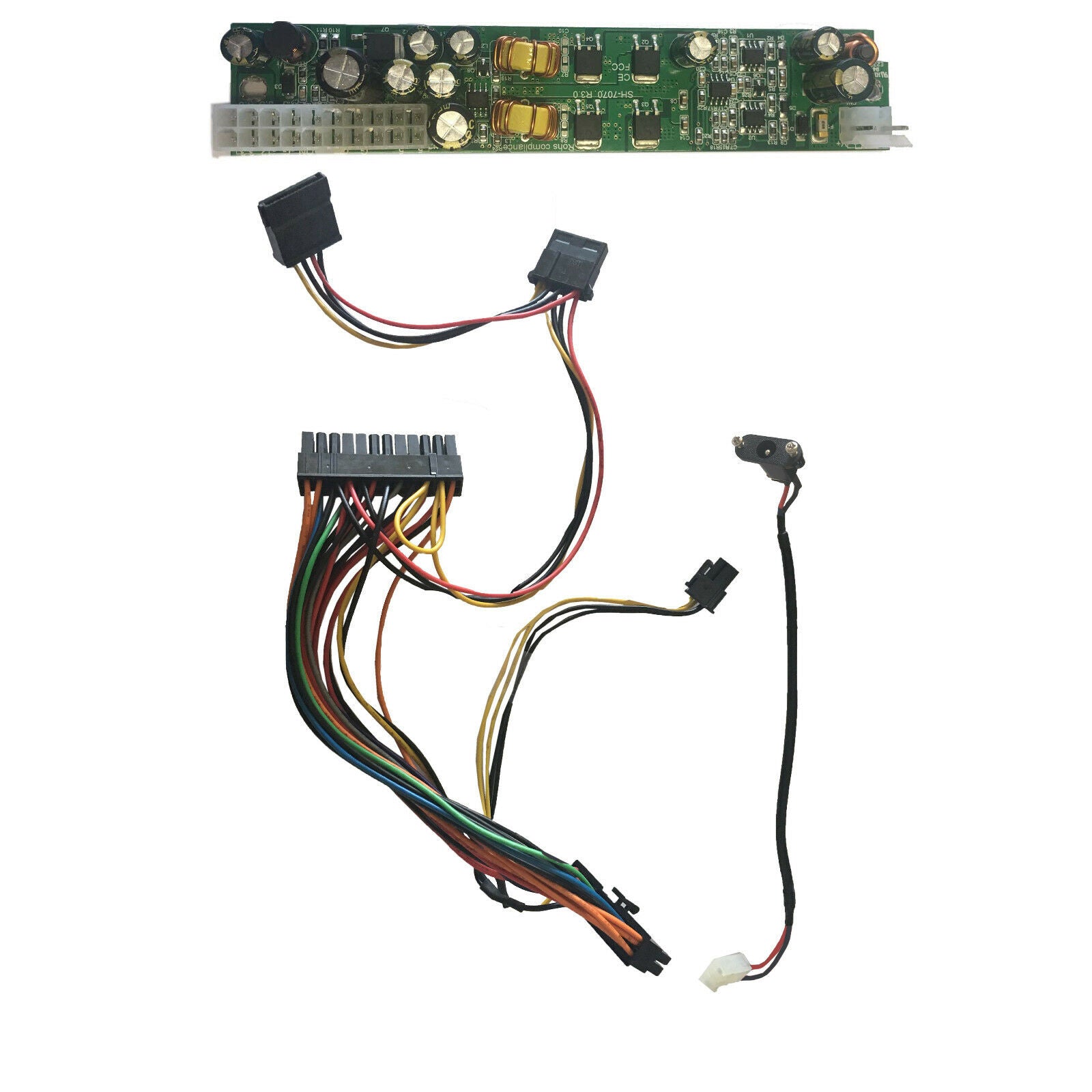

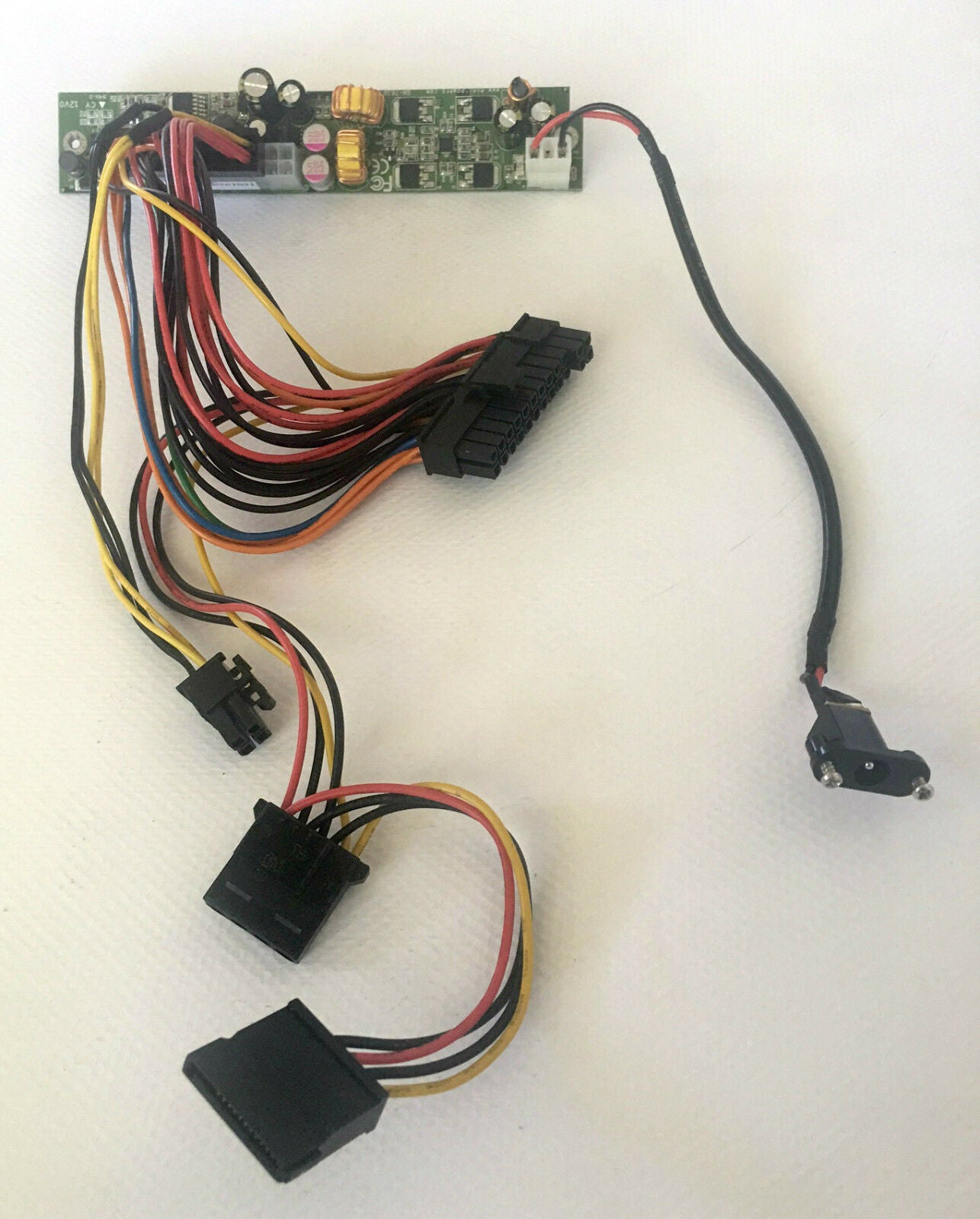

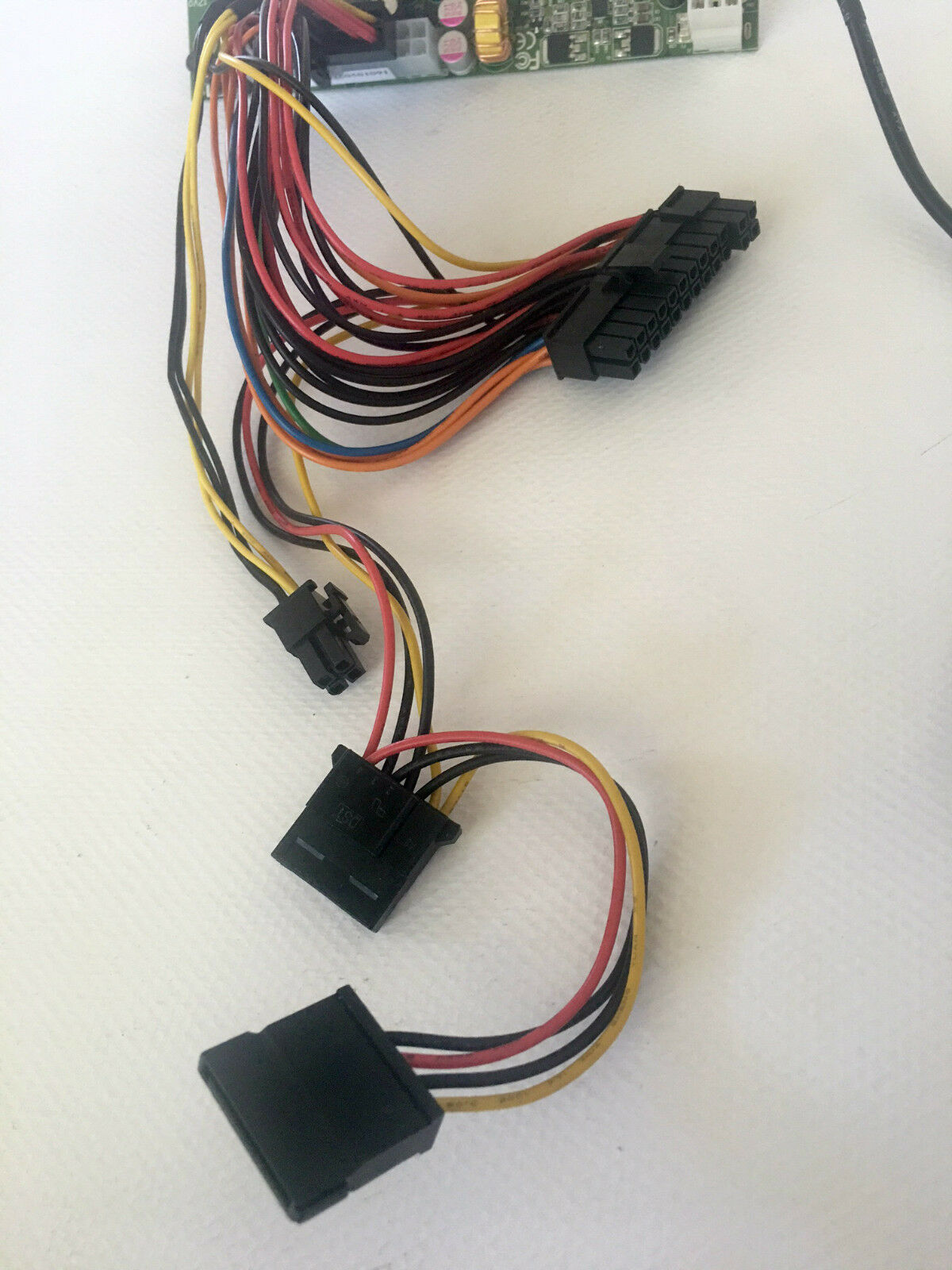

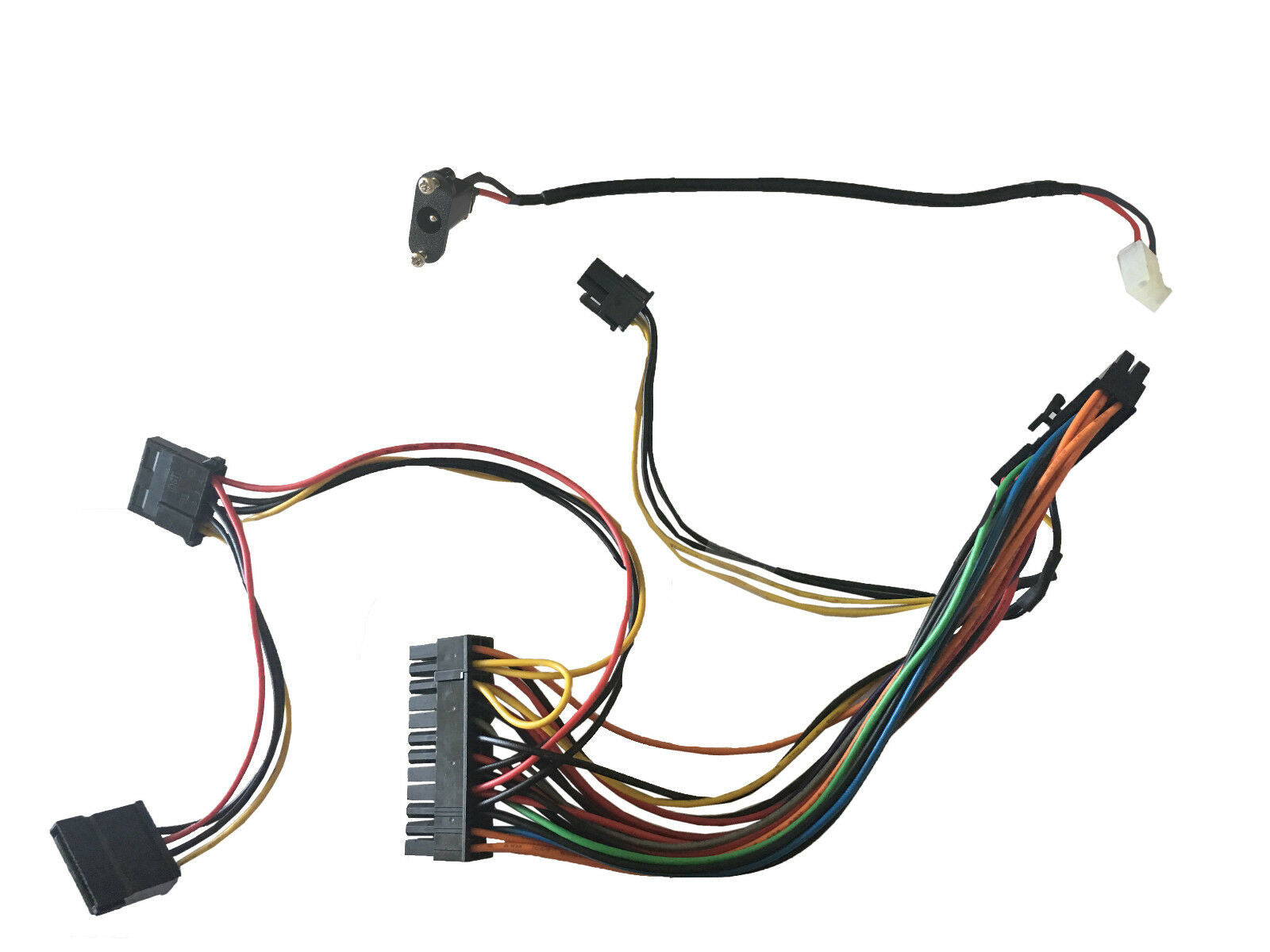

Power Connector Summary:
1 x 20/ 24 pin Dual-Use Main Power Connector
1 x P4 12V Power Connector
1 x Molex Peripheral Power Connector
1 x SATA Power Connector
