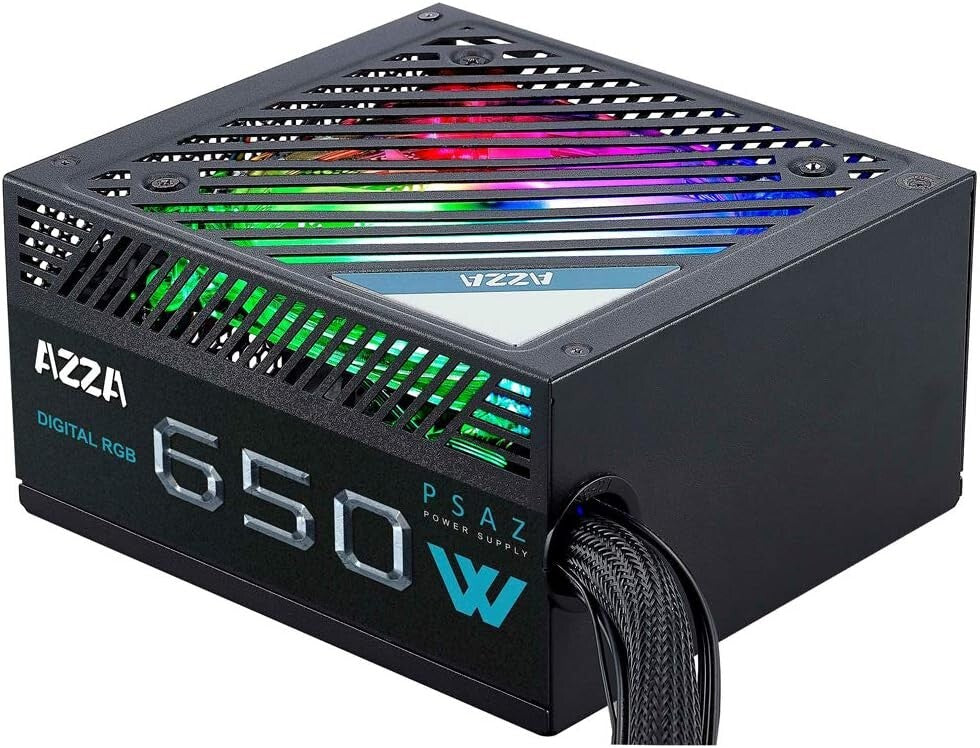

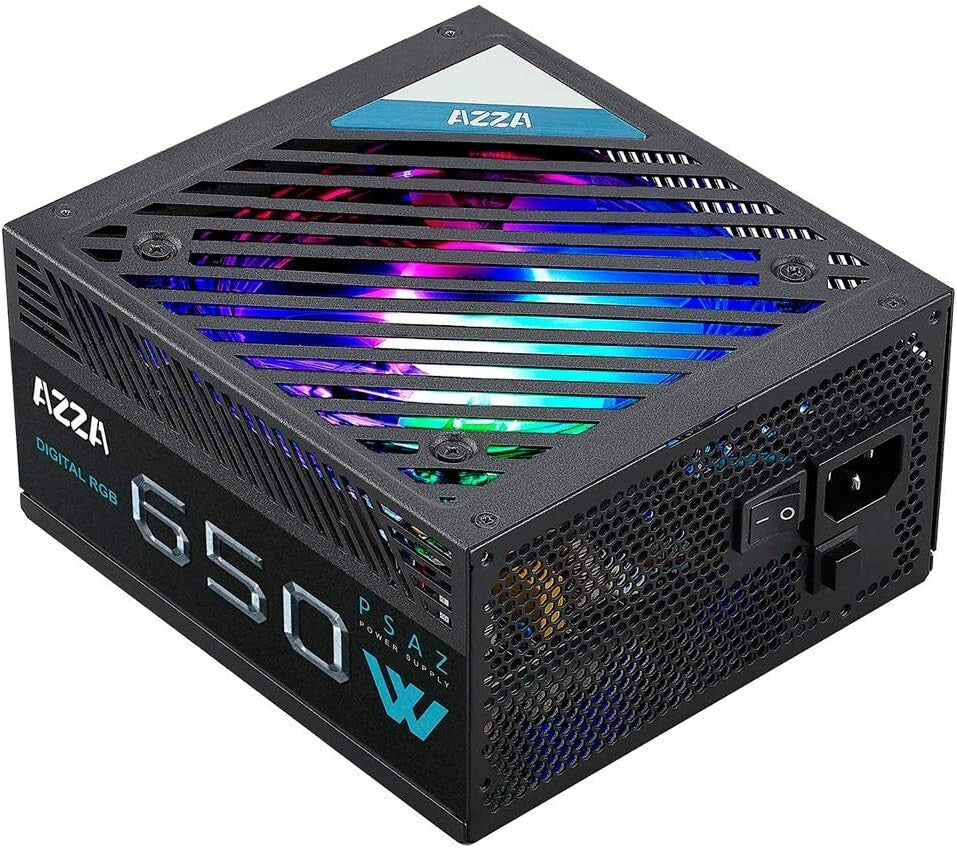

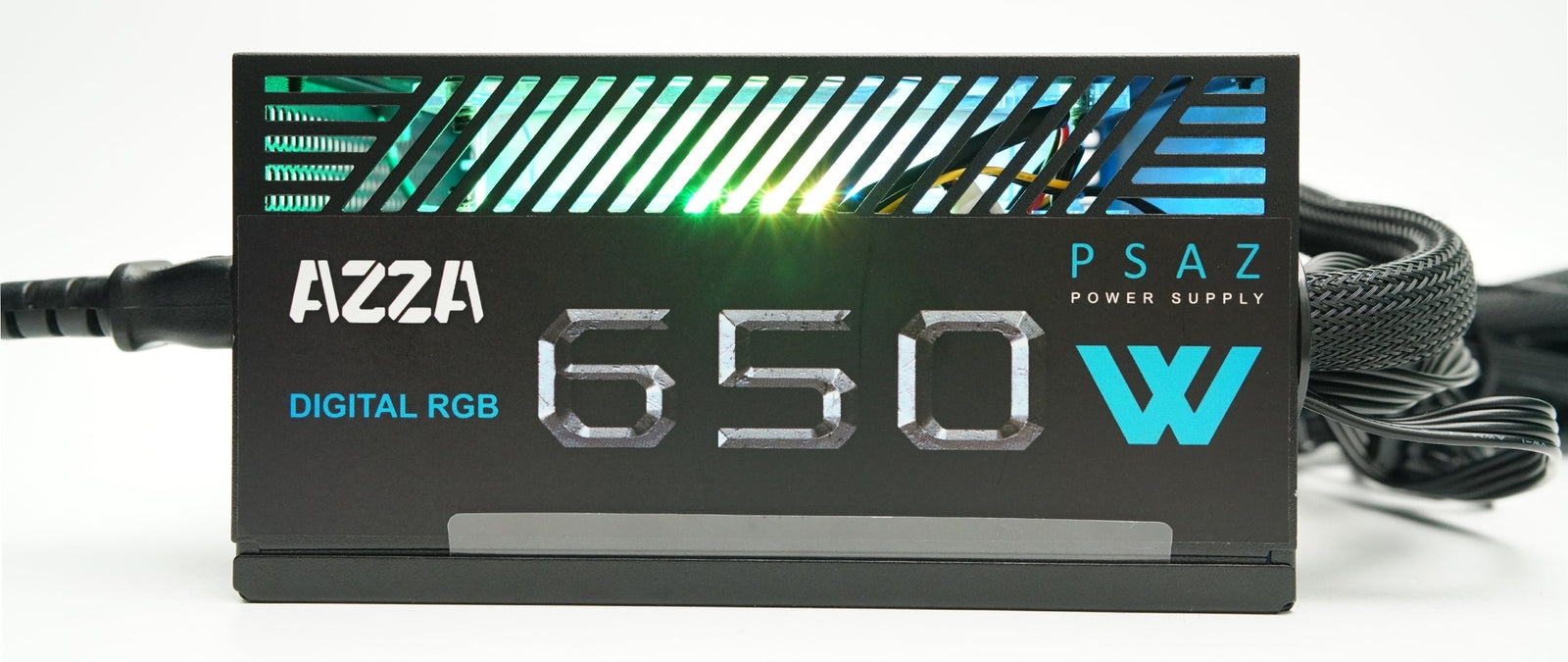

Azza 650W Digital RGB 120mm Cooling Fan Gaming PC Power Supply Model: PSAZ-650W (ARGB)
80 PLUS BRONZE CERTIFIED - Quality components that deliver 87.96% efficiency under typical load, lowering energy cost and excess heat waste.
SMART FAN CONTROL - Rear button controls smart fan mode / RGB modes

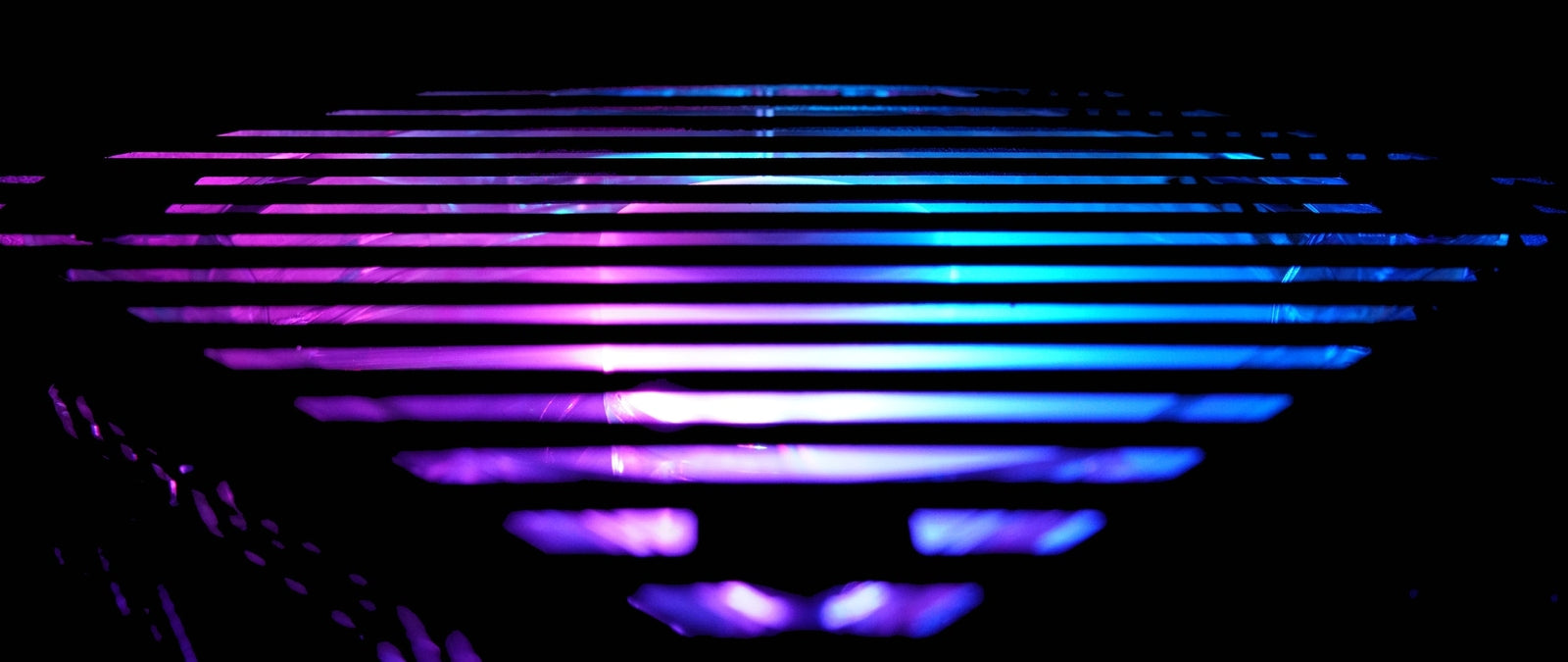

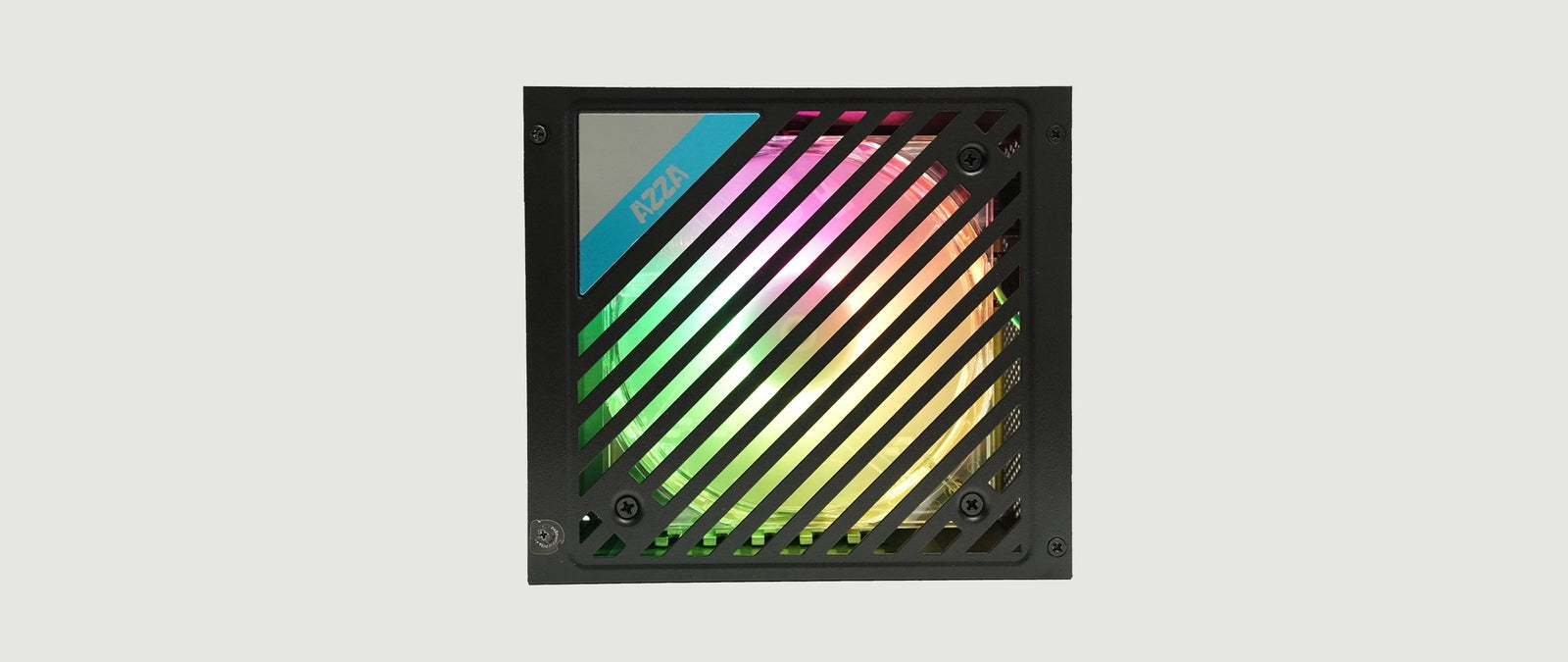

Silent ARGB fan for low acoustics 2-year warranty Intel ATX12V Non-Modular 100 V - 240 V
Product Specifications
AC INPUT
100-240VAC, 10A-5A, 47-63Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5VSB
650W
Max Combined Peak Watts
20A
20A
48A
0.4A
2.5A
650W
Maximum Power Output: 650W Efficiency: Typical 80% Manual shut-down rocker switch Input: 100--240V AC - automatic selection. No need to flip the AC input switch manually. Dimension: 165mm x 150mm x 86mm (LxWxD)

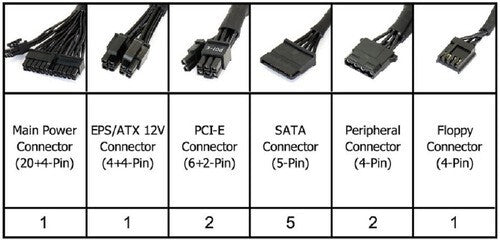

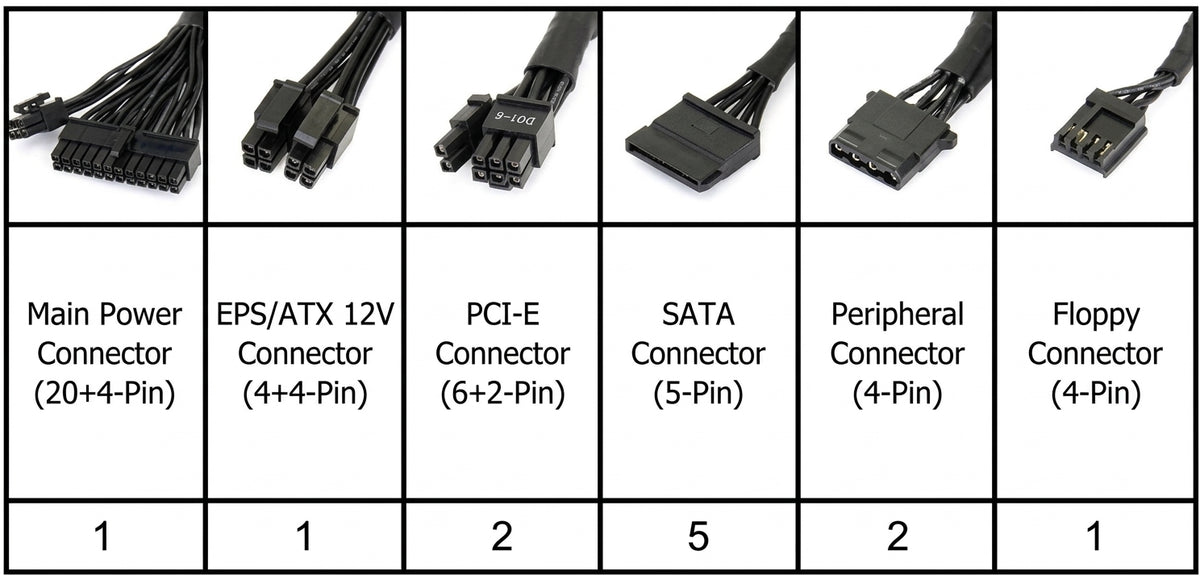

Connectors Details 1 x 20+4pin Main Power Connector (supports 20pin OR 24pin motherboards) 1 x 4+4 12V Power Connector (supports standard 2x2 P4 OR 2x4 8pin 12V boards) 2 x 6+2 PCI-E Power Connector (supports 6pin OR 8pin PCIe video cards. 5 x SATA Power Connector (on two separate line of cables for unrestricted reach) 2 x Peripheral Power Connector (on 2 separate line of cables for unrestricted reach) 1x RGB Connector 1 x Floppy Drive Power Connector
