NEW Fanless Mini-ITX Barebone PC Intel 2GHz Quad-CORE,8GB DDR3 VGA/HDMI,HD Audio
NEW Fanless Mini-ITX Barebone PC Intel 2GHz Quad-CORE,8GB DDR3 VGA/HDMI,HD Audio
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

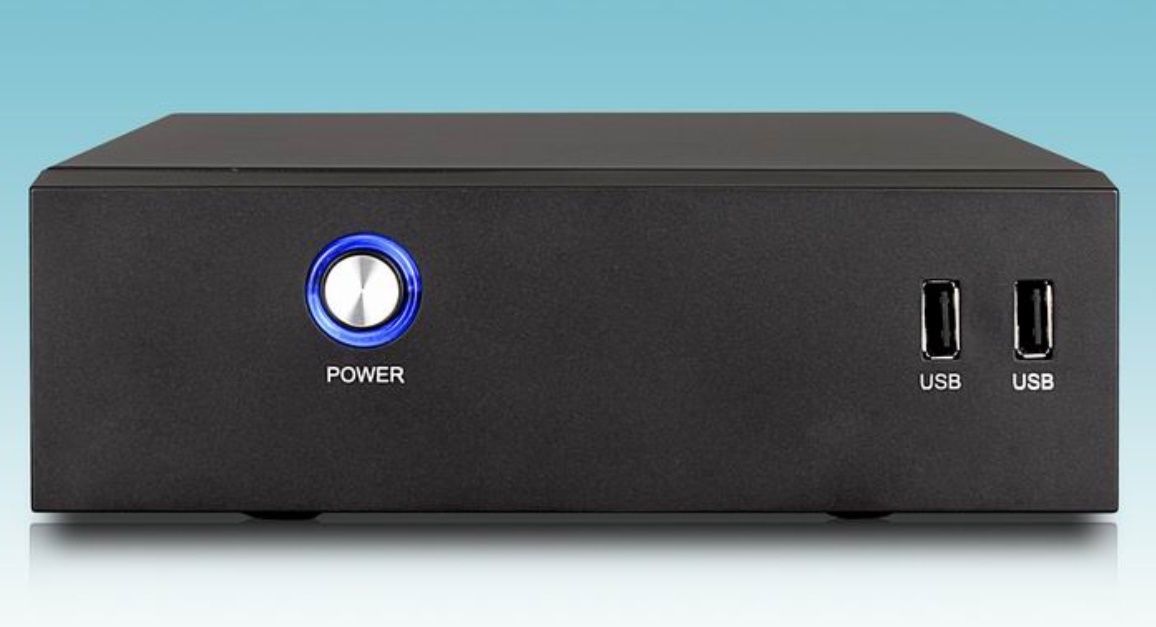

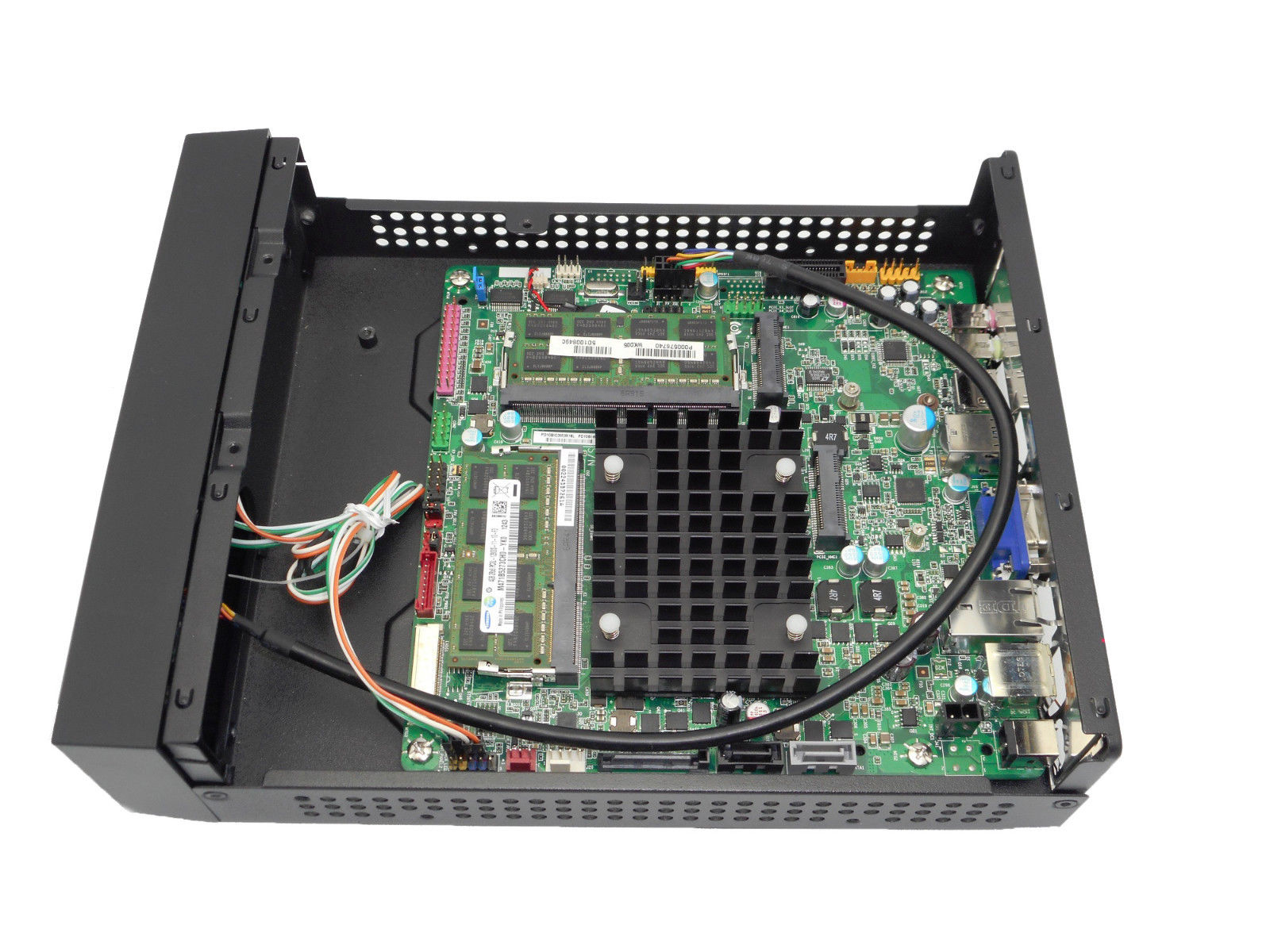

NEW Fanless Totally Silent Mini PC Barebone (just add HDD or SSD)
VESA Mounting Hardware Included to Allow you to mount on the back of VESA-compatible LCD Monitor
- Long life and low maintenance - With no fan blowing to bring dust inside,

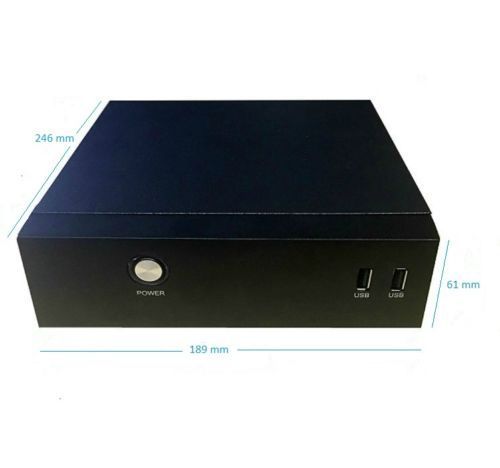

- Silent and light weight - Case dimensions: 246mm x 61mm x 189 mm
- Quad-Core Processor with 8GB DDR3 Fast Memory

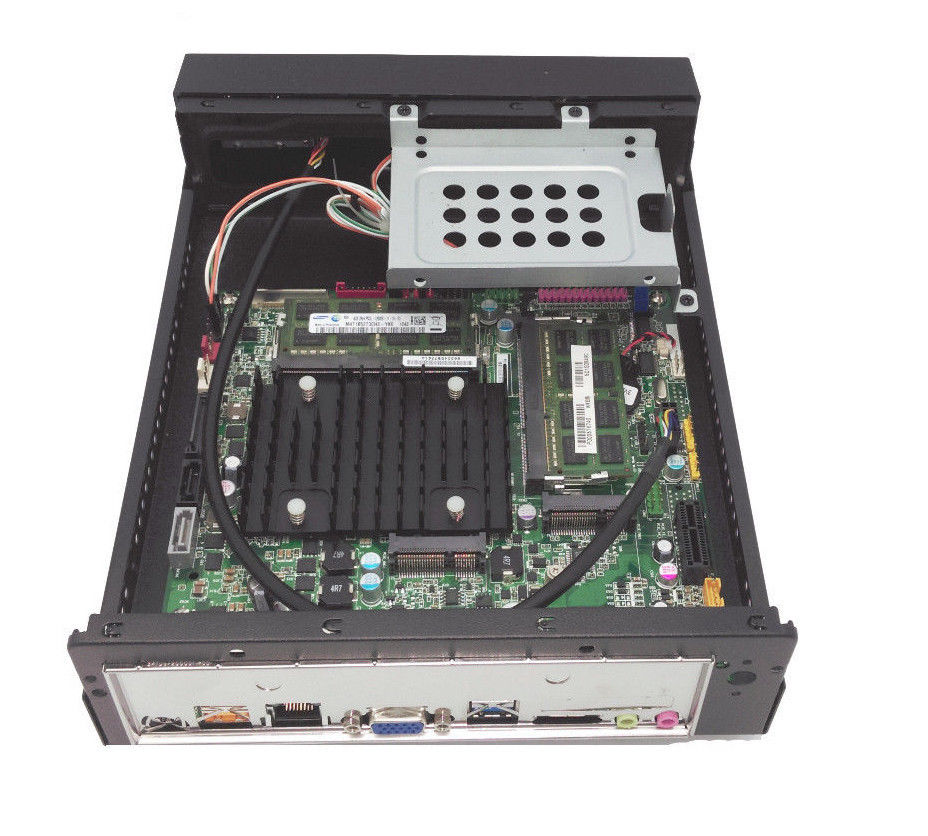

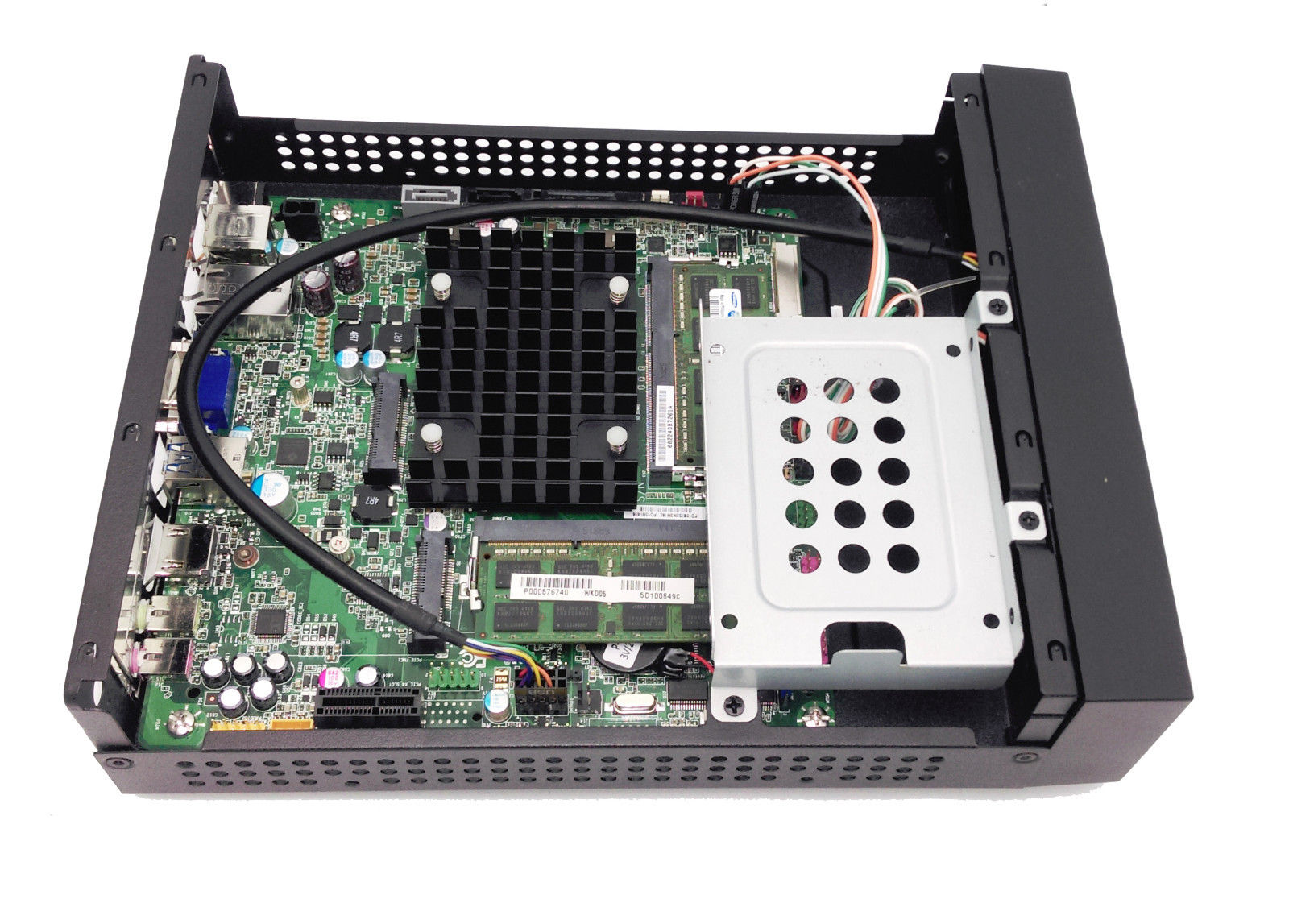

Authentic Intel Quad-Core 2GHz Processor with integrated heatsink (fanless)
Low power 8GB DDR3 memory
D-SUB/ HDMI built-in integrated Intel® HD Graphics
8-channel 7.1 HD Audio
Gigabit (10/100/1000 Mb/s) Ethernet LAN including an RJ-45 back panel connector with integrated status LEDs
High efficiency (CEC Level 6) 60W UL approved AC power supply with matching US 3-prong AC power cord
VESA mounting screws included in case you want to mount this PC to the back of your VESA-compatible LCD monitorINCLUDED: Internal CMOS buzzer to connect to motherboard's speaker port (as pictured)
All you need to do to complete this PC is to: add 2.5" drive
- Power adapter works anywhere worldwide with automatic universal AC input selection from 100v to 240v AC (UL/cUL/FCC/CB/CE approved)
- Total of 6x USB 2.0 ports with 2 high-current fast-charging ports
- Low Idle Power Consumption: Can be used as an ultra low-power server, home, car or boat PC: Entire system including the power adapter consumes about 11 to 12W with system in the idle state.
- Operating System Supported: Windows 7 32/64bit, Windows 8.1 64bit, Windows 10 64bit.
- Application: Smart mini PC, Industrial Embedded System, POS/POI, KIOSK, DVR, CCTV, Car, Boat, PC , Thin Client, Set Top Box, Firewall, Banking Terminal, Transaction Station , ATM, NAS, Web Payphone and Terminal Platform, etc.

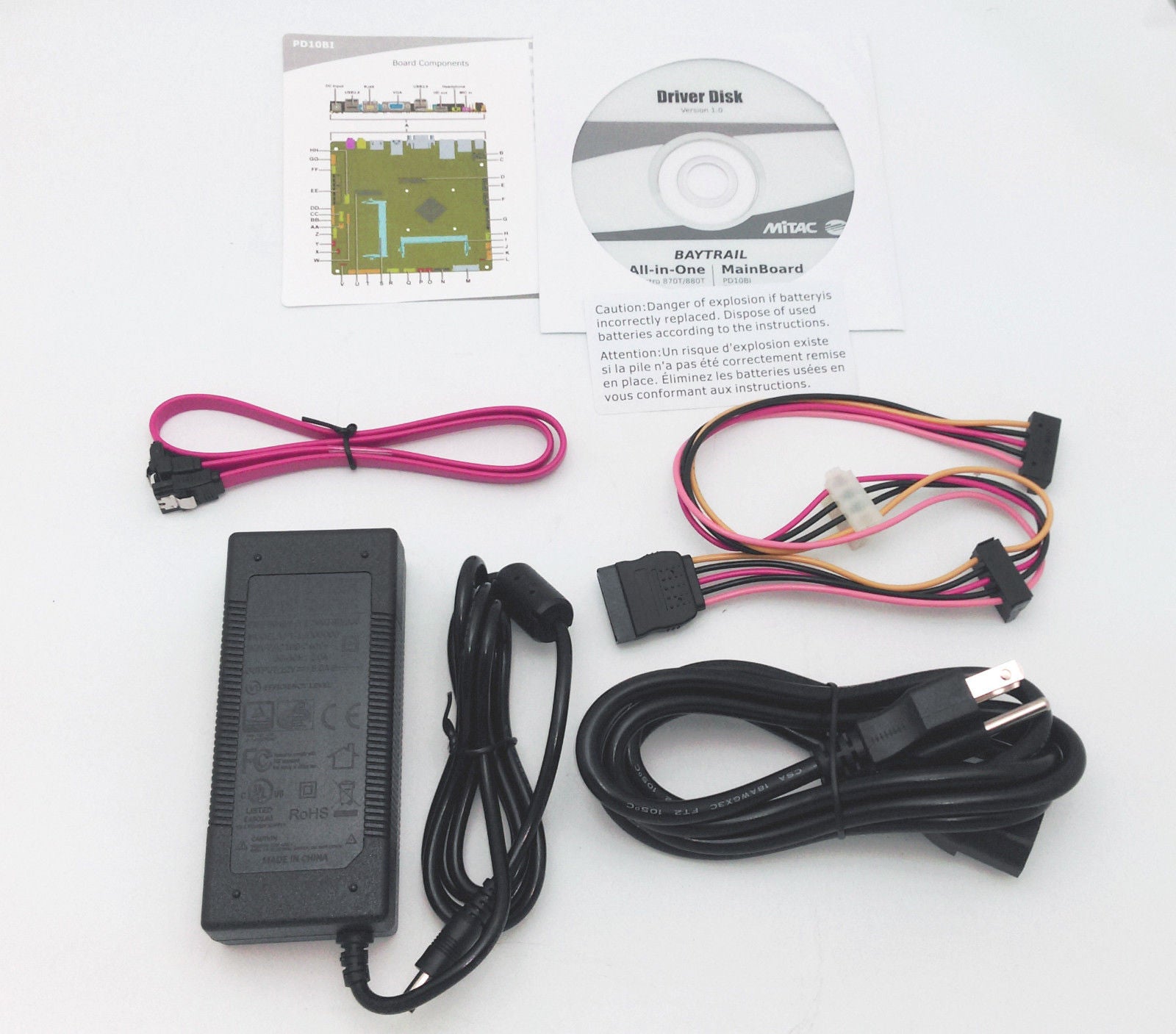

Kit Includes:
* Motherboard manual/driver CD and guide
* 8GB DDR3 Lower Power SODIMM installed.
* 1 SATA drive data cable
* 3-prong UL safety 5' AC power cord
* HIGH POWER® UL/FCC Approved 60W power supply ( lead-free safe with universal AC input selection - 100-240V )
* Motherboard manual/driver CD and guide
* 8GB DDR3 Lower Power SODIMM installed.
* 1 SATA drive data cable
* 3-prong UL safety 5' AC power cord
* HIGH POWER® UL/FCC Approved 60W power supply ( lead-free safe with universal AC input selection - 100-240V )
All you need to do to complete this PC is to: add 2.5" drive
Technical Specifications:
Processor:
# of Cores: 4
# of Threads: 4
Clock Speed: 2.0 GHz
L2 Cache: 2MB
Instruction Set: 64-bit
The Intel® Celeron™ J1900 Quad-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics and memory controller in one package. Based on the 22nm manufacturing process, the Intel® Celeron™ J1900 uses the smallest package of any desktop processor within a low thermal envelope of on 10 watts.
Graphic:
• Intel® HD Graphics
• Dual graphics output: Support HDMI and D-Sub ports by independent display controllers
• Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• Intel® HD Graphics
• Dual graphics output: Support HDMI and D-Sub ports by independent display controllers
• Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Audio:
Realtek ALC888S 2 + 2 Channel High Definition Audio
8-channel (7.1) HD Audio via the HDMI interface
Realtek ALC888S 2 + 2 Channel High Definition Audio
8-channel (7.1) HD Audio via the HDMI interface
LAN:
Gigabit (10/100/1000 Mb/s) Ethernet LAN including an RJ-45 back panel connector with integrated status LEDs
Gigabit (10/100/1000 Mb/s) Ethernet LAN including an RJ-45 back panel connector with integrated status LEDs

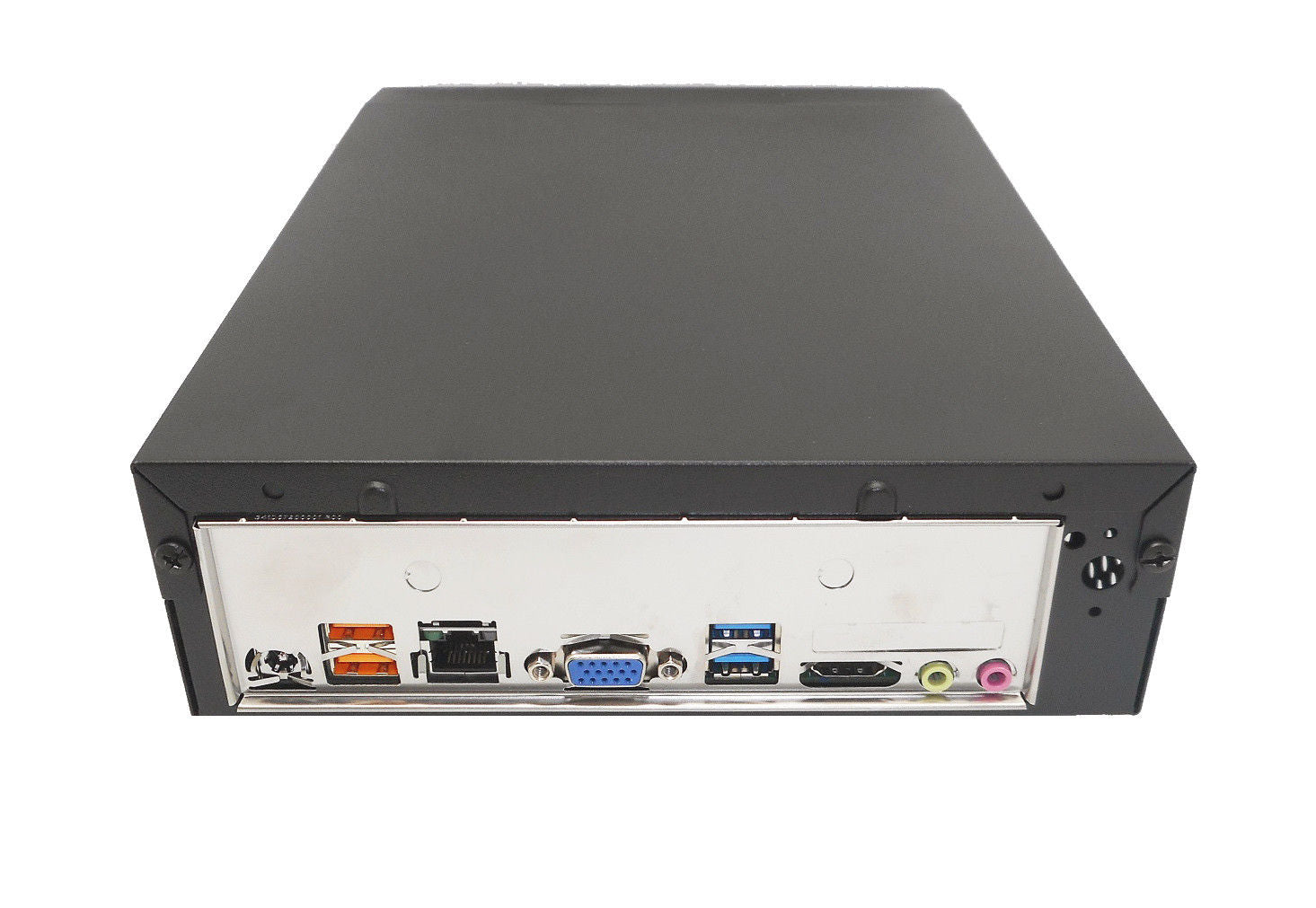

USB ports:
2x front USB 2.0 ports
2x rear USB 2.0 ports
2x rear USB 2.0 high-current/fast-charging ports (yellow color)
2x front USB 2.0 ports
2x rear USB 2.0 ports
2x rear USB 2.0 high-current/fast-charging ports (yellow color)
Legacy Parallel COM port:
Serial ports onboard headers: 2 (connector ports not included)
Parallel Port via onboard header: 1 (connector port not included)
Question & Answer
Q: What is the exact condition of the system I am getting ? Where is it built ?
A: This system is custom built at our facility in California, USA. There may be very minor scratch on some area due to the difficulty in getting the motherboard into such a small case. Fortunately, the remaining work left for you -- drive & O.S. installation is the easy part.

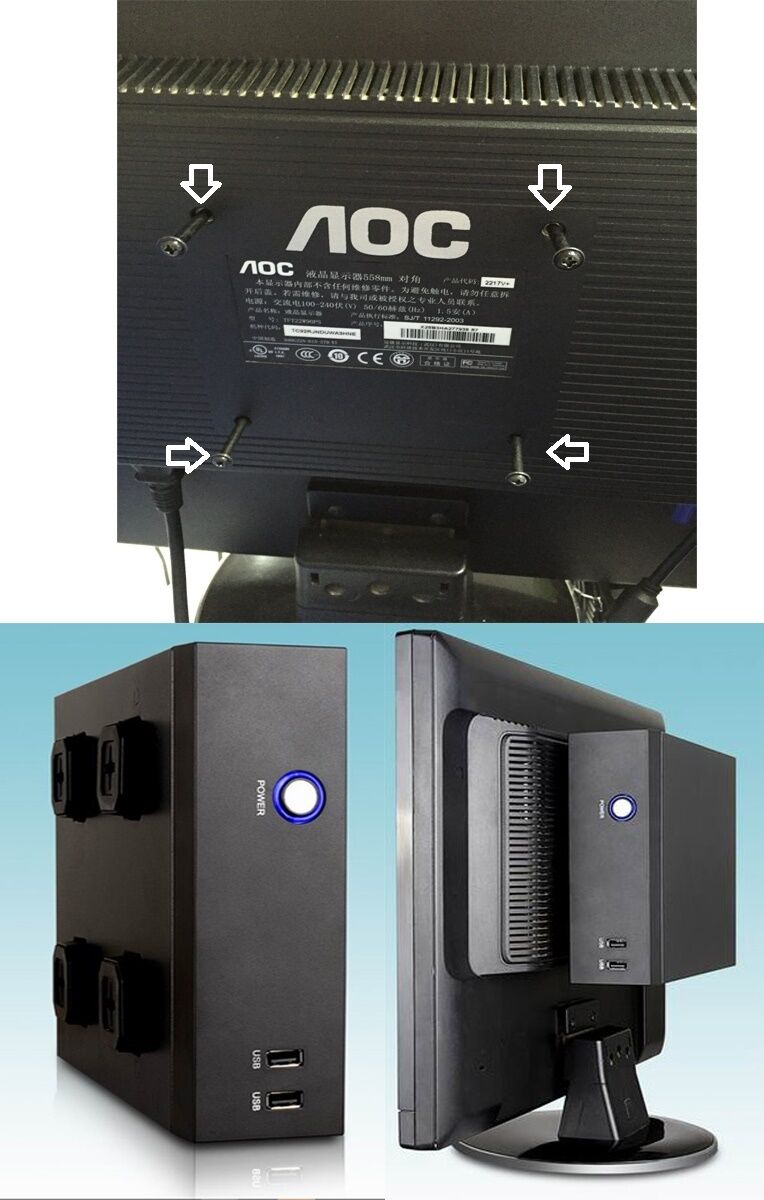

Q: How do I mount this mini system to the back of my monitor ?
A: Install the 4 included VESA screws on the back of your VESA compatible monitor. Then simply align the center of each integrated VESA mount/stand to each screw like how you would mount a picture frame.
