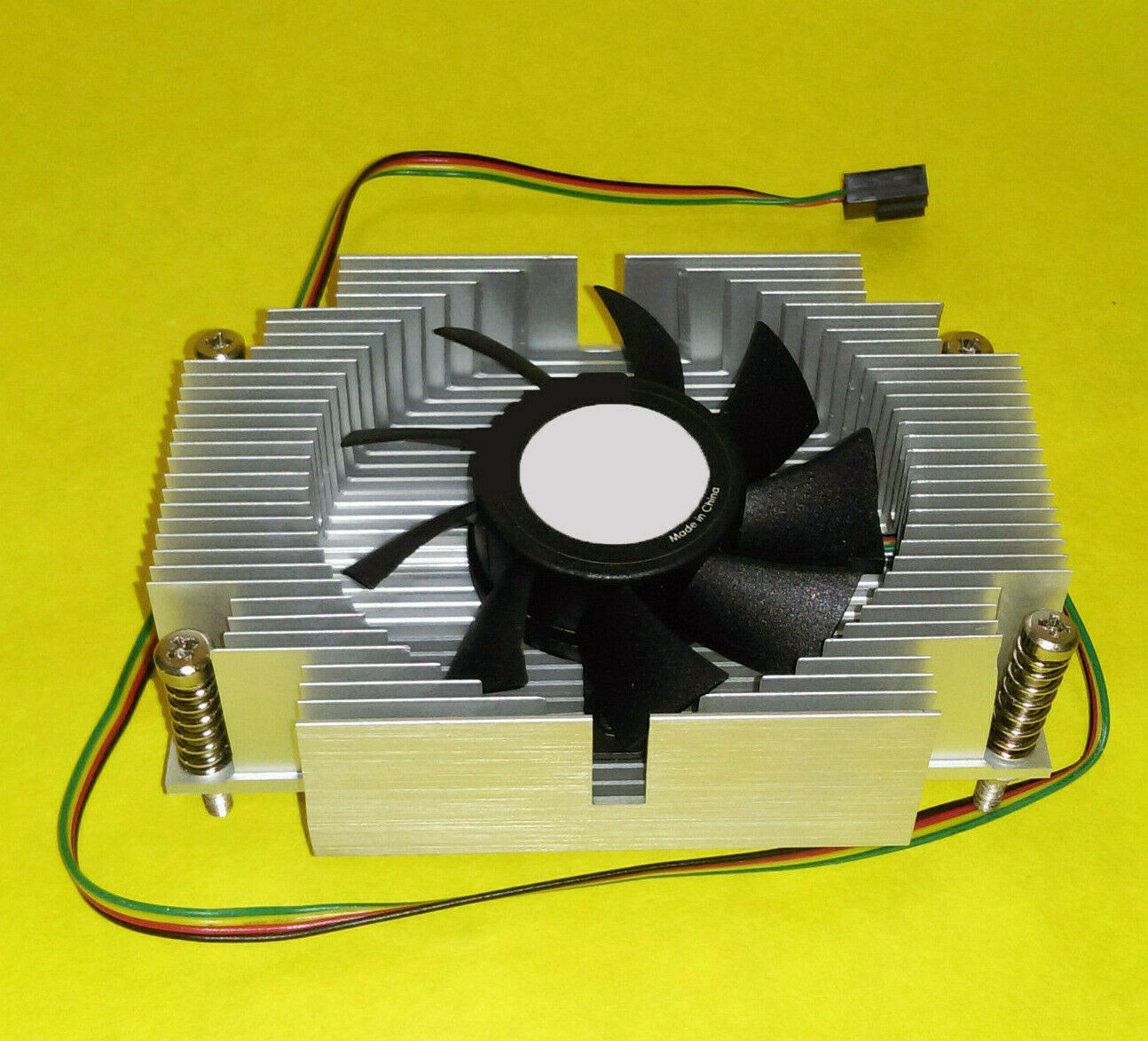

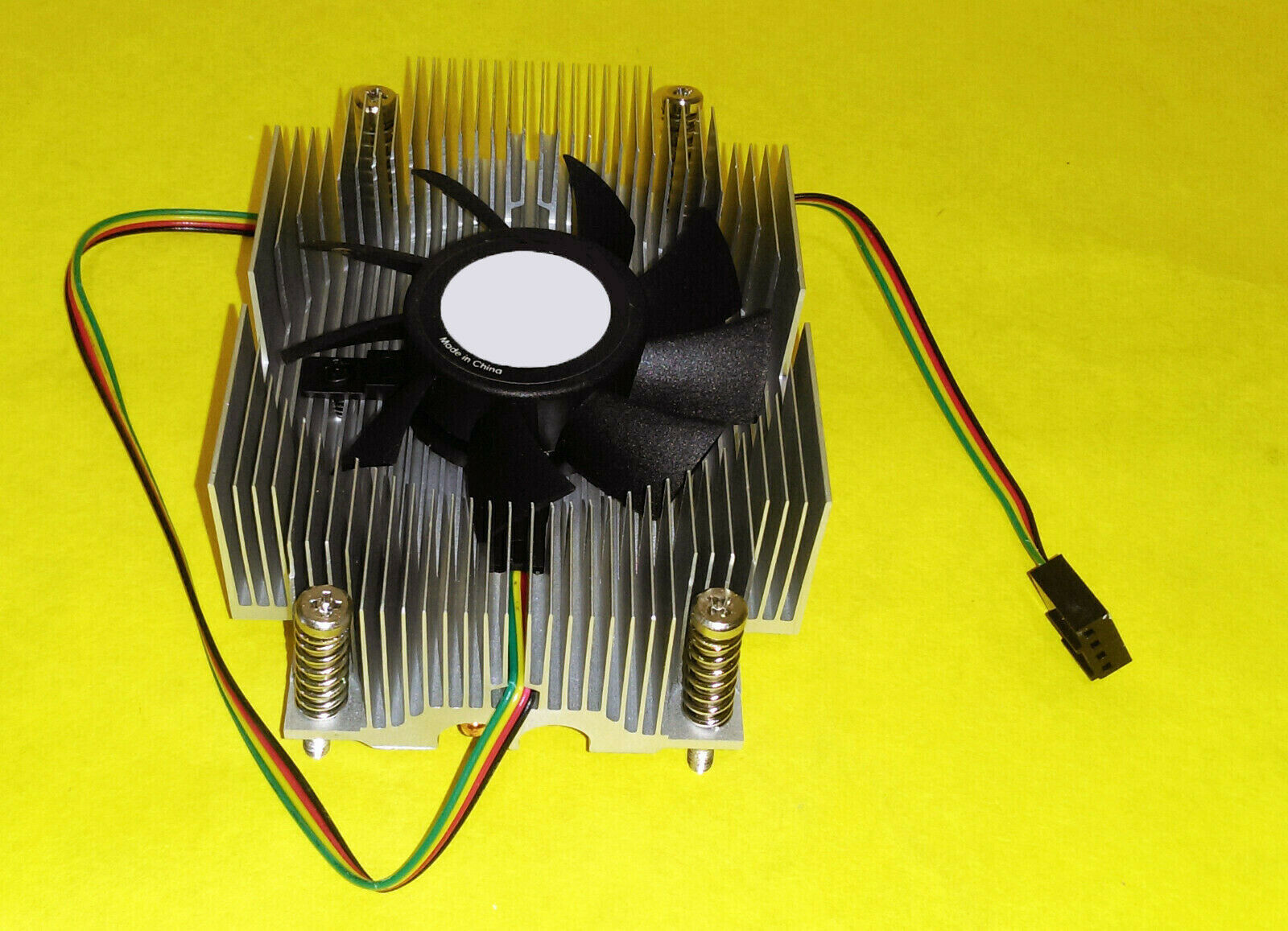

NEW Low Profile 1U/ Mini ITX/ Micro ATX Cooler for AMD AM2,AM2+,AM3,AM3+,FM1 CPU

Regular price $18.99


Low Profile Heatpipe Cooler for AMD CPU

Supports Socket: AM2, AM2+, AM3, AM3+ & FM1

Compact heatsink design for Mini ITX, MicroATX, ATX, HTPC, Panel PC, Car PC, & 1U Server

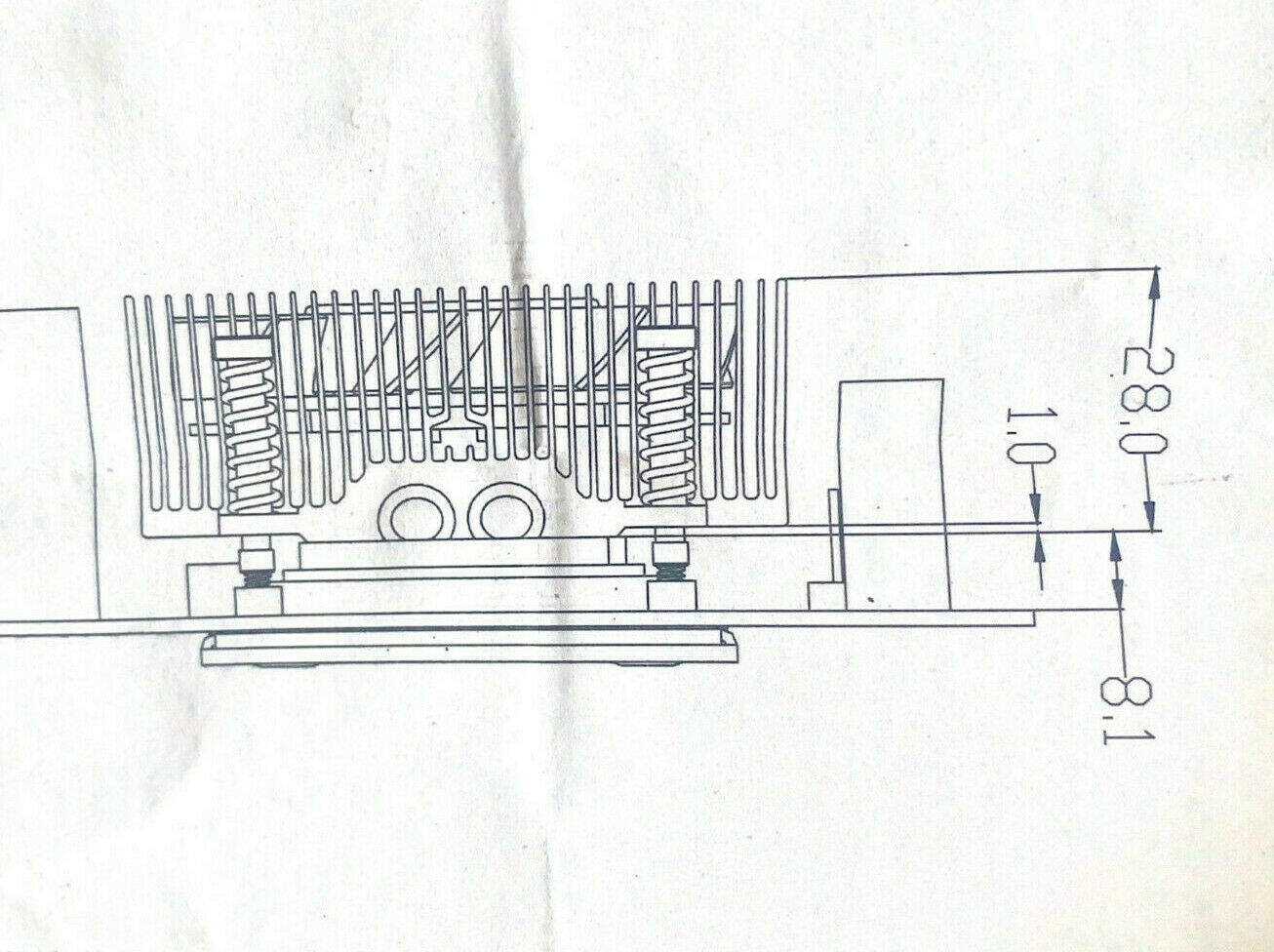

Heatsink height of just 28mm - fits most slim low profile cases.

Optimized fan design with intelligent PWM functions.

Integrated 65mm frameless fans with ball bearing and intelligent PWM control to minimize noise level while providing sufficient air flow for CPU cooling during load and to provide long service life even in a high temperature environment.

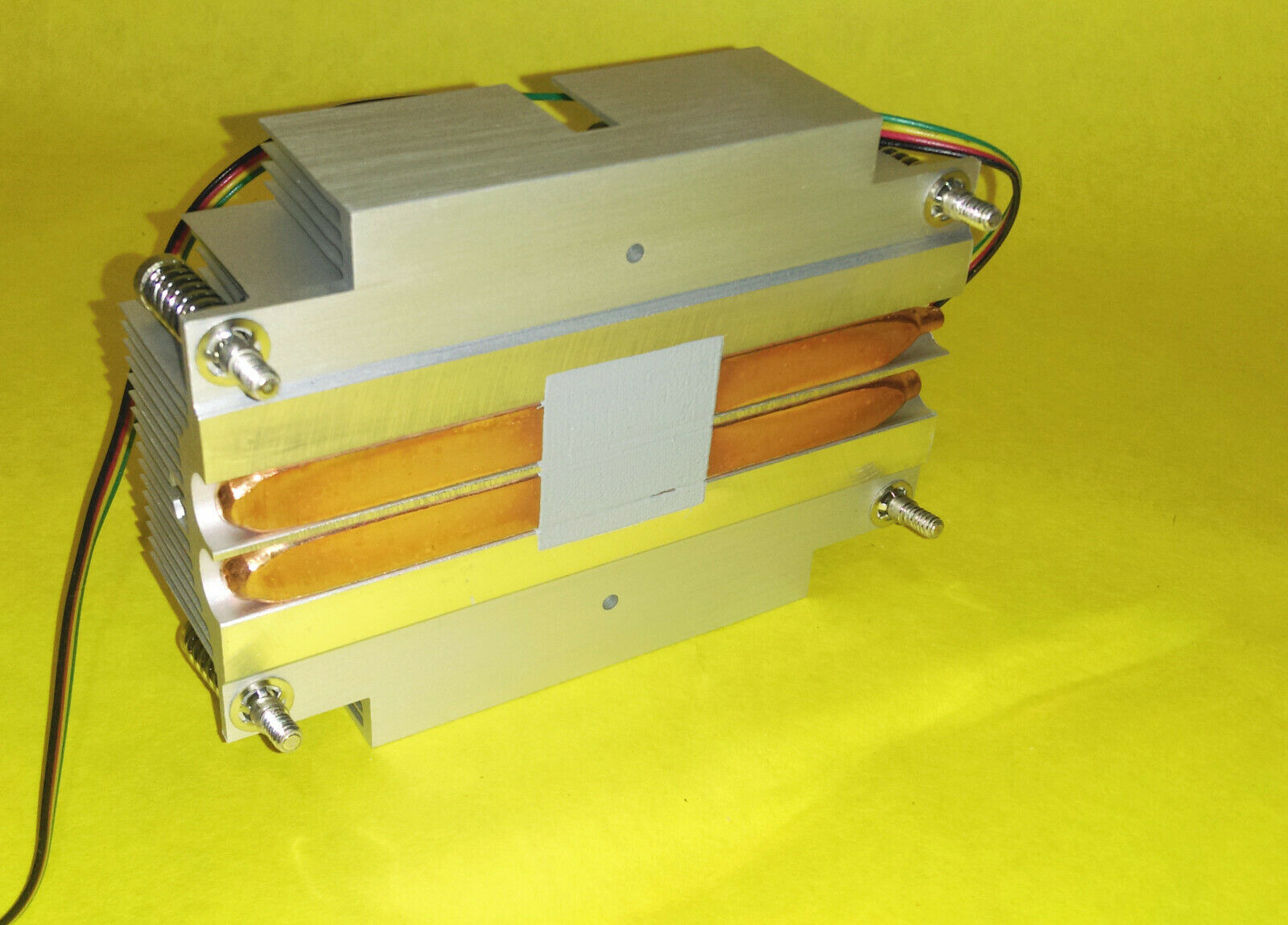

2 High Quality sintered heatpipe

Enables more efficient and faster heat transfer from core to aluminum fins.


AMD CPU Socket: AM2, AM2+, AM3, AM3+ & FM1 CPU: AMD 2650e, 3250e, 4850e, 5050e and others with low power consumption up to 95W (TDP) with good case ventilation

Technical Specifications:

Airflow (CFM): 20 CFM (Max)
Bearing: Ball Bearing

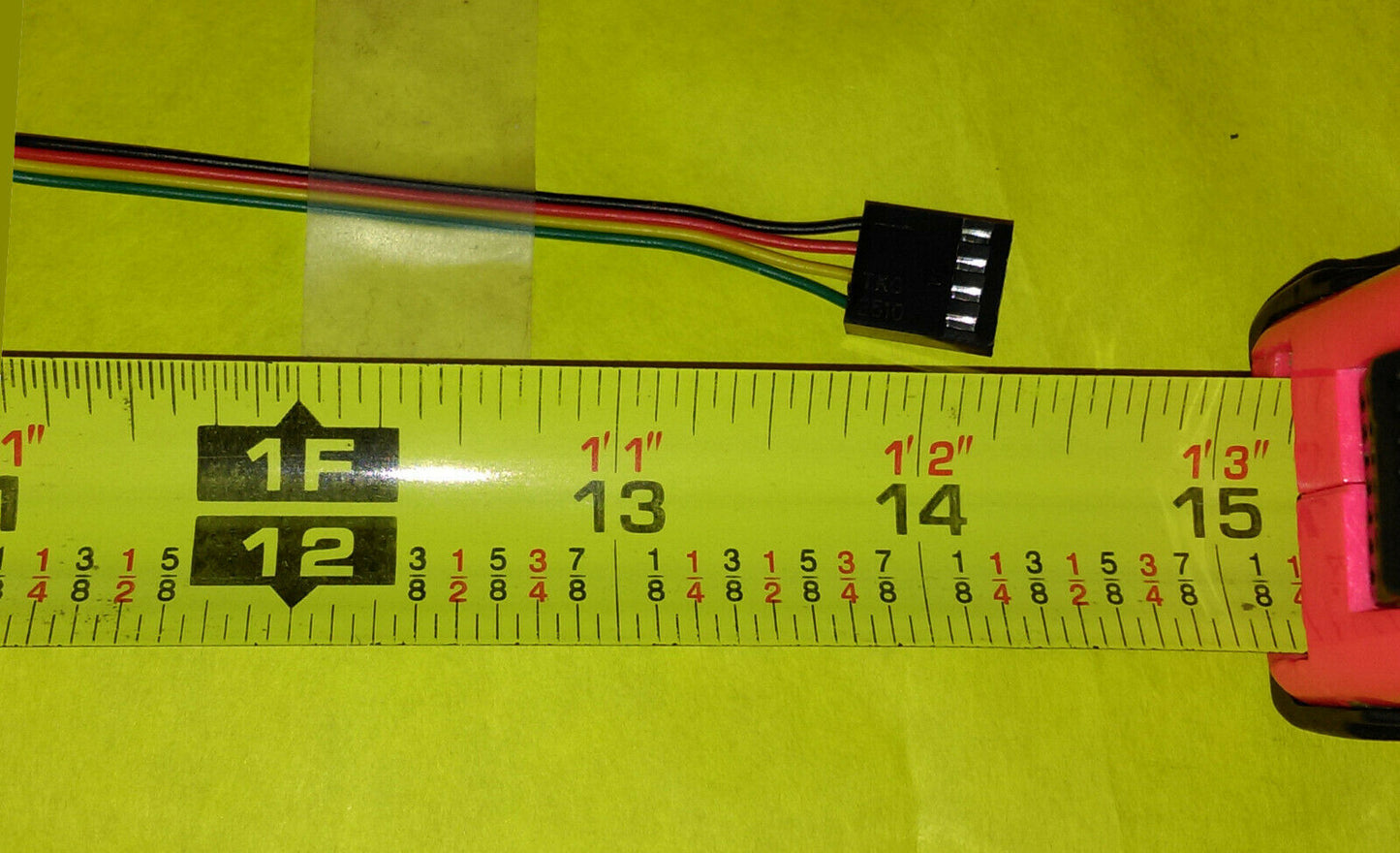

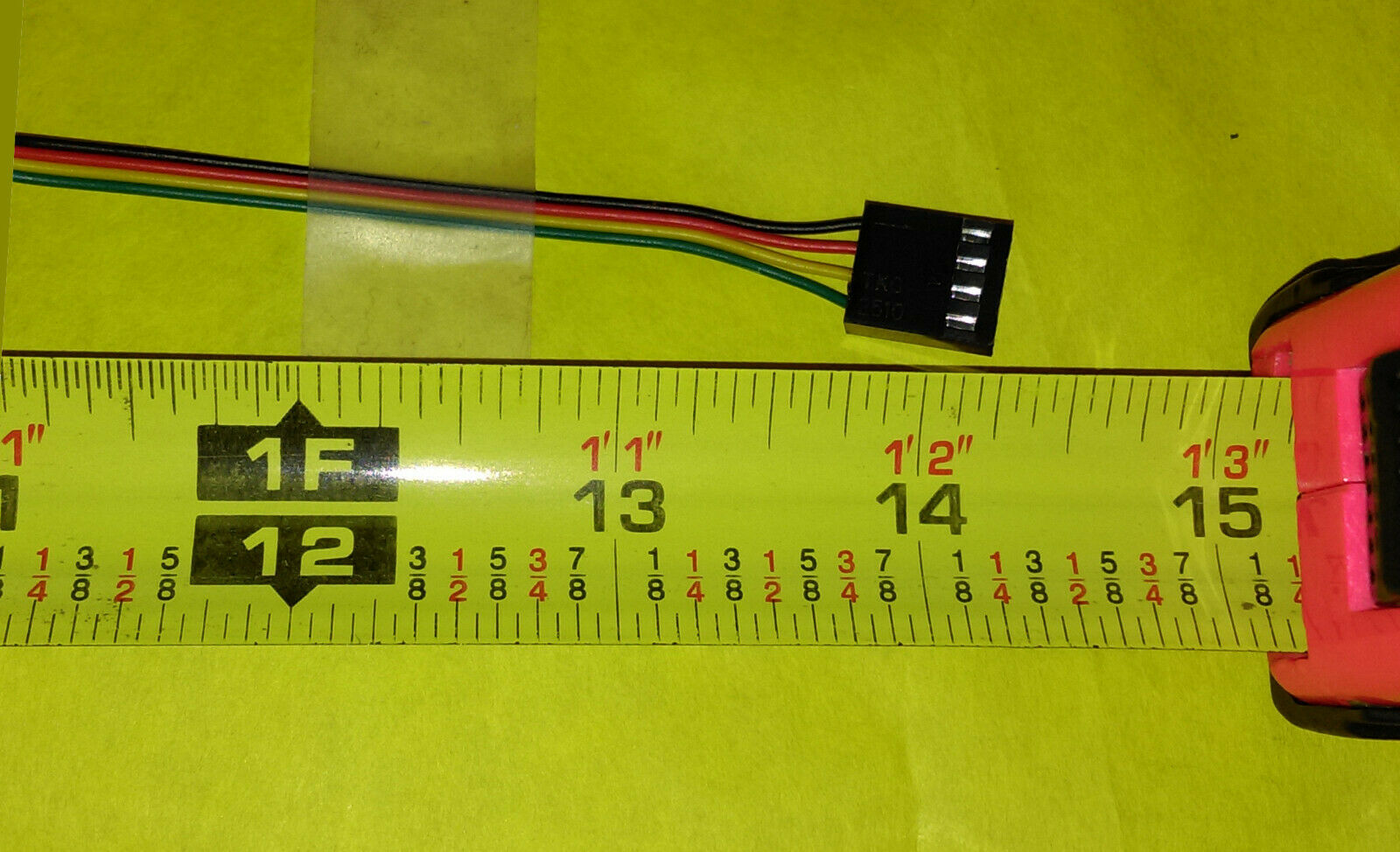

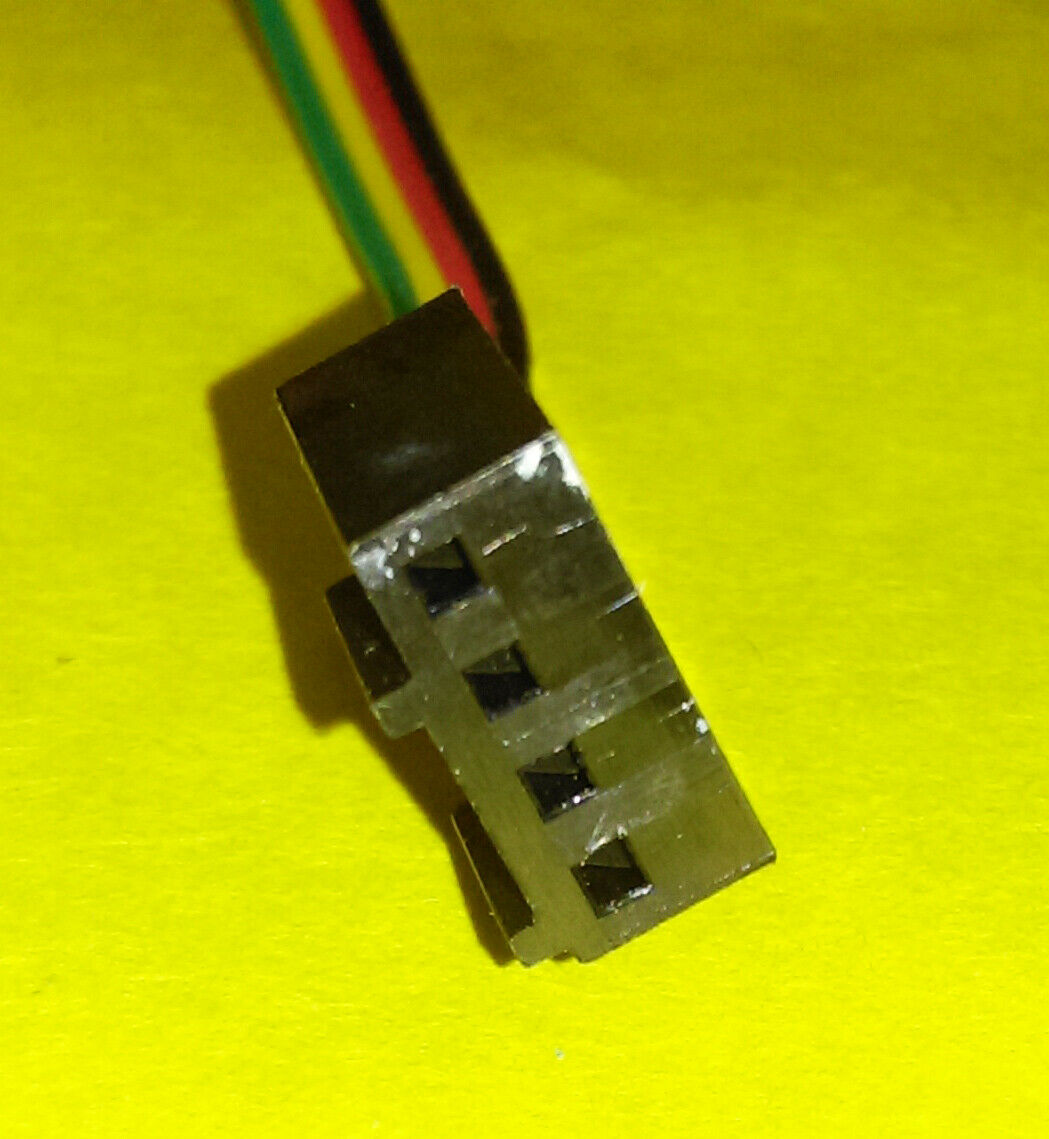

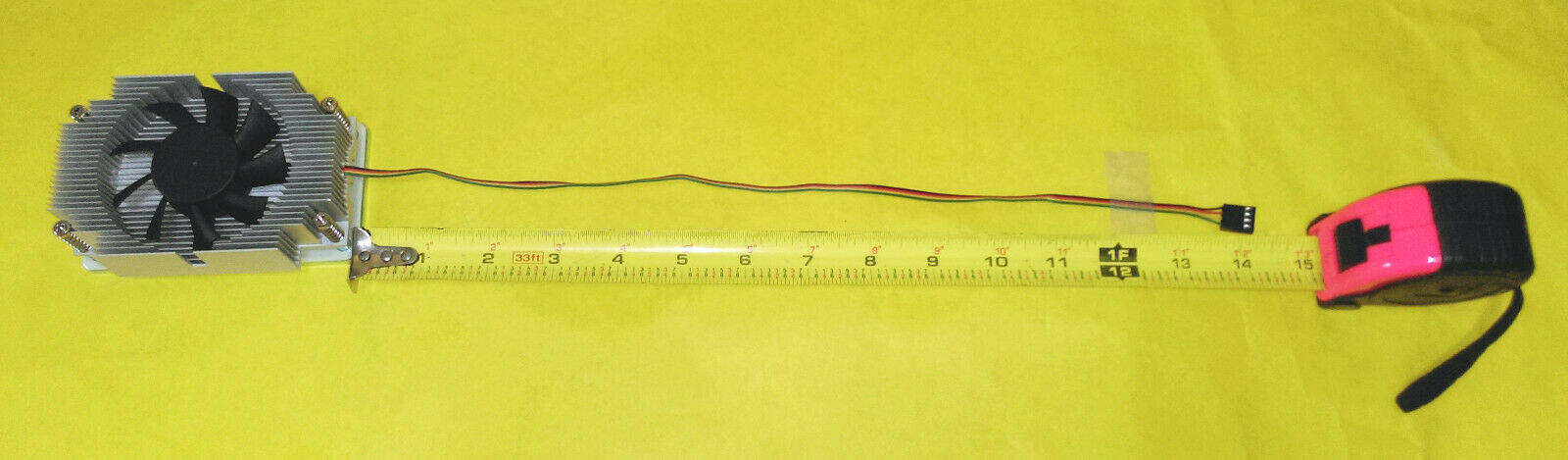

Cable length: 250mm
Current: 0.20A
DC Voltage: 12V
Fan Speed: 1200-2600 RPM
Fan Dimensions: 65mm x 15mm (H)

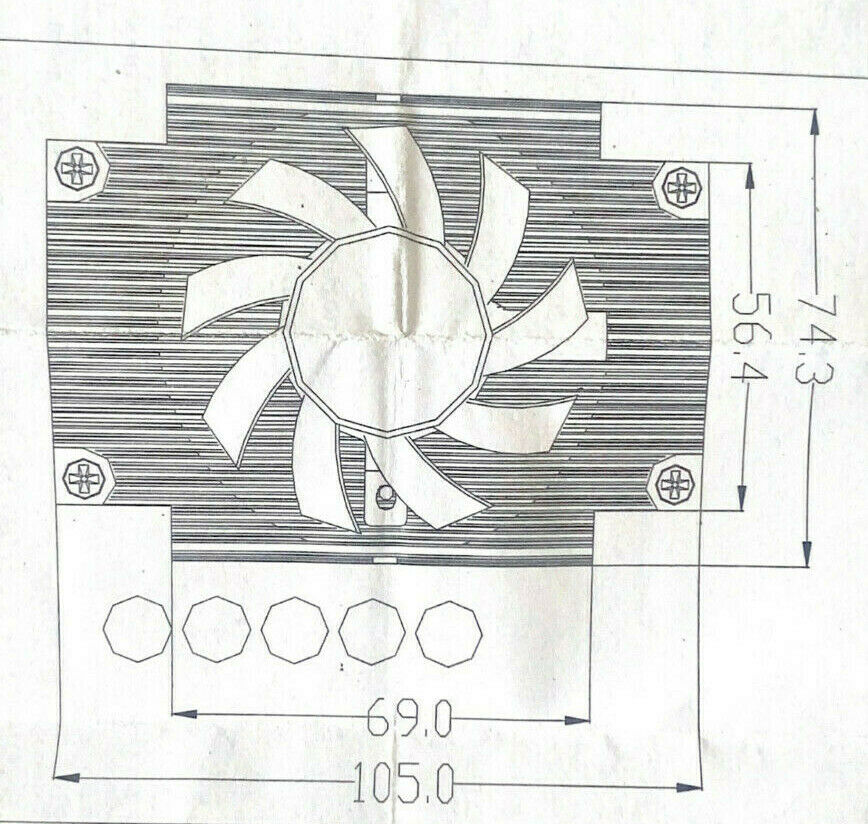

Heatsink Dimensions: 105mm (L) x 74.5 mm (W) x 28mm (H)
Lifetime MTF at 40 degrees C: 50'000 hrs
Noise level: 15~27.6 dBA
Static Pressure: 1.25mmAq

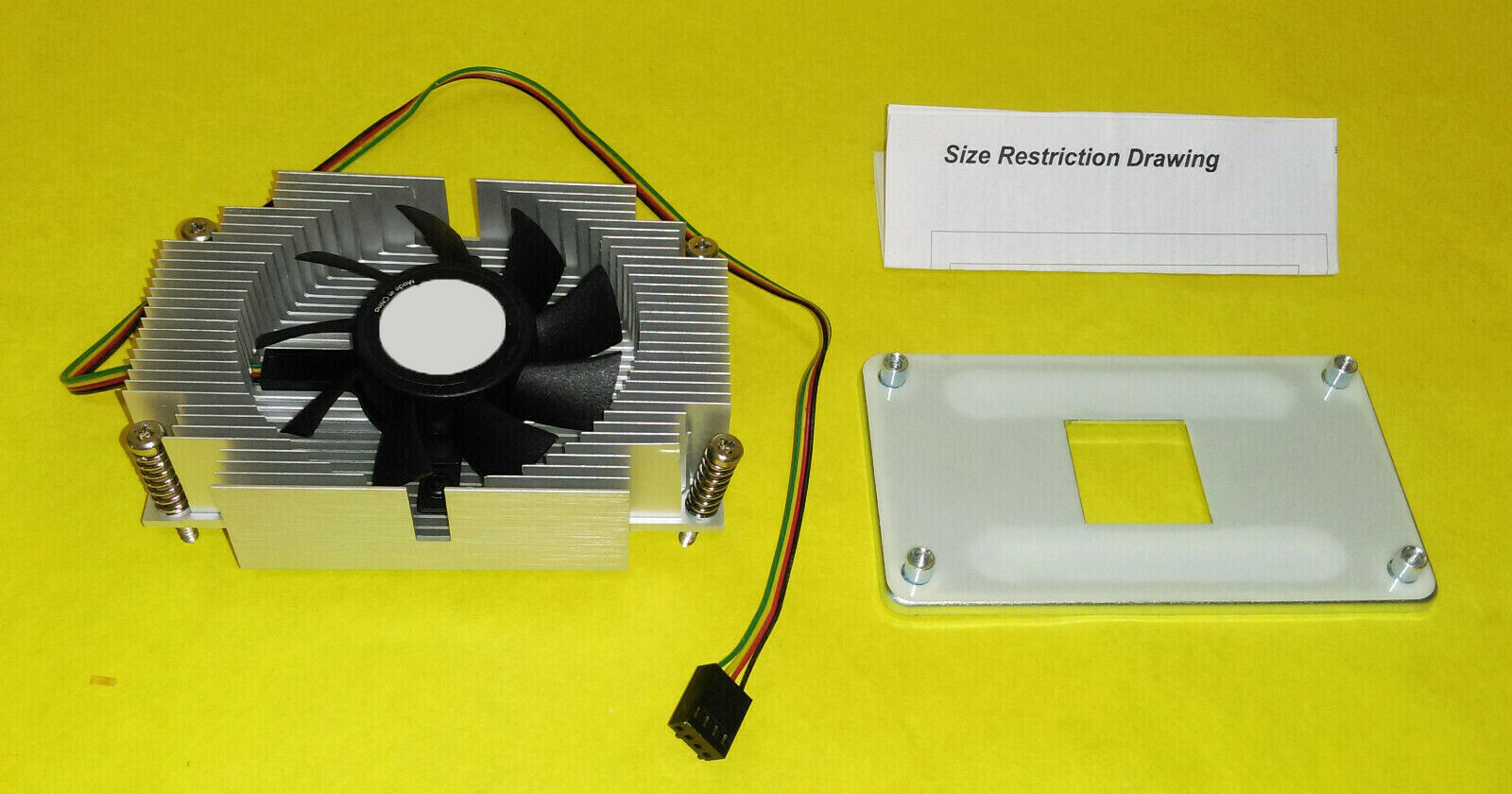

  • High Performance Pre-applied thermal compound
  • Installation Instruction sheet

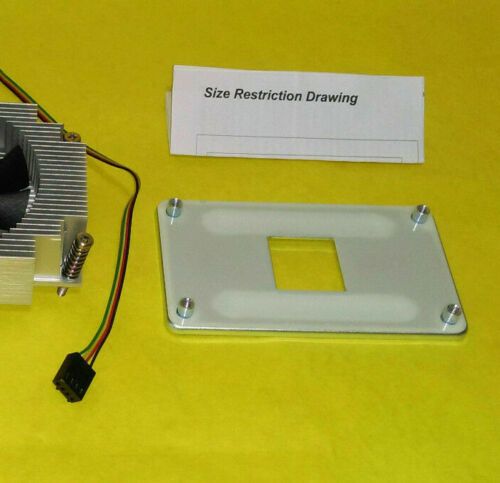

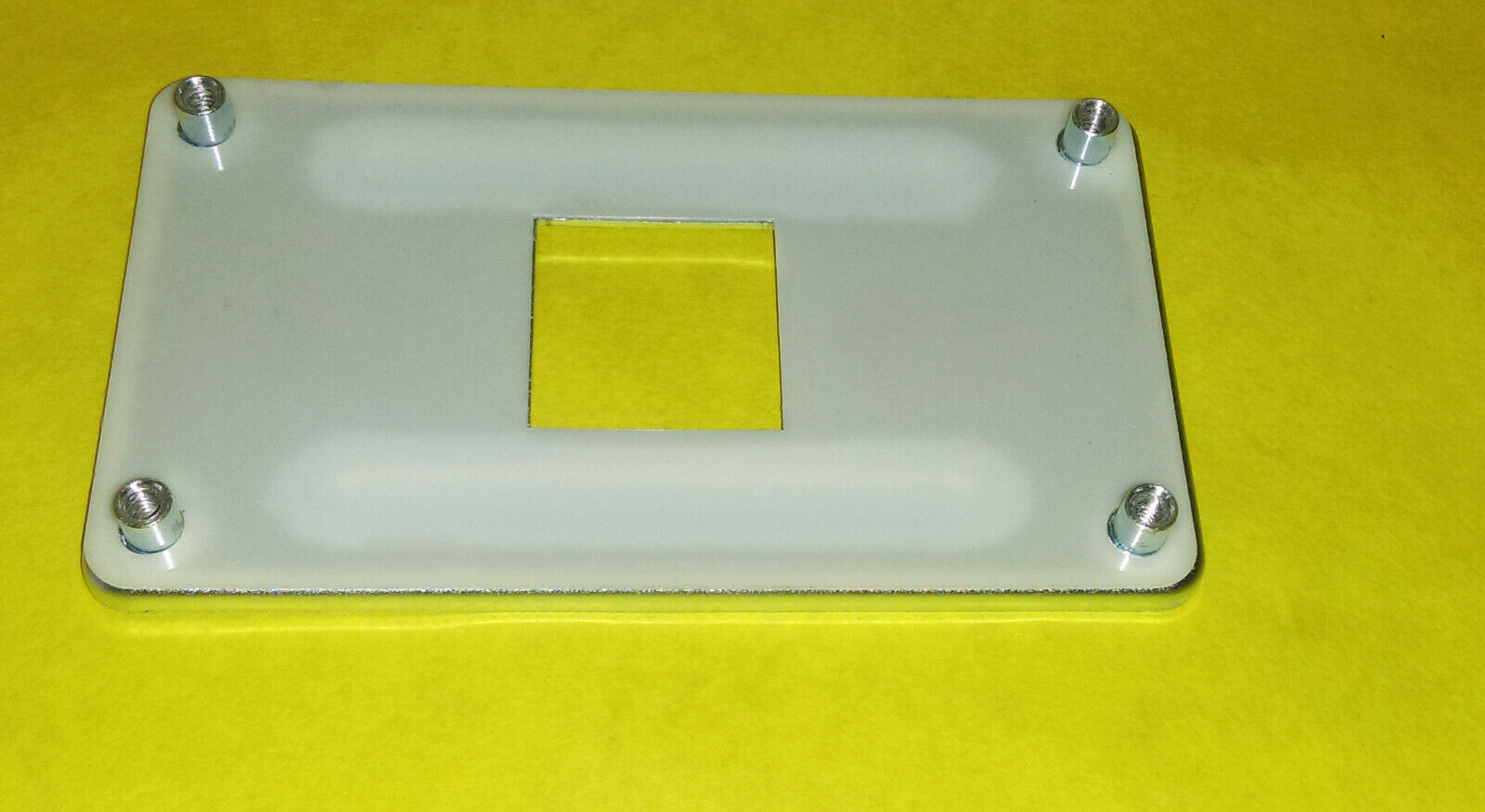

  • Motherboard Mounting Back-plate (pictured)
