OPEN BOX: Shark Technology Quiet APFC 1000W Modular Cable ATX 80+ PC Power Supply

SHARK TECHNOLOGY®

Regular price $60.99

 Model: ATX-1000N FM Open Box

1000-Watt ATX PSU

Modular (Detachable) Cable Design

Active PFC

Full AC Range Auto-Switch

Energy Efficient & Quiet

Want a better power supply that can provide stable power to your PC system without frequent reset, self shut-down, hang-up, or sensitivity to AC input voltage fluctuation? Look no further.

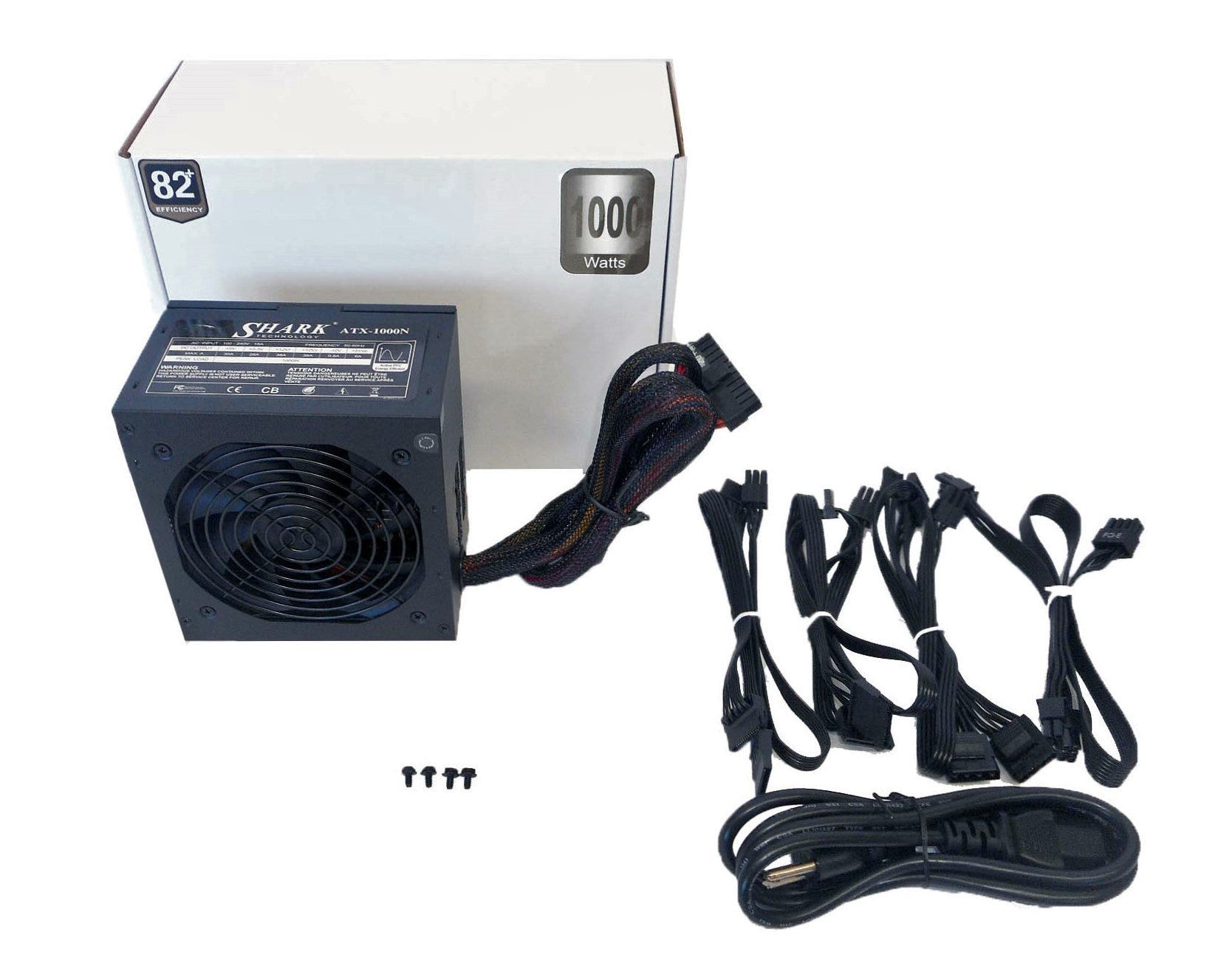

 This SHARK TECHNOLOGY® unit comes bundled with all matching flat modular cables, 4 installation screws, UL certified safety power cord, and the often-time optional case top-mounting plate. All cables are long enough to fit perfectly in gaming cases where PSU are bottom mounted as well.

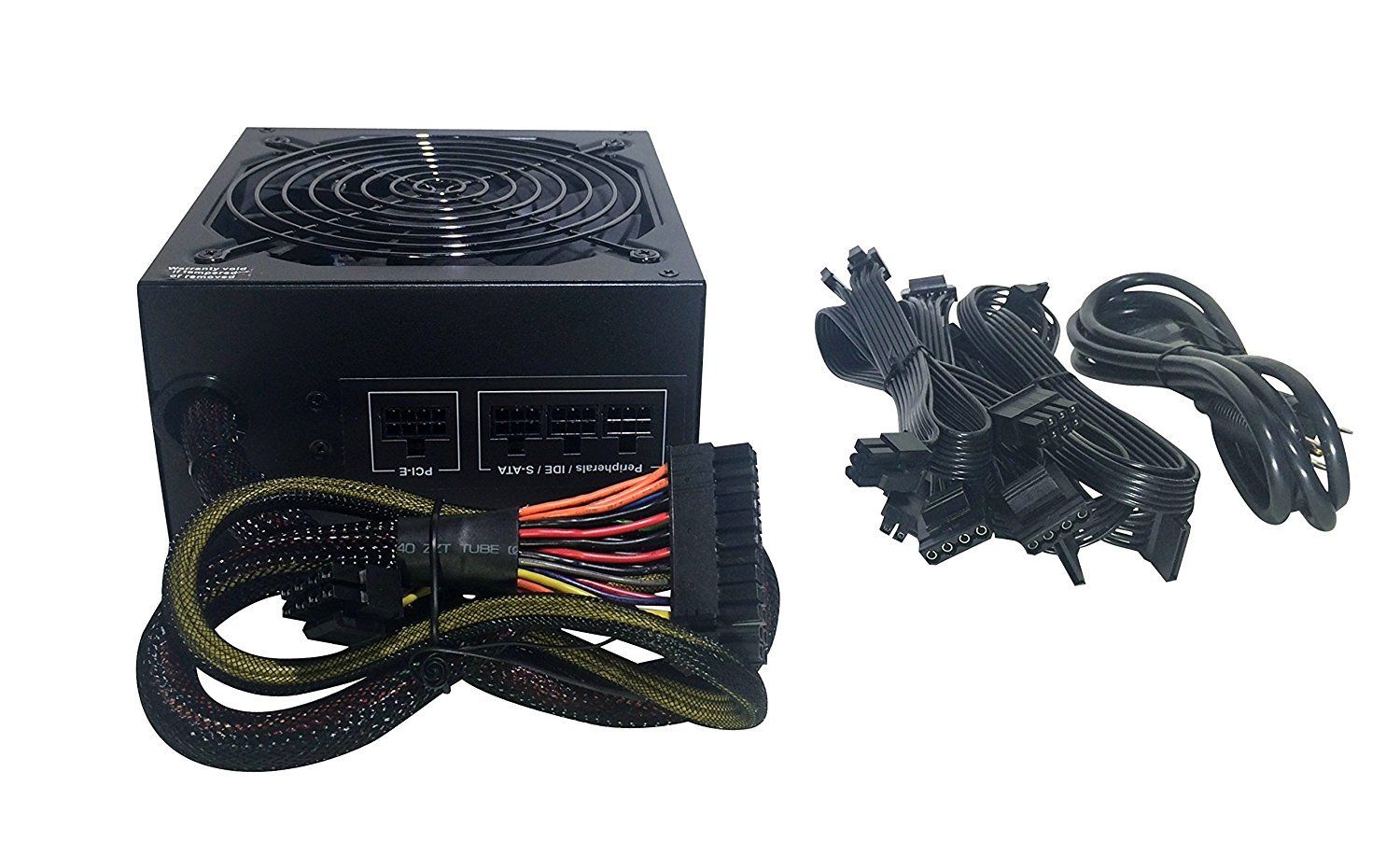

Modular cable management design allows use of only the cables you need to improve internal airflow and reduce clutter. New flat modular cables now take up even less space and further improve airflow. This unit can operate anywhere in the world automatically with any AC input voltage from 100V to 240V. The sophisticated high efficiency design allows the unit to operate with less heat and lower cooling fan noise than most PC power supply models in the market.

Features:

  • 1000-Watts Output Power
  • Flat modular cable design for neat internal system cabling with better internal airflow
  • Low heat & Low noise operation
  • Silent low-RPM 120mm cooling fan
  • Active PFC for reduced harmonic distortion
  • Full range AC input with automatic AC input voltage selection - 100- 240V AC
  • High efficiency power conversion allowing lower electrical bill
  • Less than 1W standby power consumption - EuP 2010 Lot 6 Compliant
  • Dual +12V Output Rails
  • RoHS Compliant Lead-free - made with all hazardous-free components
  • Smart fan controller with on-board thermostat dynamically control fan speed to ensure ultra quiet operation - virtually fanless quiet
  • ATI Radeon® RX Ready
  • Supports nVidia® graphic card
    Support Intel Xeon, Pentium D, Core2 Duo, Quad Core, Haswell, Core i7, Core i5, Core i3, Intel X, Extreme Edition, and AMD Dual/Quad Core/ FX-series A6/A10 6-core, 8-core, Ryzen desktop systems
  • Safe to Operate - Designed and tested to meet major international safety agency standards
  • 6x SATA Power Connectors and 2x PCI-Express (6+2pin) Power Connectors
  • Made with high quality safe components as well as high current capacity wires
  • Complete 6*StarTM electrical protection features built-in
  • Each unit is verified for safety by going through a thorough HI-POT test. Additionally, a 1,500 Volt AC spike is introduced at each ATX-1000N unit for up to 60 seconds under 10mA. Only units that can pass these tests get to be shipped out


Connector Details:
(1) Main power connector (20+4 pin)
(1) 12V (4pin/8pin) power connector
(3) Molex peripheral power connector
(6) SATA power connector (right angle type)
(1) Floppy power connector
(2) PCI-Express (both 6+2pin) power connector

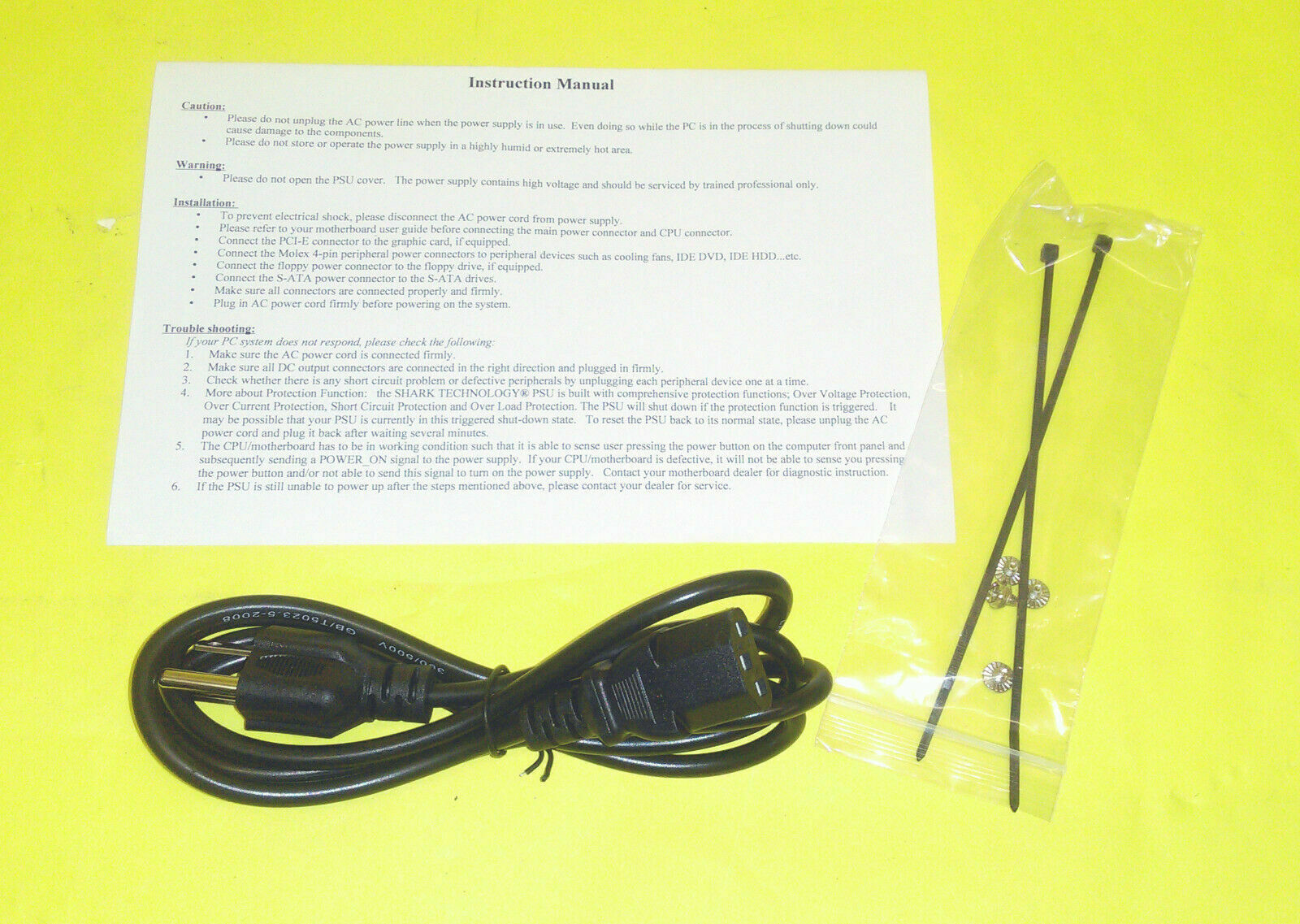

   Additional Accessories Included:
5-foot long UL certified safety power cord
Installation screws (4pcs)



Mechanical Design

Massive 120mm fan draws heat from CPU area and cools the power supply at the same time.  New industrial design with larger footprint to allow more air to flow in and out of the PSU to provide even better cooling than before.

This SHARK TECHNOLOGY® unit comes with cables that are long enough to fit perfectly in gaming cases where PSU are bottom mounted as well.

Want a better power supply that can provide stable power to your PC system without frequent reset, self shut-down, hang-up, or sensitivity to AC input voltage fluctuation? Look no further


Application:


  • Gaming PC
  • 24/7 Server or PC Workstation
  • Dell Precision T3400 400SC 390 380
  • Dell Studio XPS 435MT
  • Replacement for Dell J102N J036N YN637



 Technical  Specifications

AC INPUT : 100-240V Full Range with Automatic AC input Switching.  AC Voltage Selection Switch for 115 or 230v is no longer needed as this unit supports all AC input voltage automatically.  Input Frequency Range: 50-60Hz.  Maximum Input Current: 15A

Voltage +12V1 +12V2 +5V +3.3V -12V +5Vsb
Min 1.0A 1.0A 0.5A 0.8A 0.0A 0.1A
Max 38A 38A 30A 28A 0.8A 6A
Regulation + 5% + 5% + 5% + 5% + 10% + 5%
Ripple & Noise 200mV 200mV 100mV 100mV 200mV 100mV
Total Power 1000W

Maximum Power Output: 1000W

Dimensions: 150 x 160 x 86 mm



Complete Built-in Electrical Protection System:

    Over Voltage Protection
    Over Current Protection
    Short Circuit Protection
    Over Power Protection


 Safe to Operate.  Safe to the Environment.

 Lead-FREE
 Cadium-FREE
 Mercury-FREE
 Hexavalent chromium-FREE
 PBB-FREE
 PBDE flame retardants-FREE
 RoHS Compliant - made with hazardous-free components

Power Good Signal 100~500ms
Hold Up Time >16 ms
Efficiency 82%
Dimensions: 150x160x86mm
Operation Temperature 0~45 degree C



 Operating temperature range: 10 - 45 degree C (50 - 113 degree F)
 Operating relative humidity range: 20 to 90%
 Energy-efficient: over 82% under 20%, 50%, or 100% load under 110v and 220v AC.
 MTBF Life Expectancy of this model: 100,000 hours* (11 years & 2 months)
   * Excludes the life of the fan which may vary depending on operating environment
