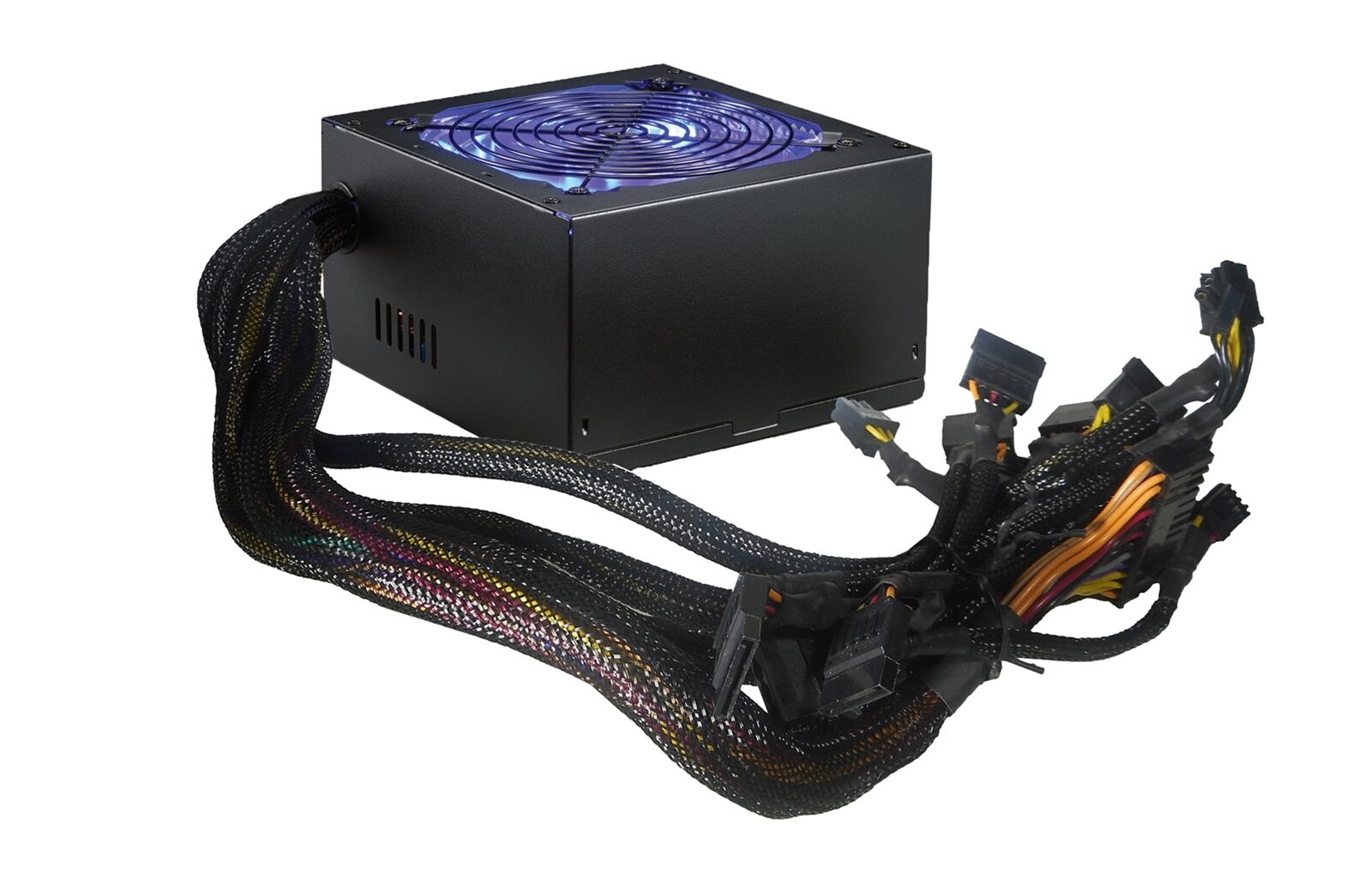

SHARK 1200W 4x PCIe 8-SATA Cool Blue LED Fan Gaming PC ATX/EPS 12V Power Supply

Regular price $115.00




Great for General PC Operation

4x PCI-e Connector : Designed for Intensive Gaming Playing

Note: This is NOT for Bitcoin or Other Mining Application
Great PSU for Gaming !



High efficiency design operates in low heat, low noise, and lower electrical bill. Matching US AC power cord and installation screws included.

The sophisticated high efficiency design allows the unit to operate with less heat and lower cooling fan noise than most PC power supply models in the market. This unit operates anywhere in the world automatically with a wide AC input voltage range from 100V to 240V.

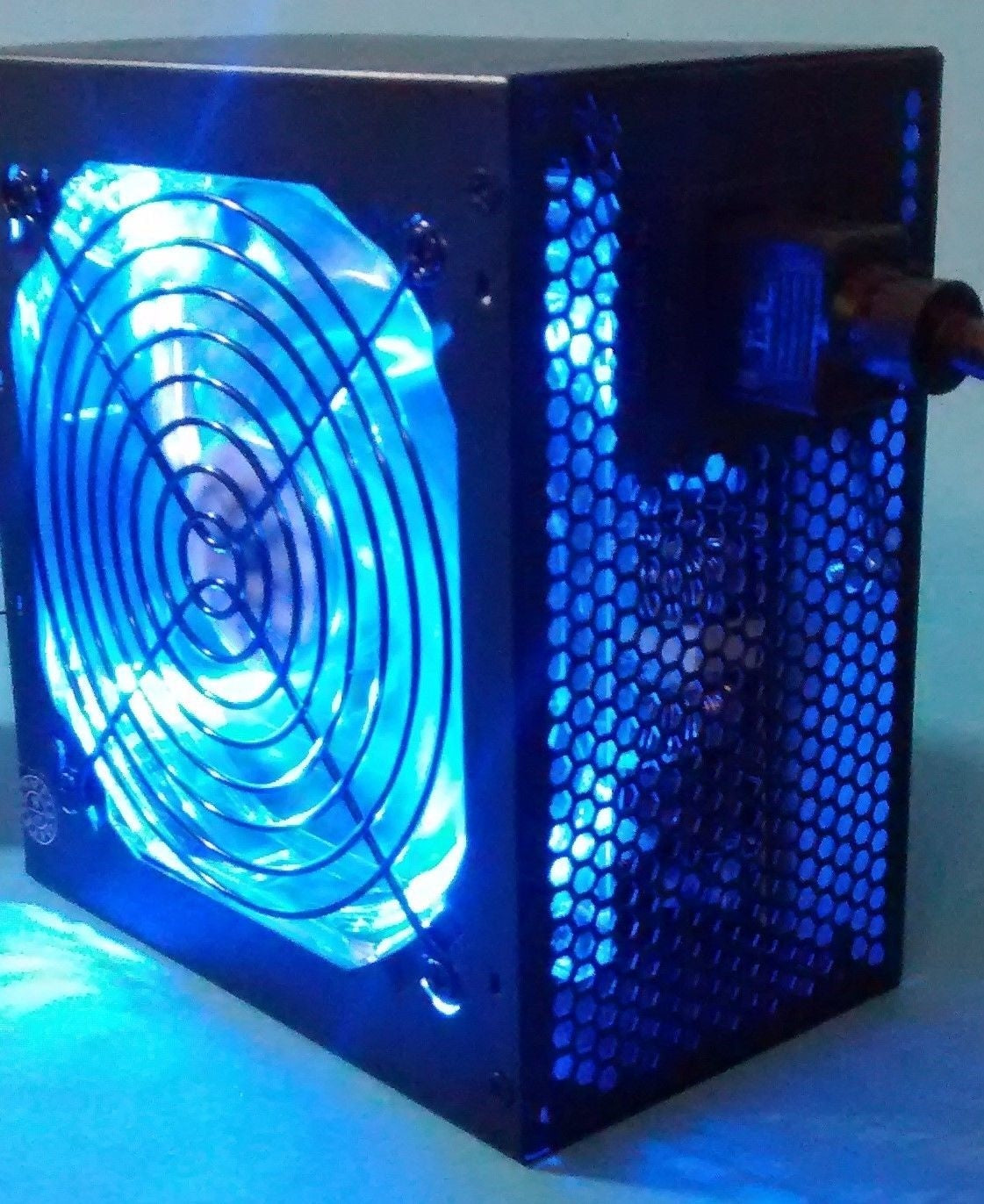

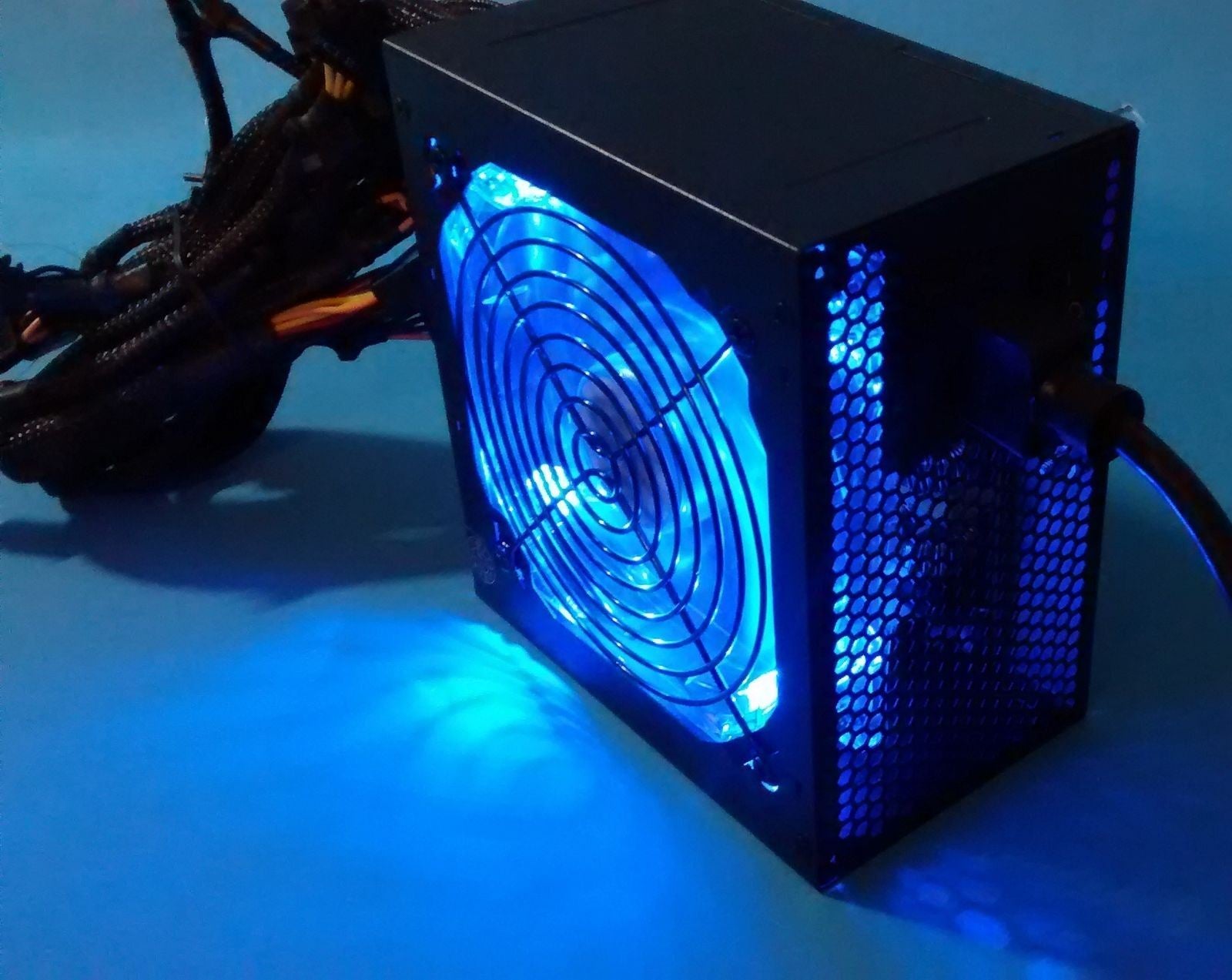

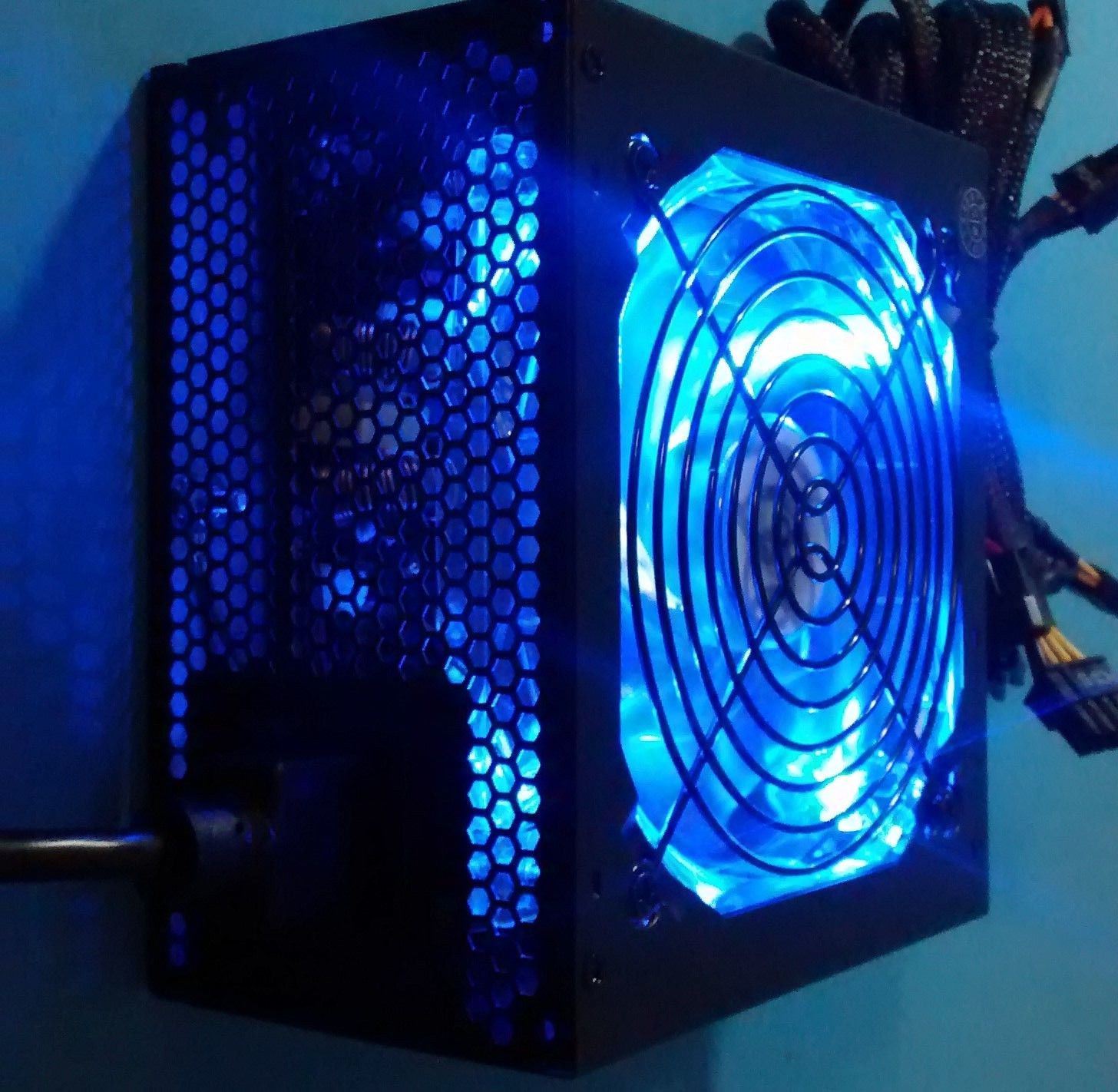

The result is that the 120mm fan only has to run at such low speed that an integrated illuminating cool-looking blue LED feature is added to provide visual clue that the PSU is operating. It is so quiet that you can hardly hear it ! This feature further provides user an idea how fast the fan is turning at the time.

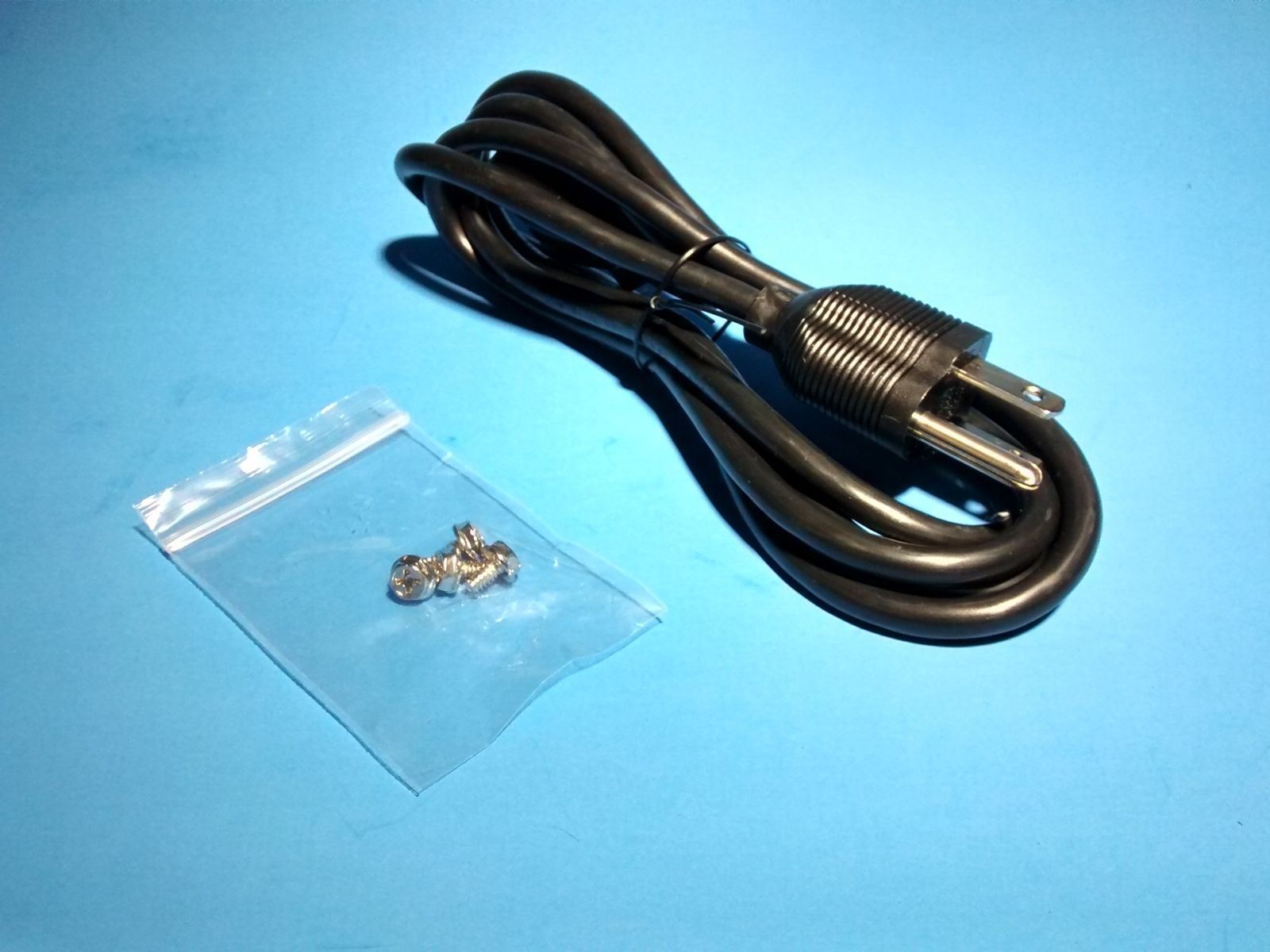

Want a better power supply unit that can provide stable power to your computer system without frequent reset, self shut-down, hang-up, or sensitivity to AC input voltage fluctuation? Look no further. This SHARK TECHNOLOGY® 1200W LED power supply complete package comes complete with 4 installation screws and matching UL certified safety power cord.


H i g h E f f i c i e n c y
This unit can operate anywhere in the world automatically with any AC input voltage from 100V to 240V. The sophisticated high efficiency design allows the unit to operate with less heat and lower cooling fan noise than most PC power supply models in the market.

L o w  H e a t  L o w  N o i s e



Over 82%
Efficiency













  • 1200-Watts Output Power
  • Low heat & Low noise operation
  • Silent low-RPM 120mm cooling fan
  • Active PFC for reduced harmonic distortion

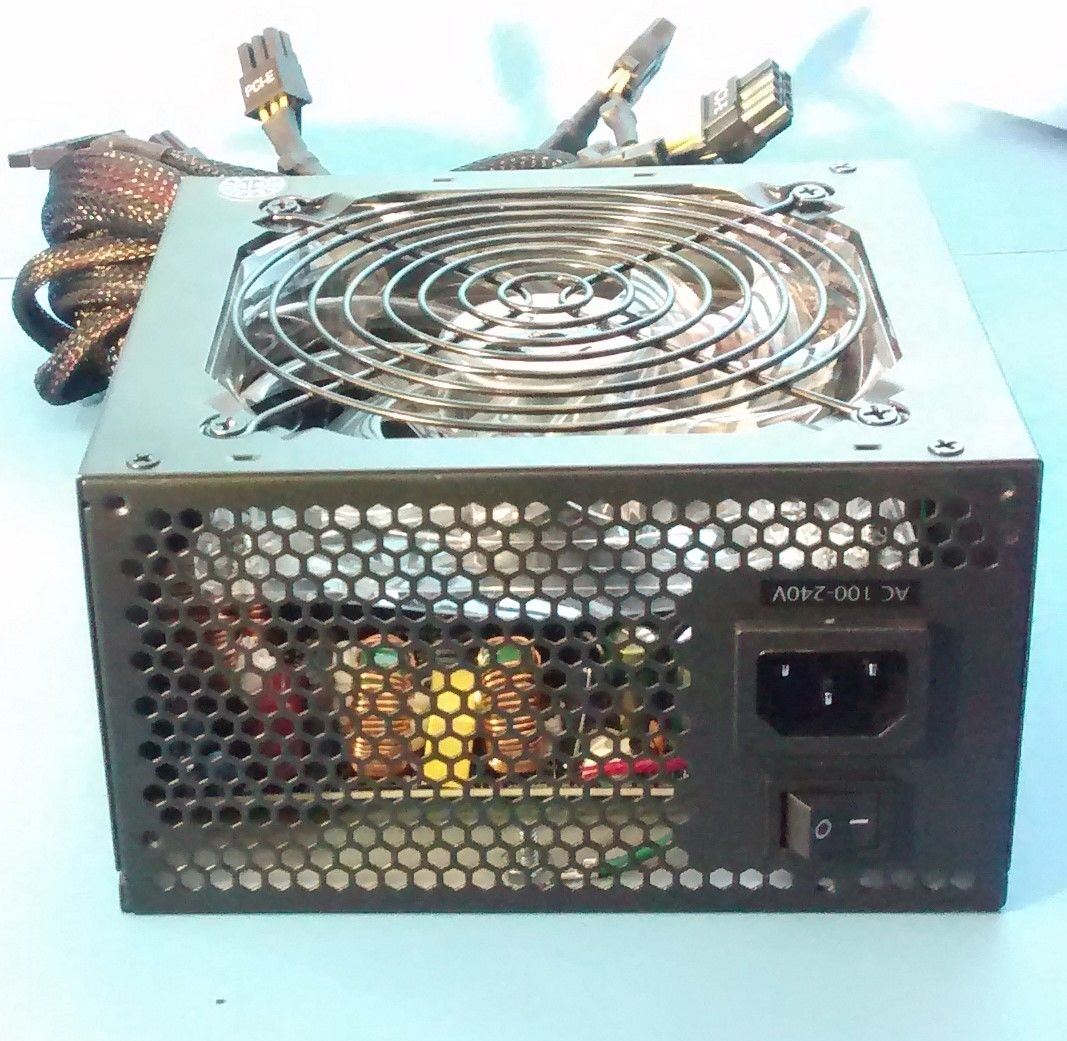

  • Full range AC input with automatic AC input voltage selection - 100- 240V AC
  • Typical 85.77%, average 84.16% efficiency
  • High efficiency power conversion allowing lower electrical bill
  • Dual +12V Output Rails
  • Smart fan controller with on-board thermostat dynamically control fan speed to ensure ultra quiet operation - virtually fanless quiet
  • Quad blue color LEDs turns on when the PSU is on
  • ATI Radeon® CrossfireTM, CrossFireXTM,FireProTM Ready
  • nVidia® SLITM Ready
  • Support Intel Xeon, Pentium D, Core2 Duo, Quad Core, Haswell, Core i7, Core i5, Core i3, Intel X, Extreme Edition, and AMD 64 X2 , Quad Core, Six & Eight Core based systems
  • Safe to Operate - Designed and tested to meet major international safety agency standards
  • 8x SATA Power Connectors and 4x PCI-Express (6+2pin) Power Connectors
  • Made with high quality safe components as well as high current capacity wires
  • Complete 4*StarTM electrical protection features built-in
  • Each unit is verified for safety by going through a thorough HI-POT test. Additionally, a 1,500 Volt AC spike is introduced at each unit for up to 60 seconds under 10mA. Only units that can pass these tests get to be shipped out




This SHARK TECHNOLOGY® unit comes with cables that are long enough to fit perfectly in gaming cases where PSU are bottom mounted as well.

Want a better power supply that can provide stable power to your PC system without frequent reset, self shut-down, hang-up, or sensitivity to AC input voltage fluctuation? Look no further

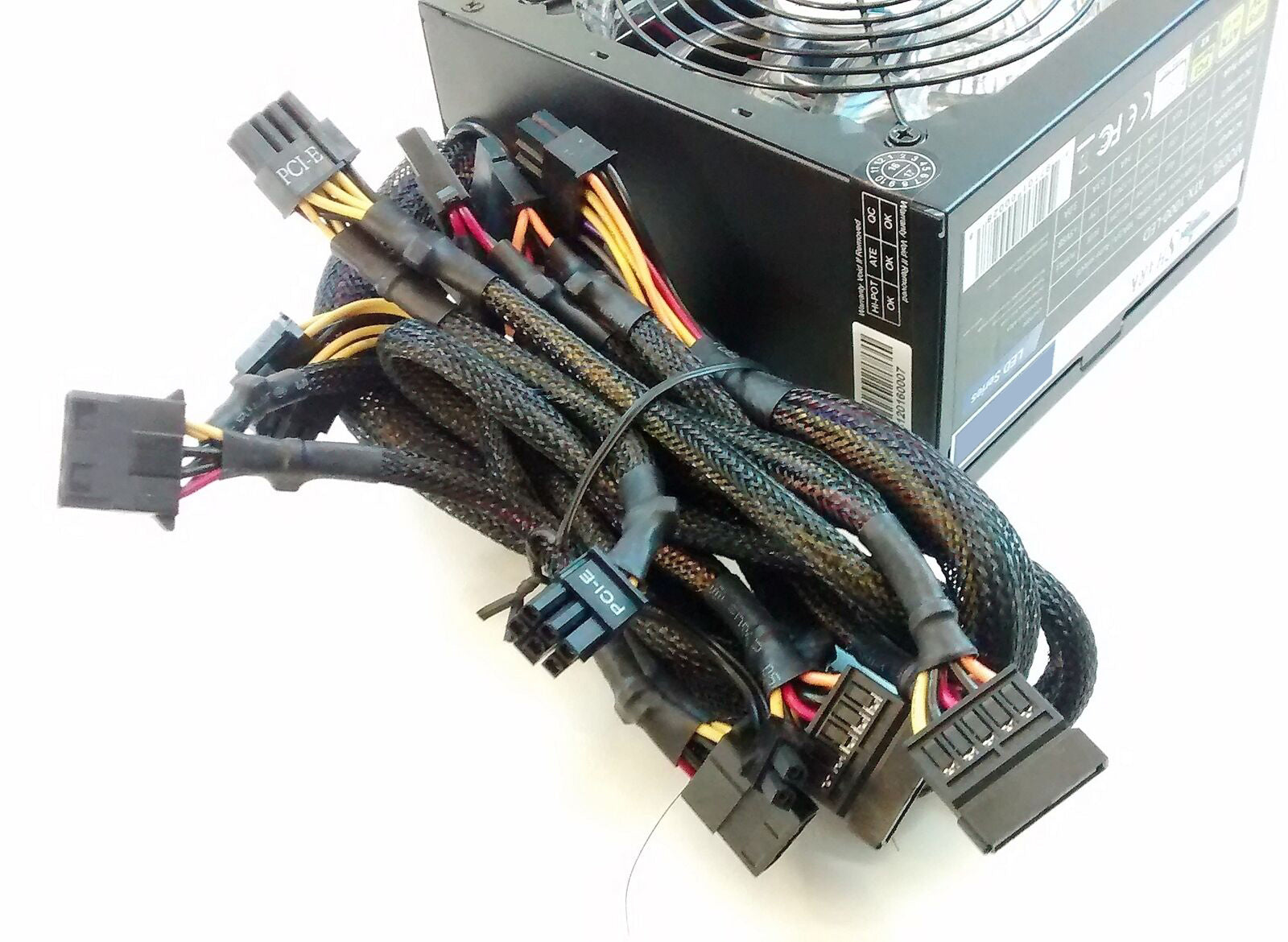

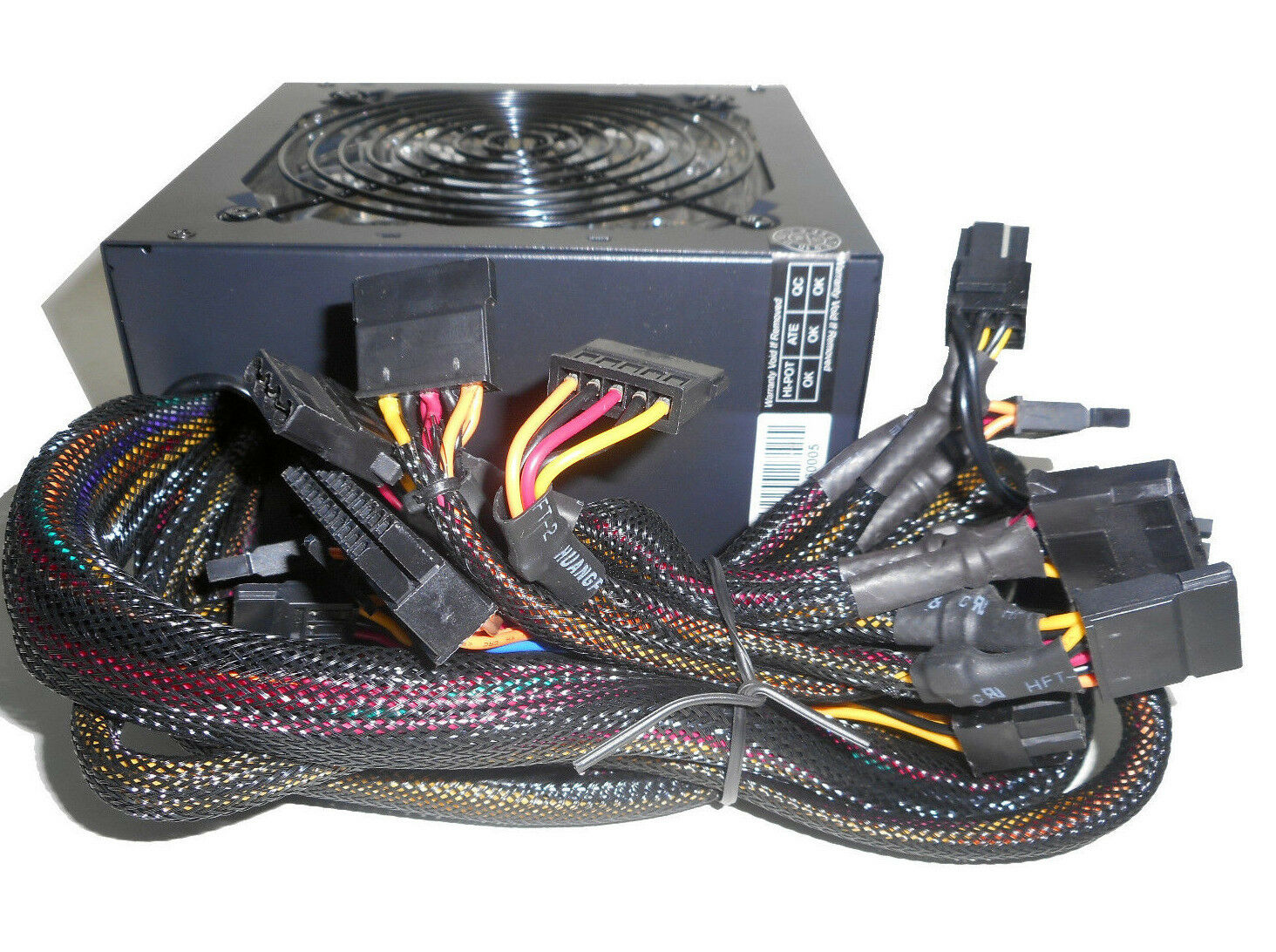

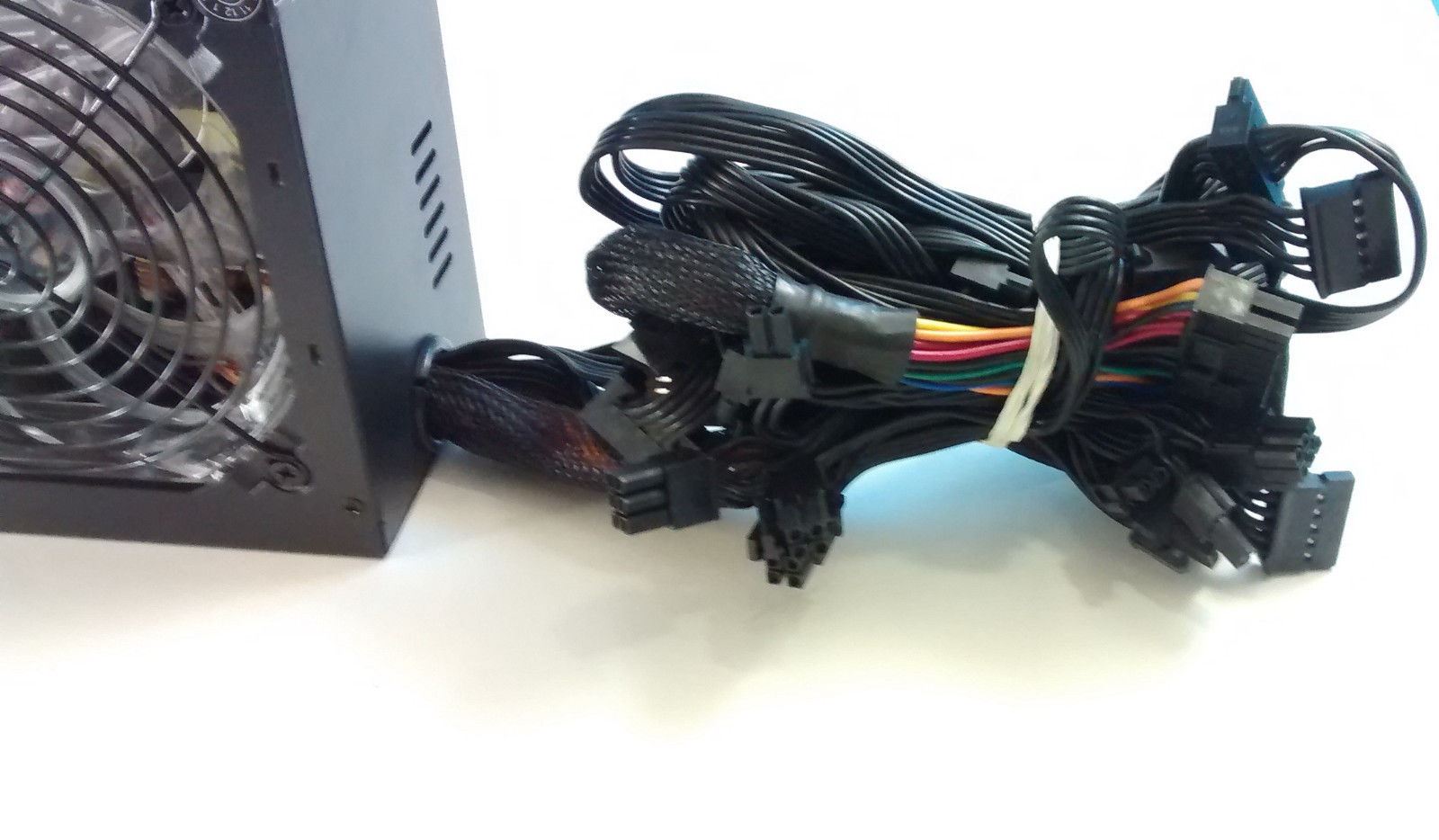

(1) 24pin Main Power Connector


(1)8pin (4+4 pin) Motherboard 12V Power Connector
(sub module detachable to support standard 4pin 12V board)


(2) 6+2 PCI-E Power Connector

(supports both 6pin and 8pin PCIe video cards)


(6) SATA Power Connector



(3) Molex Peripheral Power
Connector

(1) Floppy Drive Power Connector


Note: All power cables are in protective nylon sleeving


Technical Specifications


Input Frequency: 50-60Hz
Maximum Input Current: 15A

Voltage

+12V1

+12V2

+5V

+3.3V

-12V

+5Vsb

Min 1.0A 1.0A 0.5A 0.8A 0.0A 0.1A

Max

42A

42A

47A

40A

0.8A

6A

Regulation

+ 5%

+ 5%

+ 5%

+ 5%

+ 10%

+ 5%

Ripple & Noise

200mV

200mV

100mV

100mV

200mV

100mV

Total Power

1200W



Operating temperature range: 10 - 45 degree C (50 - 113 degree F)
Operating relative humidity range: 20 to 90%
Energy-efficient: typical 85.77%, average 84.16% efficiencyI
Complete 4*Star system protection
  • Over Voltage Protection
  • Over Current Protection
    • Short Circuit Protection
    • Over Power Protection
