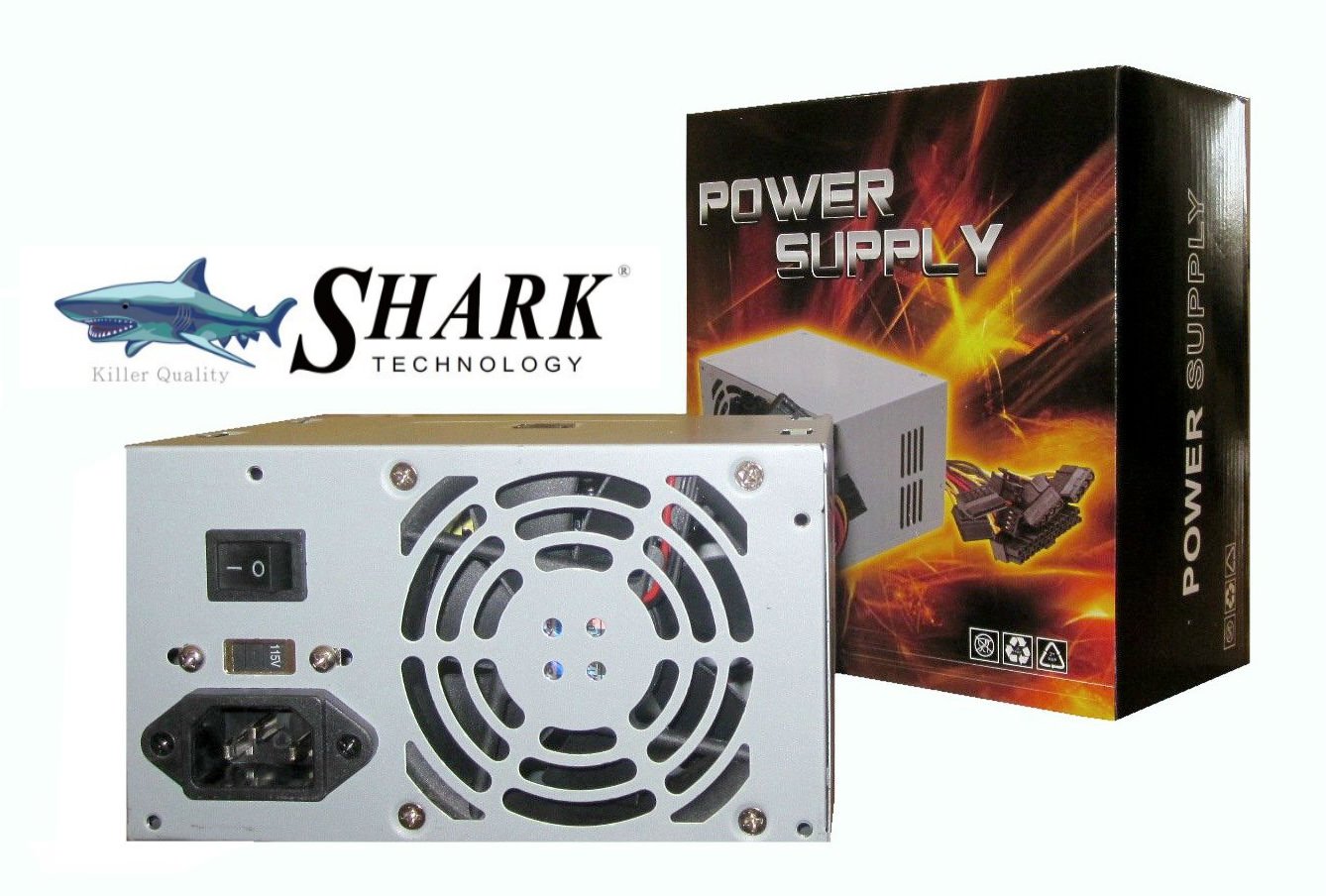

SHARK TECHNOLOGY® 500W 4-SATA ATX 12V Desktop PC Power Supply P4 PS3/PS2

Regular price $45.00

SHARK TECHNOLOGY® ATX-500 SATA4 is a compact 500-Watt power supply combines an efficient layout with practical power connector placement design.  There are total of 4 SATA power connectors on 3 separate lines of cables so you can reach drives scattered anywhere inside the case.  The same idea is implemented on the Molex 4-pin power connectors.  Both Molex connectors are on 2 separate lines of cable to allow you to reach both devices whether at the same general location or at 2 different locations inside the case.  This model is based on ATX-500 a proven switching design to provide the most reliable and cool running power source for your valuable hardware.

It is designed to be an ideal easy-to-install replacement power supply choice for standard top-mounted
PSU mid tower ATX case PC, micro cube portable PC, PS3 mini tower systems, and most name brand desktop PC.

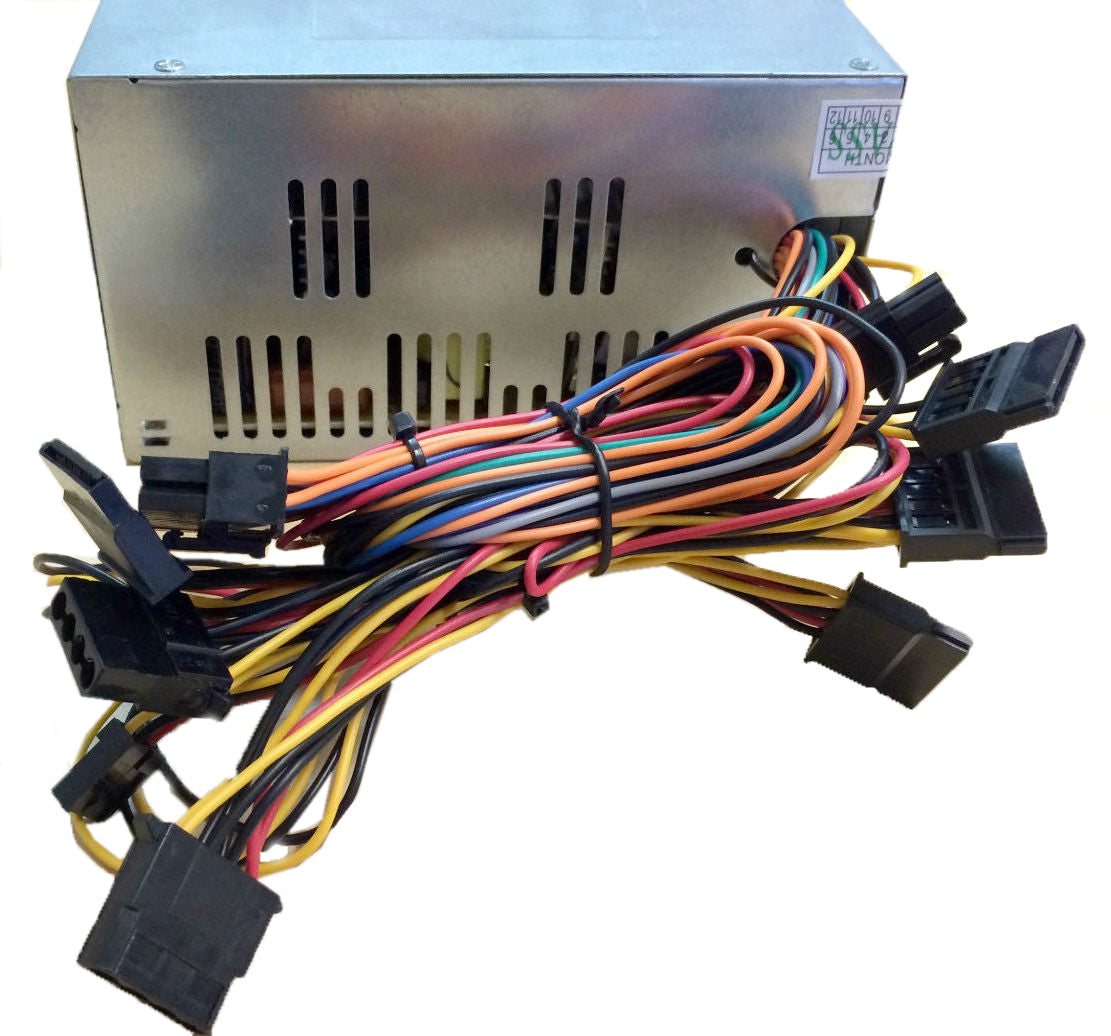

Connectors Summary

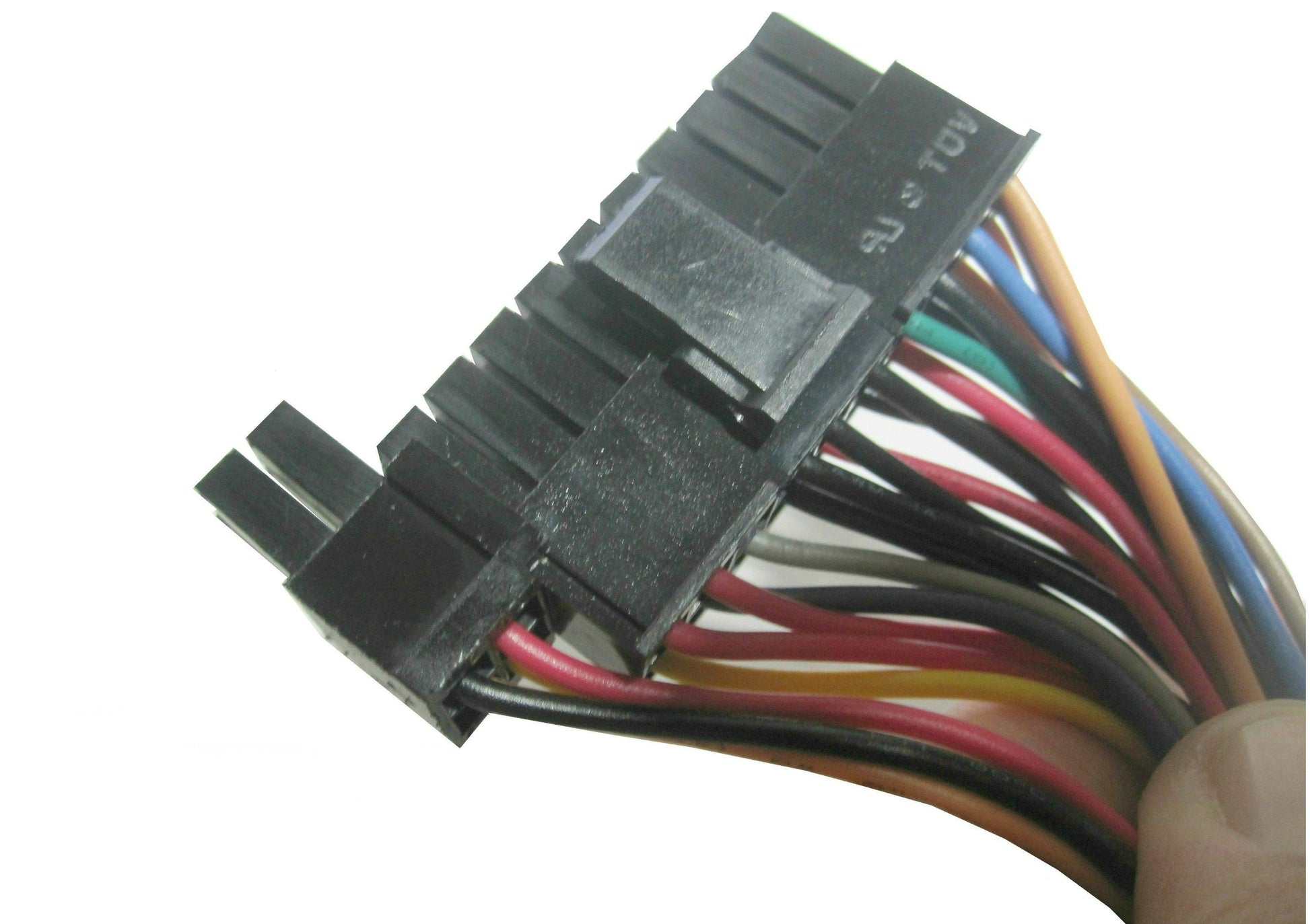

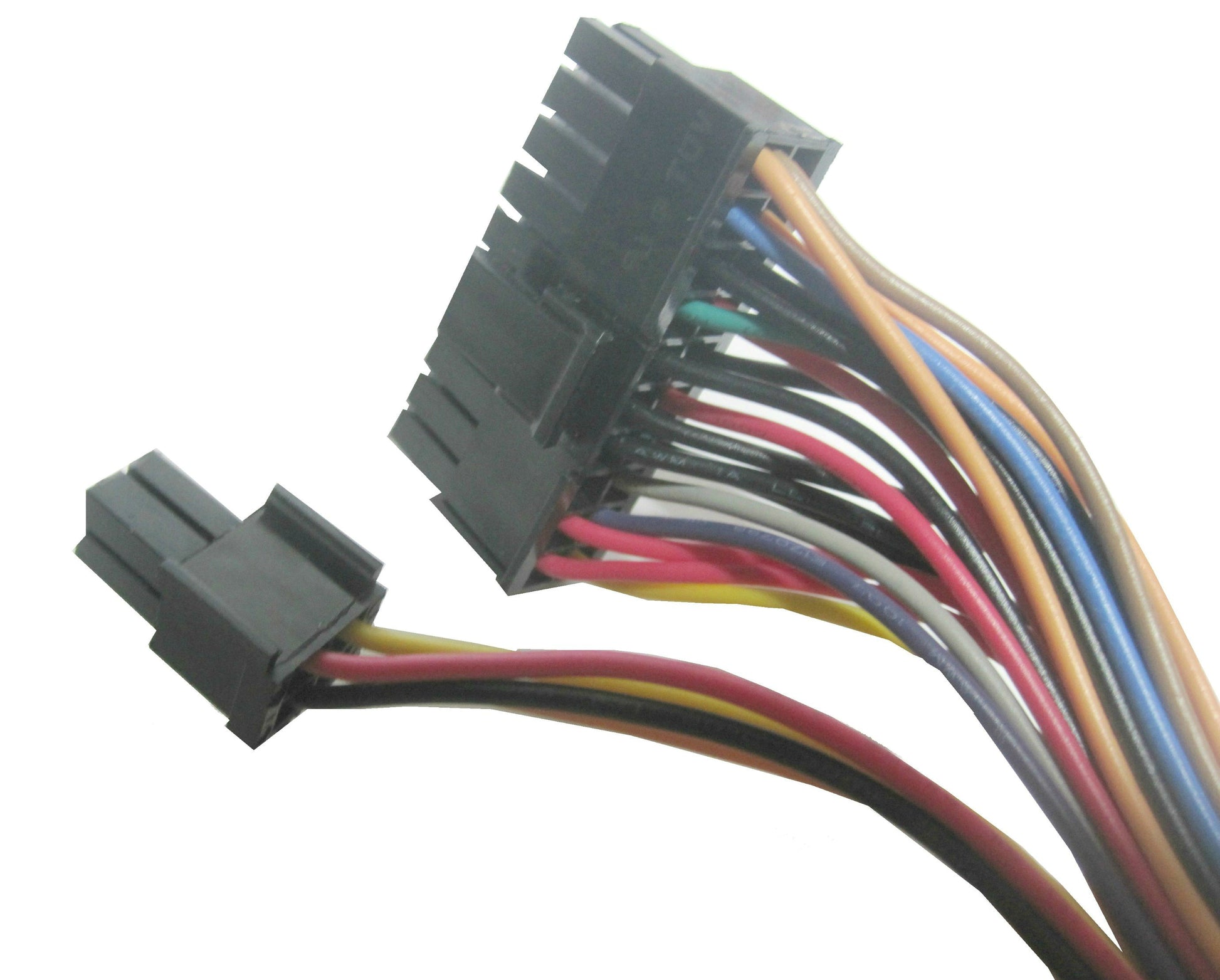

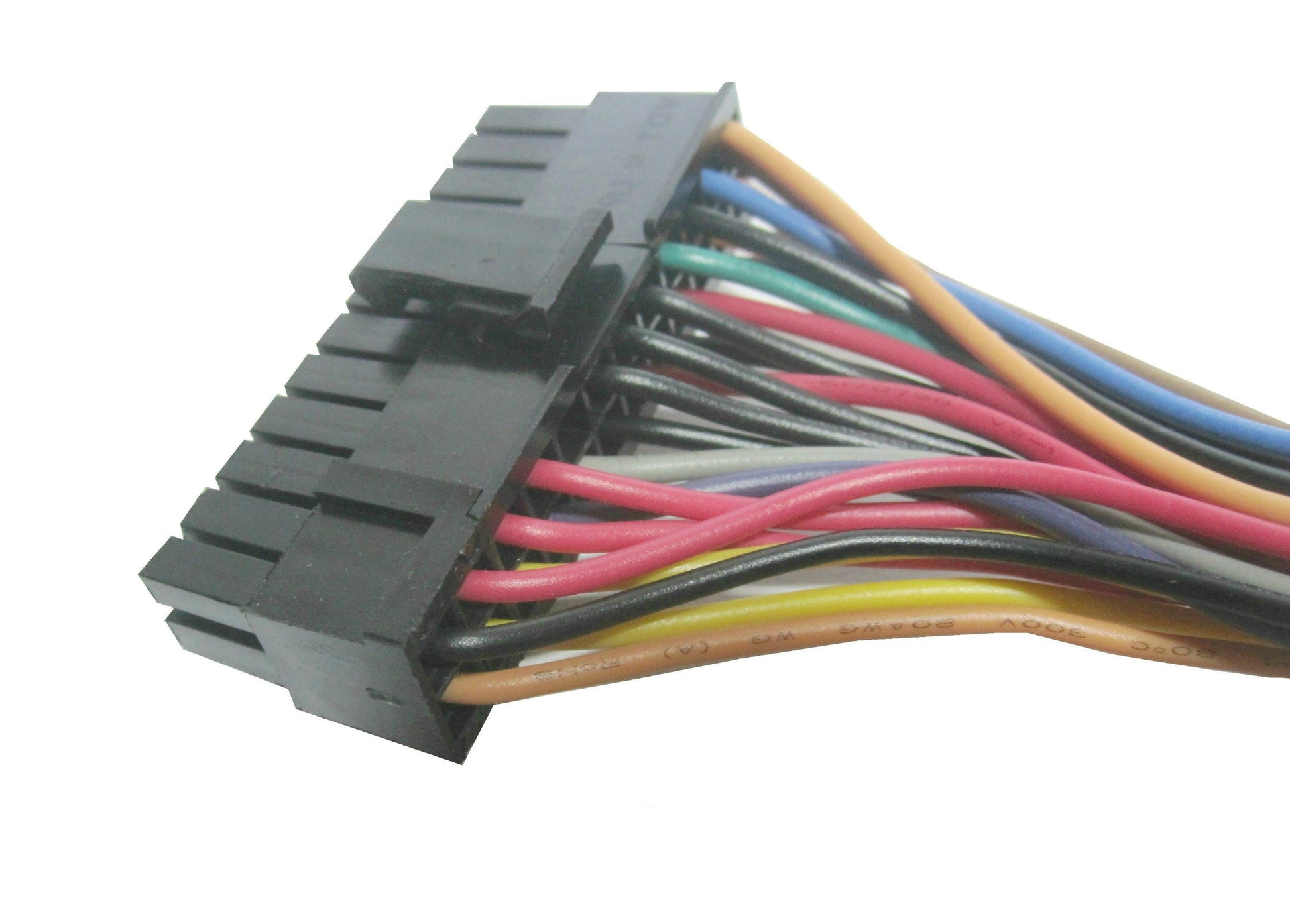

1x 24-pin (20+4pin) Main Connector (detachable sub-module to become 20pin)

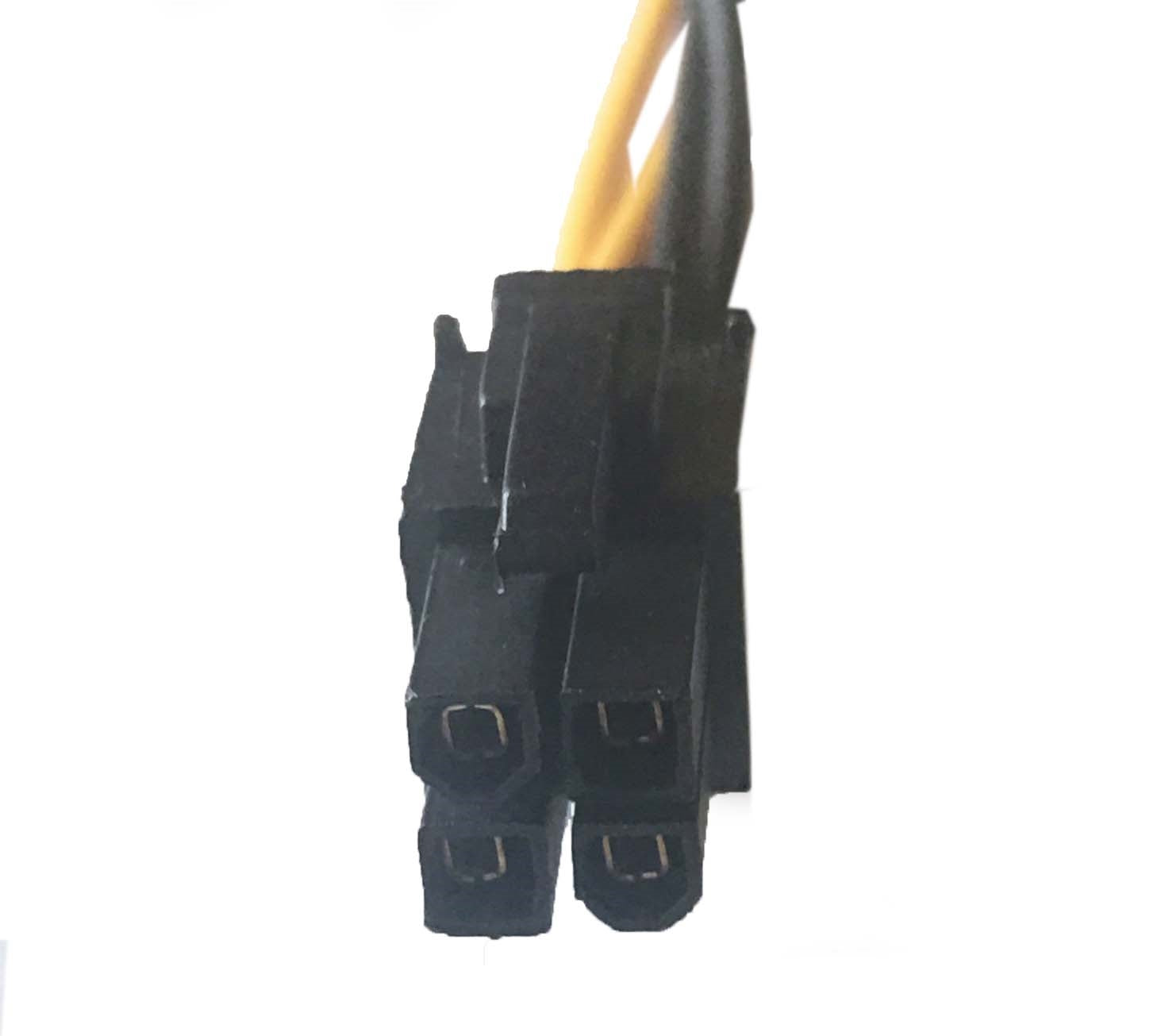

1x 12V (P4) Power Connector
2x Molex Peripheral Power Connector  (on 2 separate cable lines.)
1x Floppy Drive Power Connector
4x SATA Power Connector  (on 3 separate cable lines)

Specifications

AC INPUT
115V/230V - 60/50Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5VSB
500W
Peak
Combined
Watts
30A
40A
22A
0.8A
2A
500W
    • Maximum Power Output: 500W
    • Efficiency: Typical 65% @ full load
    • Manual shut-down rocker switch
    • Mesh fan-guard for child safety protection
    • Input: 100-127V AC or 200-240V AC - selectable by switch
    • Low Noise Operating Fan -- 36dB (Max) under ambient noise of 32db and test distance of 1 meter.

 Complete 5*StarTM system protection:
  • Over Voltage Protection
  • Under Voltage Protection
  • Over Current Protection
  • Short Circuit Protection
  • Over Power Protection



Application Example:

  HP Pavilion A6120N desktop PC
Aftermarket Upgrade for:

  HP P/N: 5188-2622
  Bestec Model: ATX-250-12Z REV.: D3R

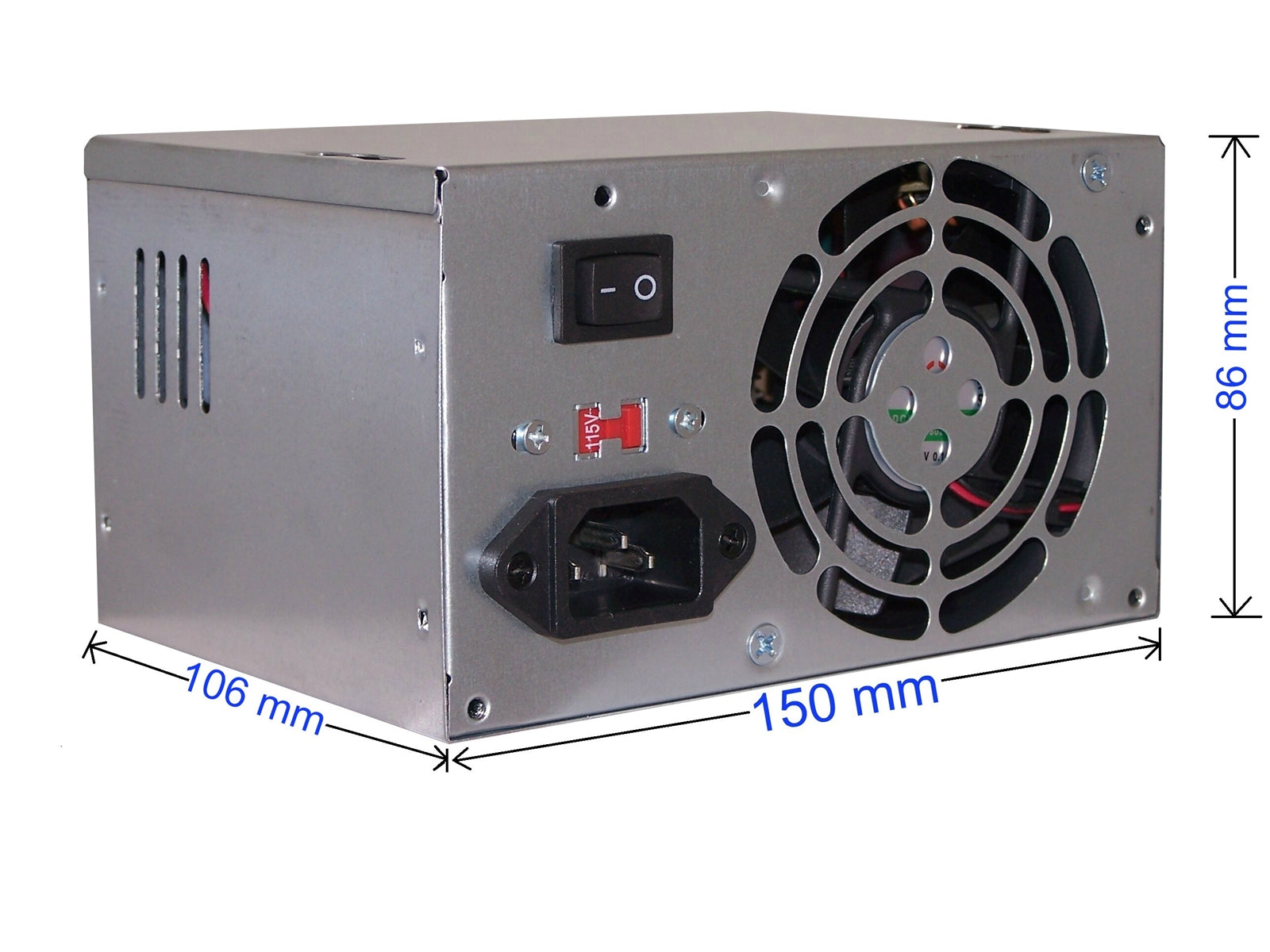

mechanical drawingDimension:
3 3/8" (height) x 5 7/8" (width) x  4 3/16 (depth)"
86(H) x
150(W) x 106 (D) mm
