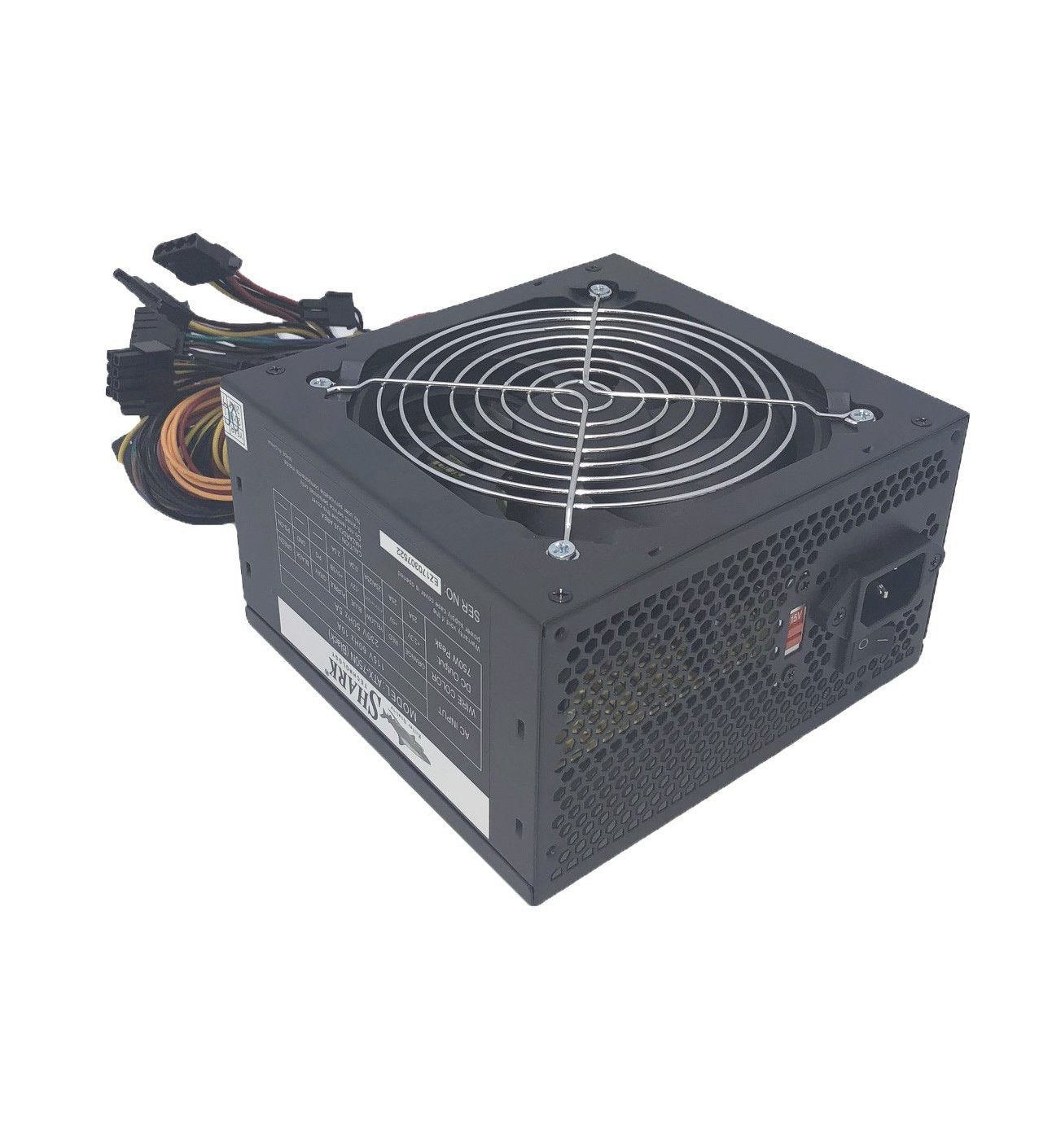

SHARK TECHNOLOGY® 750W Black Gaming PC 120mm Fan ATX Power Supply 4x SATA, PCIE Graphic

Regular price $69.99

Premium 750W  Ultra Quiet
ATX 12V Power Supply

  • Supply power on-demand up to 750-Watt for new system or name brand PC upgrade  application
  • Supports video card that requires a single or dual PCIe power connectors.  (either 6pin or 8pin)
  • Quiet Operation
  • Energy-efficient with less heat and wastes less electricity
  • Optimized cooling design
  • Long cables to be used in standard or mid tower cases
  • Black casing with silver round circular fan guard





Connector Details:

(1) 24pin Main Power Connector
        (sub module detachable to support 20pin board)

(1) 8pin Motherboard 12V Power Connector
        (sub module detachable to support standard 4pin 12V board)

(2) (1) 6+2 PCI-E Power Connector, supports 6pin or 8pin PCI-E graphic card
(6) (4) SATA power connectors (on 2 separate line of cables for unrestricted reach)
(1) Floppy Drive Power Connector
(6) (2) Molex Peripheral Power Connectors


 Complete 5*Startm system protection


  • Over Voltage Protection
  • Under Voltage Protection
  • Over Current Protection
    • Short Circuit Protection
    • Over Power Protection
NEW Better Mechanical Design:

Large 120mm fan draws massive amount of hot air in from the CPU into the power supply and exit out to the back of the PC system.  Since the fan is situation inside the system, and not at the back of the PC system, audible fan noise is greatly reduced.
More overall airflow: Round circular tube fan guard generates less drag and noise

New safe design with fan situated inside the system eliminating unintended injury when your fingers are too close to the rear of the computer.

Cables are long with power connectors strategically spaced out on several cables to support various system configurations in standard as well as larger tower cases


 Technical  Specifications



AC INPUT
115V/230V - 60/50Hz
DC OUTPUT
+3.3V
+5V
+12V1
+12V2
-12V
+5VSB
750W
Peak
Combined
Watts
25A
25A
25A
25A
0.3A
2.5A
750W
    +12V1 & +12V2 combined peak output is 552W

  • Maximum Power Output: 750W
  • Efficiency: Typical 80% 70%
  • Manual shut-down rocker switch
  • Input: 100-127V AC or 200-240V AC - select-able by switch.
  • Dimension: 150mm x 86mm x 156mm  (the 156mm length is the side that extends inside the case when installed)

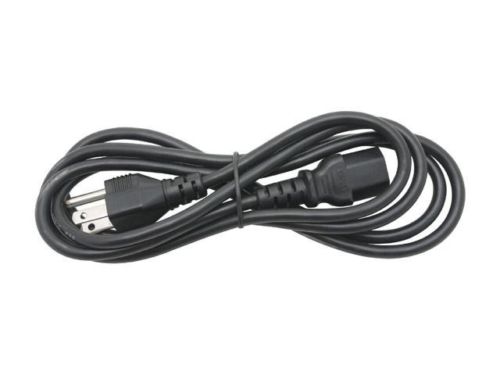

Package includes: 5-foot AC power cord, quick reference manual,
installation screws, and cable management tie wraps.
