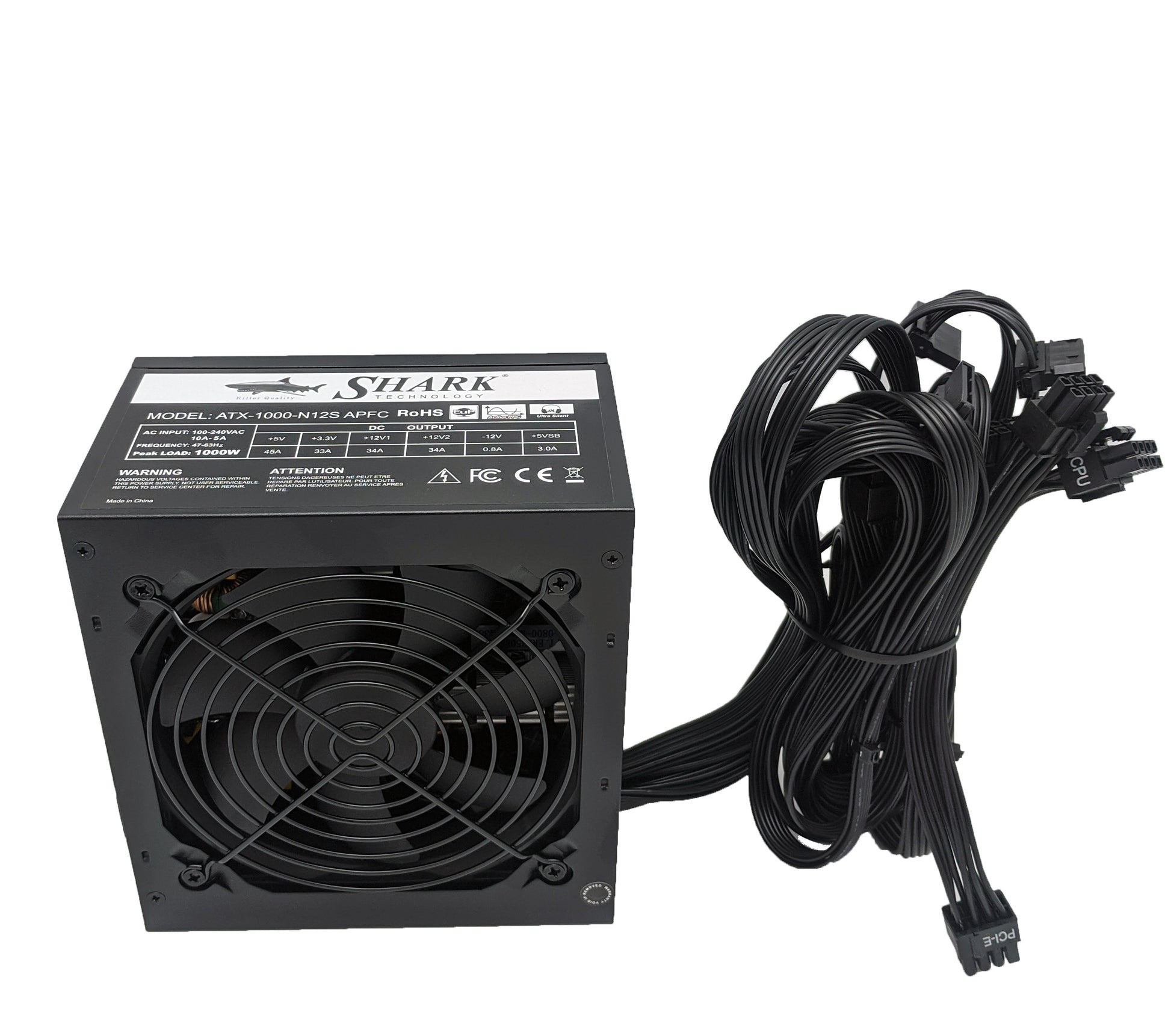

SHARK TECHNOLOGY® ATX-1000-N12S APFC 1000W Dual PCI-E 12V i7 Gaming PC ATX Power Supply

Regular price $100.00


1000W Active PFC
ATX 12V Power Supply


    • Strong 1000-Watt On-Demand Output for PC and server applications
    • Legacy and newest AMD and Intel i7 multi-core CPU supported

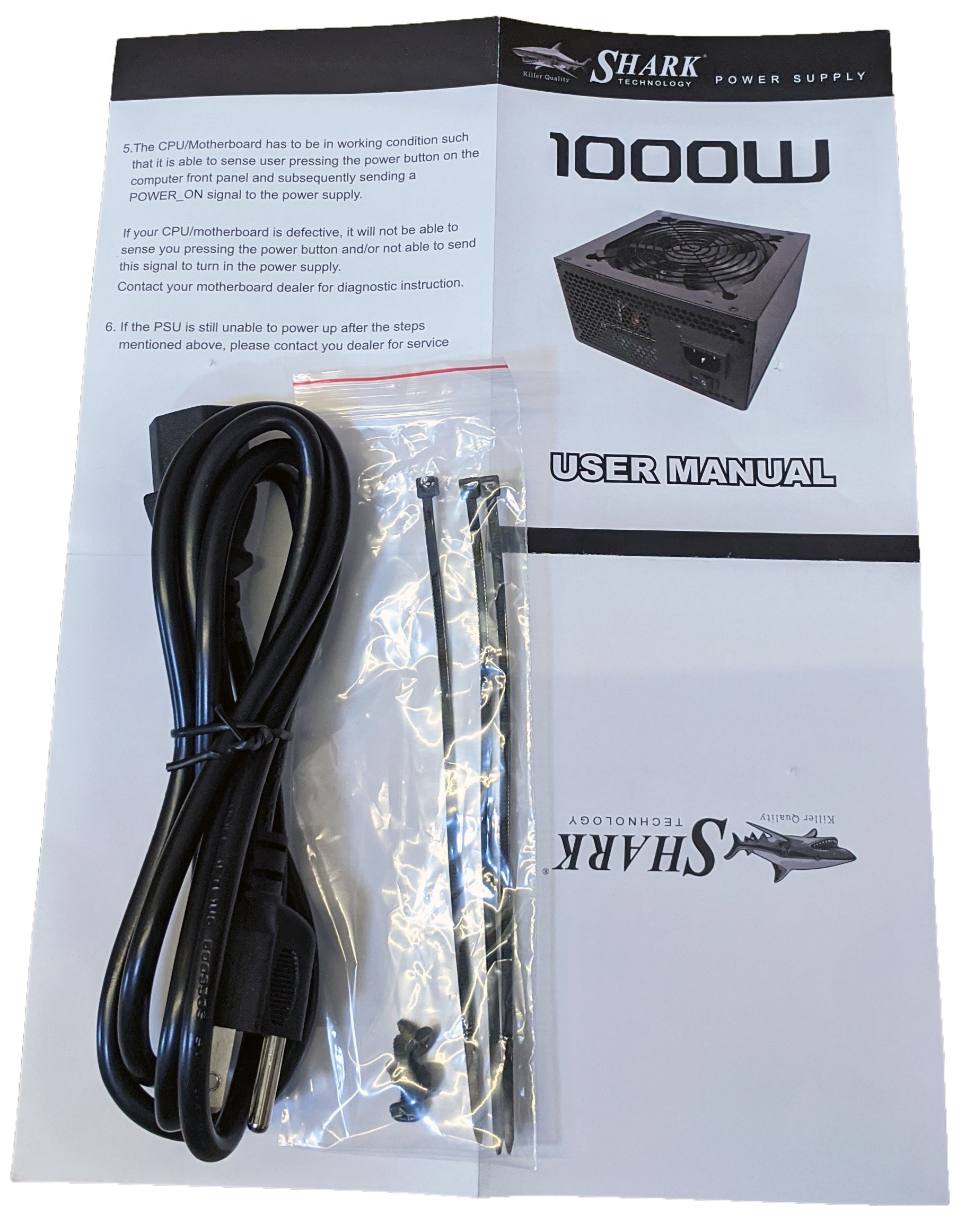

    • UL certified safety power cord included
    • Consumes less than 0.5W in standby no load state - EuP Lot 6 2013 compliant
    • Energy-efficient with less heat and wastes less electricity
    • Active PFC technology with full range auto AC input selection
  • Made with lead-free and hazardous-free components -
    RoHS Compliant
  • Long cables to support mid and full tower standard PC and gaming cases
  • Black casing with black round circular fan guard and black mash cable sleeves on all cables

High EfficiencyLow Heat Low Noise

This unit can operate anywhere in the world automatically with any AC input voltage from 100V to 240V. The sophisticated high efficiency design allows the unit to operate with less heat and lower cooling fan noise than most PC power supply models in the market.
ATX 12V V2.2 EPS 12V V2.92

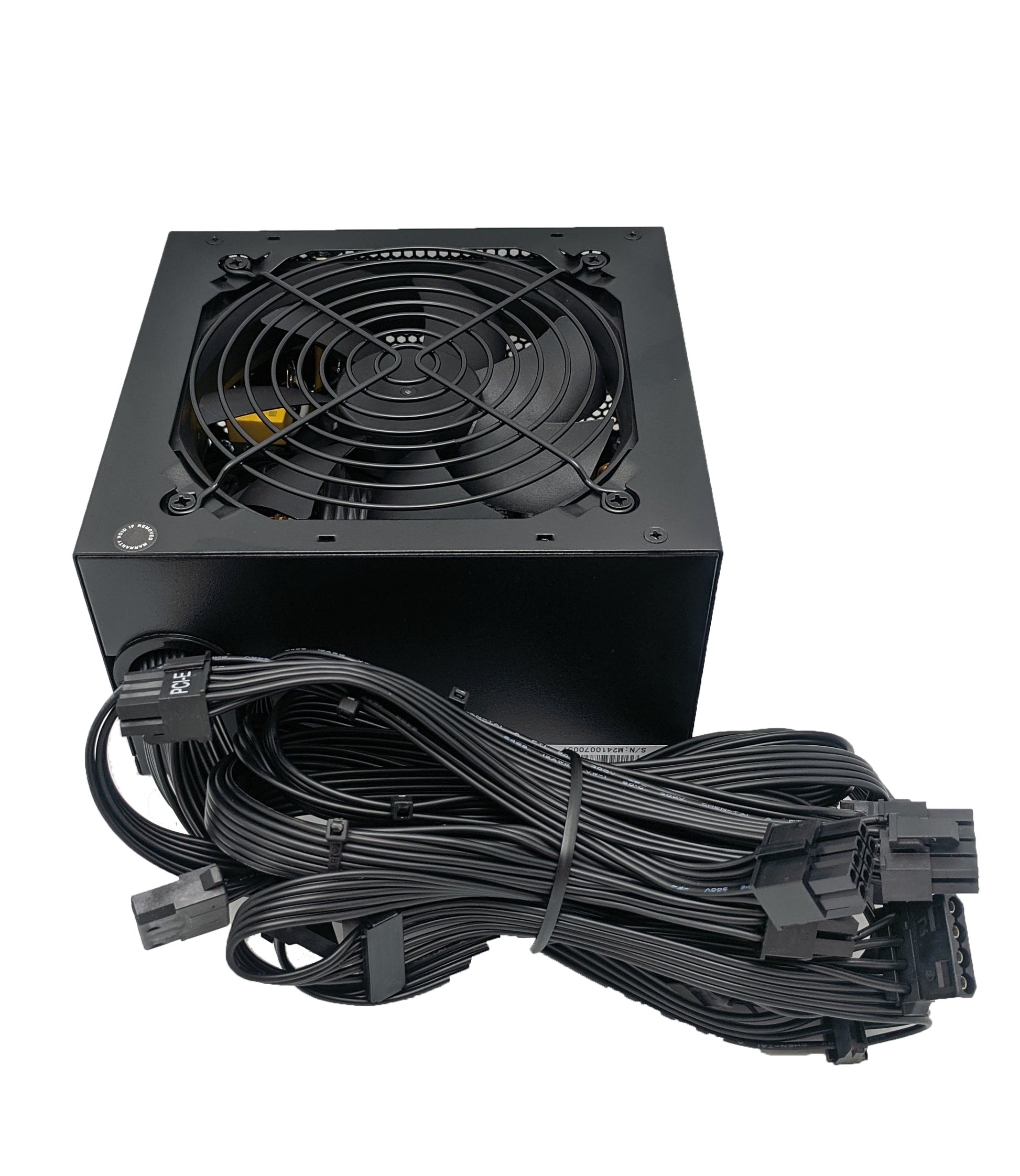

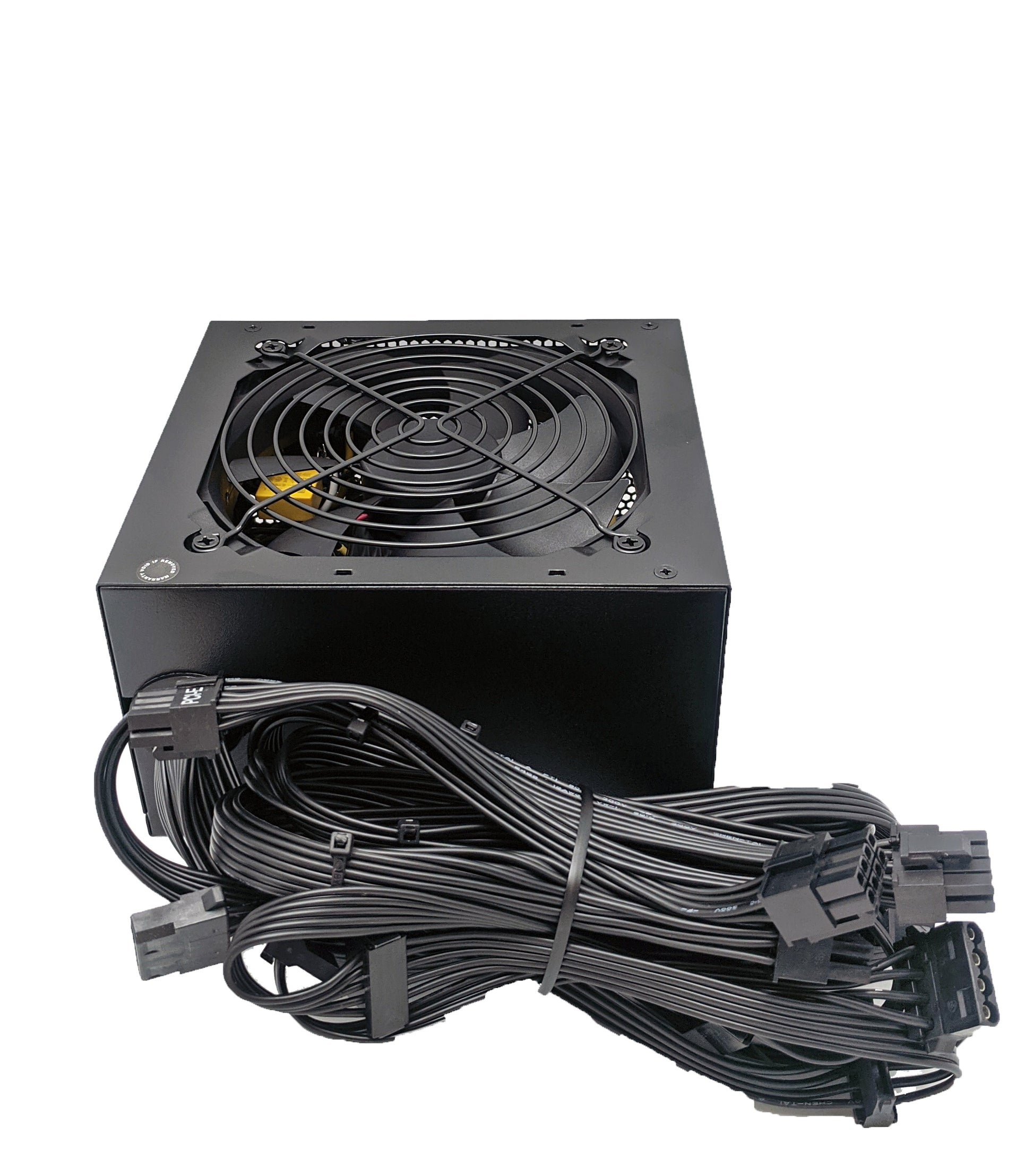

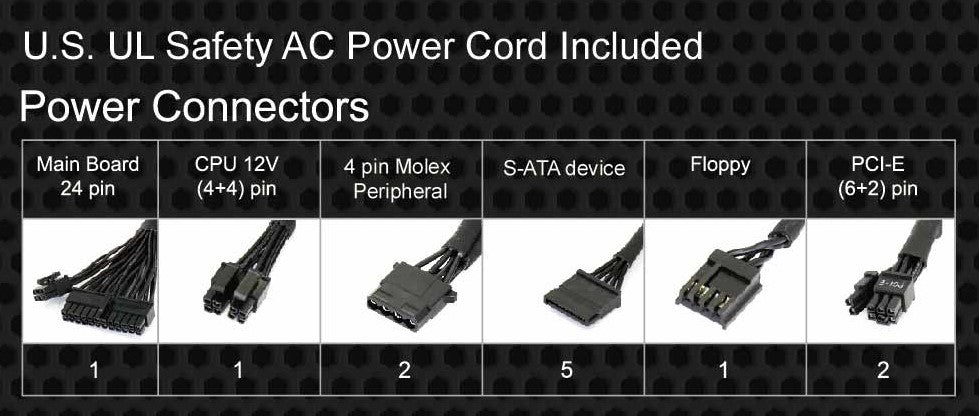

Connectors Details





1 x 20+4pin Main Power Connector (supports 20 or 24pin) -20"
1 x 4+4 12V Power Connector (supports standard 2x2 P4 or 2x4 8pin 12V boards) 21"
2 x 6+2 PCI-E Power Connector, supports 6pin or 8pin PCIe video cards
(on two separate line of cables for unrestricted reach) - 21.5"
4 x SATA Power Connector (on two separate line of cables for unrestricted reach) - longest SATA 27.5"
4 x Peripheral Power Connector (on 2 separate line of cables) - longest Molex 27.5"
1 x Floppy Drive Power Connector



More Details

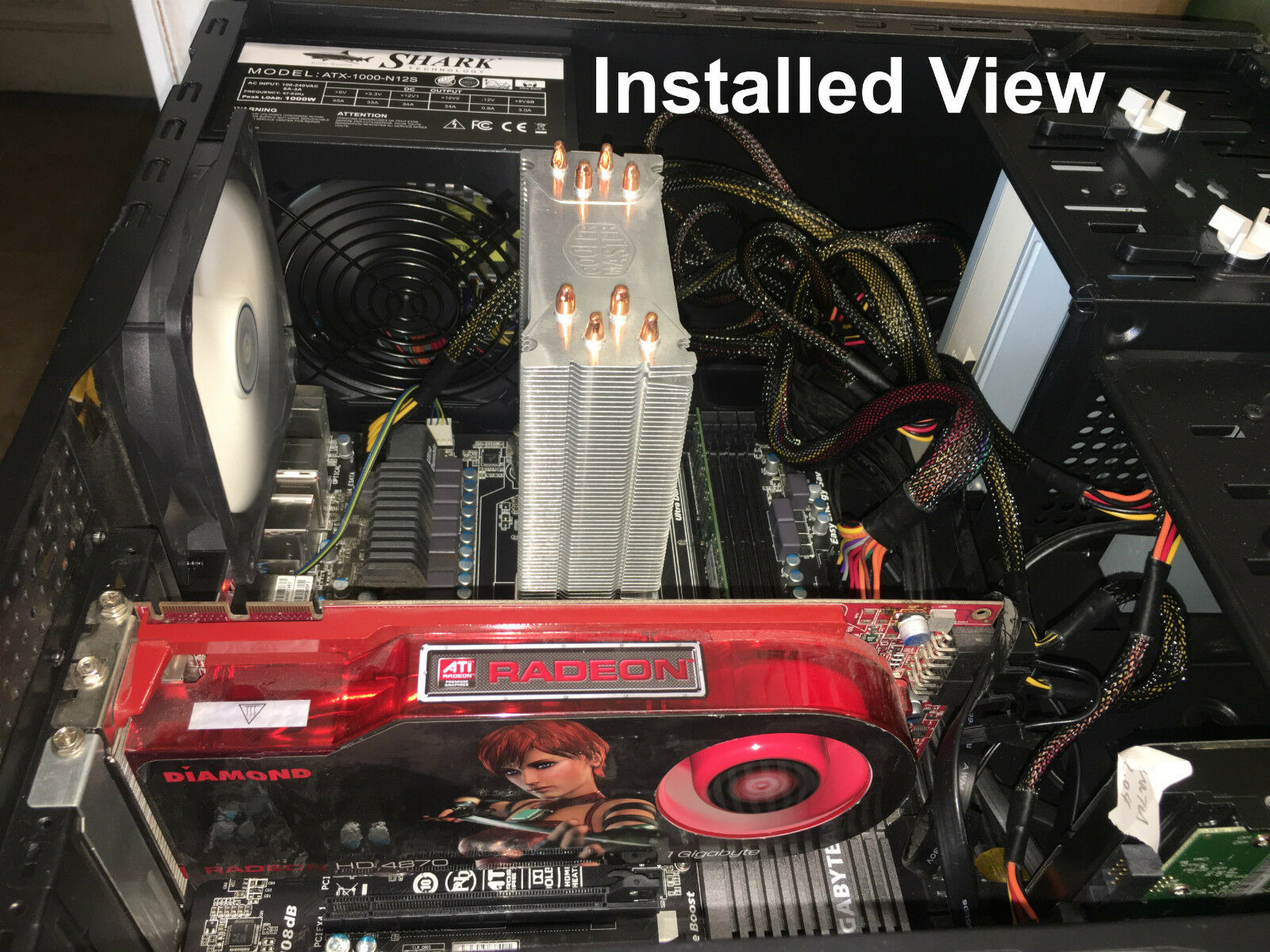

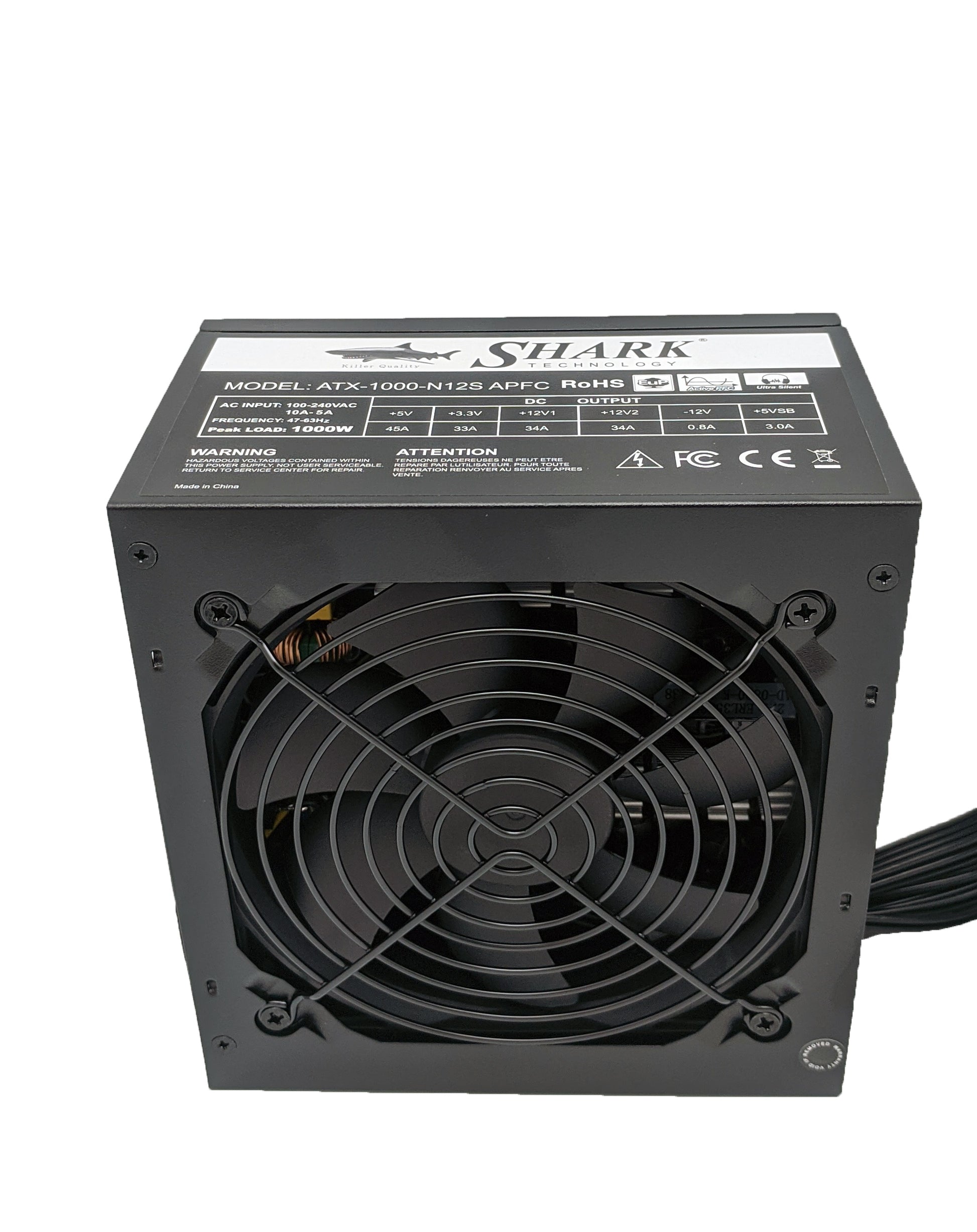

Massive 120mm fan draws heat from CPU area and cools the power supply at the same time.

Special slippery circular tube design
fan-guard
allows air to flow in smoothly and quietly while providing protection against unintended installation injury.



Smart Fan Control

Large 120mm fan draws massive amounts of hot air in from the CPU into the power supply and exits out the back of the PC. Fan speed is regulated in reference to its internal temperature sensor attached to an internal heat-sink fin. Quiet low-friction fan spins leisurely at 800 RPM, reducing power consumption and greatly reducing fan noise. On board smart controller may gradually increase the fan speed in response to rise in temperature.



Black casing with black mash cable sleeves on all cables. Sleeves provide protection for the wires. Sleeve cover is receded approximately 6" from power connector to provide enough clearance for ease of connection.

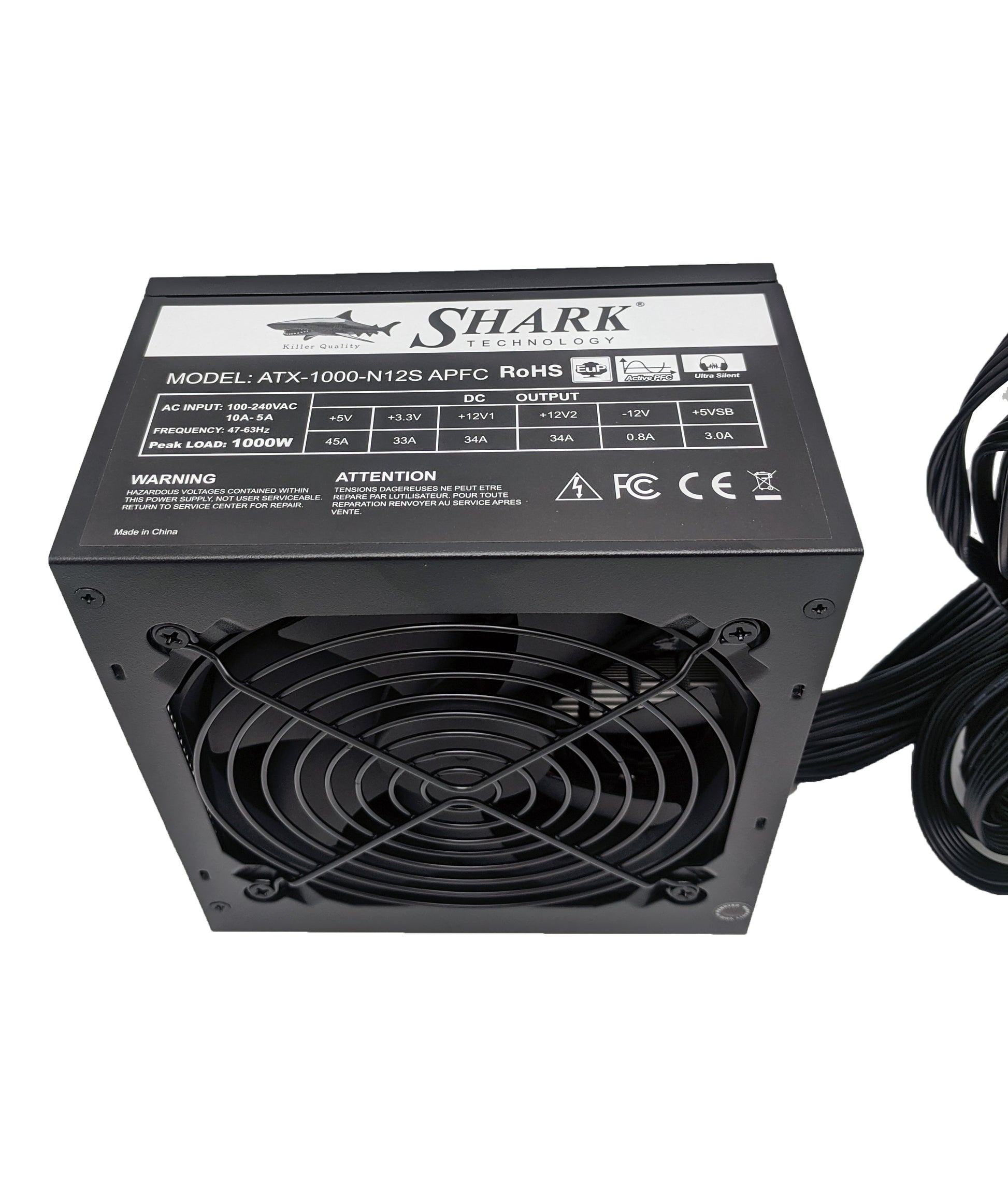

Technical Specifications


AC INPUT
115V/230V - 60/50Hz
DC OUTPUT
+3.3V +5V +12V1
+12V2 -12V +5VSB
1000W
Max
Combined
Peak Watts
33A 45A 34A
34A 0.8A 3A
1000W

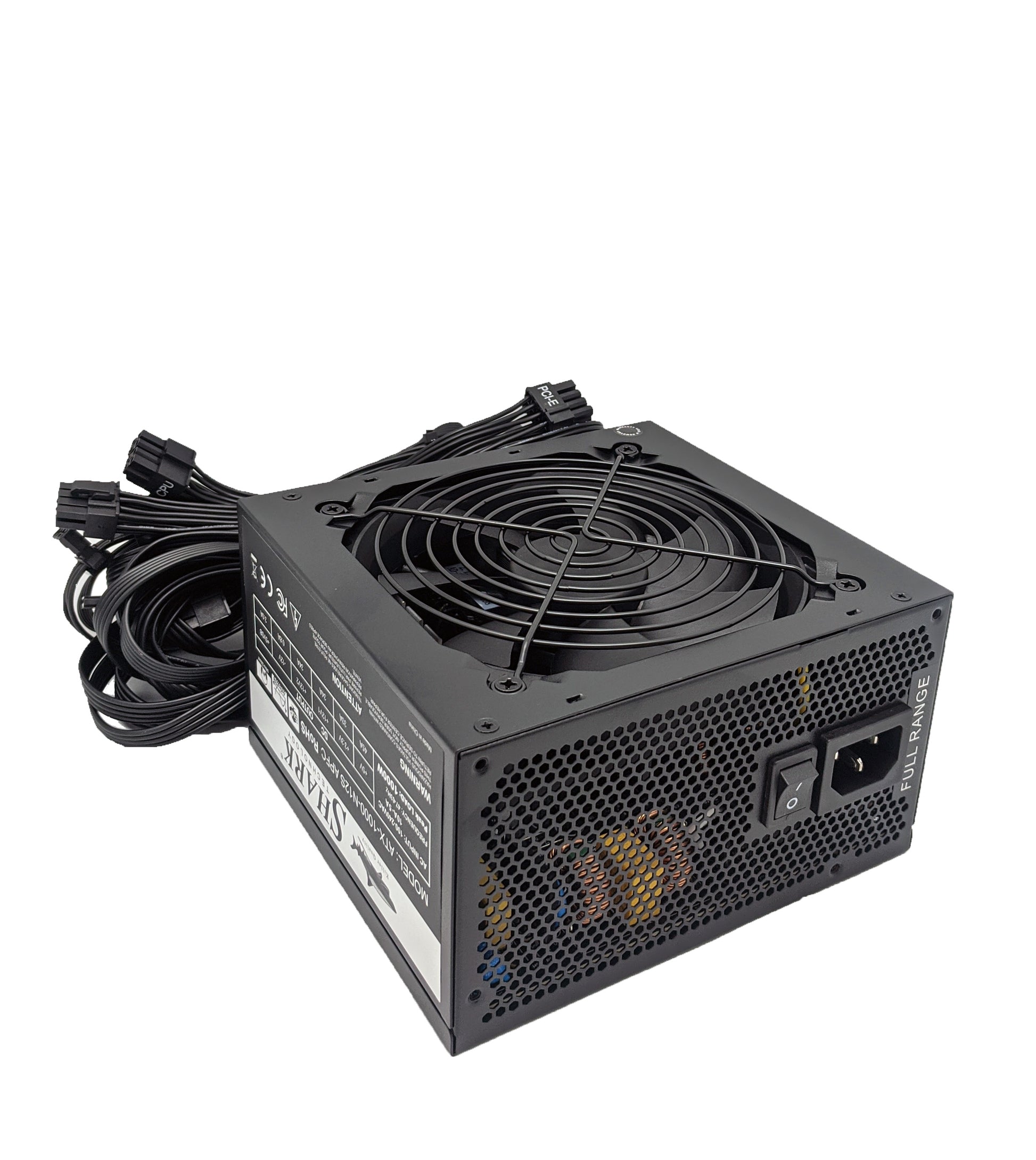

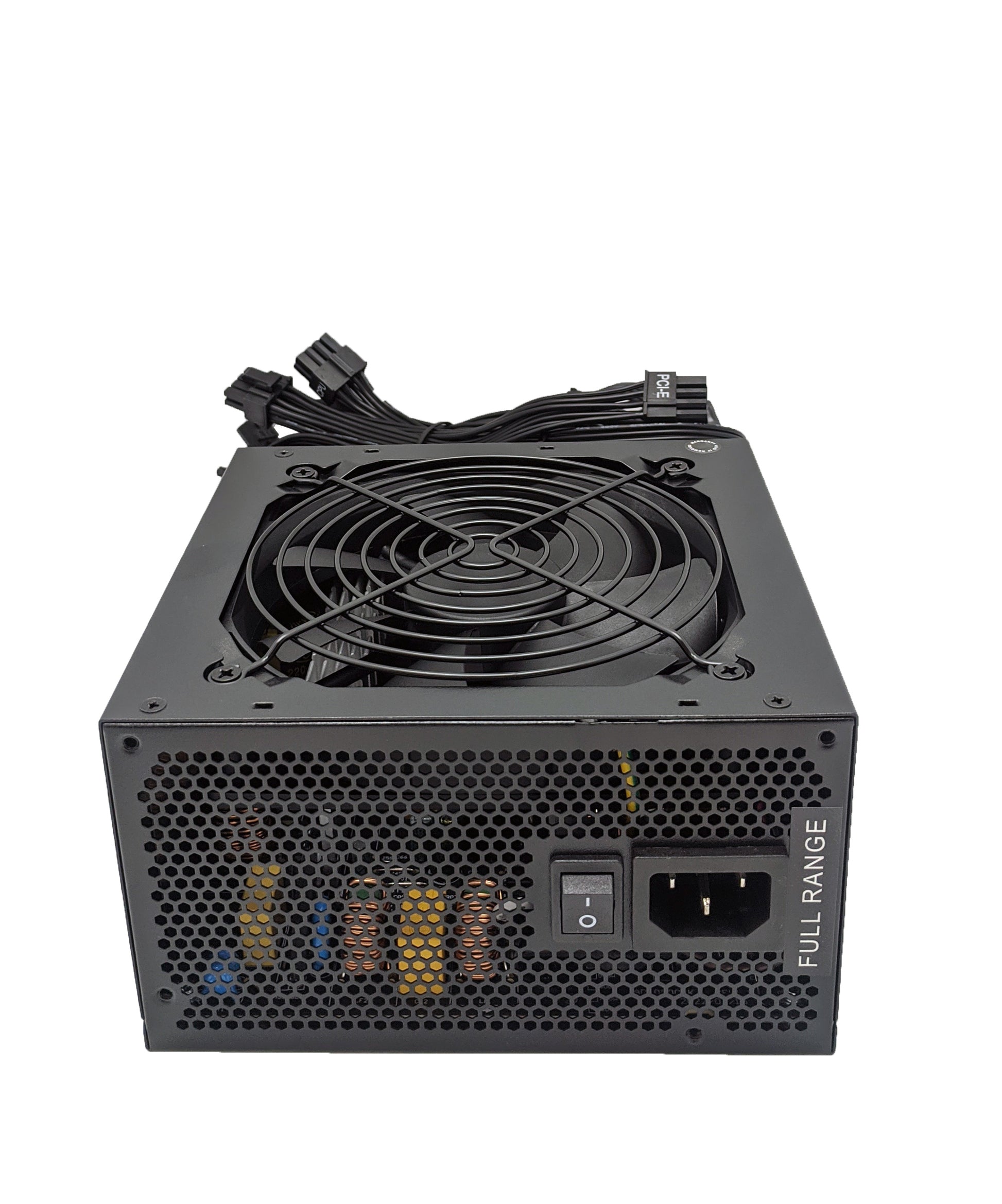

Manual shut-down rocker switch
Maximum Power Output: 1000W
Efficiency: Typical 78%

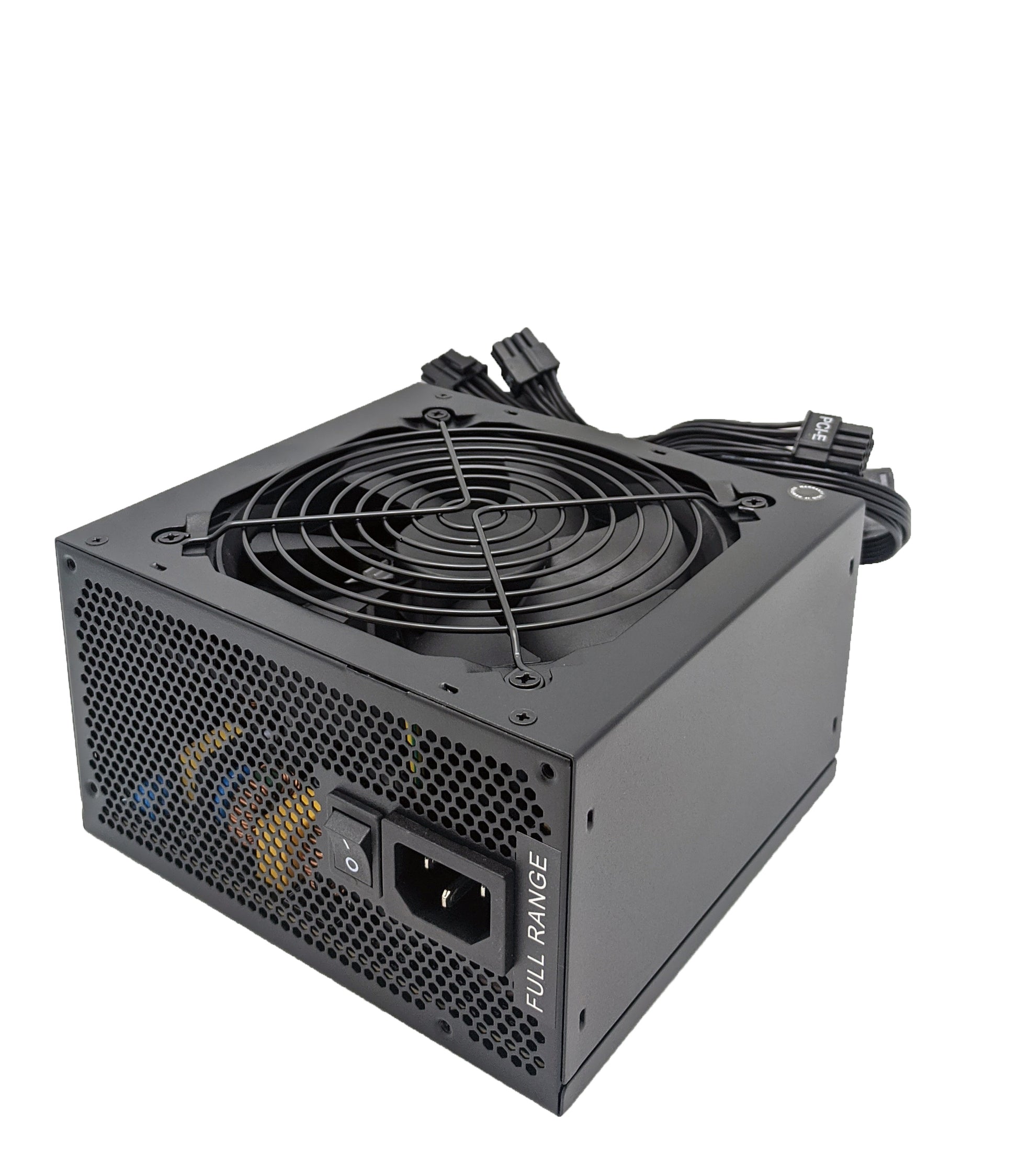

Input: 100--240V AC - automatic selection. No need to flip the AC input switch manually.
Dimension: 150mm x 86mm x 140mm (the 140mm length is the side that extends inside the case when installed)


This is the optional AFPC auto-switch version that does not come with an AC Voltage Selection Switch as it can now self-select automatically.


Complete 4*Startm system protection
  • Over Voltage Protection
  • Under Voltage Protection
    • Short Circuit Protection
    • Over Power Protection


EuP Lot 6 2013 compliant

This unit is designed to consumes less than 0.5 watt in standby no load state. You no longer suffer noticeable power loss even after PC system is powered off.


Right angle (90-degree) serial ATA power connectors spread out in multiple lines of cables to reach various drive positions in tight corner

RoHS Compliant - made with hazardous-free components

RoHS is the Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment. This has been a standard in Europe and is now becoming a standard in the world. Not only lead, but cadium, mercury, hexavalent chromium, polybrominated biphenyl (PBB), and polybrominated diphenyl ether (PBDE) flame retardants are limited as well.
Lead-FREE Cadium-FREE Mercury-FREE Hexavalent Chromium-FREE
PBB-FREE PBDE Flame Retardants-FREE
