- Supports Intel P3, P4, and newer Core® systems
- Supports AMD Athlon, FX, A6, A8, A10, and newer Ryzen™ based systems.
- Reliable & will not overheat with strong turbo fan operating at more than 2300 RPM
- Safe fan guard design to protect your finger.
- Turbo fan provides high airflow exit out from the rear of the PC system
- Space saving design allows for easier installation and more airflow inside your PC

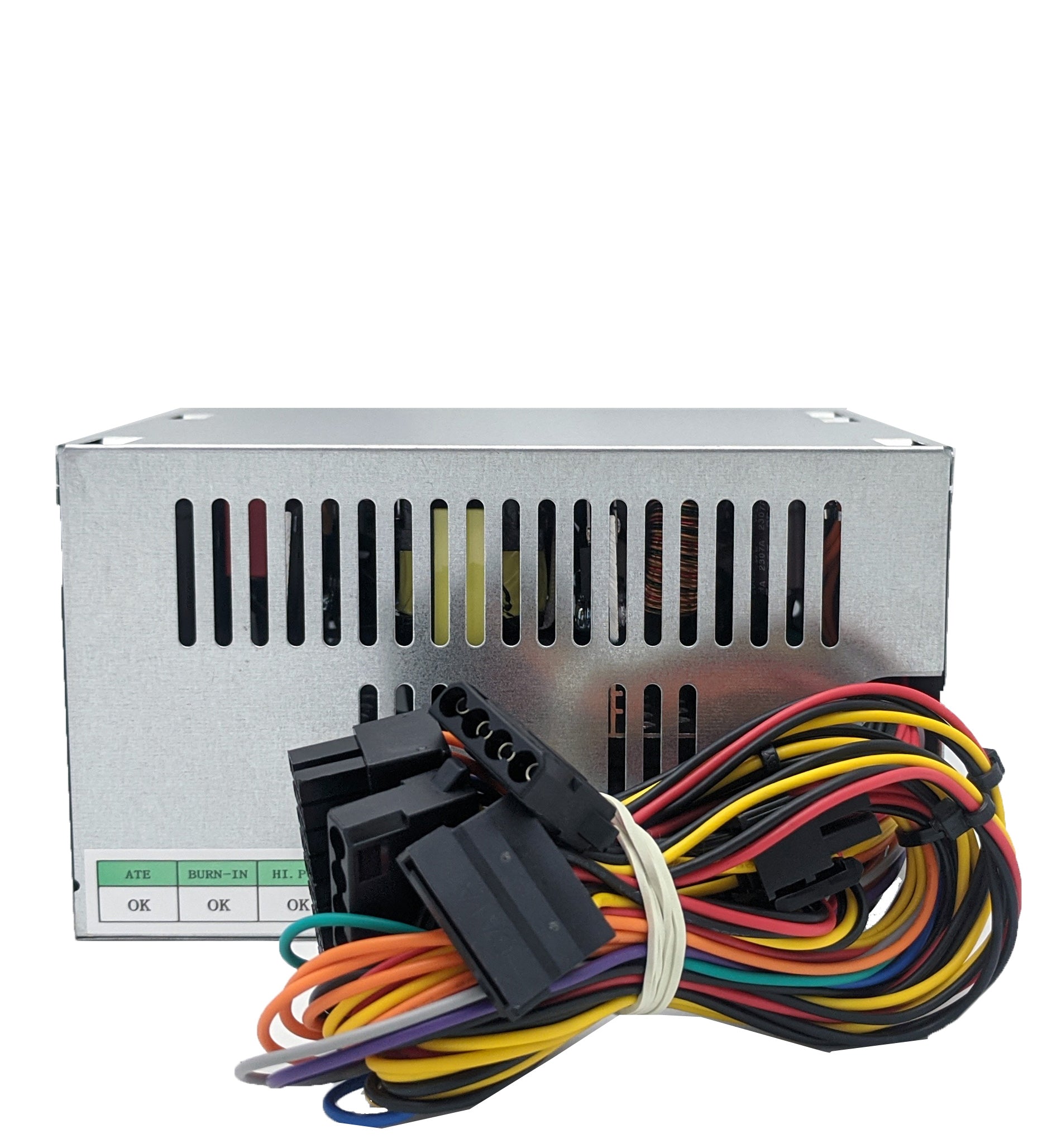

- Color-coded wiring so you know visually the voltage on each wire going to each power connector
Connectors:
1x 24-pin Main Connector (400mm long cable)
1x 12V (4+4) Power Connector (450mm long cable)
2x Molex 4-pin Peripheral Power Connector (on 2 separate cable lines.)
2x SATA Power Connector (on 2 separate cable lines)

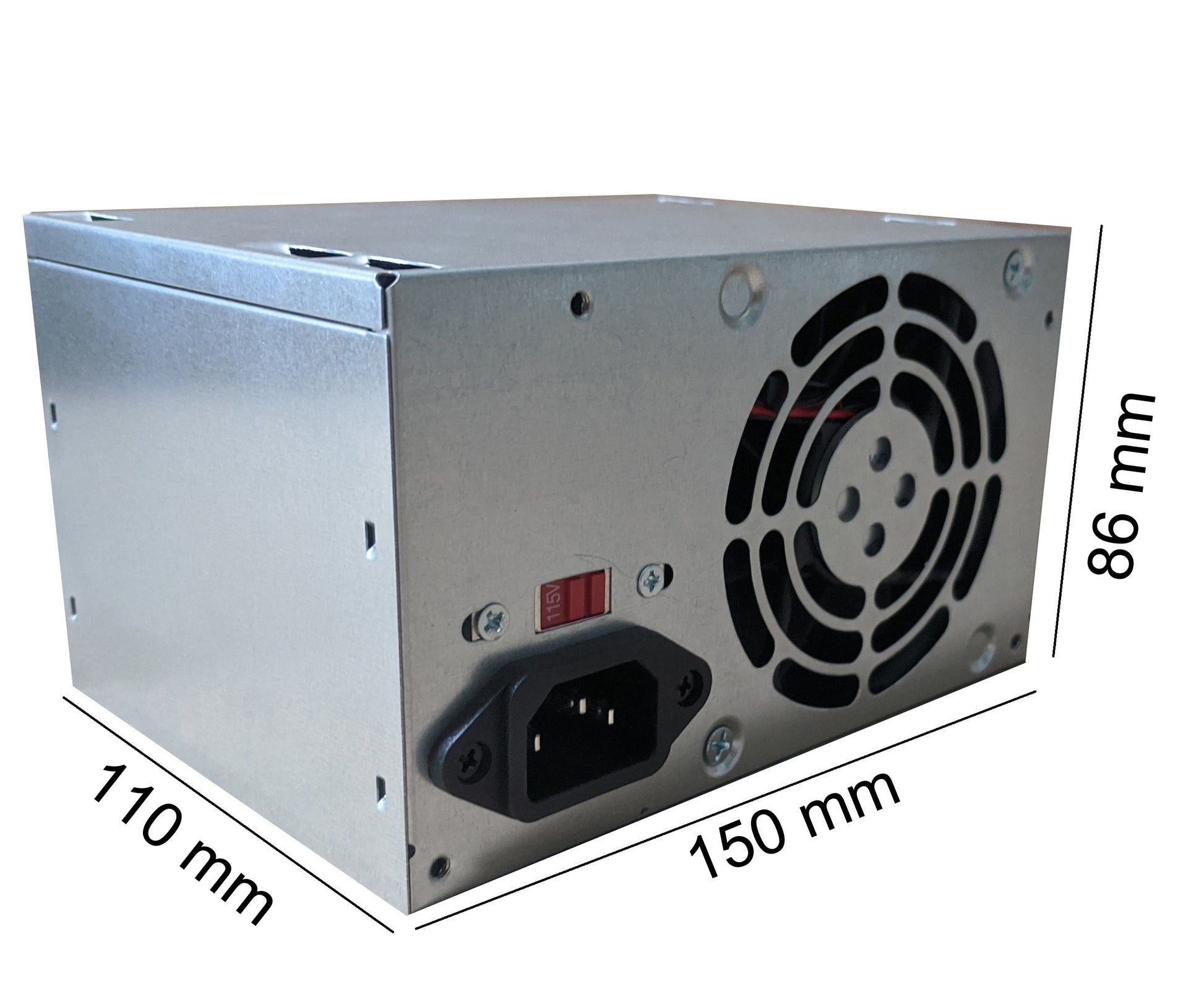

Dimensions: 86(H) x 150(W) x 110 (D) mm

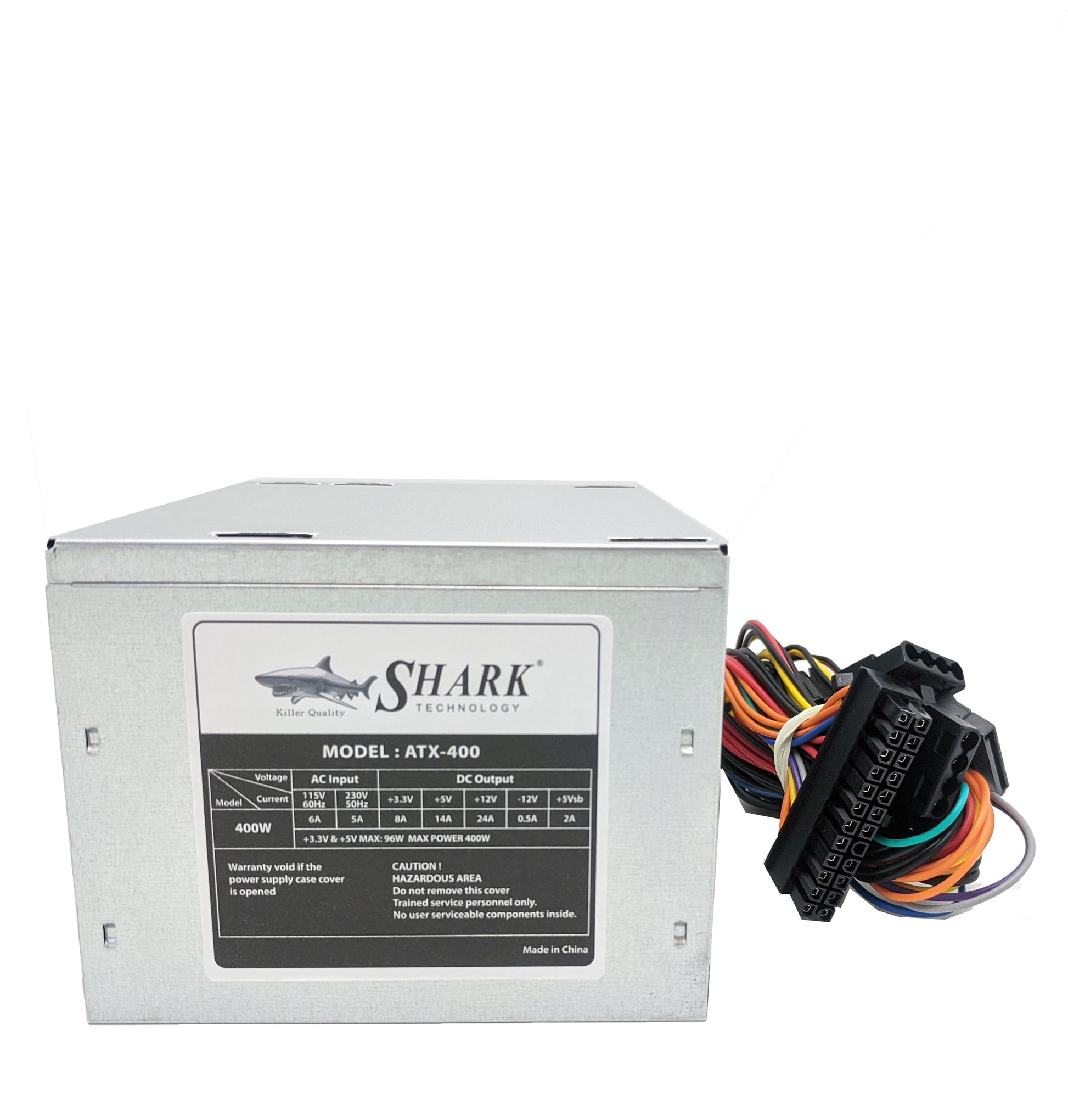

Technical Specifications:
AC INPUT
|
115V/230V - 60/50Hz
|
|||||
DC OUTPUT
|
+3.3V
|
+5V
|
+12V
|
-12V
|
+5VSB
|
|
400W
|
Peak
Combined Watts |
8A
|
14A
|
24A
|
0.5A
|
2A
|
400W
|
Maximum Power Output: 400W
Efficiency: Typical 70% @ full, 50%, or 20% load
Mesh fan-guard for child safety protection

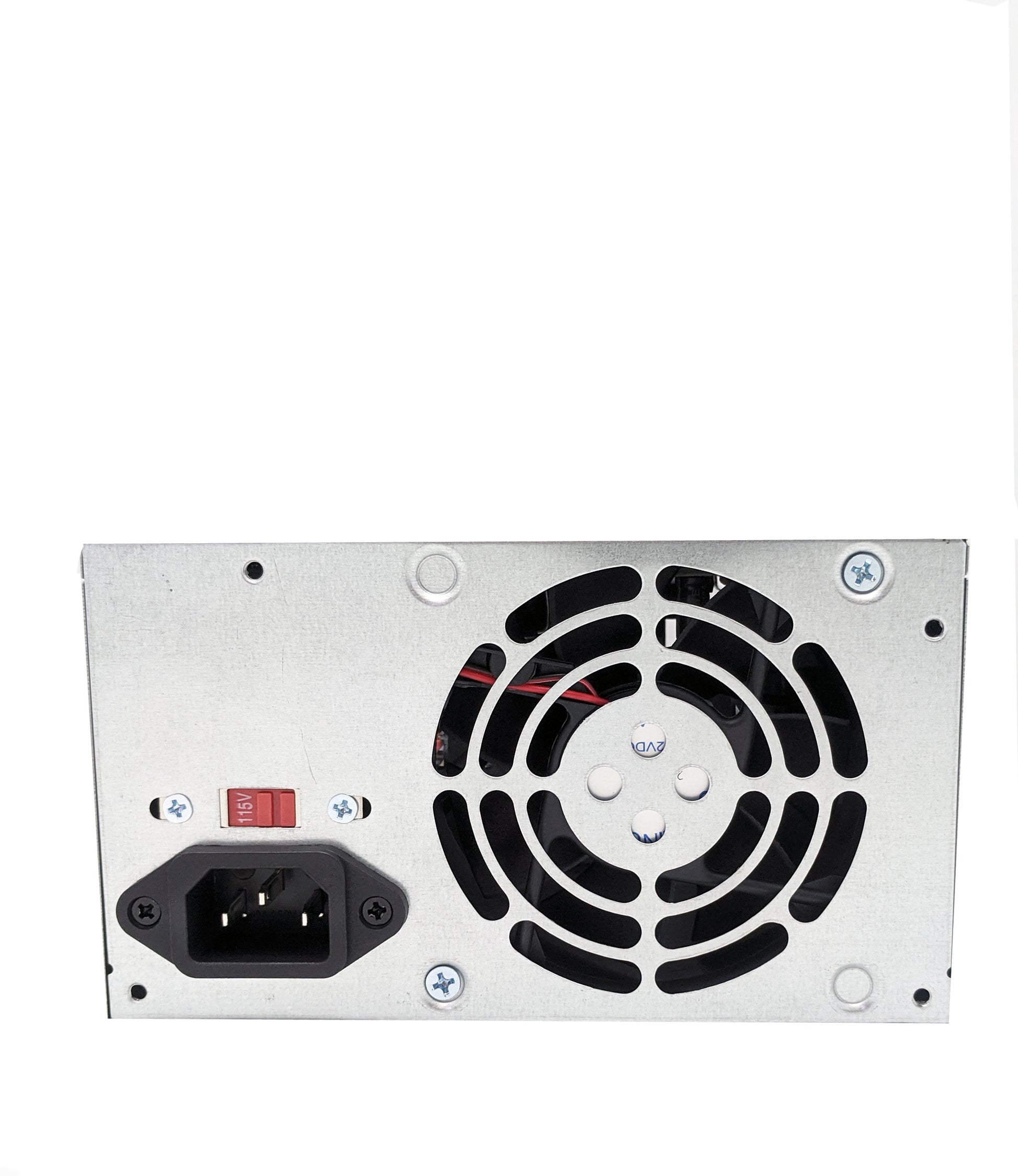

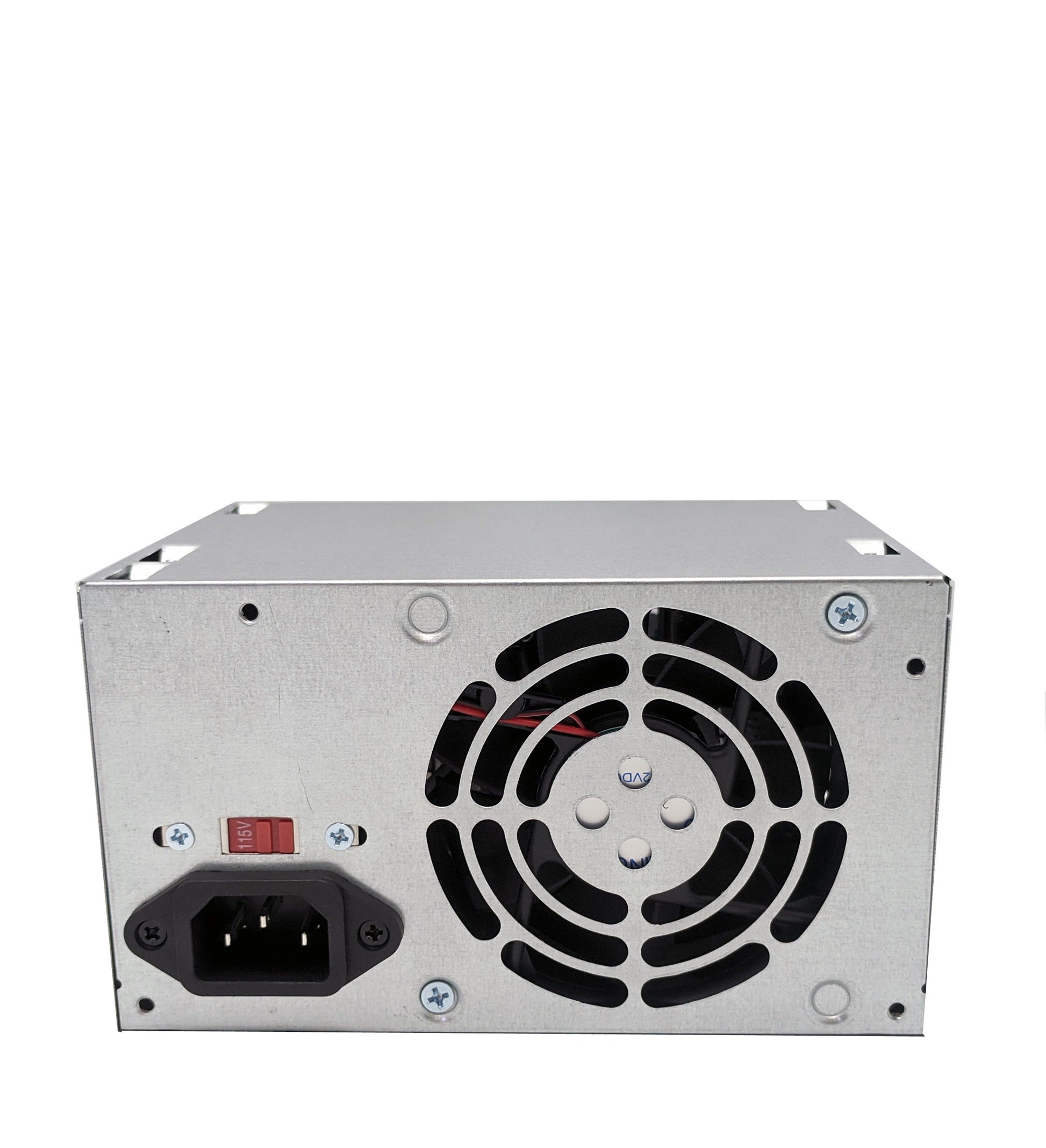

Input: 100-127V AC or 200-240V AC - select-able by switch
Complete 4*Start system protection:
Over Voltage Protection
Over Current Protection
Short Circuit Protection
Over Power Protection
