SHARK TECHNOLOGY FLEX1U-200 1U Flex ATX 200W Switching Power Supply IDE/SATA PC System

Regular price $45.00

200-Watt 1U Flex ATX Power Supply

Complete support for legacy IDE and faster SATA devices

SHARK TECHNOLOGY® FLEX1U-200 combines the industry's best cooling architecture with compact mechnical packaging (only 5 7/8" in length) to provide the most reliable power source for your valuable system.     This model comes standard with up-to-date four (4) SATA-drive power connectors and support for both 20-pin and 24-pin motherboards.

It is designed to be an ideal upgrade and replacement choice for most 1U server and portable gaming systems.


  • HIGH EFFICIENCY: 70% minimum
  • Reliable: Each unit Hi-Pot tested to withstand 1500V AC surge voltage
  • Better packaging: Compact in length for ease of installation & improved system airflow
  • Maximum peripheral support: 2x 4-pin Molex IDE & 4x newer SATA power connectors
  • Clean power: Precision DC output voltage regulation and low ripple noise

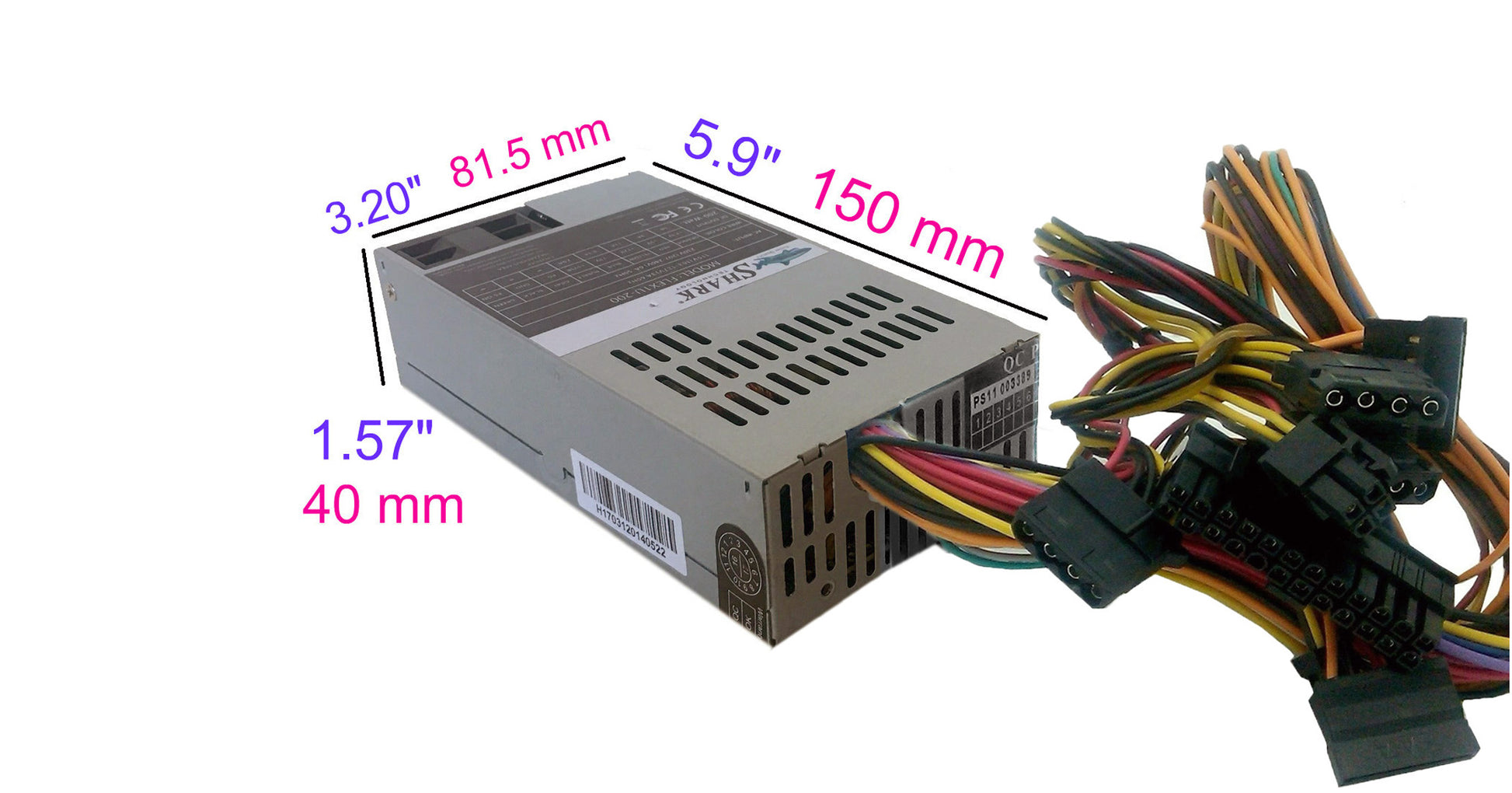

  • Dimensions:
    150 x 81.5 x 40 mm

    Connector Details:

    1x 20/24pin Main Power Connector to support both 20pin and newer
        24pin motherboards.  Total cable
    & connector length: 330mm
    4x SATA Power Connectors (on 2 separate lines of cables) length: 455mm
    1x P4 4pin Power Connector length: 380mm
    2x Molex Peripheral Power Connectors for fans and IDE drives  length: 480mm


      Product  Specifications

    • High Efficiency: 70% minimum

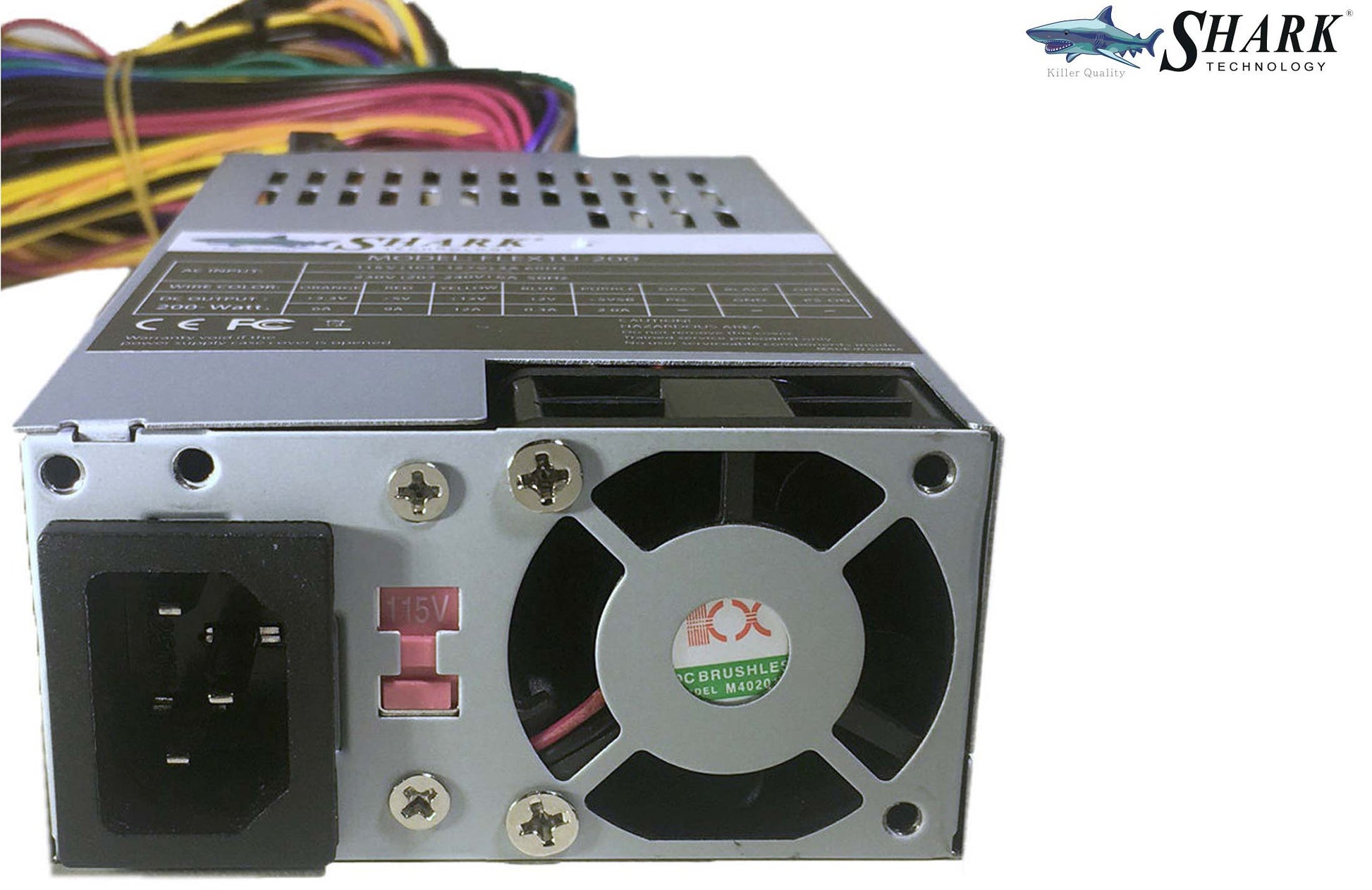

    • AC input (47-63Hz) is switch selectable to 115V (100-127V) or 230V (200-240V).


    DC OUTPUT- Max Load: 200W
    +5V +3.3V +12V -12V +5VSB
    7A 5A 11A 0.5A 2A
    +- 5% regulation
    +- 5% regulation +- 5% regulation +- 10% regulation +- 5% regulation
    Ripple: 50mV
    50mV 150mV 120mV 100mV
    • Tripple Protection:  Over-Power/ Over-Voltage / Short-Circuit Protection
      • Hi-Pot Tested: 1.5KV @ 10mA is applied for 60 seconds for every unit to test AC surge failure protection.
      • ENVIRONMENT:
        Operating ambient temperature: +5℃ to +50℃
        Operating environment relative humidity: 20% to 85%
        Operating altitude: 0~10000 feet
        Storage ambient temperature: -40℃ to +55℃
        Storage environment relative humidity: 10% to 95%
