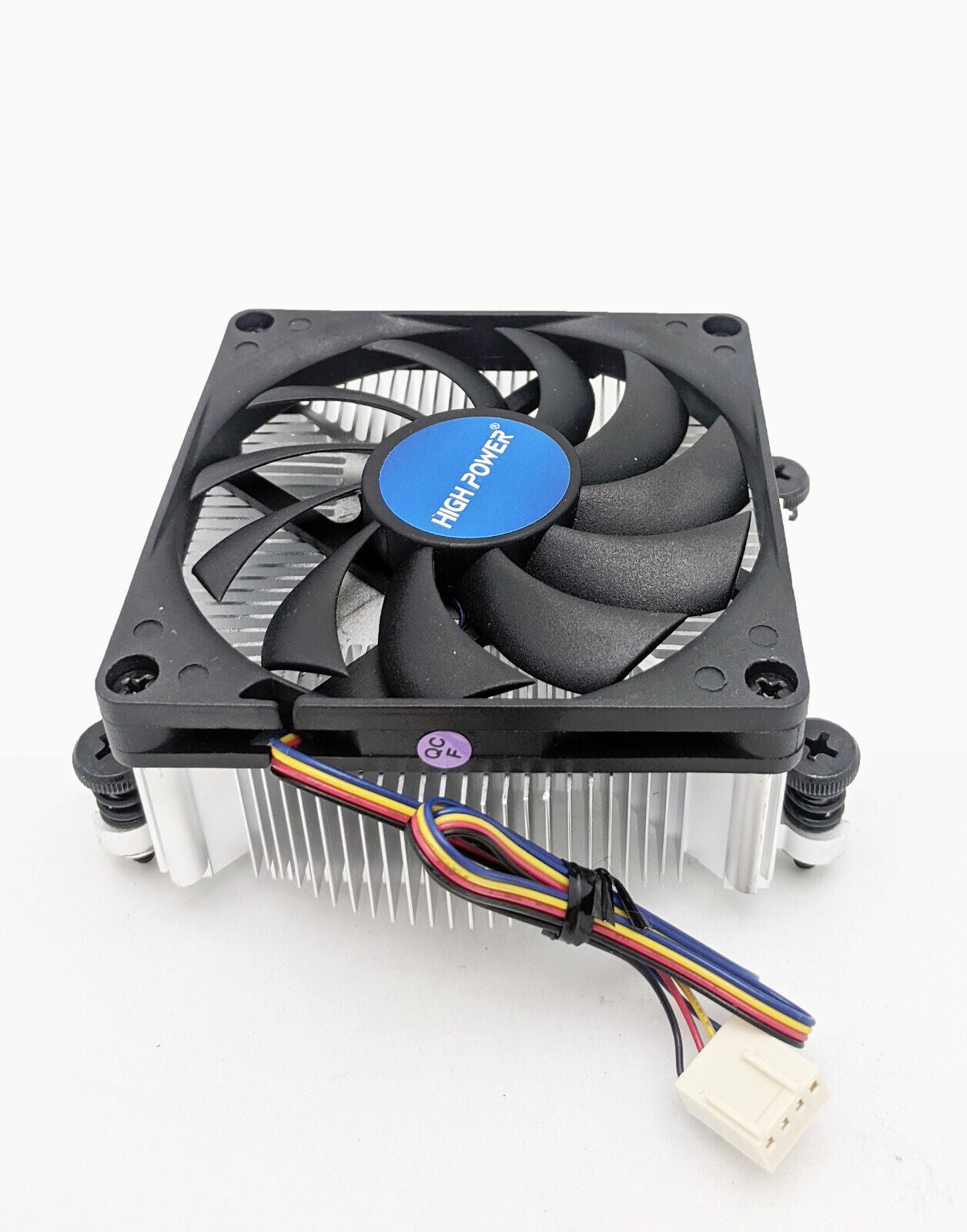

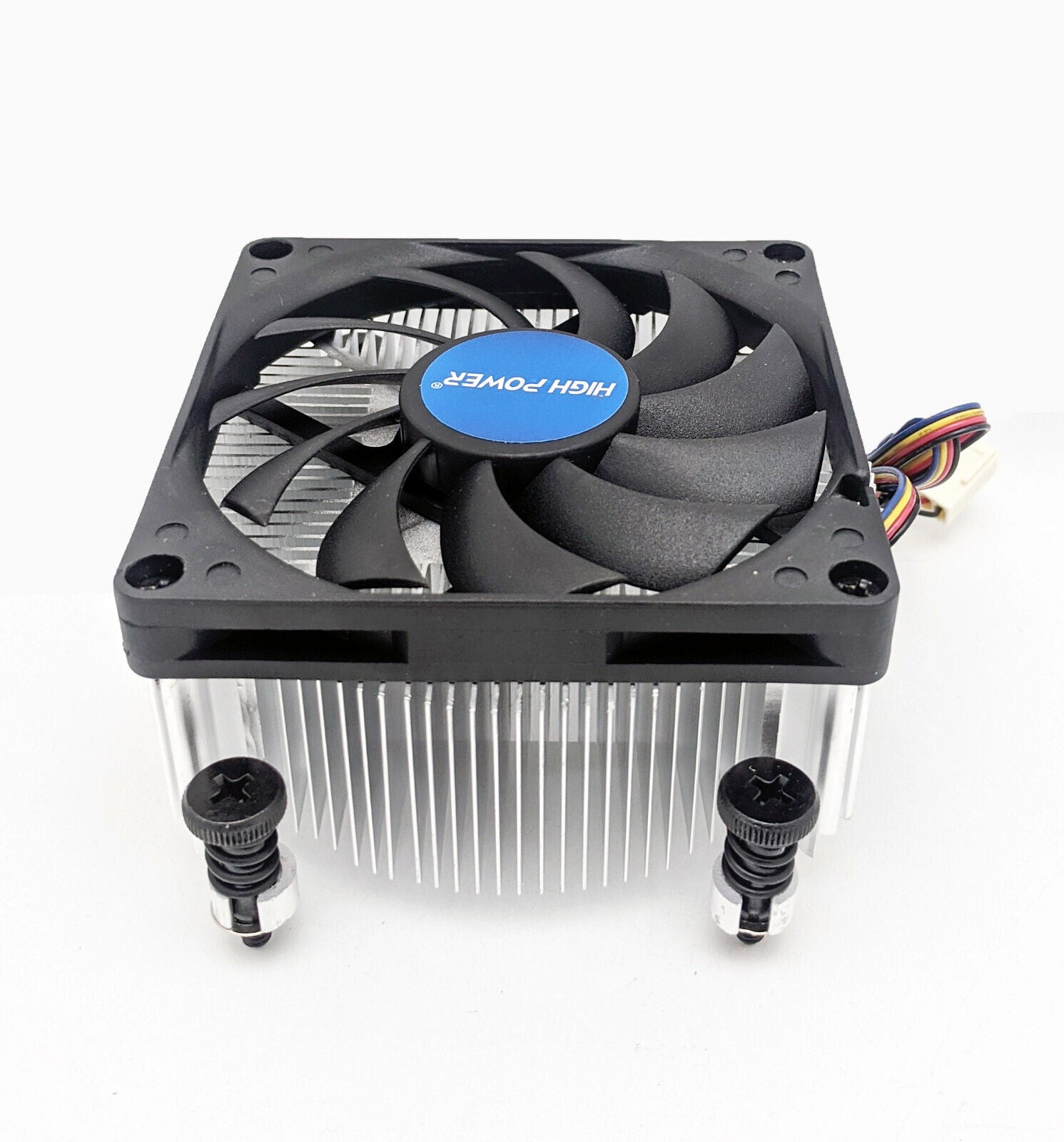

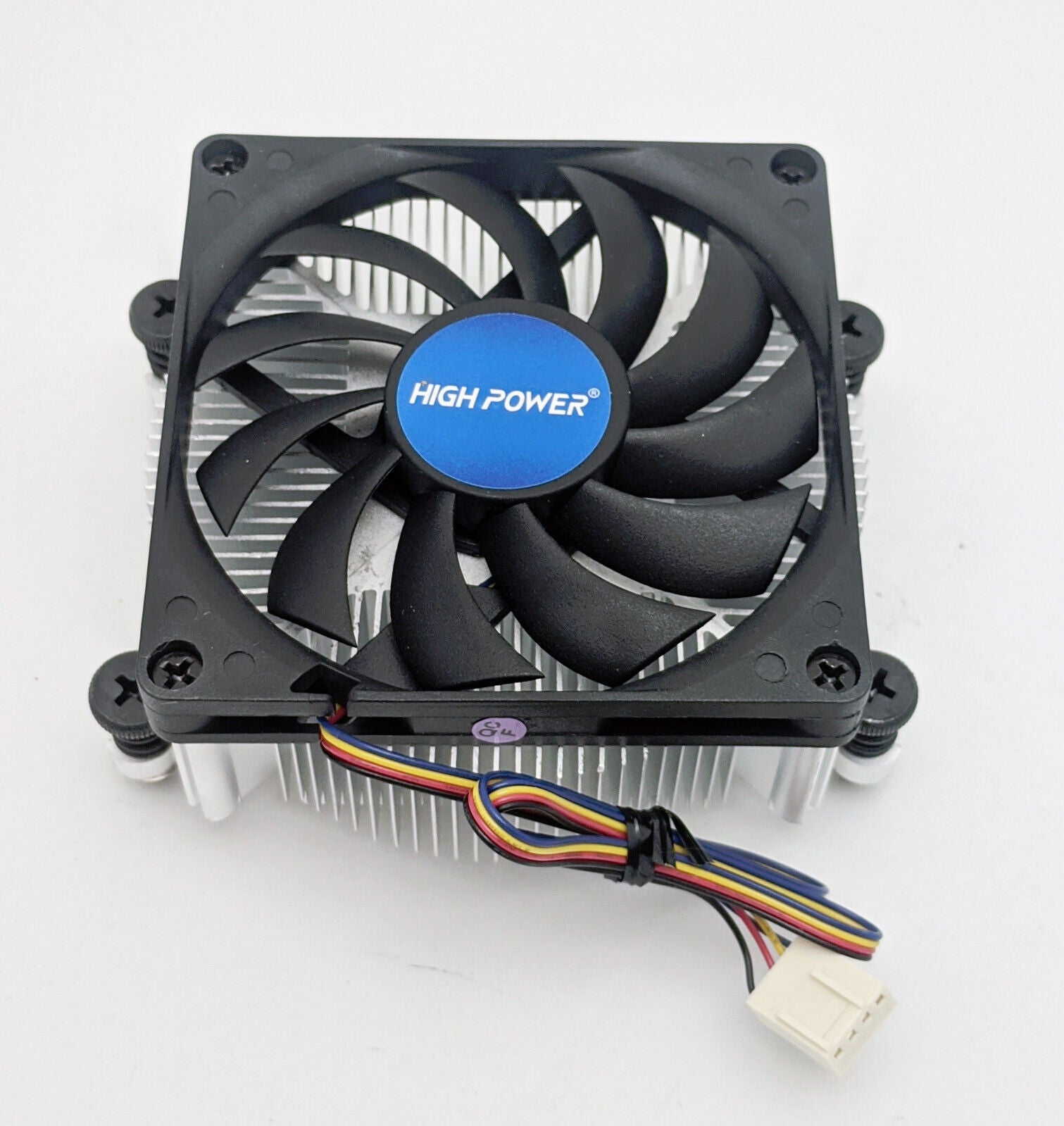

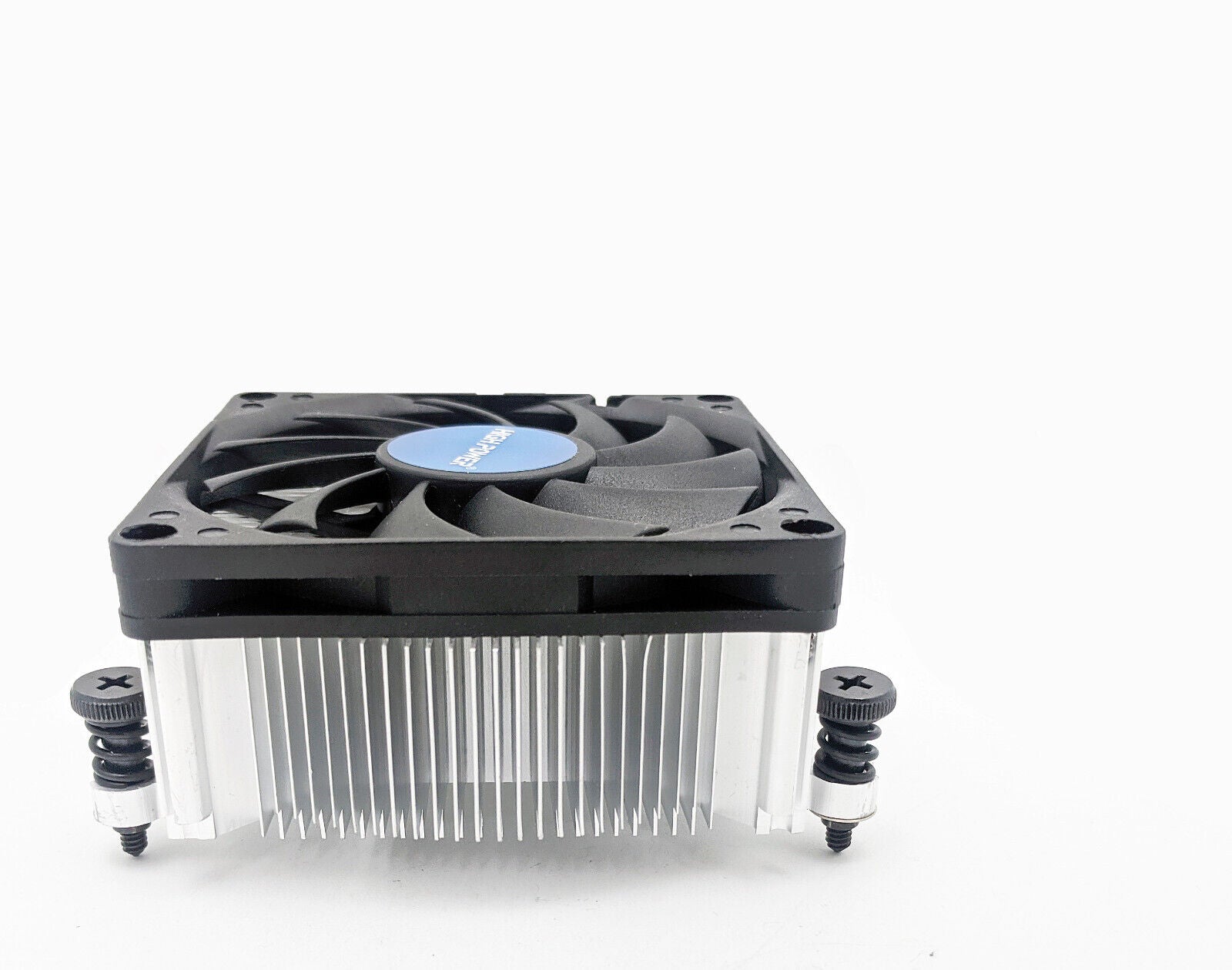

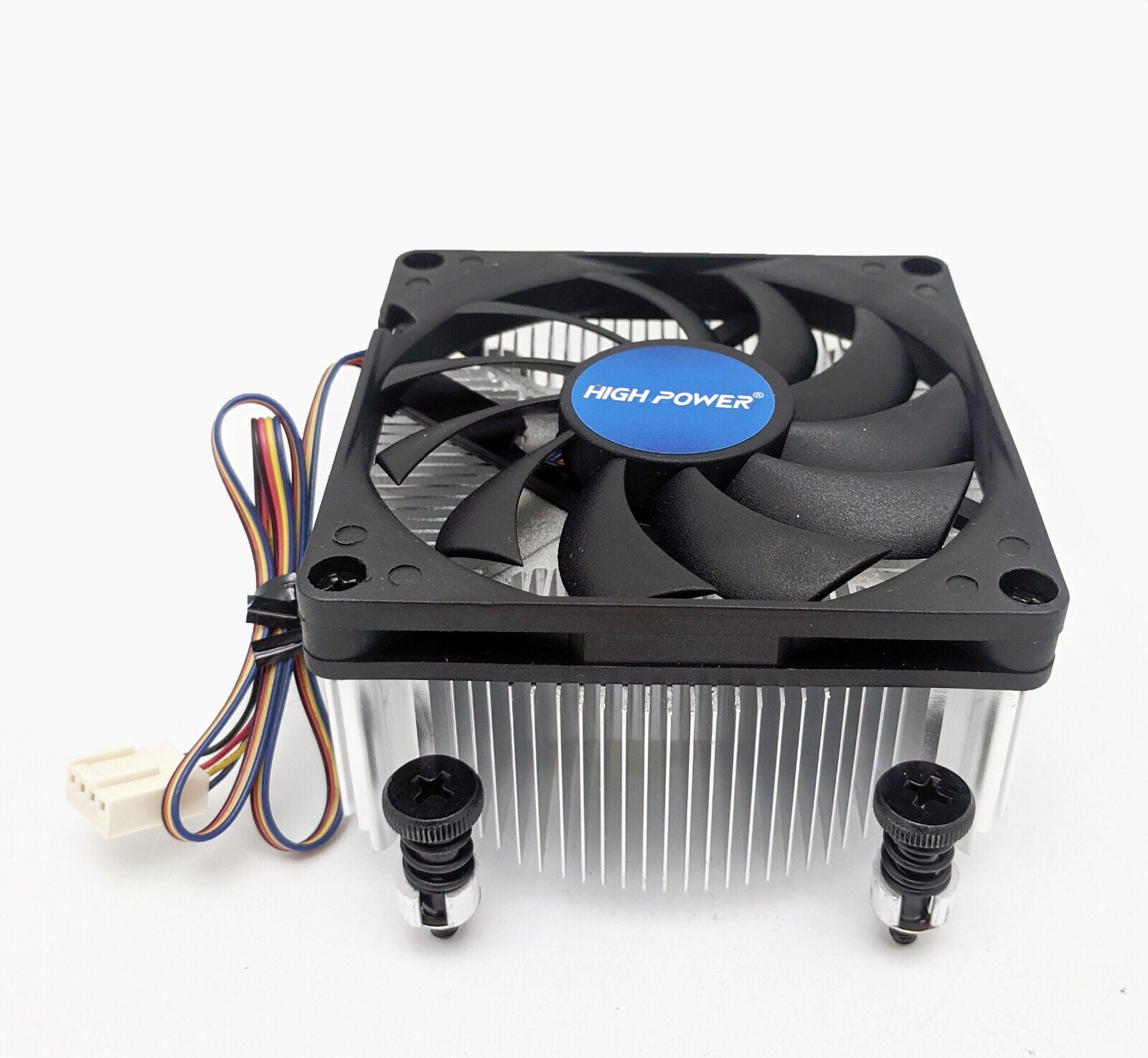

HIGH POWER® BlackAM4 Super Low Profile 40mm Height 2U/4U/Mini ITX AMD Ryzen Socket AM4/AM5 CPU Cooler with Dual Ball Bearing PWM Cooling Fan

Regular price $19.99

NEW

HIGH POWER® BlackAM4

High Performance Heat-sink with TRUE Low Profile Black Color High Airflow Dual Ball Bearing (4000RPM) Cooling Fan for
Low Profile AMD Ryzen 5/ 7/ 9 Socket AM4/ AM5 Processor Based System

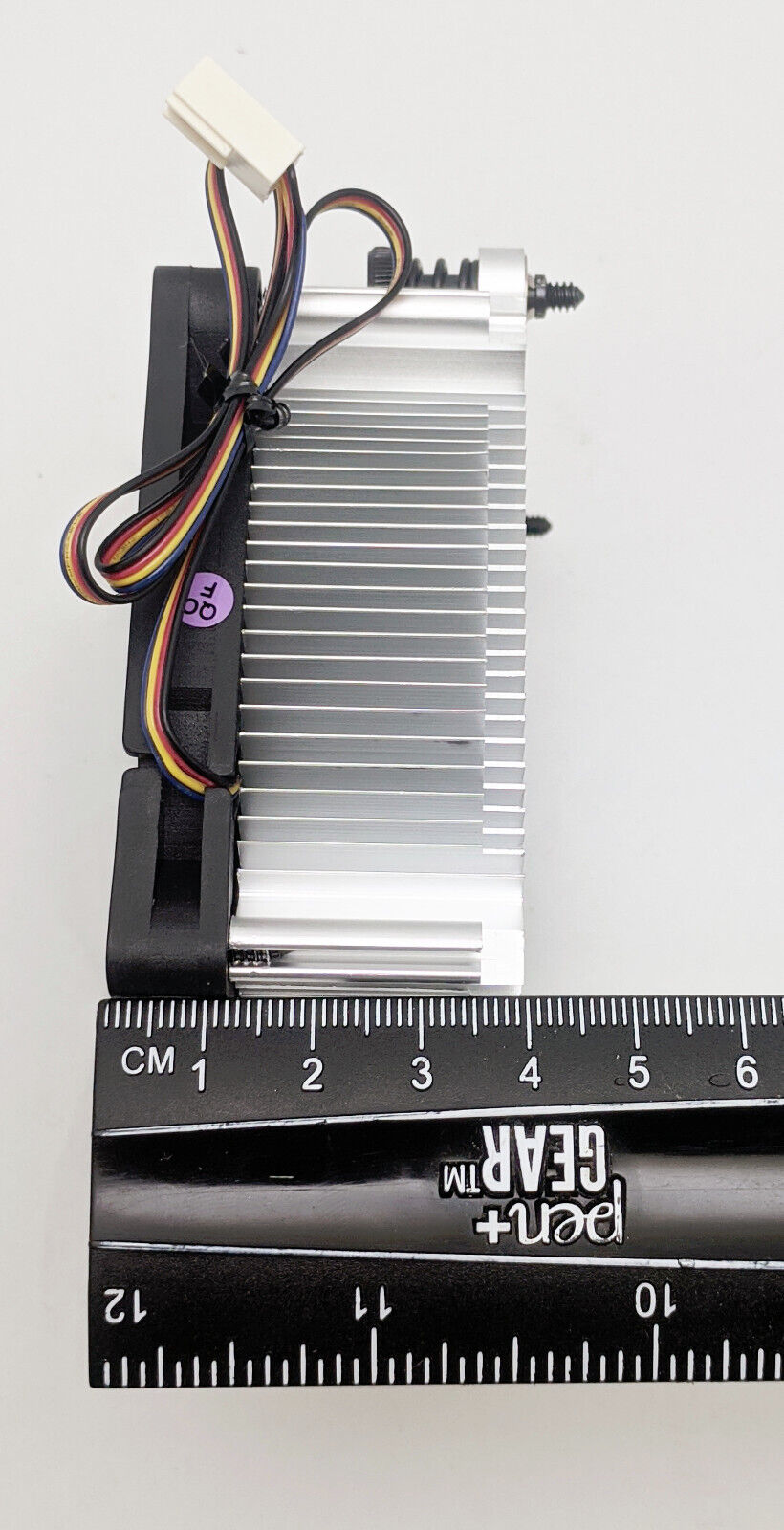

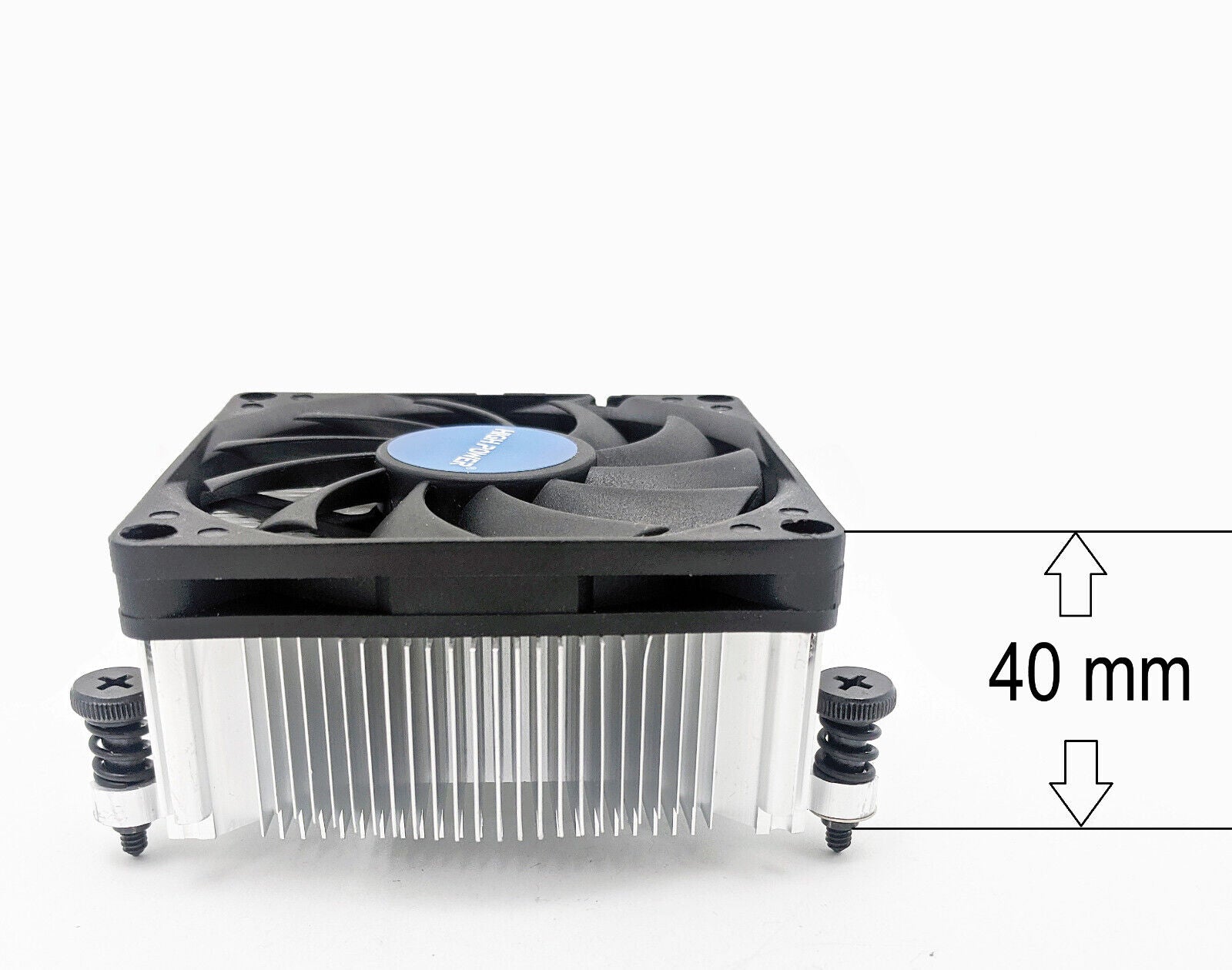

Height from Processor Contact to Top of the Fan is only 40mm
 (about 13mm shorter than stock AMD Wraith Stealth fan)

  Designed to support Low Profile 2U/ 4U/ Mini ITX/ mATX/ ATX AMD AM4 PC System

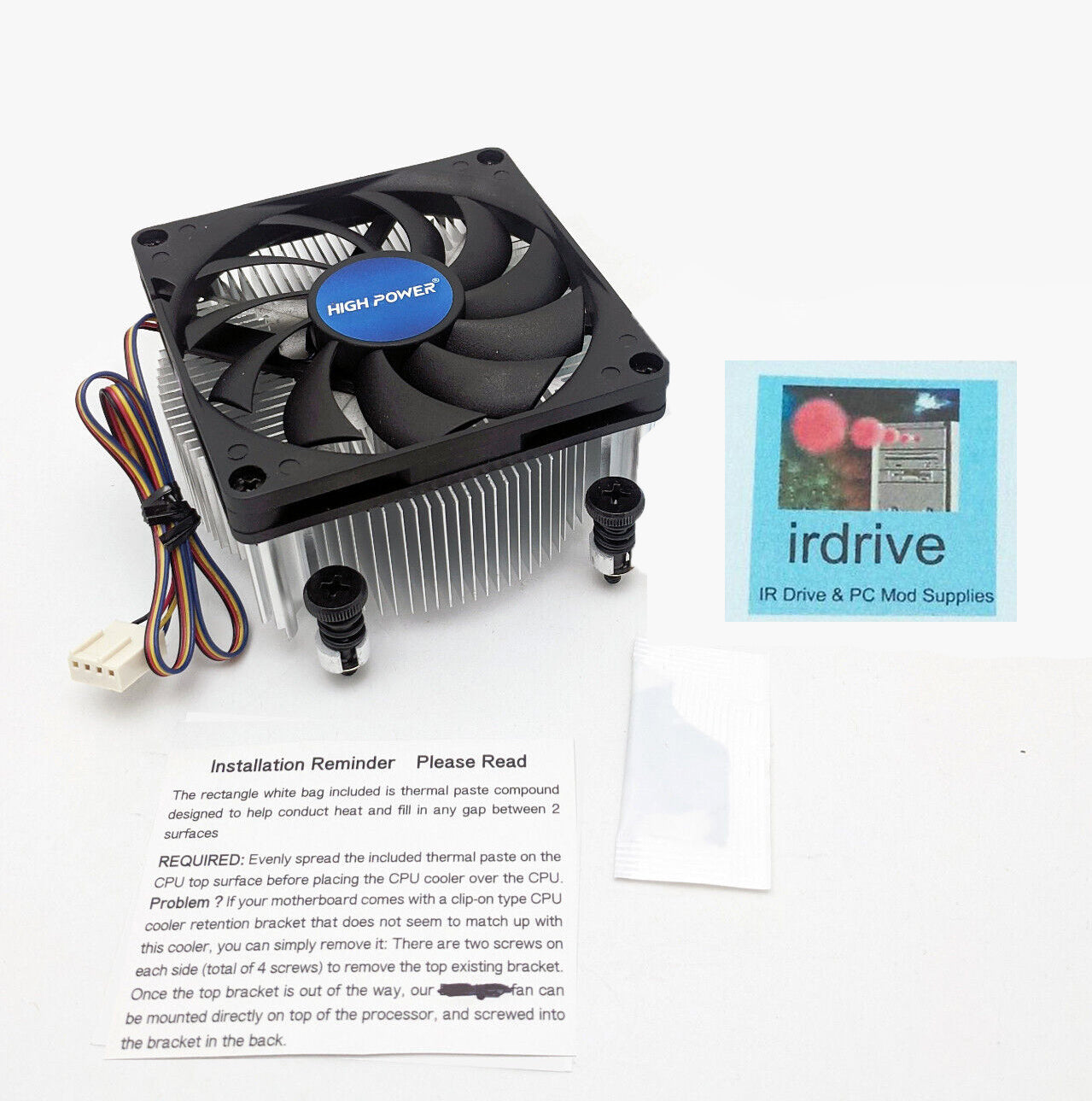

High Performance Thermal Grease Bag Included to Allow Liberal Application on Top of the CPU, or Quick Place-and-Attach using the Included Thermal Pad.



HIGH POWER® BlackAM4 AMD CPU Cooler has a height clearance of only 40mm to fit in mini ITX & 1U cases.  Although it is lower profile than the stock AMD fan, its efficient heatsink with high speed (4000RPM) 80mm fan delivers cooling capability that is not compromised.




    Features:

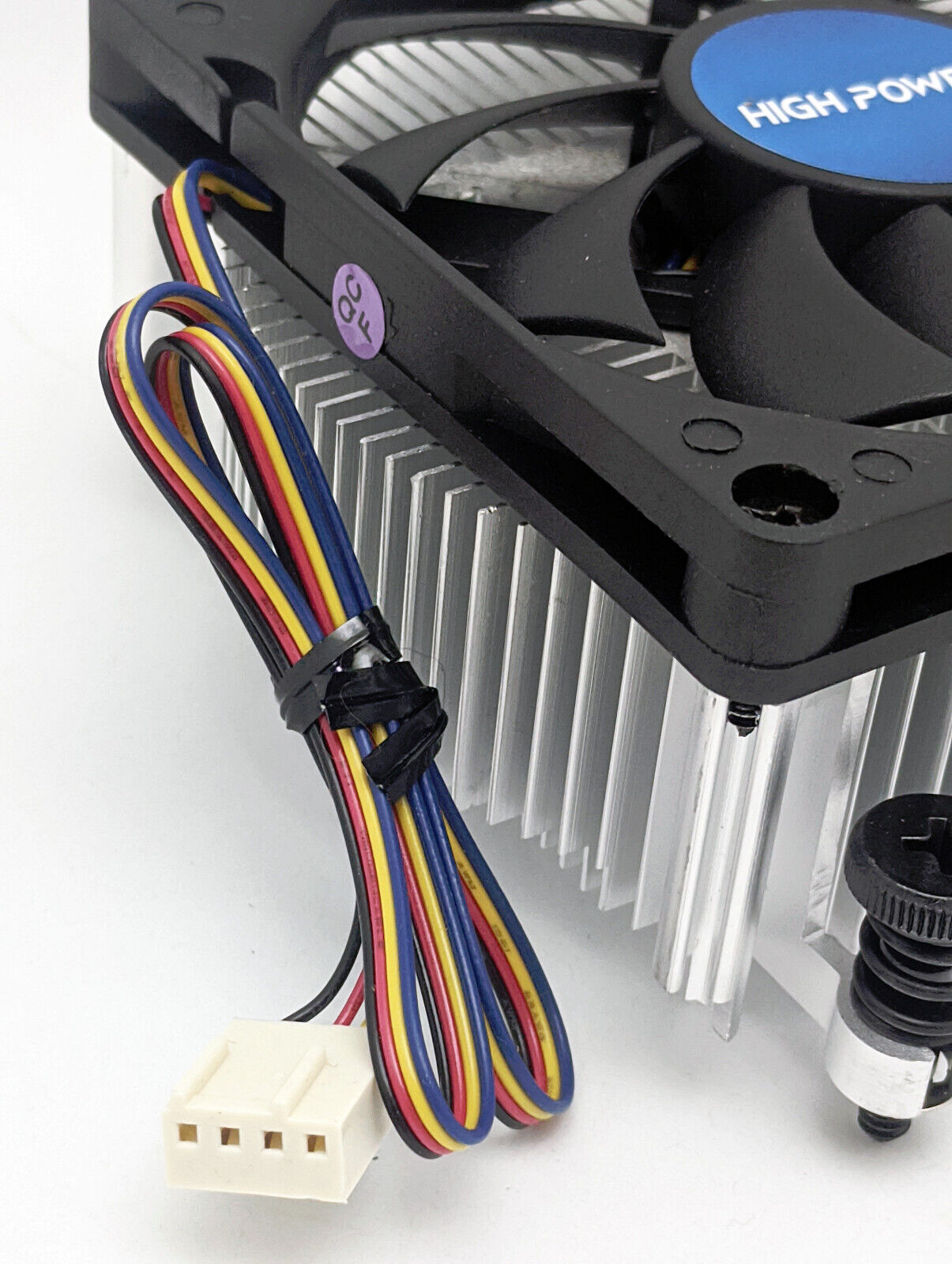

  • Air-Cool with 4-pin Power Connector, 4000 RPM Speed

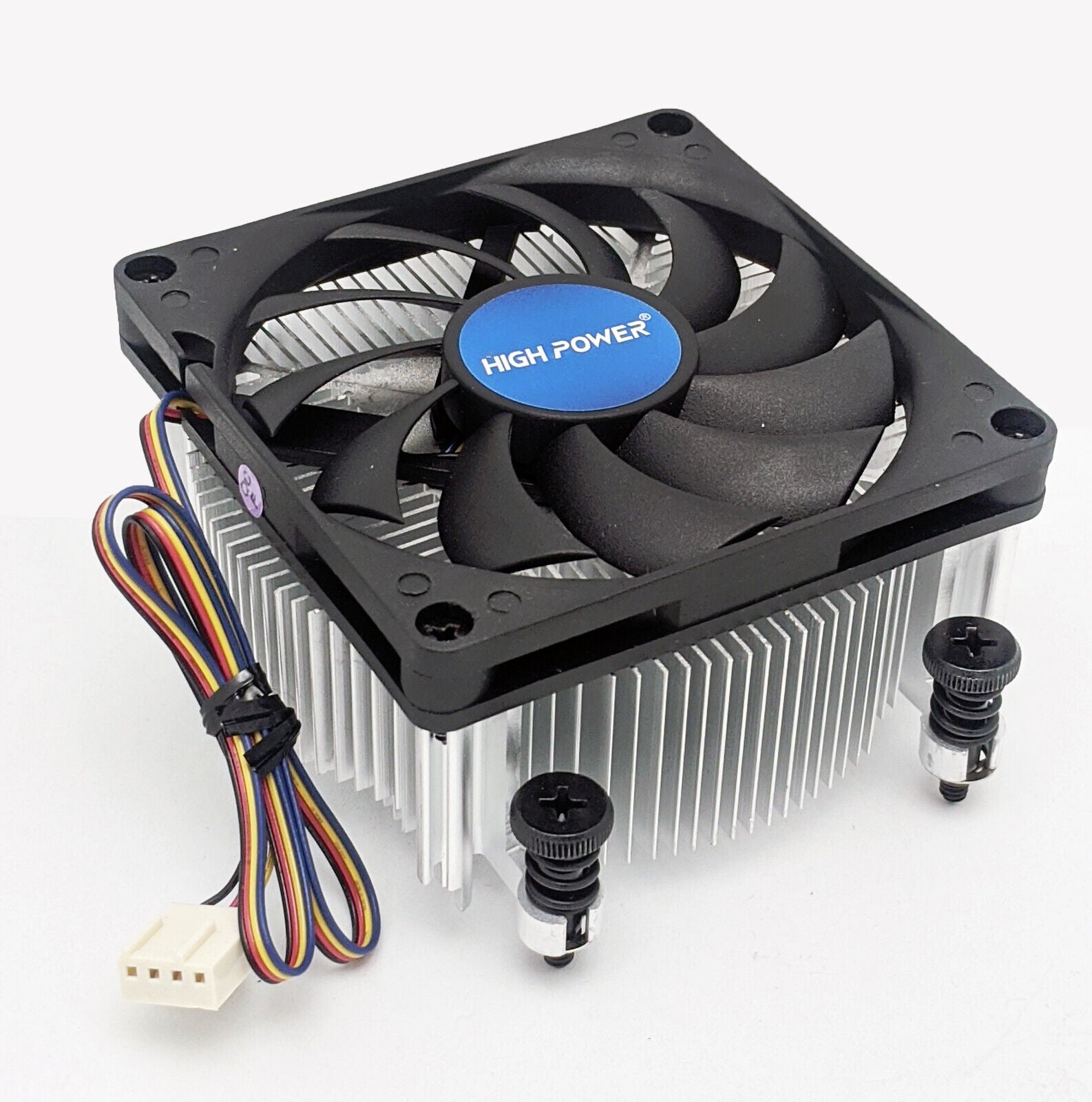

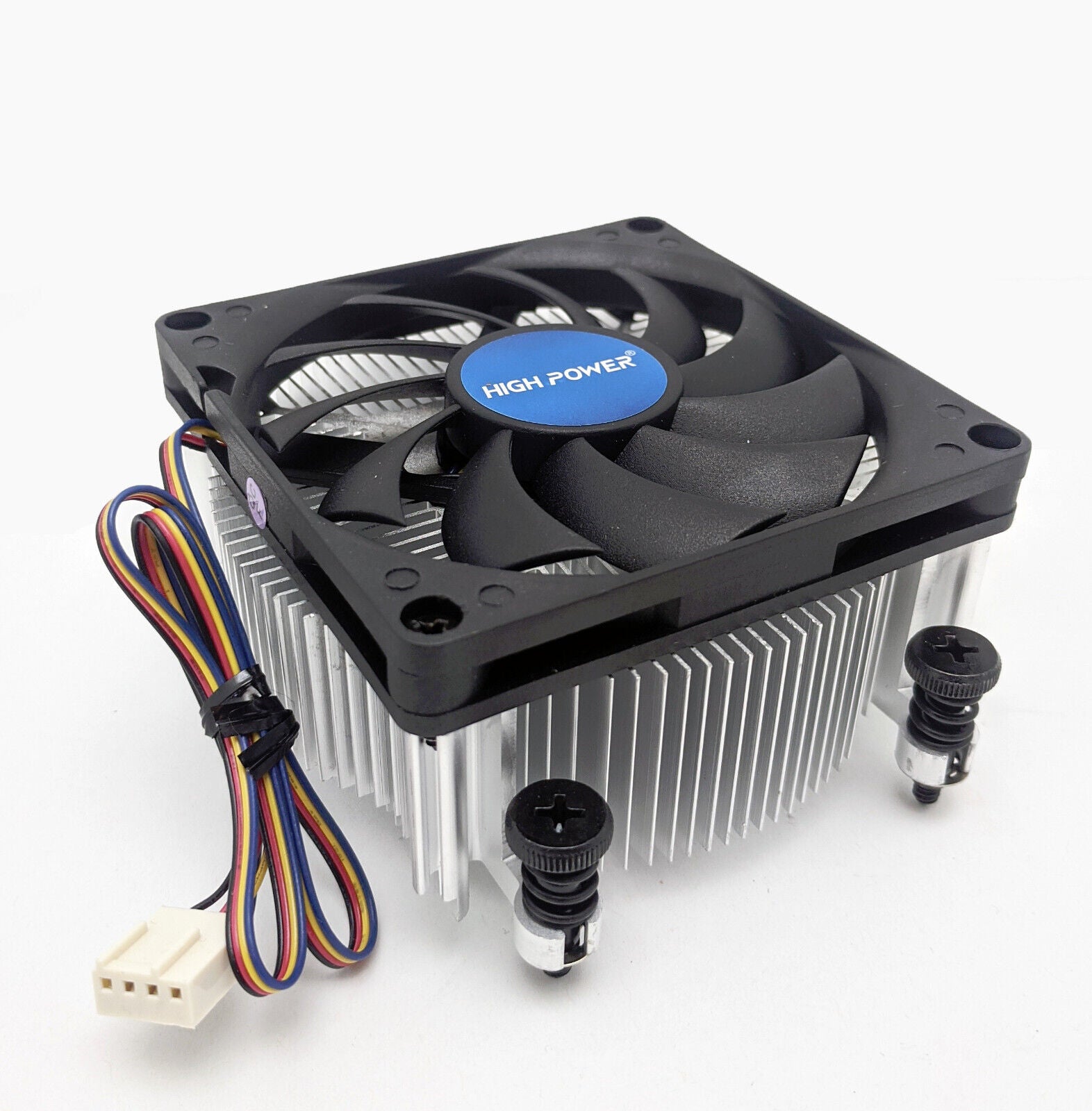

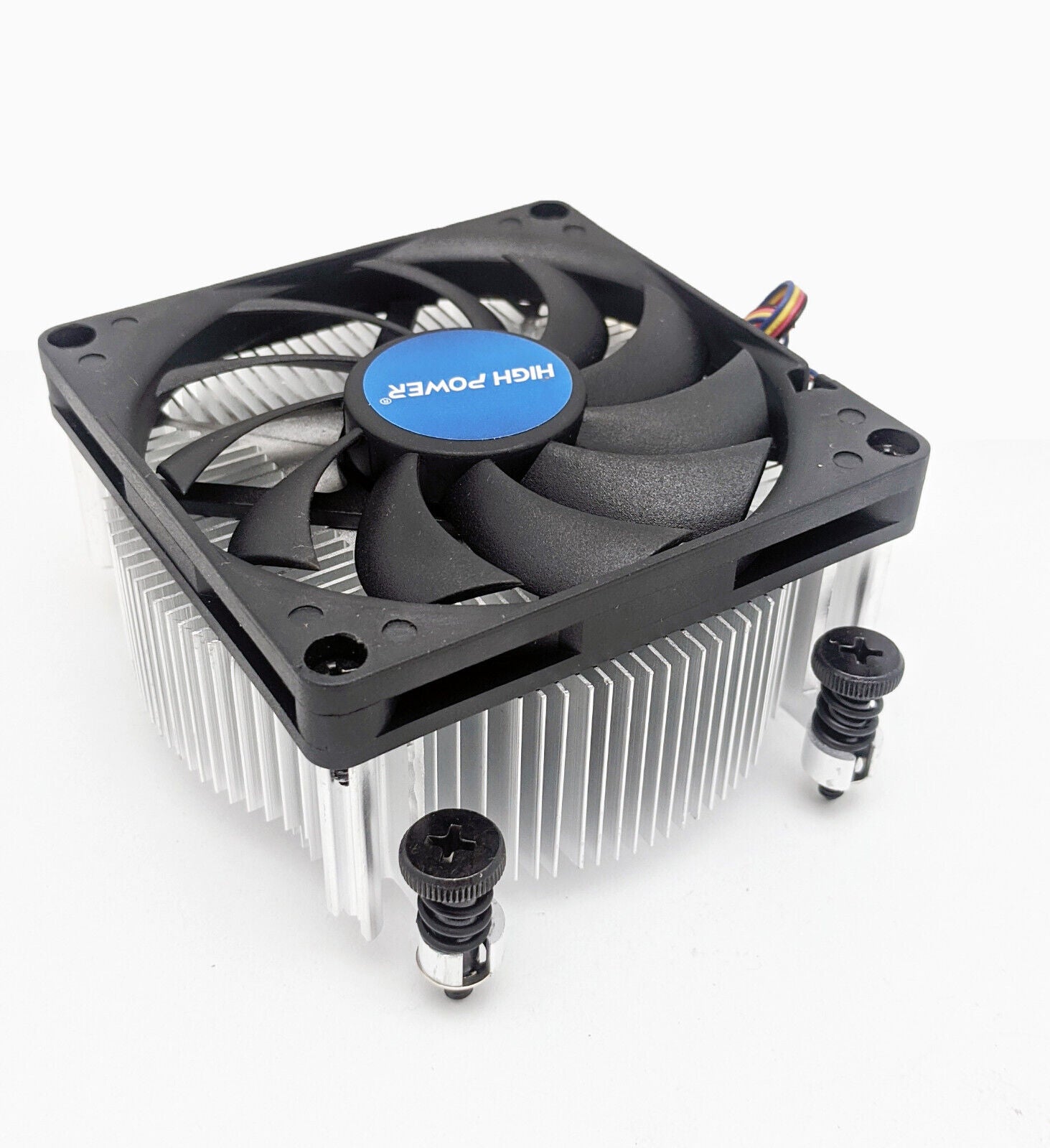

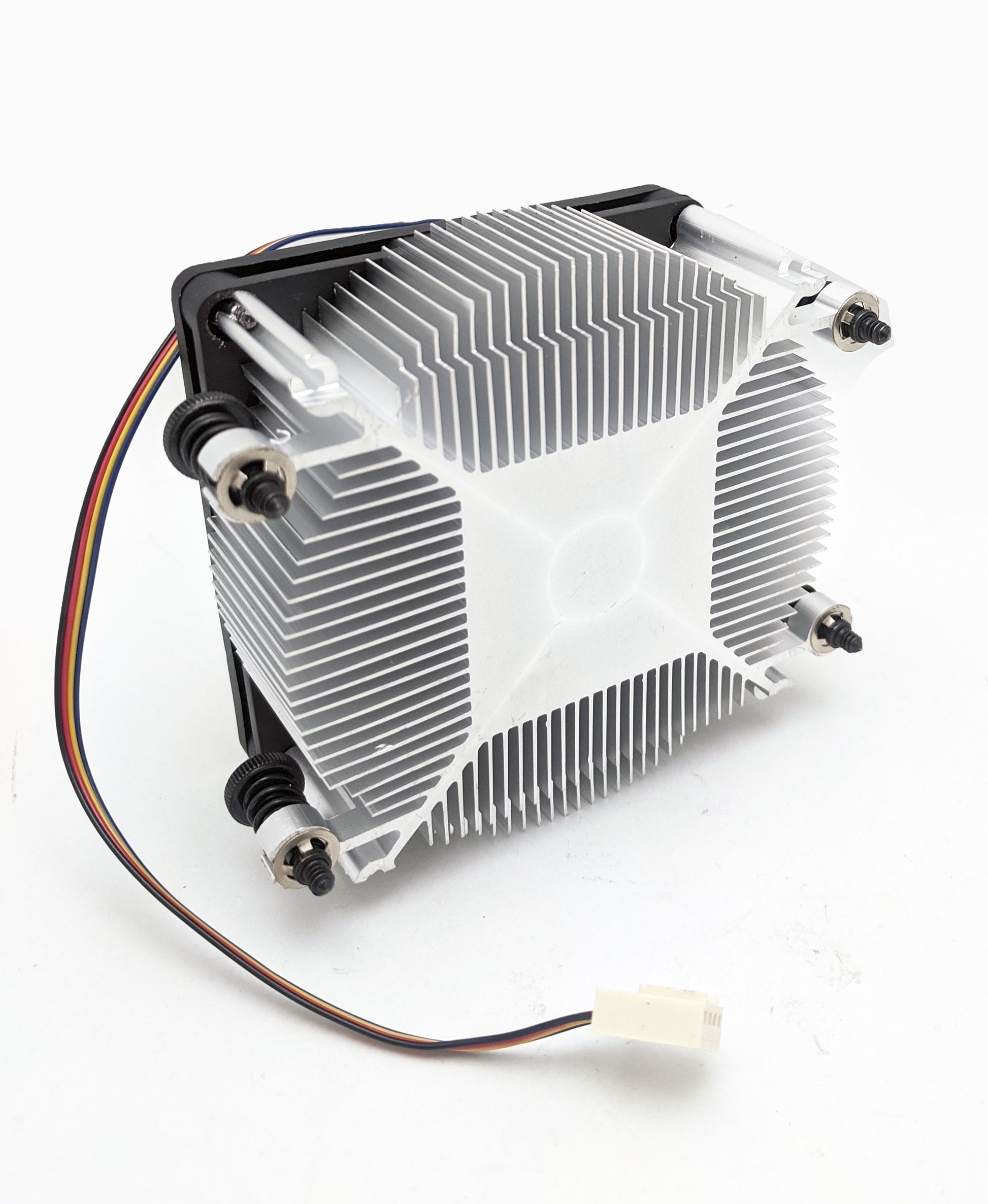

  • Secure Screw-Mount Direct to Gaming PC Motherboard's Back-plate, Replacing the Stock Plastic Clip-on Retention Brackets
  • TDP: 85W. Compatible with AMD Ryzen 5 / 7 / 9 CPU, Socket AM4 processors.
  • High Performance Thermal Grease Bag Included to Allow Liberal Application on Top of the CPU, or Quick Place-and-Attach using the Included Thermal Pad.
  • Height from Processor Contact to Top of the Fan: 40mm
  • FCC, CE, and RoHS Compliance




Technical Specifications:

  • Fan Size: 80x80x10mm
  • Bearing Type: Dual Ball Bearing
  • Connector: 2510 4pin
  • Rated Voltage: 12 VDC
  • Starting Voltage: 7 VDC
  • Operating Voltage Range: 7 VDC~ 13.8 VDC
  • Rated Current: 0.32A
  • Rated Power Consumption: 3.84W
  • Rated Speed: 1500 RPM±25% ~ 4000 RPM±10%
  • Airflow: 10.74CFM(ft3/min) ~ 28.24CFM(ft3/min)
  • Static Pressure: 0.01In-H2O ~ 0.08In-H2O
  • Noise Level: 15.8dBA ~ 33.5dBA
  • Life Expectancy: 50000 hrs at 25°C
